Availability:
2 in stock

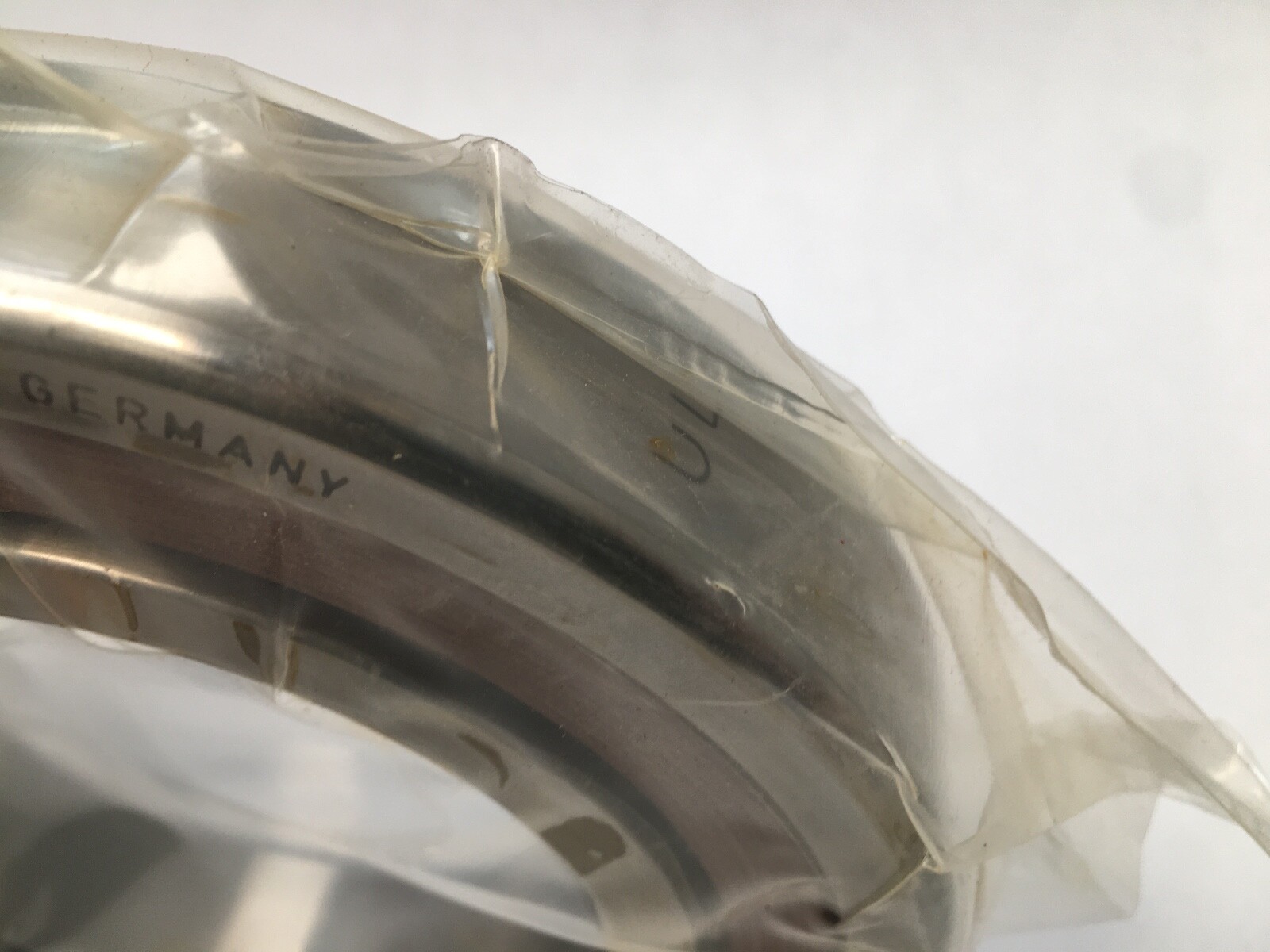

Super-precision angular contact spindle bearing, 80 x 140 x 26 mm, 15°, Light preload (549 N), P4S. Universal single bearing, phenolic cage, B72 series.
List Price
$269.24
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7216CTPAP4K5UL |
| Model | B7216C.TPA.P4S.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Series | B72 |
| Lubricant | Grease or oil |
| Preload | Light (549 N) |
| Mpn Variants | B7216-C-T-P4S-UL, B7216C.TPA.P4S.UL, B7216C.T.P4S.UL, B7216C.TPA.P4.UL, B-7216-C-TPA-P4-K5-UL, B7216C, 7216C |
| Precision Class | P4S (better than ABEC 7 / P4) |
| Min Temp | -30 °C |
| Cage Type | Laminated fabric cage |
| Dynamic Load Rating | 94,000 N |
| Static Load Rating | 55,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.403 kg (3.09 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 10,000 rpm grease; 17,000 rpm oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM216WI CR SUL |
|---|---|
| Cross Reference 2 | NSK 7216CTRSULP4 |
| Cross Reference 3 | SKF 7216 CD/P4ADGA |
FAG B7216-C-T-P4S-UL is a super-precision angular contact spindle bearing in the B72 series. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 15°. Preload: Light (549 N). Precision Class: P4S. Universally matchable single bearing for pairs or sets in back-to-back, face-to-face or tandem arrangement.
B72 — FAG spindle bearing, ISO dimension series 02; bore code 16 = 80 mm.
C — contact angle 15°.
T / TPA — laminated fabric (phenolic) cage; TPA is the earlier marking of the same cage family.
P4S — FAG tolerance class, better than ISO P4 / ABEC 7.
UL — universal single bearing, Light preload when paired.
Dynamic Load Rating: 94,000 N. Static Load Rating: 55,000 N. Fatigue Load Limit: 5,500 N. Limiting Speed: 10,000 rpm grease; 17,000 rpm oil. Preload: Light, 549 N (lift-off force 1,701 N, axial rigidity 94 N/µm). Medium preload for this size is 1,721 N and Heavy 3,412 N. Operating Temperature: -30 to 100 °C. Cage Material: Phenolic. Item Weight: 1.403 kg (3.09 lb).
Shaft Shoulder Diameter: 91 mm (h12). Housing Shoulder Diameter: 129 mm (H12). Pressure Cone Apex Distance: 27.7 mm. Minimum Chamfer: 2 mm. Maximum Fillet Radius: 2 mm. Lubrication Jet Pitch Diameter: 100.5 to 105.3 mm.
Current Schaeffler designation B7216-C-T-P4S-UL replaces B7216C.T.P4S.UL and B7216C.TPA.P4.UL. Same envelope, 15° angle and light universal preload as Fafnir 2MM216WI CR SUL, NSK 7216CTRSULP4 and SKF 7216 CD/P4ADGA.
