Super-precision angular contact spindle bearing, 25 x 52 x 15 mm, 15° contact angle, ABEC 7 / P4, phenolic cage, universally matchable light preload.
List Price
$95.63
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7205C.TPA.P4.UL |
| Model | B-7205-C.TPA.P4.K5.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Material | Bearing Steel |
|---|---|
| Series | B72 |
| Preload | Light |
| Base Number | B7205 |
| Overall Width | 15 mm |
| Mpn Variants | B7205C.TPA.P4.UL; B-7205-C-TPA-P4-UL; B7205CTPAP4UL; B7205C.T.P4S.UL; B7205-C-T-P4S-UL; B7205C.TPA.P4.K5.UL; 7205-TG |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Fatigue load limit 650 N; distance between the apexes of the pressure cones 12.7 mm; diameter shaft shoulder 31.5 mm h12; shoulder diameter outer ring 45.5 mm H12; maximum recess radius 1 mm inner / 0.3 mm outer; minimum chamfer dimension 1 mm; oil injection pitch diameter 34.4 to 36.5 mm; preload light 80 N, medium 265 N, heavy 531 N; lift-off force light 248 N, medium 906 N, heavy 1,949 N; axial rigidity light 30, medium 53, heavy 77 N per micrometre |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 14,800 N |
| Static Load Rating | 6,100 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.132 kg (0.29 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 28,000 rpm grease; 43,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Bearing Material | Chrome steel |
| Closure Type | Open |
| Cross Reference 1 | FAG B7205-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 7205 CD/P4A |
| Cross Reference 3 | NSK 7205CTYNSULP4 |
| Cross Reference 4 | NTN 7205C/GNP4 |
| Cross Reference 5 | Timken Fafnir 2MM205WI |
| Cross Reference 6 | RHP 7205CTSUEP4 |

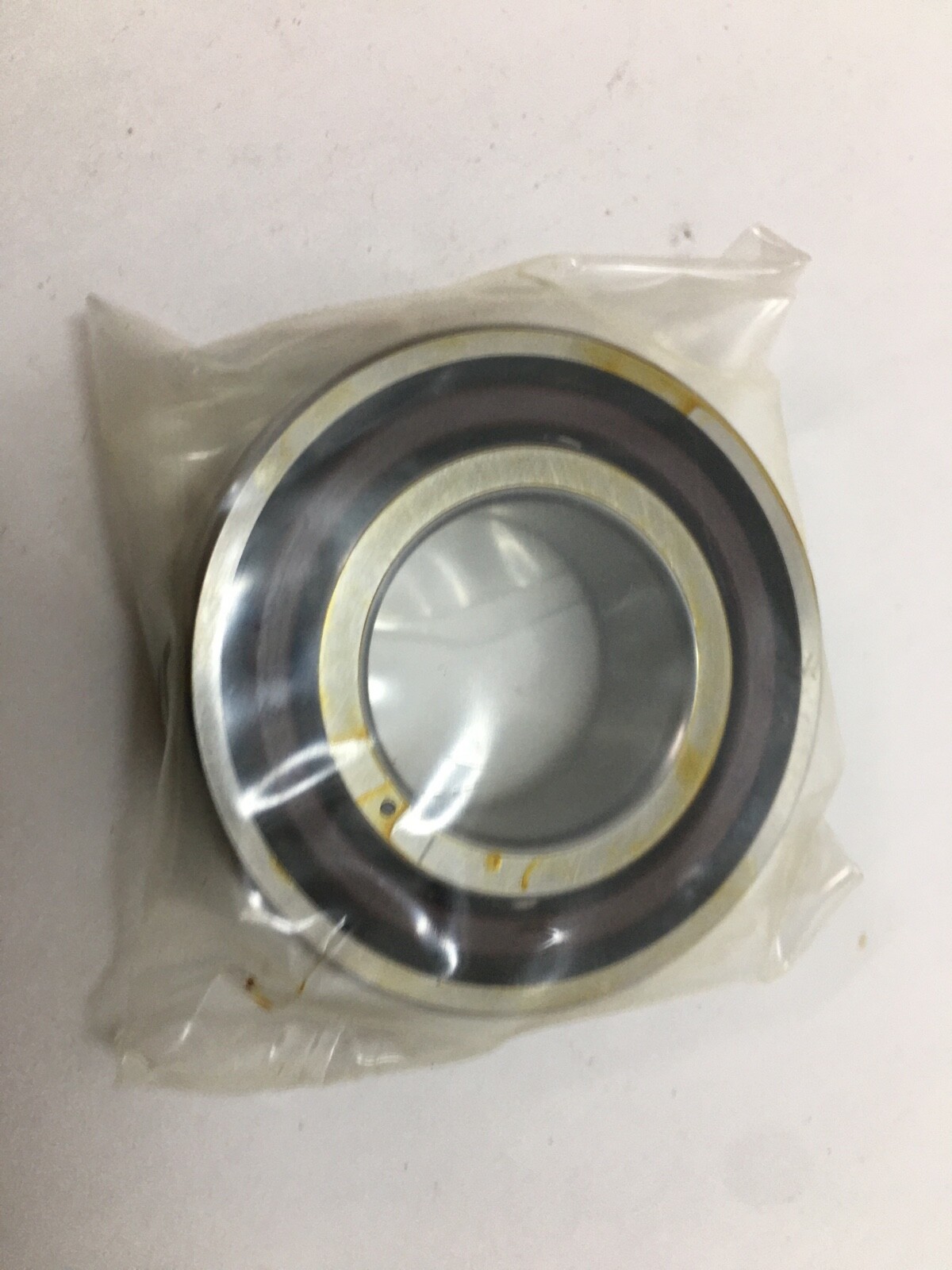

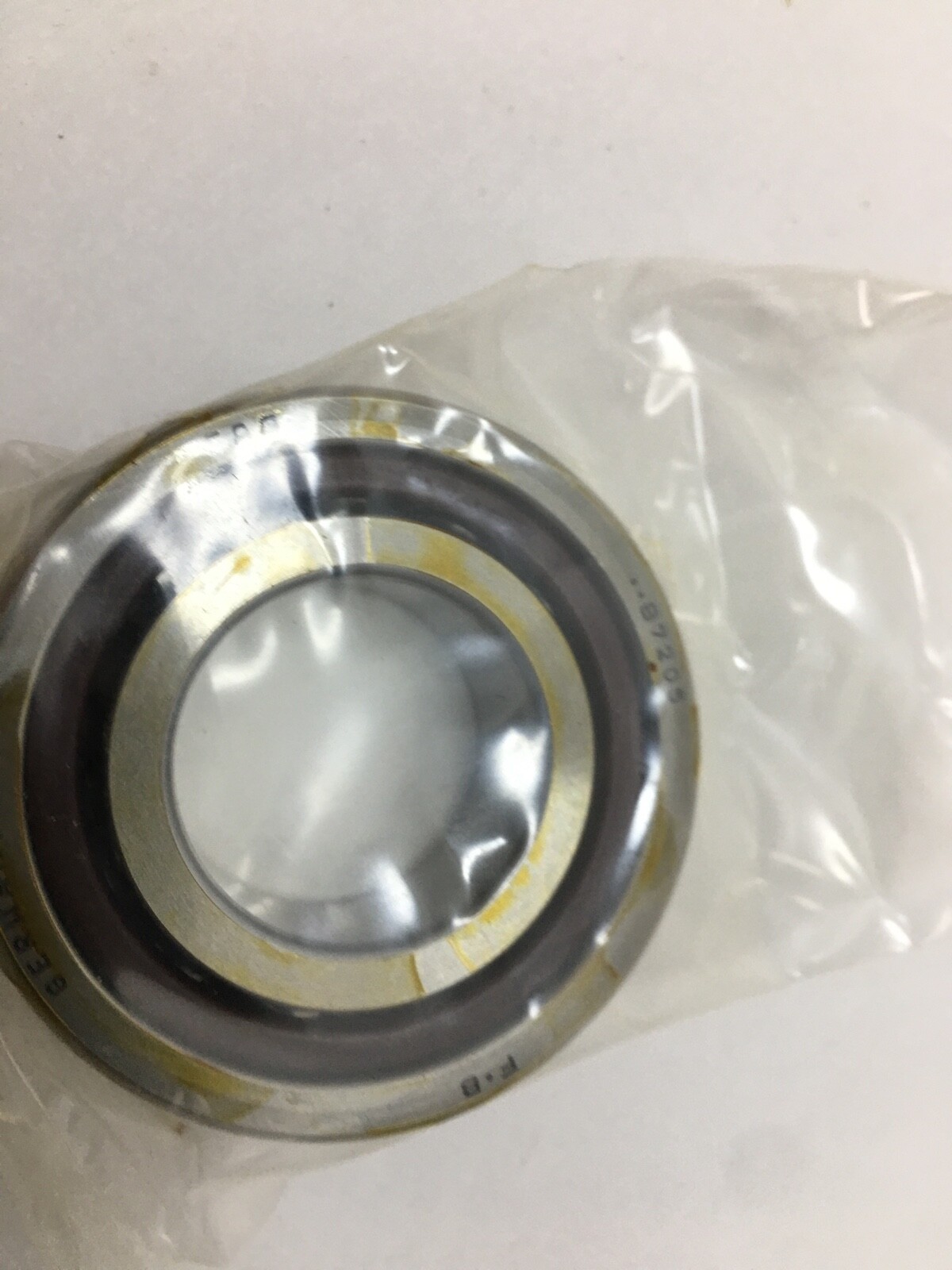

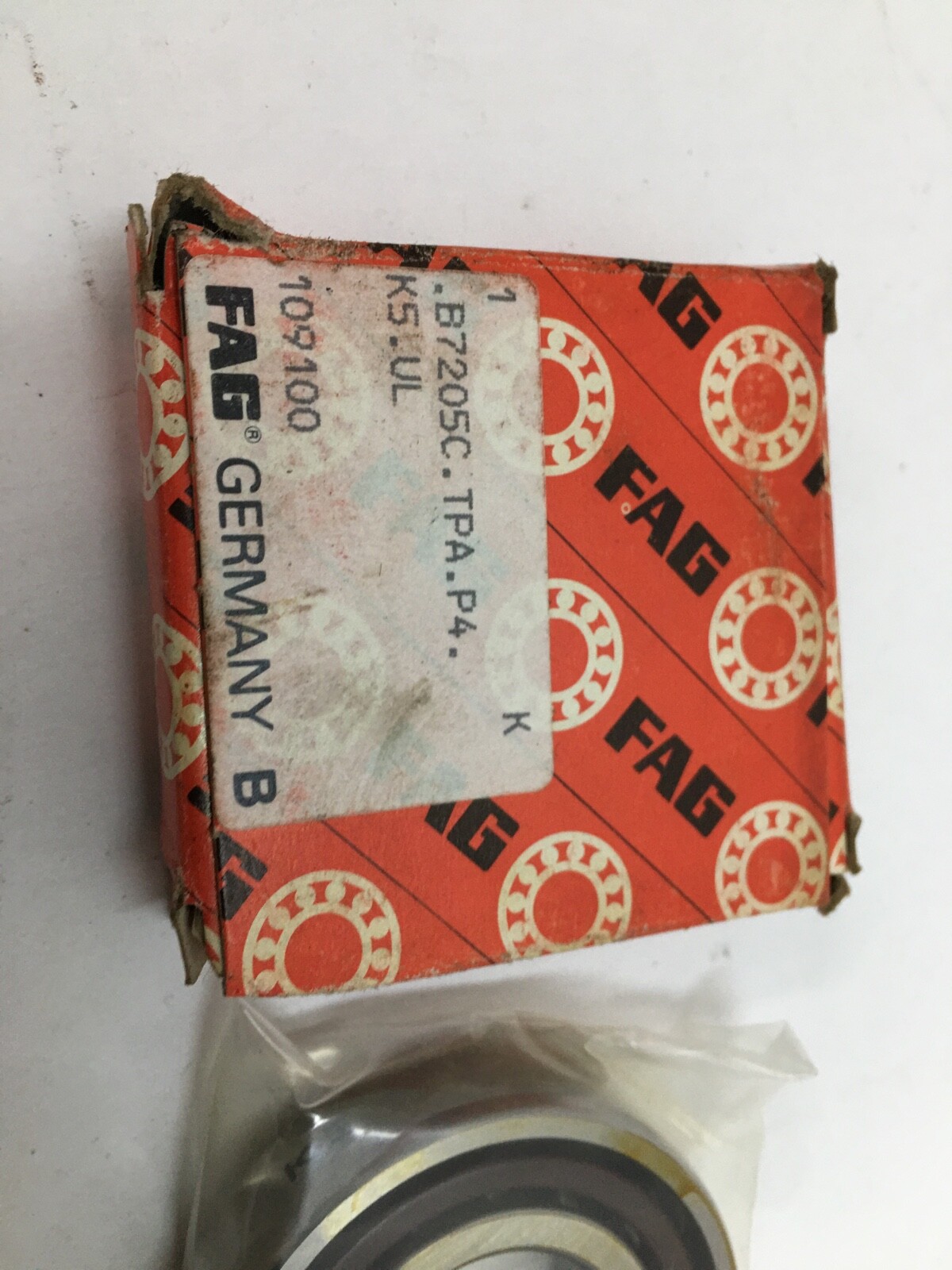

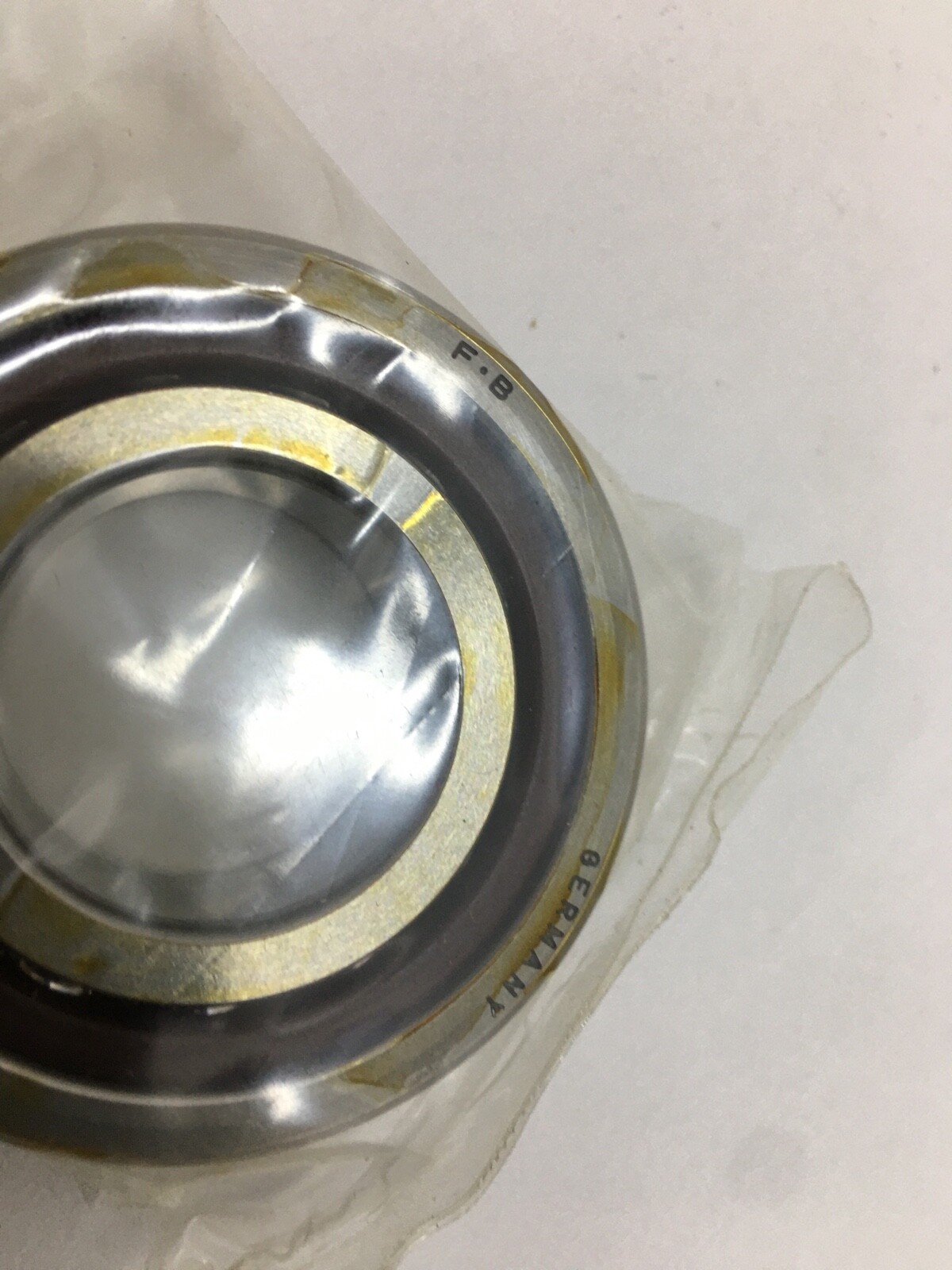

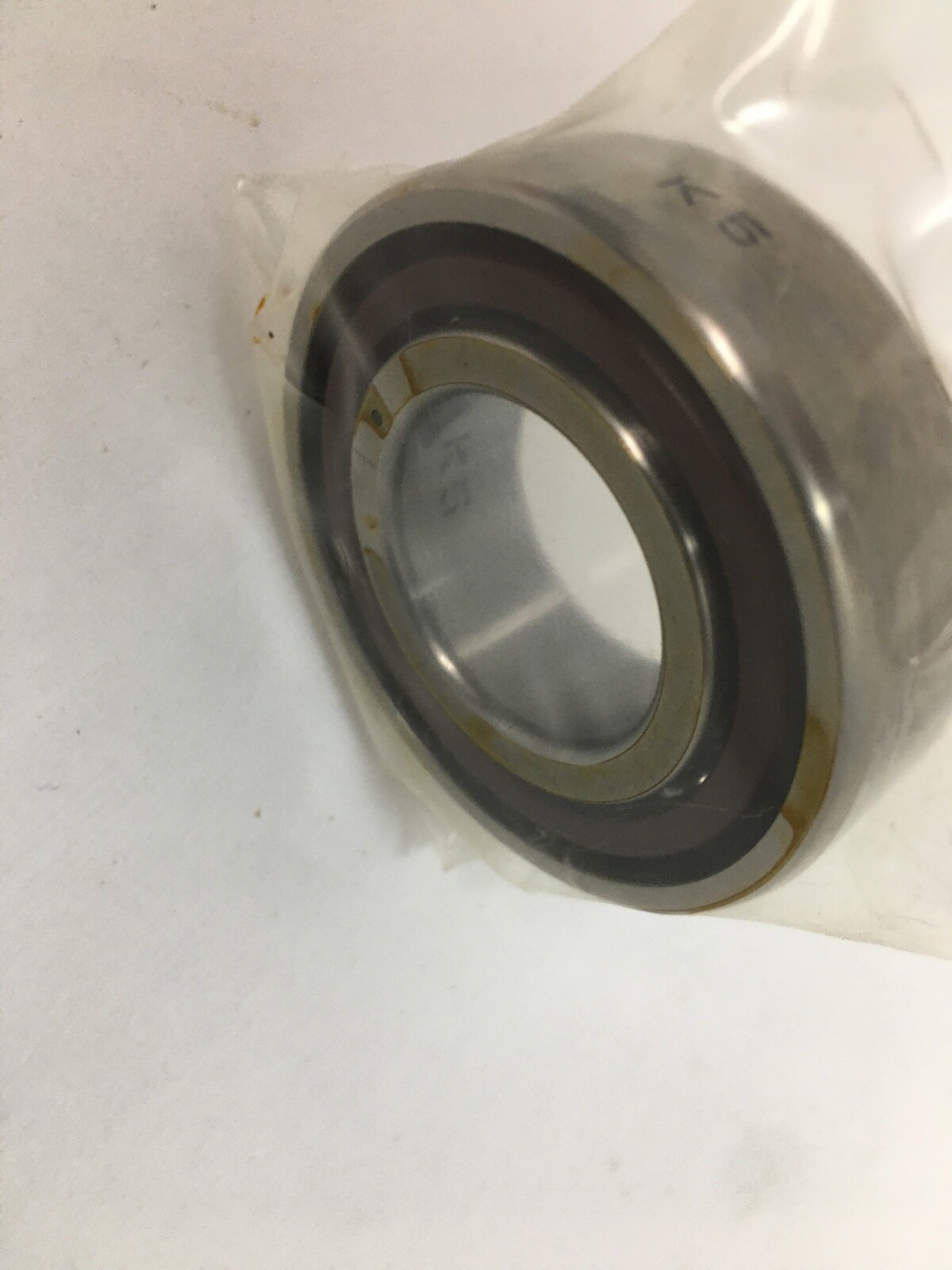

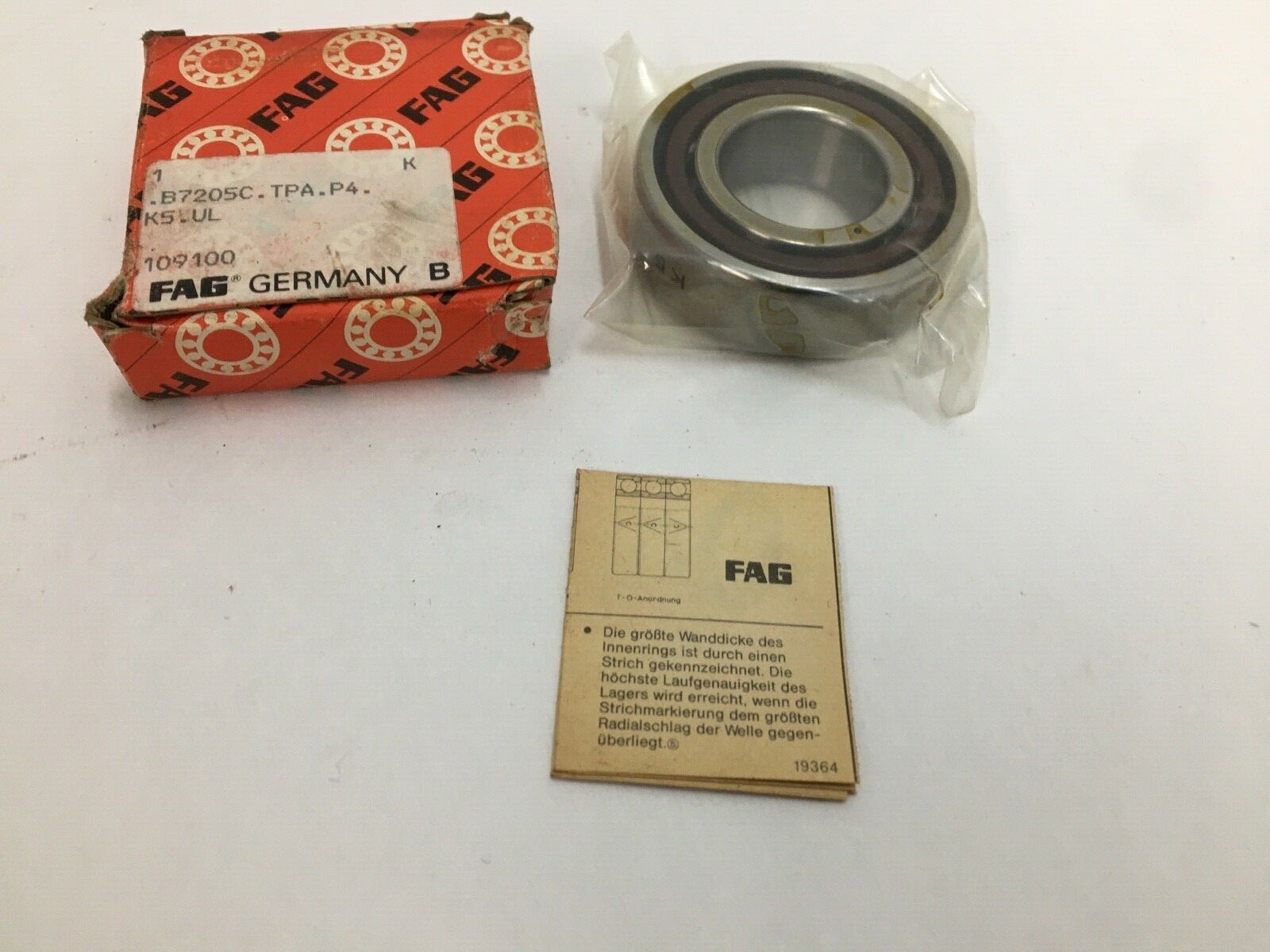

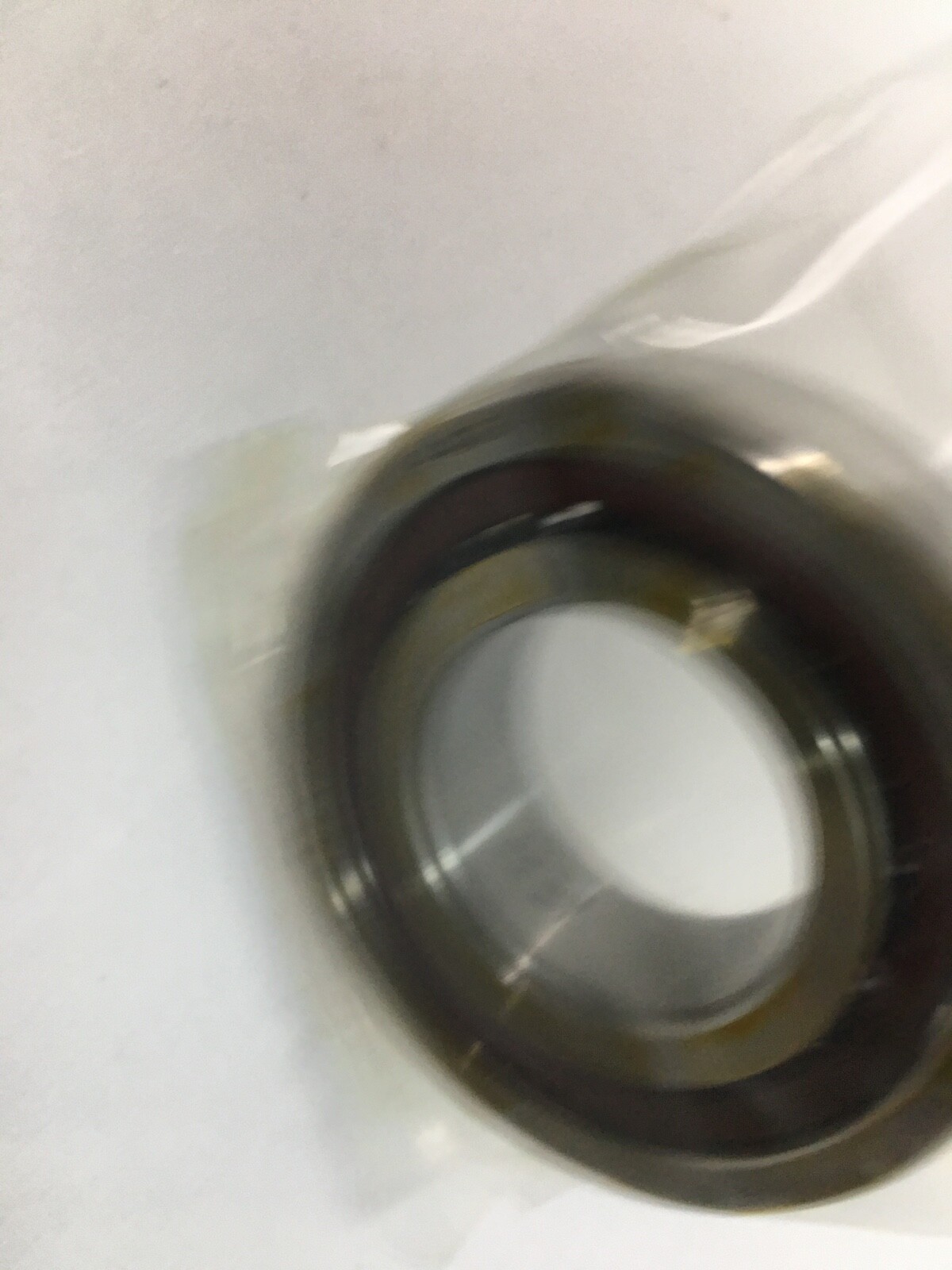

FAG B7205C.TPA.P4.UL super-precision angular contact spindle bearing, universally matchable, light preload. 25 mm bore, 52 mm outside diameter, 15 mm width, 15° contact angle. Unit Quantity: 1 Pc, open on both faces.
B72 — FAG spindle bearing, heavy 02 dimension series.
05 — bore code. Bore Diameter: 25 mm.
C — 15° contact angle. On the FAG B-series the alternative is E at 25°.
TPA — fabric-base laminate phenolic cage, machined.
P4 — tolerance class P4, equivalent to ABEC 7.
UL — universally matchable, light preload. Any two bearings of this designation can be arranged back-to-back, face-to-face or in tandem.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Contact Angle: 15°. Dynamic Load Rating: 14,800 N. Static Load Rating: 6,100 N. Fatigue Load Limit: 650 N. Limiting Speed: 28,000 rpm grease; 43,000 rpm oil. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined. Preload: Light, 80 N. Lift-Off Force: 248 N. Axial Rigidity: 30 N/µm. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Lubricant: grease or oil. Item Weight: 0.132 kg (0.29 lb). Bearing Material: Chrome steel. Operating Temperature: -30 to 100 °C. Series: B72. Base Number: B7205.
Distance between the apexes of the pressure cones: 12.7 mm. Shaft shoulder diameter: 31.5 mm, tolerance h12. Outer ring shoulder diameter: 45.5 mm, tolerance H12. Maximum recess radius: 1 mm on the inner ring face, 0.3 mm on the outer. Minimum chamfer dimension: 1 mm. Oil injection pitch diameter: 34.4 mm minimum to 36.5 mm maximum.
Related 25 x 52 x 15 mm, 15°, P4 designations: FAG B7205-C-T-P4S-UL, NSK 7205CTYNSULP4, Timken Fafnir 2MM205WI, SKF 7205 CD/P4A, NTN 7205C/GNP4, RHP 7205CTSUEP4. Cage material and preload suffix vary by maker. Also written B7205C.TPA.P4.K5.UL, B-7205-C-TPA-P4-UL, B7205CTPAP4UL, B7205C.T.P4S.UL and 7205-TG.
Bore 25 mm, outside diameter 52 mm, width 15 mm.
15° contact angle and light preload of 80 N.
14,800 N dynamic and 6,100 N static; 28,000 rpm grease and 43,000 rpm oil.
