Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Super-precision angular contact bearing, 70 x 100 x 16 mm, 15° contact angle, P4 (ABEC 7), phenolic cage, universal Light preload 170 N, 14,000 rpm grease.
List Price
$187.08
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B71914CTPAP4UL |
| Model | B 71914C TPA P4 UL / 7914-C / 2MM9314 / |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 100 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 71900 |
| Preload | Light (170 N) |
| Base Number | 71914 |
| Industry Terms | spindle bearing; super precision angular contact bearing; machine tool bearing; ABEC 7 angular contact bearing; thin section spindle bearing |
| Application Types | Machine tool spindles; grinding spindles; milling heads; high-speed motor spindles |
| Mpn Variants | B71914C.TPA.P4.UL; B71914-C-TPA-P4-UL; B71914CTPAP4UL; B71914C; B71914-C-T-P4S-UL; 71914C; 7914C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 34,500 N |
| Static Load Rating | 23,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.322 kg (0.71 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 14,000 rpm grease; 20,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (UL), any paired arrangement |
| Cross Reference 1 | SKF 71914 CD/P4A |
|---|---|
| Cross Reference 2 | NSK 7914CTRSULP4 |
| Cross Reference 3 | Fafnir 2MM9314WI-SUL |
| Cross Reference 6 | FAG B71914-C-T-P4S-UL (current Schaeffler designation) |

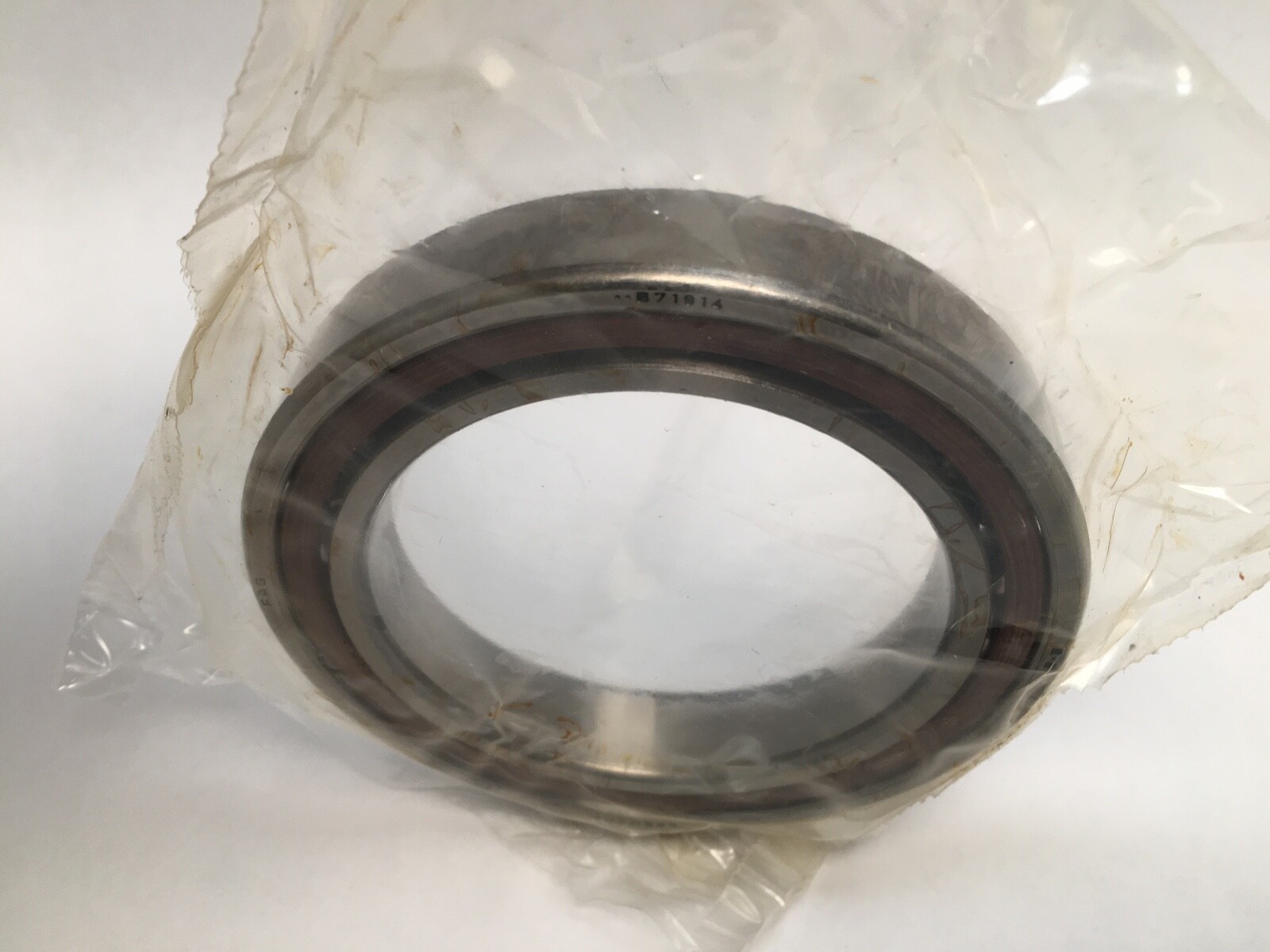

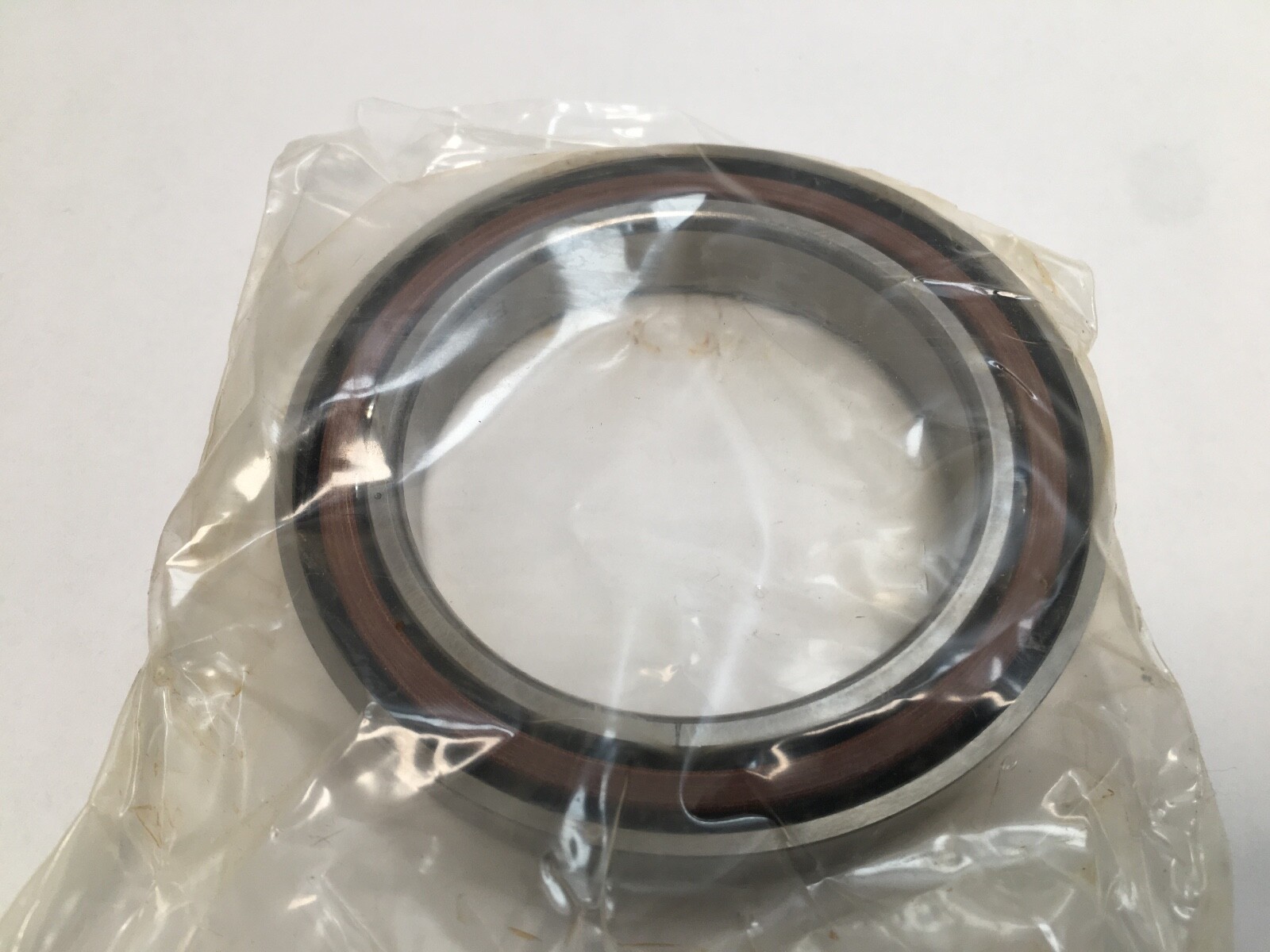

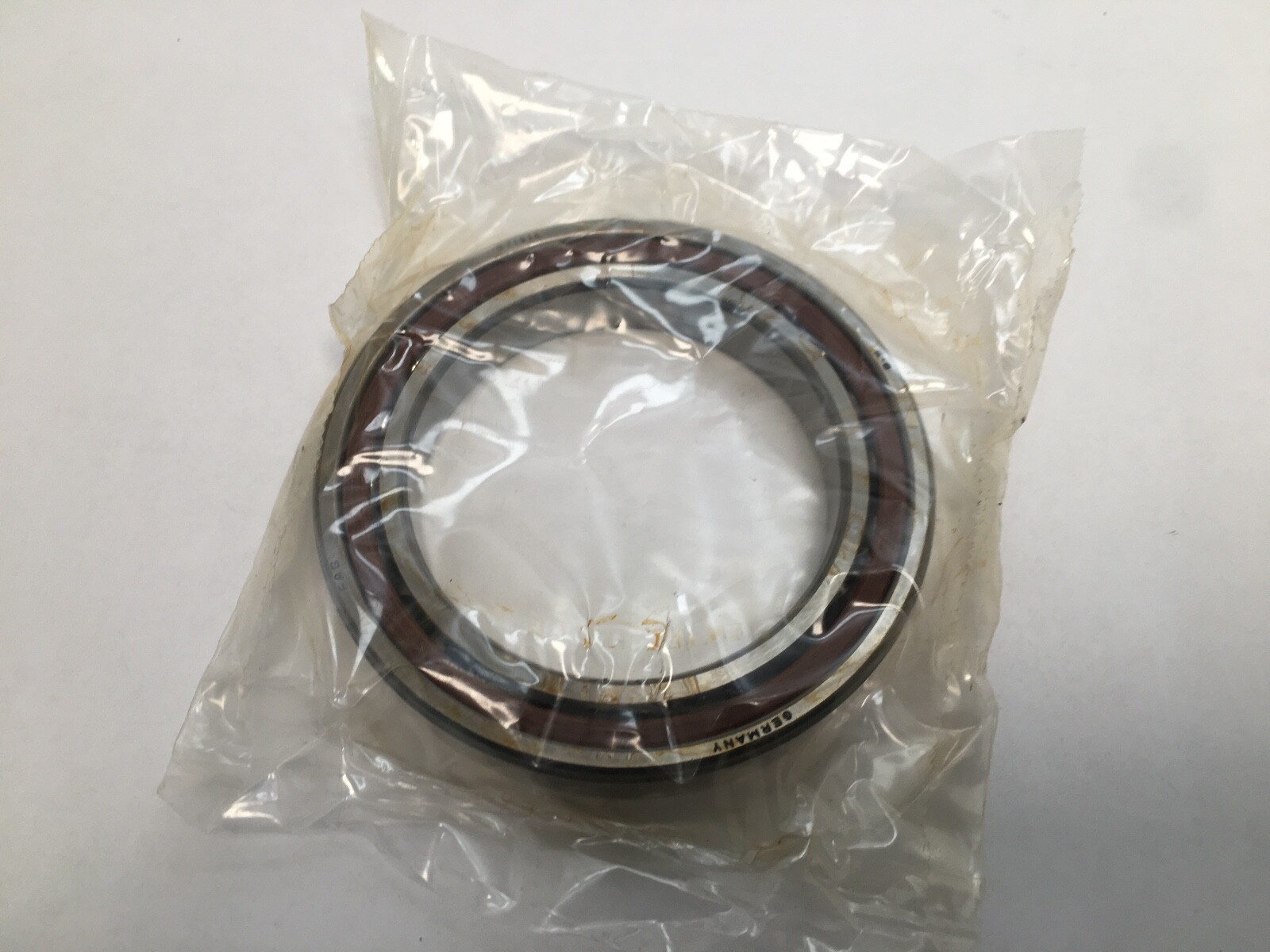

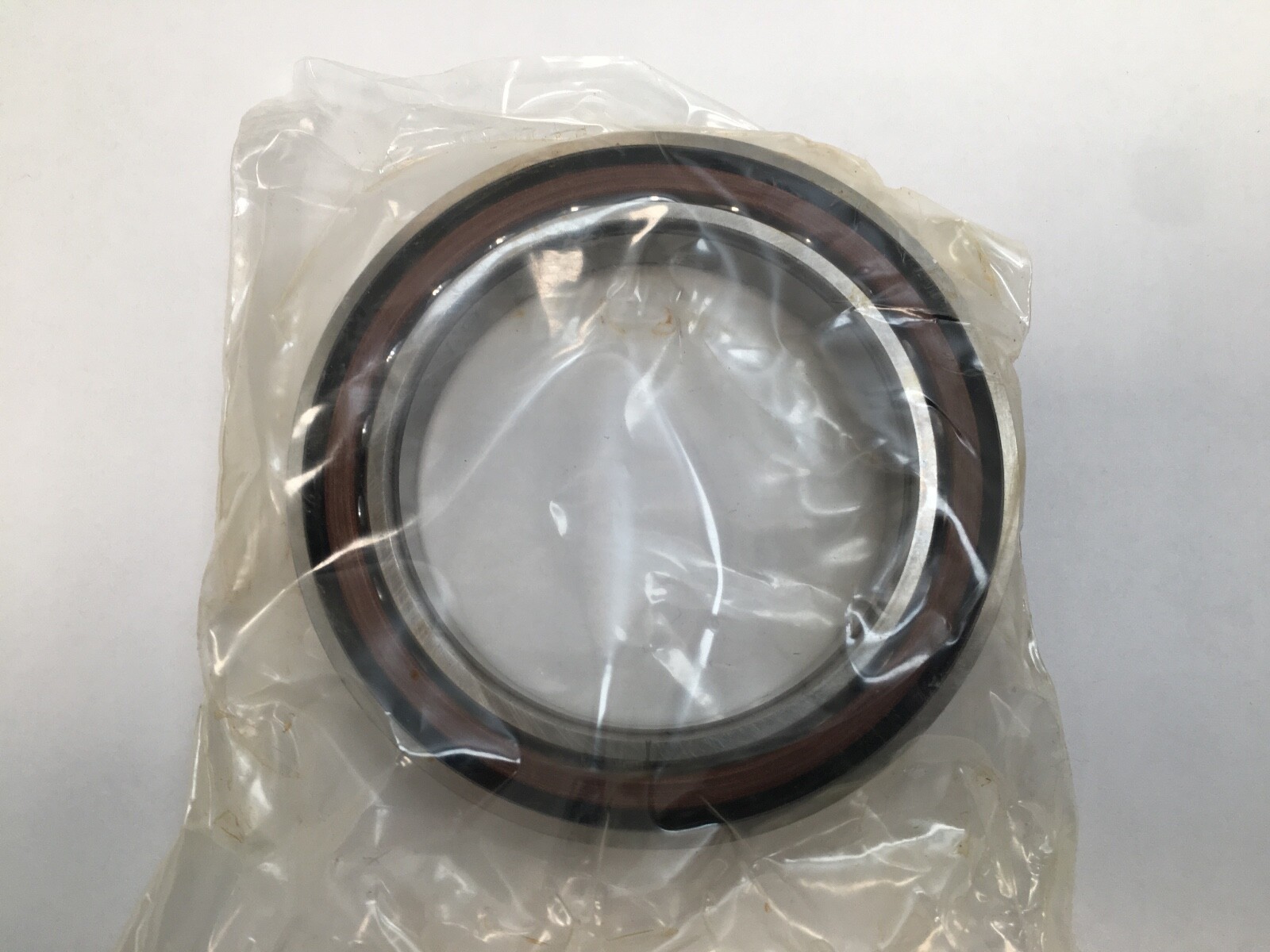

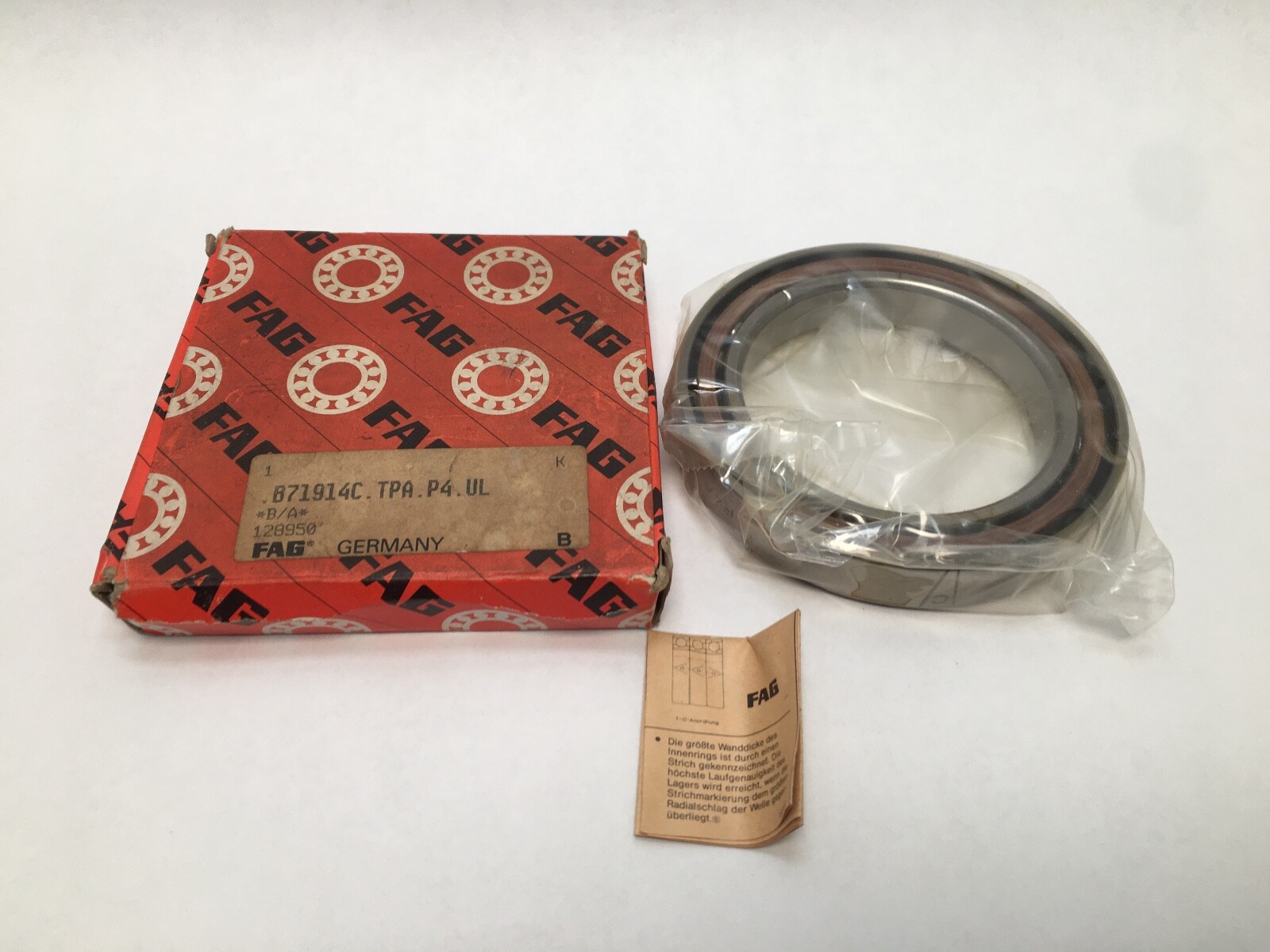

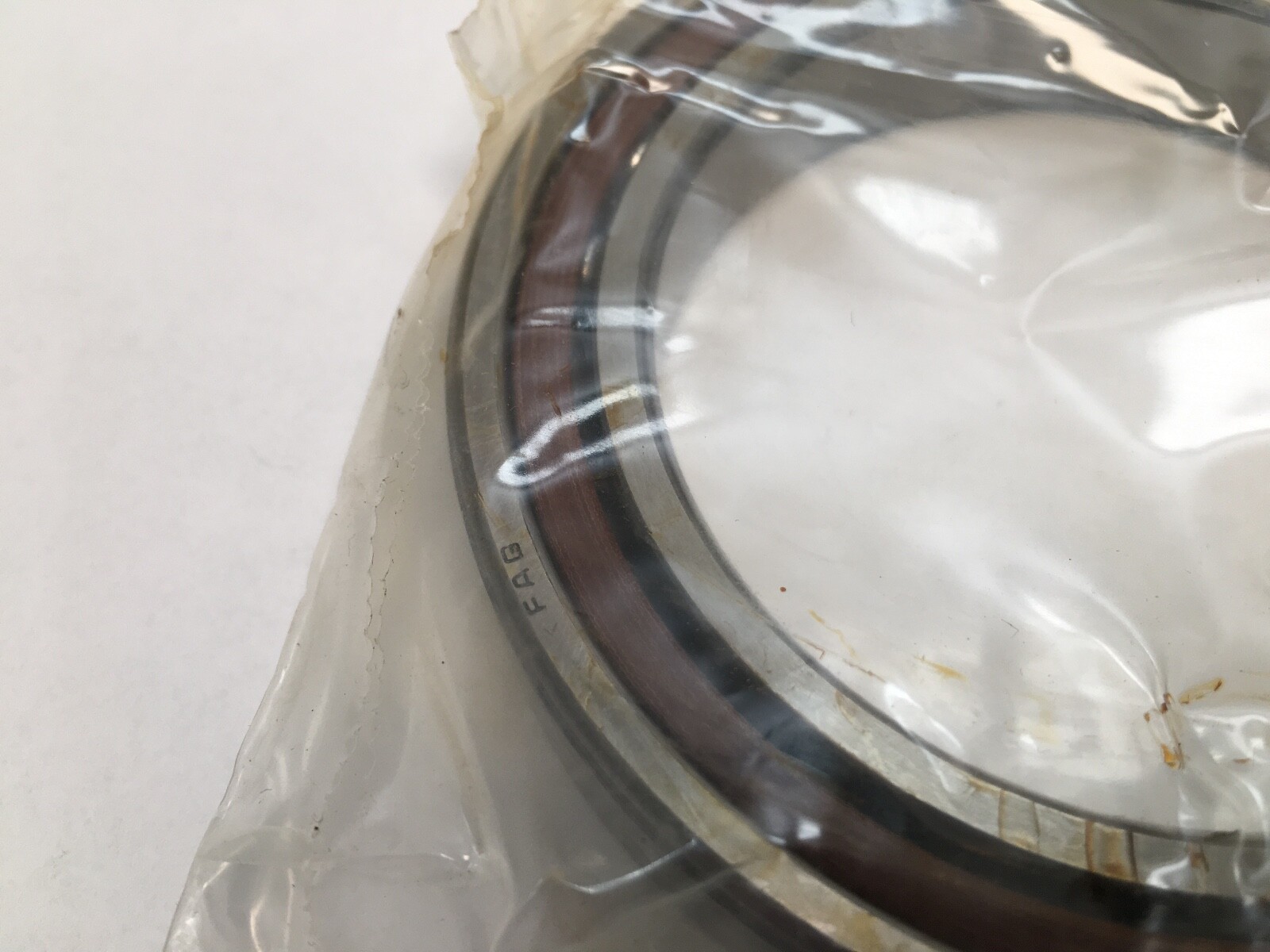

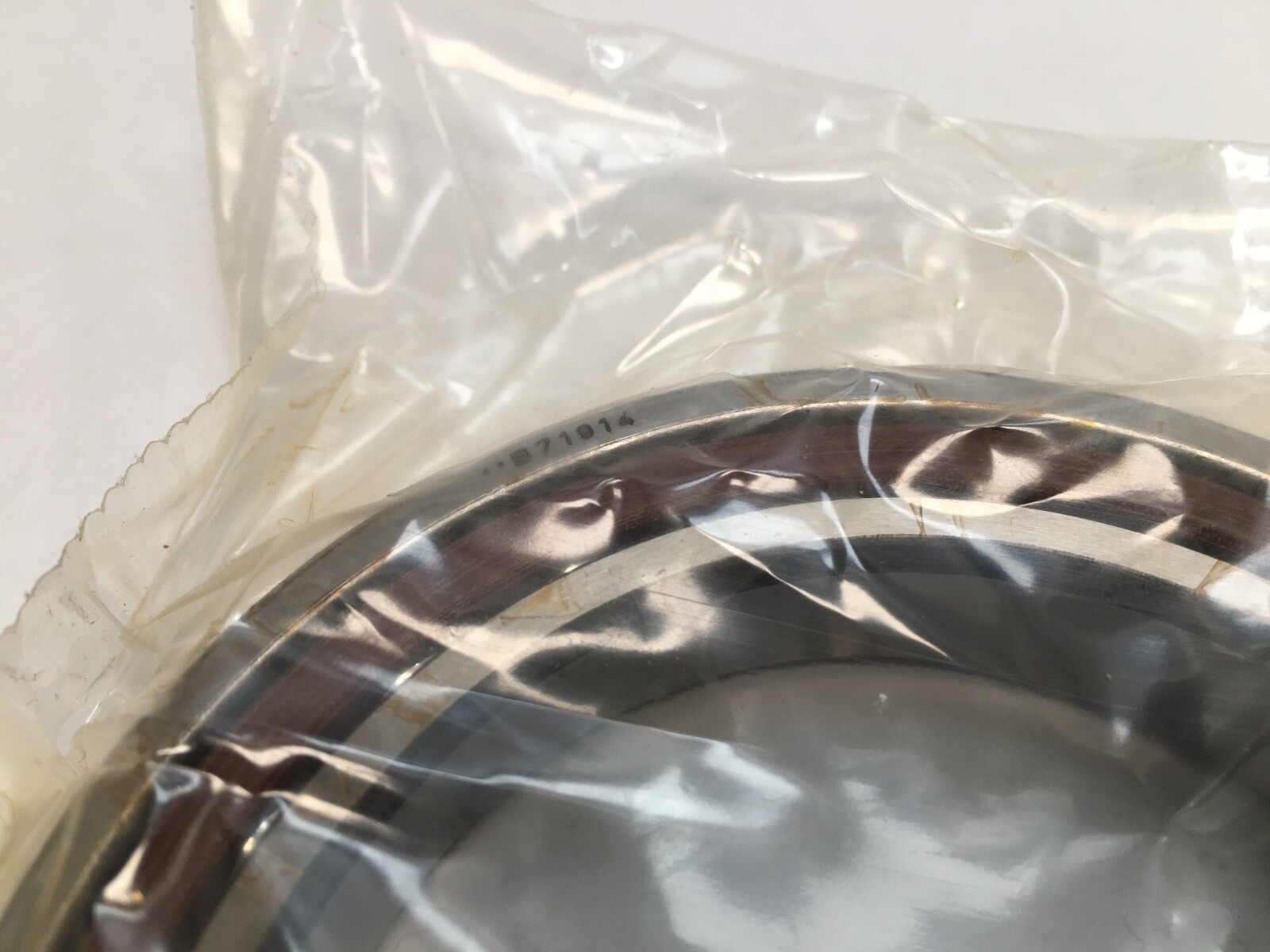

FAG B71914C.TPA.P4.UL super-precision angular contact ball bearing, single row, for machine tool spindles. Bore Diameter: 70 mm. Outside Diameter: 100 mm. Width: 16 mm. Contact Angle: 15°. Seal Type: Open.
B — FAG spindle bearing.
719 — ISO dimension series 19, a thin cross-section.
14 — bore code, 14 × 5 = 70 mm.
C — 15° contact angle.
TPA — fabric-base laminated phenolic cage.
P4 — ISO P4 precision, ABEC 7.
UL — universal flush-ground faces for any paired arrangement, with Light preload.
Dynamic Load Rating: 34,500 N. Static Load Rating: 23,000 N. Limiting Speed: 14,000 rpm grease; 20,000 rpm oil. Preload: Light, 170 N. Axial Rigidity: 66 N/µm at Light preload. The 15° angle favours speed and radial stiffness; universal grinding lets the bearing be set up back-to-back, face-to-face or tandem with another UL bearing. Operating Temperature: −30 to 100 °C.
Shaft Shoulder Diameter: 76 mm. Housing Shoulder Diameter: 94.5 mm. Maximum Fillet Radius: 0.6 mm. Pressure Cone Apex Distance: 19.4 mm. Oil Injection Pitch Diameter: 79.3 to 82.2 mm. Item Weight: 0.322 kg (0.71 lb).
Unit Quantity: 1 Pc. Single universal bearing.
Current Schaeffler designation: B71914-C-T-P4S-UL. Cross-Reference: SKF 71914 CD/P4A, NSK 7914CTRSULP4, Fafnir 2MM9314WI-SUL — same envelope, 15° angle and P4 class.
