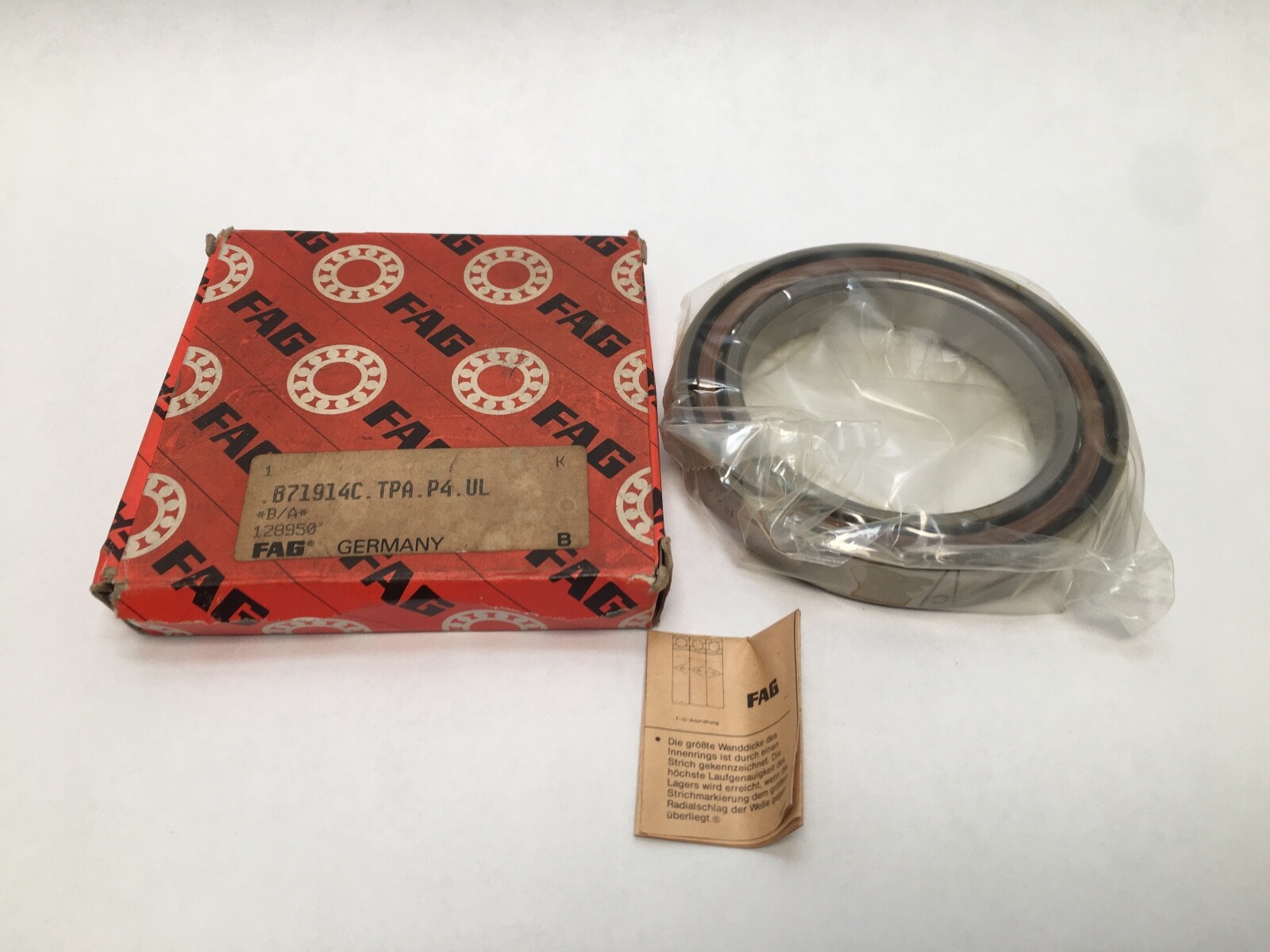

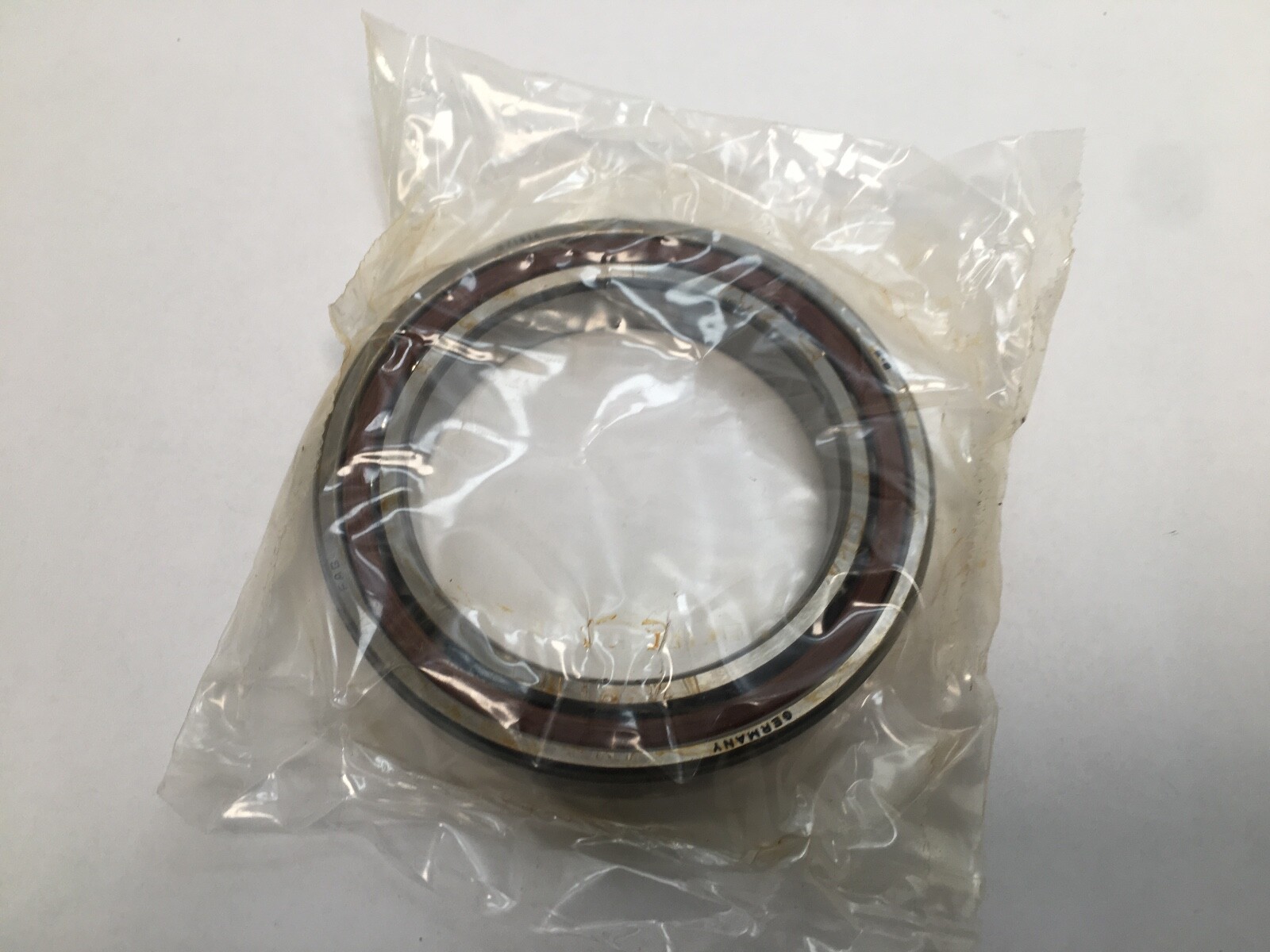

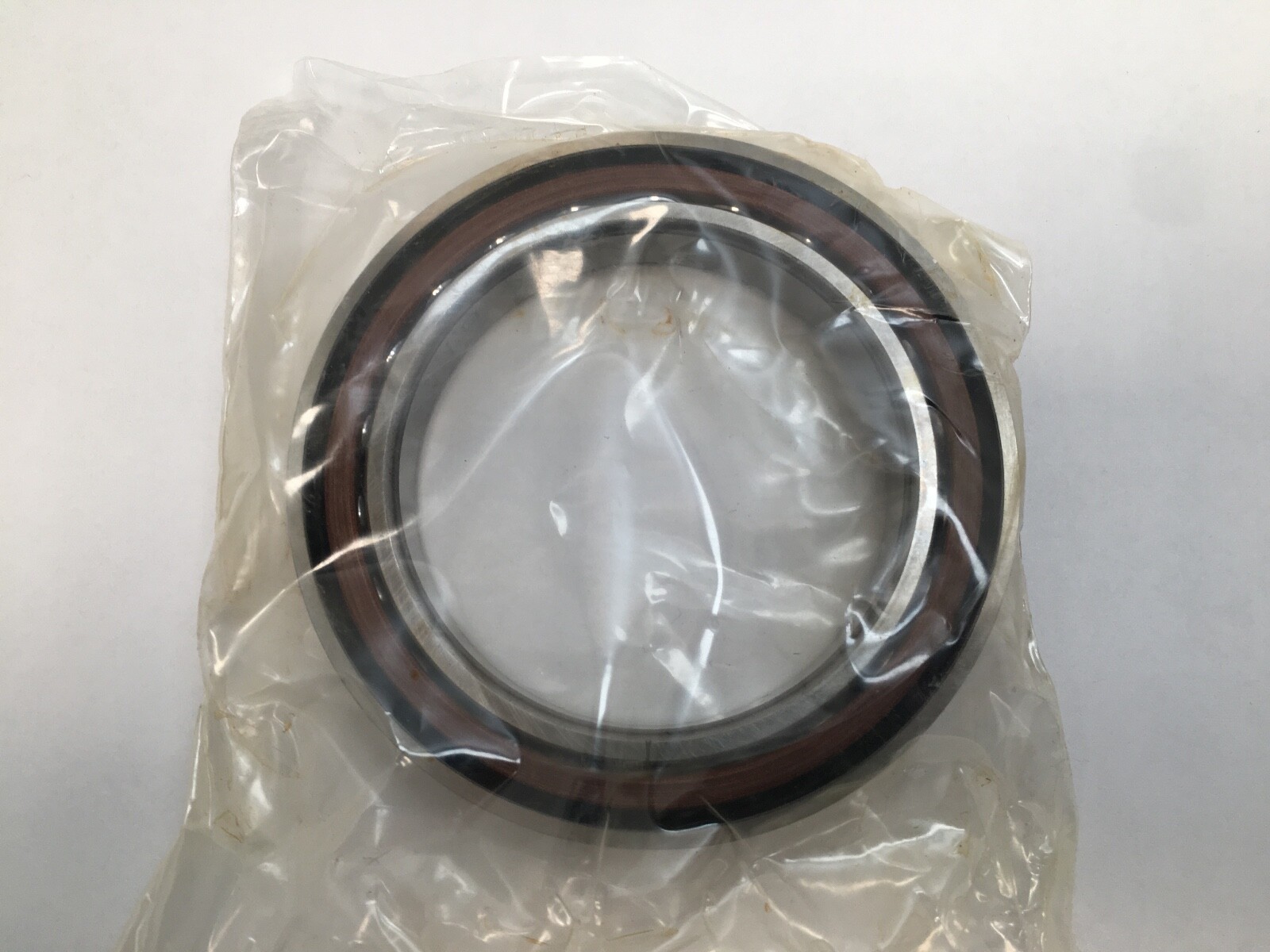

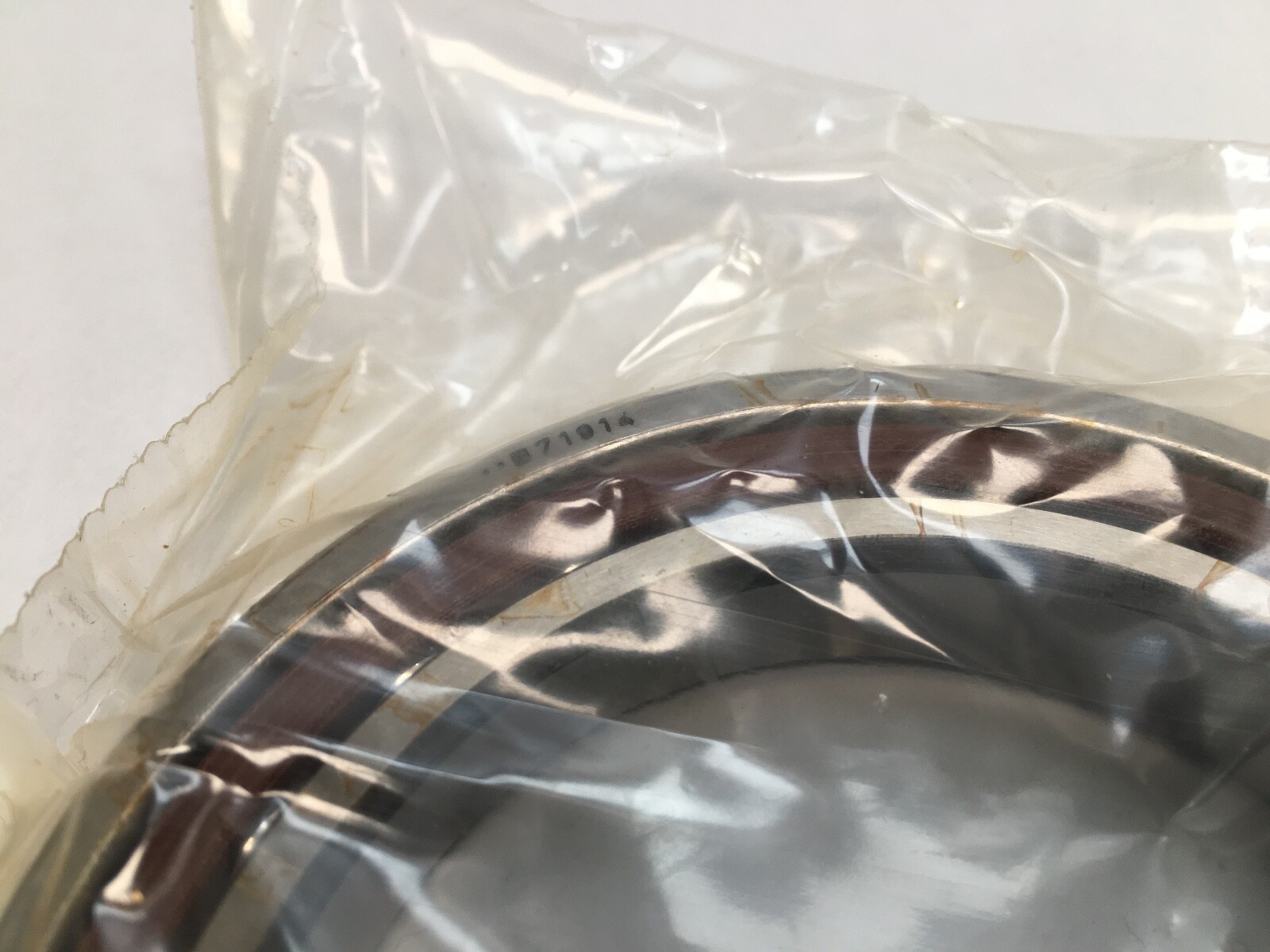

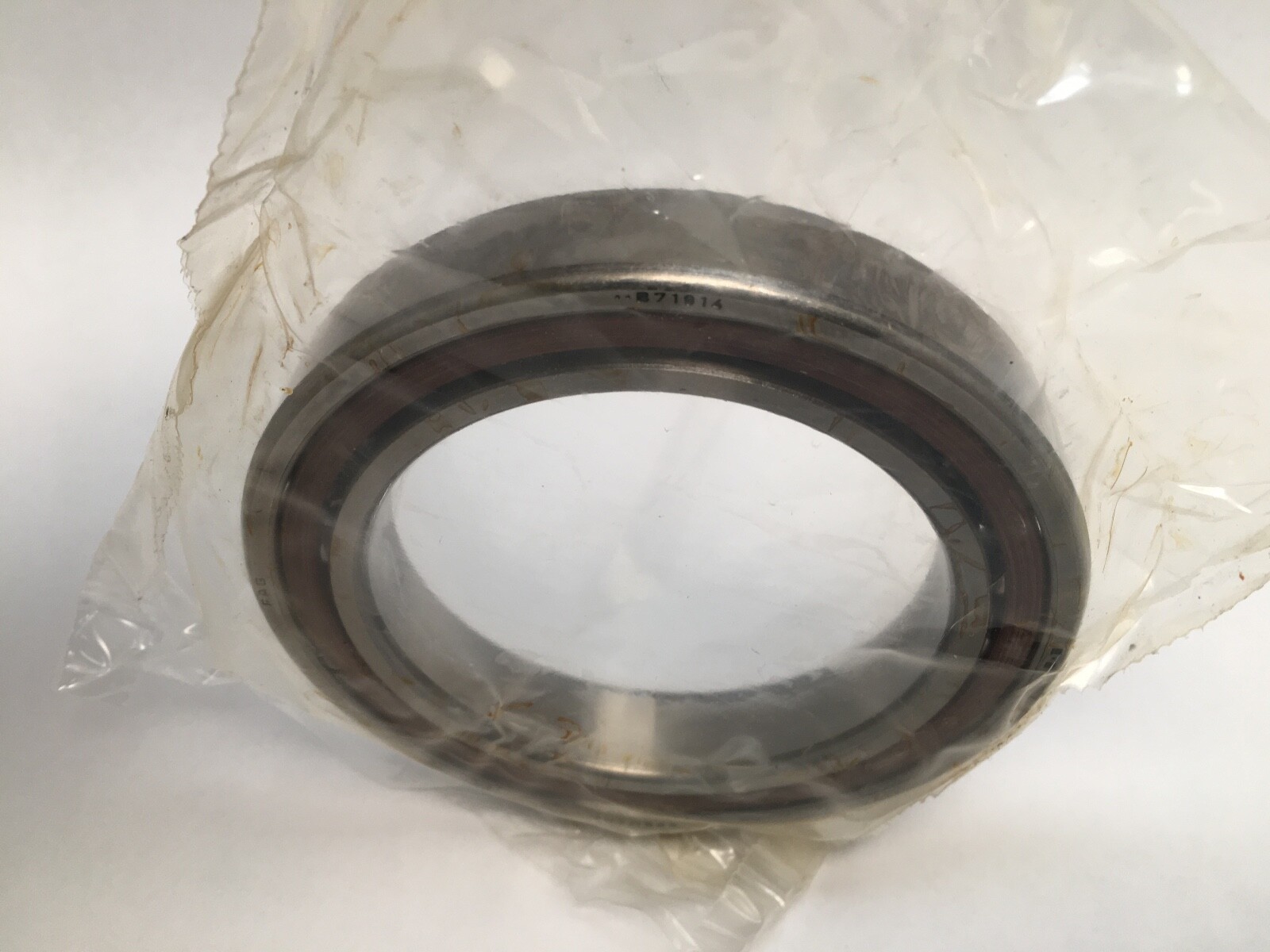

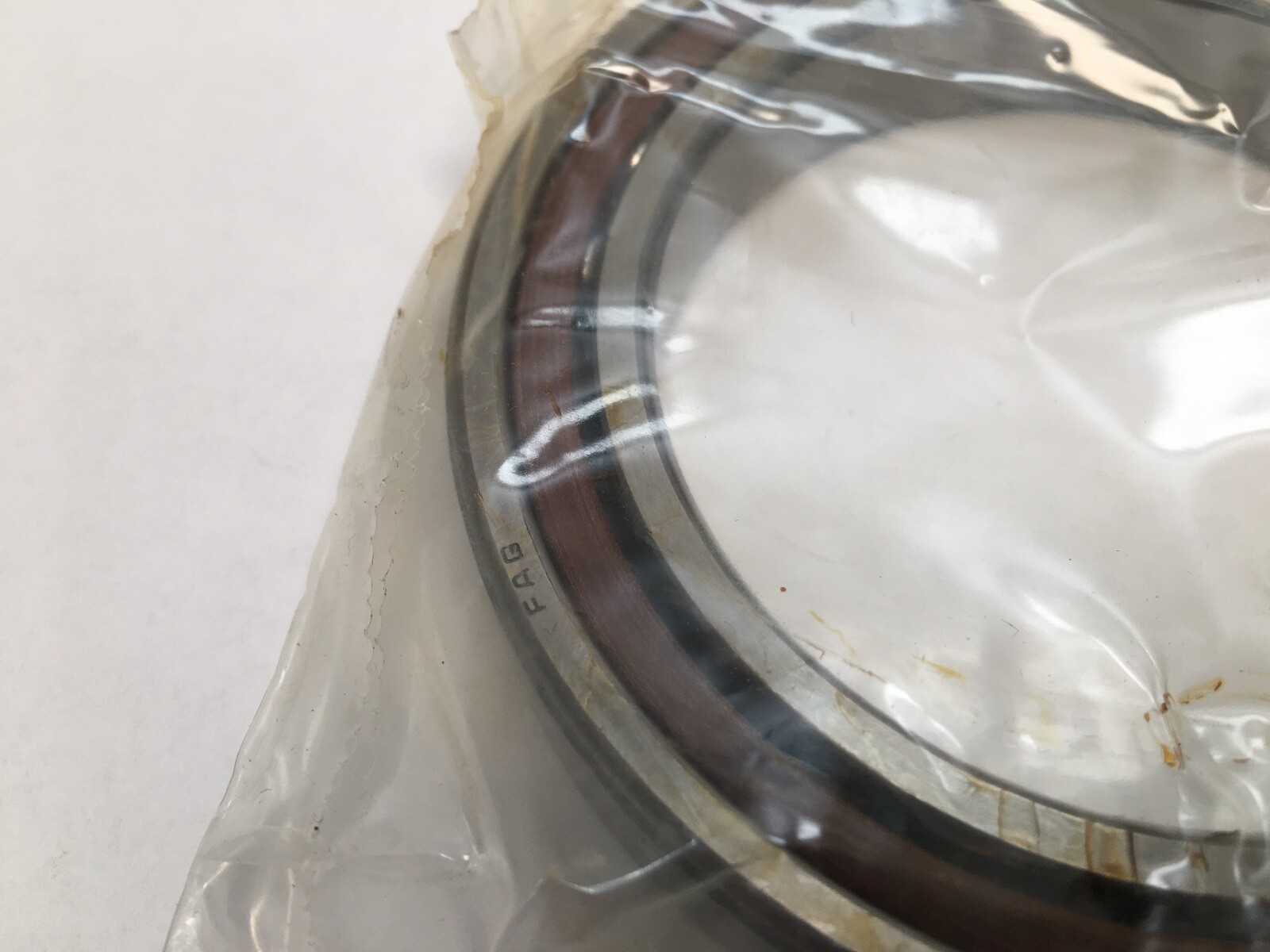

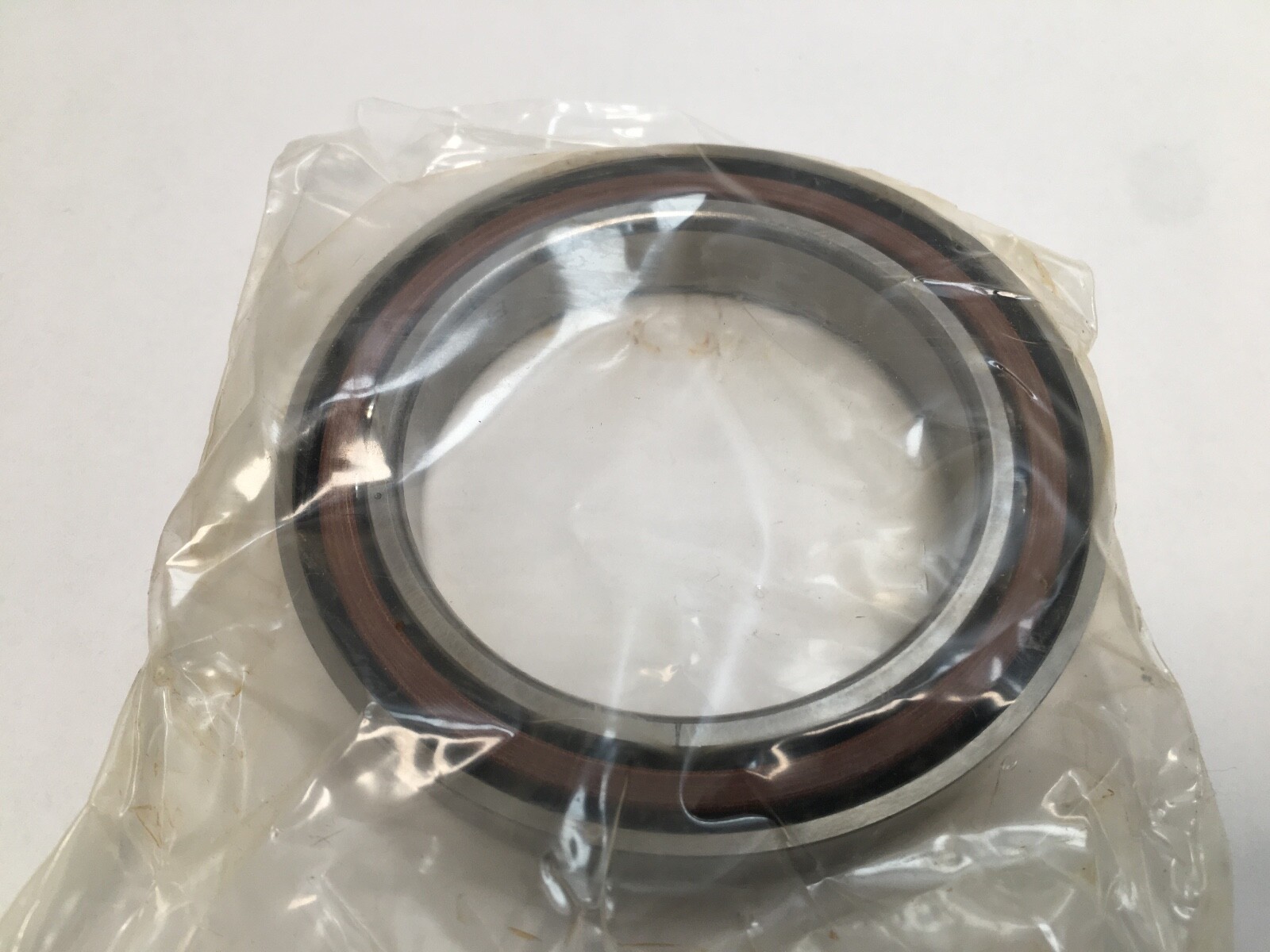

FAGB71914C.TPA.P4.ULAngular Contact Ball Bearing – 70 mm ID, 100 mm OD, 16 mm Width, 15° Contact Angle, P4 / ABEC 7, Light Preload

Condition: New

Availability:

1 in stock

Super-precision angular contact bearing, 70 x 100 x 16 mm, 15° contact angle, P4 (ABEC 7), phenolic cage, universal Light preload 170 N, 14,000 rpm grease.

List Price

$177.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB71914C.TPA.P4.UL
ModelB 71914C TPA P4 UL / 7914-C / 2MM9314 /
Bearing TypeAngular Contact Ball Bearing, Open
ID70 mm
OD100 mm
Width16 mm

Technical Specifications

MaterialBearing Steel
Series71900
PreloadLight (170 N)
Base Number71914
Industry Termsspindle bearing; super precision angular contact bearing; ABEC 7
Application TypesMachine tool spindles; grinding spindles; milling heads
Mpn VariantsB71914C.TPA.P4.UL; B71914-C-TPA-P4-UL; B71914CTPAP4UL; B71914C; B71914-C-T-P4S-UL
Precision ClassABEC 7 / P4
Min Temp-30 °C
Dynamic Load Rating34,500 N
Static Load Rating23,000 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Max Temp100 °C
Item Weight0.322 kg (0.71 lb)
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed14,000 rpm grease; 20,000 rpm oil
Harmonization Code8482.10.50
Contact Angle15°
Mounting ArrangementUniversal (UL), any paired arrangement
Closure TypeOpen

Cross-References

Cross Reference 1FAG B71914-C-T-P4S-UL - current Schaeffler designation
Cross Reference 2SKF 71914 CD/P4A - P4A class
Cross Reference 3NSK 7914CTRSULP4 - TR cage
Cross Reference 4Fafnir 2MM9314WI-SUL - WI scheme
Seller Part Number: B-AF3B5#S9M7AK

Product Description

What this part is:

The FAG B71914C.TPA.P4.UL is a single-row super-precision angular contact ball bearing for machine tool spindles. It has a 15° contact angle, a phenolic cage and universal flush-ground faces with light preload. Sold as 1 Pc.

Decoding the designation:

B — FAG spindle bearing.

719 — ISO dimension series 19, a thin cross-section.

14 — bore code, 14 × 5 = 70 mm.

C — 15° contact angle.

TPA — fabric-base laminated phenolic cage.

P4 — ISO P4 precision, ABEC 7.

UL — universal flush-ground faces for any paired arrangement, with light preload.

Specifications:

Bearing Type: Angular contact ball bearing. Rolling Elements: Ball. Number Of Rows: 1. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open. Bore Type: Straight. Series: 71900. Dynamic Load Rating: 34,500 N. Static Load Rating: 23,000 N. Limiting Speed: 14,000 rpm grease; 20,000 rpm oil. Preload: Light, 170 N. Axial Rigidity: 66 N/µm at light preload. Mounting Arrangement: Universal (UL), any paired arrangement. Operating Temperature: −30 to 100 °C. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore Diameter: 70 mm. Outside Diameter: 100 mm. Overall Width: 16 mm. Shaft Shoulder Diameter: 76 mm. Housing Shoulder Diameter: 94.5 mm. Maximum Fillet Radius: 0.6 mm. Pressure Cone Apex Distance: 19.4 mm. Oil Injection Pitch Diameter: 79.3 to 82.2 mm. Item Weight: 0.322 kg (0.71 lb).

Compatibility and replacement:

Current Schaeffler designation: B71914-C-T-P4S-UL, which replaces B71914C.TPA.P4.UL. Related 70 x 100 x 16 mm bearings from other makers: SKF 71914 CD/P4A (P4A class), NSK 7914CTRSULP4, Fafnir 2MM9314WI-SUL.

Frequently asked questions:

What size is the FAG B71914C.TPA.P4.UL?

Bore Diameter: 70 mm. Outside Diameter: 100 mm. Overall Width: 16 mm.

What are its load ratings and speed limits?

Dynamic Load Rating: 34,500 N. Static Load Rating: 23,000 N. Limiting Speed: 14,000 rpm on grease and 20,000 rpm on oil.

What is its current Schaeffler designation?

B71914-C-T-P4S-UL.
