Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

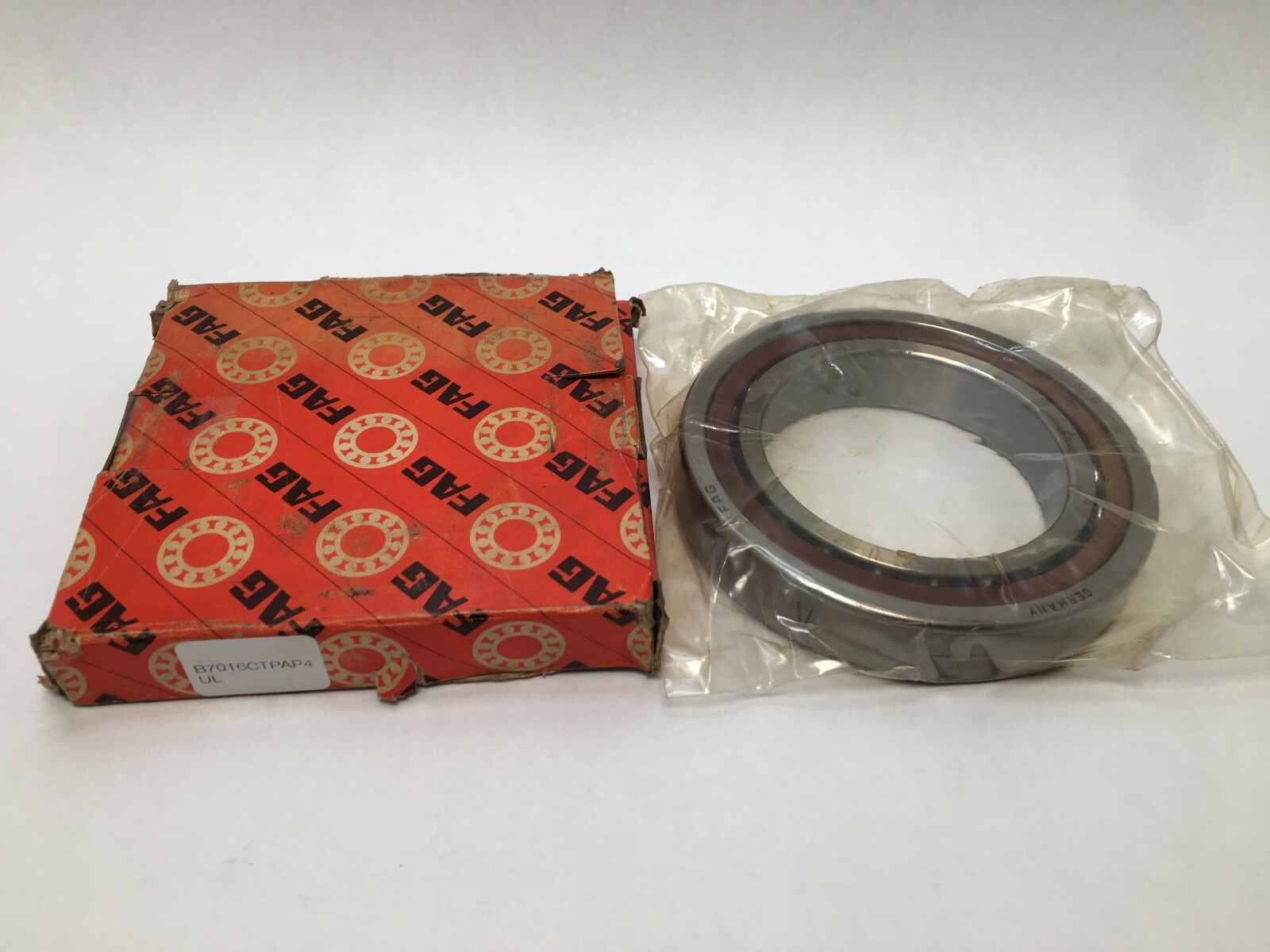

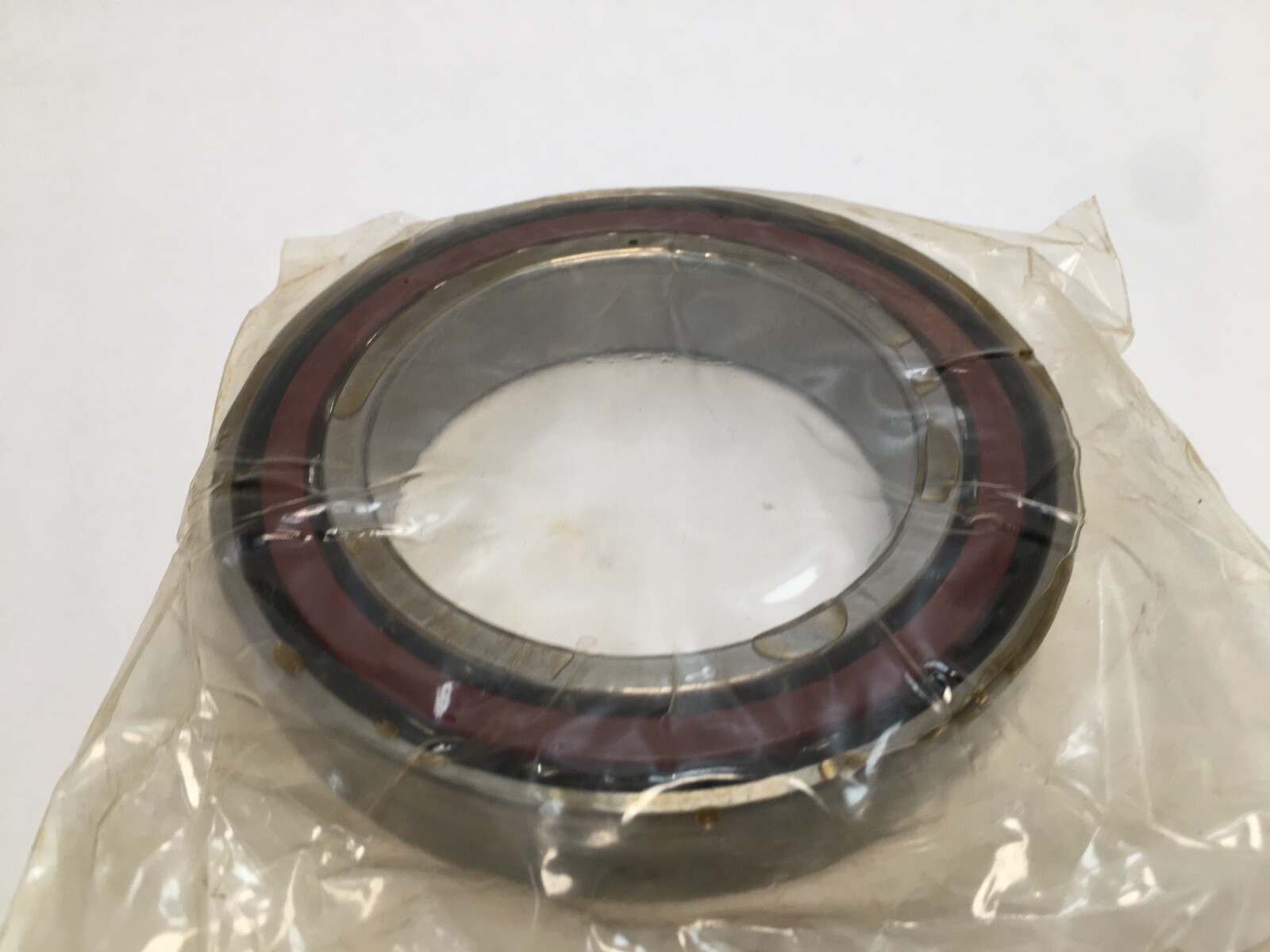

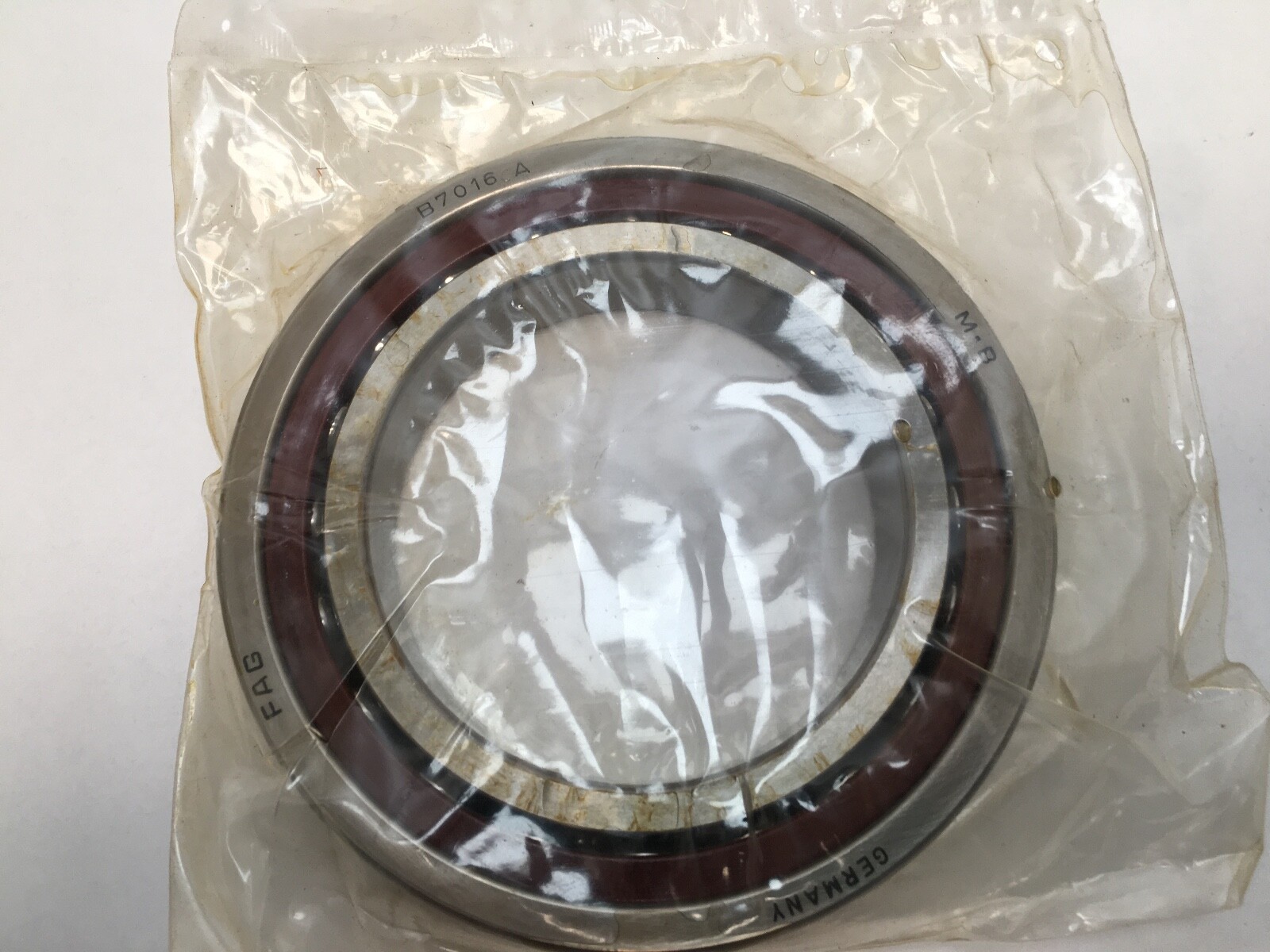

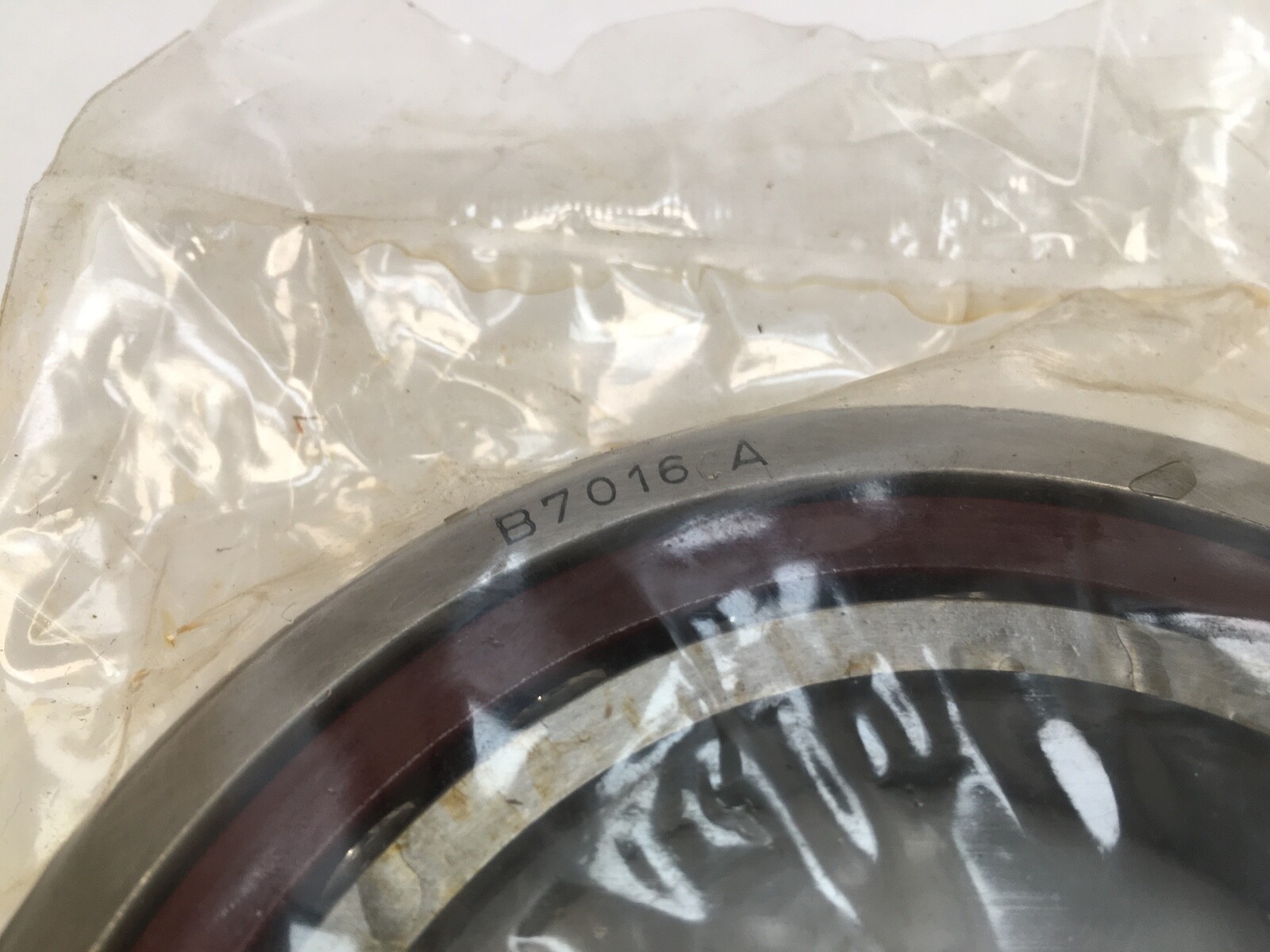

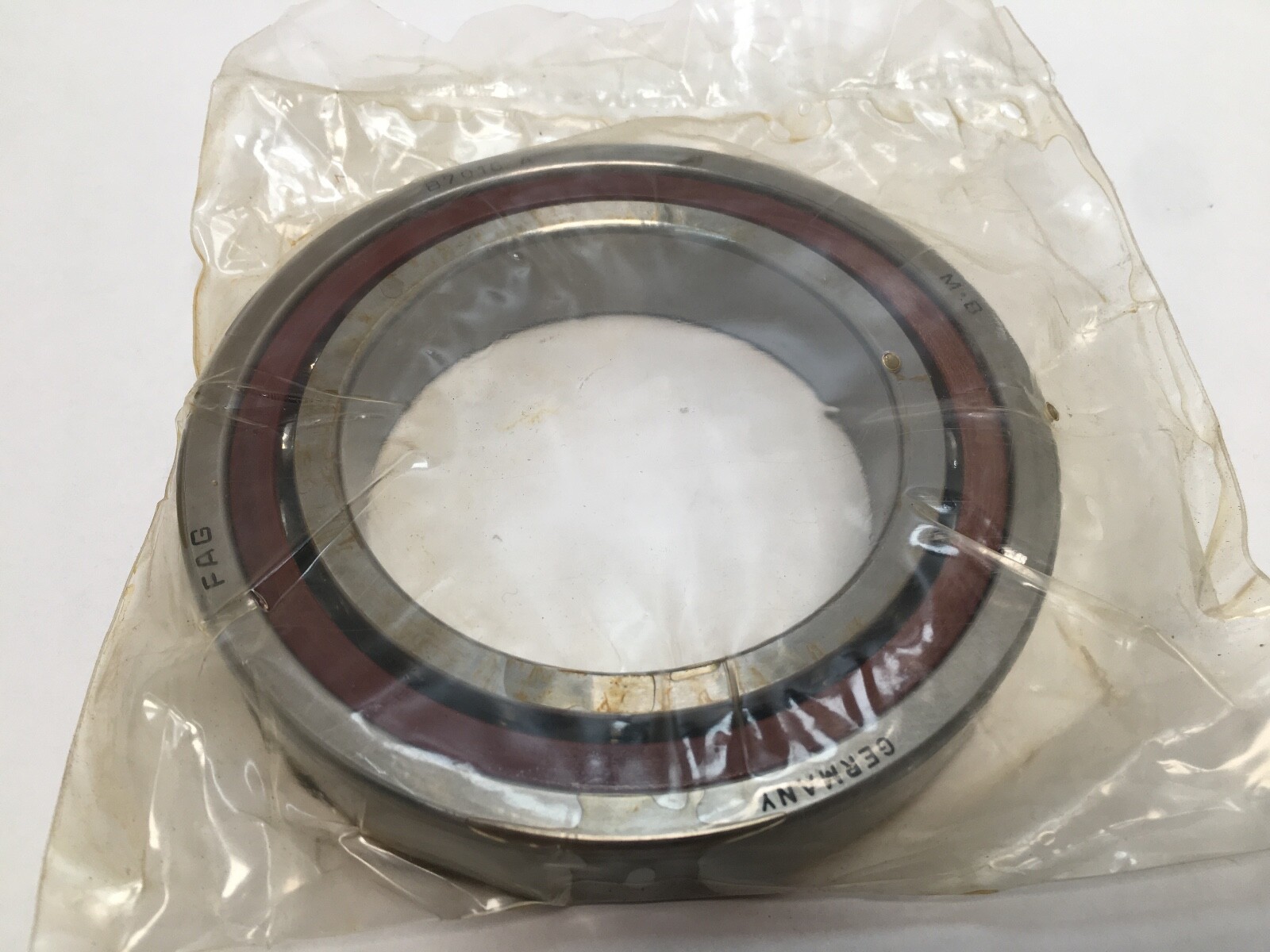

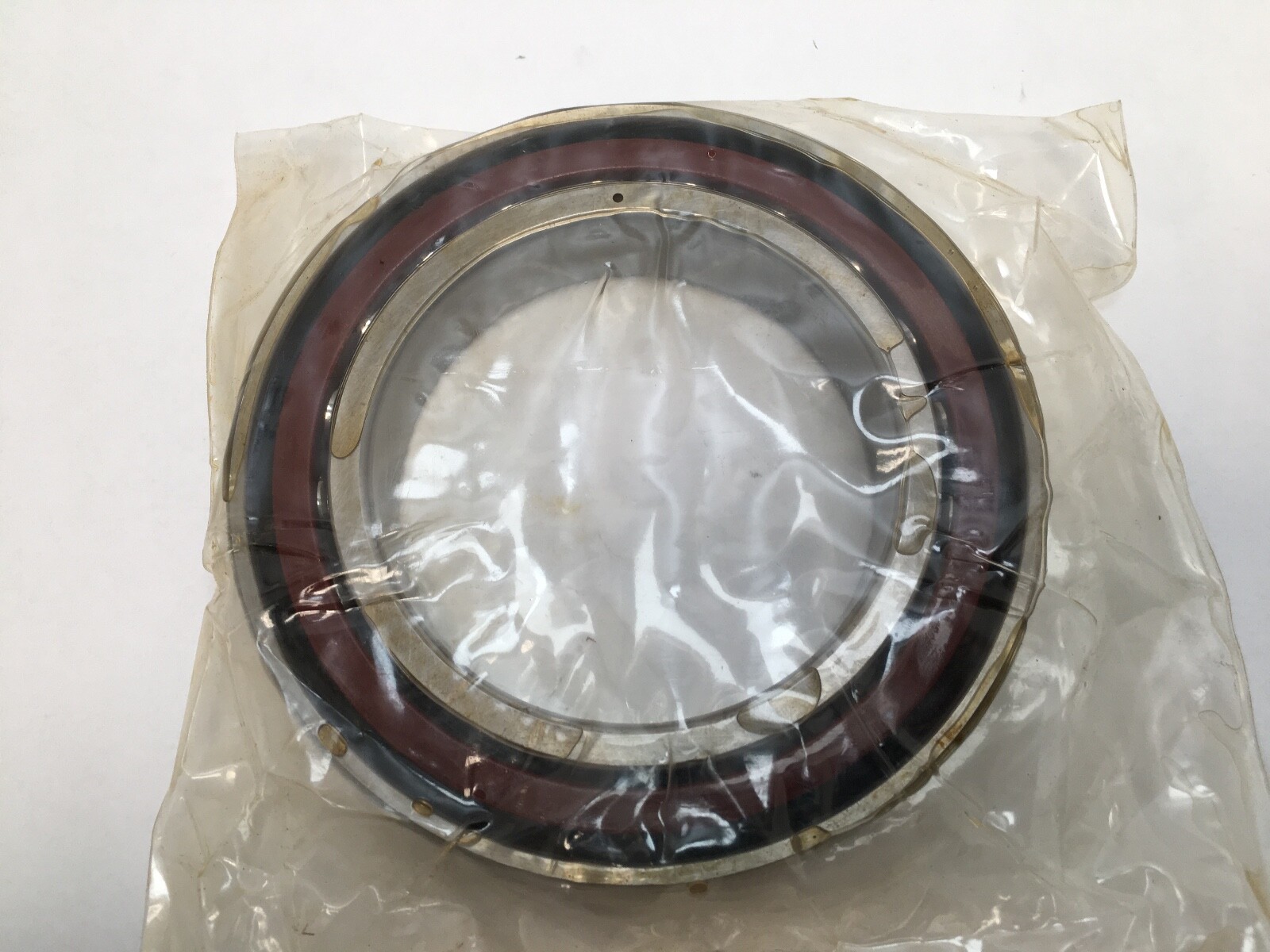

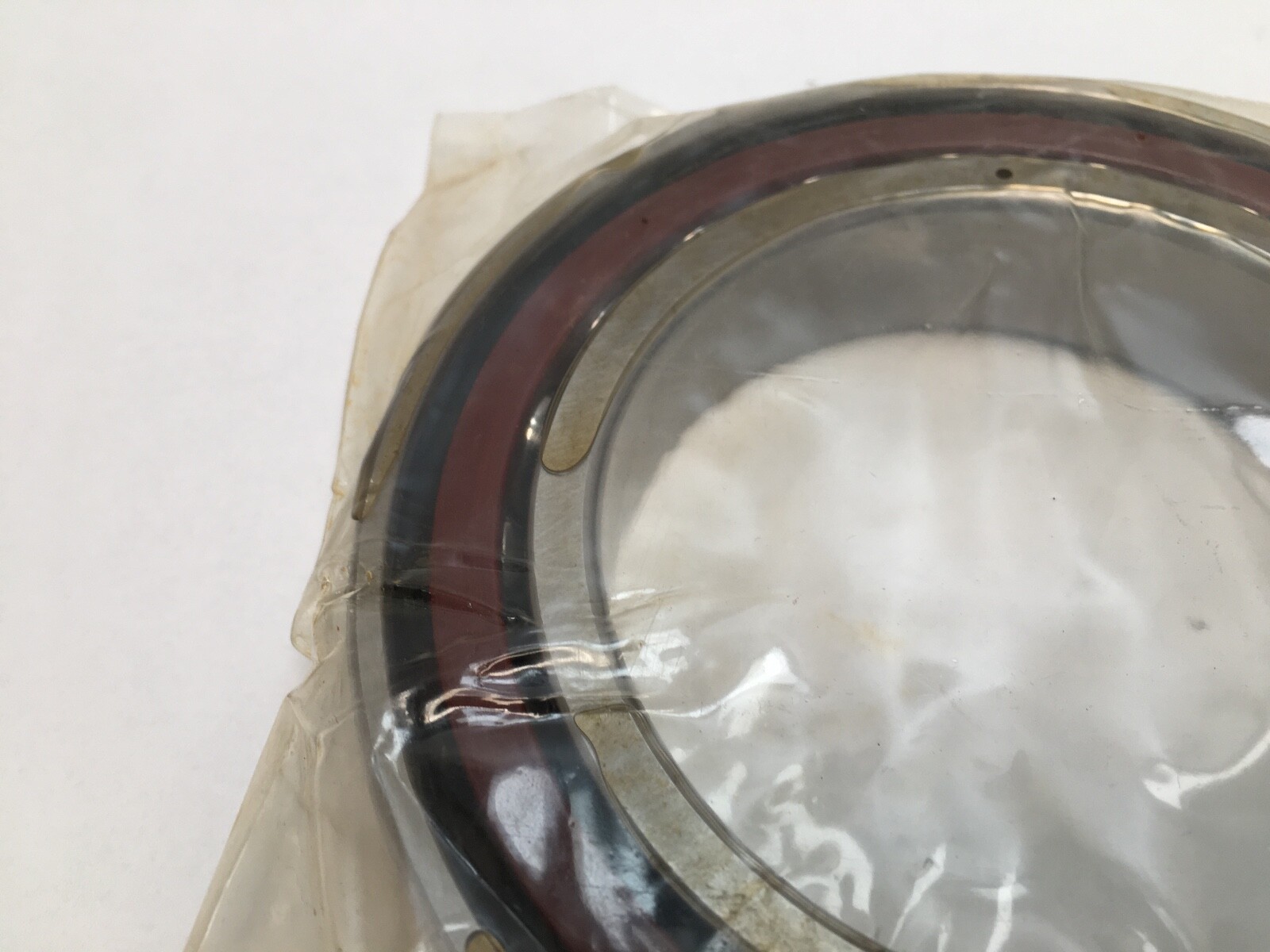

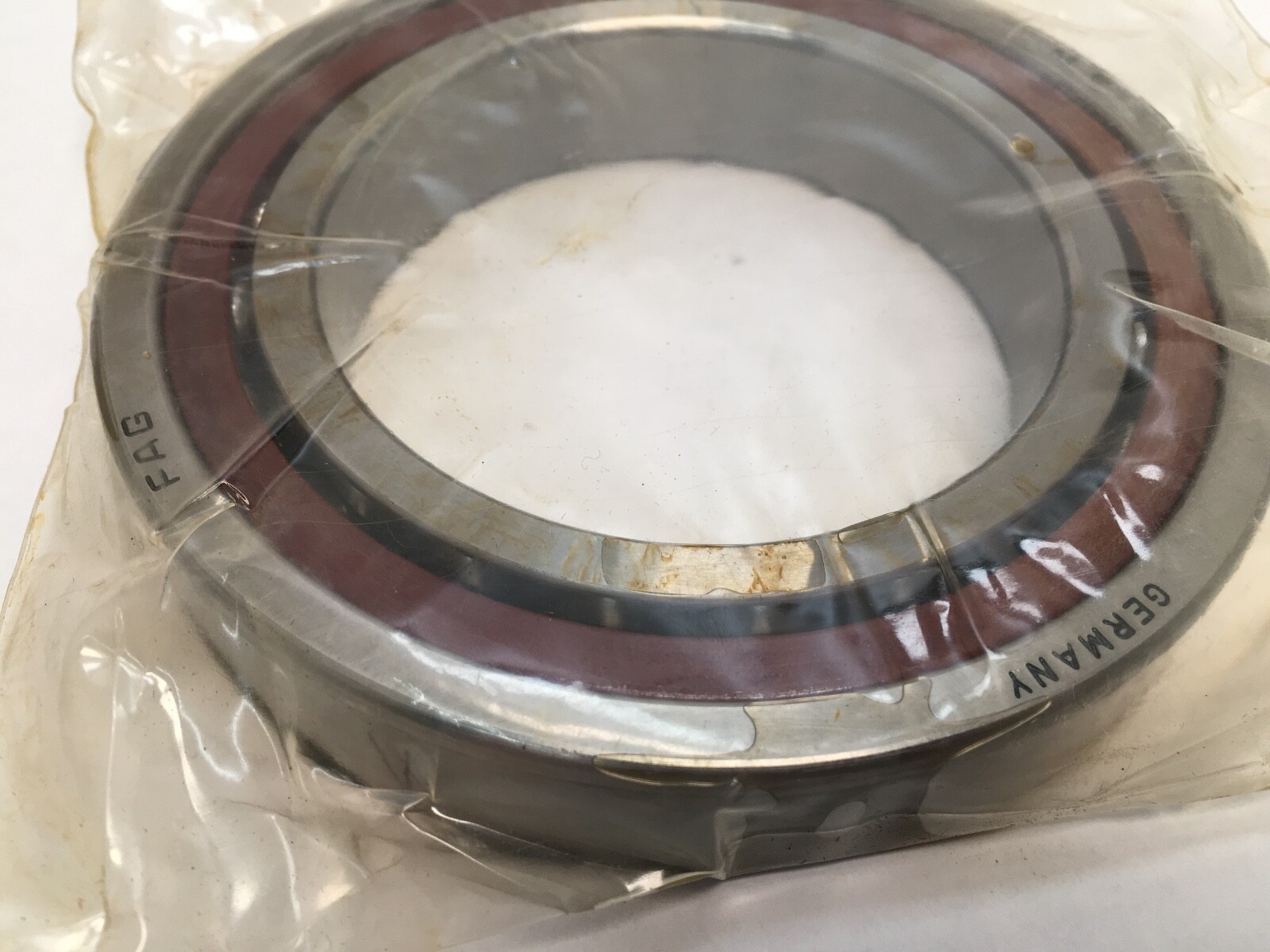

Super-precision angular contact spindle bearing, 80 x 125 x 22 mm, 15°, Light preload (354 N), P4S. Universal single bearing, phenolic cage, B70 series.
List Price
$289.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7016CTPAP4UL |
| Model | B7016C.TPA.P4.UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | B70 |
| Lubricant | Grease or oil |
| Preload | Light (354 N) |
| Mpn Variants | B7016-C-T-P4S-UL, B7016C.TPA.P4.UL, B7016C.T.P4S.UL, B7016CTPAP4UL, B-7016-C-TPA-P4-UL, 7016C |
| Precision Class | P4S (better than ABEC 7 / P4) |
| Min Temp | -30 °C |
| Cage Type | Laminated fabric cage |
| Dynamic Load Rating | 64,000 N |
| Static Load Rating | 41,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.84 kg (1.85 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 11,000 rpm grease; 17,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM9116WI CR SUL |
|---|---|
| Cross Reference 2 | SKF 7016 CD/P4ADGB – light preload |
| Cross Reference 3 | NSK 7016CTRSULP4 |
FAG B7016-C-T-P4S-UL is a super-precision angular contact spindle bearing in the B70 series. Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Contact Angle: 15°. Preload: Light (354 N). Precision Class: P4S. Universally matchable single bearing for pairs or sets in back-to-back, face-to-face or tandem arrangement.
B70 — FAG spindle bearing, ISO dimension series 10; bore code 16 = 80 mm.
C — contact angle 15°.
T / TPA — laminated fabric (phenolic) cage.
P4S — FAG tolerance class, better than ISO P4 / ABEC 7 (the carton reads P4, the earlier marking of this designation).
UL — universal single bearing, Light preload when paired.
Dynamic Load Rating: 64,000 N. Static Load Rating: 41,000 N. Fatigue Load Limit: 4,300 N. Limiting Speed: 11,000 rpm grease; 17,000 rpm oil. Preload: Light, 354 N (lift-off force 1,091 N, axial rigidity 86 N/µm). Medium preload for this size is 1,138 N and Heavy 2,277 N. Operating Temperature: -30 to 100 °C. Cage Material: Phenolic. Item Weight: 0.84 kg (1.85 lb).
Shaft Shoulder Diameter: 88 mm (h12). Housing Shoulder Diameter: 117 mm (H12). Pressure Cone Apex Distance: 24.7 mm. Minimum Chamfer: 1.1 mm. Maximum Fillet Radius: 1 mm. Lubrication Jet Pitch Diameter: 94 to 98.8 mm.
Current Schaeffler designation B7016-C-T-P4S-UL replaces B7016C.TPA.P4.UL and B7016C.T.P4S.UL. Fafnir 2MM9116WI CR SUL, SKF 7016 CD/P4ADGB and NSK 7016CTRSULP4 are 15° universal single bearings with light preload.
