Availability:
1 in stock

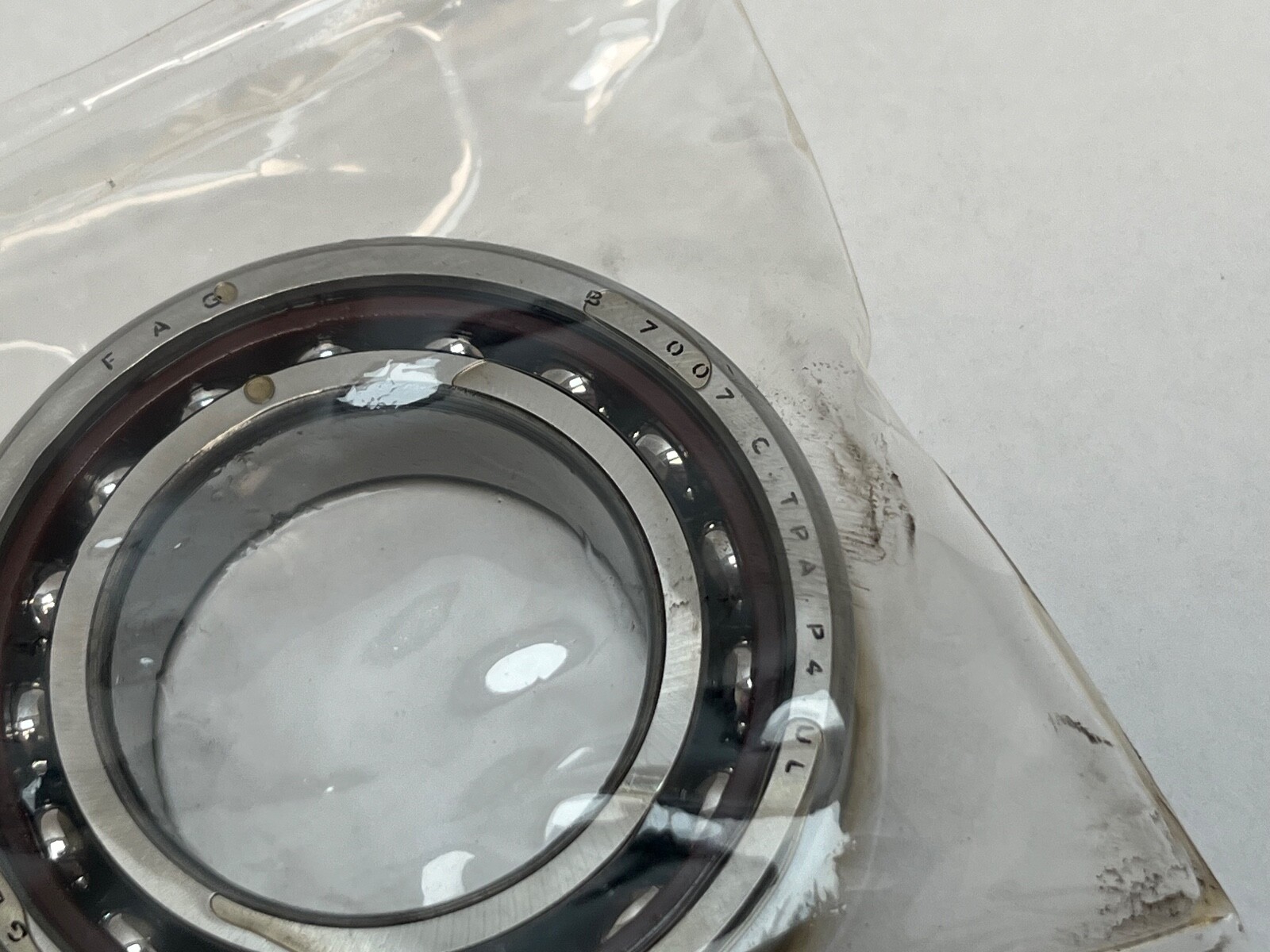

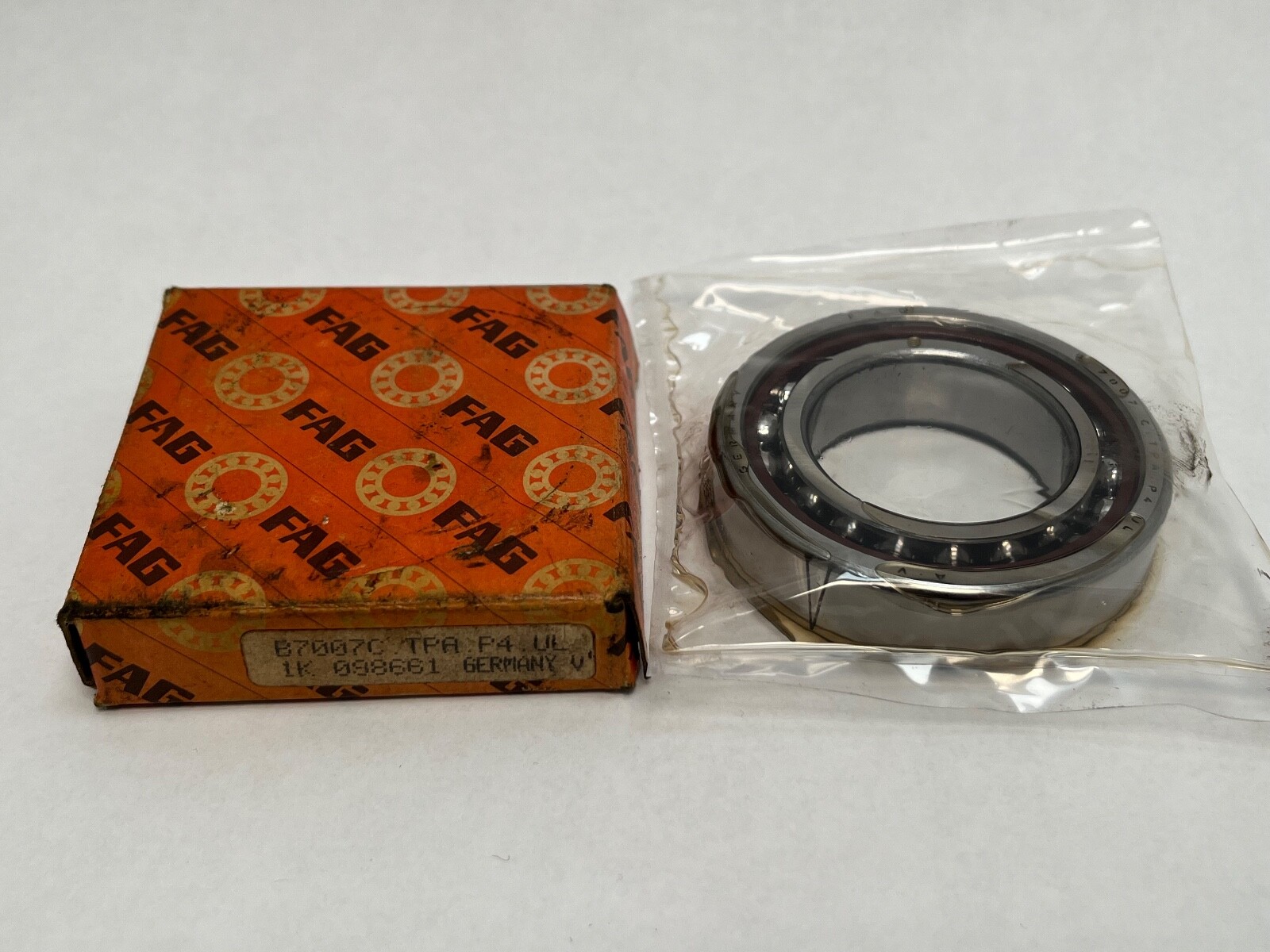

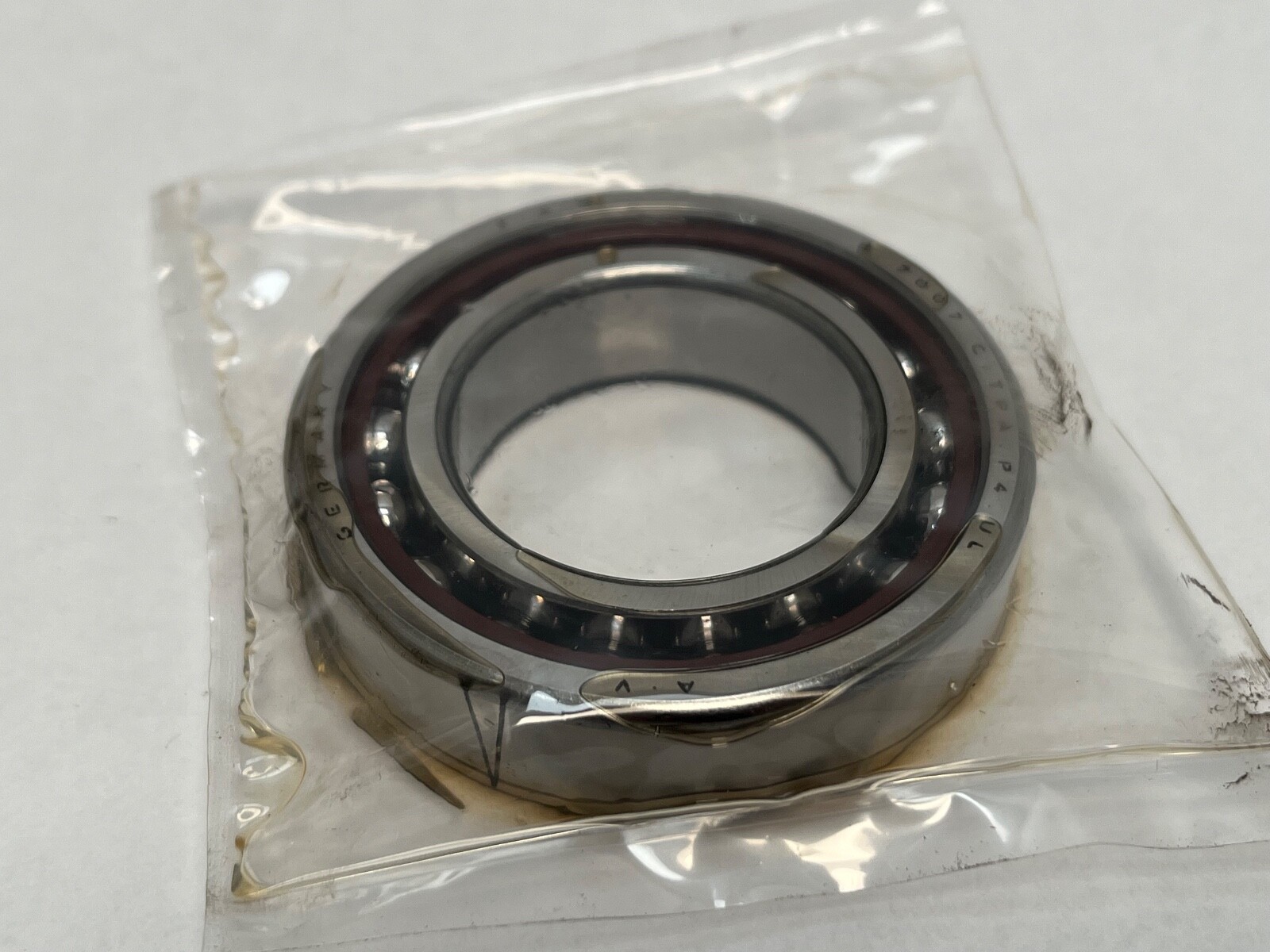

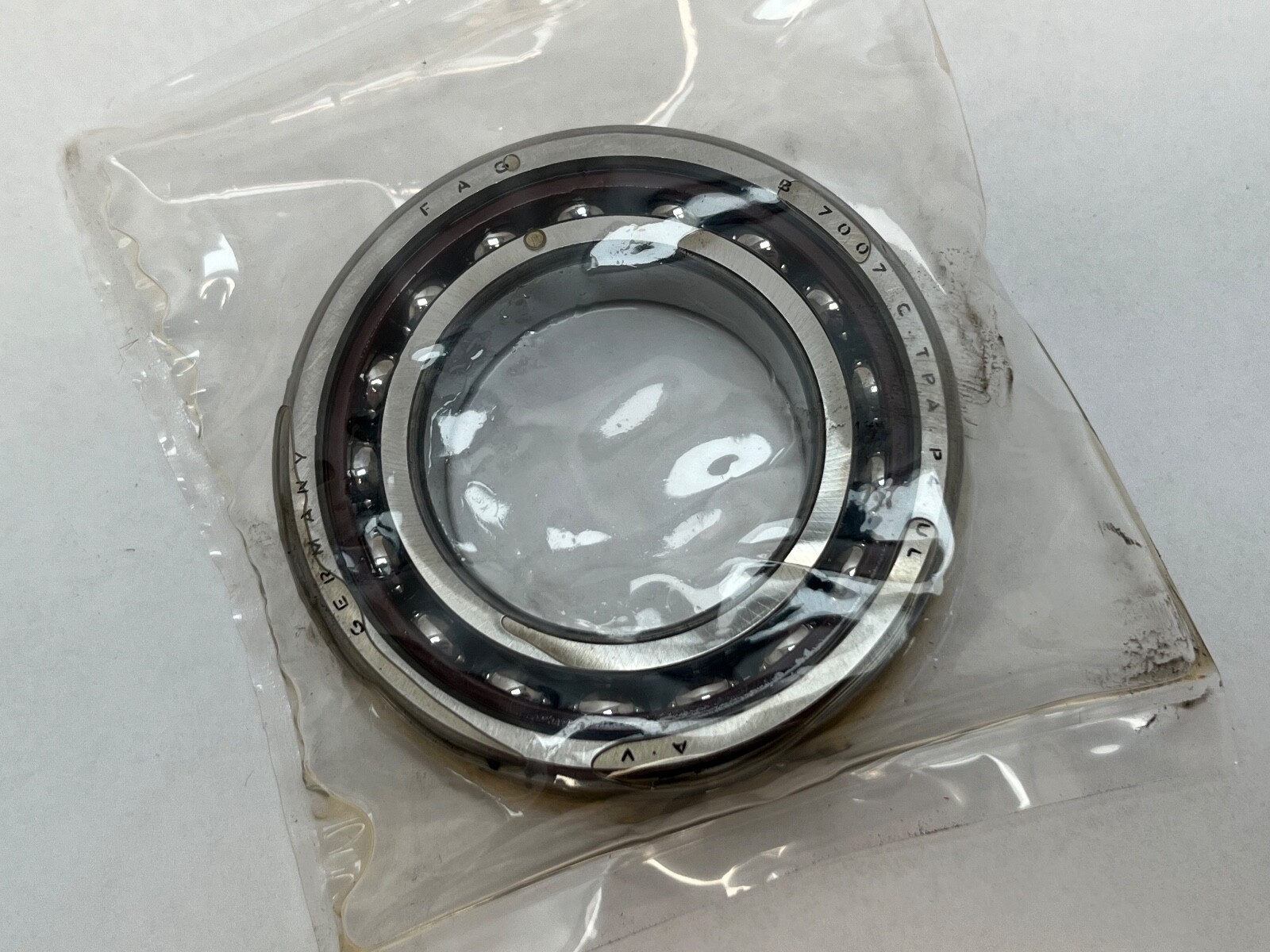

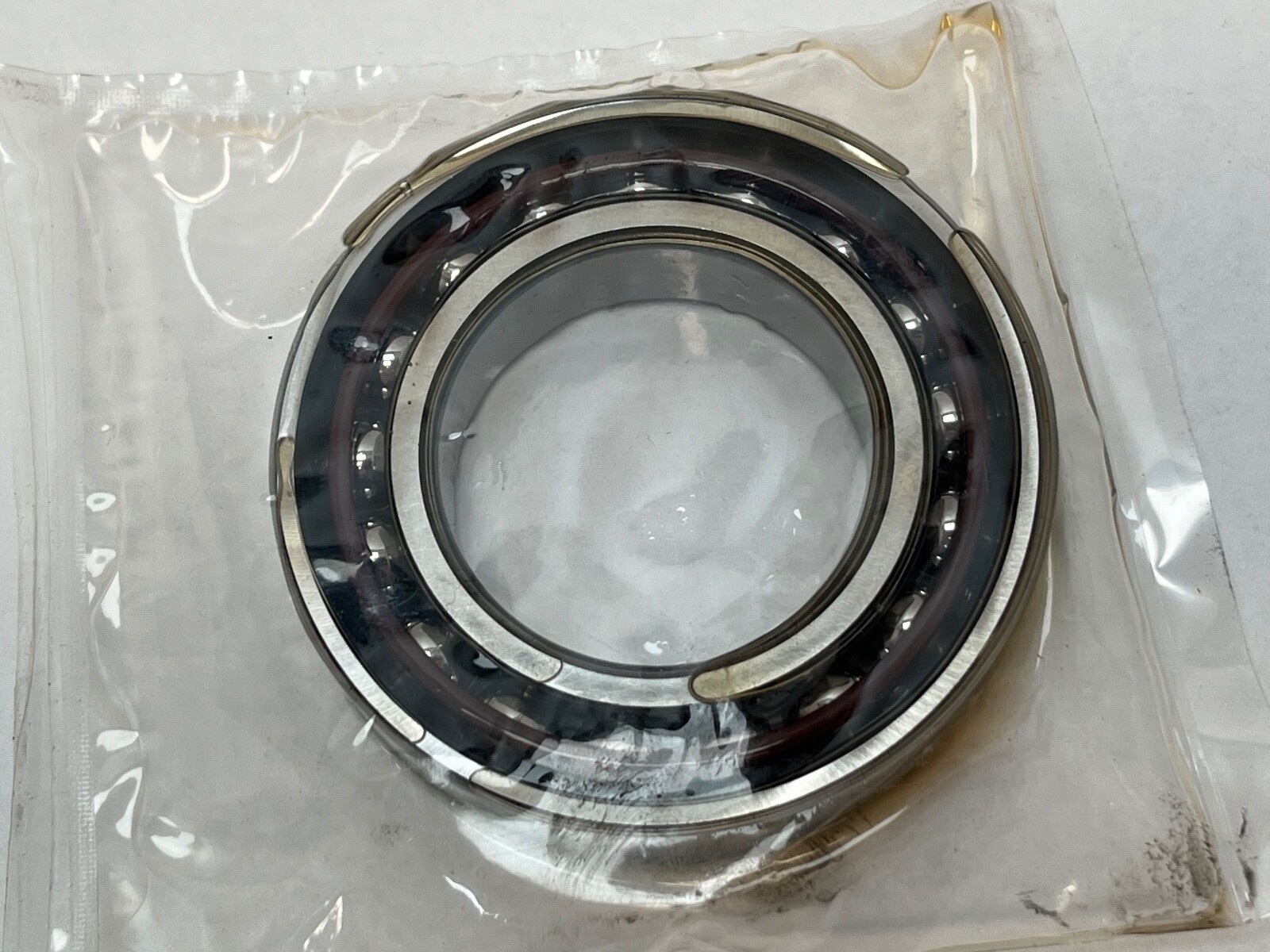

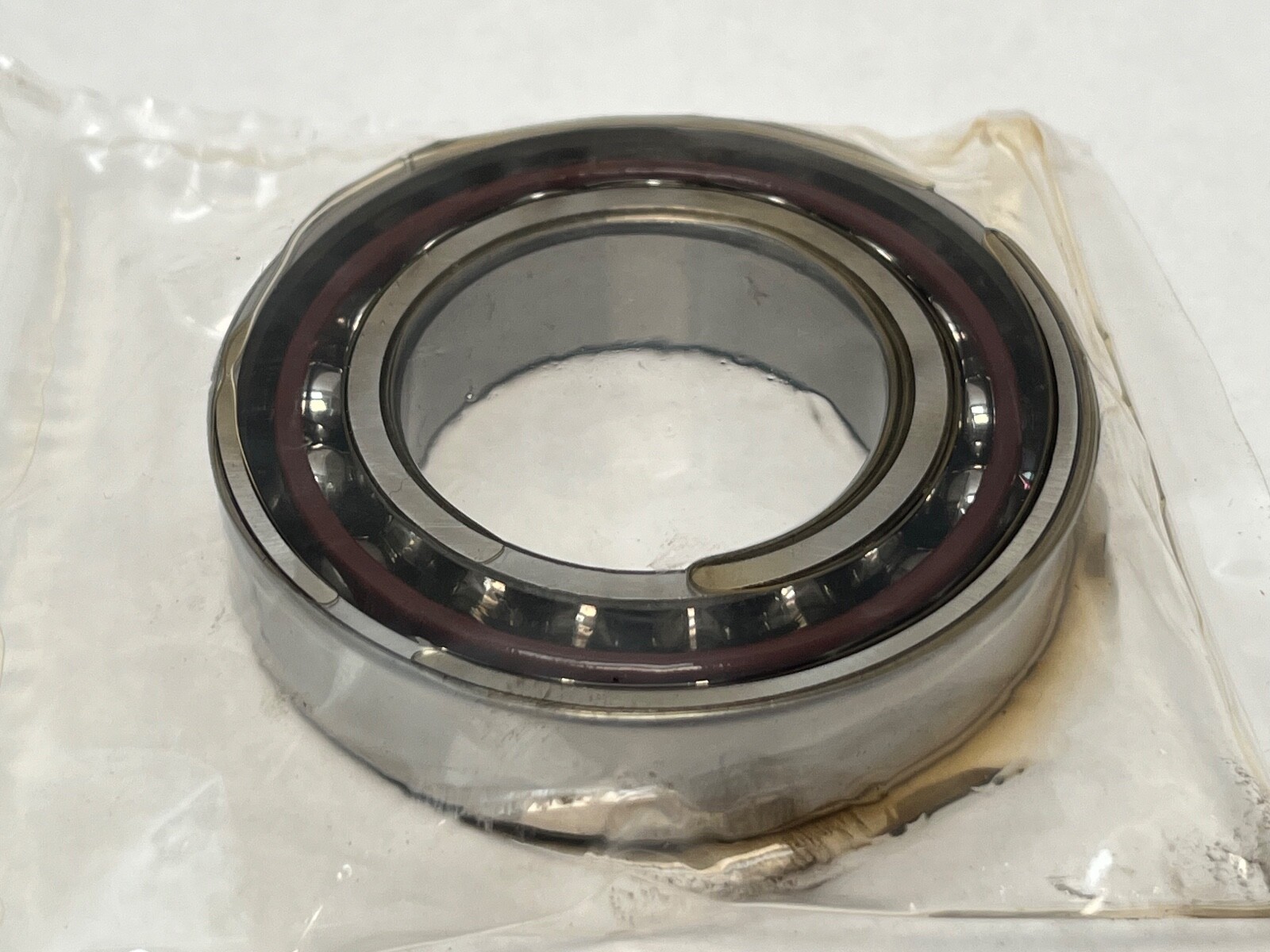

FAG B7007-C-TPA-P4-UL super-precision angular contact ball bearing, 35 x 62 x 14 mm, 15° contact angle, ABEC 7, polyamide cage, universal light preload.
List Price
$78.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7007-C-TPA-P4-UL |
| Model | B 7007 C TPA P4 UL / 2MM9107WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | B7007 |
| Industry Terms | Spindle bearing; super precision angular contact; machine tool bearing; universal matchable pair; ABEC 7 bearing; 15 degree contact angle; 70 series |
| Common Misspellings | B7007CTPA-P4UL; B-7007C-TPA-P4-UL; B7007C TPA P4 UI; FAG B7007CTAP4UL |
| Application Types | High-speed CNC machine tool spindles; grinding spindles; milling heads; precision rotary tables; instrument spindles |
| Bore Shaft Size | 35 mm (1.3780 in) |
| Mpn Variants | B7007-C-TPA-P4-UL; B7007CTPAP4UL; B7007C.TPA.P4.UL; B-7007-C-TPA-P4-UL; B7007C.T.P4S.UL; 7007C; B7007 |
| Manufacturer Status | Active FAG/Schaeffler super-precision catalogue designation |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Part Number | B7007-C-TPA-P4-UL |
| Cross Reference 1 | NSK 7007CTRDULP4 - phenolic cage |
|---|---|
| Cross Reference 2 | SKF 7007 CDGA/P4A |
| Cross Reference 3 | FAG HCB7007-C-T-P4S-UL - ceramic balls, P4S |
A FAG B7007-C-TPA-P4-UL super-precision single-row angular contact ball bearing, 35 mm bore, 62 mm outside diameter, 14 mm wide, for machine-tool spindles. The raceways are ground to super-precision running accuracy, the contact angle is 15°, and the ring faces are ground so the bearing stacks in matched sets. The bearing carries thrust in one direction. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Width: 14 mm. Closure Type: Open. Number Of Rows: 1. Unit Quantity: 1 Pc. Country of Origin: Germany.
B7 — FAG super-precision spindle bearing series.
0 and 07 — ISO 70 light dimension series and the bore code, 35 mm at five millimetres per unit.
C — 15° contact angle; an E in that position would be 25°.
TPA — glass-fibre reinforced polyamide cage.
P4 — ISO tolerance class 4, equivalent to ABEC 7.
UL — universal design at light preload.
Contact Angle: 15°. Precision Class: P4 / ABEC 7. Cage Material: glass-fibre reinforced polyamide. Preload: light, universal. Series: B70 (FAG super-precision, ISO 70 light series, B7007). Rolling Elements: ball.
Bore Diameter: 35 mm. Outside Diameter: 62 mm. Width: 14 mm. Arrangement: UL universal design, with ring faces ground so any two bearings of this designation form a back-to-back (DB), face-to-face (DF) or tandem (DT) set at light preload without spacers or shims. Bearing only, open both faces, no seals or shields.
Cross-references: NSK 7007CTRDULP4 (phenolic cage), SKF 7007 CDGA/P4A and FAG HCB7007-C-T-P4S-UL (ceramic balls, P4S). B7007-E-TPA-P4-UL is the 25° version of this bearing. B7007-C-TPA-P4-UM is the medium-preload version. Searchable variants: B7007-C-TPA-P4-UL, B7007CTPAP4UL, B7007C.TPA.P4.UL, B-7007-C-TPA-P4-UL, 7007C, B7007.
15°.
Universal design at light preload, so any two bearings of this designation stack in DB, DF or DT without spacers or shims.
P4, equivalent to ABEC 7.
