Availability:
1 in stock

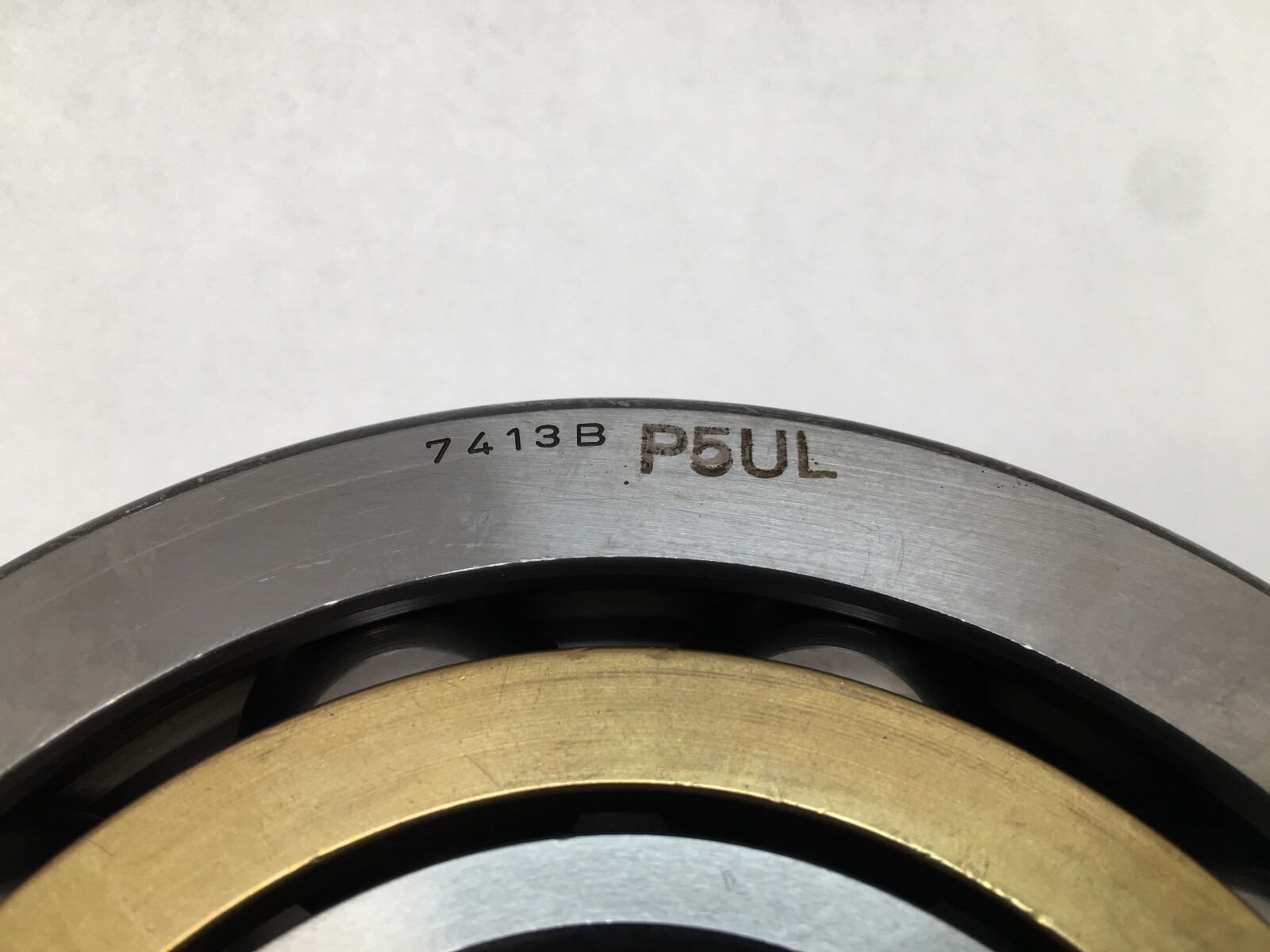

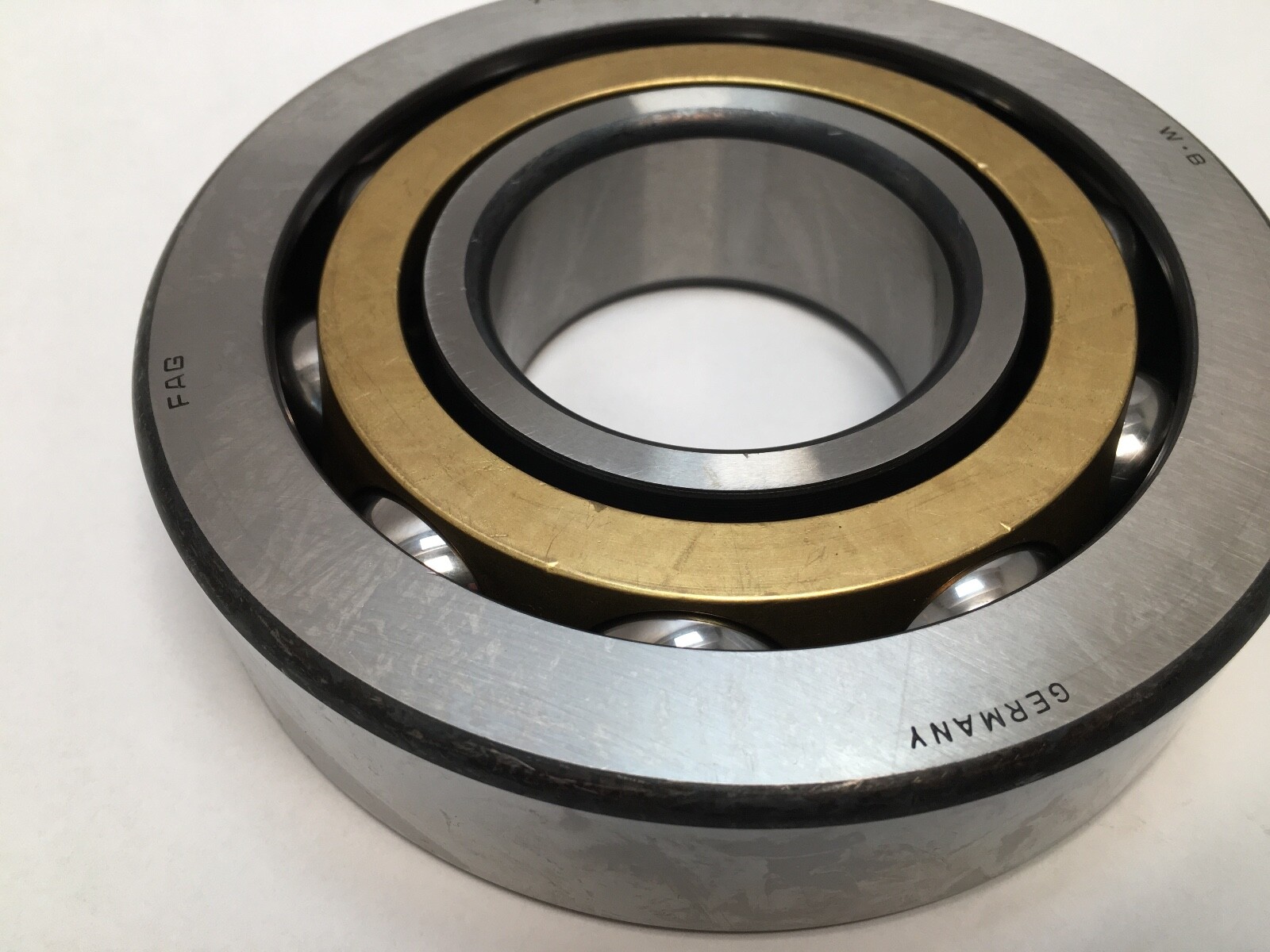

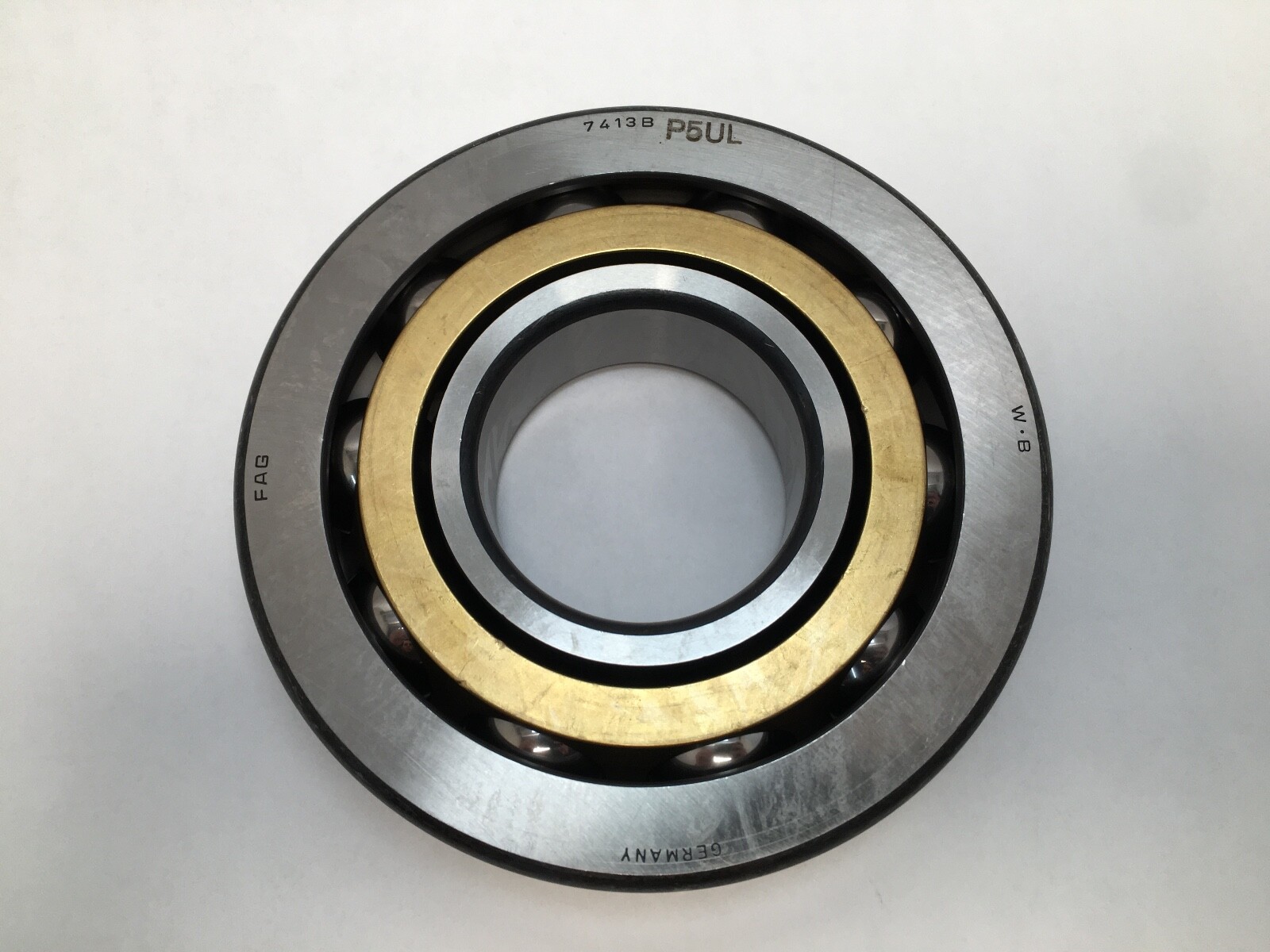

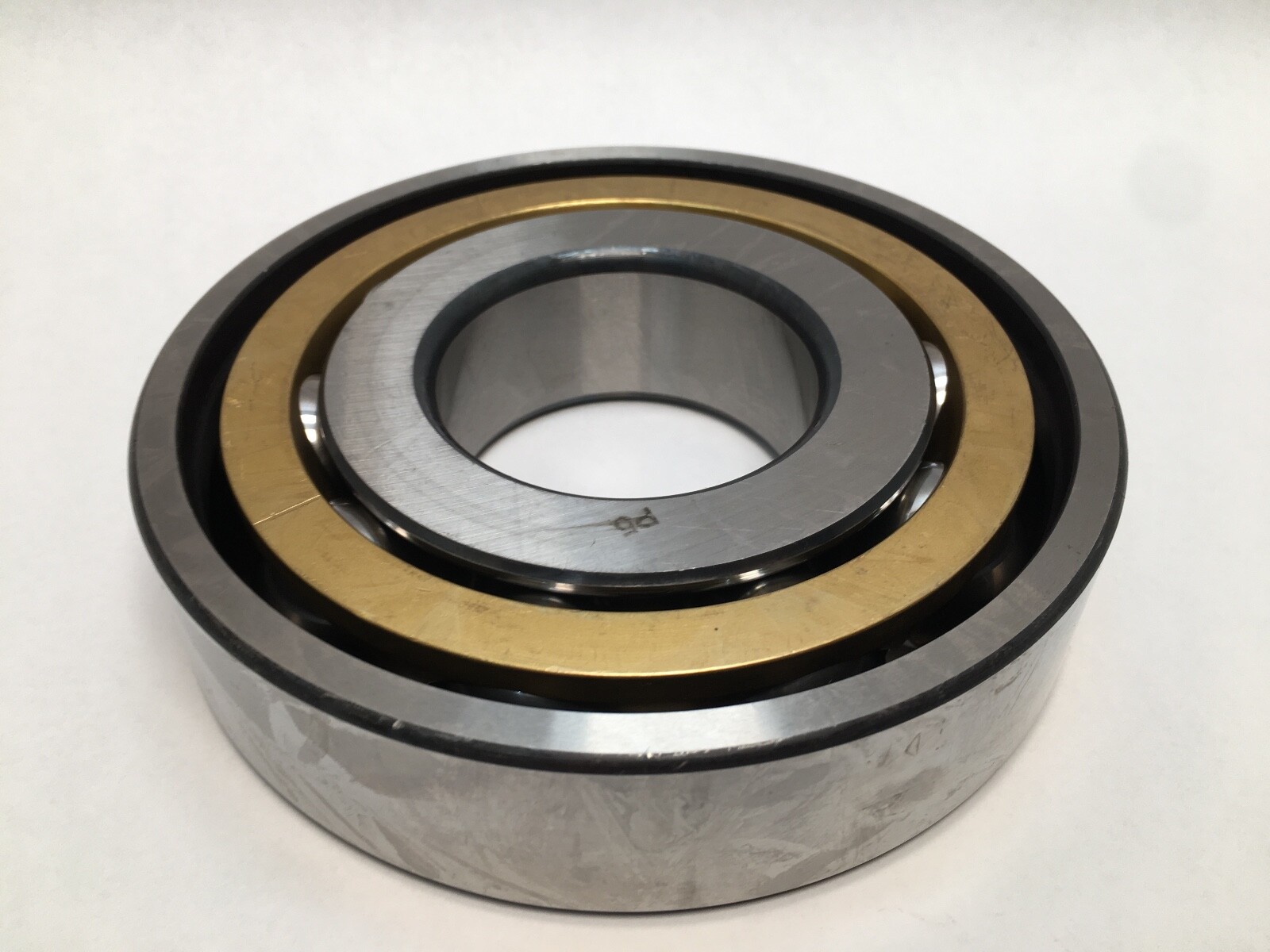

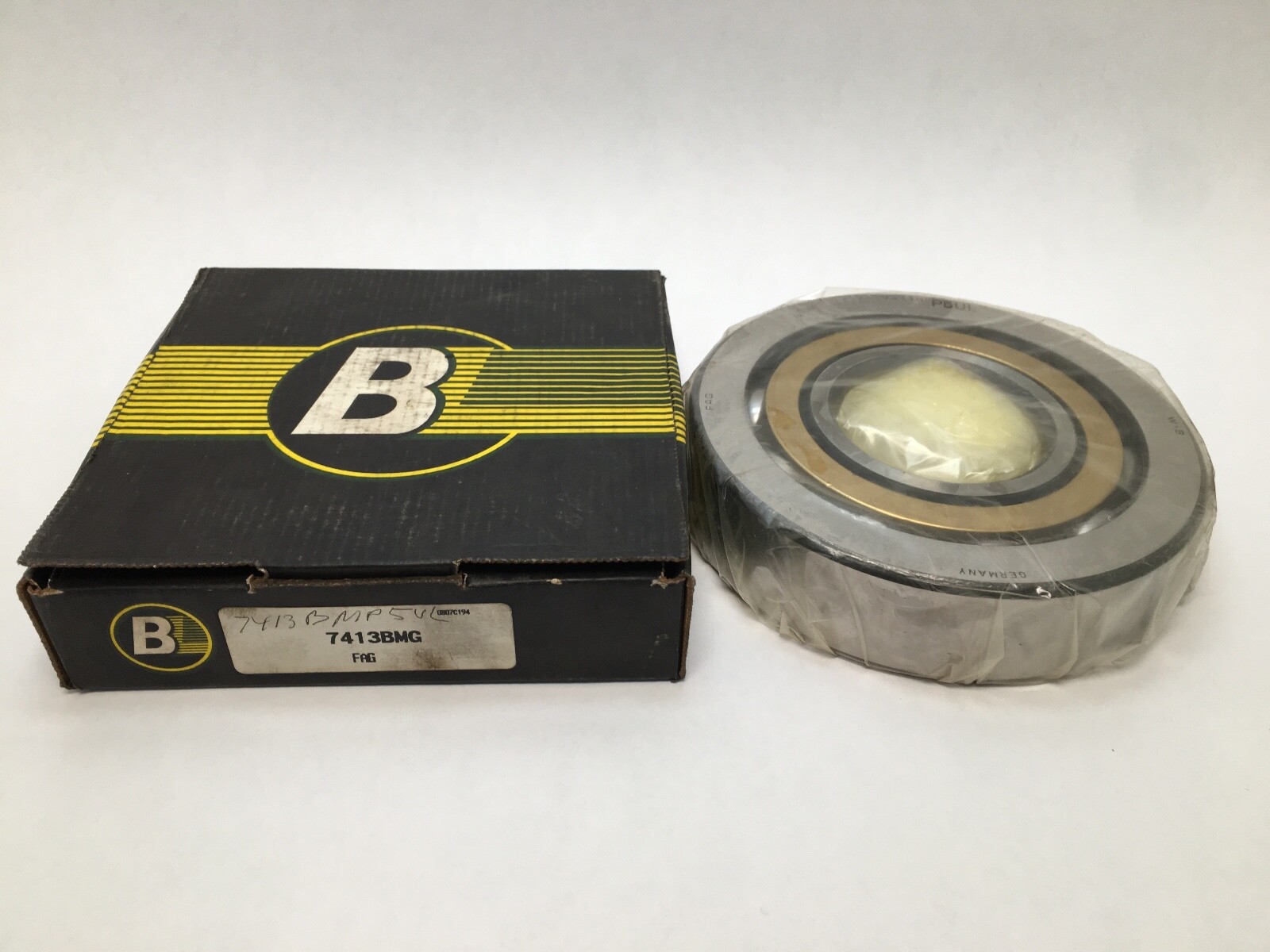

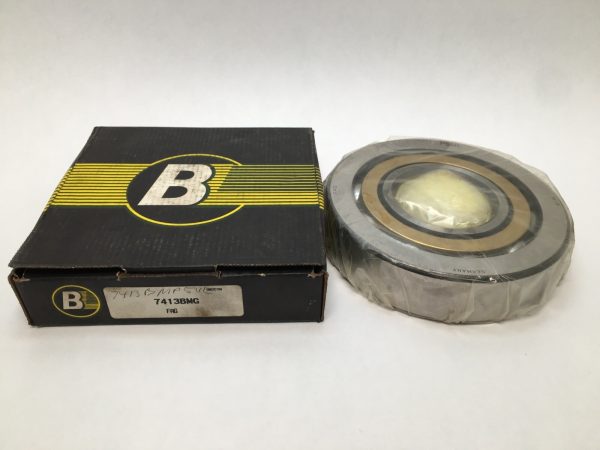

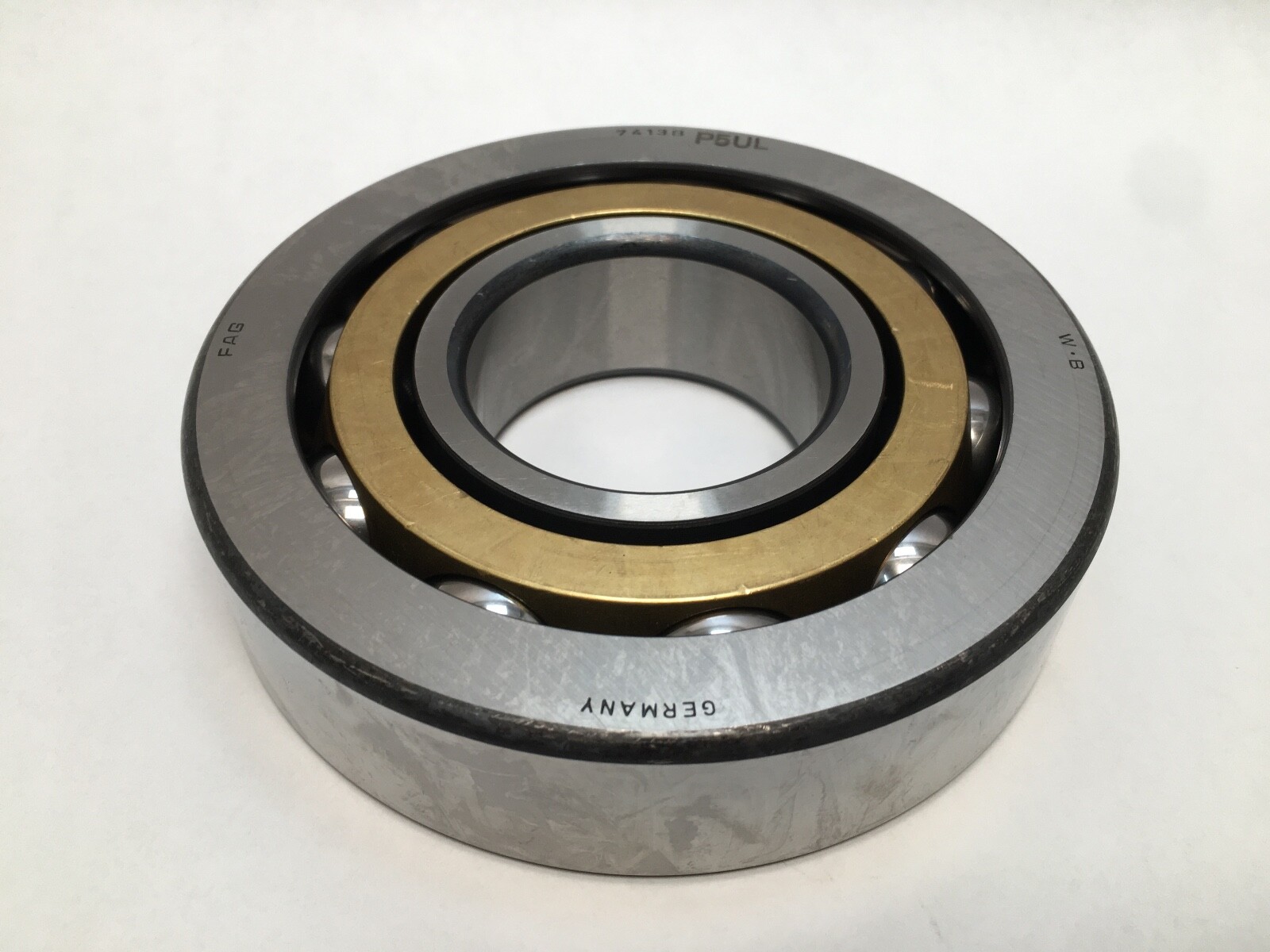

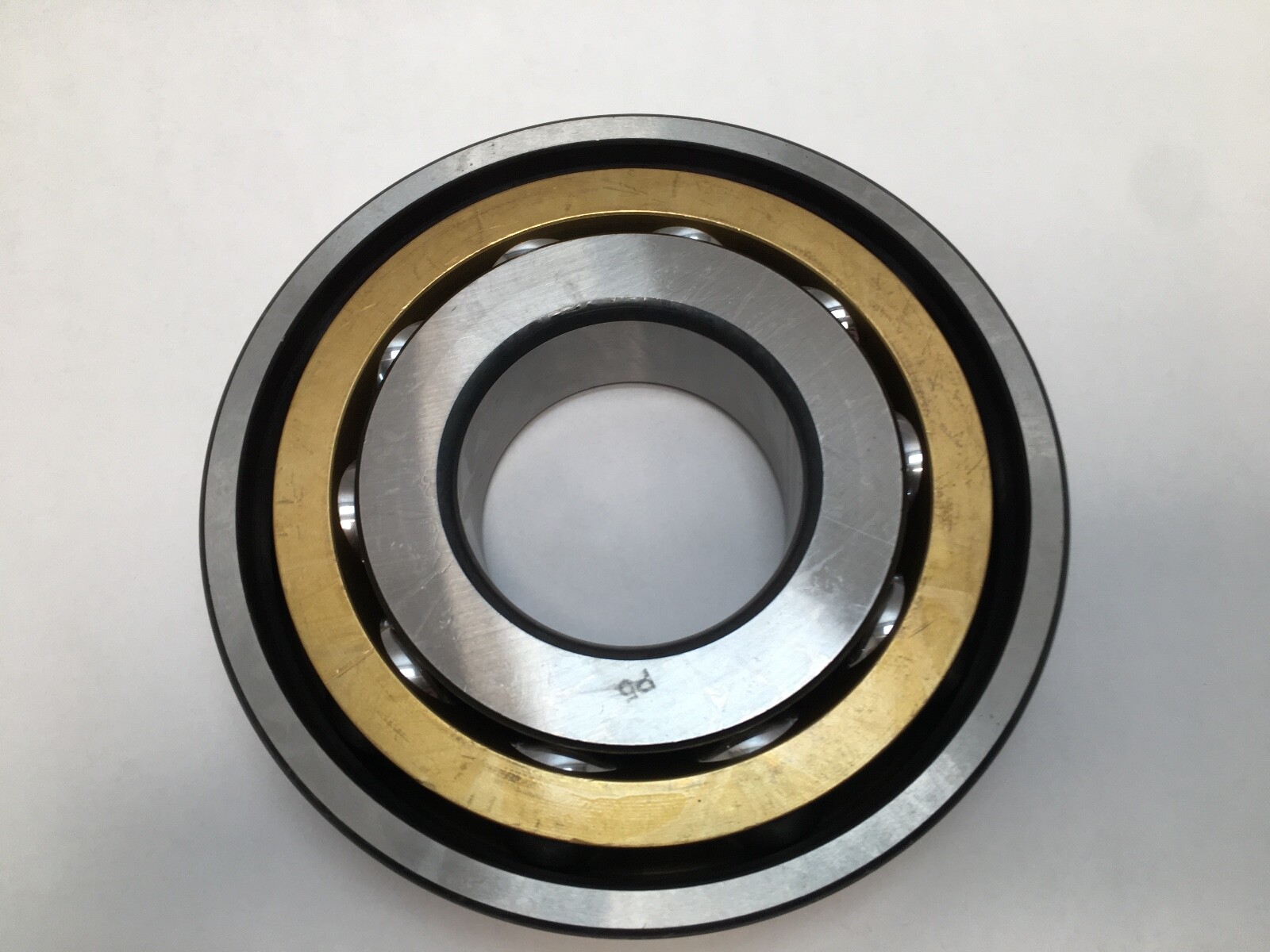

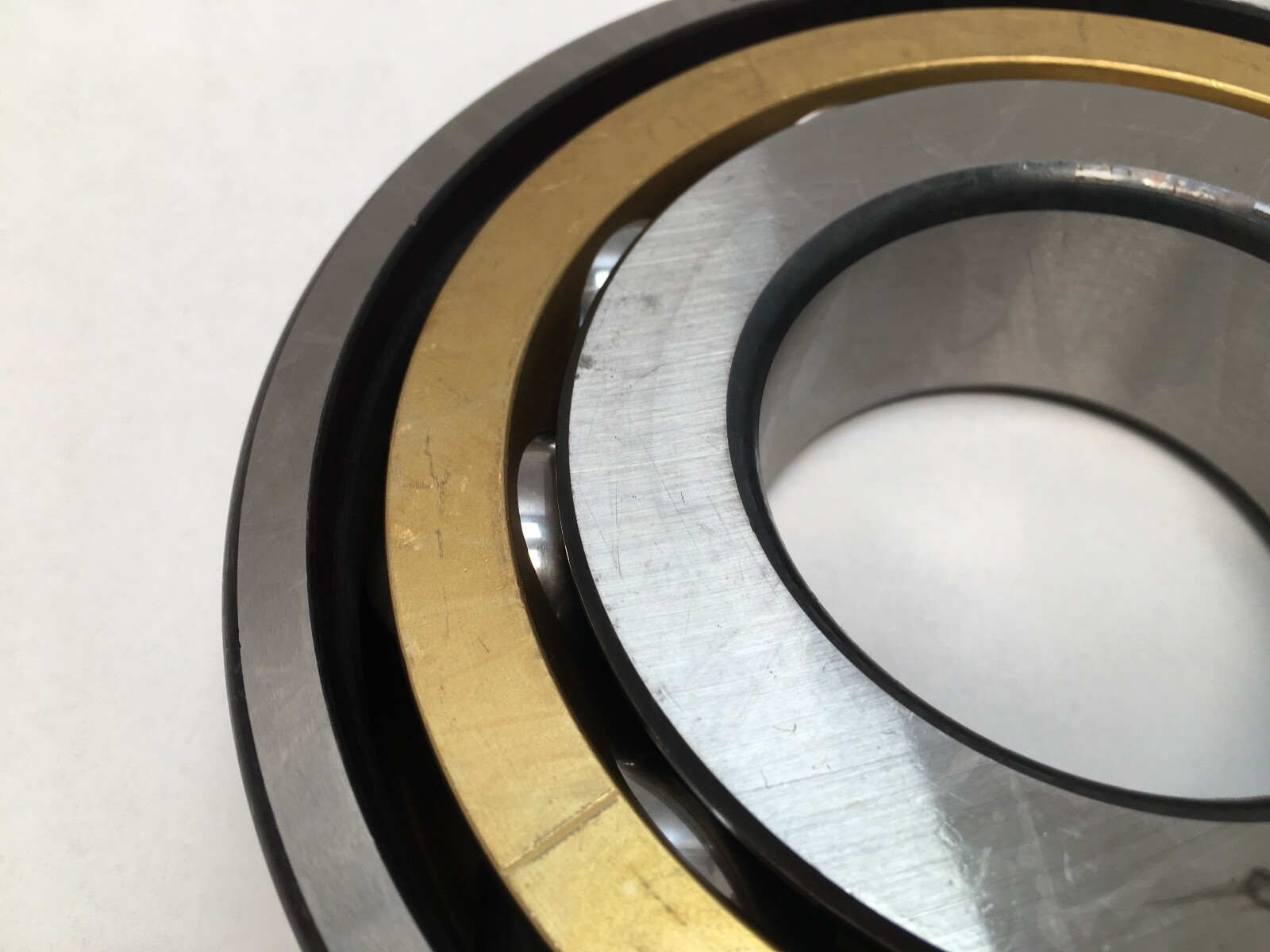

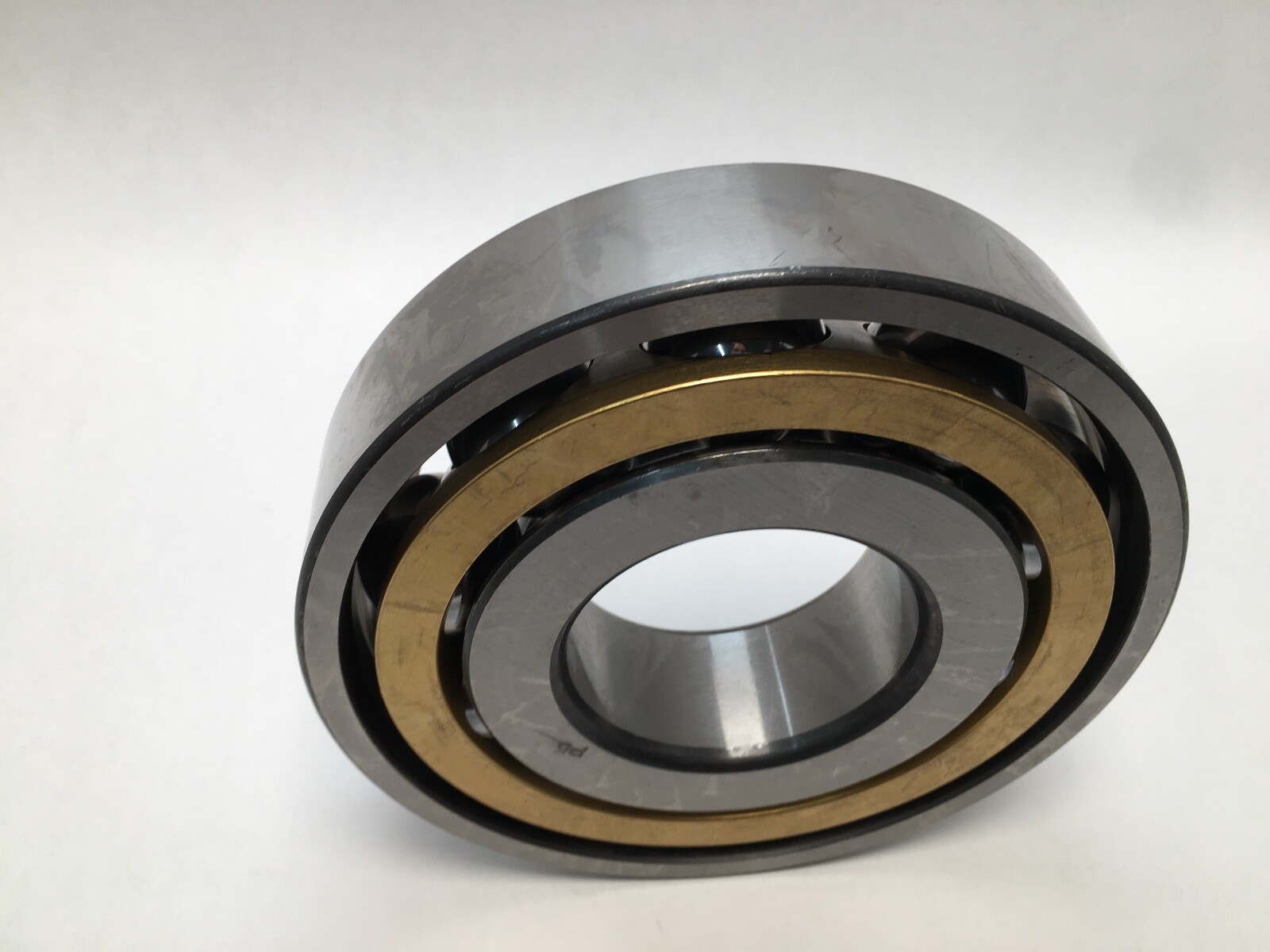

FAG 7413-B-M-P5-UL angular contact ball bearing, 65 x 160 x 37 mm, 40° contact angle, P5 precision, universal light preload, machined brass cage.
List Price
$168.20
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7413-B-M-P5-UL |
| Model | 7413-B-M-P5-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 160 mm |
| Width | 37 mm |
| Material | Bearing Steel |
|---|---|
| Series | 74 |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Base Number | 7413 |
| Overall Width | 37 mm |
| Mpn Variants | 7413BMG, 7413 BMG, 7413B-M-P5-UL, 7413B.MP.UA, 7413B |
| Compatible With Replaces | 7413B.MP.UA; Schaeffler current 7413-B-XL-MP-UA |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Base-part 7413-B-XL-MP-UA data: Dynamic Load Rating 140,000 N; Static Load Rating 107,000 N; Limiting Speed 7,300 rpm; Reference Speed 3,800 rpm; Mass 3.81 kg; Effective load centre a 67.8 mm |
| Preload | Light |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7413 BCBM |
|---|---|
| Cross Reference 2 | NSK 7413BMR |
FAG 7413-B-M-P5-UL single-row angular contact ball bearing, 74 heavy series. Bore Diameter: 65 mm. Outside Diameter: 160 mm. Overall Width: 37 mm. Contact Angle: 40°. Precision Class: ABEC 5 / P5. Preload: Light. Cage Material: Machined brass. Closure Type: Open. Rolling Elements: Ball.
74 — angular contact ball bearing, heavy 04 dimension series.
13 — bore code, 13 x 5 = 65 mm.
B — 40° contact angle.
M — machined brass cage.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
UL — universal design, Light preload in O, X or tandem arrangement.
The 40° angle gives high axial capacity in one direction; the heavy 74 section carries large combined loads, typical of pump, compressor and gearbox thrust positions.
Base-part 7413-B-XL-MP-UA data: Dynamic Load Rating: 140,000 N. Static Load Rating: 107,000 N. Limiting Speed: 7,300 rpm. Reference Speed: 3,800 rpm. Item Weight: 3.81 kg (8.41 lb).
Base-part 7413-B-XL-MP-UA data: fillet radius r min: 2.1 mm. Abutment da min: 79 mm. Abutment Da max: 146 mm. Effective load centre a: 67.8 mm.
Unit Quantity: 1 Pc. Single universal bearing.
Compatible With / Replaces: 7413B.MP.UA; Schaeffler current 7413-B-XL-MP-UA. Cross-Reference: SKF 7413 BCBM, NSK 7413BMR. Same 65 x 160 x 37 mm envelope at 40°.
