FAG7216TGP4Angular Contact Ball Bearing — 80 mm ID, 140 mm OD, 26 mm Width, 15° Contact Angle, ABEC 7, Light Preload

Product Description

What this part is

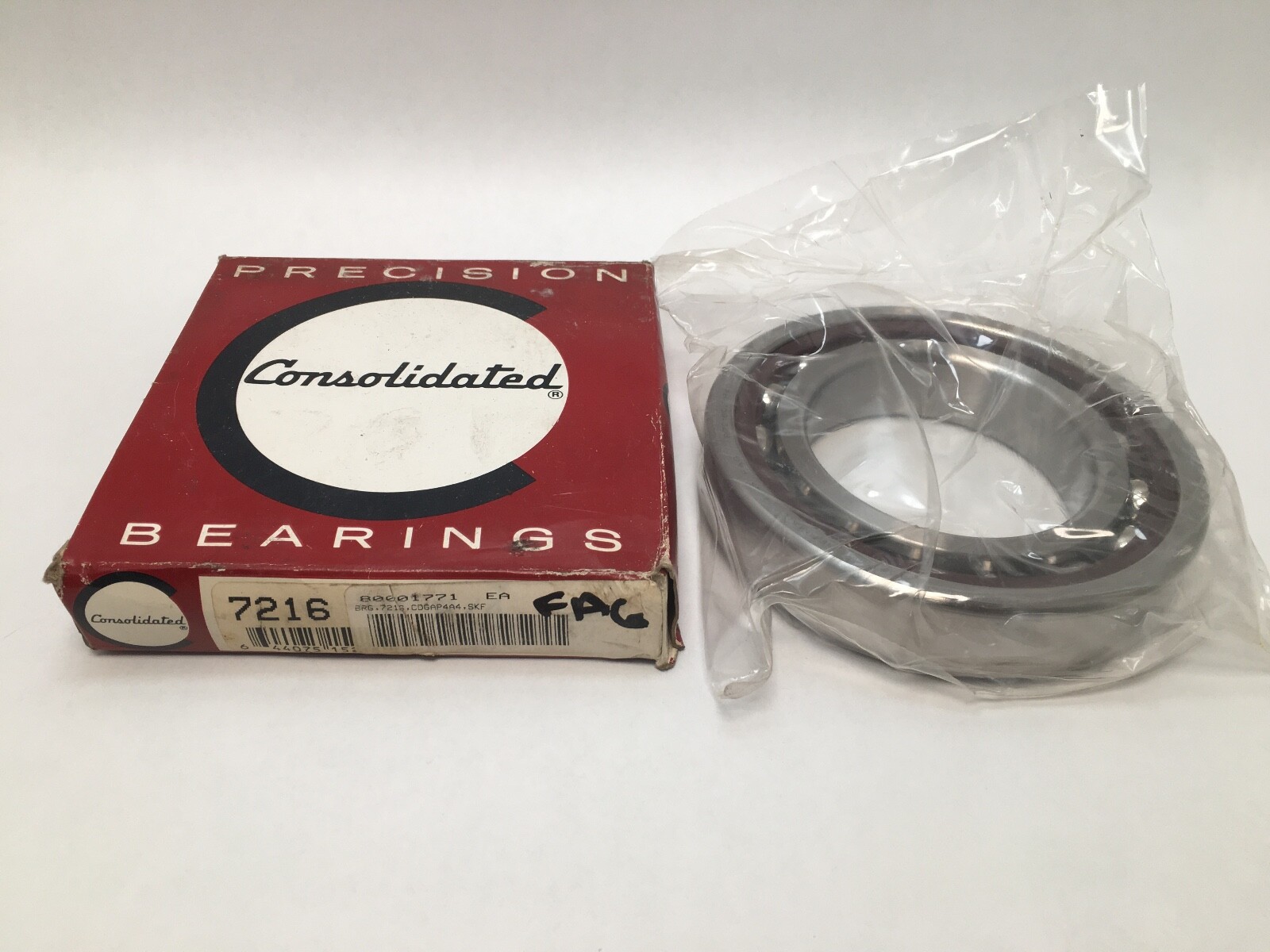

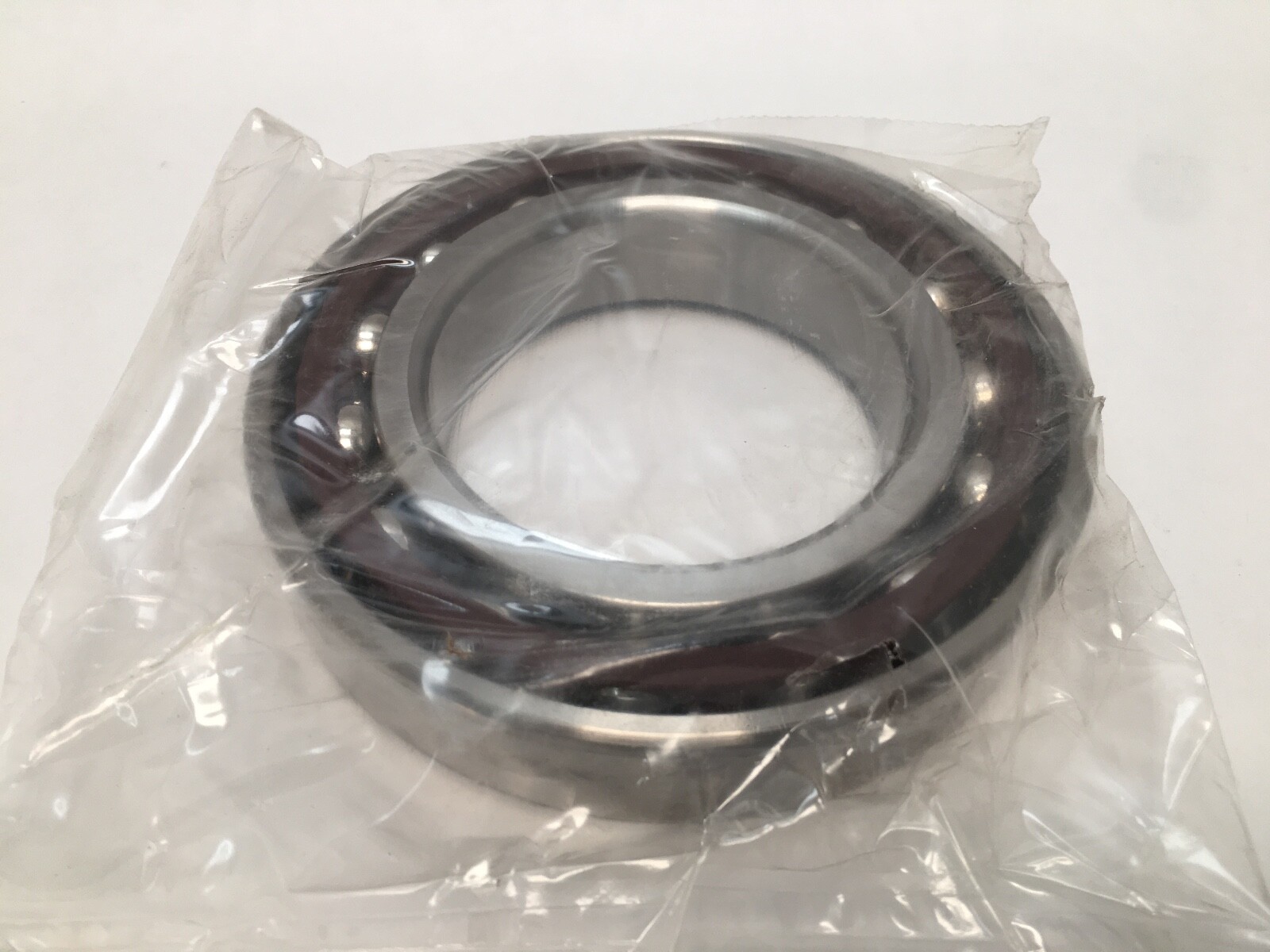

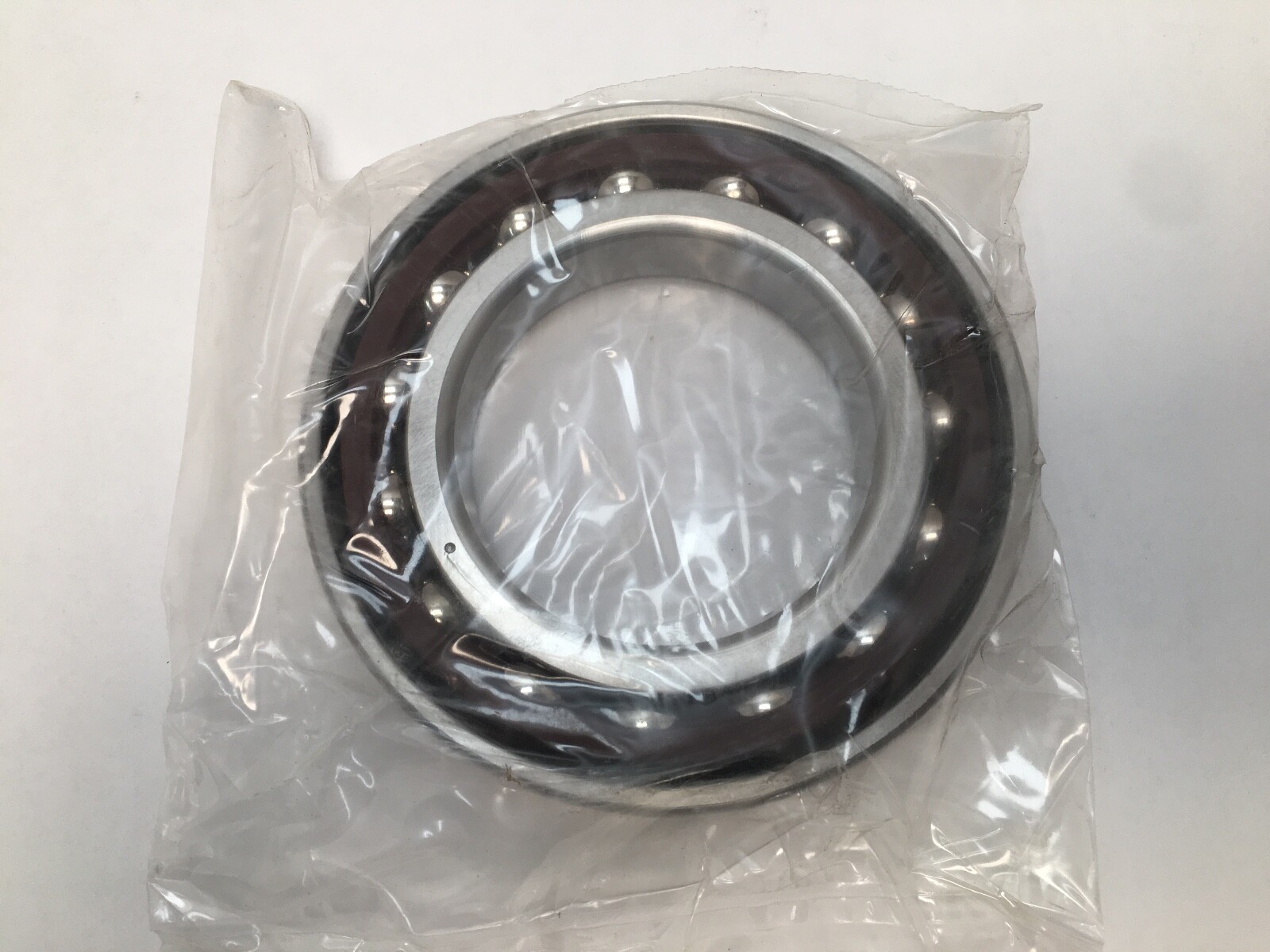

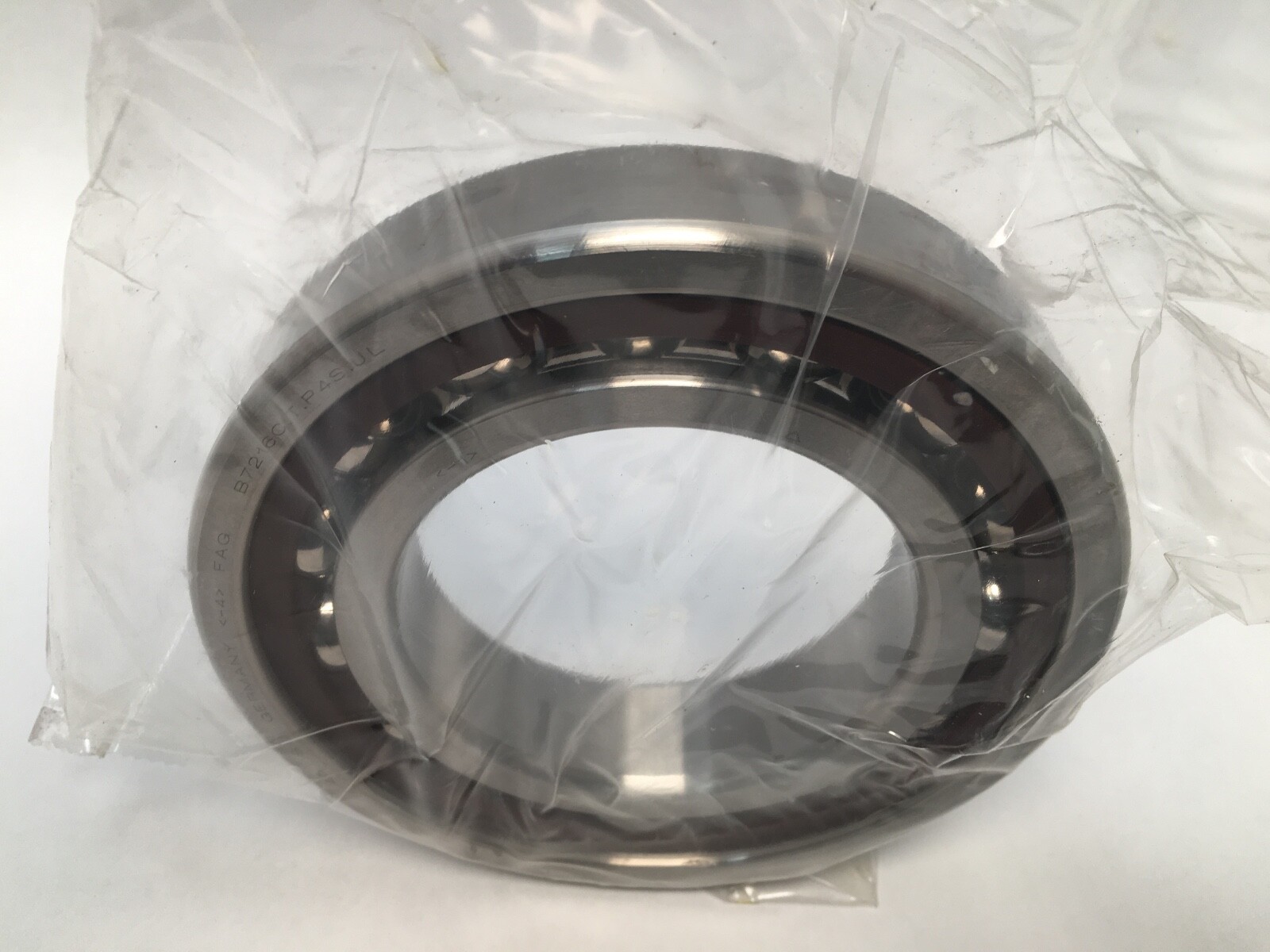

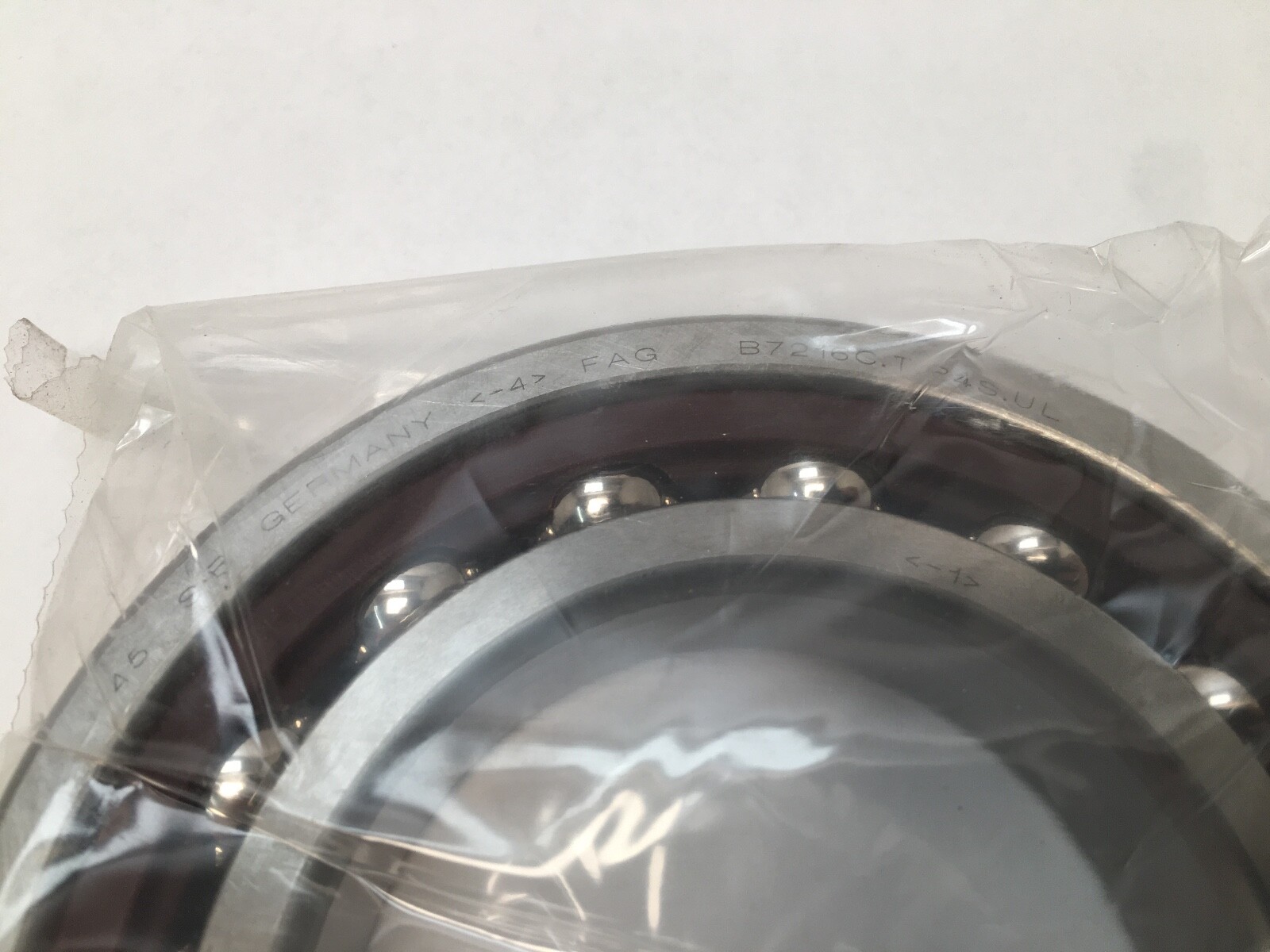

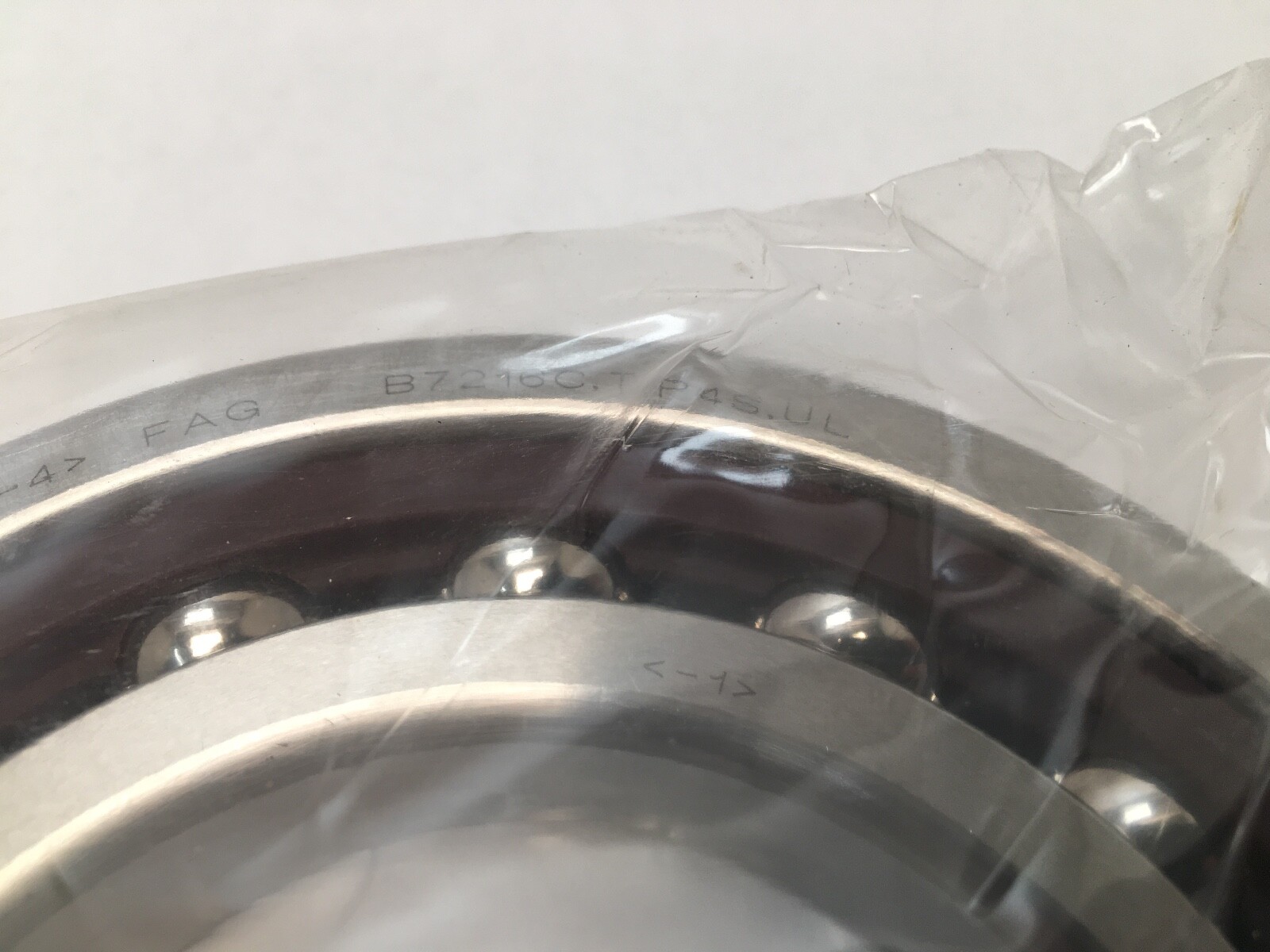

Consolidated (FAG designation) 7216TGP4 single-row super-precision angular contact ball bearing, carton form B-7216-C-T-P4S-UL. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined. Precision Class: ABEC 7 / P4. Preload: Light (549 N). Closure Type: Open. Bore Type: Straight. Series: B72.

Decoding the designation

7216 — ISO dimension series 02 angular contact (B72 range), bore code 16, 80 x 140 x 26 mm.

C — 15° contact angle.

TG — machined phenolic cage, outer-ring guided.

P4 — ISO tolerance class P4, equivalent to ABEC 7.

UL — universal design, light preload when mounted in any paired arrangement. Preload force: 549 N.

What these specs mean in practice

The B72 section carries larger balls than the B70 range on the same bore, giving higher load capacity and stiffness in a heavier envelope. A 15° contact angle favours radial stiffness and speed. Universal flush-ground faces let the bearing pair back-to-back, face-to-face or in tandem with a defined light preload.

Mounting data

Minimum Chamfer Dimension (r min): 2 mm. Maximum Fillet Radius (ra max): 2 mm. Shaft Shoulder Diameter (da): 91 mm. Housing Shoulder Diameter (Da): 129 mm. Pressure Centre Distance (a): 27.7 mm.

Quantity and configuration

Unit Quantity: 1 Pc. Single universal bearing, open, straight bore.

Interchange guidance

Same-envelope 15° ABEC 7 light-preload equivalents: SKF 7216 CD/P4ADGA, NSK 7216CTRSULP4, NTN 7216UCG/GLP4, Timken Fafnir 2MM216WI SUL, Koyo 7216C P4. Searchable forms: 7216TGP4, 7216-TG-P4, B7216-C-T-P4S-UL, B7216C, 7216C, Consolidated 7216TGP4.
