Availability:
1 in stock

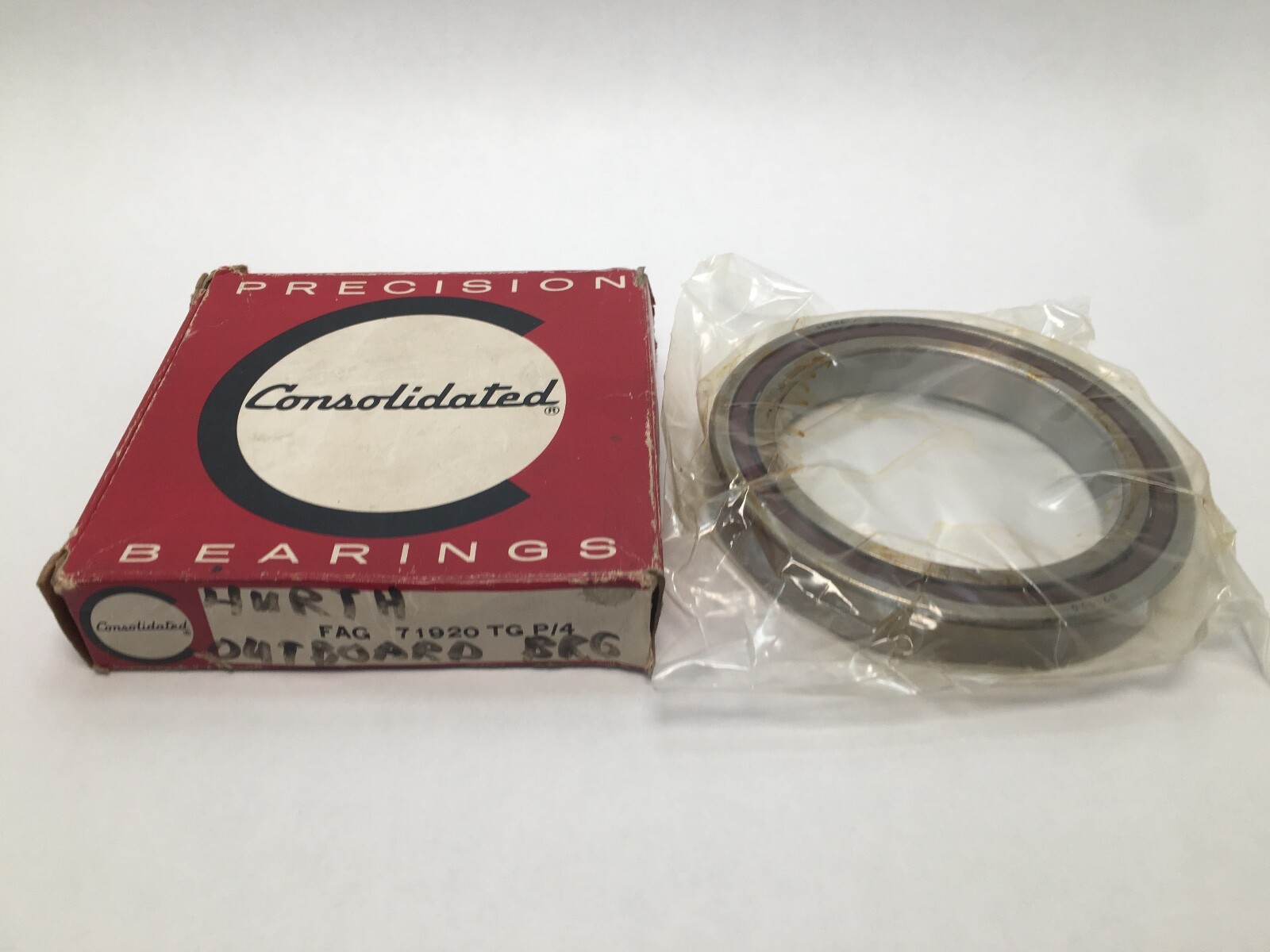

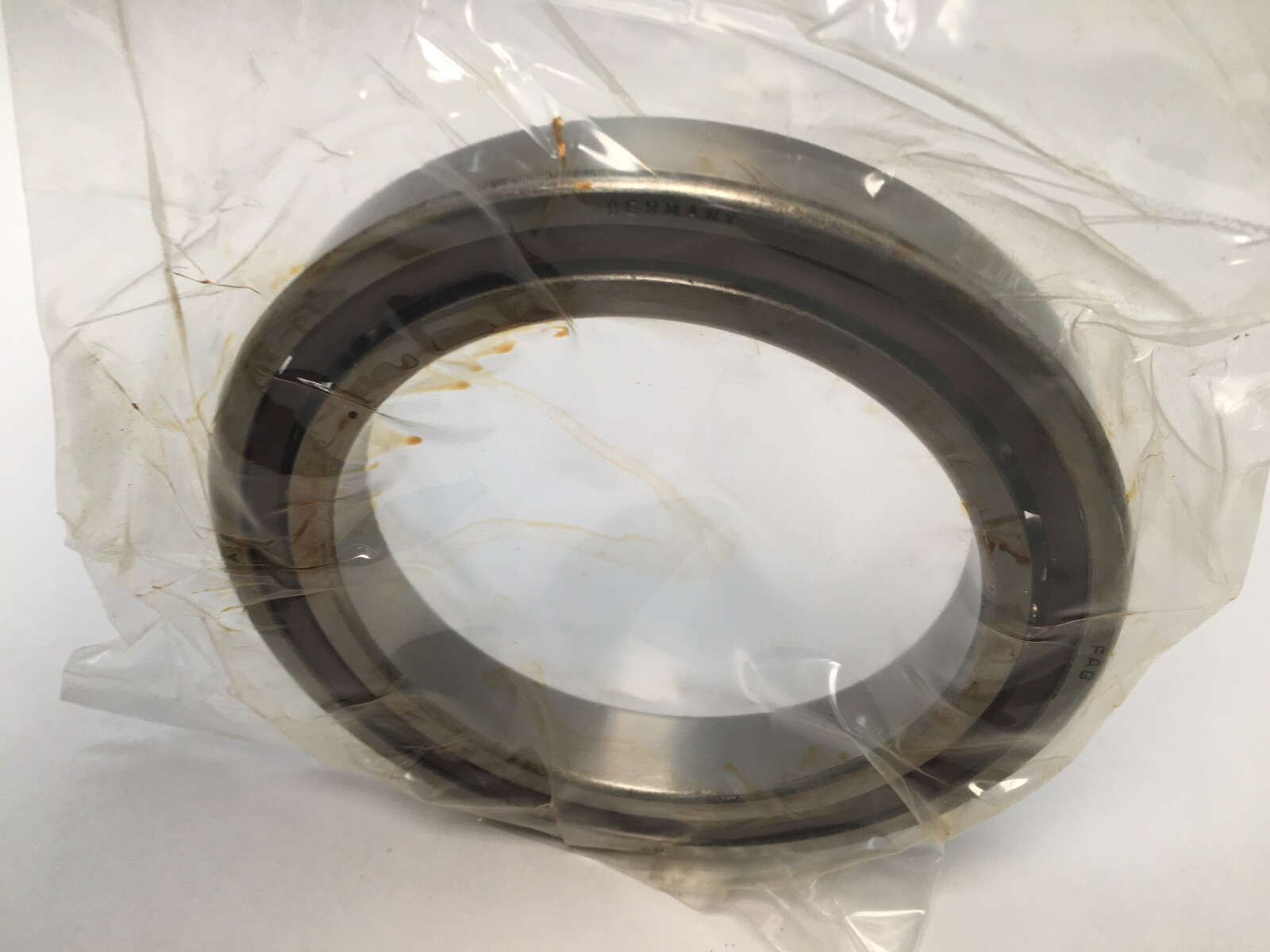

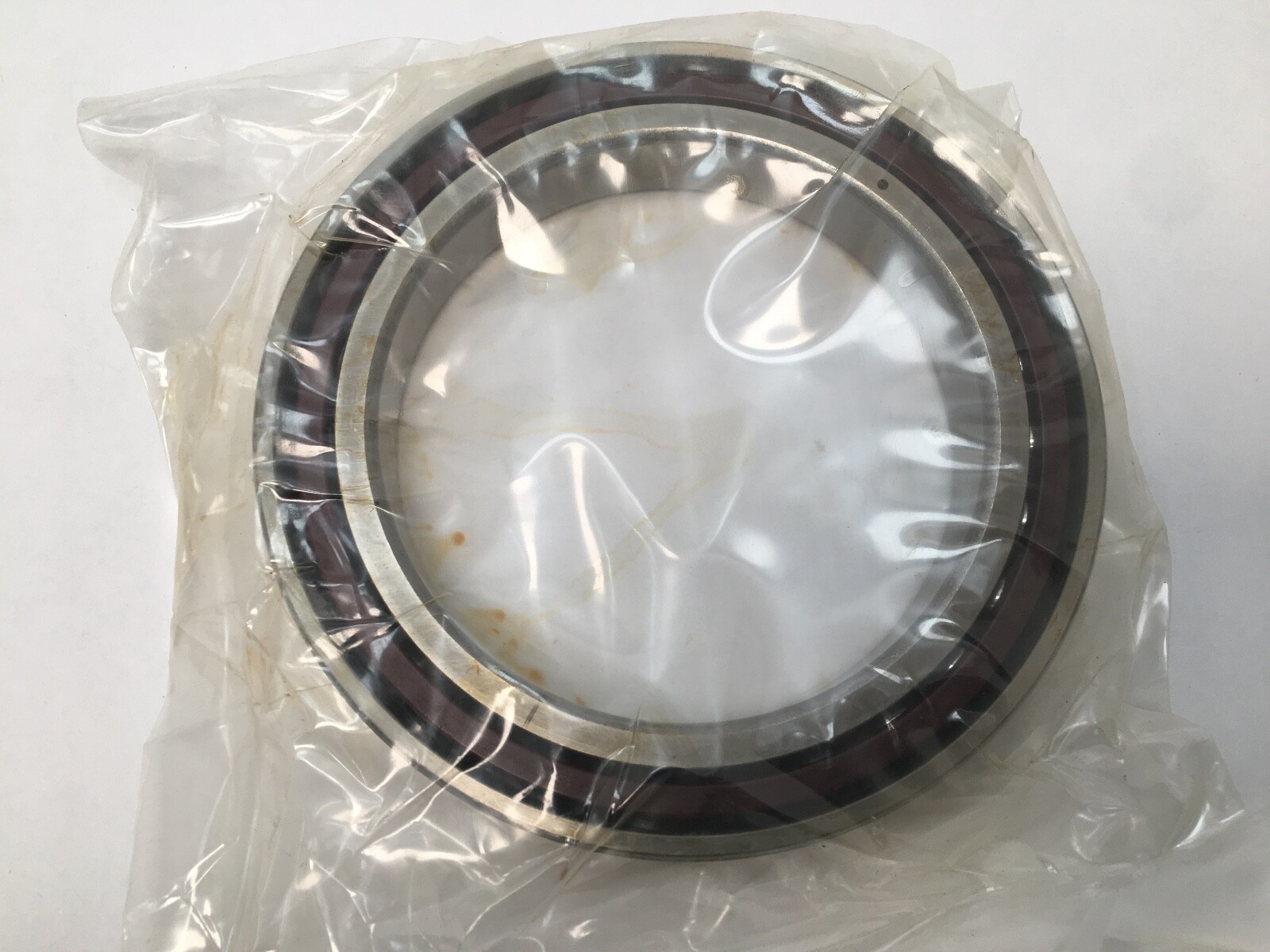

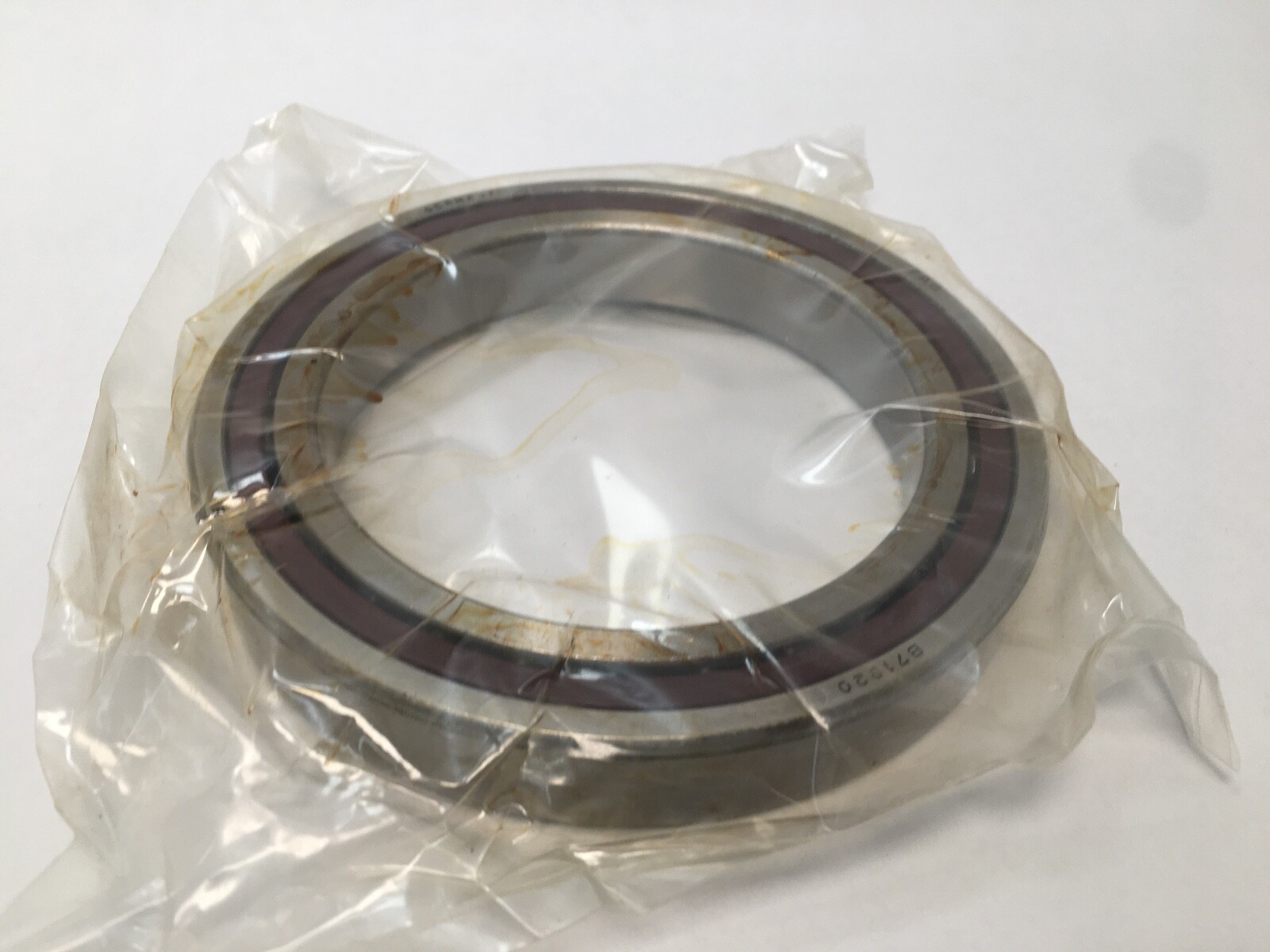

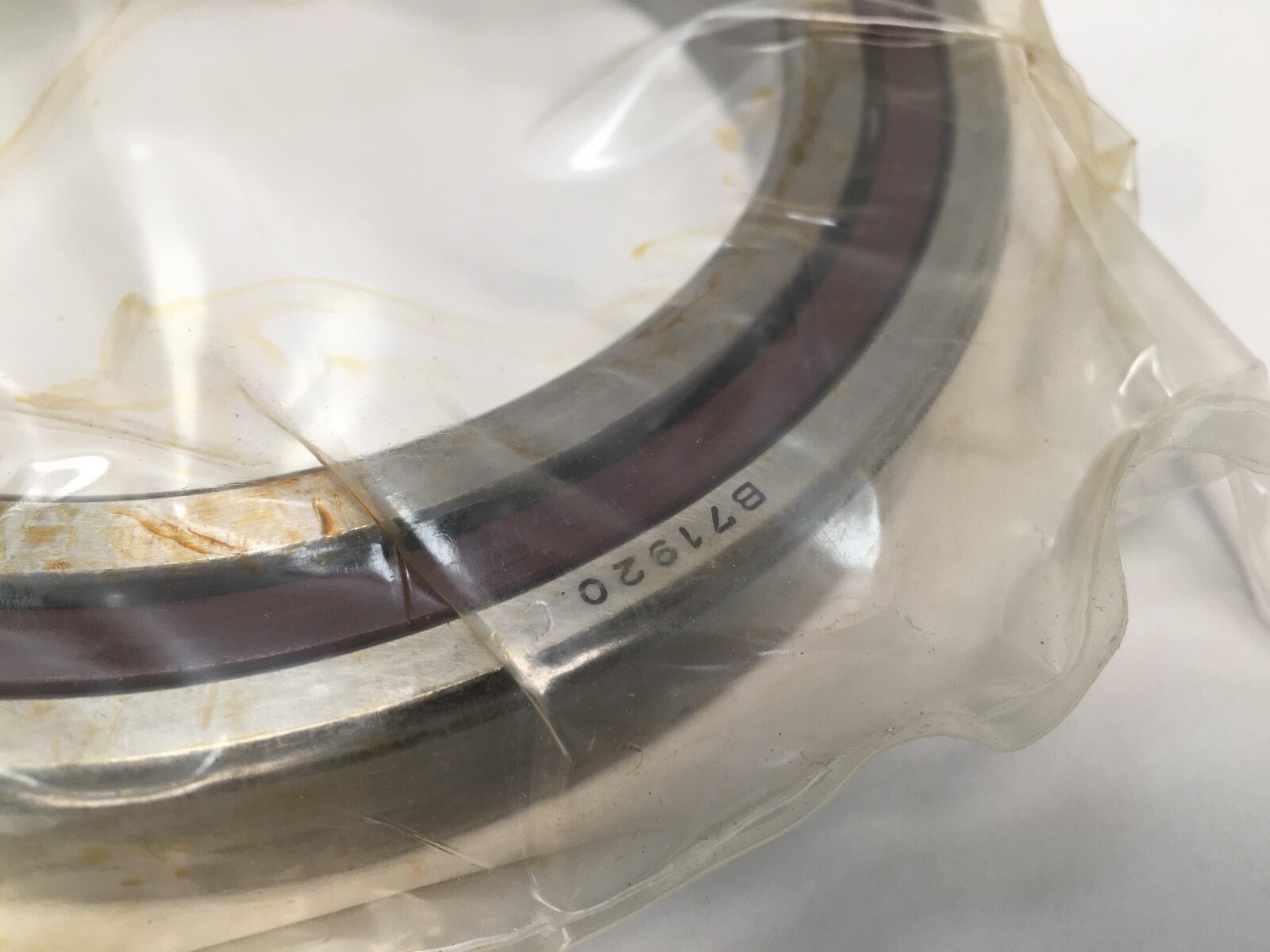

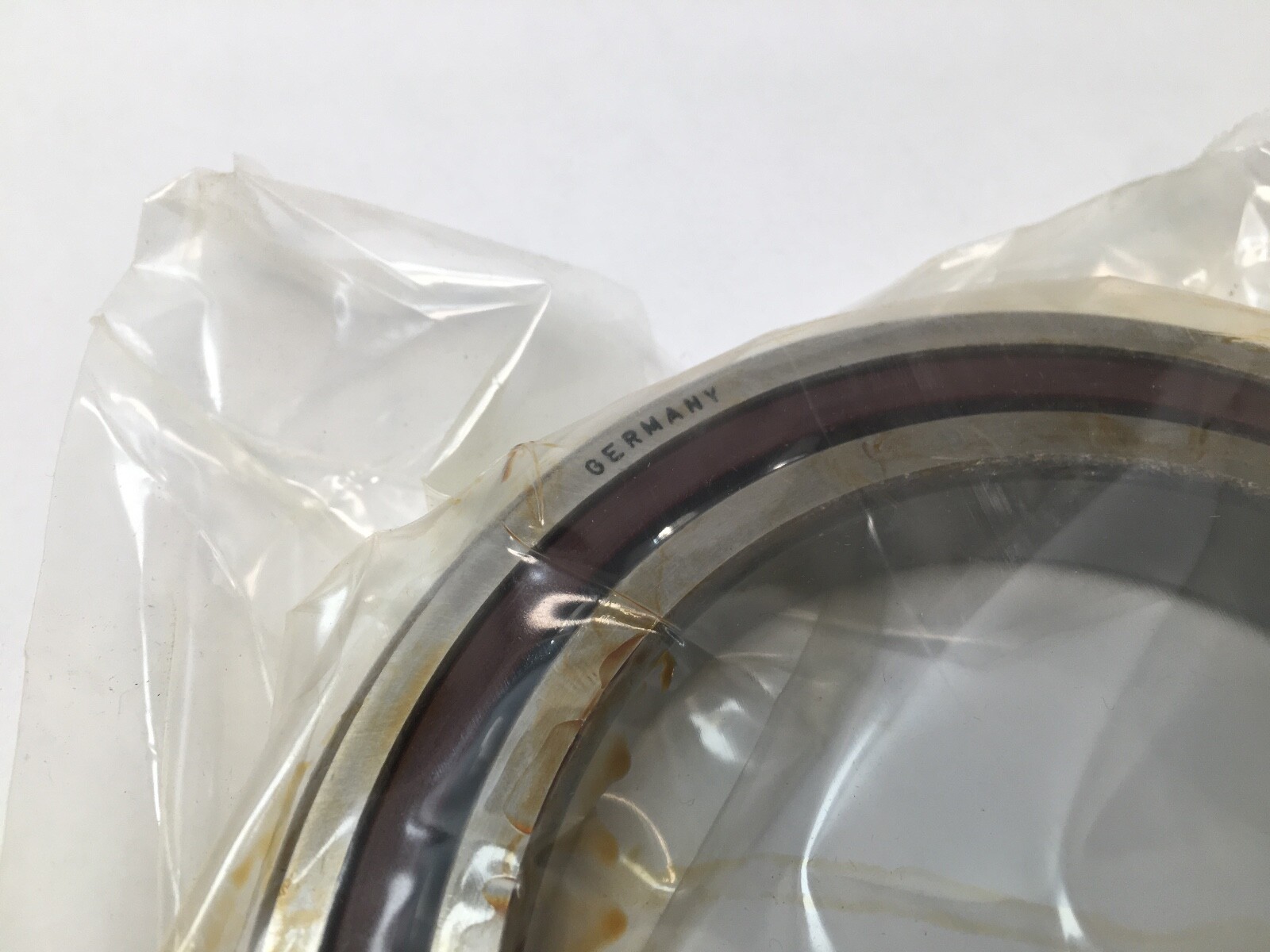

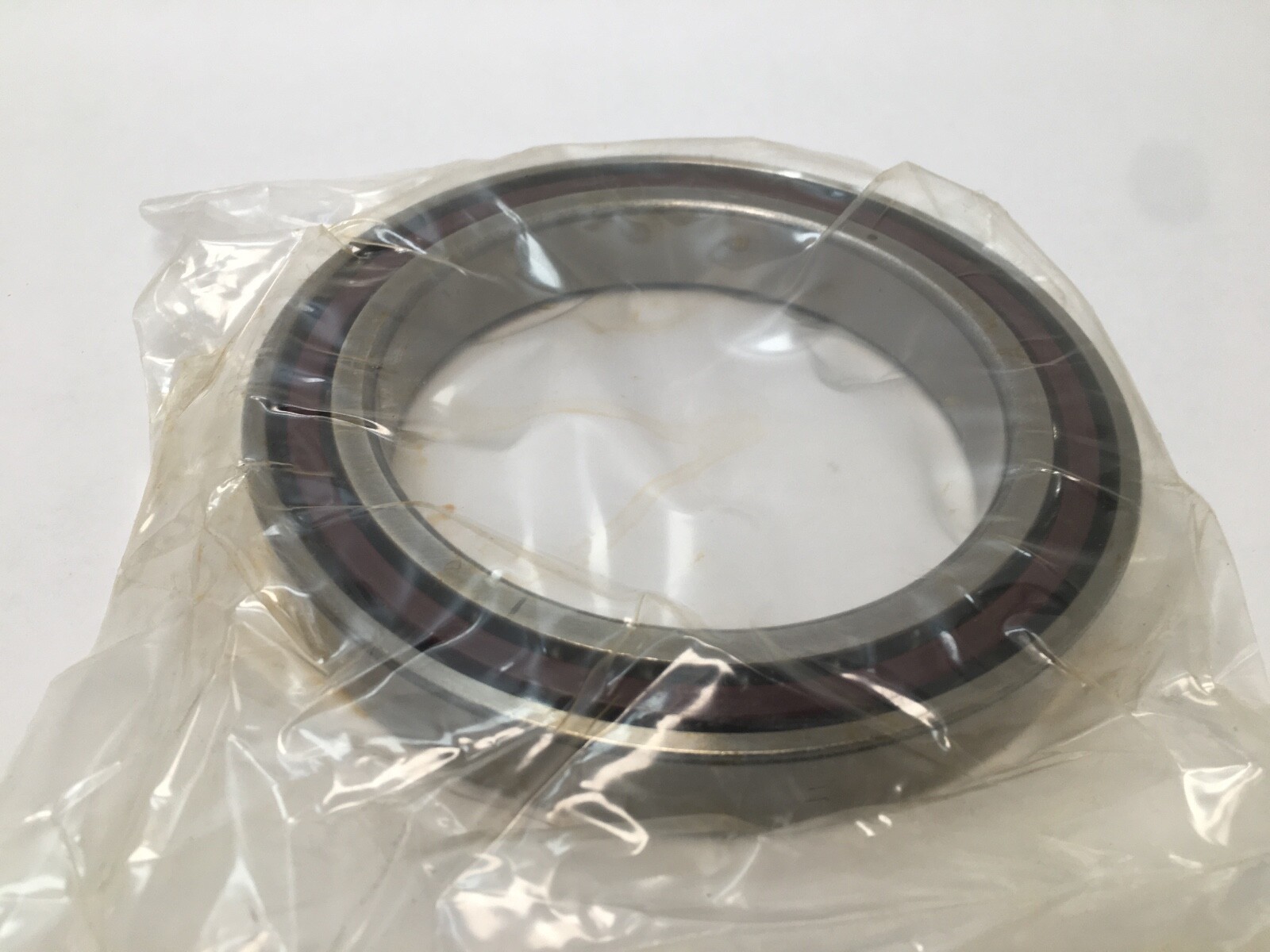

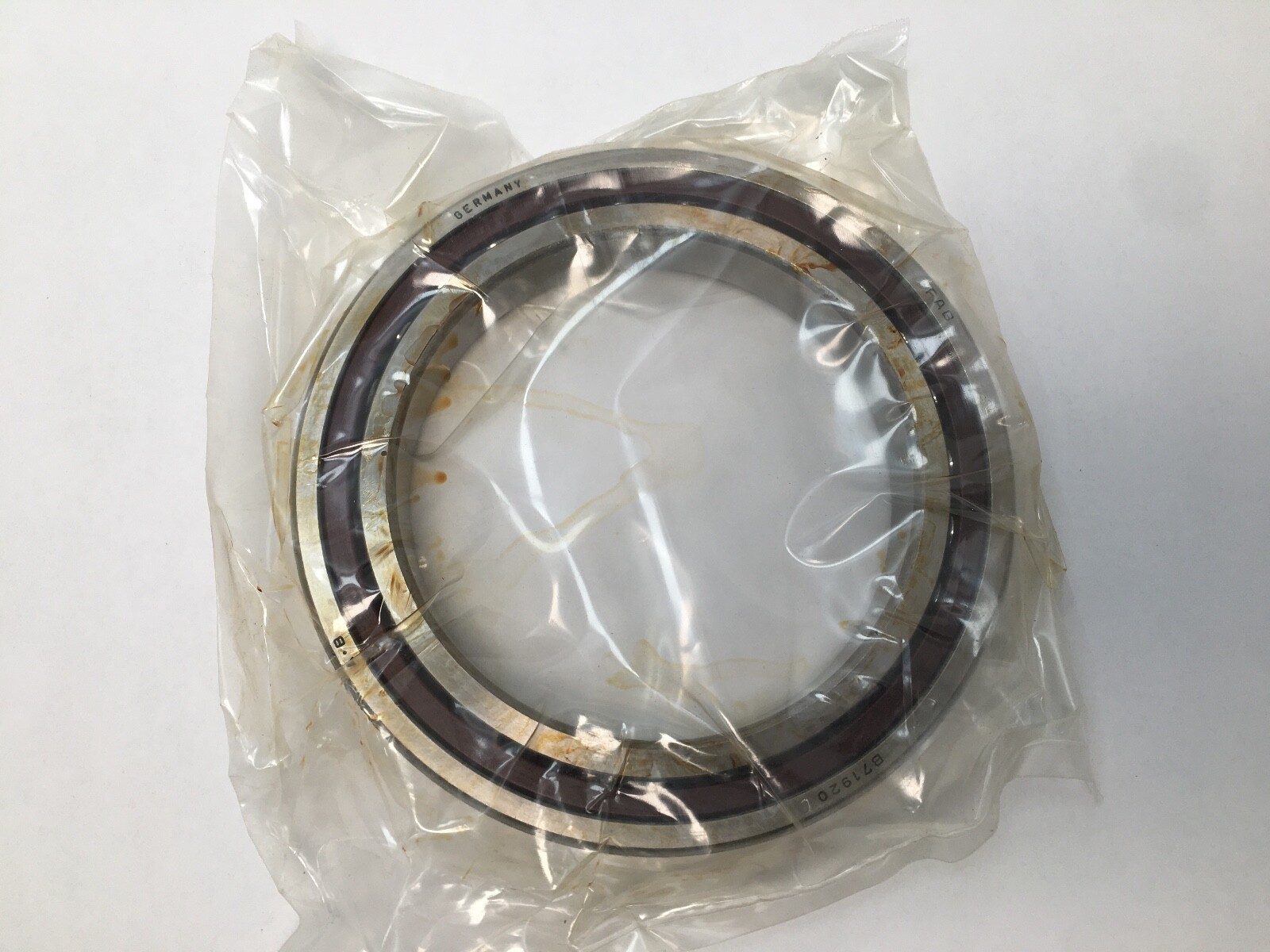

Angular contact spindle bearing, 100 x 140 x 20 mm, 15° contact angle, ABEC 7 / P4, phenolic cage, universal light preload. FAG B719 thin-section series.
List Price
$336.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | B 71920 C TPA P4 UL / 7920-C / 71920CDP4A / 2MM9320WI |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 140 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | B719 |
| Lubricant | grease or oil |
| Mpn Variants | 71920TGP4, 71920-TG-P4, B71920-C-P4-UL, B71920C, 7920C, 7920 |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring land riding |
| Dynamic Load Rating | 60,000 N |
| Static Load Rating | 45,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.78 kg (1.72 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 9,500 rpm grease; 14,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Light (316 N) |
| Mounting Arrangement | Universal single (UL) |
| Cross Reference 1 | FAG B71920-C-T-P4S-UL – current Schaeffler form |
|---|---|
| Cross Reference 2 | NSK 7920CTYNSULP4 – 15°, P4, light preload |
| Cross Reference 3 | Fafnir 2MM9320WI CR SUL – 15°, light preload |
| Cross Reference 4 | SKF 71920 CD/P4A – 15°, P4; check preload |
FAG 71920-TG-P4 (B71920-C-P4-UL) is a single super-precision angular contact spindle bearing from the Schaeffler B719 thin-section series. Bore Diameter: 100 mm. Outside Diameter: 140 mm. Width: 20 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light.
71920 — ISO 719 series, 100 x 140 x 20 mm, the extra-light section.
TG — machined phenolic cage, outer-ring land riding, universally flush-ground faces.
C — 15° contact angle.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
UL — universally ground single bearing, light preload when paired in any arrangement.
Dynamic Load Rating: 60,000 N. Static Load Rating: 45,000 N. Limiting Speed: 9,500 rpm grease; 14,000 rpm oil. Preload Force: Light, 316 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C. The thin 719 section fits compact spindle housings.
Shaft Shoulder Diameter: 107 mm. Housing Shoulder Diameter: 133 mm. Item Weight: 0.78 kg (1.72 lb).
Unit Quantity: 1 Pc. Universal single bearing for duplex or multi-bearing sets.
Current Schaeffler number: B71920-C-T-P4S-UL. Other makers’ numbers for a 100 x 140 x 20 mm, 15°, P4 angular contact bearing: NSK 7920CTYNSULP4 and Fafnir 2MM9320WI CR SUL (both light-preload universal singles), and SKF 71920 CD/P4A (check preload).
