Availability:
2 in stock

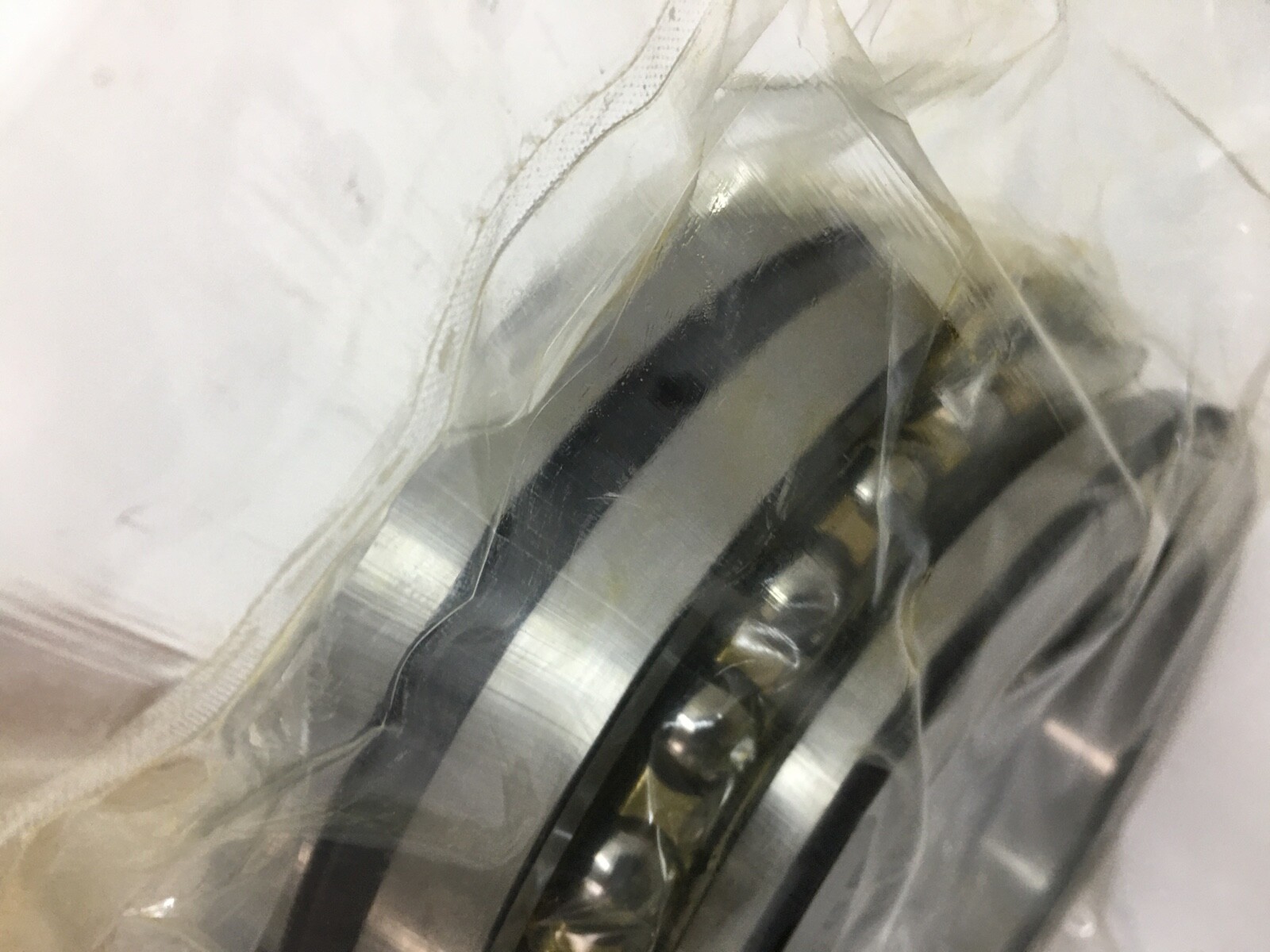

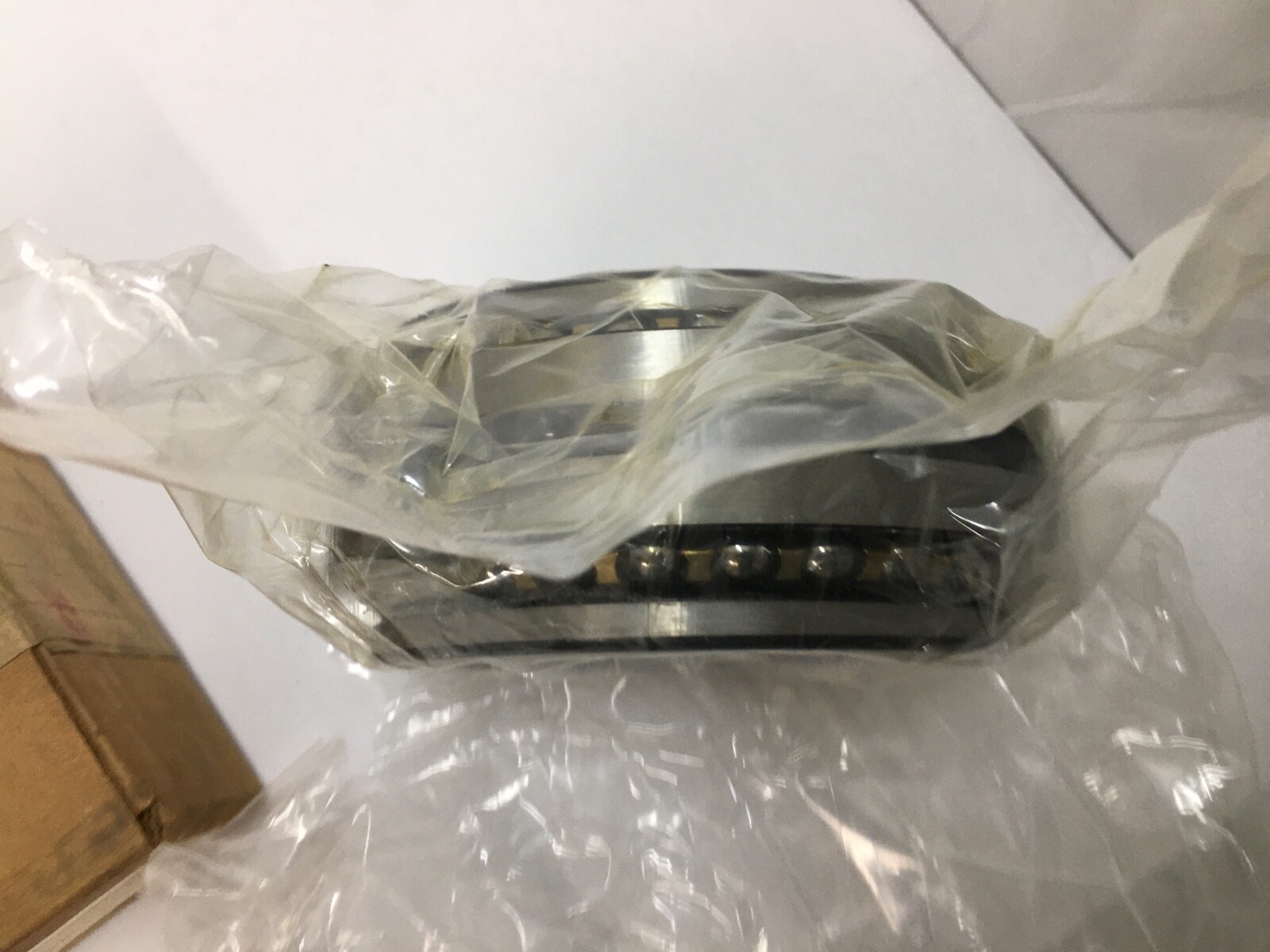

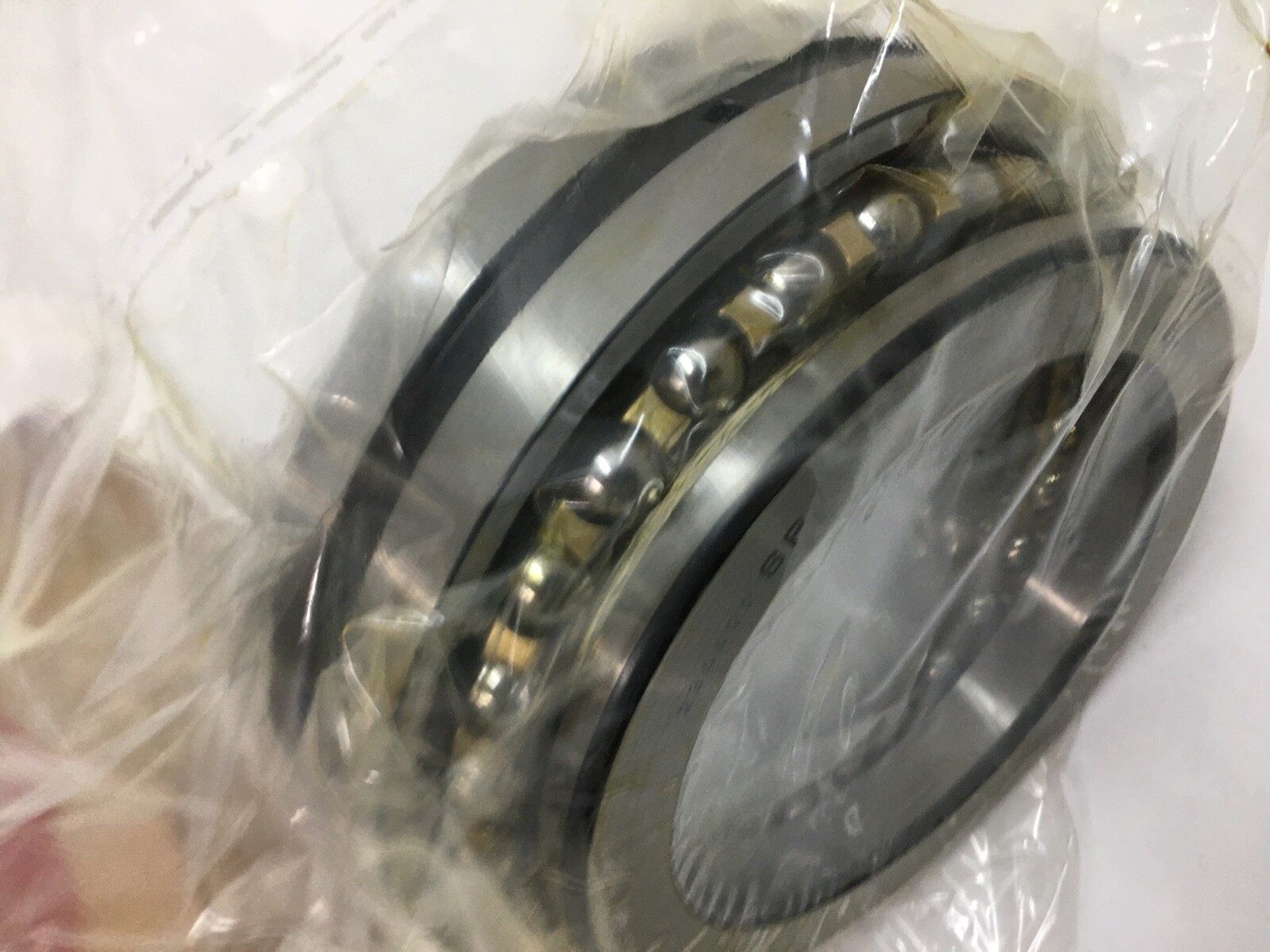

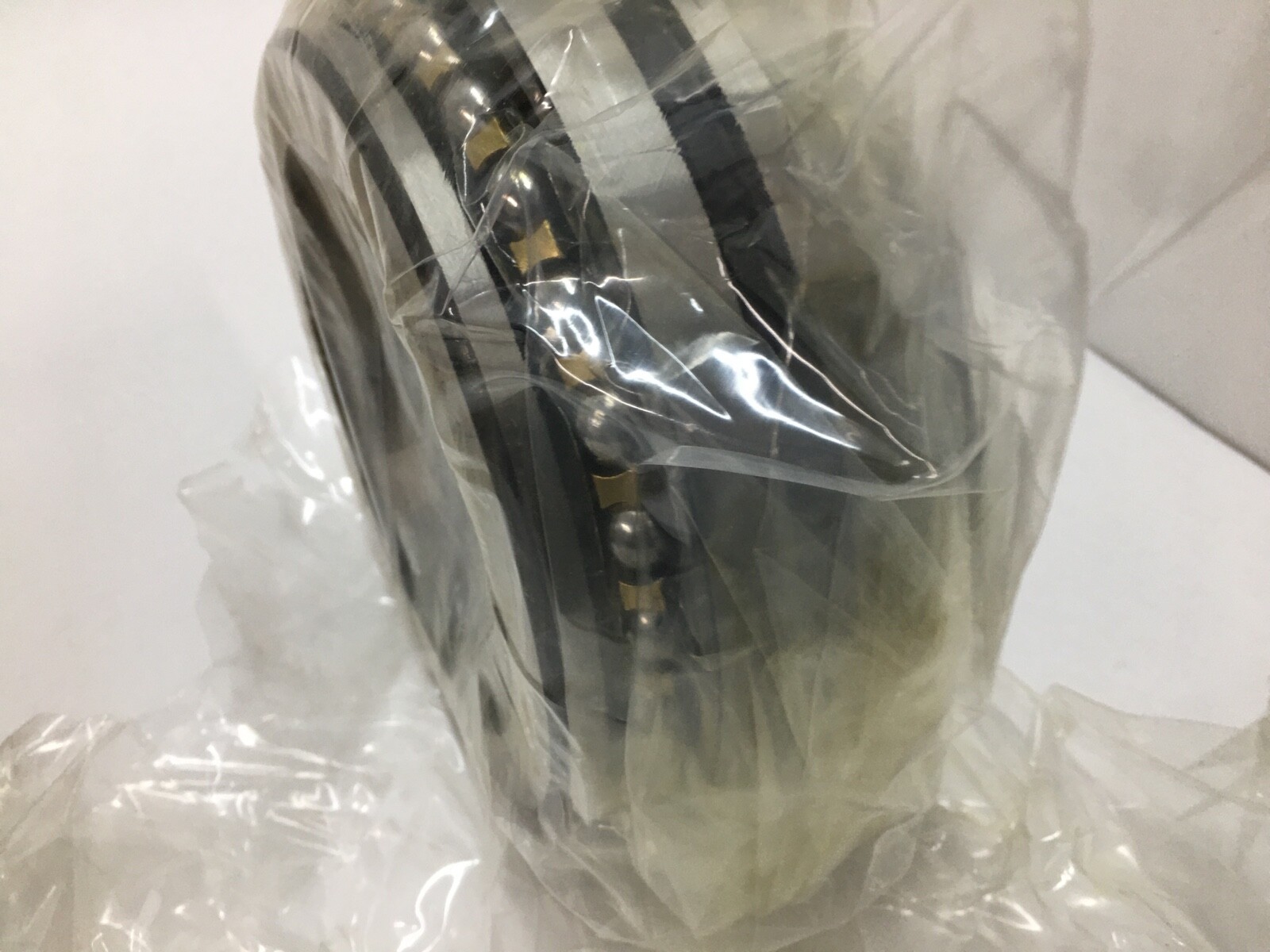

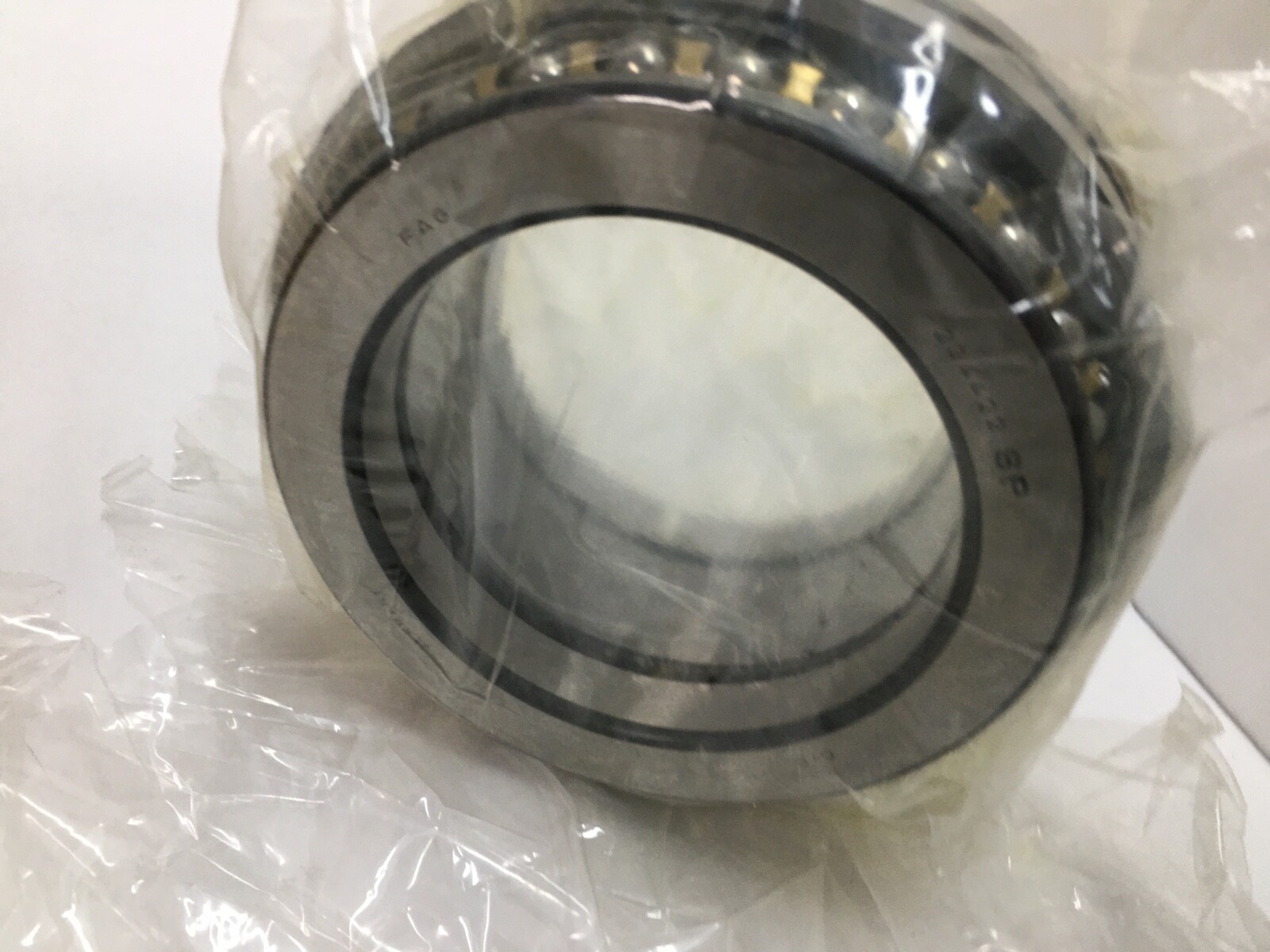

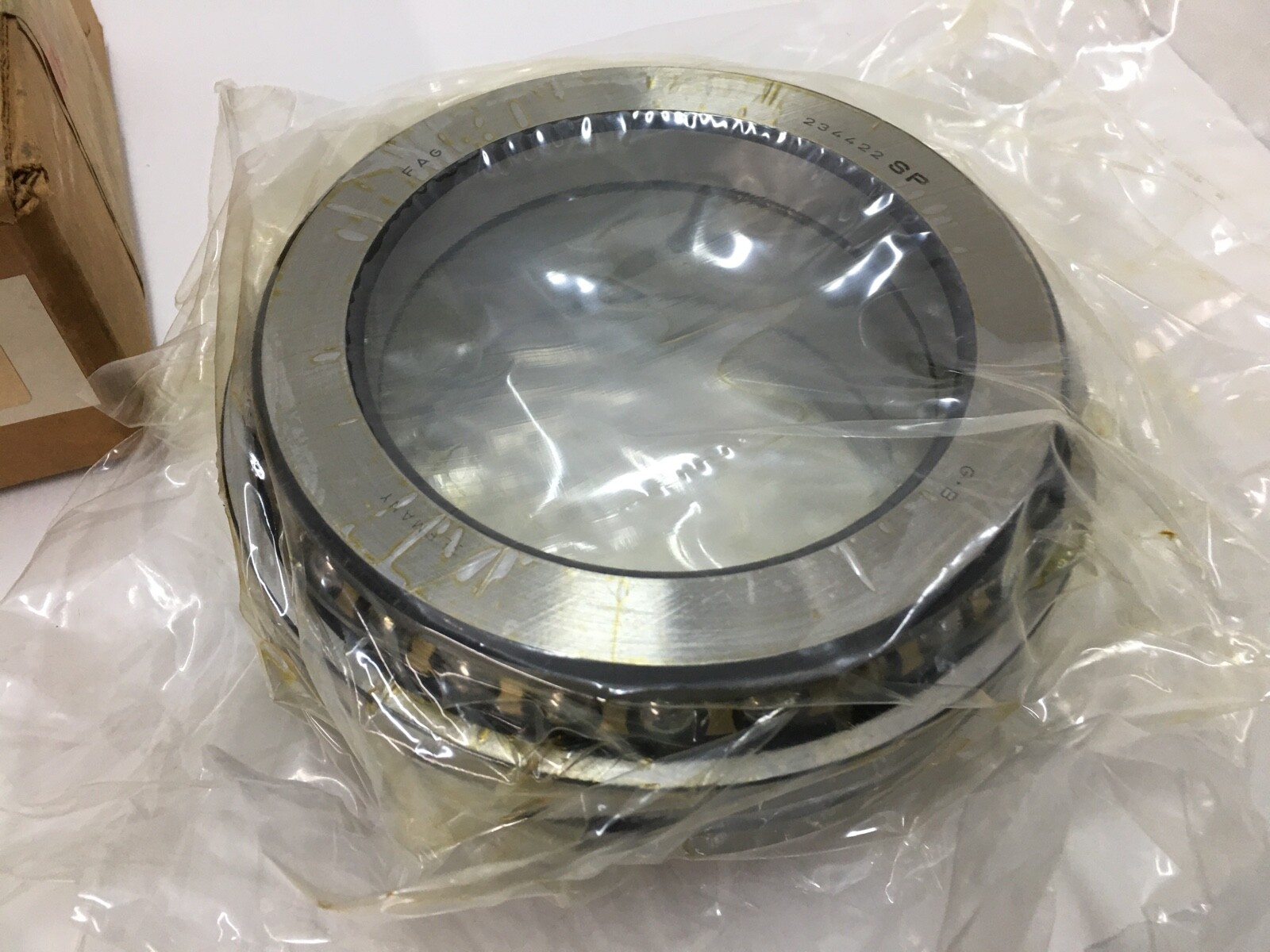

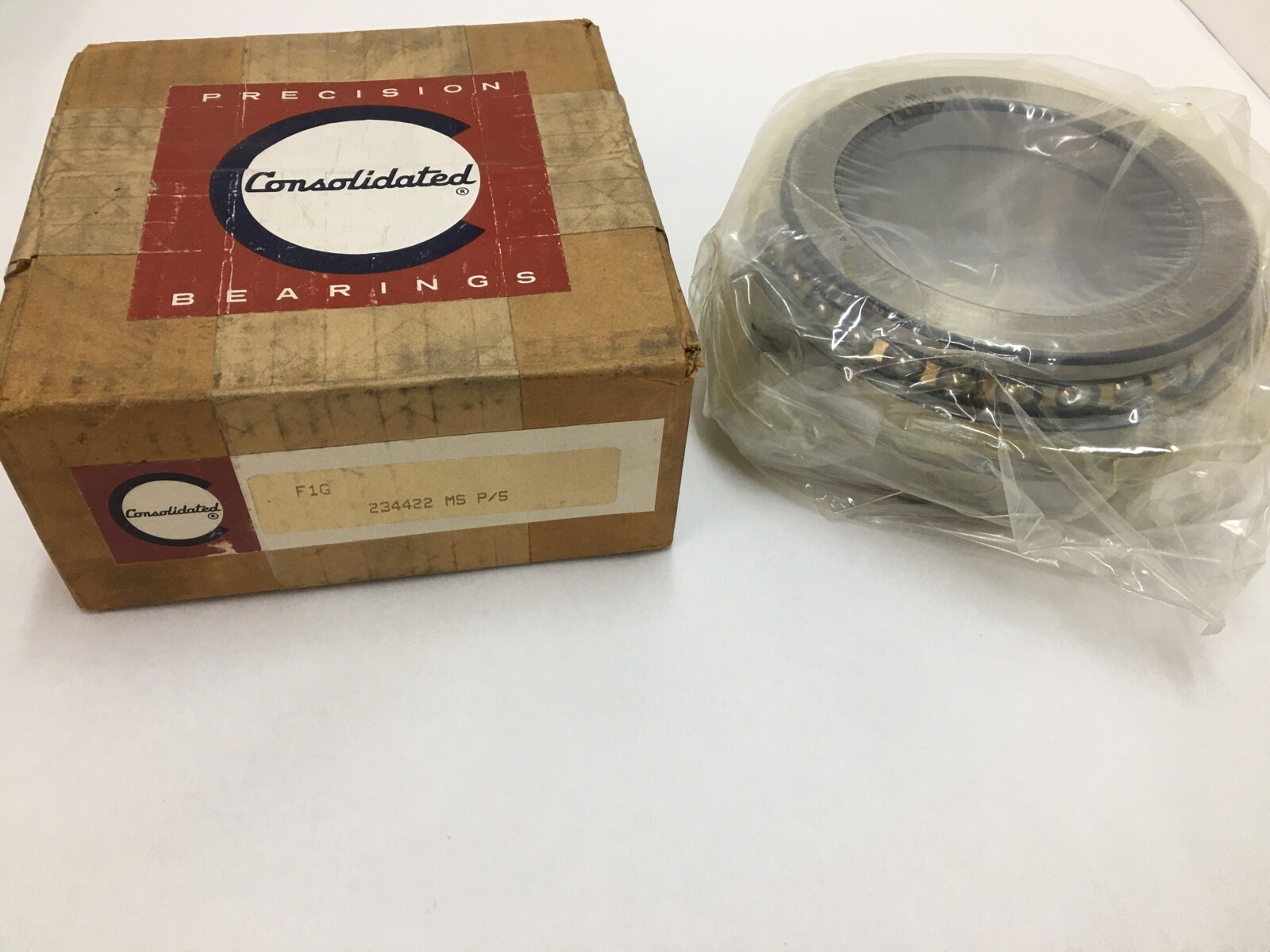

Double-direction axial angular contact ball bearing, 110 mm bore x 170 mm OD x 72 mm wide, 60° contact angle, brass cage, P5. Consolidated (FAG 234422-M-SP).
List Price
$350.49
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|

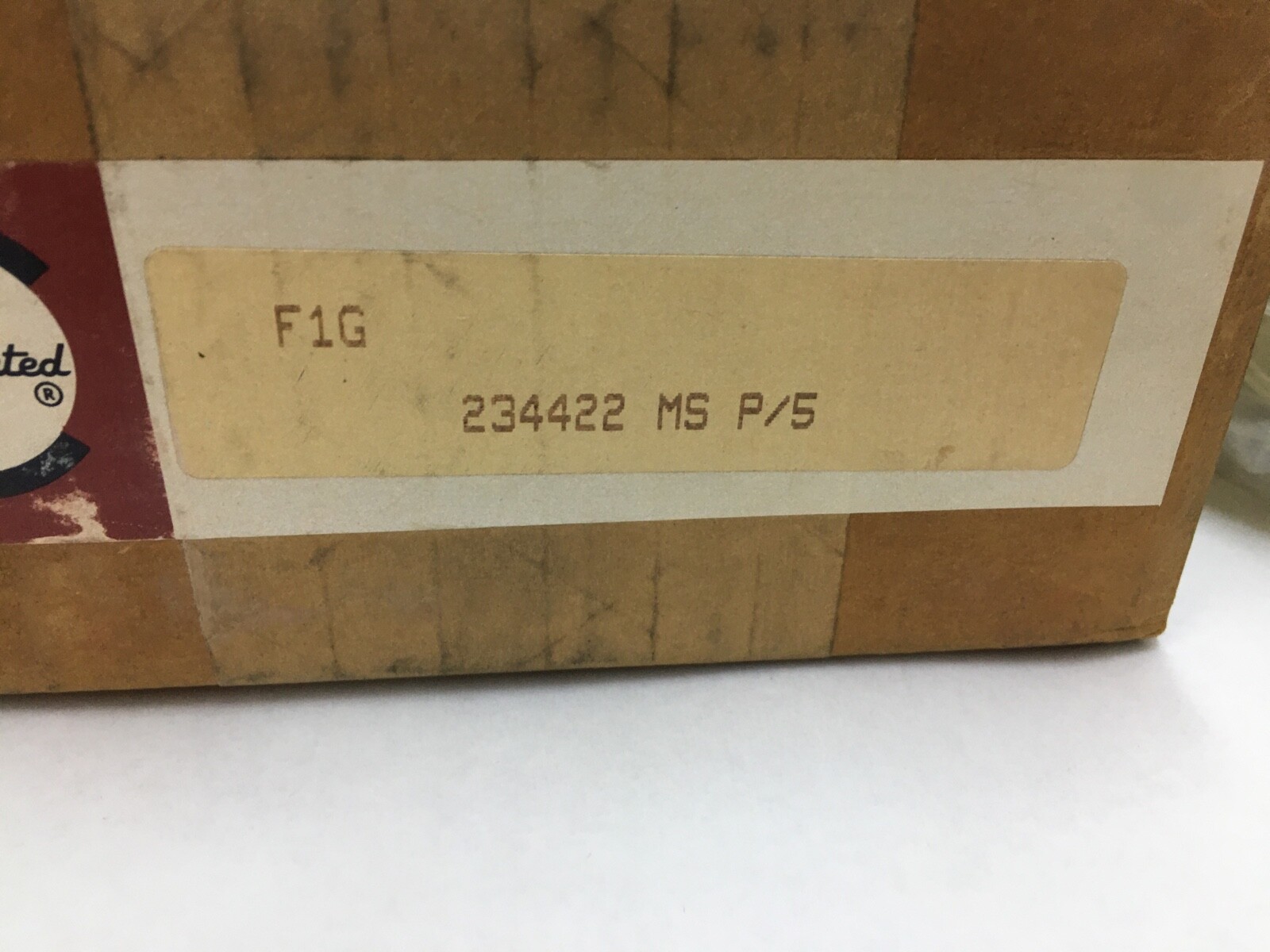

| MPN | 234422 MS P/5 |
| Model | 234422MS P/5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 72 mm |
| Material | Chrome Steel |
|---|---|
| Series | 234400 |
| Total Width | 72 mm |
| Mpn Variants | 234422-MS-P/5, 234422 MS P/5, 234422MS P/5, 234422-M-SP, 234422SP, 234422-M-P5, Consolidated 234422-MS-P/5 |
| Precision Class | ABEC 5 / P5 |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33 equivalent) |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 60° |
| Mounting Arrangement | Double direction, separable |
| Cross Reference 1 | SKF 234422 BM1/SP |
|---|---|
| Cross Reference 2 | NSK 110TAC20D |
| Cross Reference 3 | NTN 562022 |
Consolidated 234422-MS-P/5 (FAG designation), a double-direction axial angular contact ball bearing for machine tool spindles, typically paired with a double-row cylindrical roller bearing. Bore Diameter: 110 mm. Outside Diameter: 170 mm. Total Width: 72 mm. Outer Ring Width: 36 mm. Contact Angle: 60°. Cage Material: Machined brass. Precision Class: ABEC 5 / P5. Number Of Rows: 2. Lubricant: grease or oil.
2344 — double-direction axial angular contact ball bearing series, 60° contact angle, separable.
22 — bore code, 22 x 5 = 110 mm.
M — machined brass cage.
S — lubrication groove and holes in the outer ring, W33 equivalent.
P/5 — tolerance class ABEC 5 / P5.
Two rows of balls at 60° carry axial load in both directions with high axial stiffness, while the radial load goes to the companion cylindrical roller bearing. The outer ring OD is undersized relative to the housing bore, so the unit takes no radial load. Rolling Elements: Ball.
Minimum Chamfer Dimension: 2 mm (outer), 0.6 mm (inner). Shaft Shoulder Diameter: 134.5 mm, tolerance h12. Outer Ring Shoulder Diameter: 160 mm. Shaft Washer Rib Diameter: 150 mm. Maximum Recess Radius: 2 mm / 0.6 mm. Lubrication Groove Width: 9.5 mm. Lubrication Hole Diameter: 4.8 mm.
Unit Quantity: 1 Pc. One complete double-direction unit: two shaft washers, housing washer, spacer and two ball-and-cage assemblies.

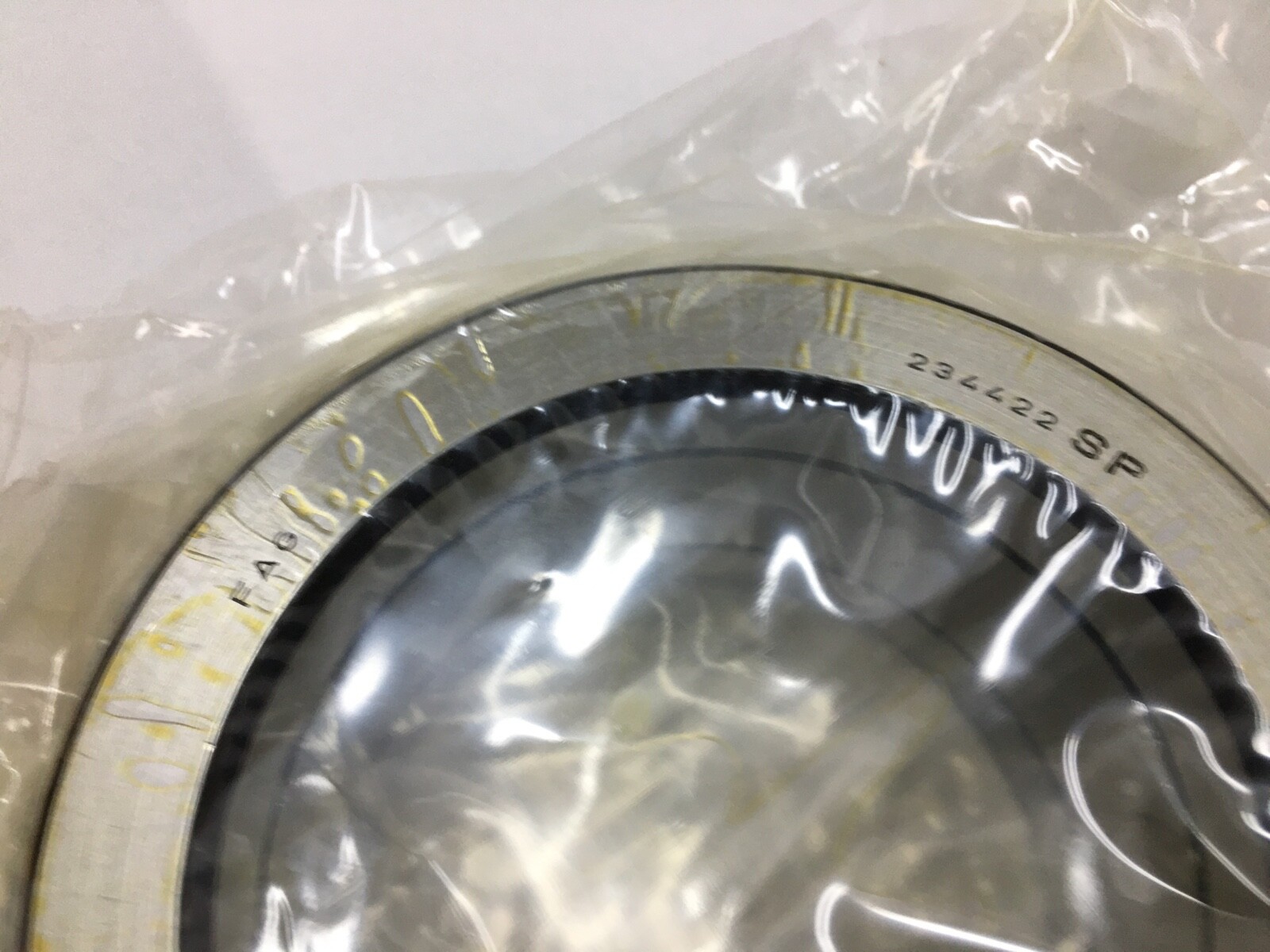

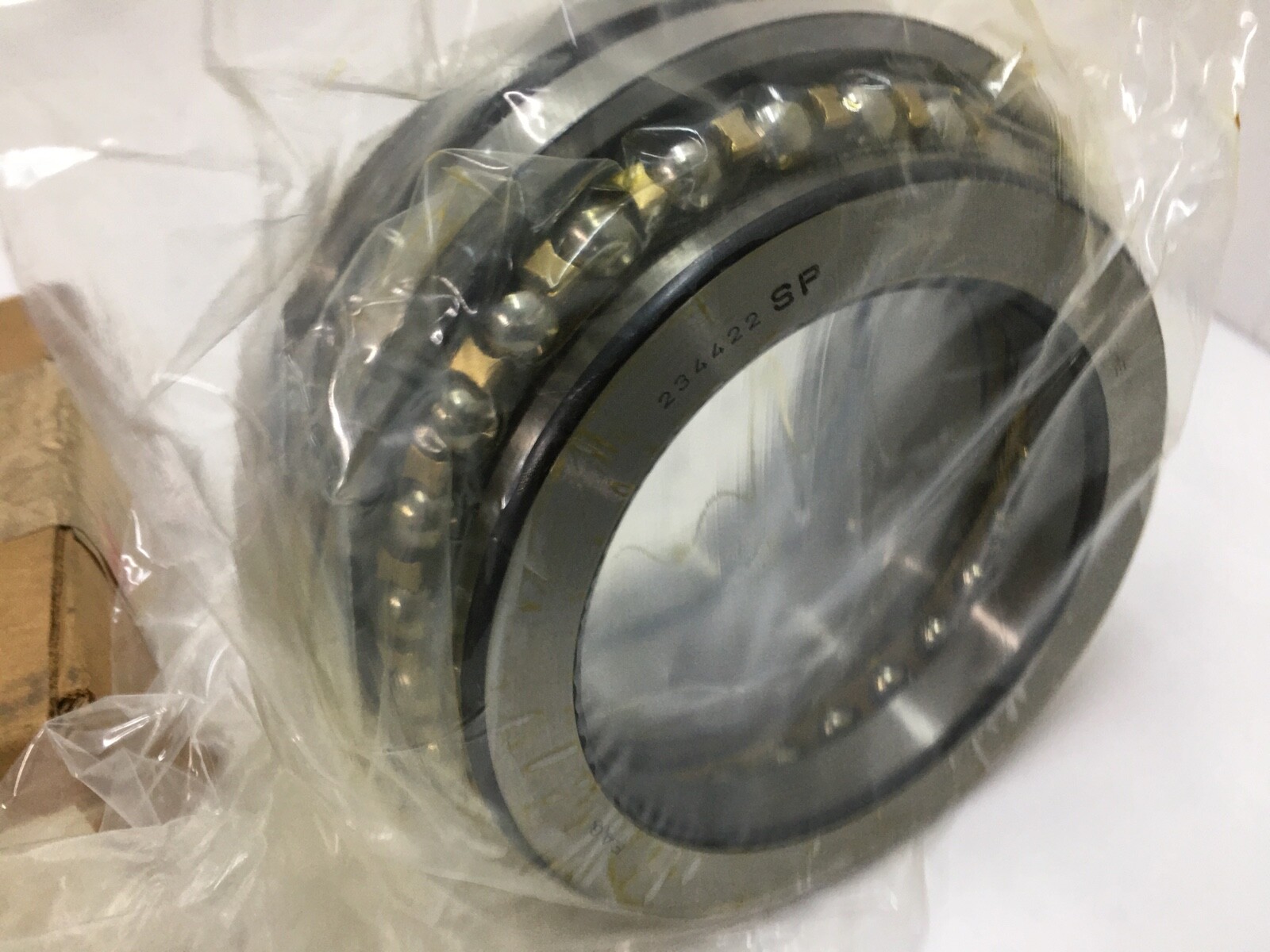

Same 110 x 170 x 72 mm envelope at 60°: SKF 234422 BM1/SP, NSK 110TAC20D, NTN 562022. Also marked 234422-M-SP and 234422SP. Pairs with NN3022 K double-row cylindrical roller bearings.
