This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Open, Phenolic Cage, Heavy Preload$606.52
Super Precision Angular Contact Ball Bearing Pair – 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Light Preload, P4$1,334.72
Angular Contact Ball Bearing — 130 mm Bore, 200 mm OD, 33 mm Width, 15° Contact Angle, ABEC 7 / P4, Phenolic Cage, Light Preload$1,516.77
Super-Precision Angular Contact Ball Bearing 130x200x33 mm, 15 Degree Contact Angle, Duplex Light Preload, Phenolic Cage, Matched Pair$1,516.77| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9126WN |
| Model | 7026C 2MM 9126 WN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Lubricant | Oil Preservative |
| Running Accuracy | P4 |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 138 kN |
| Static Load Rating | 135 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 7.20 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 6300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15°C |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7026 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7026-C-T-P4S |

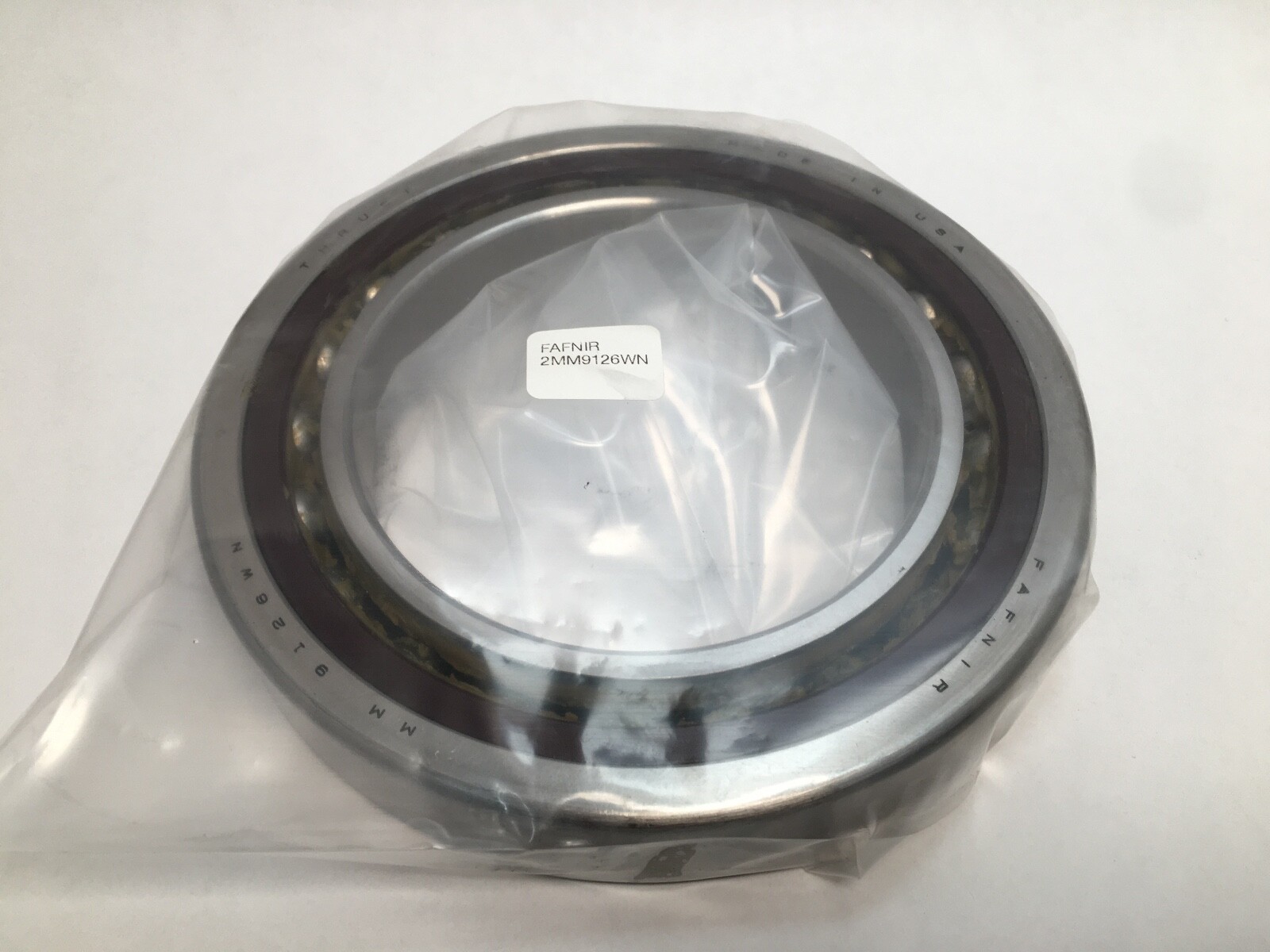

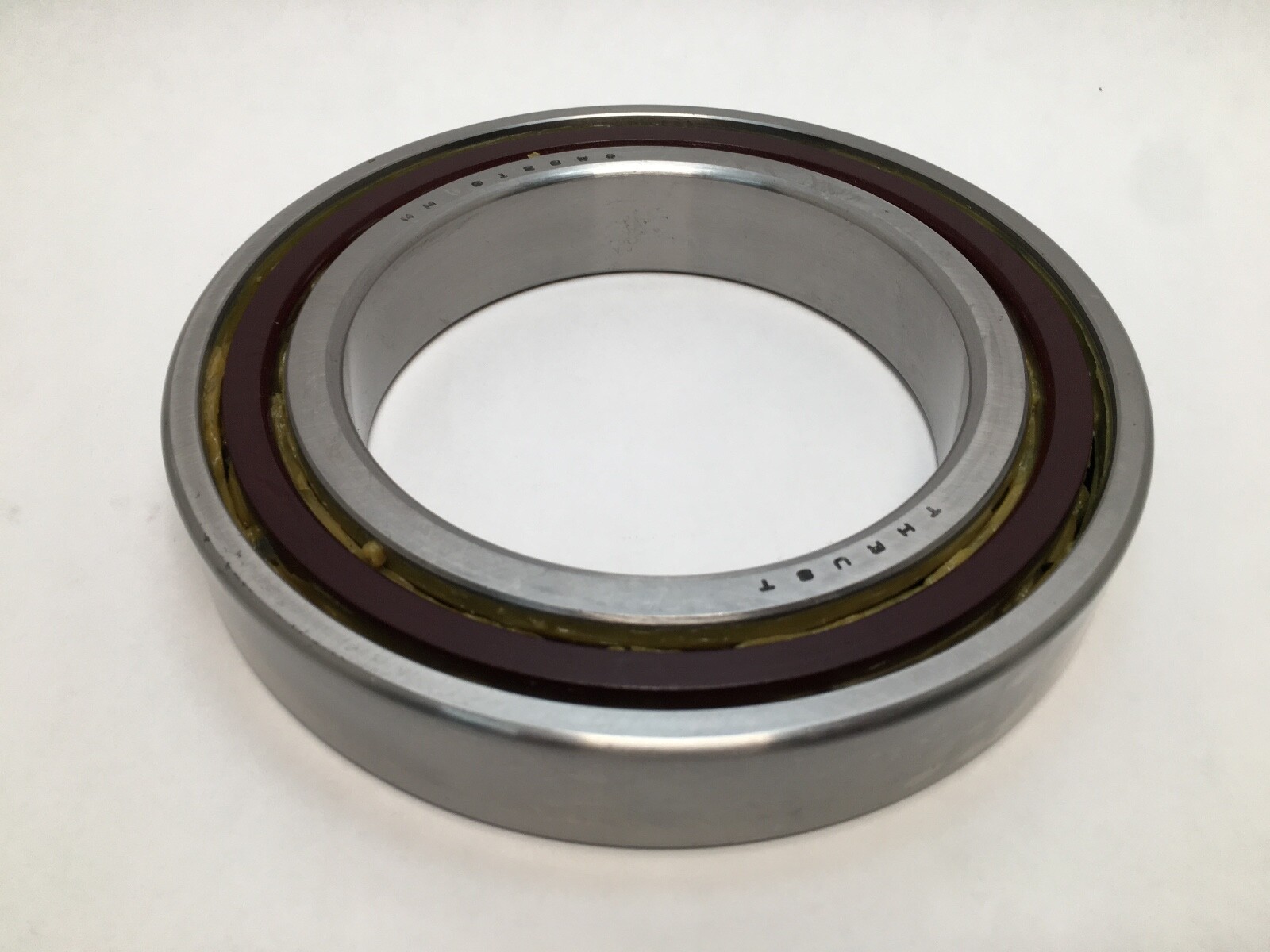

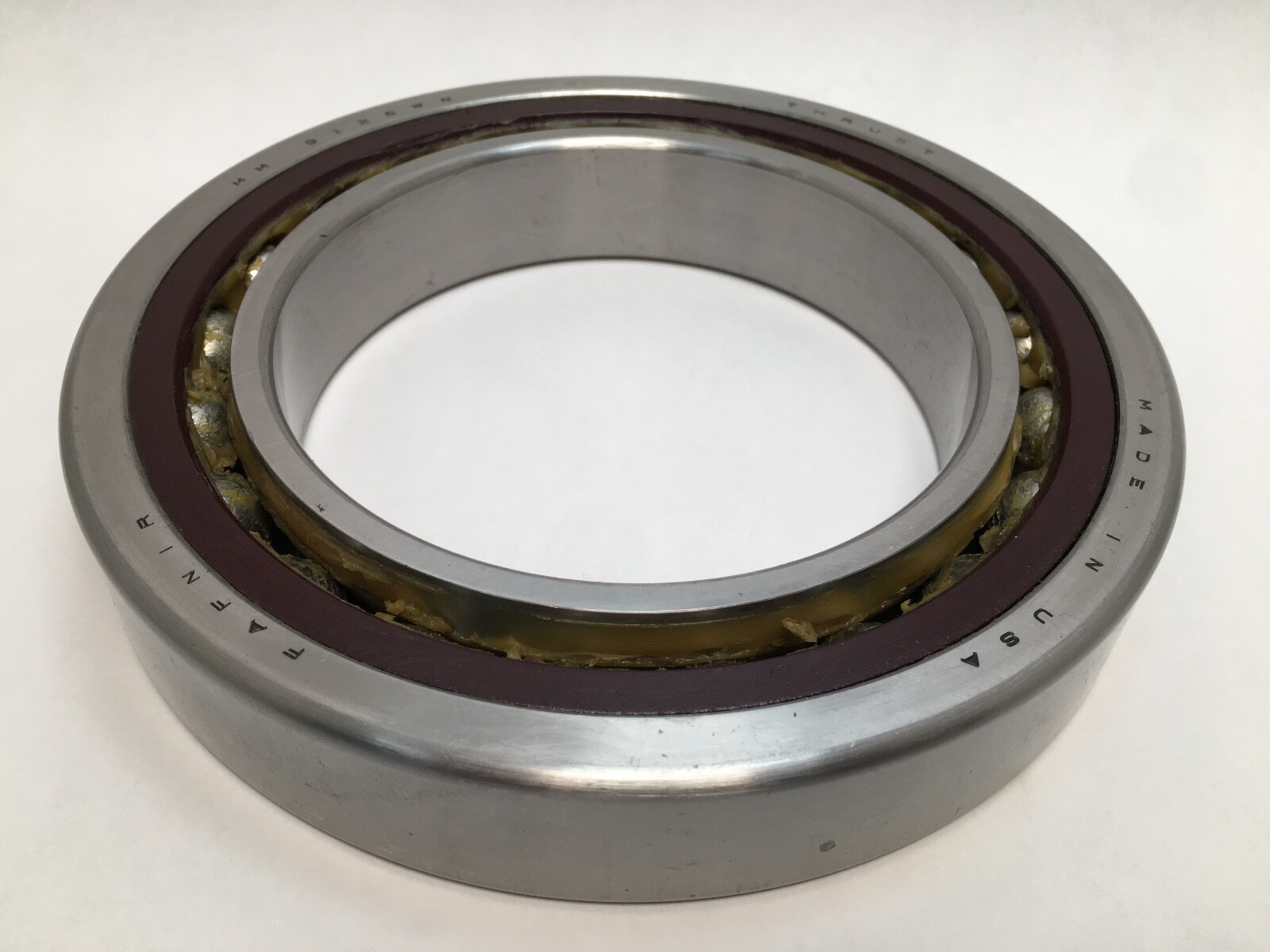

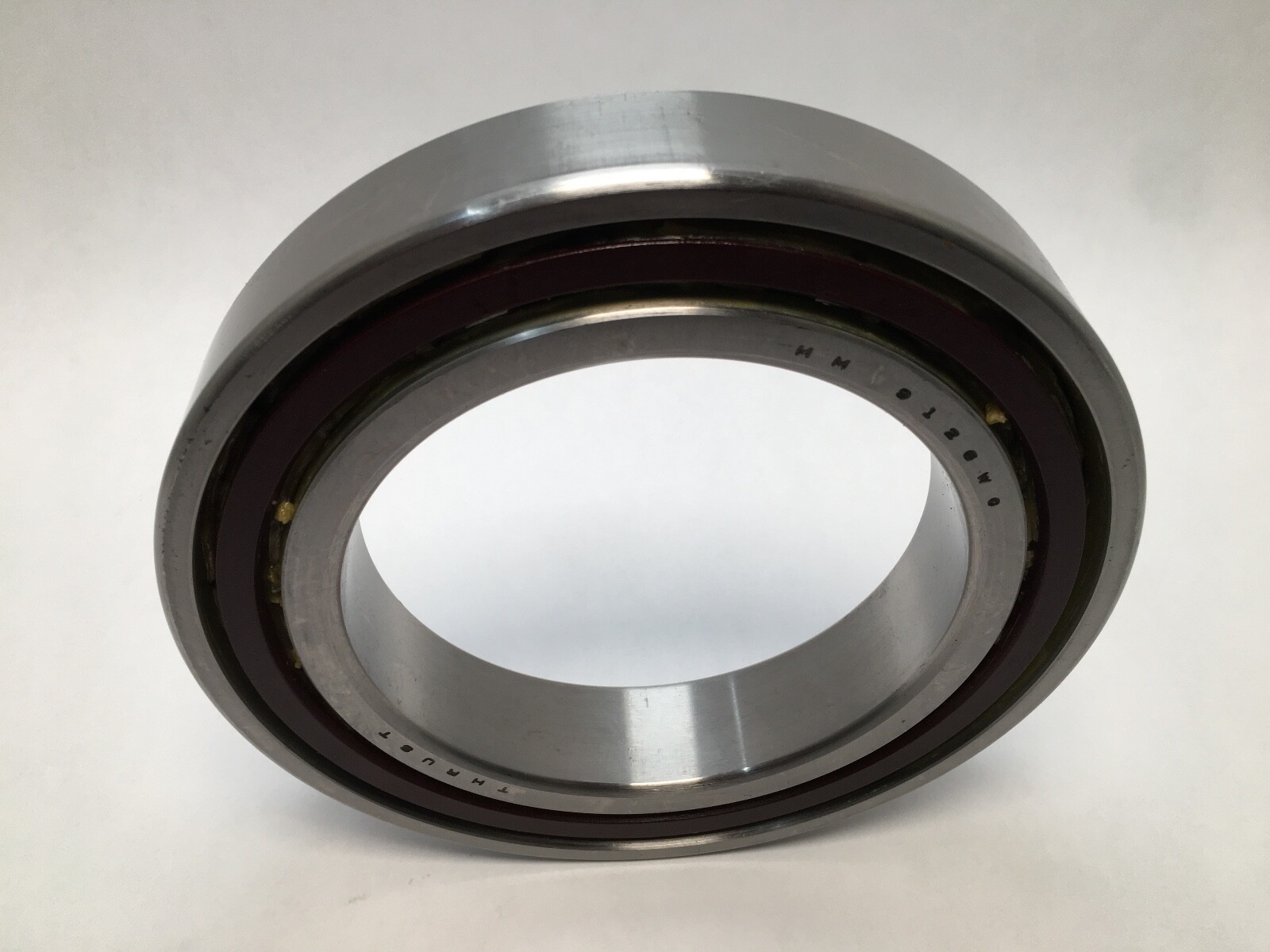

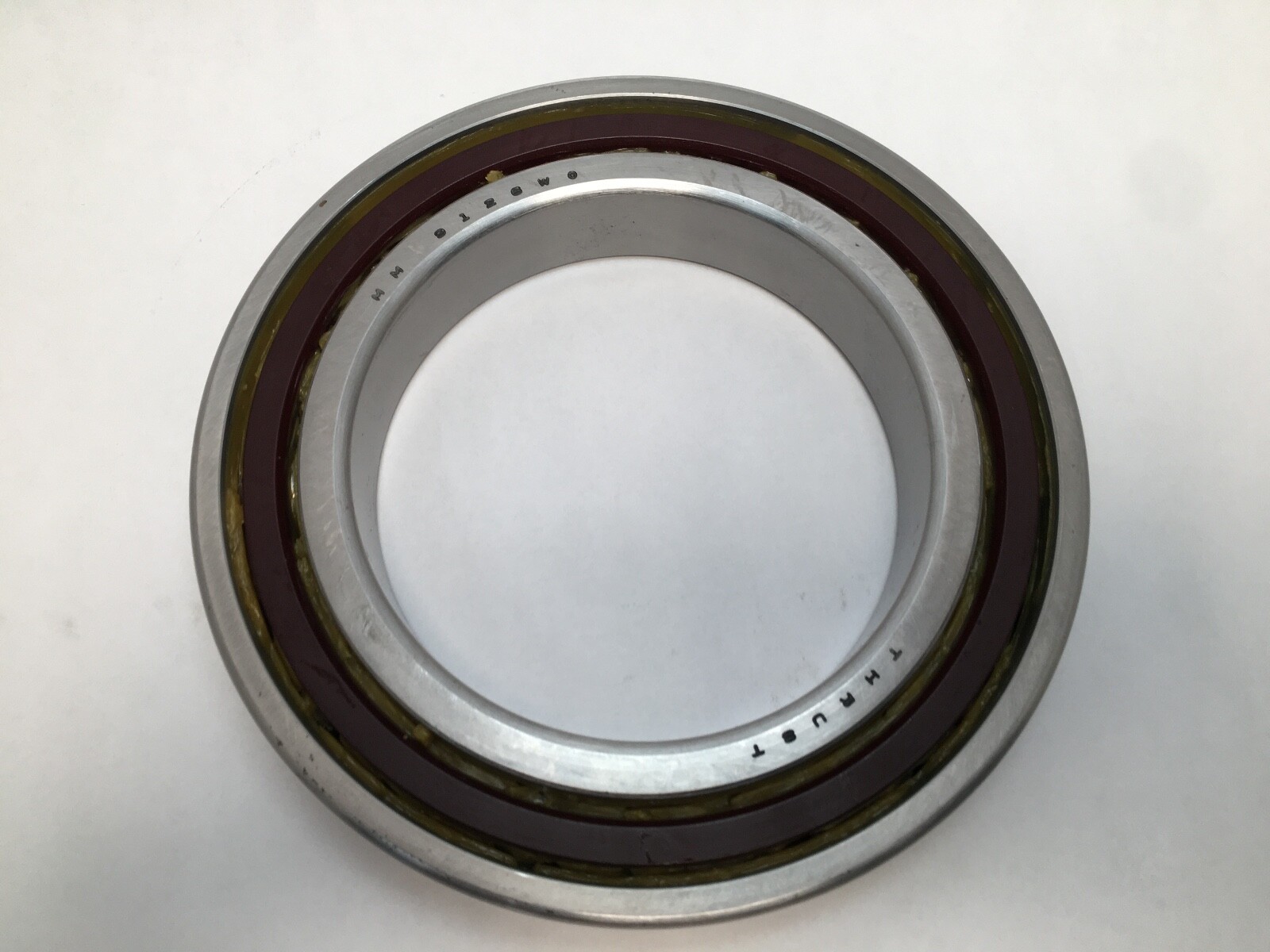

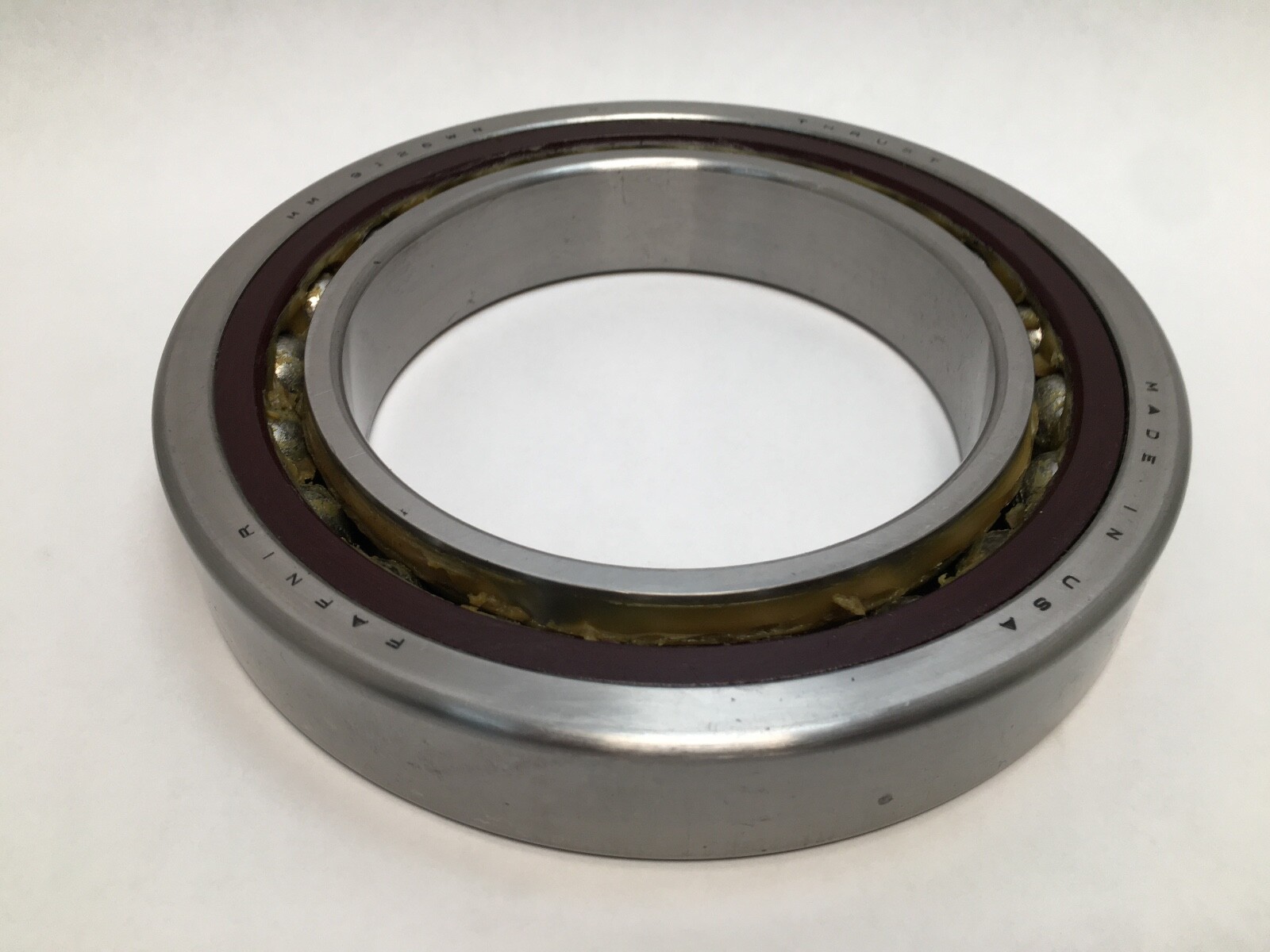

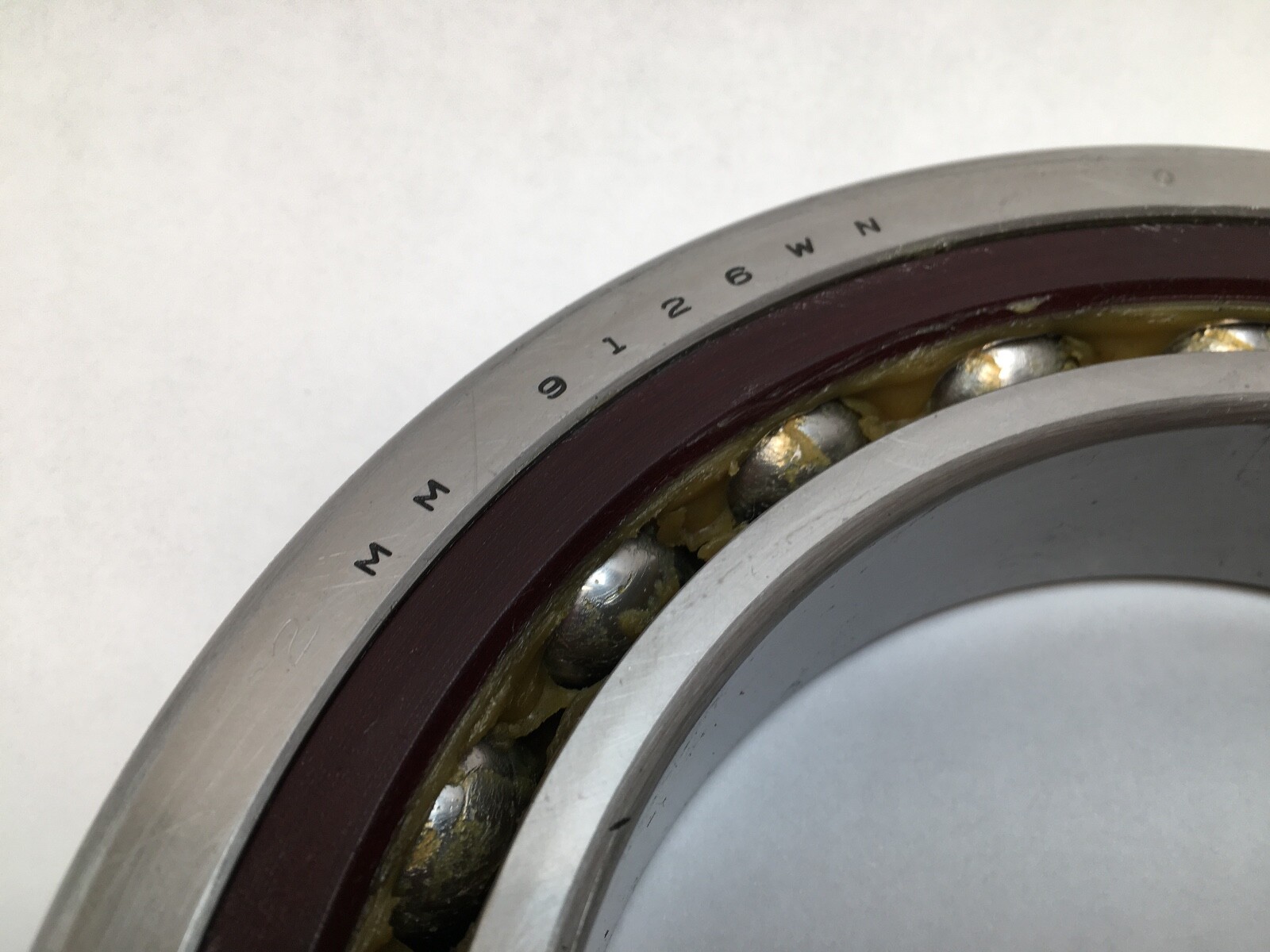

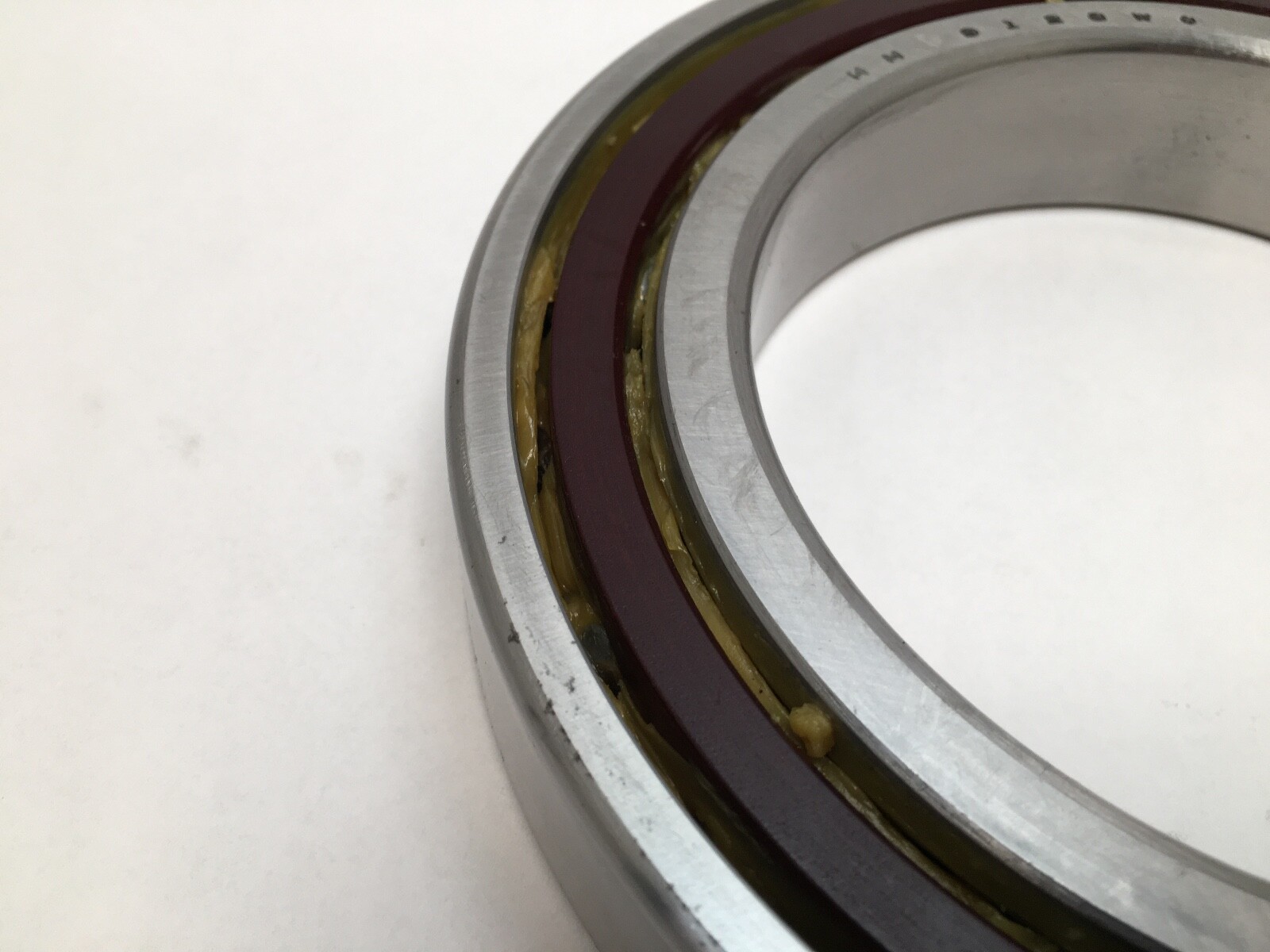

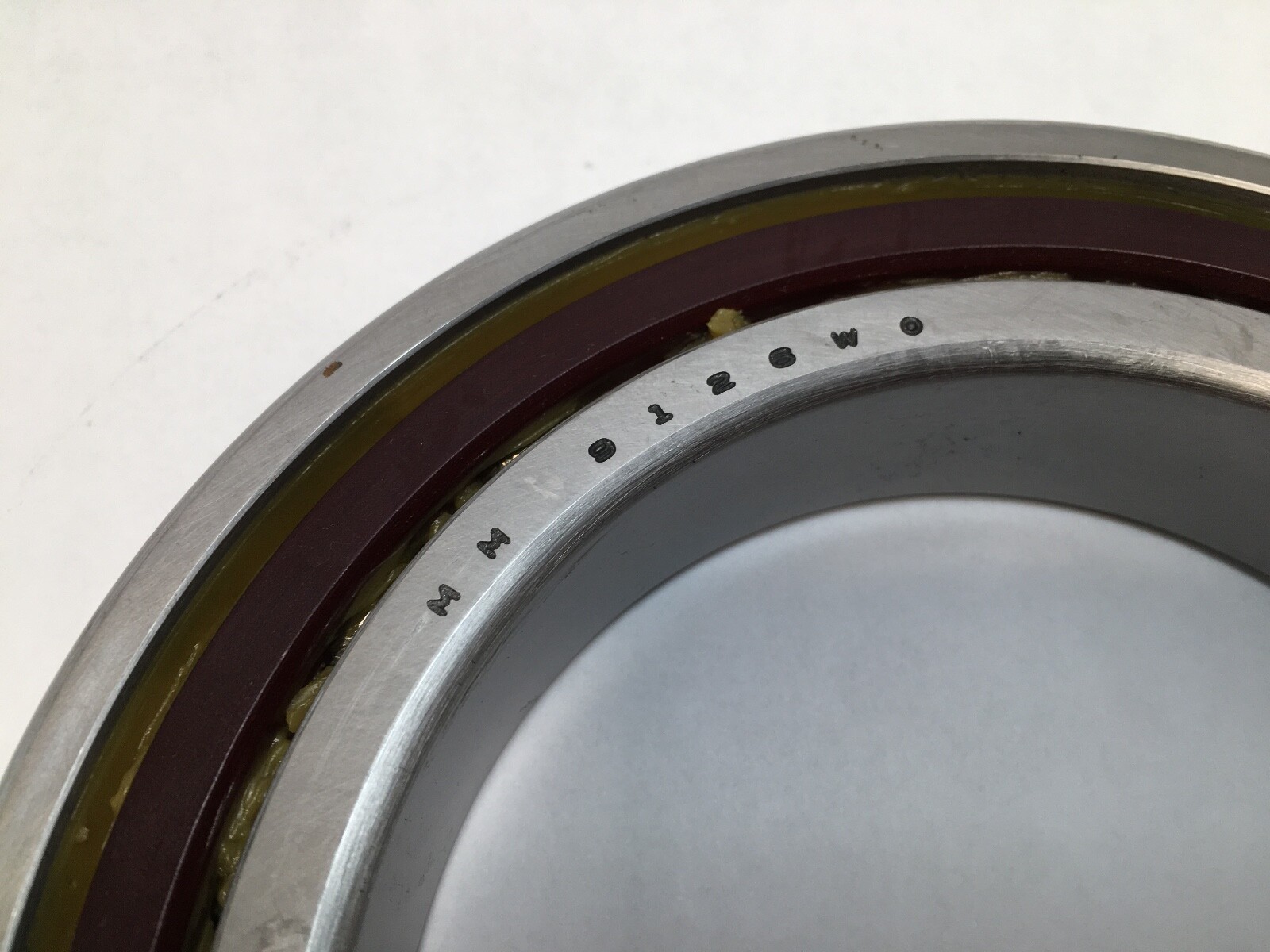

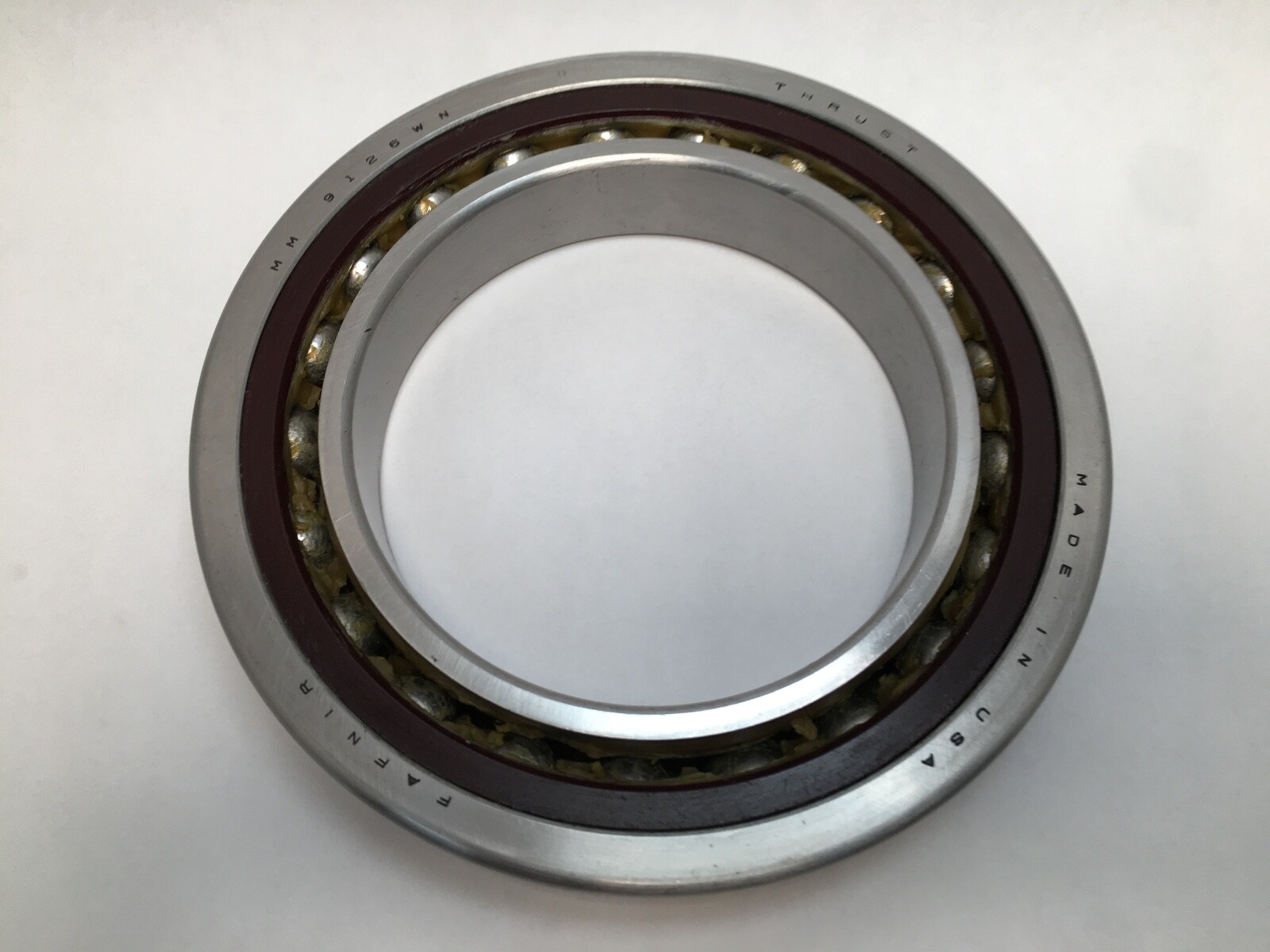

The Fafnir 2MM9126WN Angular Bearing is a high-quality ball bearing designed for industrial and commercial applications. Made in the United States, this bearing features a bore diameter of 130mm, an outside diameter of 200mm, and a width of 33mm. With its angular contact design, this bearing is well-suited for demanding environments where precision and durability are essential. The Fafnir brand is known for producing reliable bearings, making this product a dependable choice for various motion control and automation systems.
