This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing Duplex Pair - 120 mm ID, 180 mm OD, 28 mm Width, 15° Contact Angle, P4, Light Preload, Open$1,094.40
Angular Contact Ball Bearing - Straight Bore, 120 mm ID, 180 mm OD, 28 mm Width, Open, 15° Contact Angle, Phenolic Outer Land Riding Cage, Light Preload, ABEC 7/9 P4S$570.04
Angular Contact Ball Bearing — 120 mm ID, 180 mm OD, 28 mm Width, 15° Contact Angle, ABEC 7 / P4S, Light Preload$545.10
Super Precision Angular Contact Spindle Bearing - Straight Bore, 120 mm ID, 180 mm OD, 28 mm Width, Open, 15° Contact Angle, Light Preload, P4S$573.72| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9124WIDU |
| Model | 7024C 2MM 9124 WI DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 120 mm |
| OD | 180 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 111 kN |
| Static Load Rating | 108 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 100°C |
| Item Weight | 4.81 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15°C |
| Mounting Arrangement | Universal |
| Internal Clearance | CN |
| Limiting Speed | 6900 rpm |
| Cross Reference 1 | SKF 7024 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7024-C-T-P4S-DUL |
| Cross Reference 3 | NSK 7024A5TYNSULP4 |
| Cross Reference 4 | RHP 7024CTDULP4 |

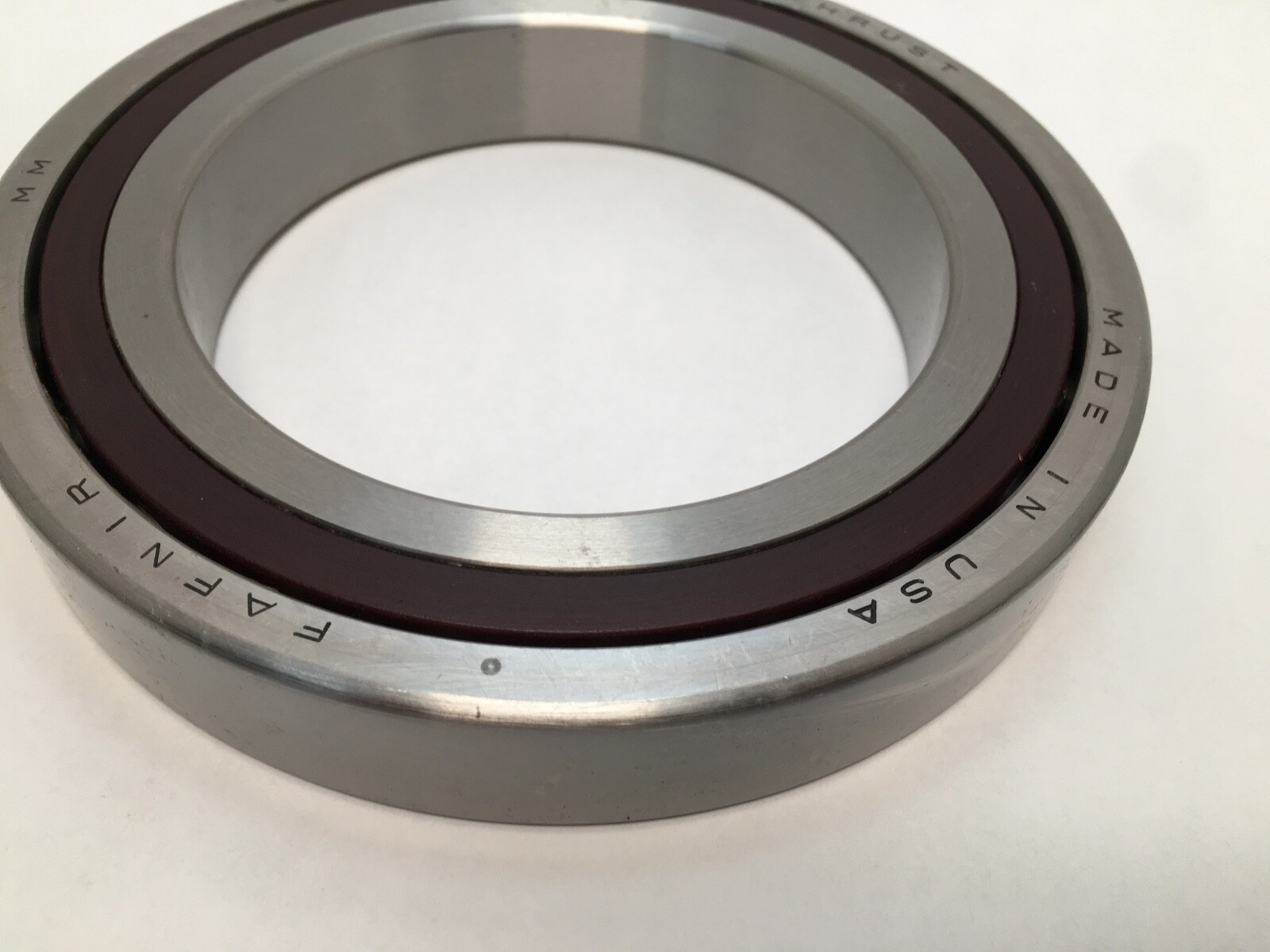

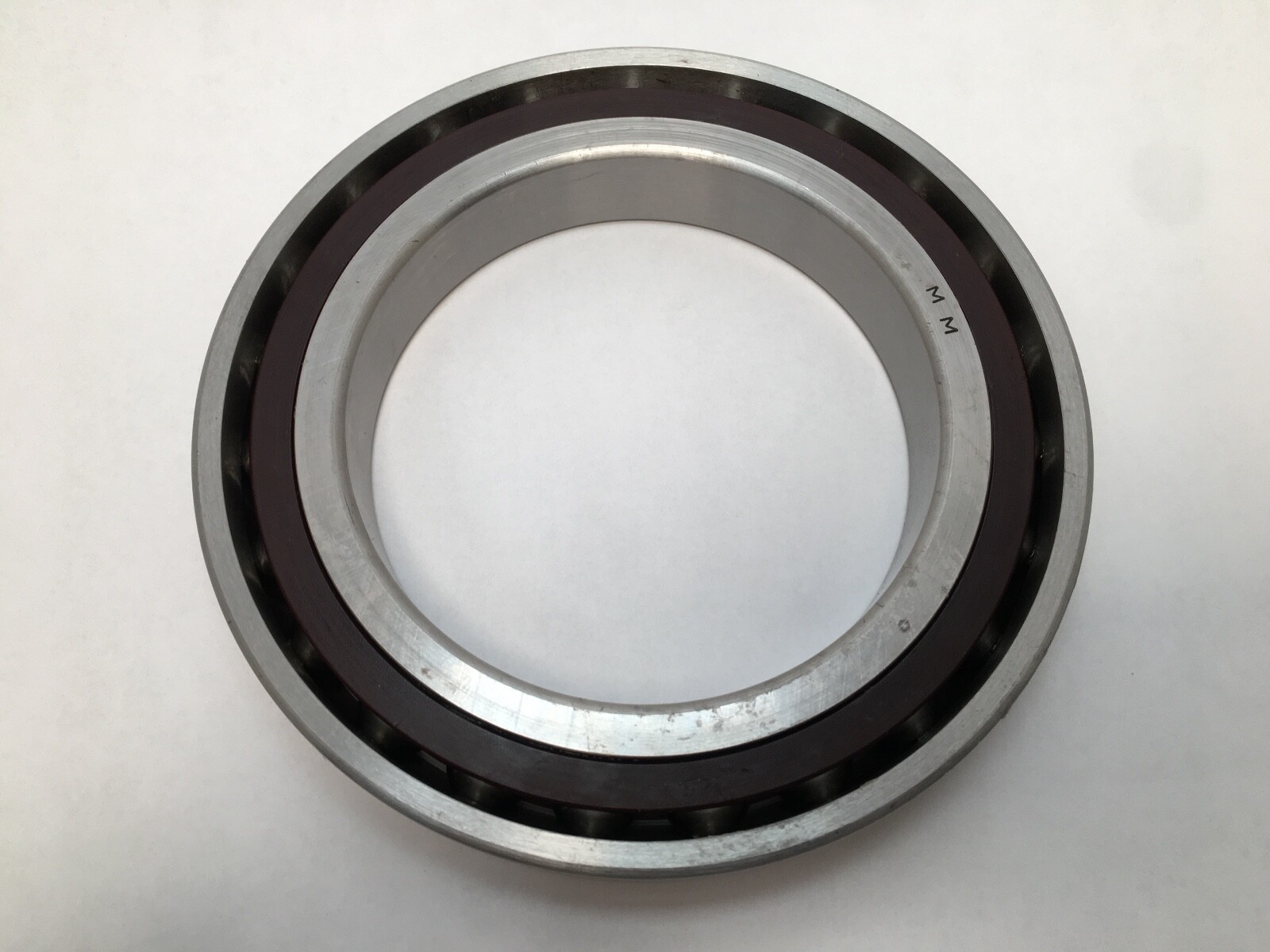

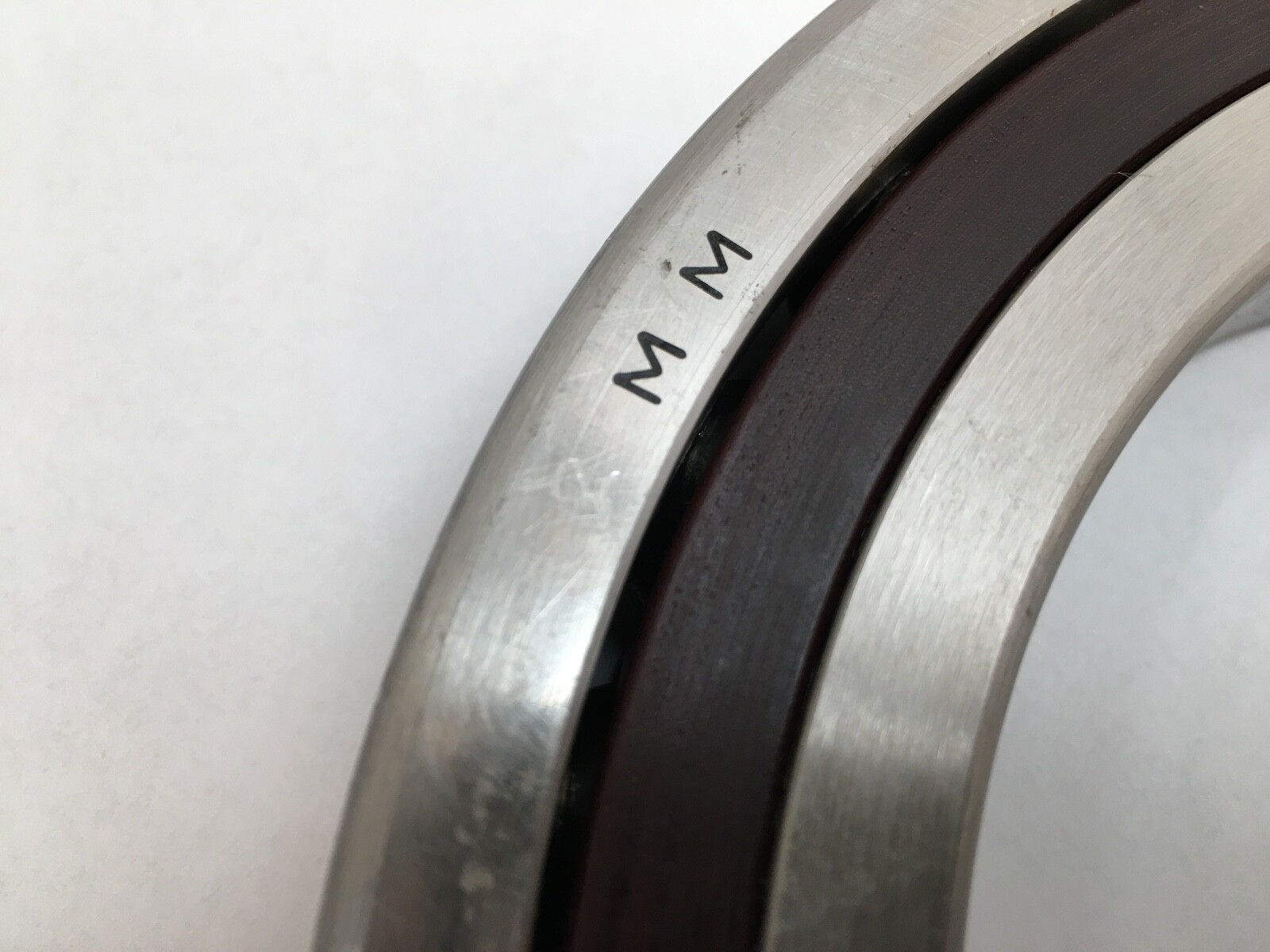

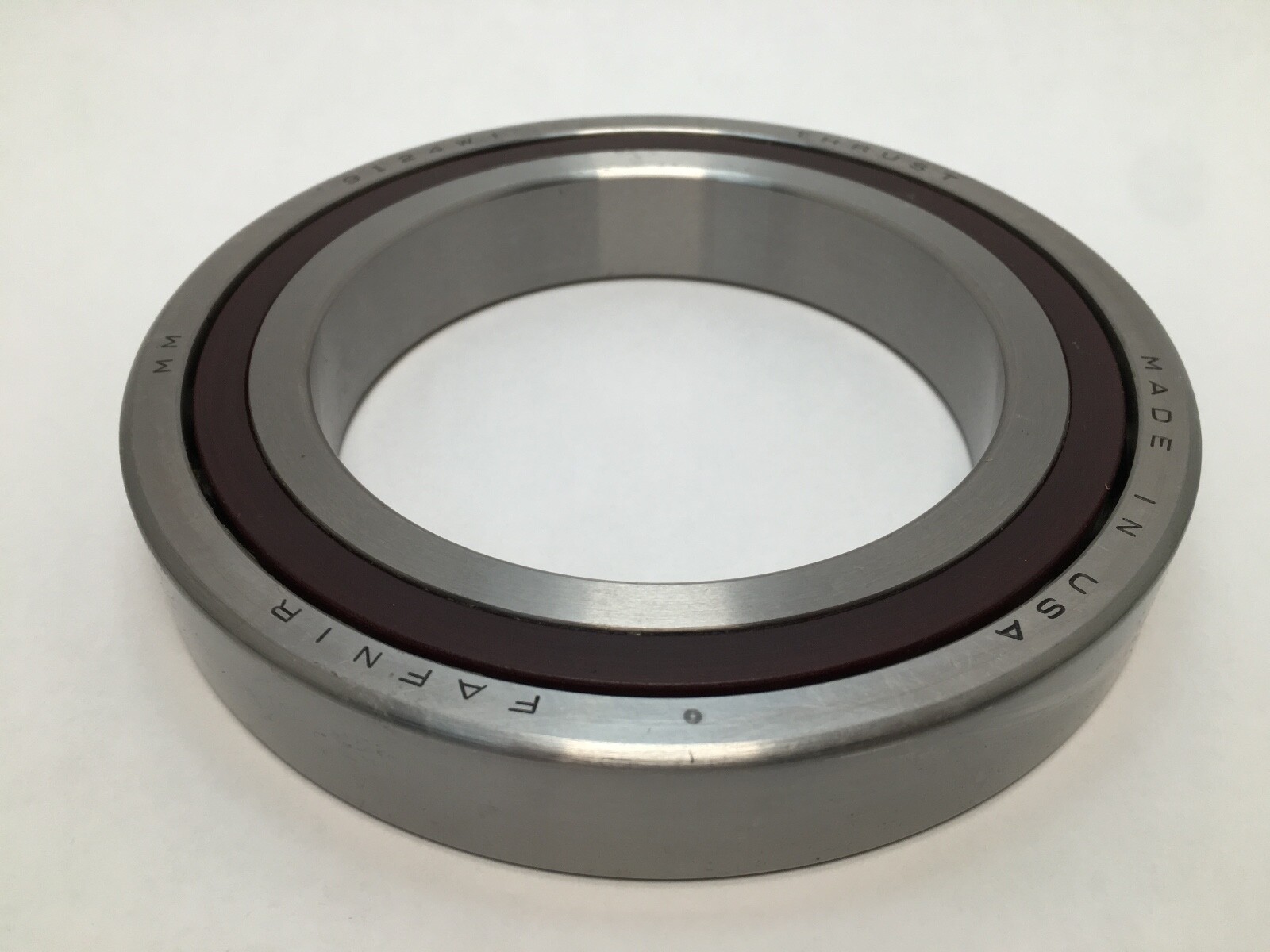

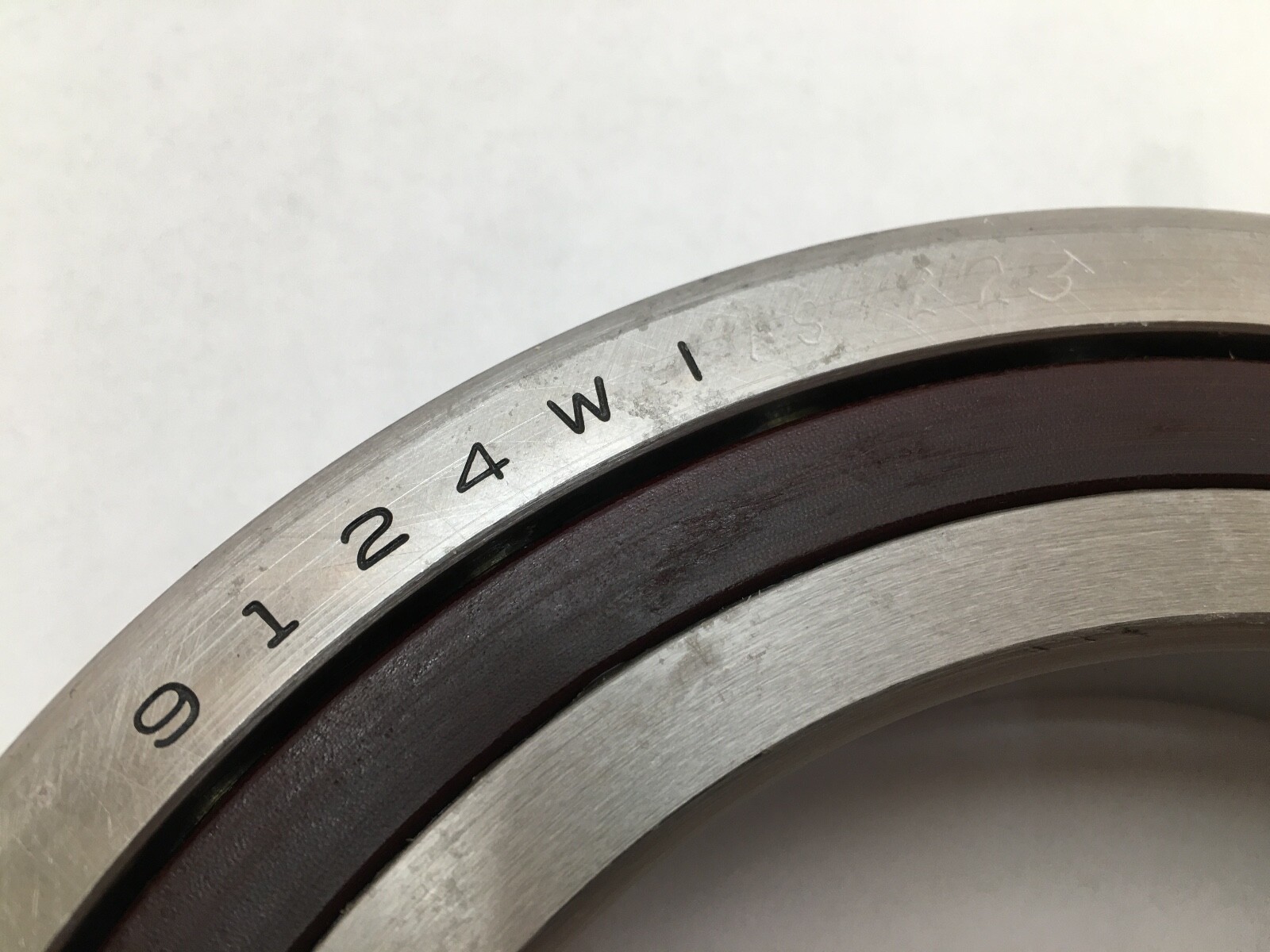

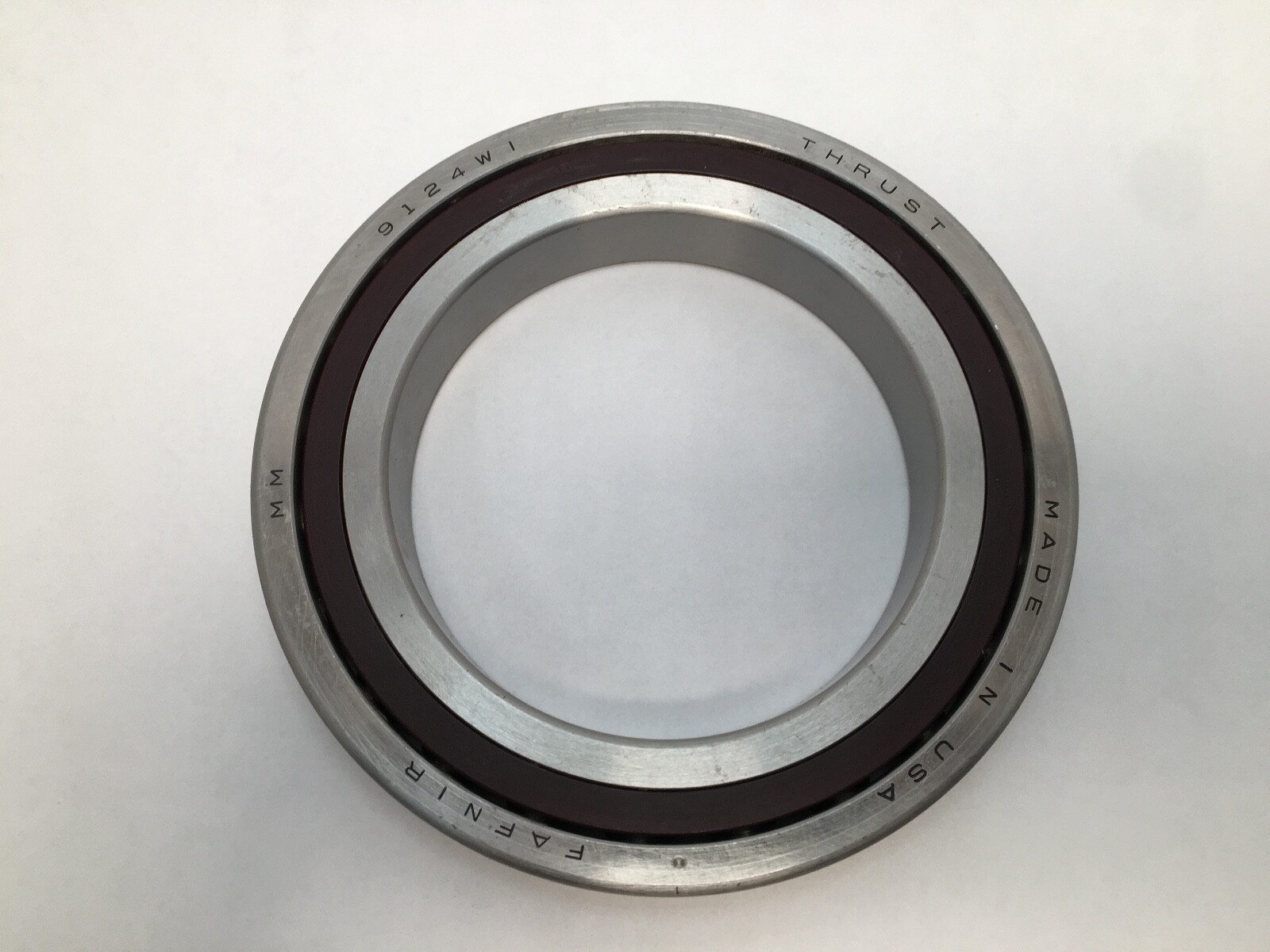

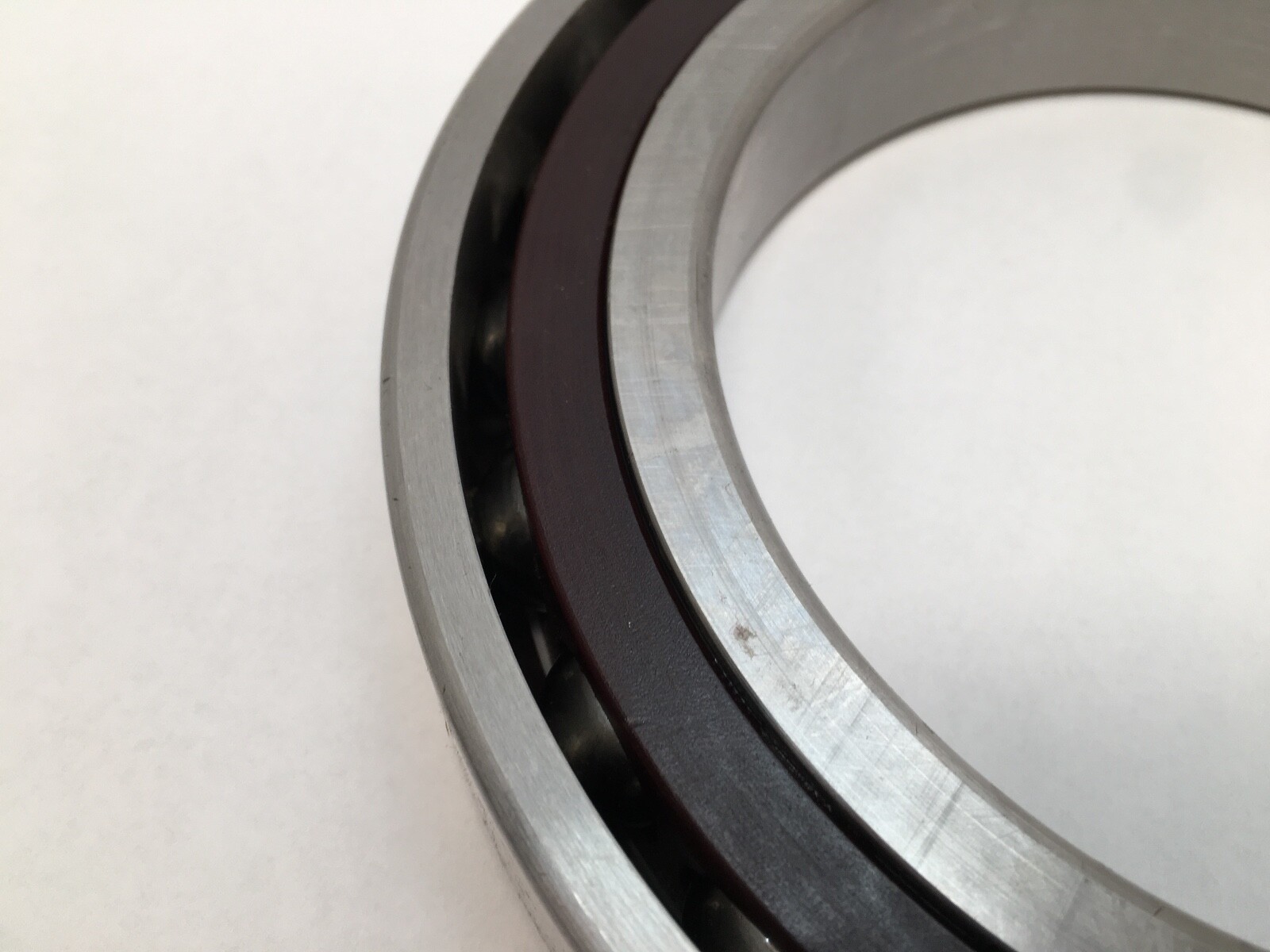

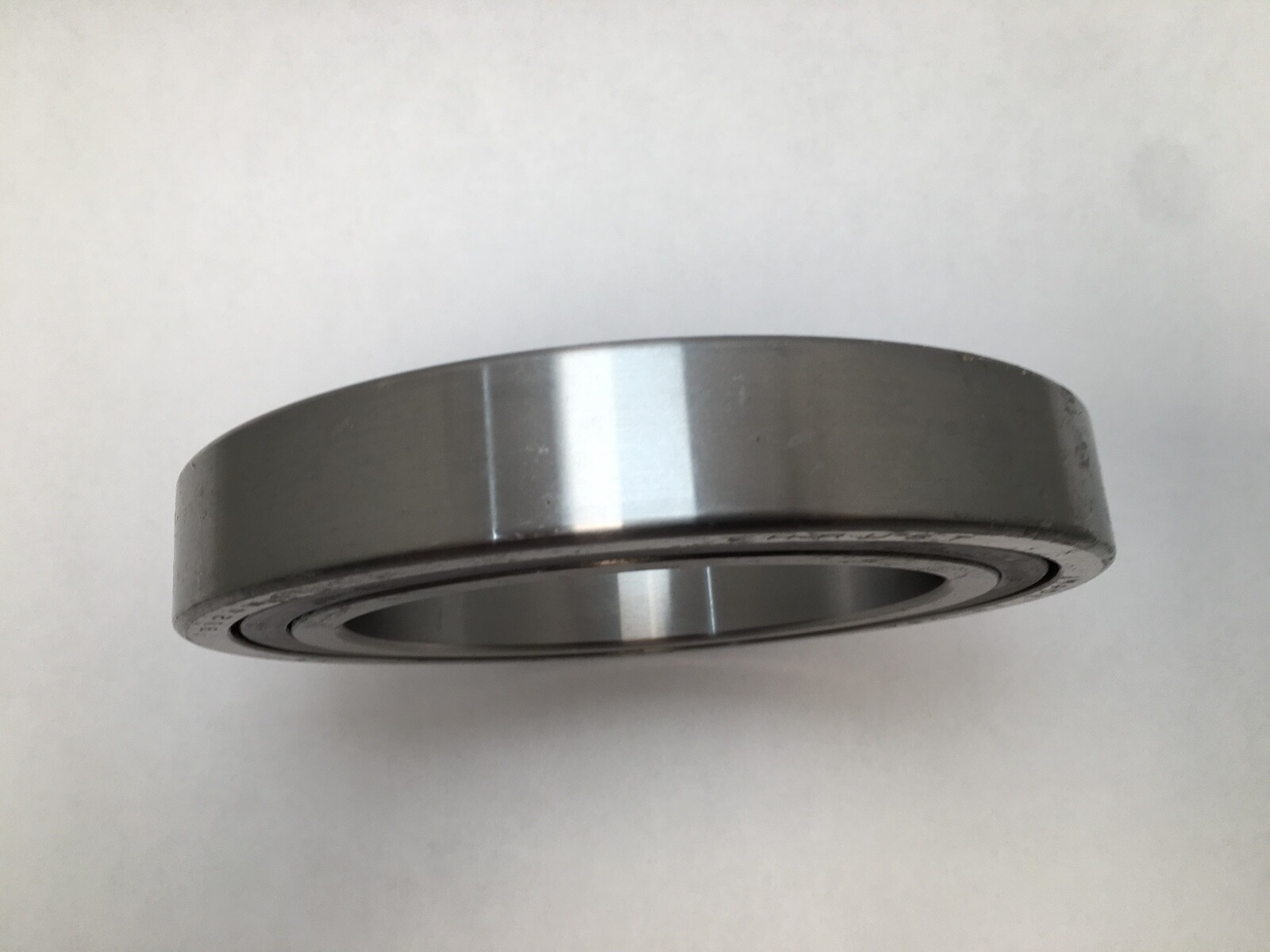

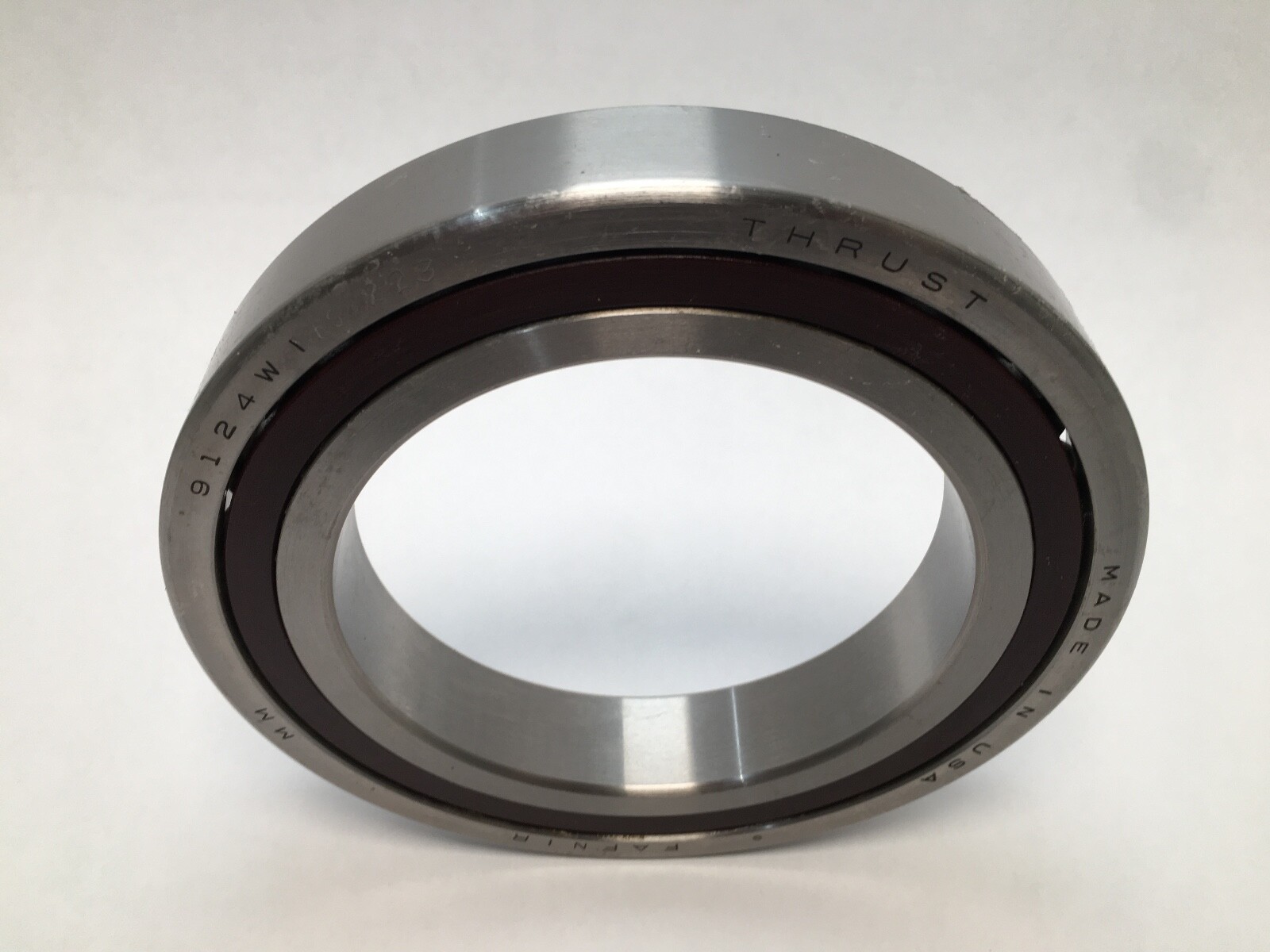

The Fafnir 2MM9124WI-DUL Bearing is a high-quality angular contact ball bearing designed for industrial automation and motion control applications. Made of durable steel material, this bearing has a bore diameter of 120 mm, an outside diameter of 180 mm, and a width of 28 mm. Manufactured in the United States, this bearing model is 7024C 2MM 9124 WI DU, meeting the standards of reliability and performance required for various mechanical power transmission systems. Ideal for businesses seeking efficient and durable bearings for their operations.
