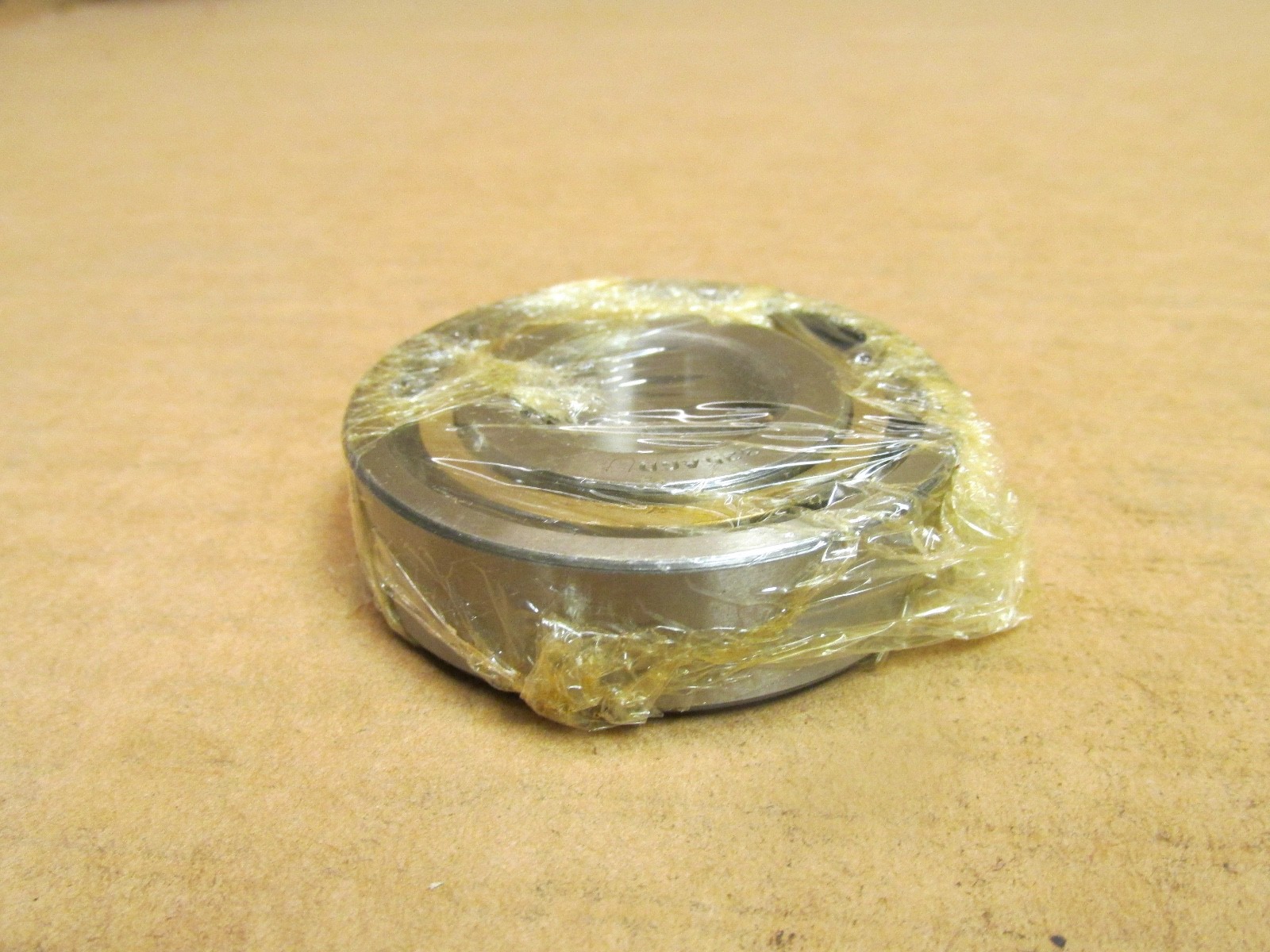

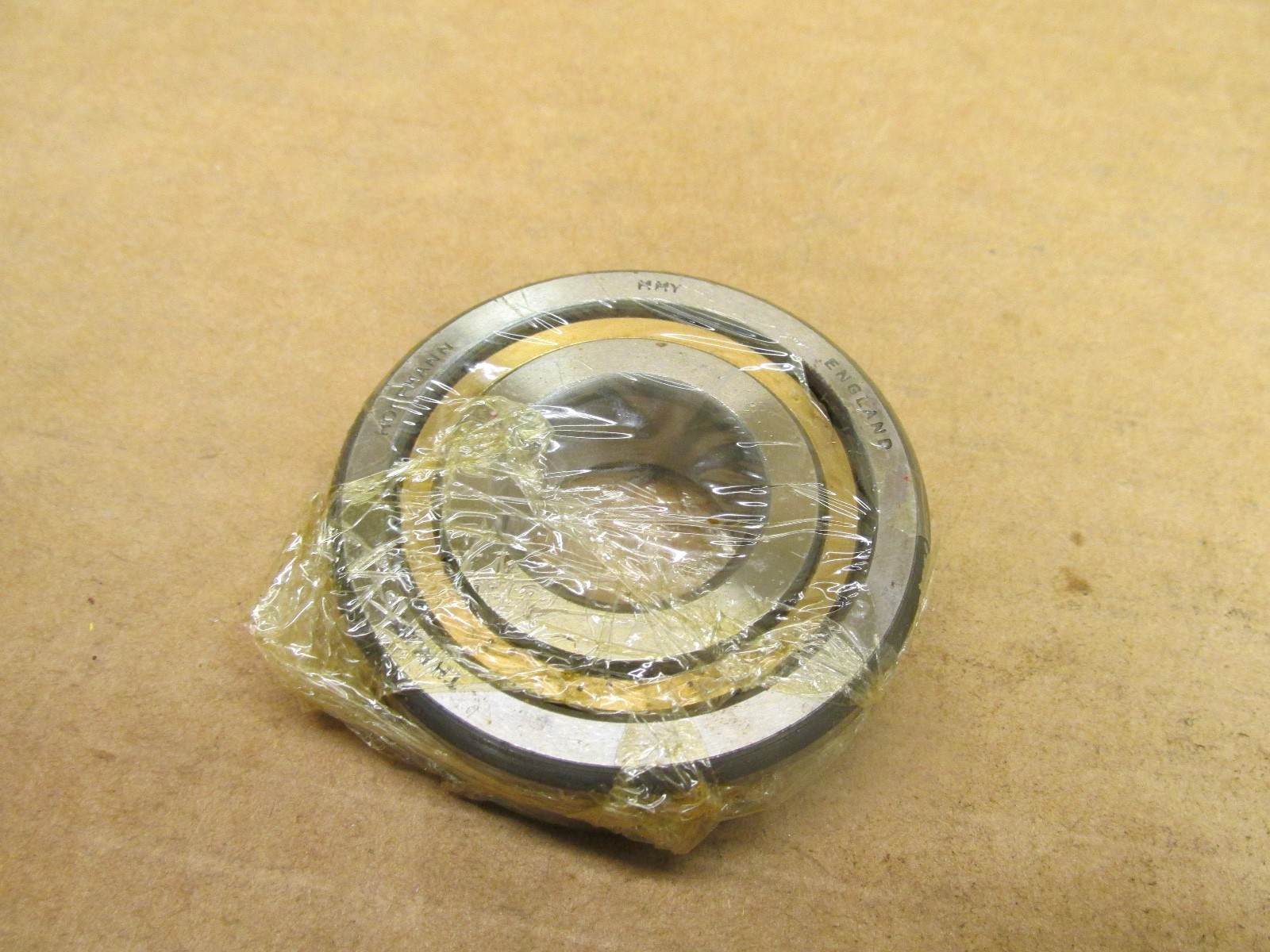

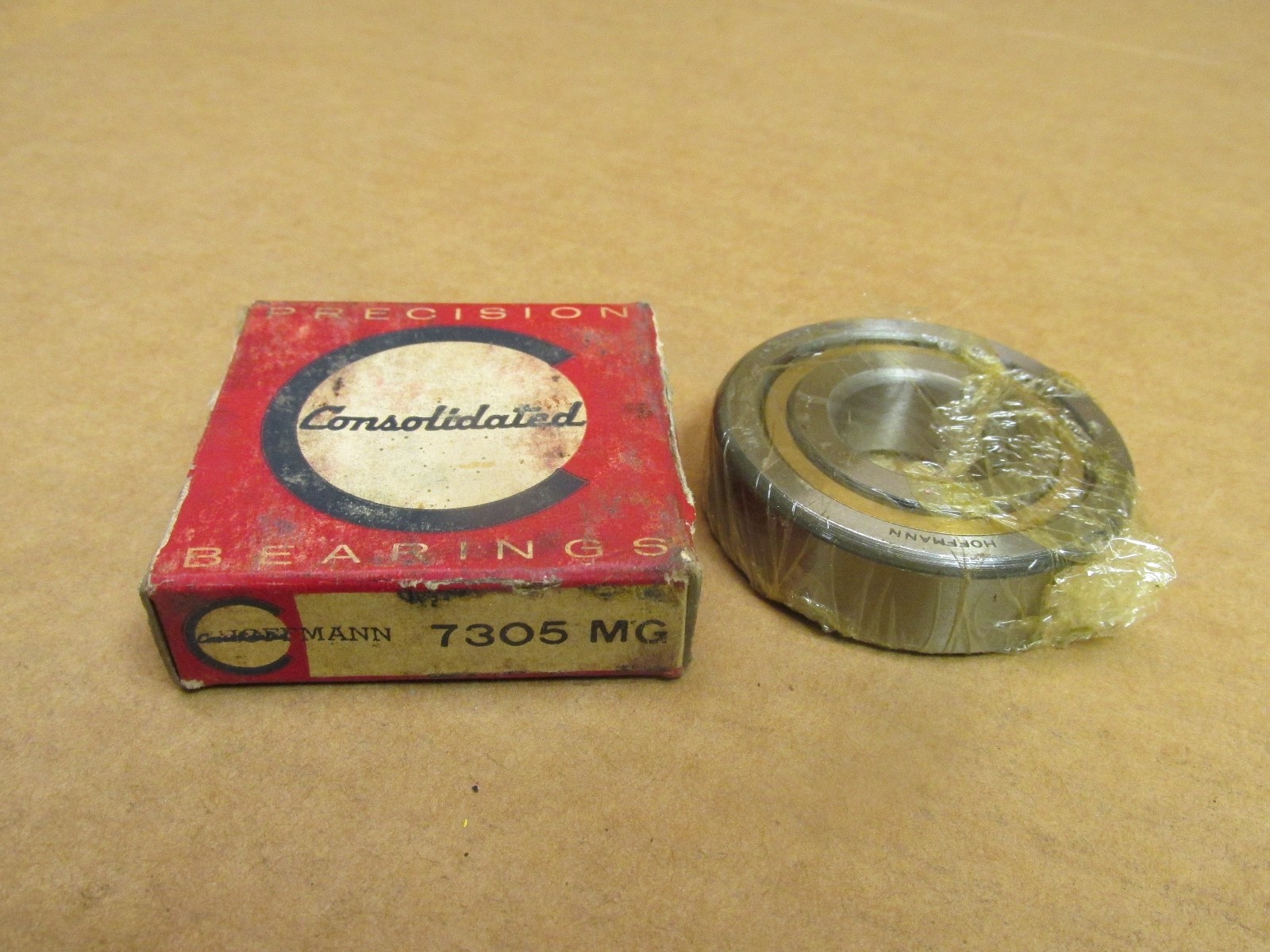

Consolidated 7305MG single-row angular contact ball bearing, 25 mm bore x 62 mm OD x 17 mm wide, open. ISO 73 medium series for combined radial and axial load.
List Price
$68.65
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Consolidated |
|---|---|
| MPN | 7305MG |
| Model | 7305MG |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 62 mm |
| Width | 17 mm |
| Series | 73 |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Mpn Variants | 7305MG, 7305-MG, 7305 MG |
| Closure Type | Open |
Consolidated 7305MG single-row angular contact ball bearing in the ISO 73 medium series, open. Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 17 mm. Unit Quantity: 1 Pc.
73 — ISO 73-series single-row angular contact ball bearing, medium section.
05 — bore code, 25 mm.
Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 25 mm. Outside Diameter: 62 mm. Overall Width: 17 mm. Series: 73. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Harmonization Code: 8482.10.50.28. Unit Quantity: 1 Pc.
The angular contact raceways carry combined radial and one-direction axial load. The medium 73 section carries more load than the 72 series on the same bore.
Same 25 x 62 x 17 mm envelope as the ISO 7305 angular contact family. SKF 7305 BE and FAG 7305-B share the envelope and are 40° designs. MPN Variants: 7305MG, 7305-MG, 7305 MG.
25 mm bore, 62 mm outside diameter and 17 mm width.
Open.
The ISO 73 medium series.
