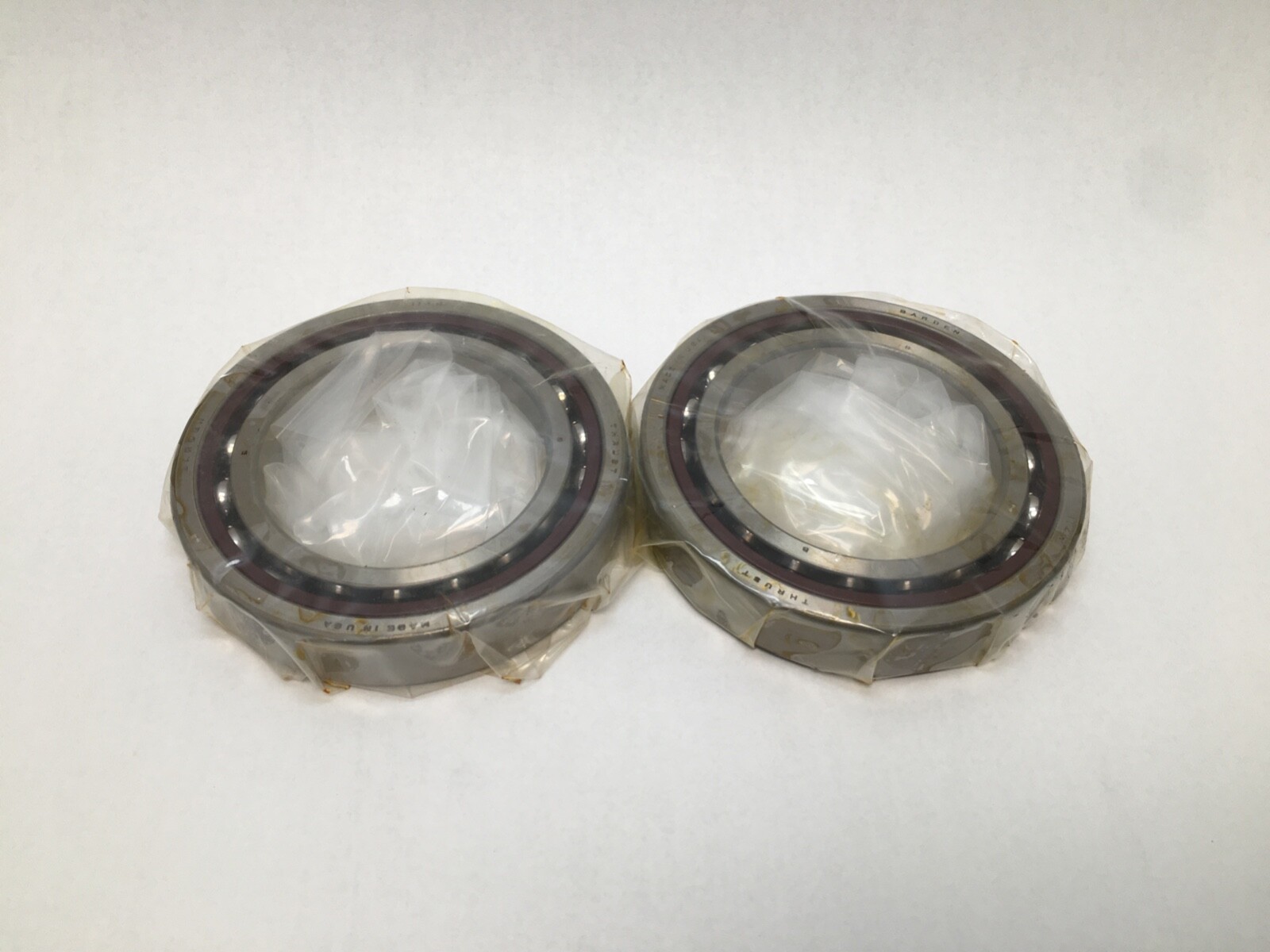

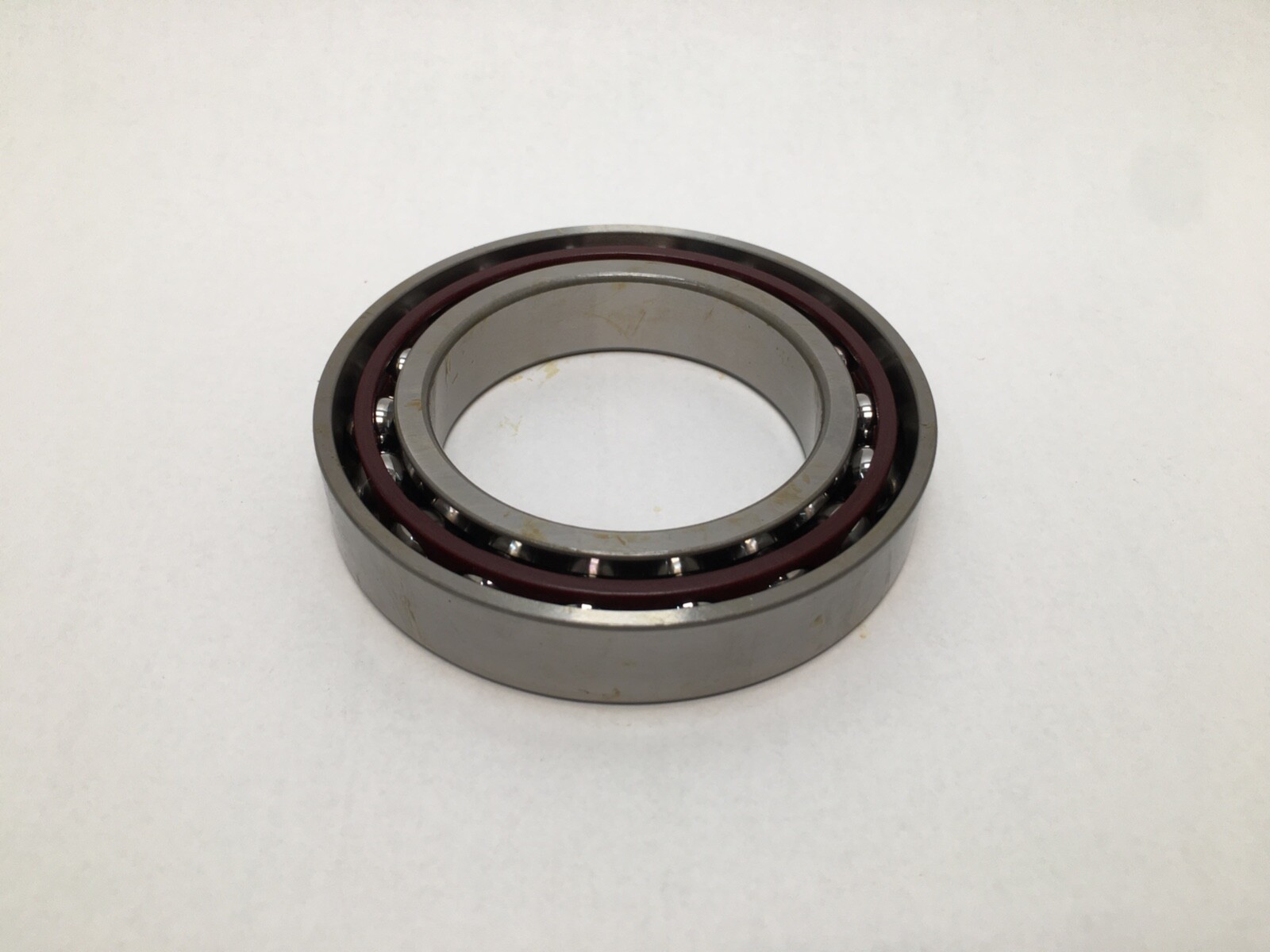

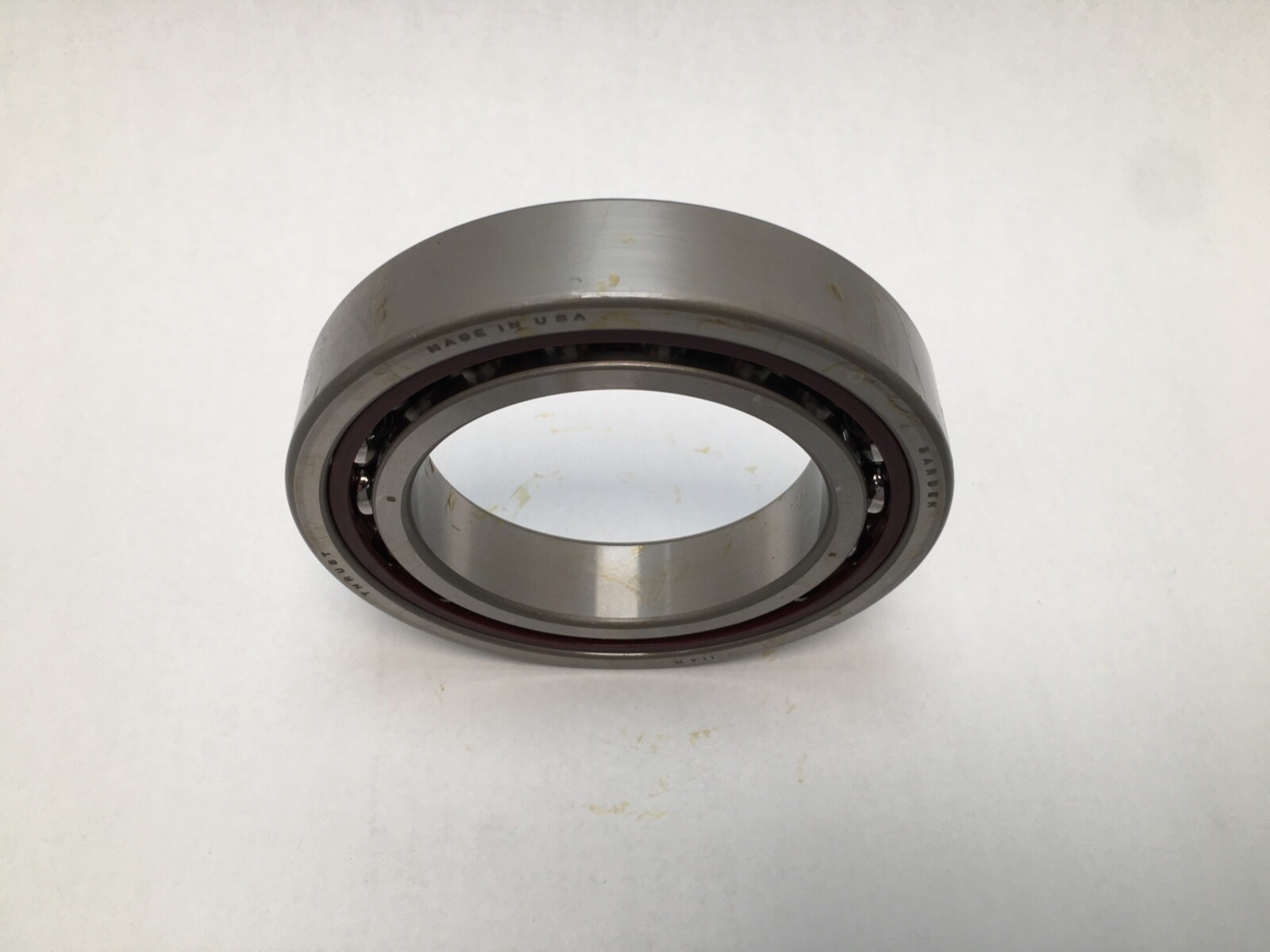

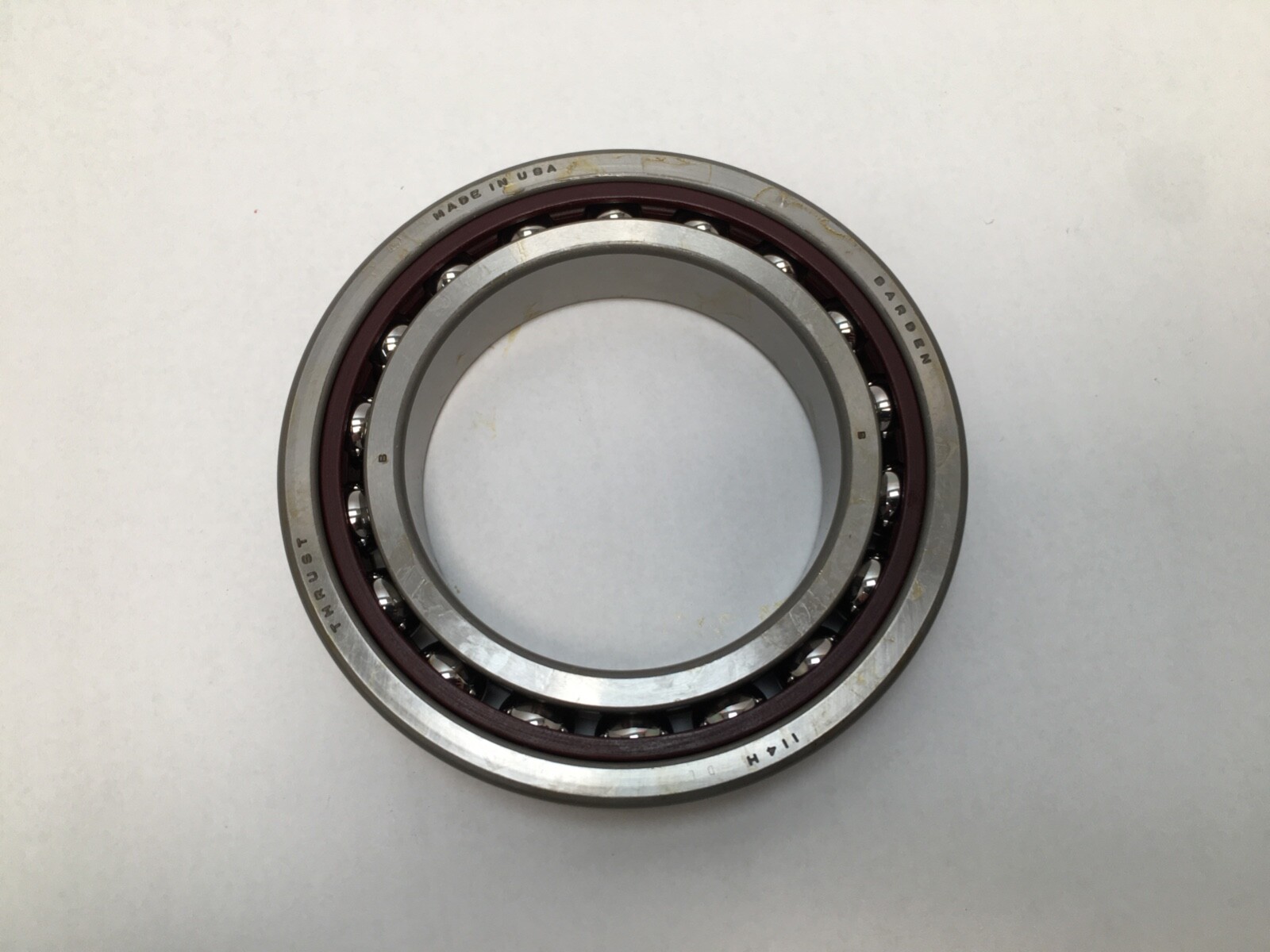

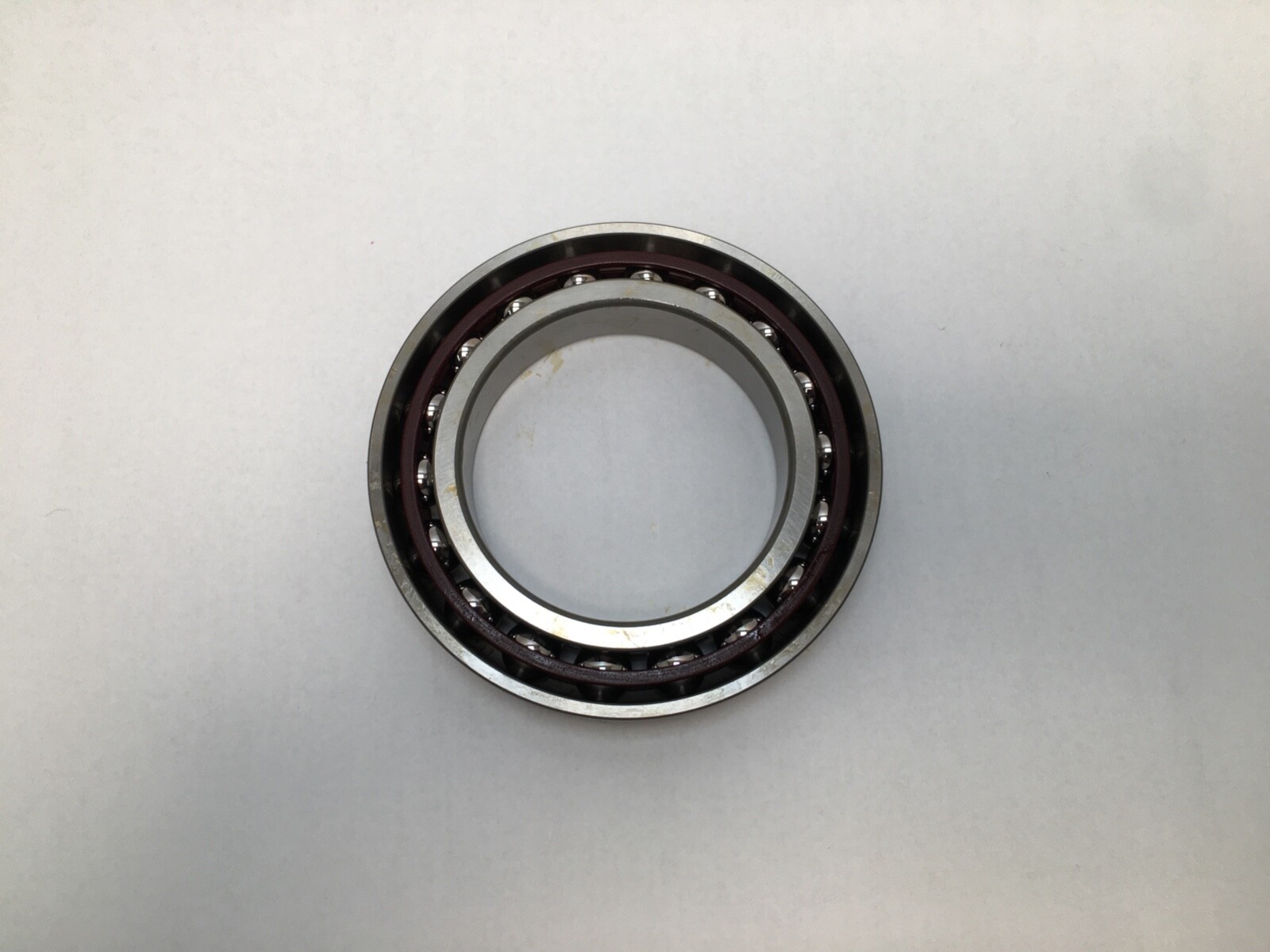

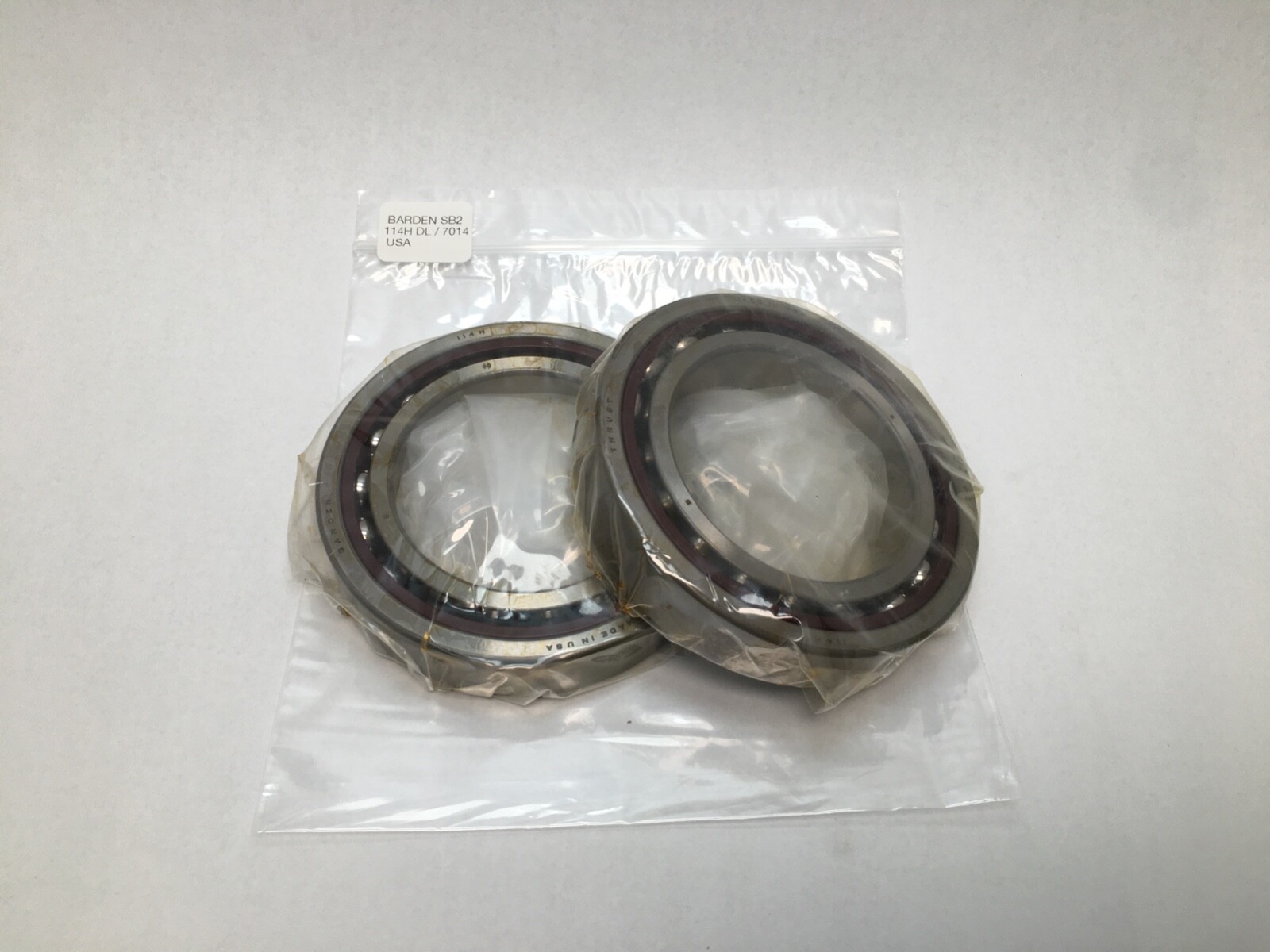

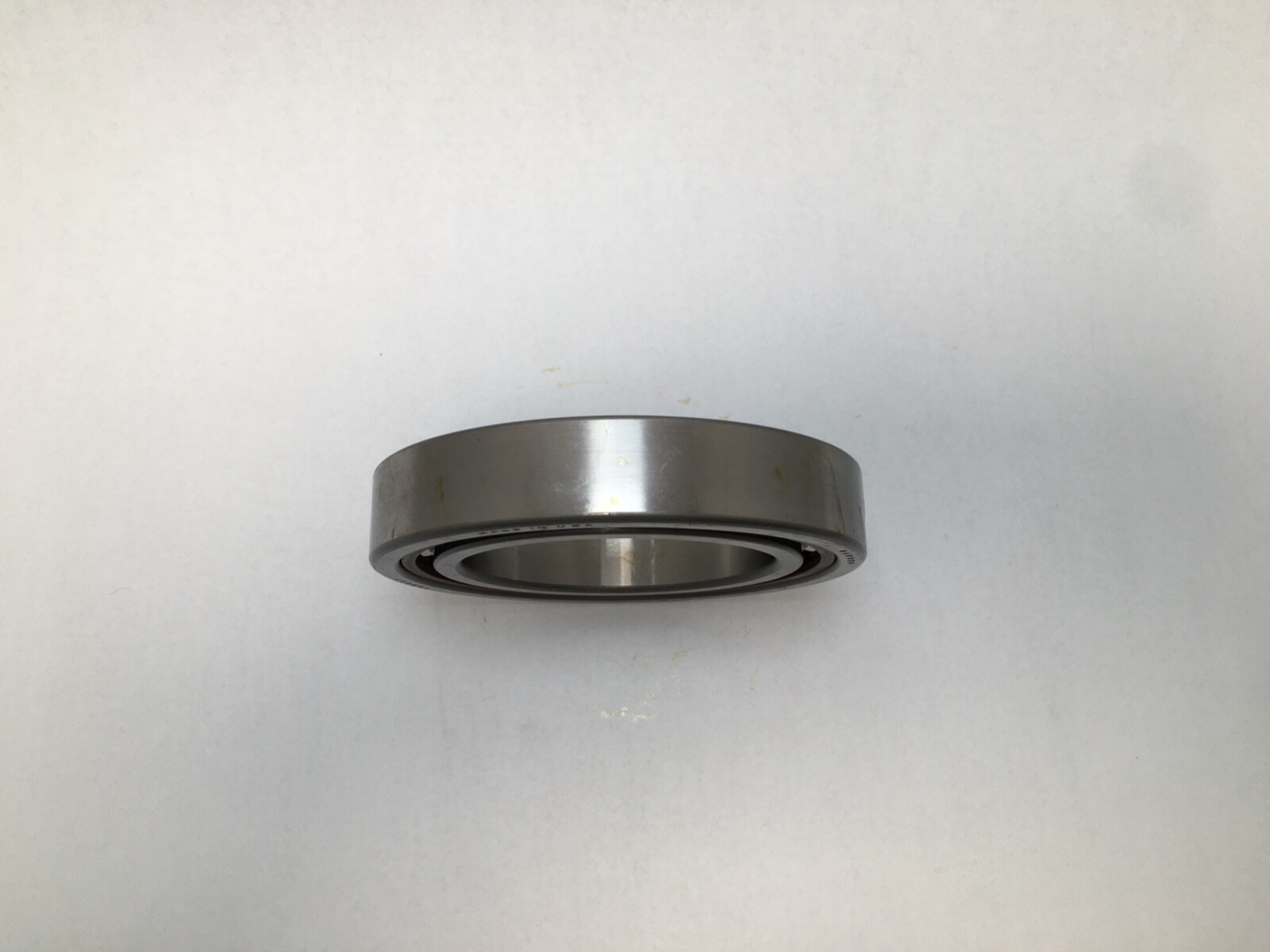

Barden 114H-DL super-precision angular contact ball bearing set, 70 x 110 x 20 mm, 15° contact angle, P4S, light preload 285 N, phenolic cage. 2 Pcs.
List Price
$312.70
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Barden |
|---|---|
| MPN | 114H-DL |
| Model | 114H DL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | 100Cr6 Steel |
|---|---|
| Series | Barden 100 Series |
| Preload | Light (L), 285 N |
| Cage Type | One-piece halo, machined |
| Dynamic Load Rating | 47,732 N |
| Static Load Rating | 47,152 N |
| Precision Rating | P4S |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex (DB, DF or DT) |
| Limiting Speed | 14,000 rpm grease; 21,000 rpm oil |
| Base Number | 114H |
| Industry Terms | spindle bearing, super precision bearing, duplex bearing set, machine tool bearing |
| Common Misspellings | Bardon 114H, 114-H-DL, 114HD L |
| Application Types | Machine tool spindles, high-speed grinding spindles |
| Mpn Variants | 114H-DL, 114HDL, 114H DL, 114-HDL, 114 H DL |
| Precision Class | P4S |
| Additional Attributes | Axial rigidity (L): 79.01 N/µm; Unloading force (L): 895.45 N; r1 max 1.00 mm; r2 max 0.50 mm |
| Bearing Material | 100Cr6 rings, steel balls |
| Closure Type | Open |
| Cross Reference 1 | SKF 7014 CD/P4ADGB |
|---|---|
| Cross Reference 2 | FAG B7014-C-T-P4S |
| Cross Reference 3 | NSK 7014CTYNSULP4 |
| Cross Reference 4 | Barden 114HC - ceramic balls |
Barden 114H-DL is a super-precision angular contact ball bearing set from Barden’s 100 Series: two bearings forming a universal duplex set with light preload. Unit Quantity: 2 Pcs. Bore Diameter: 70 mm. Outside Diameter: 110 mm. Width: 20 mm. Closure Type: Open.

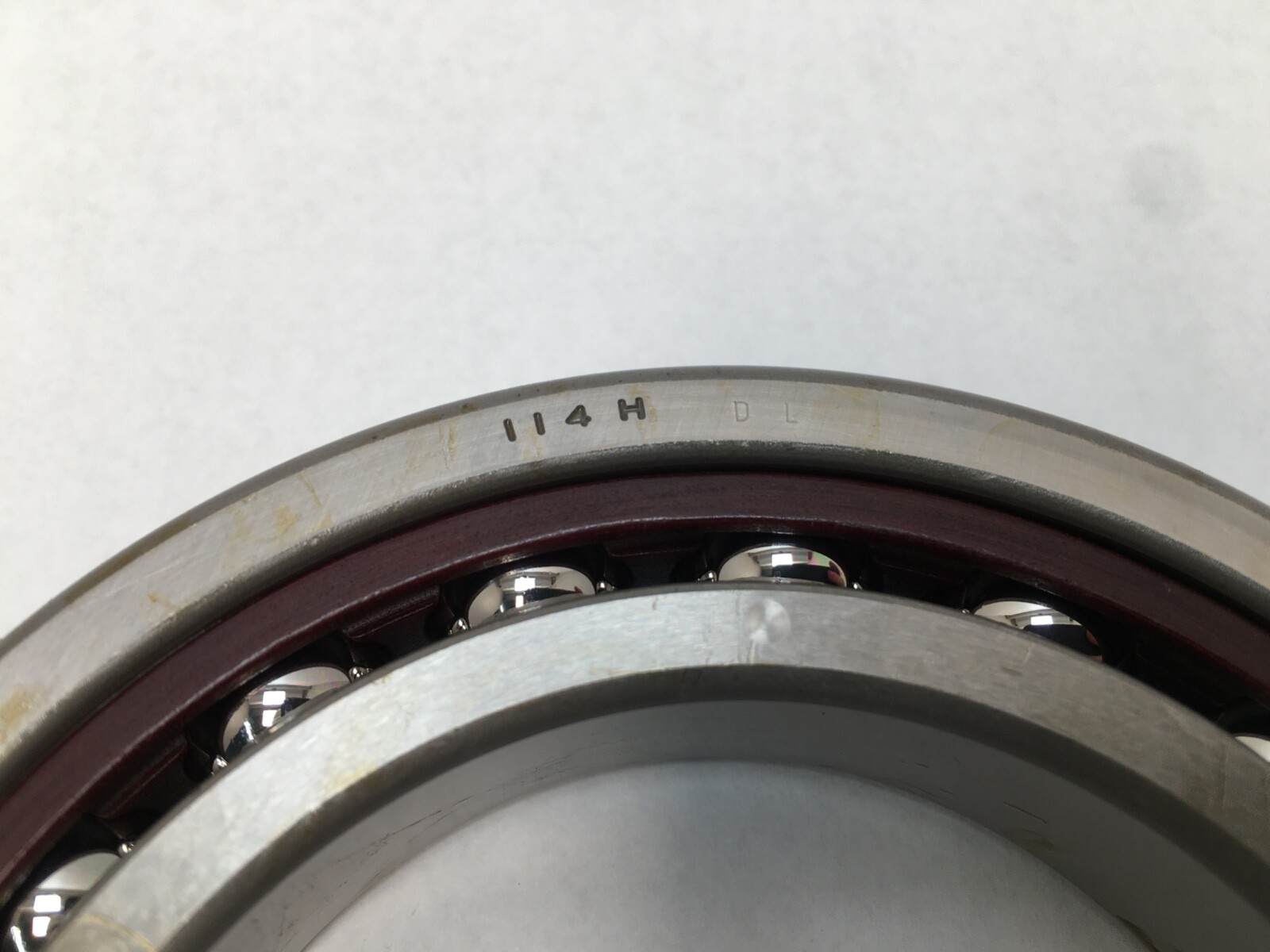

114 — Barden 100 Series, 70 mm bore, the ISO 7014 envelope.
H — Barden H-type angular contact bearing, relieved outer ring, non-separable, 15° contact angle, one-piece machined phenolic cage.
D — universal duplex set, faces ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
Bore Diameter: 70 mm. Outside Diameter: 110 mm. Width: 20 mm. Contact Angle: 15°. Precision Class: P4S. Dynamic Load Rating: 47,732 N per bearing. Static Load Rating: 47,152 N per bearing. Limiting Speed: 14,000 rpm grease; 21,000 rpm oil. Preload: Light, 285 N. Axial Rigidity: 79.01 N/µm at light preload. Cage Material: Phenolic. Cage Type: One-piece halo, machined. Bearing Material: 100Cr6 rings, steel balls.
Fillet Radius r1 max: 1.00 mm. Fillet Radius r2 max (non-thrust side): 0.50 mm. Unloading Force at light preload: 895.45 N. Mounting Arrangement: universal duplex, back-to-back, face-to-face or tandem.
70 x 110 x 20 mm, 15° contact angle: SKF 7014 CD/P4ADGB, FAG B7014-C-T-P4S, NSK 7014CTYNSULP4. Barden 114HC has ceramic balls. Harmonization Code: 8482.10.50.28.
Bore 70 mm, outside diameter 110 mm, width 20 mm, with a 15° contact angle. The envelope is ISO 7014.
D is a universal duplex set with faces ground for back-to-back, face-to-face or tandem mounting. L is light preload, 285 N. The set is 2 Pcs.
Dynamic Load Rating 47,732 N and Static Load Rating 47,152 N per bearing. Limiting Speed is 14,000 rpm on grease and 21,000 rpm on oil.
