NSK35TAC72BSUC10PN7BBall Screw Support Bearing – 35 mm ID, 72 mm OD, 15 mm Width, 60° Contact Angle, ABEC 7

Product Description

What this part is:

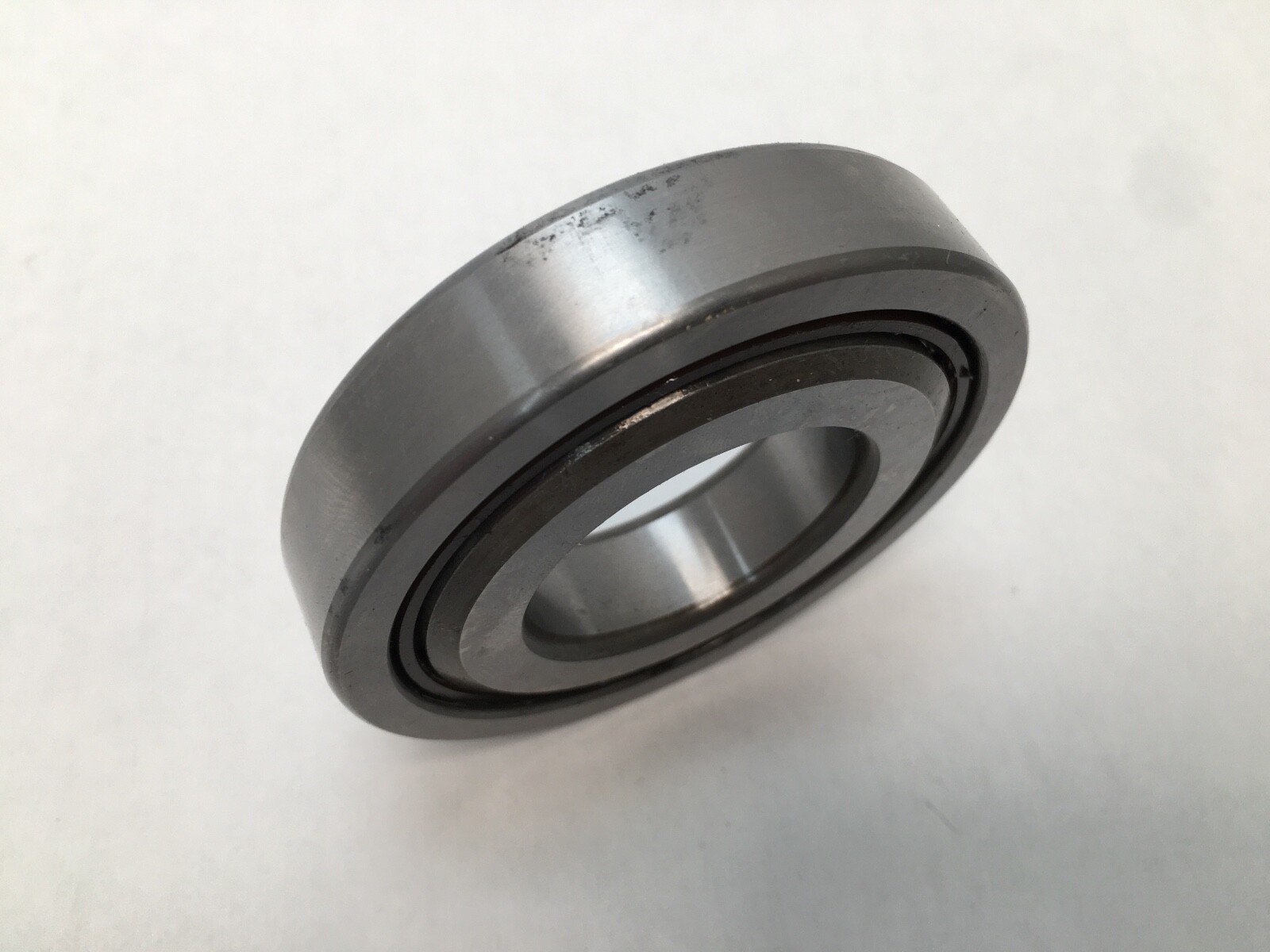

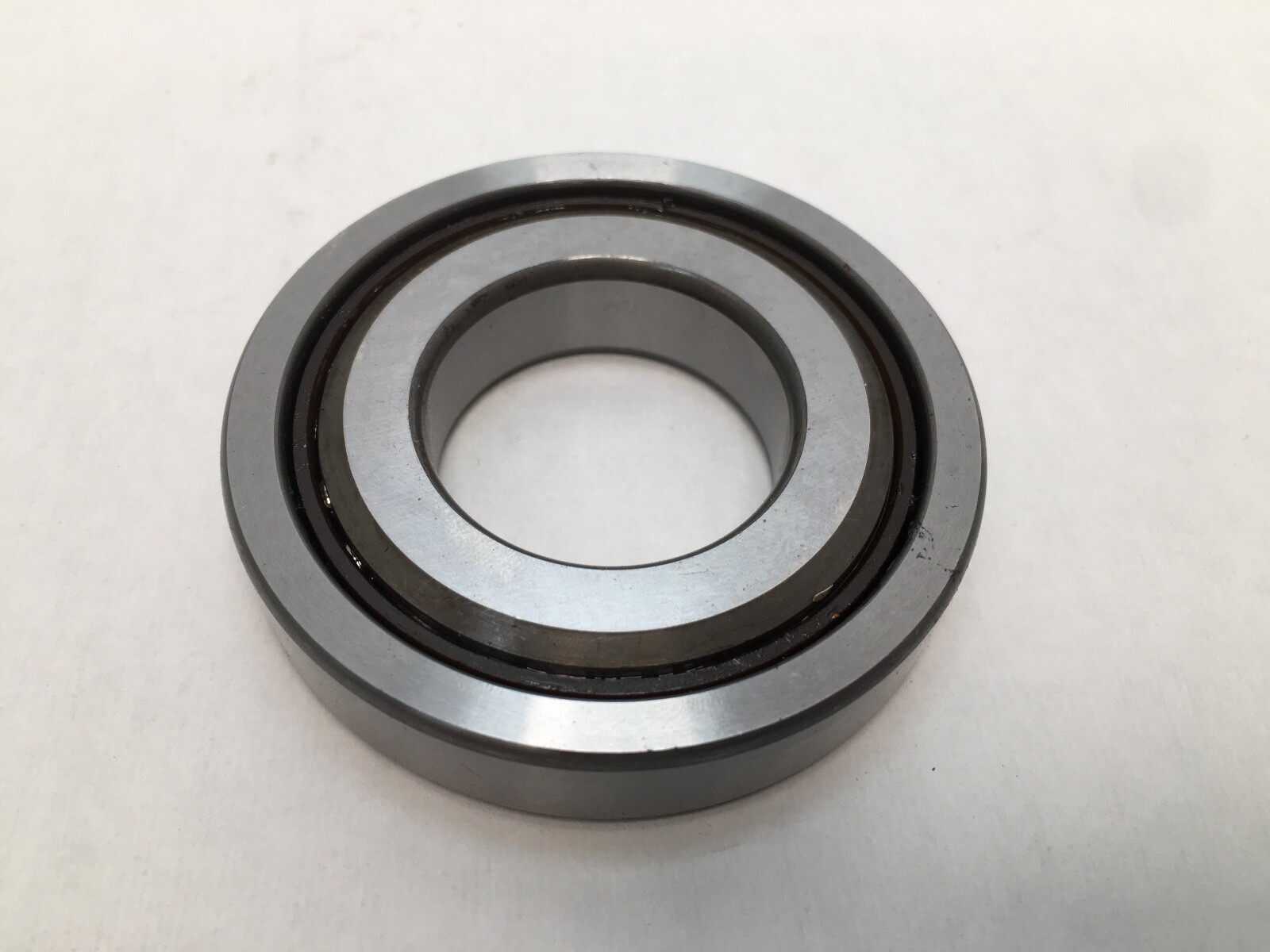

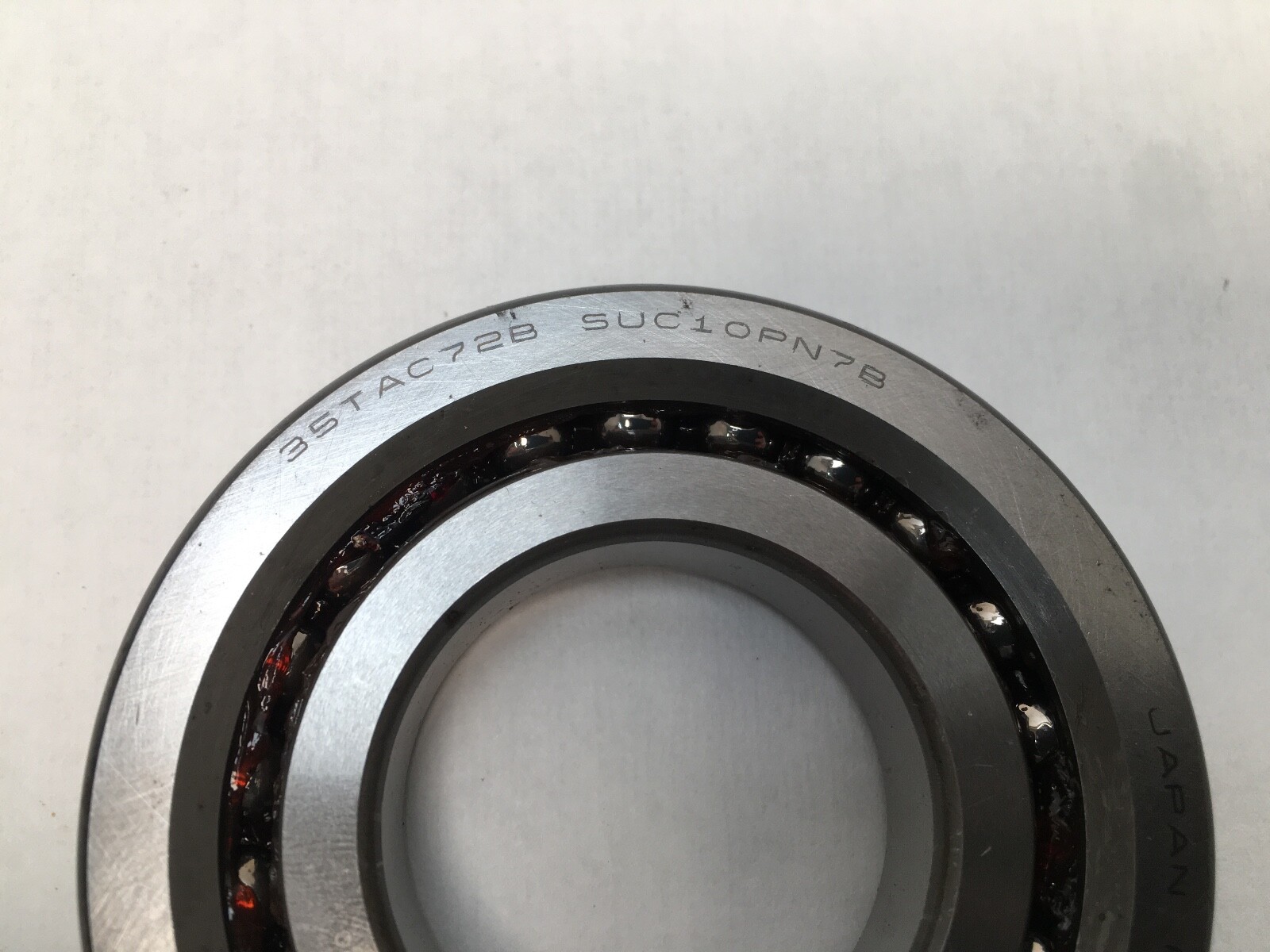

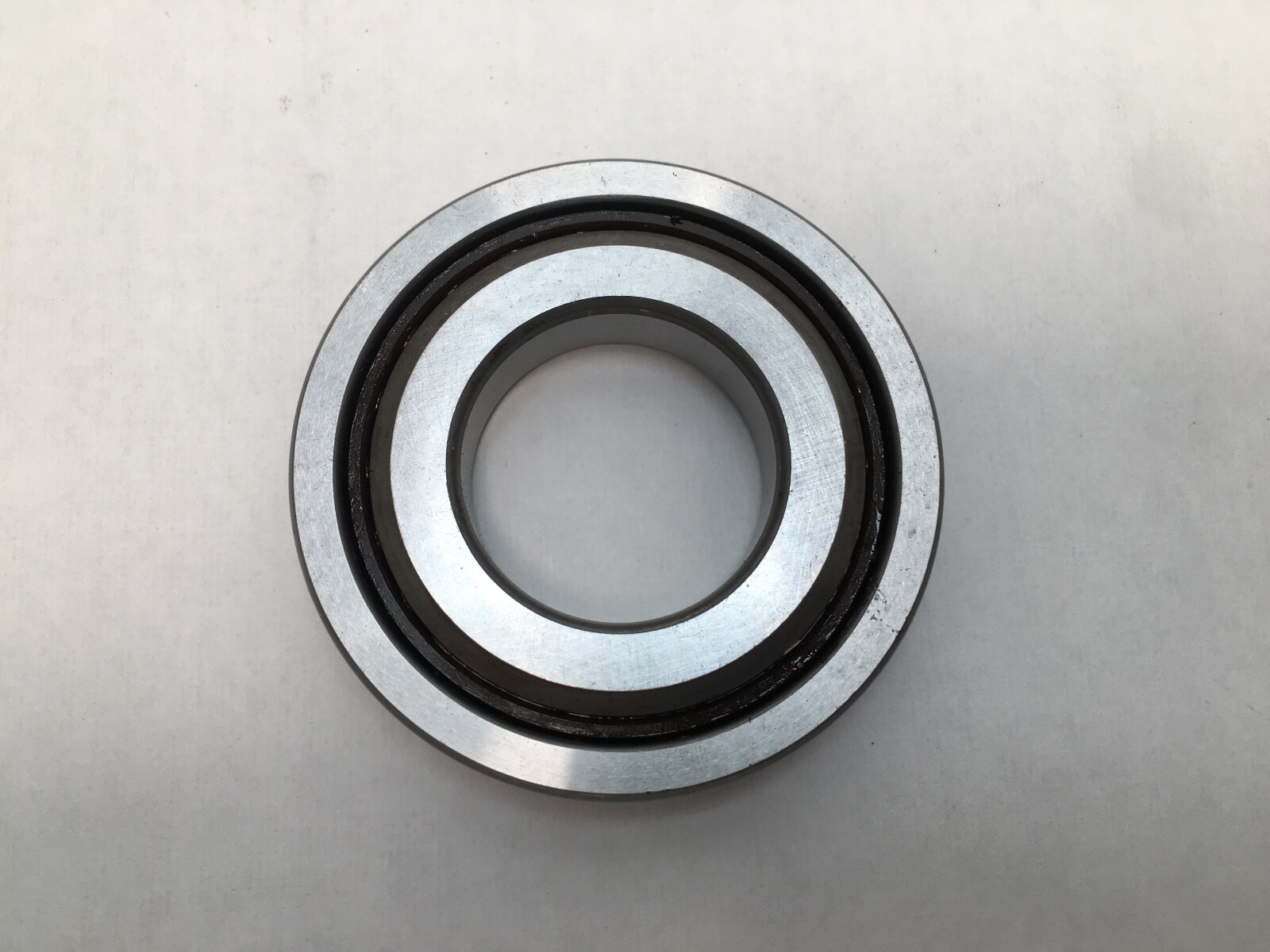

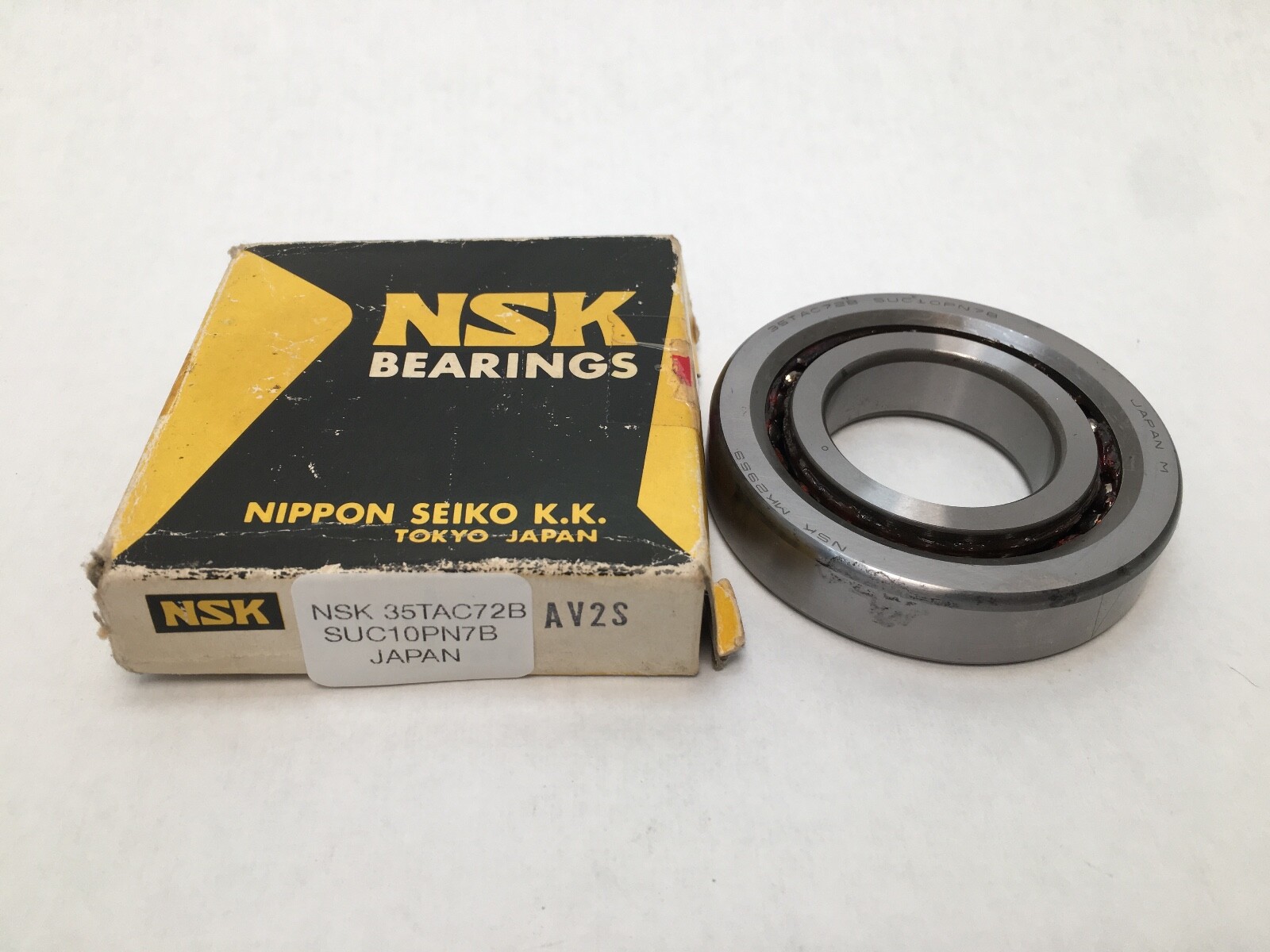

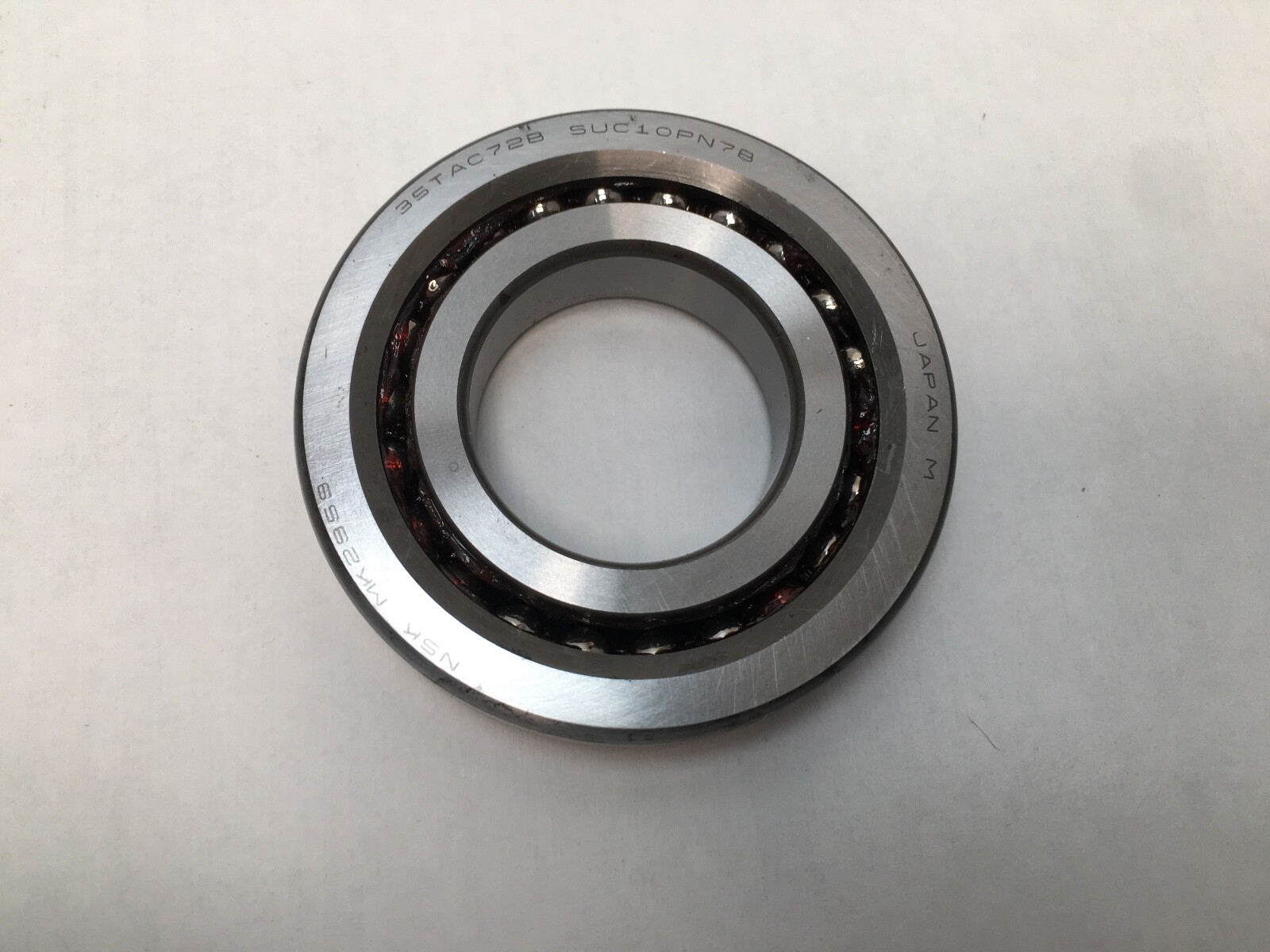

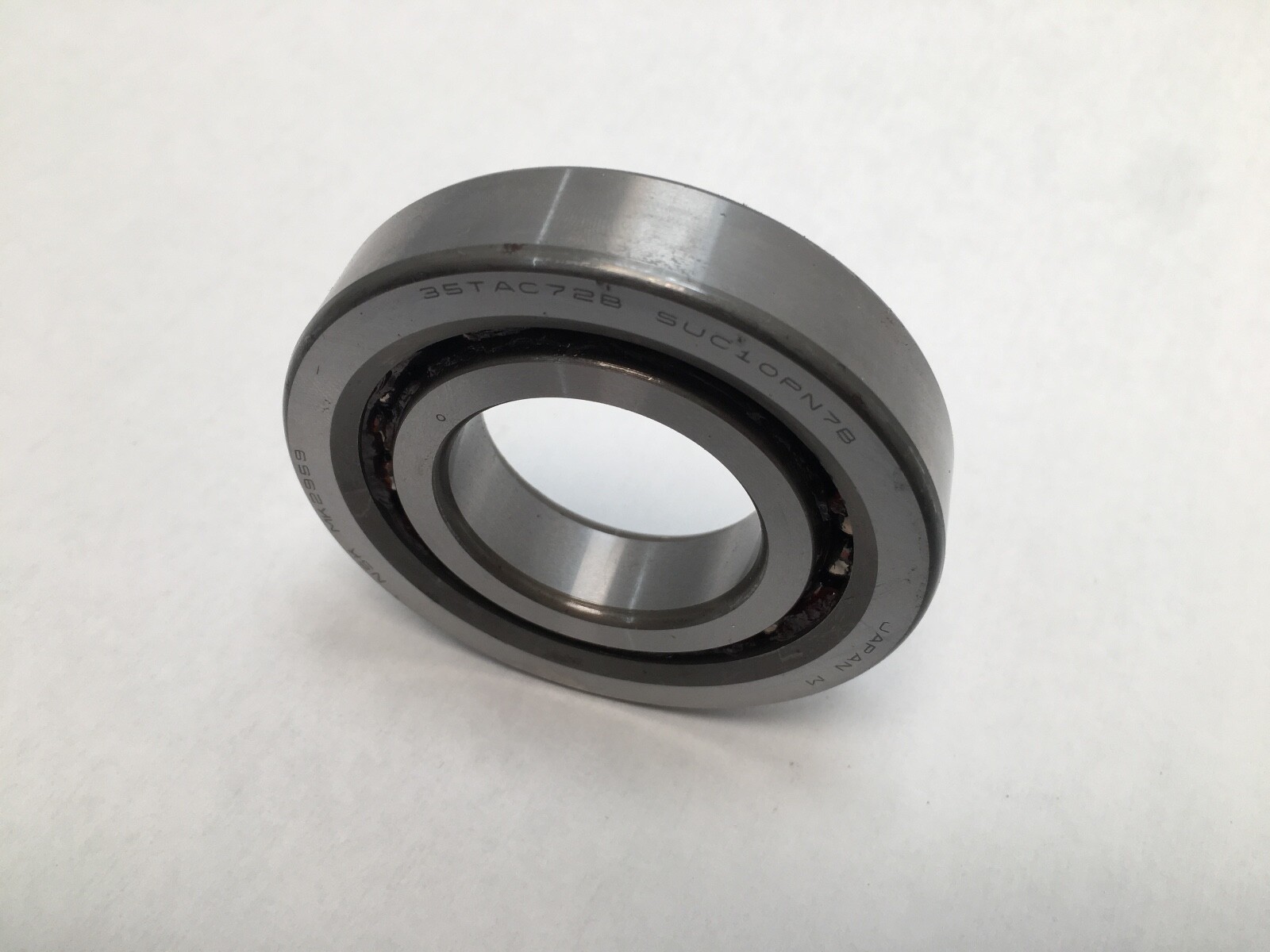

NSK 35TAC72BSUC10PN7B is a single-row ball screw support angular contact thrust ball bearing: 35 mm bore, 72 mm outside diameter, 15 mm width, 60° contact angle, open, precision class PN7B (ABEC 7 / P4). Universal combination, ground for pairing with a matching bearing. Unit Quantity: 1 Pc.

Decoding the designation:

35TAC72 — NSK TAC series ball screw support bearing, 35 mm bore, 72 mm outside diameter. TAC carries a 60° contact angle.

B — TAC B series.

SU — universal combination: ground so the bearing can be paired face-to-face, back-to-back or in tandem with a matching bearing.

PN7B — NSK precision class PN7B, ABEC 7 / P4.

Specifications:

Bearing Type: Ball Screw Support Bearing. Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm. Contact Angle: 60°. Precision Class: ABEC 7 / P4. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Mounting Arrangement: Universal. Series: TAC. GTIN: 029176011603.

Dimensions and mounting:

Envelope: 35 x 72 x 15 mm. Mounting Arrangement: Universal, ground for face-to-face, back-to-back or tandem pairing.

Compatibility and replacement:

Part number variants: 35TAC72B SUC10 PN7B, 35 TAC 72 B SUC 10 PN 7B, BSD-3572.

Frequently asked questions:

What is the contact angle of the NSK 35TAC72BSUC10PN7B?

60°, from the TAC series.

What size is the 35TAC72BSUC10PN7B?

35 mm bore, 72 mm outside diameter, 15 mm width.

What does SU mean in the designation?

Universal combination: the bearing is ground to be paired face-to-face, back-to-back or in tandem with a matching bearing.
