Ball screw support bearing, 35x72x15 mm; 60° contact angle, full ball complement, universally ground, heavy preload, straight bore. Single bearing, 1 Pc.
List Price
$118.08
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 35TAC72BSUC10PN7B |
| Model | 35TAC72-B-SUC-10-PN-7B |
| Bearing Type | Ball Screw Support Bearing |
| ID | 35 mm (1.3780 in) |
| OD | 72 mm (2.8346 in) |
| Width | 15 mm (0.5906 in) |
| Preload | Heavy (C10) |
|---|---|
| Base Number | 35TAC72B |
| Industry Terms | ball screw support bearing, ballscrew bearing, thrust angular contact bearing, 60 degree contact angle bearing, screw support bearing, CNC ball screw bearing, high axial stiffness bearing |
| Common Misspellings | NSK 35TAC72B SUC10 PN7B, 35TAC72BSUC10PN-7B, NSK35TAC72BSUC10PN7B, 35 TAC72BSUC10PN7B, NKS 35TAC72BSUC10PN7B, 35TAC72BSU C10PN7B |
| Application Types | CNC machine tool ball screw ends, precision linear actuators, machining centre feed axes, injection moulding screw drives |
| Bore Shaft Size | 35 mm (1.3780 in), straight bore |
| Mpn Variants | 35TAC72BSUC10PN7B, 35TAC72-B-SUC-10-PN-7B, 35 TAC 72B SUC10 PN7B, 35TAC72BSUC10, 35TAC72B |
| Number Of Rows | 1 |
| Contact Angle | 60° |
| Part Number | 35TAC72BSUC10PN7B |
| Cross Reference 1 | FAG 7602035-TVP |
|---|---|
| Cross Reference 2 | Timken MM35BS72 |
| Cross Reference 3 | RHP BSB035072 |
| Cross Reference 4 | NSK 35TAC72CSUHPN7C - newer C series |
| Cross Reference 5 | NSK 35TAC72BDFC10PN7A - face-to-face pair, not single |

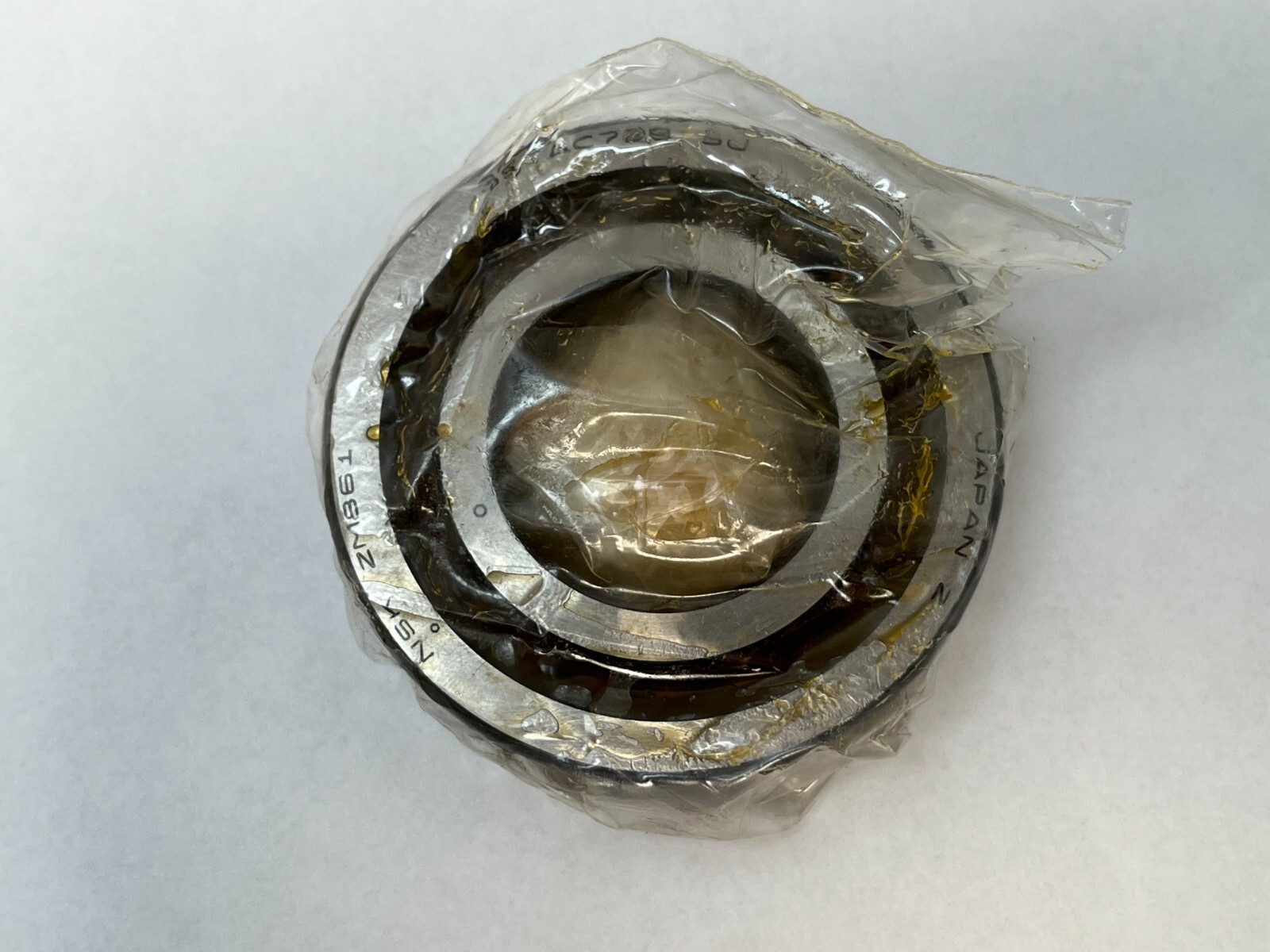

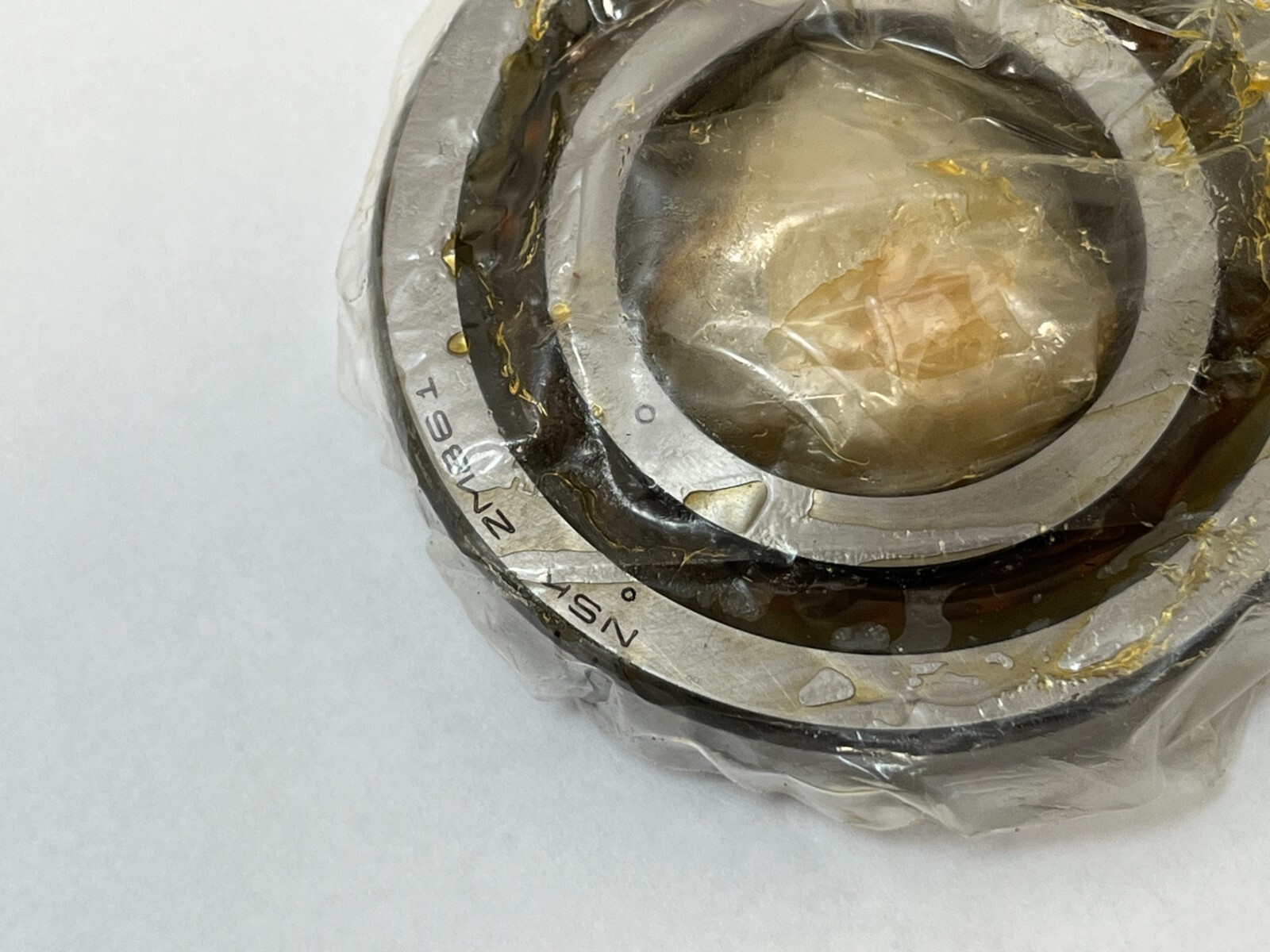

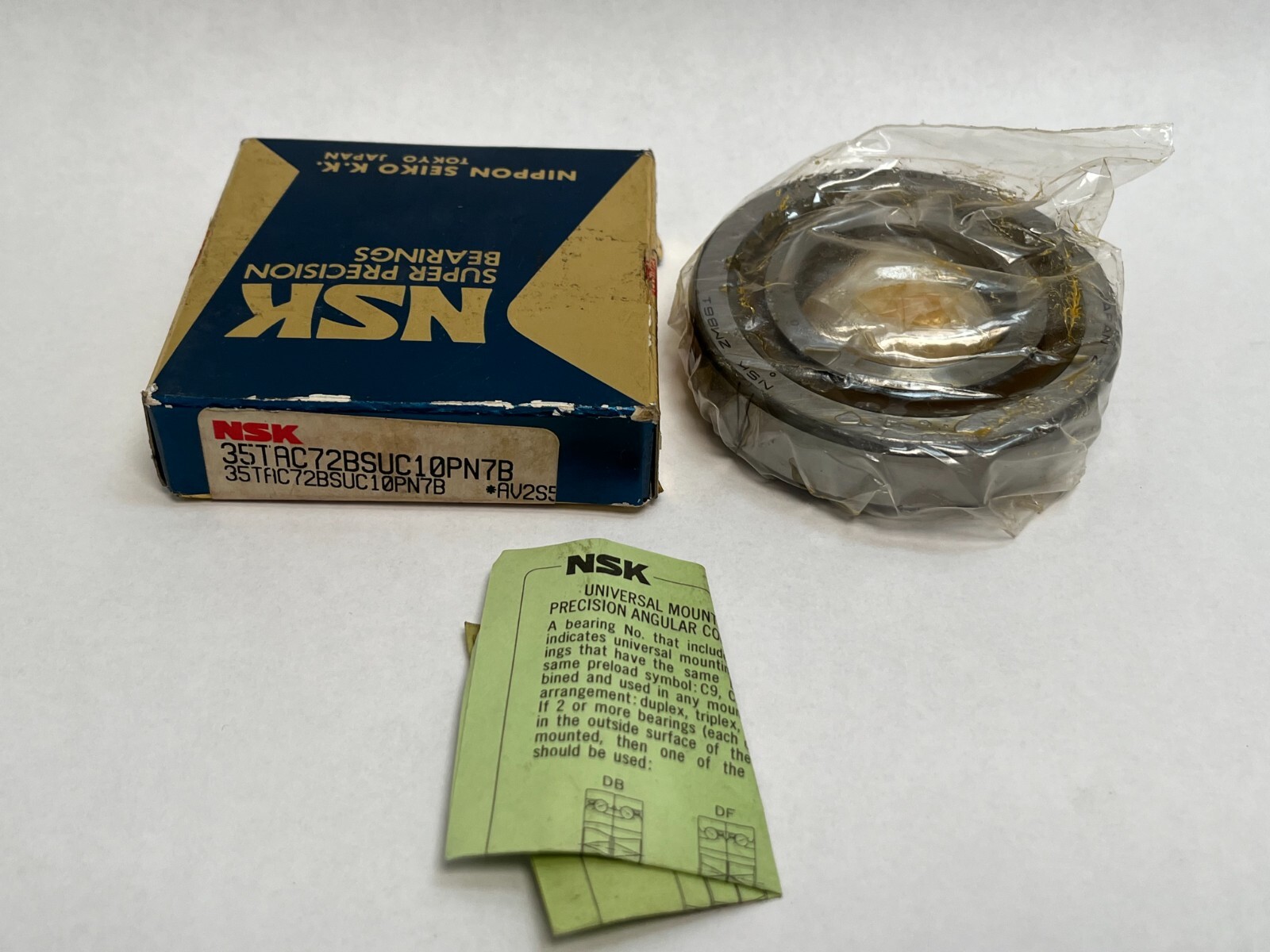

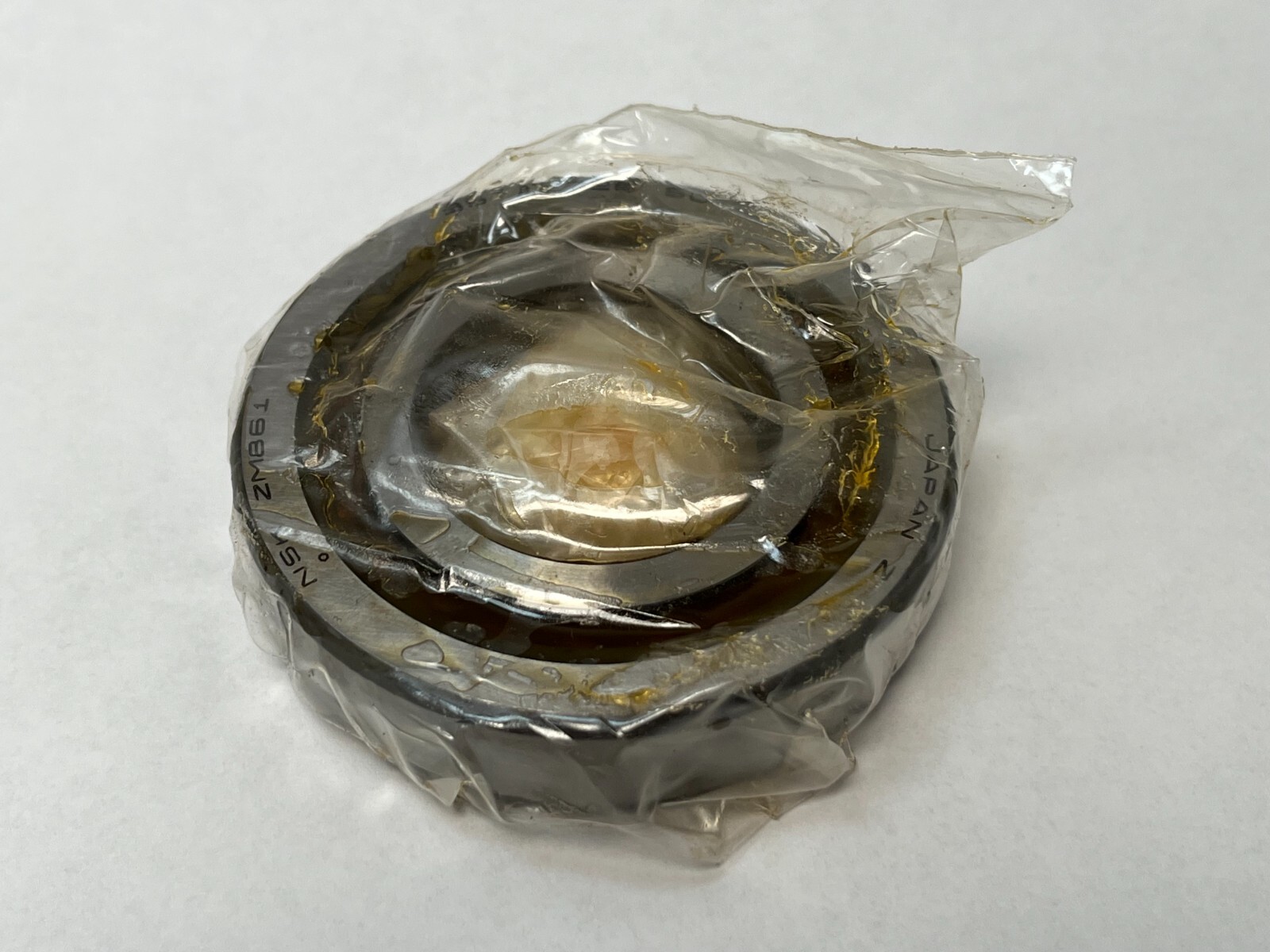

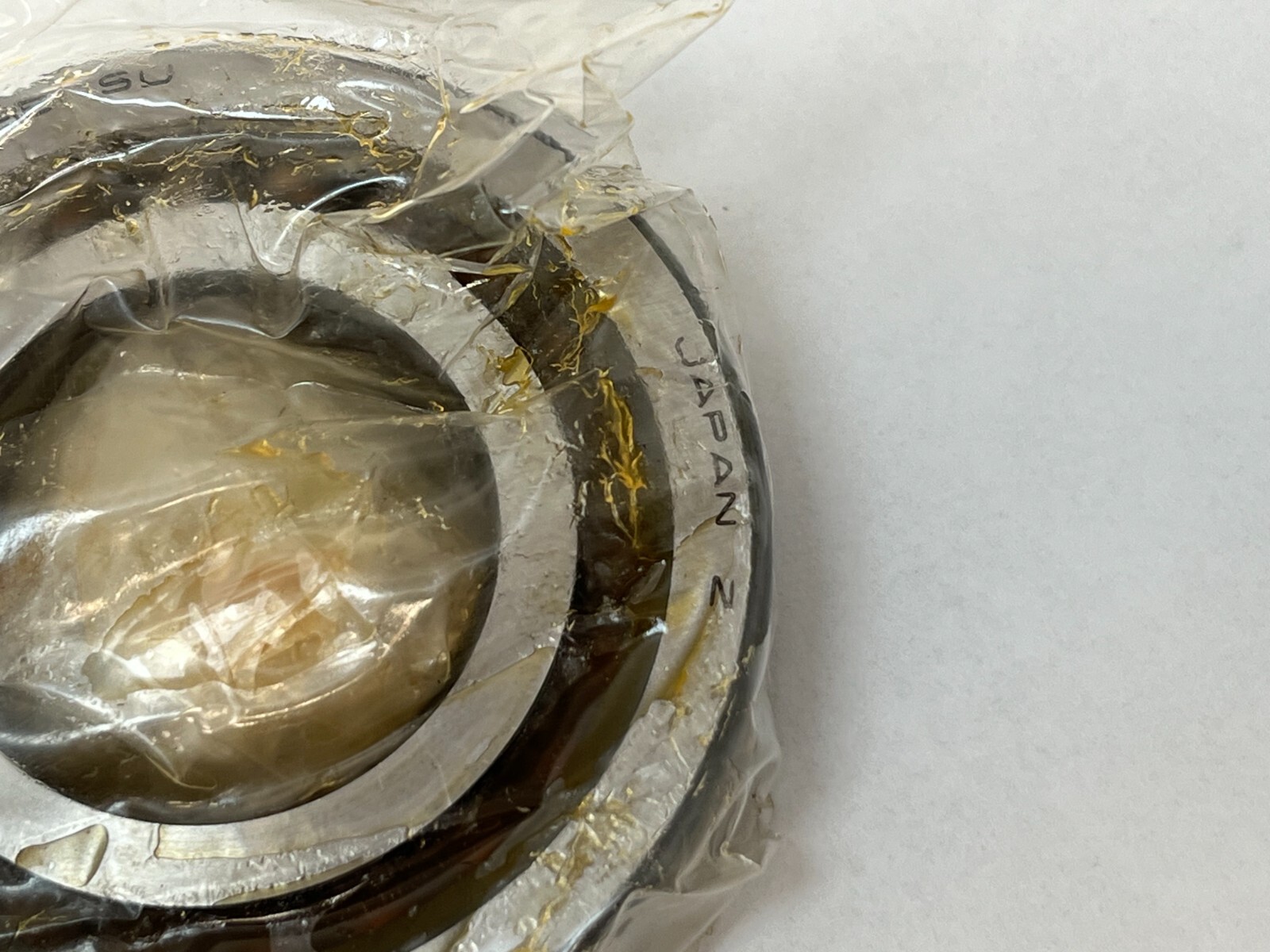

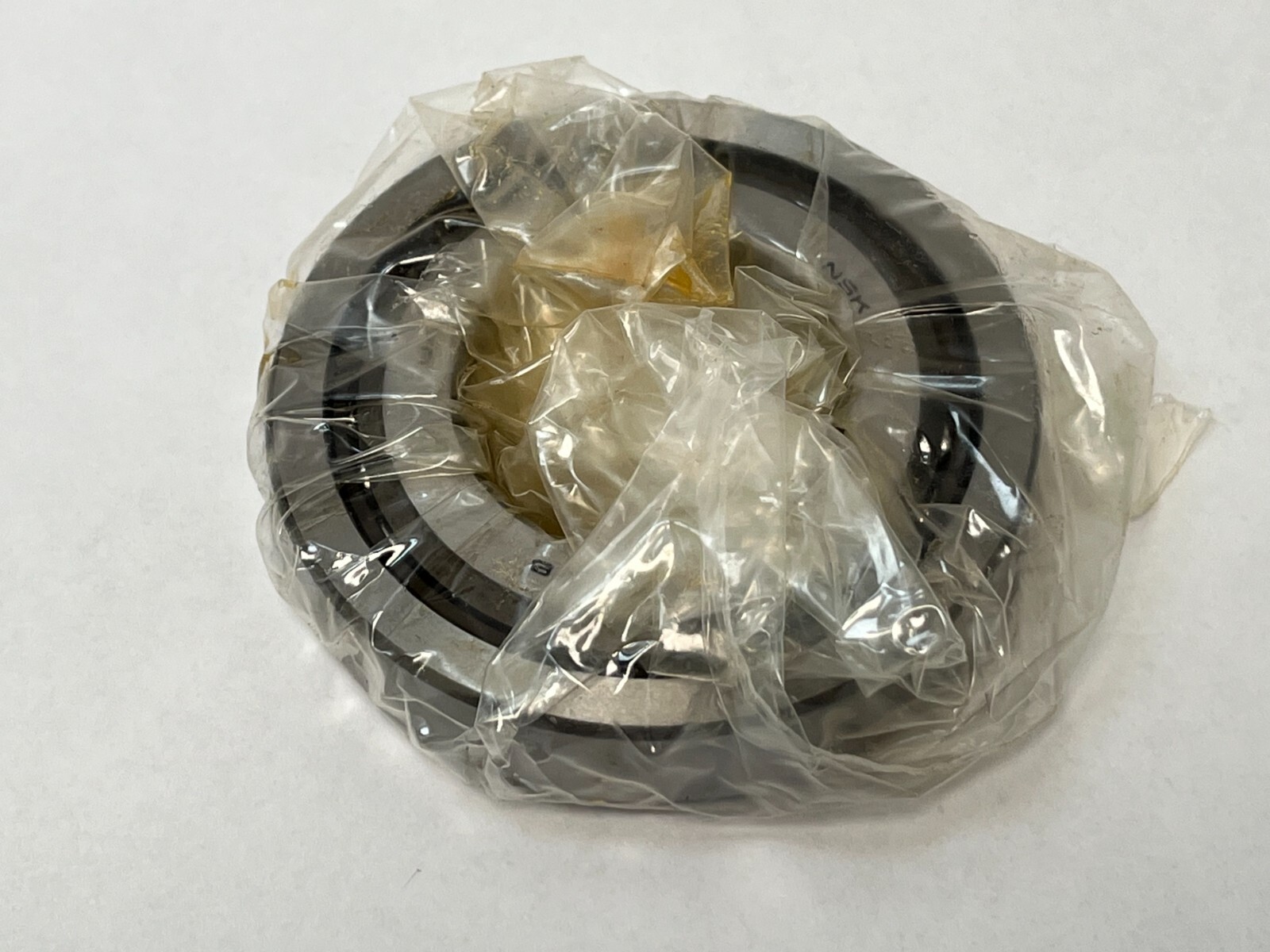

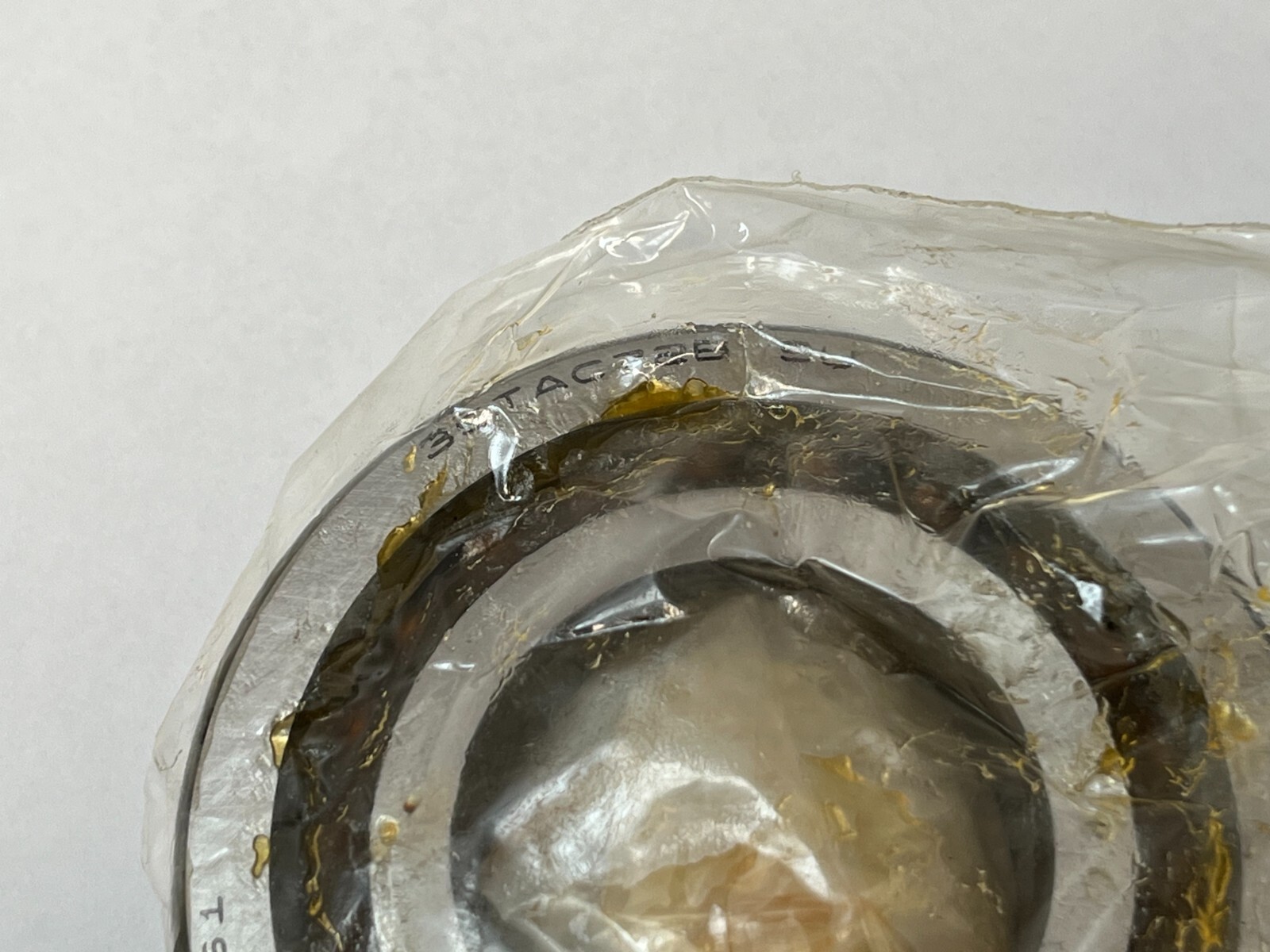

NSK 35TAC72BSUC10PN7B ball screw support bearing in the 35 x 72 x 15 mm envelope. Single row, full ball complement, 60° contact angle, straight bore, universally ground, open on both faces. Unit Quantity: 1 Pc.
35 — bore in millimetres.
TAC72B — NSK TAC B series ball screw support bearing, 72 mm outside diameter.
SU — single universally ground bearing.
C10 — preload code, heavy preload.
Contact Angle: 60°. Number Of Rows: 1. Rolling Elements: full ball complement. Bore Type: straight. Preload: Heavy (C10). Series: TAC B (ball screw support). Closed faces: none; open on both faces. The 60° angle directs capacity along the screw axis, in one thrust direction.
Bore Diameter: 35 mm (1.3780 in). Outside Diameter: 72 mm (2.8346 in). Overall Width: 15 mm (0.5906 in).
60° ball screw support bearings in the 35 x 72 x 15 mm size: FAG 7602035-TVP, Timken MM35BS72 and RHP BSB035072. Within NSK, 35TAC72CSUHPN7C is the newer C series and 35TAC72BDFC10PN7A is the factory-matched face-to-face pair.
Contact Angle: 60°.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm.
Preload: Heavy (C10), single universally ground bearing.
