NSK35TAC72ADBC10PN7BAngular Contact Thrust Ball Bearing for Ball Screw Support – 35 mm ID, 72 mm OD, 15 mm Width, Straight Bore, Open, Back-to-Back Matched Pair.

Product Description

What this part is:

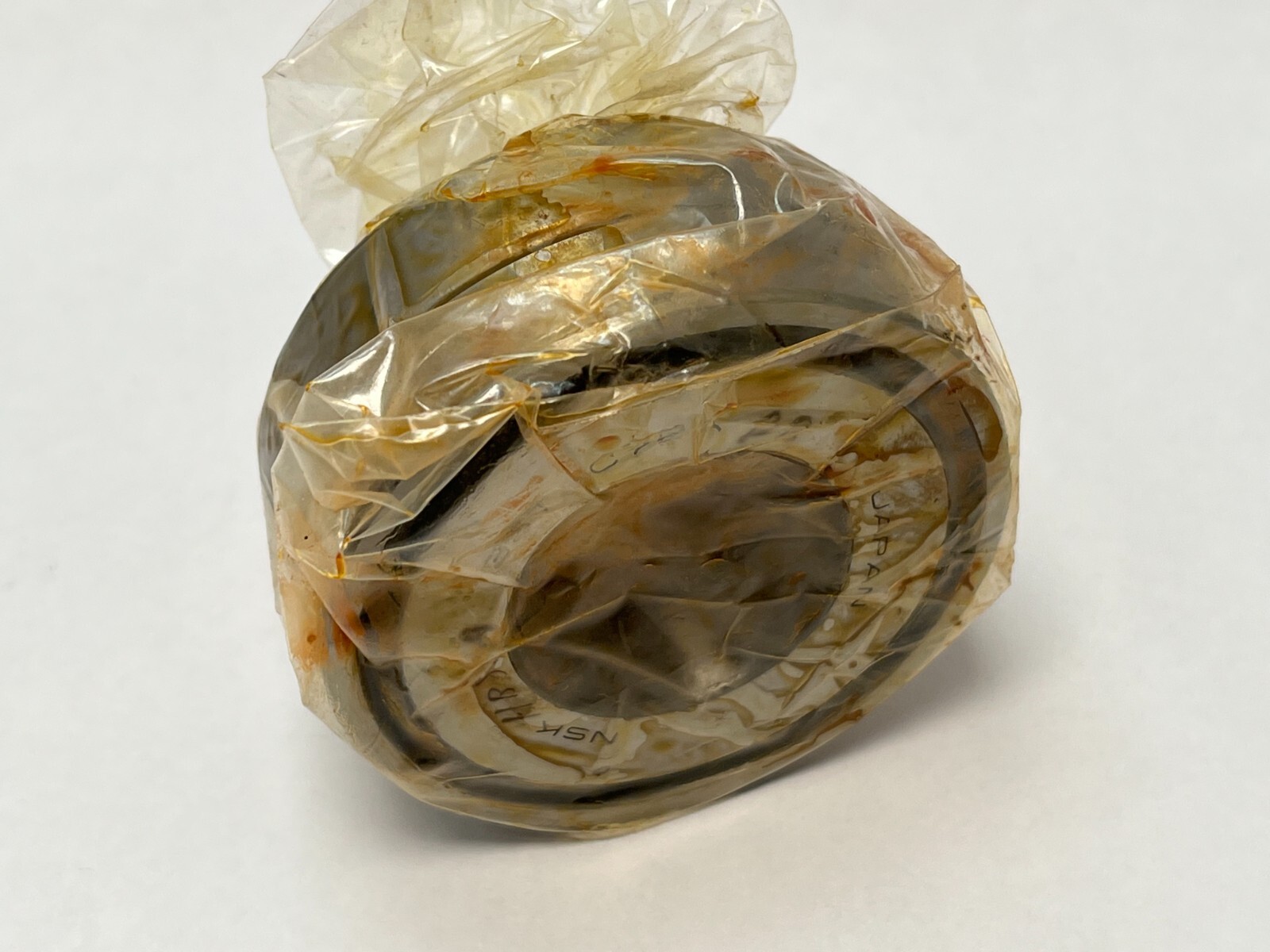

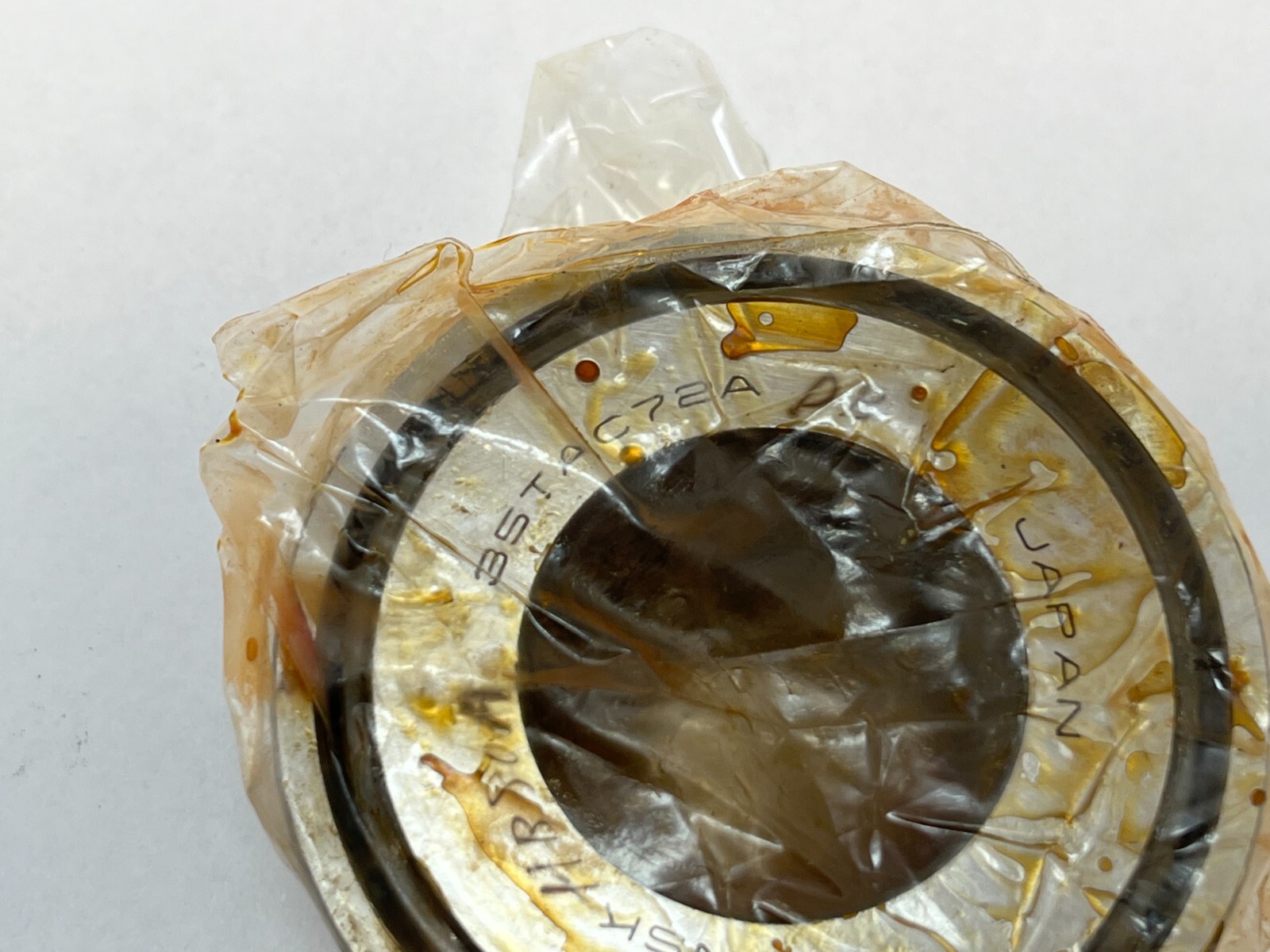

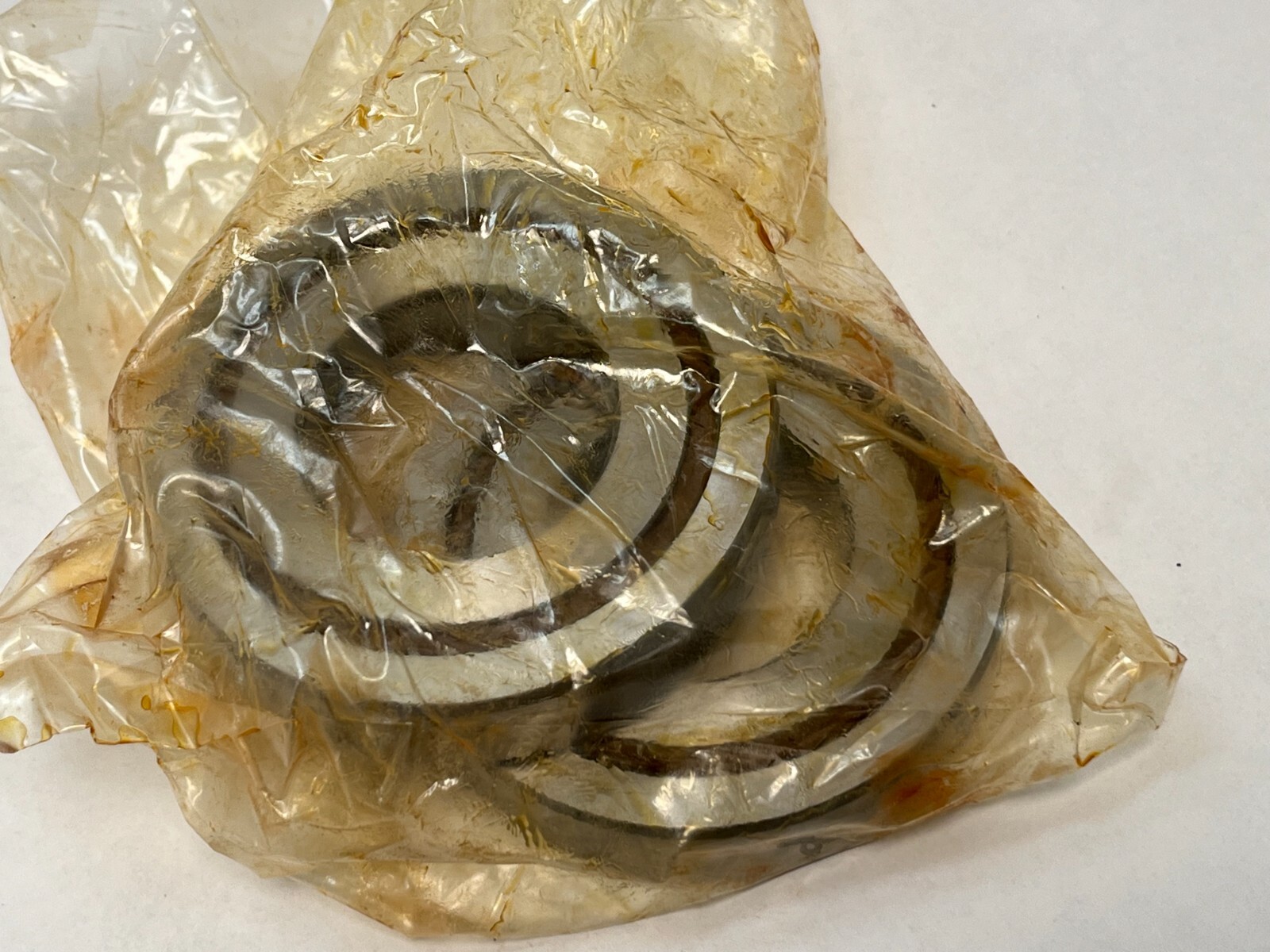

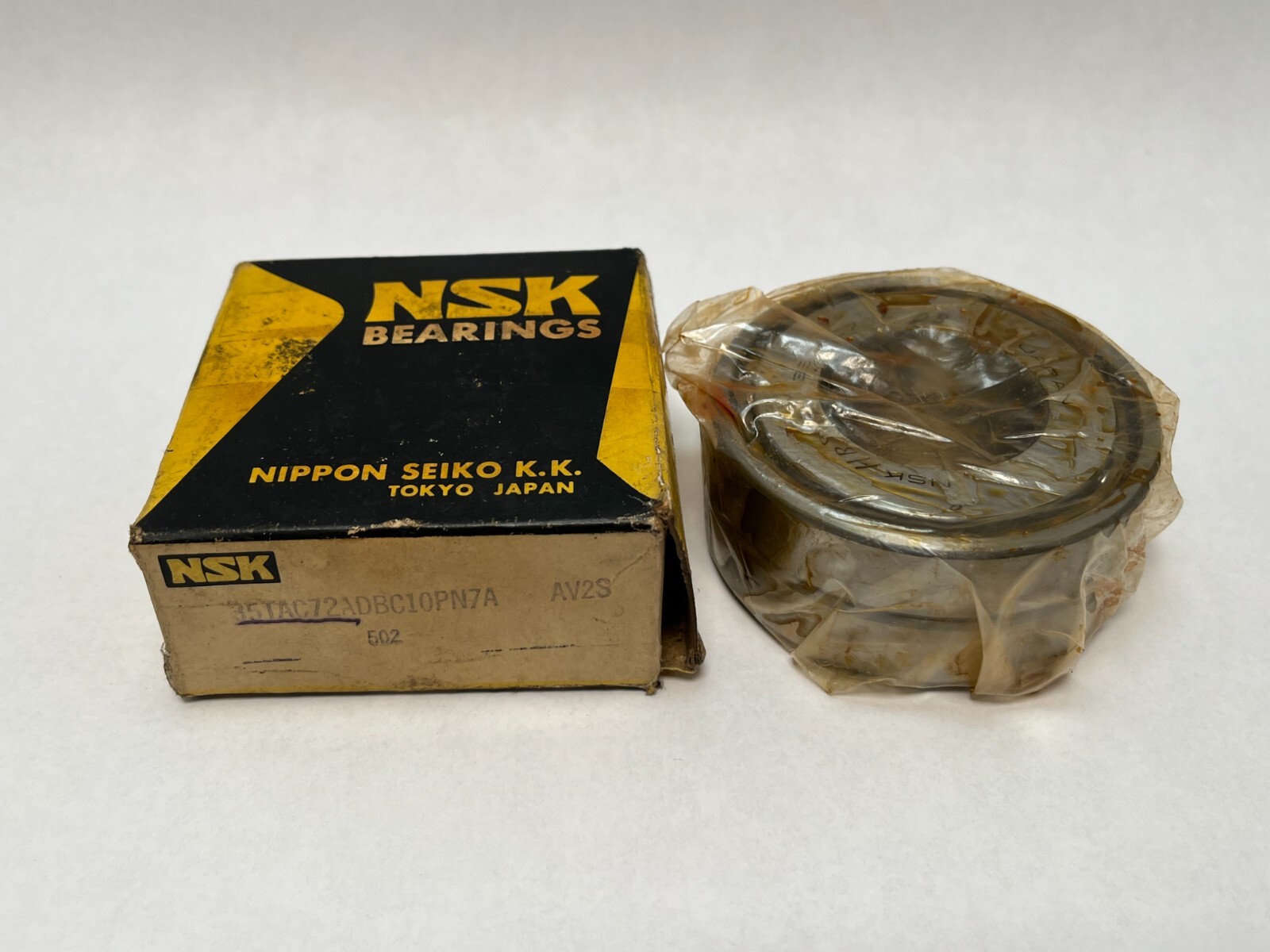

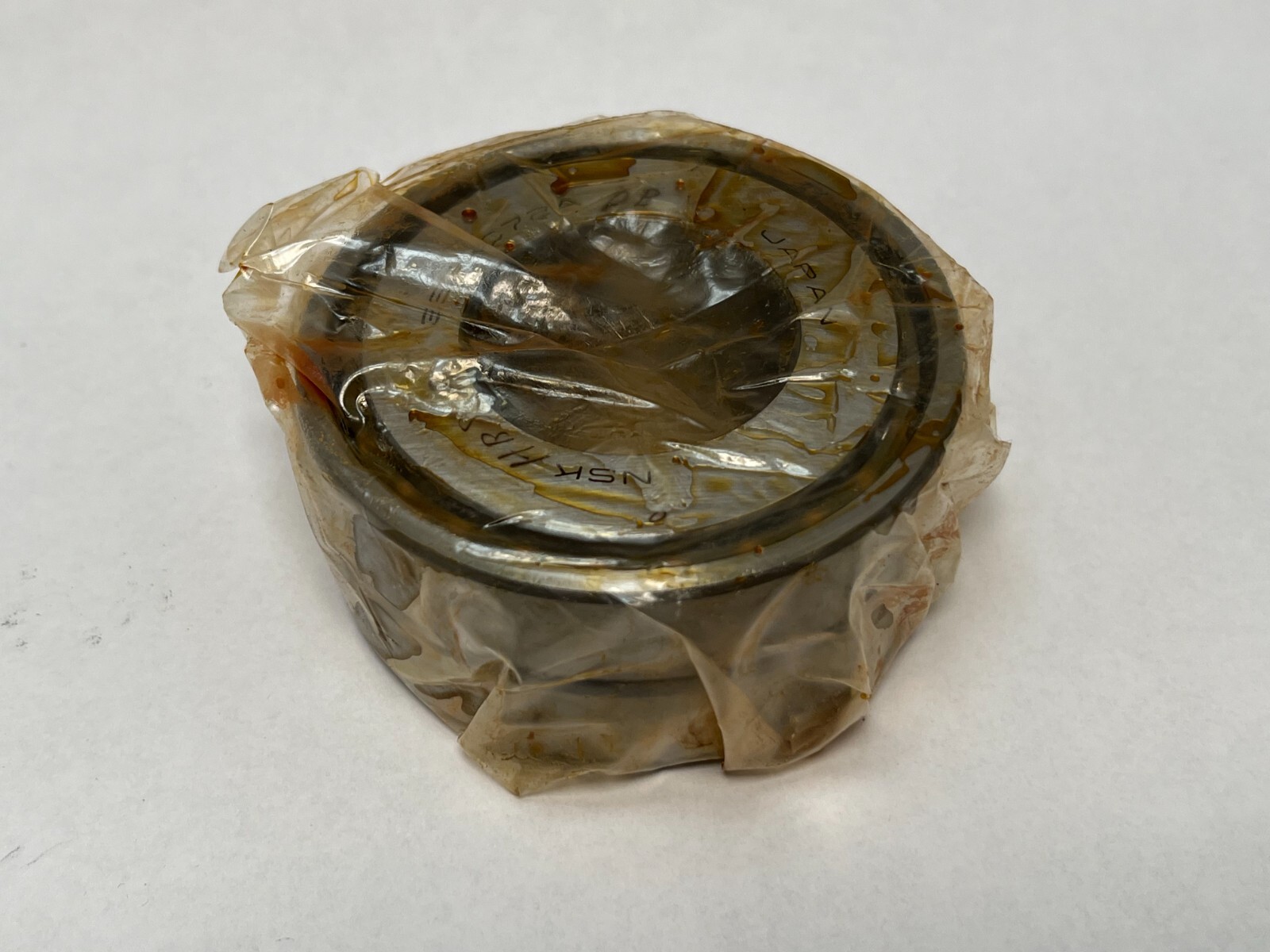

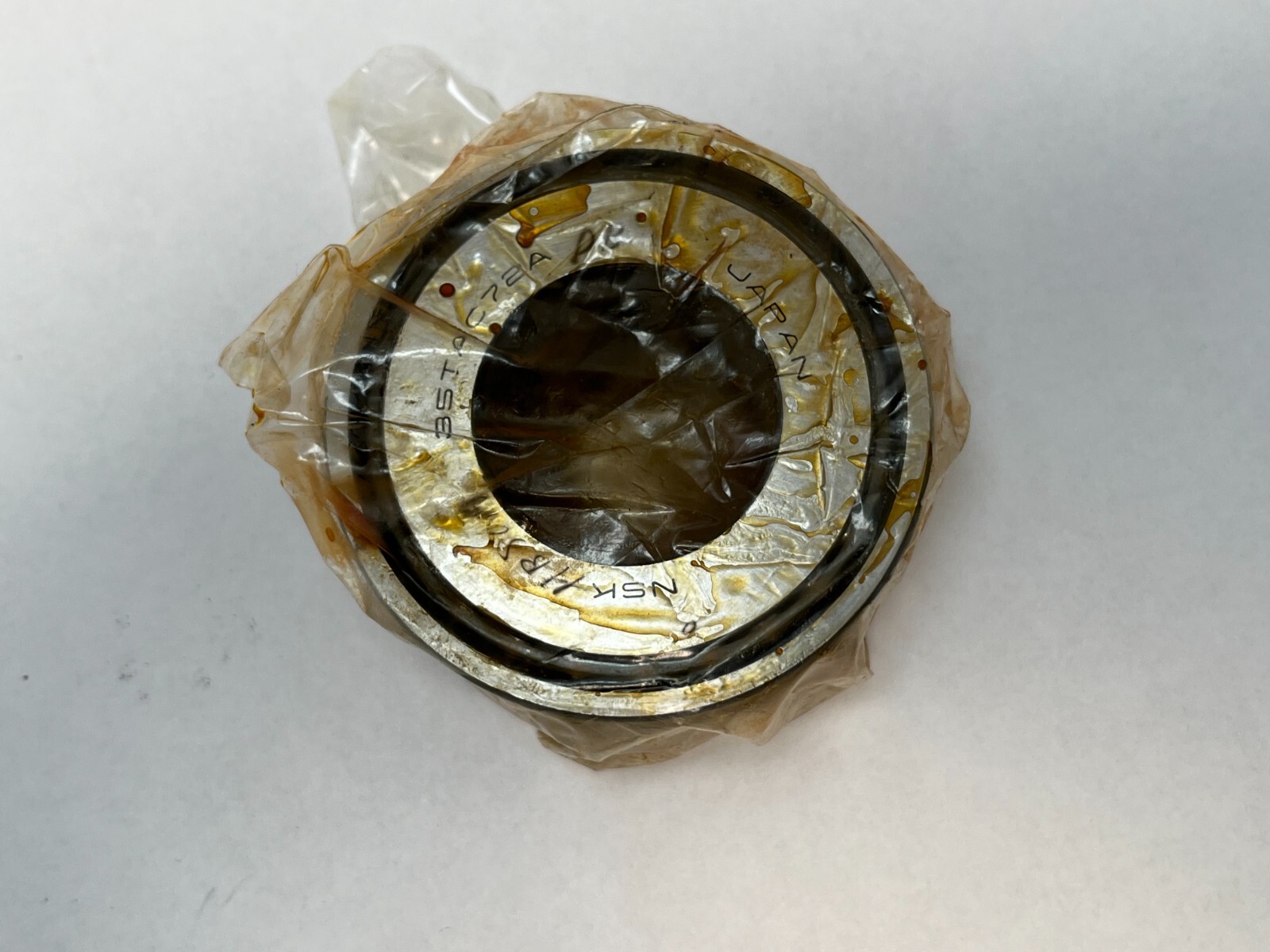

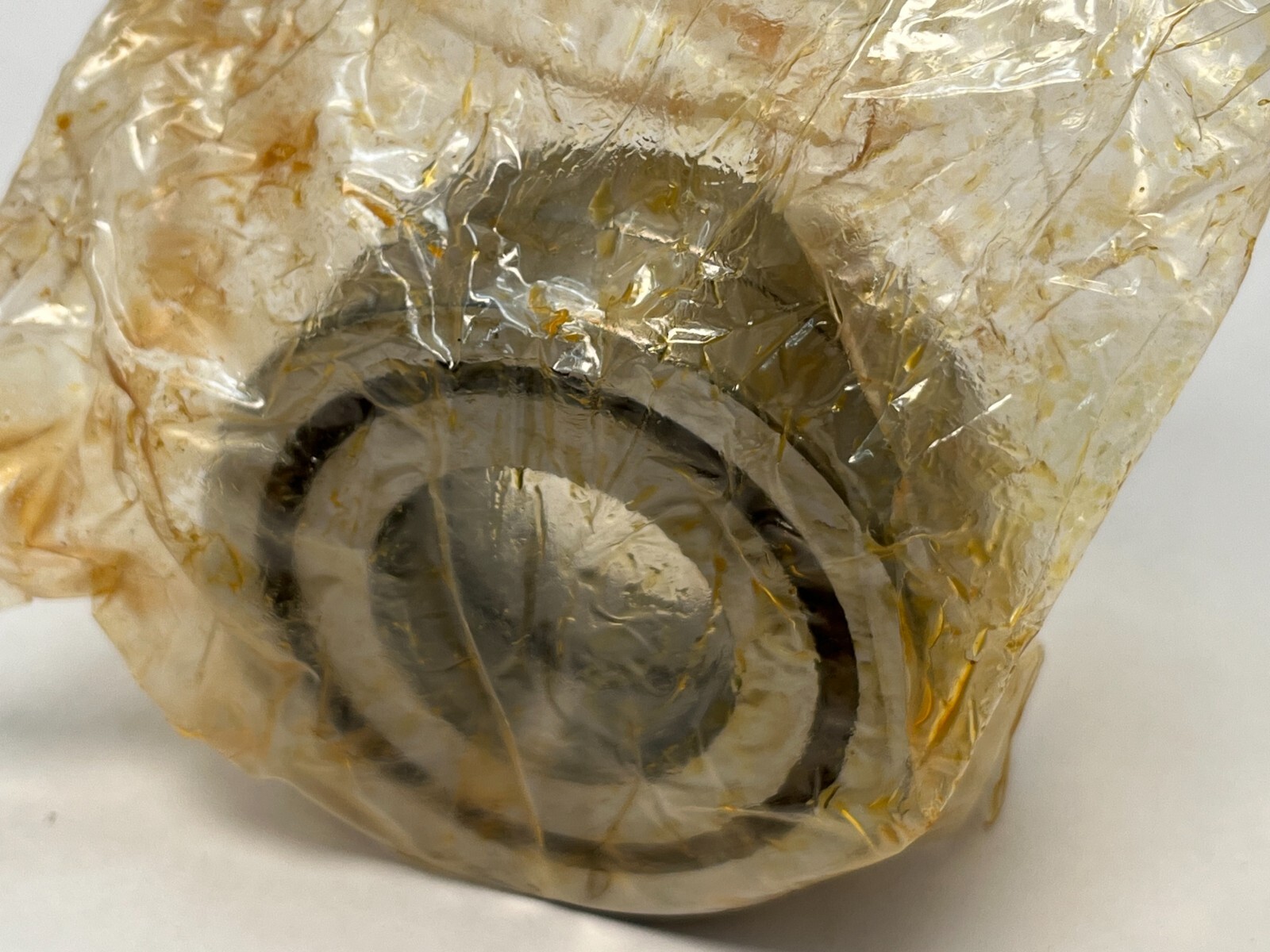

NSK 35TAC72ADBC10PN7B, an angular contact thrust ball bearing for ball screw support, supplied as a back-to-back matched pair. Unit Quantity: 2 Pcs. Contact Angle: 60°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open.

Decoding the designation:

35TAC72 — NSK ball screw support angular contact thrust series. The leading number is the bore in millimetres and the number following TAC is the outside diameter in millimetres: 35 mm bore, 72 mm outside diameter.

A — NSK TAC A series designation.

DB — back-to-back pair. Two single-row bearings supplied as a matched set with the outer ring backs together.

Specifications:

Series: TAC. Contact Angle: 60°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Mounting Arrangement: Back-to-back (DB) matched pair. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Bore Diameter: 35 mm (1.3780 in). Outside Diameter: 72 mm (2.8346 in). Overall Width: 15 mm (0.5906 in) per bearing.

Compatibility and replacement:

NSK TAC A series ball screw support bearing in the 35 x 72 x 15 mm size, supplied as a back-to-back pair.

Frequently asked questions:

What are the bore, outside diameter and width?

Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 15 mm per bearing.

How many pieces are supplied?

Unit Quantity: 2 Pcs, a back-to-back (DB) matched pair.

What does the DB code mean?

DB: back-to-back pair. Two single-row bearings supplied as a matched set with the outer ring backs together.
