Super Precision Angular Contact Ball Bearing 50 x 90 x 20 mm, 15° Contact Angle, ABEC 7/9, Phenolic Cage, Medium Preload$94.62
Super-Precision Angular Contact Ball Bearing Duplex Pair – Straight Bore, 50 mm ID, 90 mm OD, 20 mm Width, Open, 15° Contact Angle, ABEC 7/9, Light Preload, 2 Pcs$51.26
Super Precision Angular Contact Ball Bearing - Straight Bore, 50 mm ID, 90 mm OD, 20 mm Width, Open, 25° Contact Angle, Medium Preload, Matched Duplex Pair$233.79
Double Row Angular Contact Ball Bearing - 50 mm ID, 90 mm OD, 30.16 mm (1-3/16 in) Width, One Shield, Snap Ring, 30° Contact Angle$41.40| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM210WIDUM |
| Model | 2MM 210 WI DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 2MM200 |
| Preload | Medium |
| Min Temp | -40 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 49 kN |
| Static Load Rating | 37.5 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.05 lbs |
| Cage Material | Phenolic Resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15 °C |
| Mounting Arrangement | Universal |
| Internal Clearance | CN |
| Limiting Speed | 15000 rpm |
| Cross Reference 1 | SKF 7210 CD/P4ADGB |
|---|---|
| Cross Reference 2 | NSK 7210CTYNDUMP4 |
| Cross Reference 3 | FAG B7210-C-T-P4S-DUM |

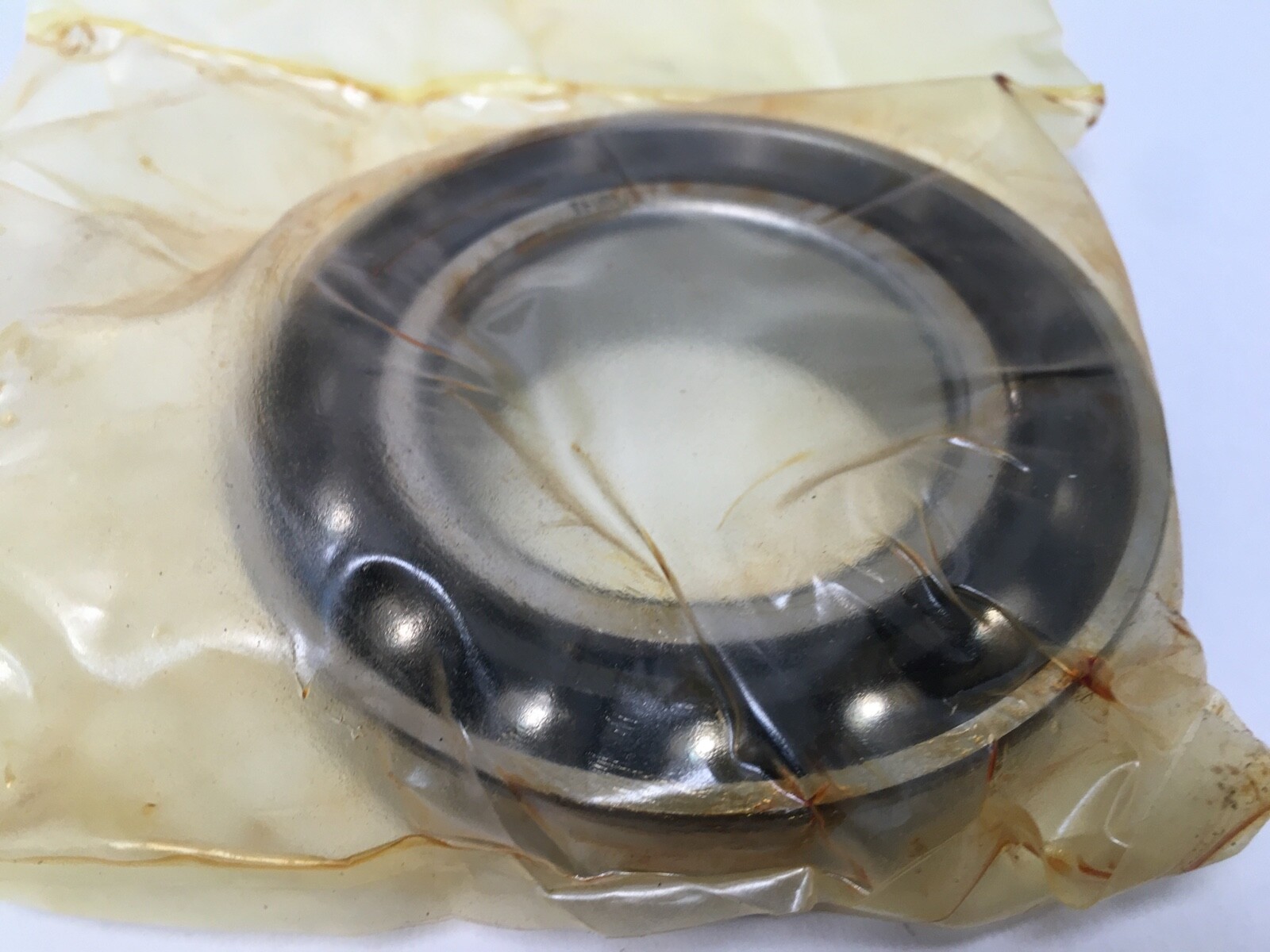

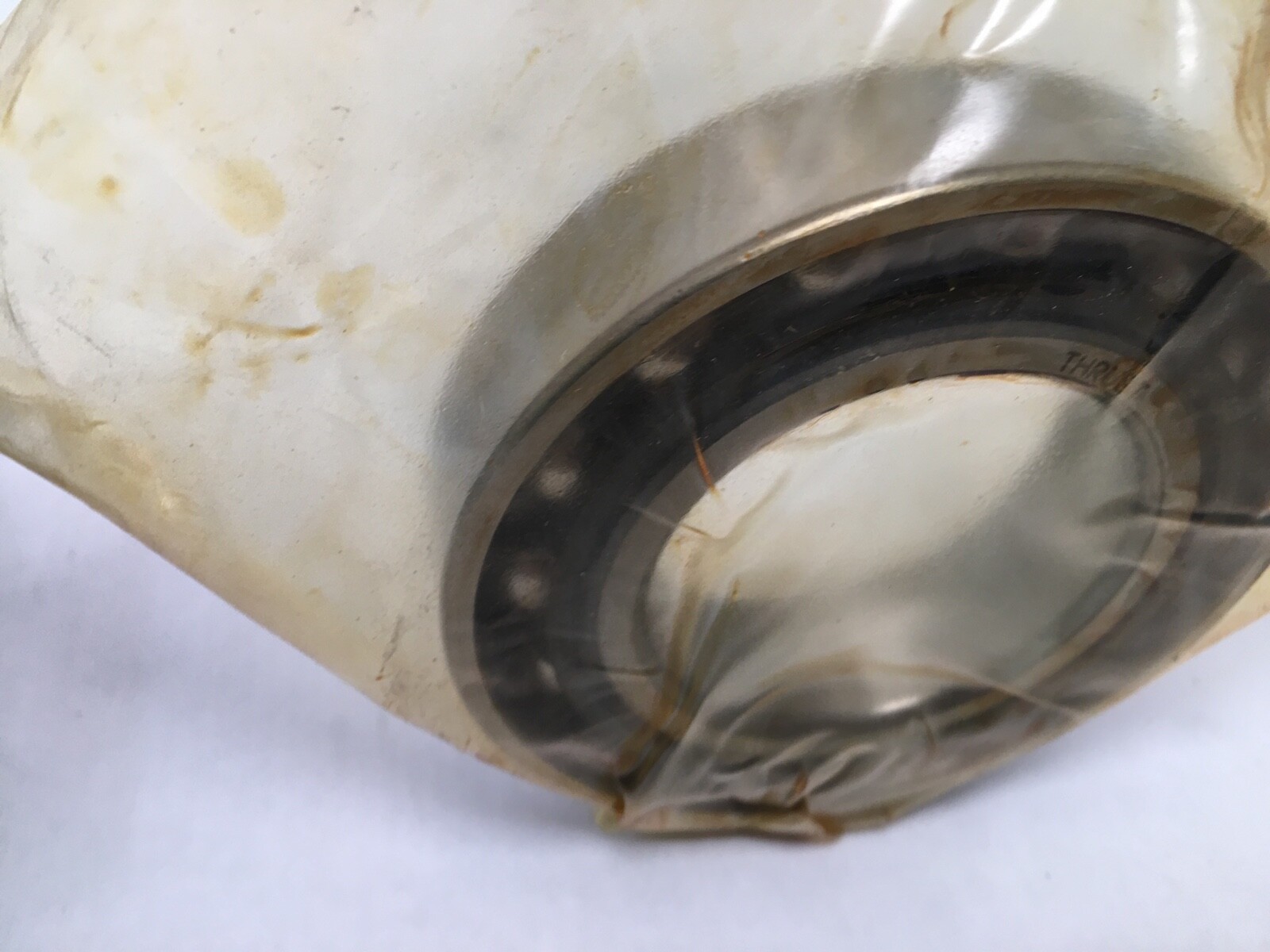

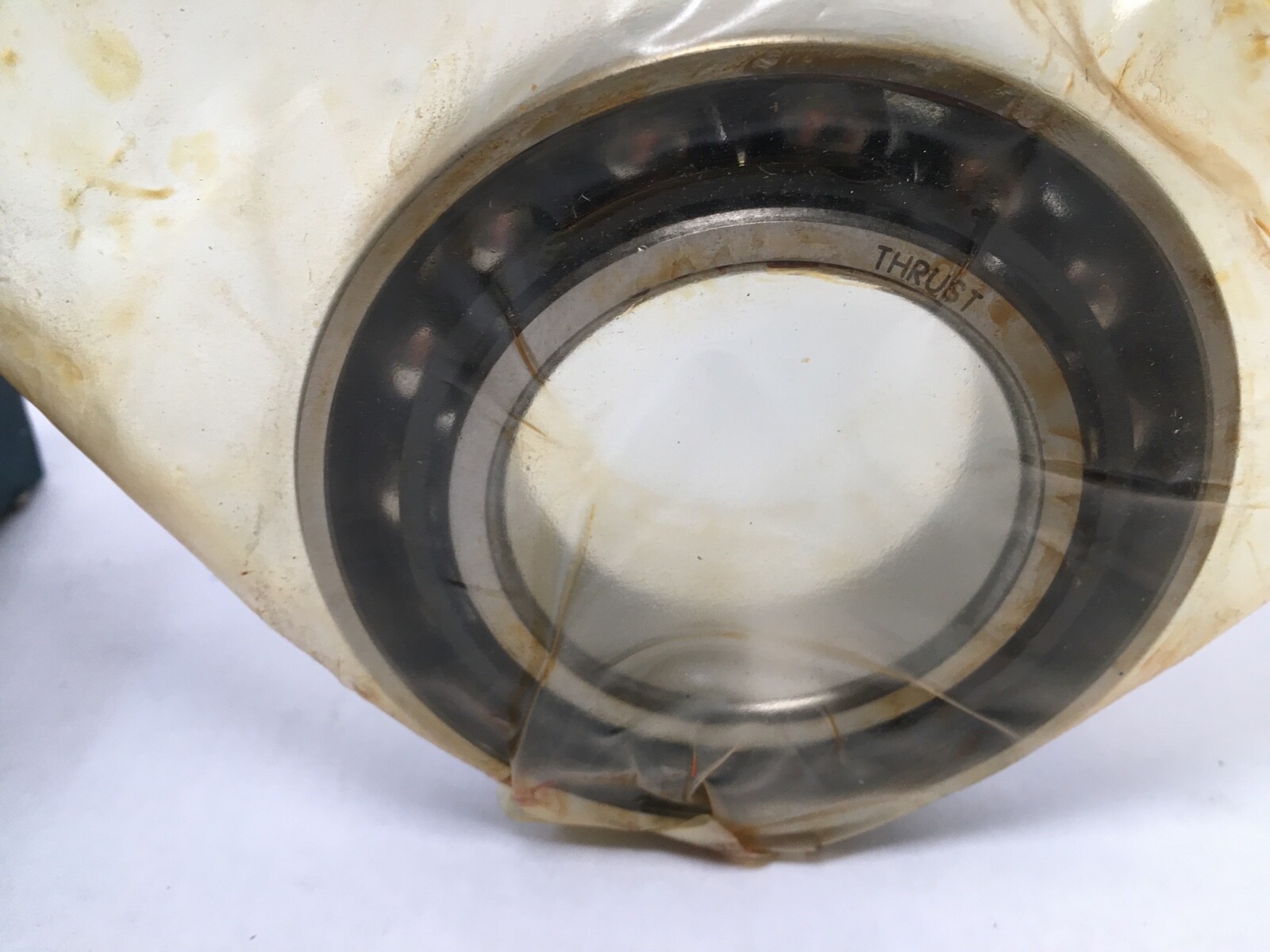

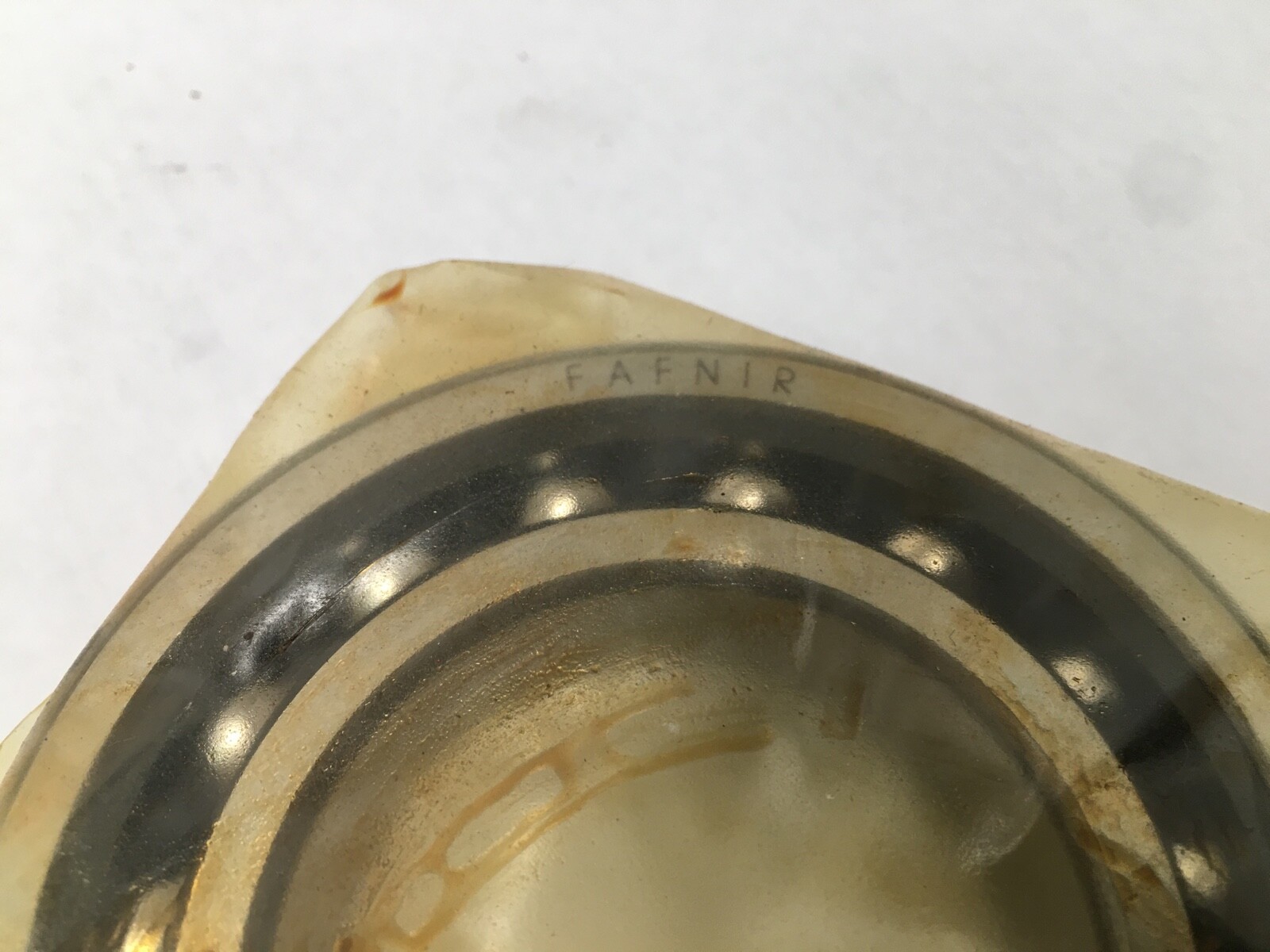

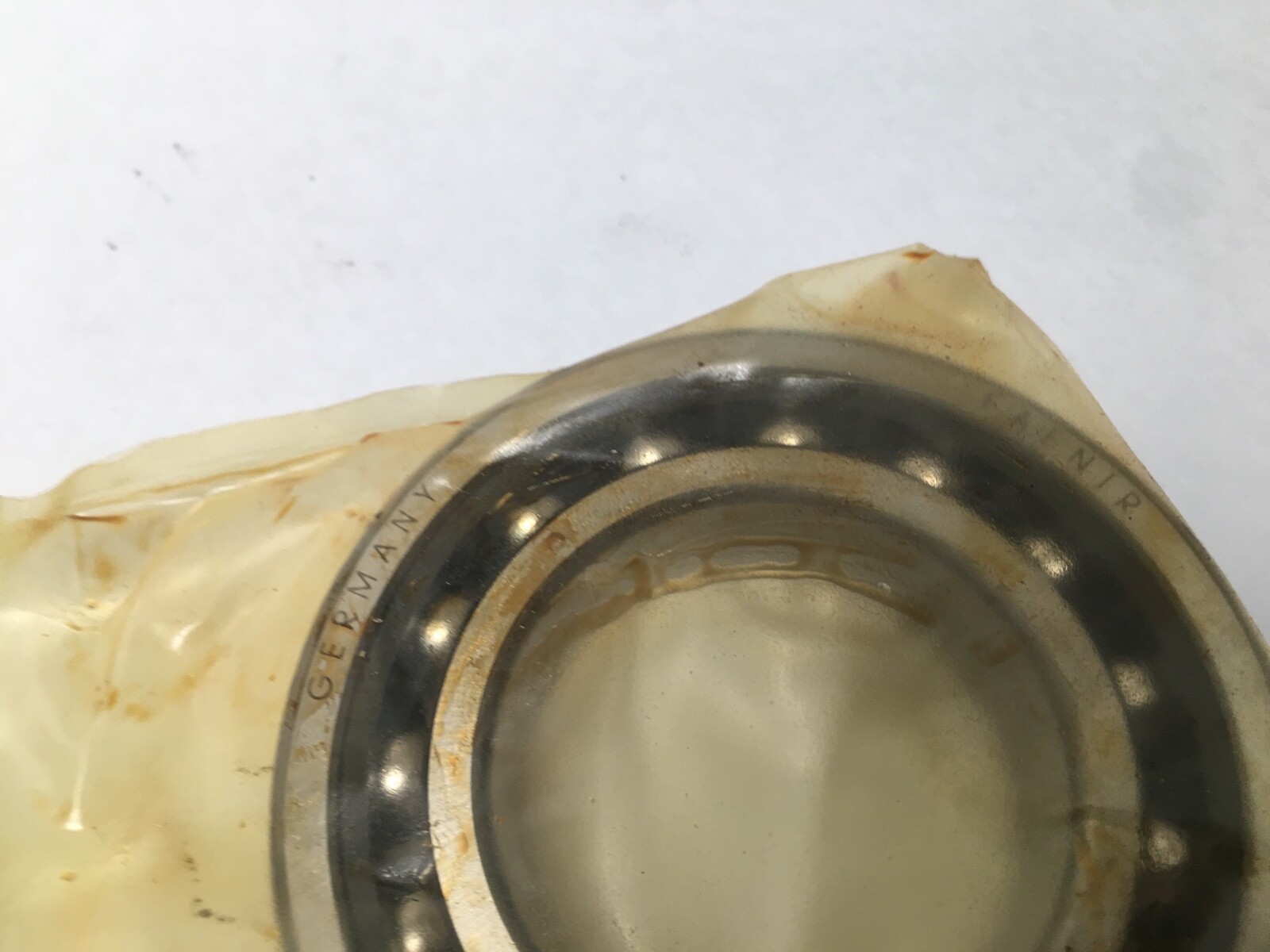

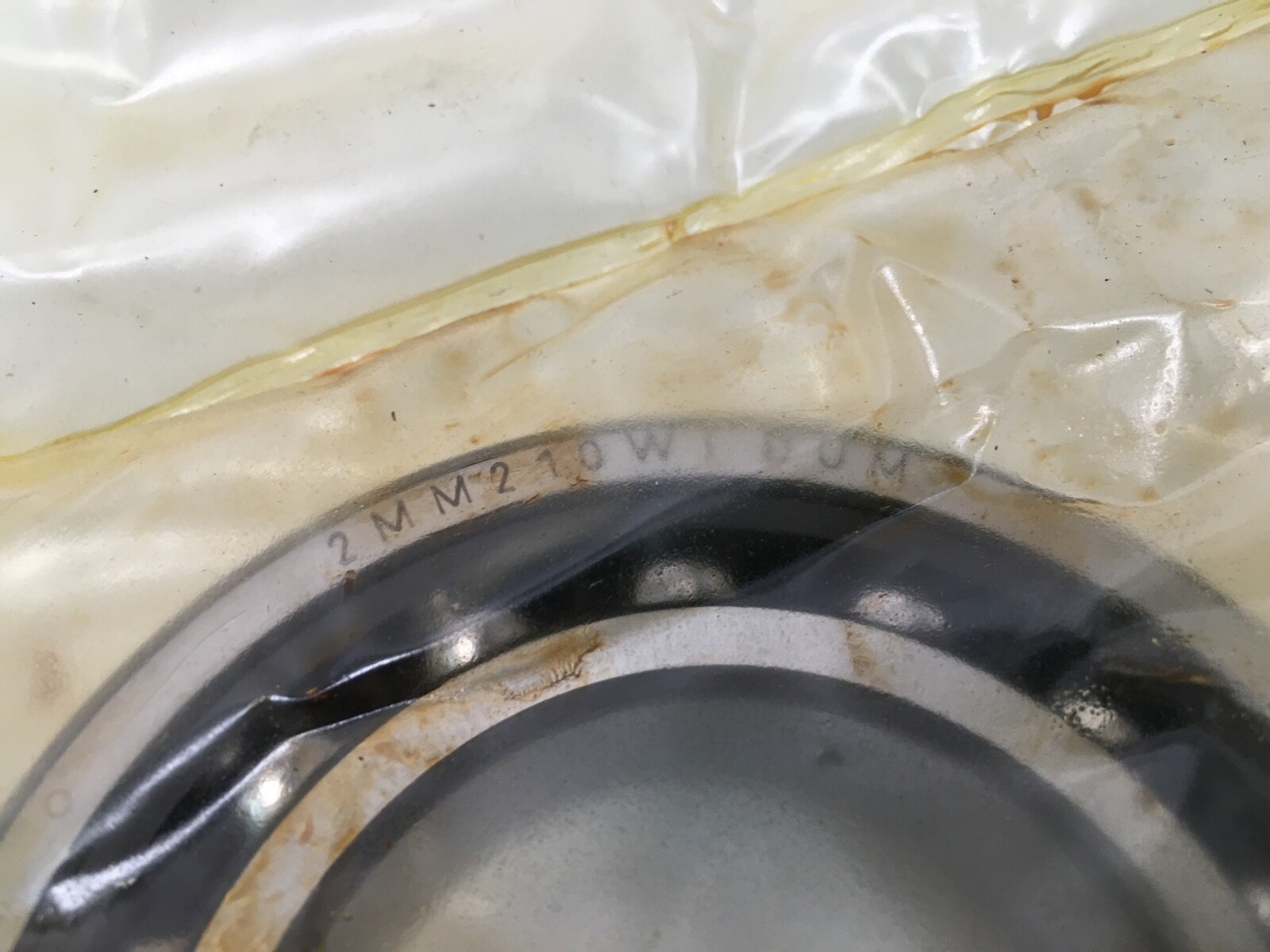

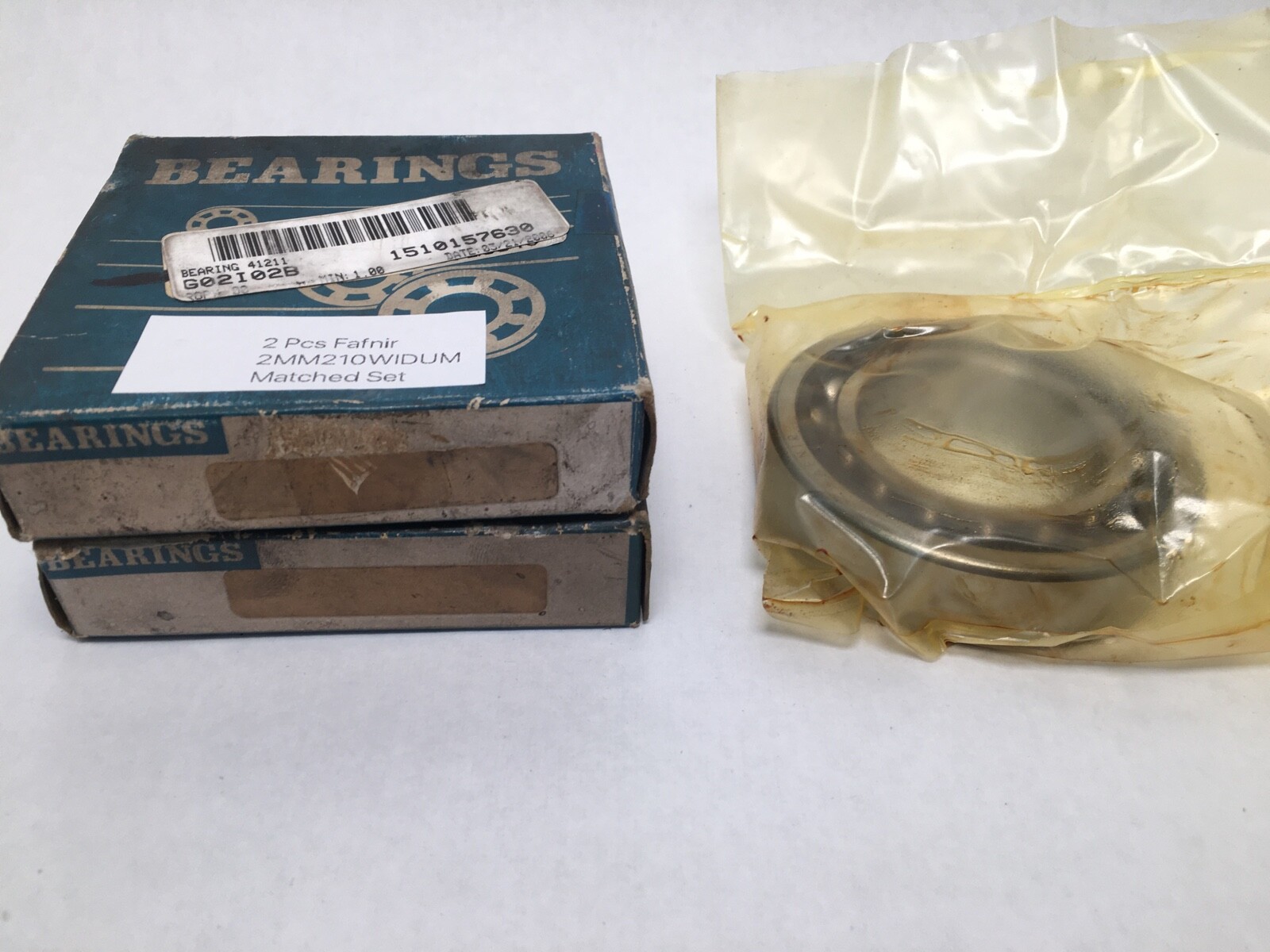

Introducing the FAFNIR 2MM210WI-DUM Angular Contact Bearing – a premium bearing specifically engineered for precision and resilience. Measuring 50x90x20mm, this ball bearing is manufactured in Germany, boasting exceptional quality and durability, making it an ideal component for various mechanical applications. Key Features: Model: 2MM210WI-DUM Type: Angular Contact Ball Bearing Condition: New – Open box Brand: FAFNIR Country of Manufacture: Germany MPN: 2MM210WIDUM This angular contact bearing promotes excellent axial and radial load capacity while ensuring smooth operation, making it particularly suited for high-performance environments. Whether you are looking to replace a worn-out component or to boost the efficiency of your machinery, the FAFNIR 2MM210WI-DUM is the ideal choice. We provide additional services for customers with surplus bearings, so do not hesitate to reach out for more information. Enjoy the convenience of international shipping, with combined shipping options available. Experience the benefit of same-day or next-day shipping at checkout. Choose the FAFNIR 2MM210WI-DUM Angular Contact Bearing to ensure unmatched quality and performance in your applications today!
