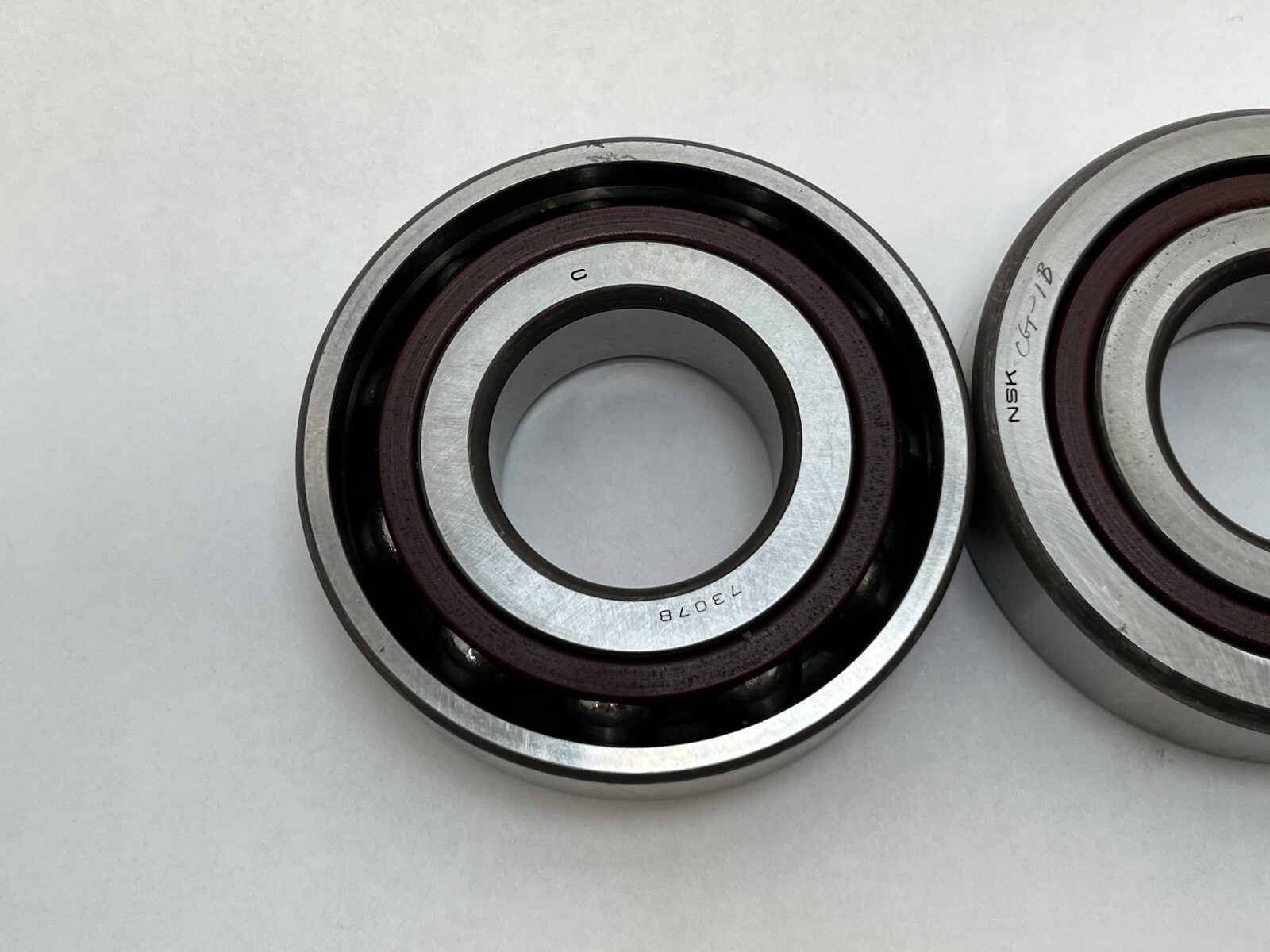

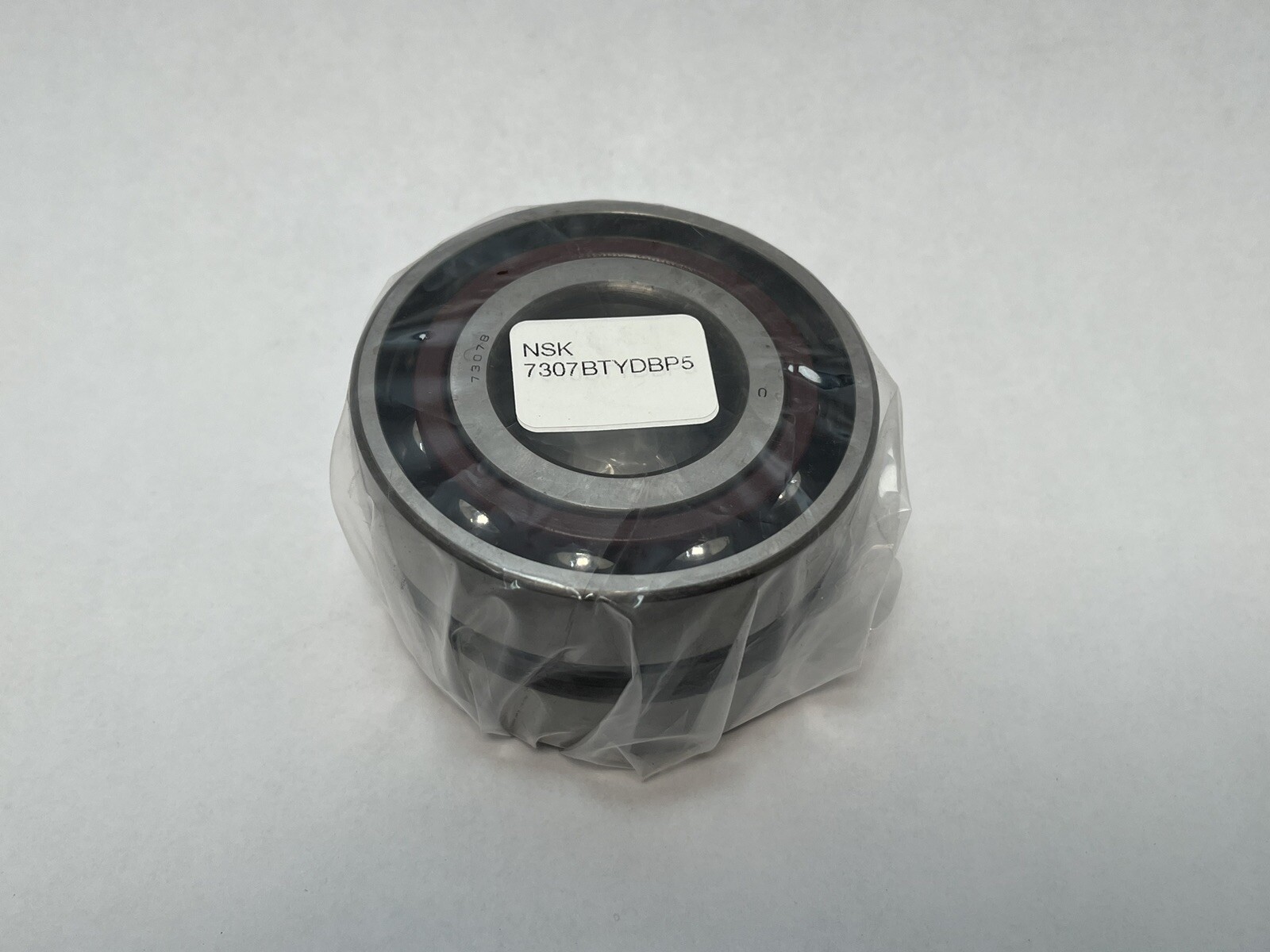

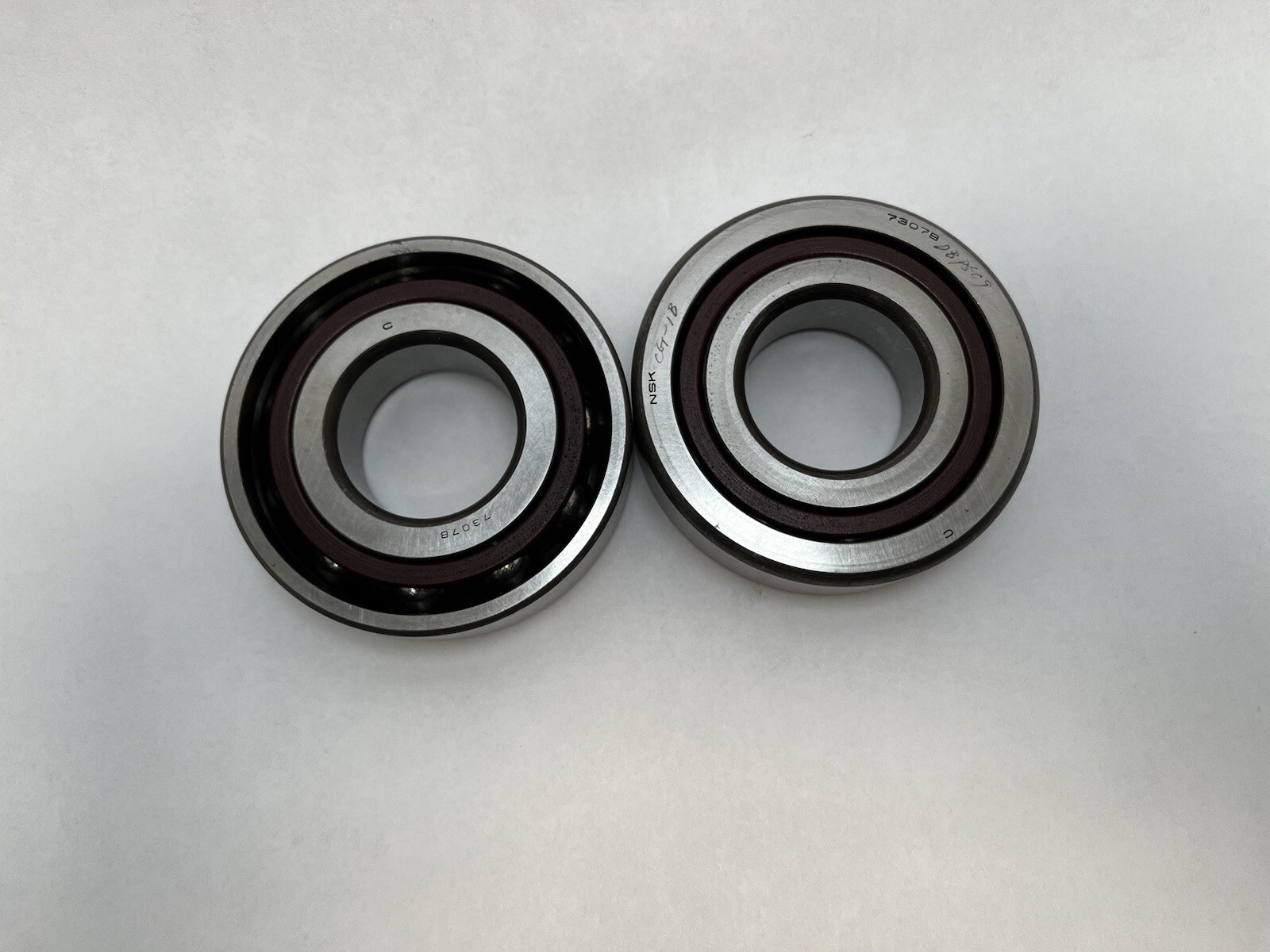

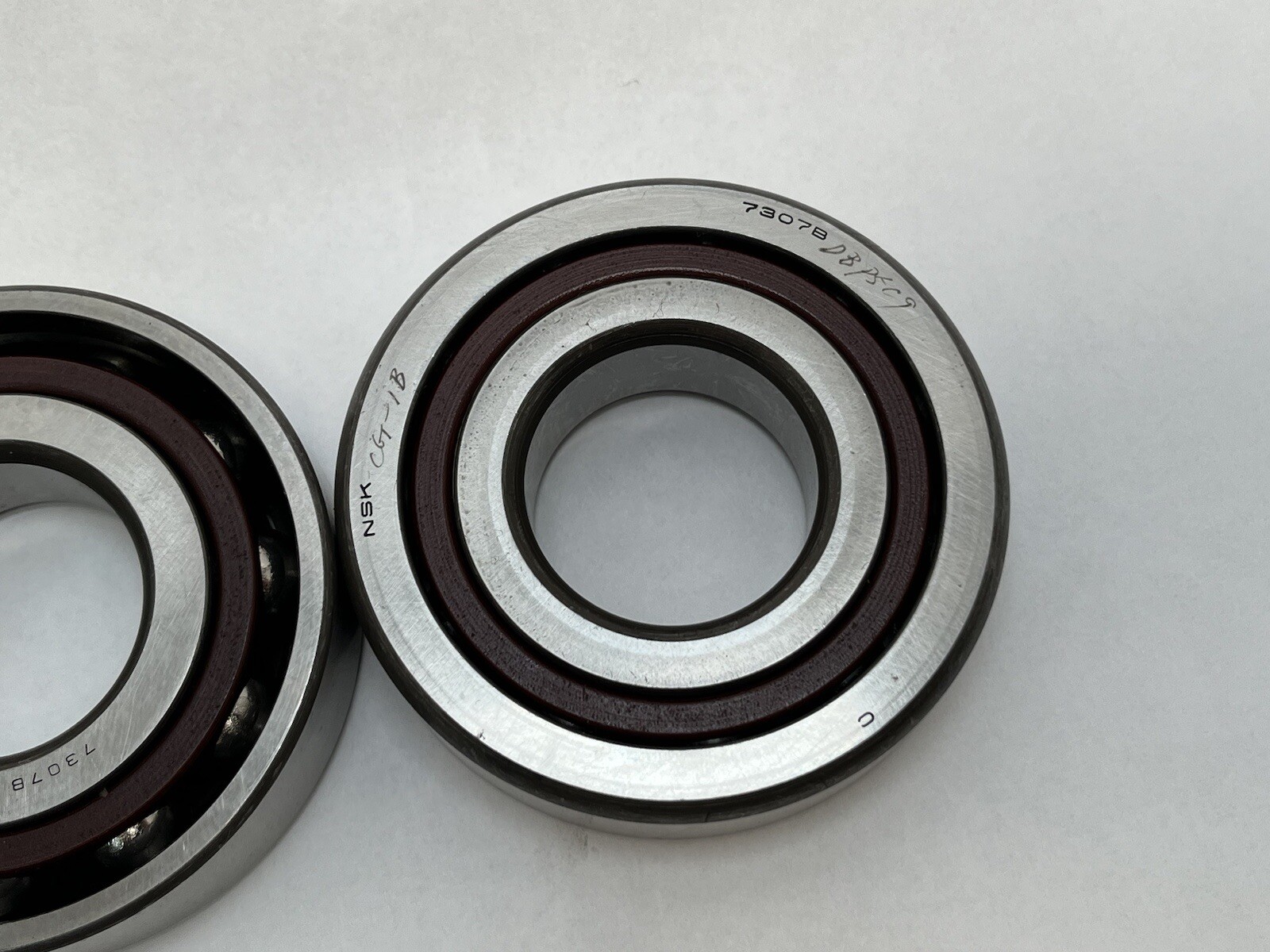

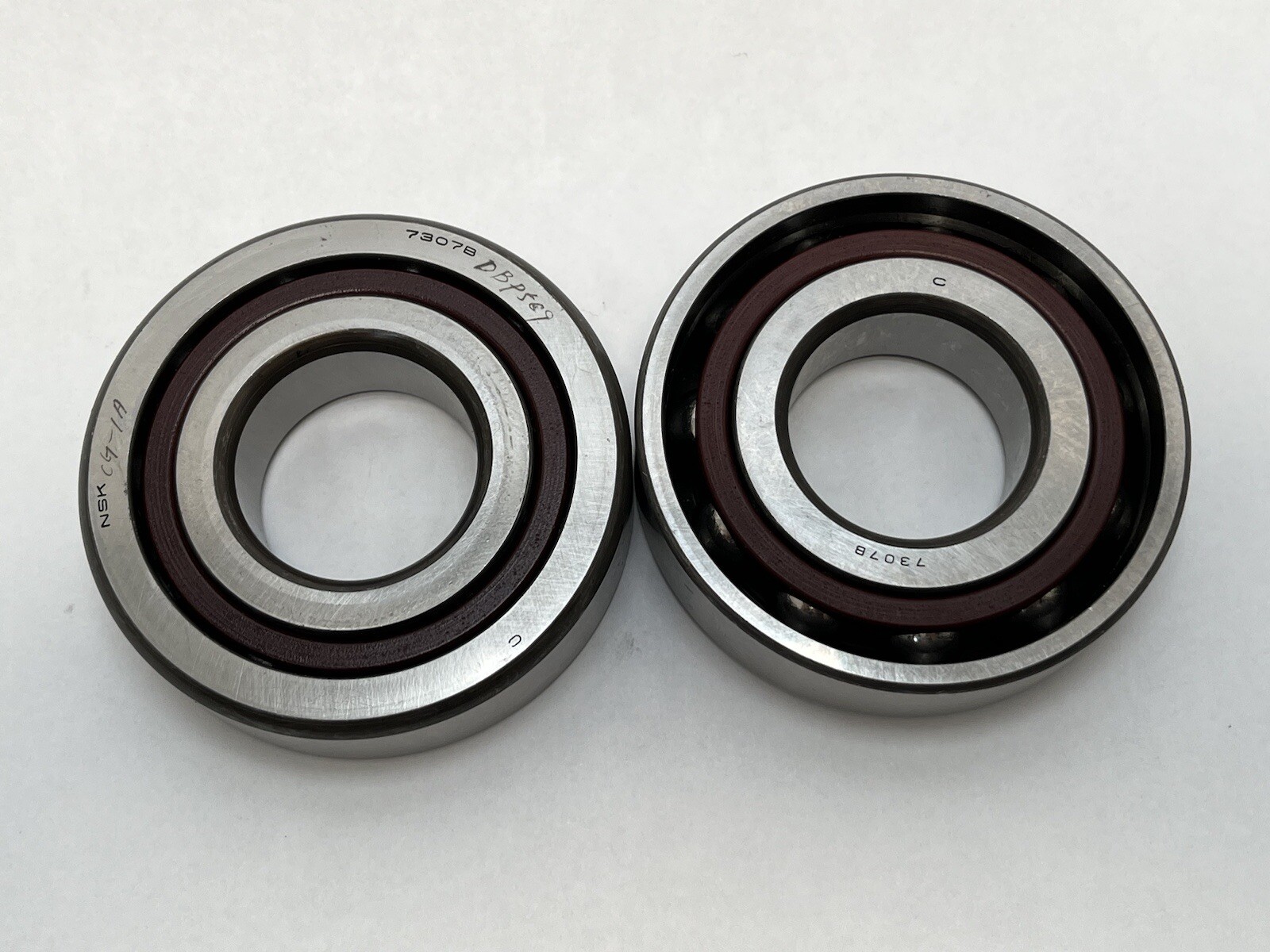

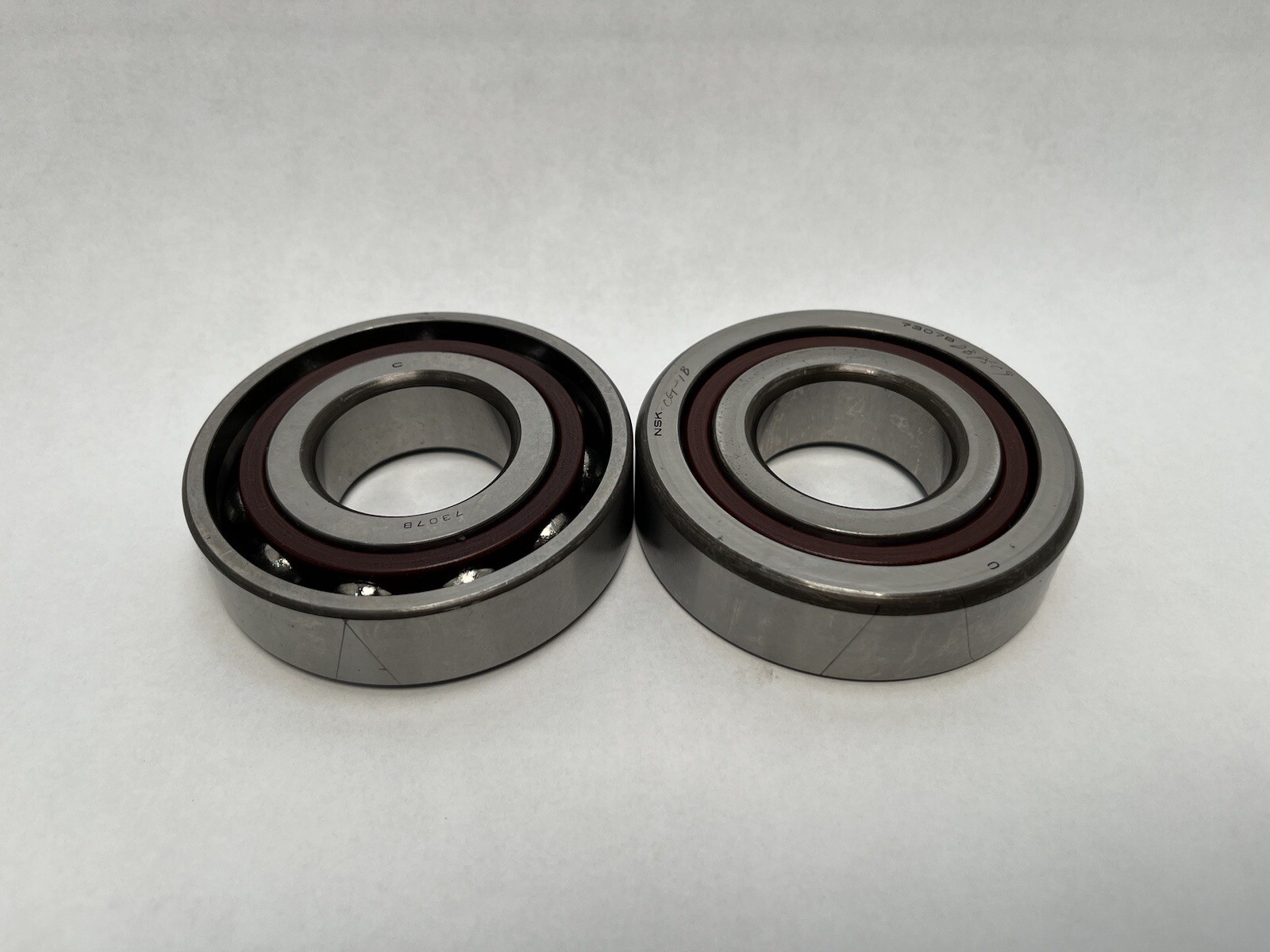

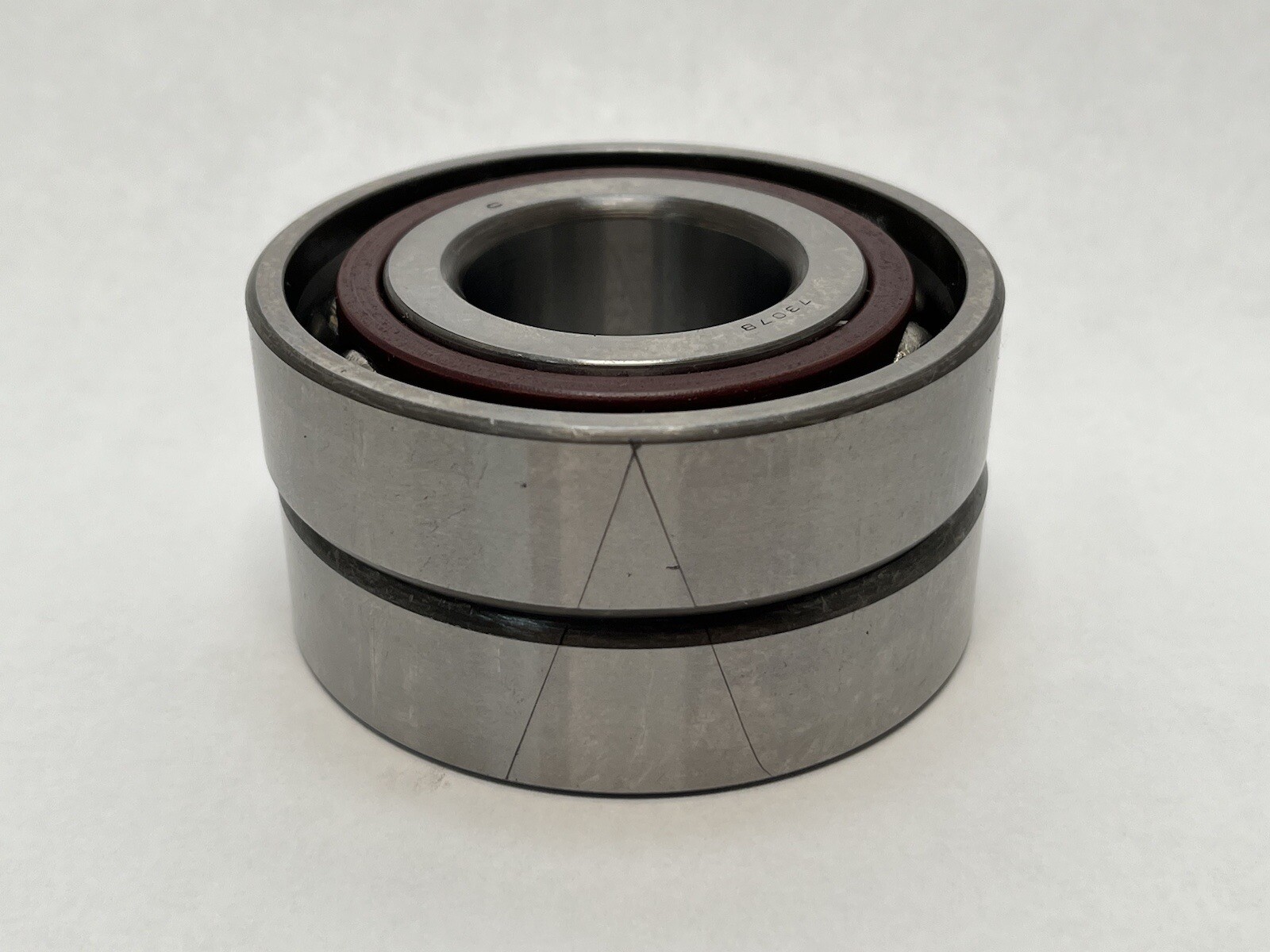

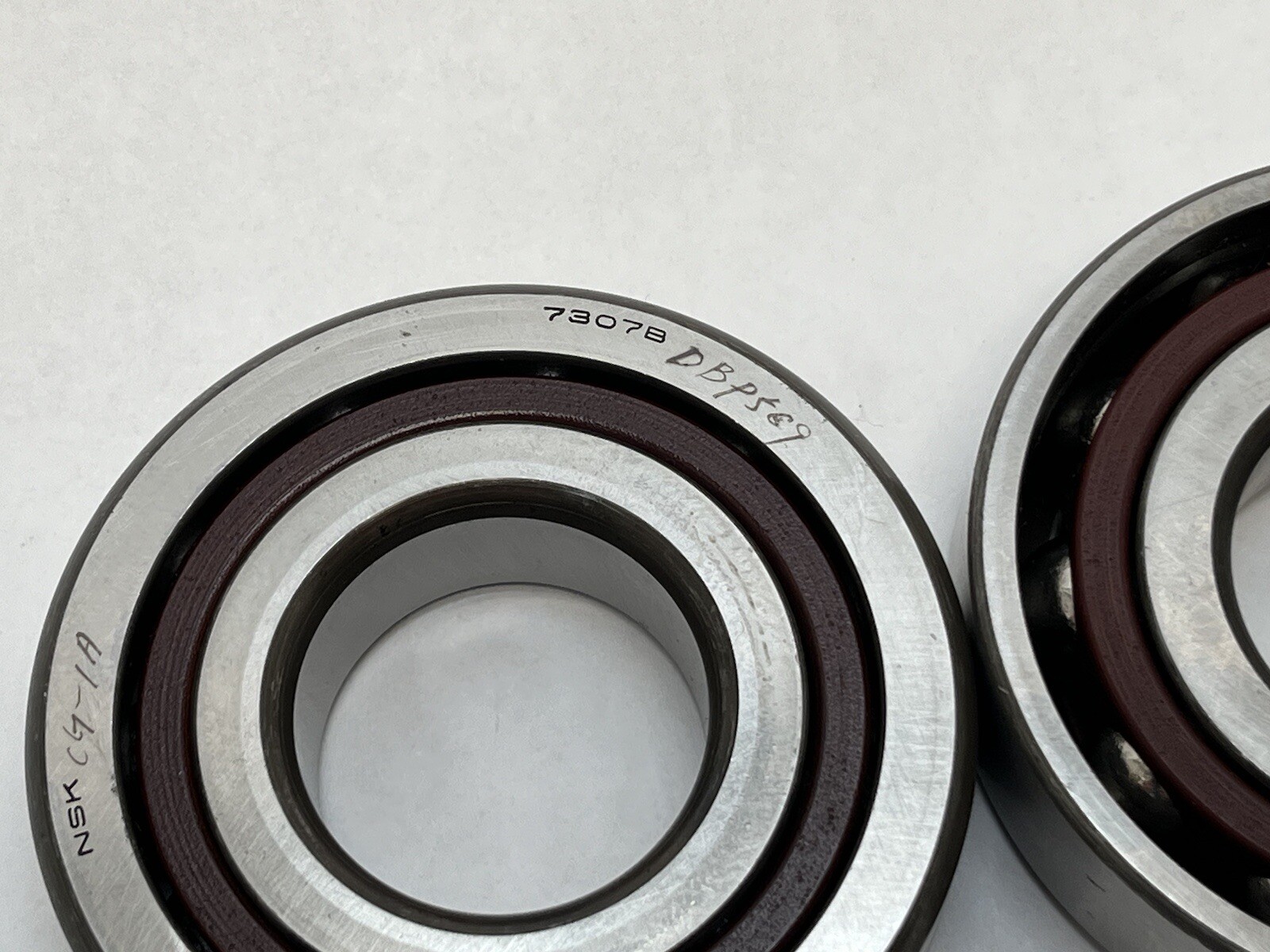

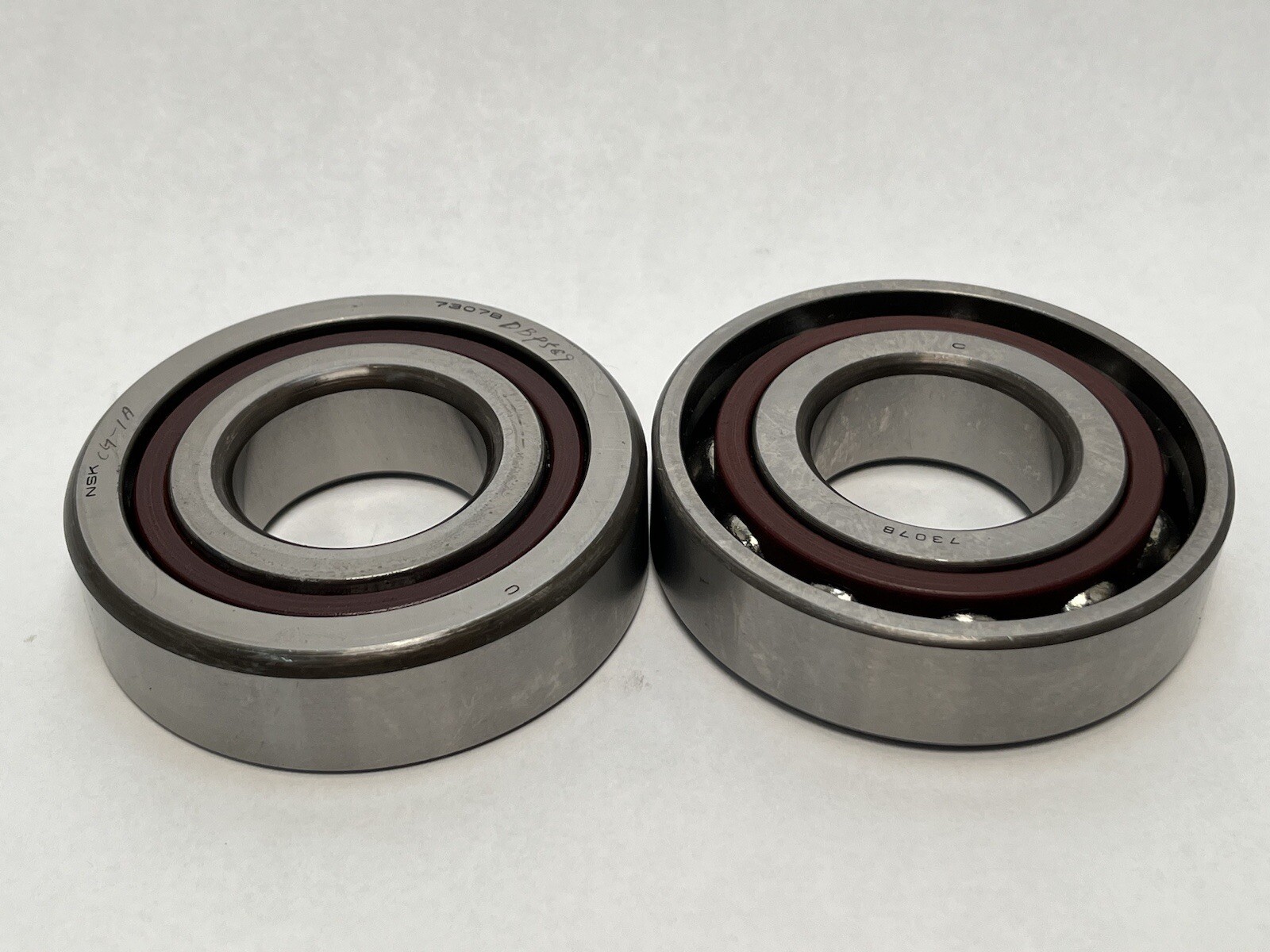

Name: Angular contact bearing - 35 mm ID, 80 mm OD, 21 mm Width, Open, 40°.
Brand: NSK
SKU: AB6B1#WXDRCX
Price: 109.36 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	NSK
MPN	7307BTYDBP5
Model	7307 B TY DB P5 7307BEAY 7307 B TVP
Bearing Type	Angular Contact Ball Bearing, Open
ID	35 mm
OD	80 mm
Width	21 mm

Specifications

Advertise	1
Source	NSK, Applied
Material	Bearing Steel
Series	7300
Condition	New – Open box
Condition Note	Made In Japan, New Old Stock
Cage Type	Caged
Dynamic Load Rating	40.5 kN / 9105 lbf
Static Load Rating	26.1 kN / 5867 lbf
Precision Rating	ABEC 5 / P5
Rolling Elements	Ball
Max Temp	120 °C
Item Weight	1.01 lbs
Cage Material	Polyamide
Limiting Speed	8000 rpm
Number Of Rows	1
Bore Type	Straight
Harmonization Code	8482.10.50
Contact Angle	40°
Part Number	7307BTYDBP5

Cross-References

Cross Reference 1	FAG 7307-B-XL-TVP
