FAG

B7200CBTP4SDUL

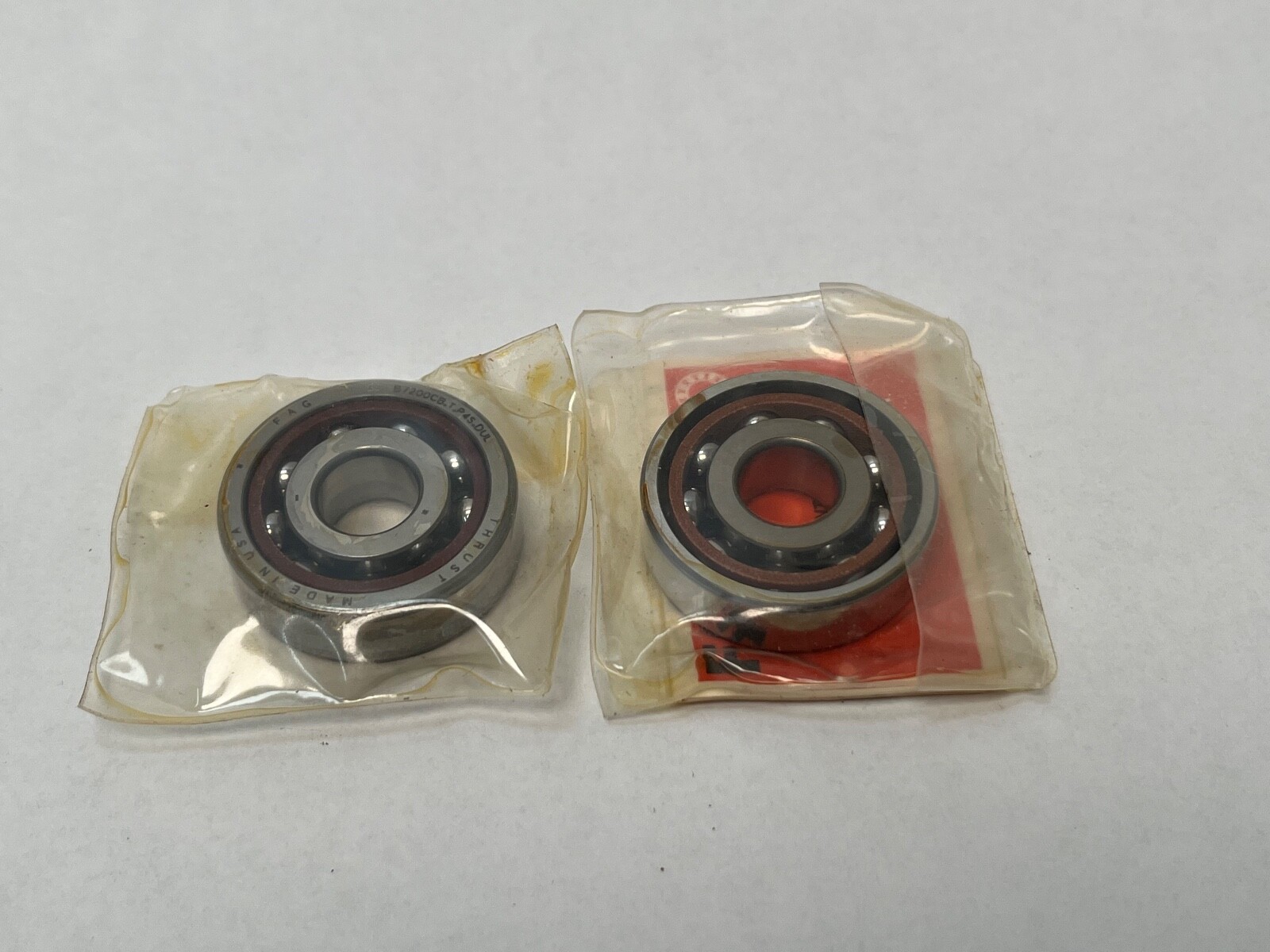

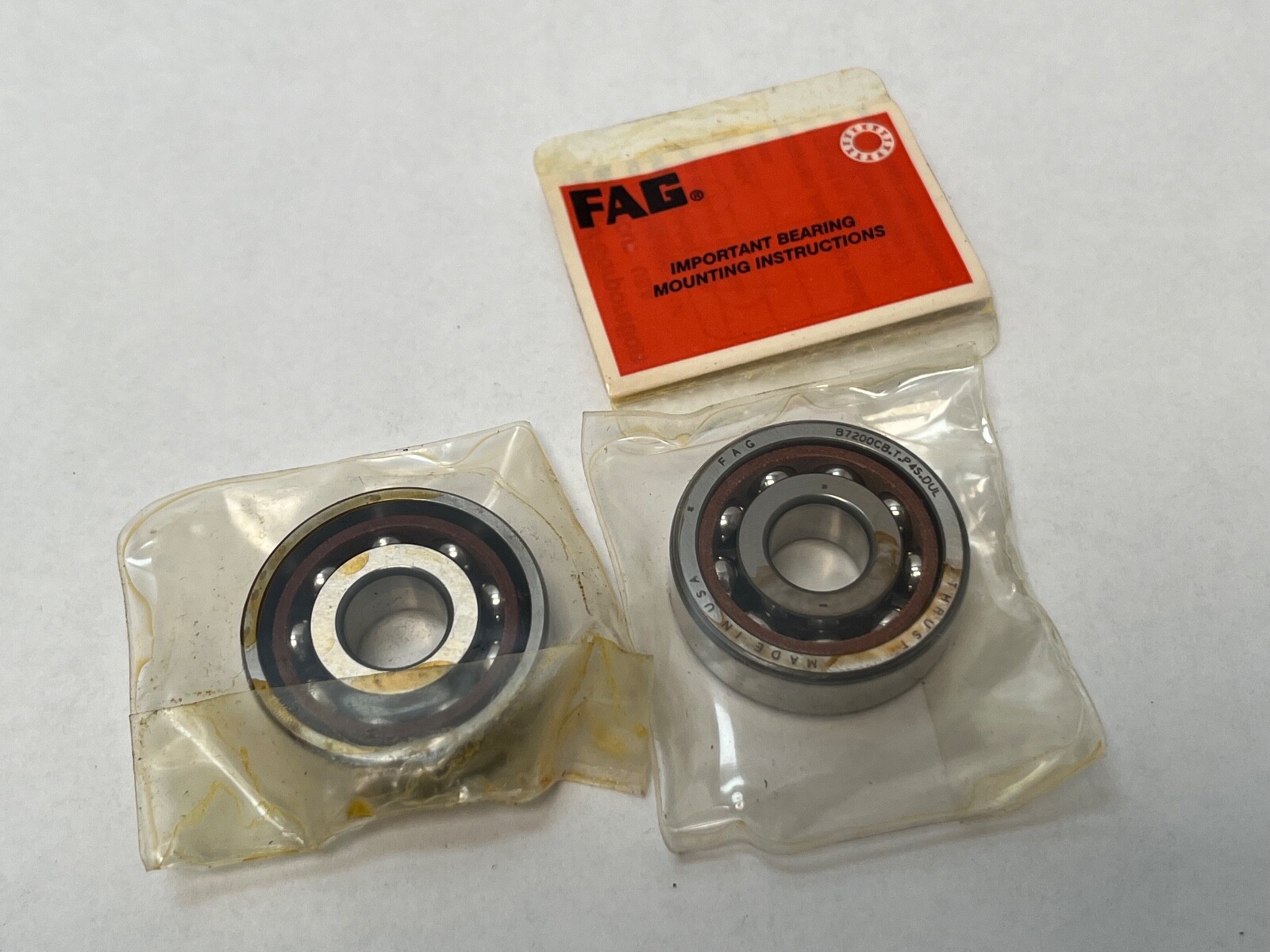

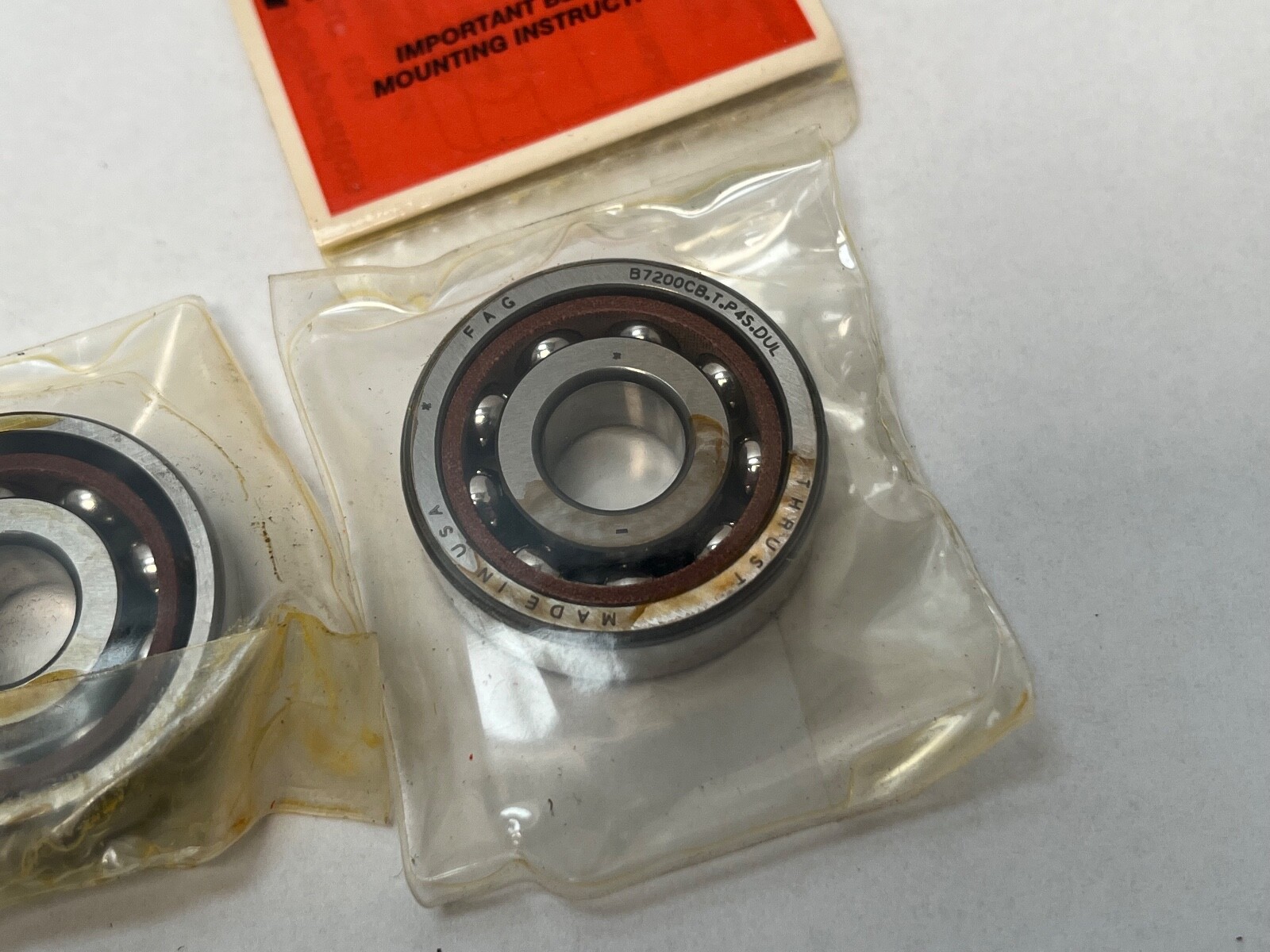

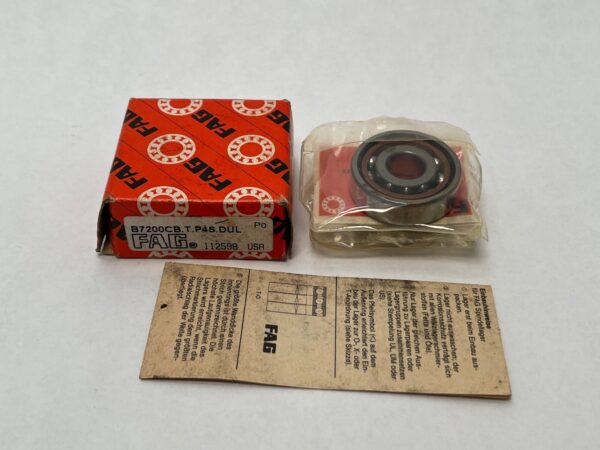

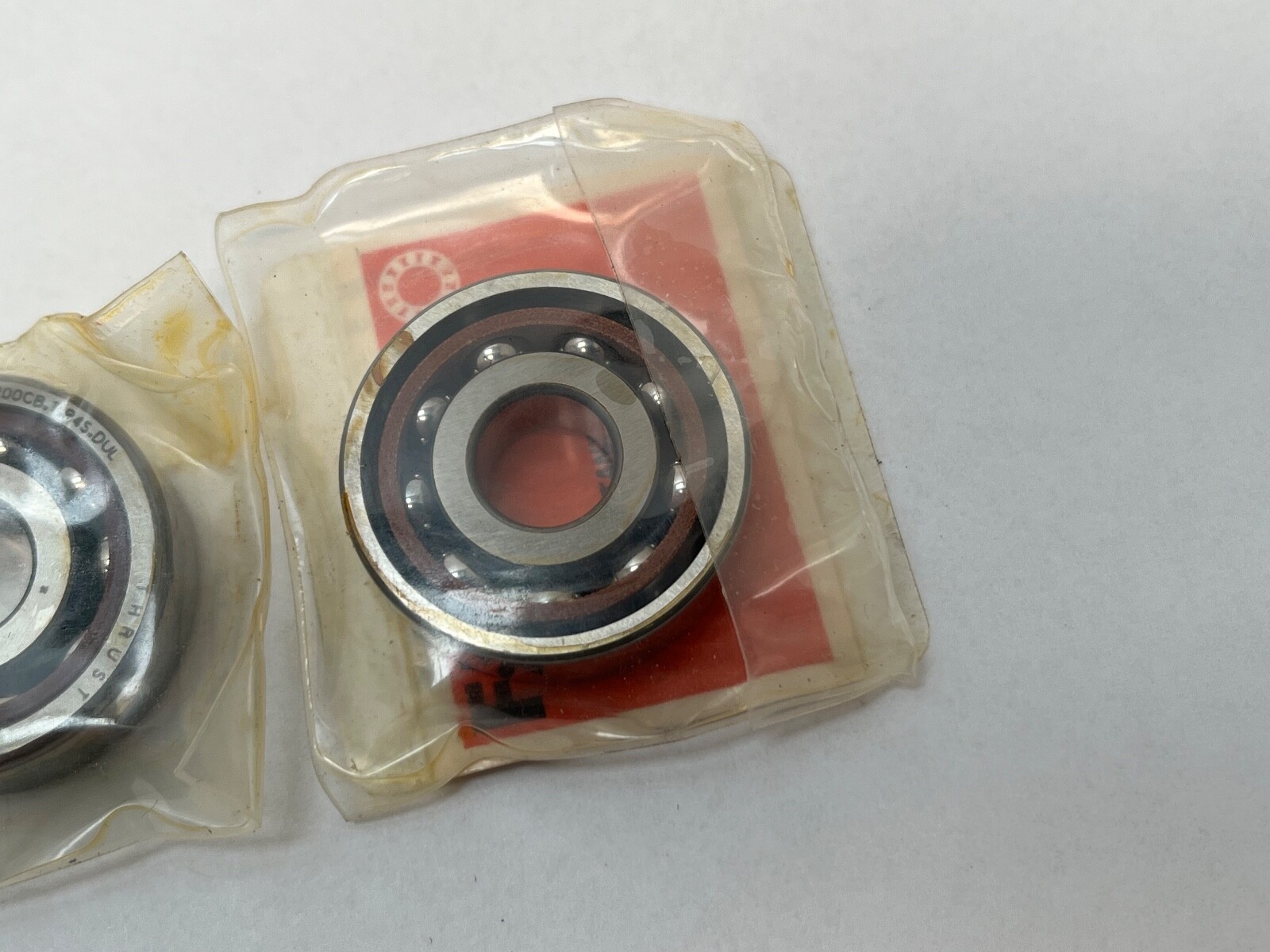

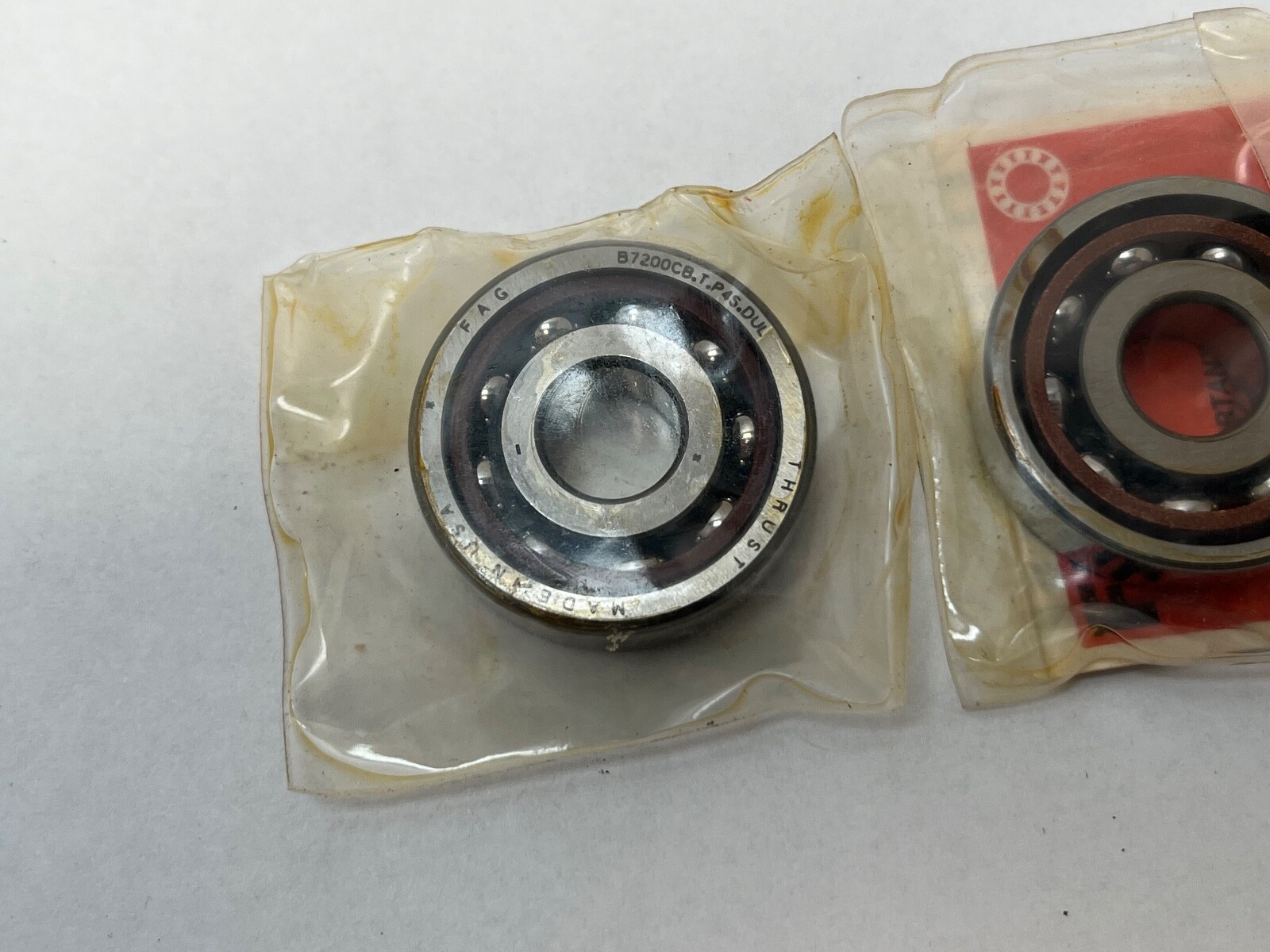

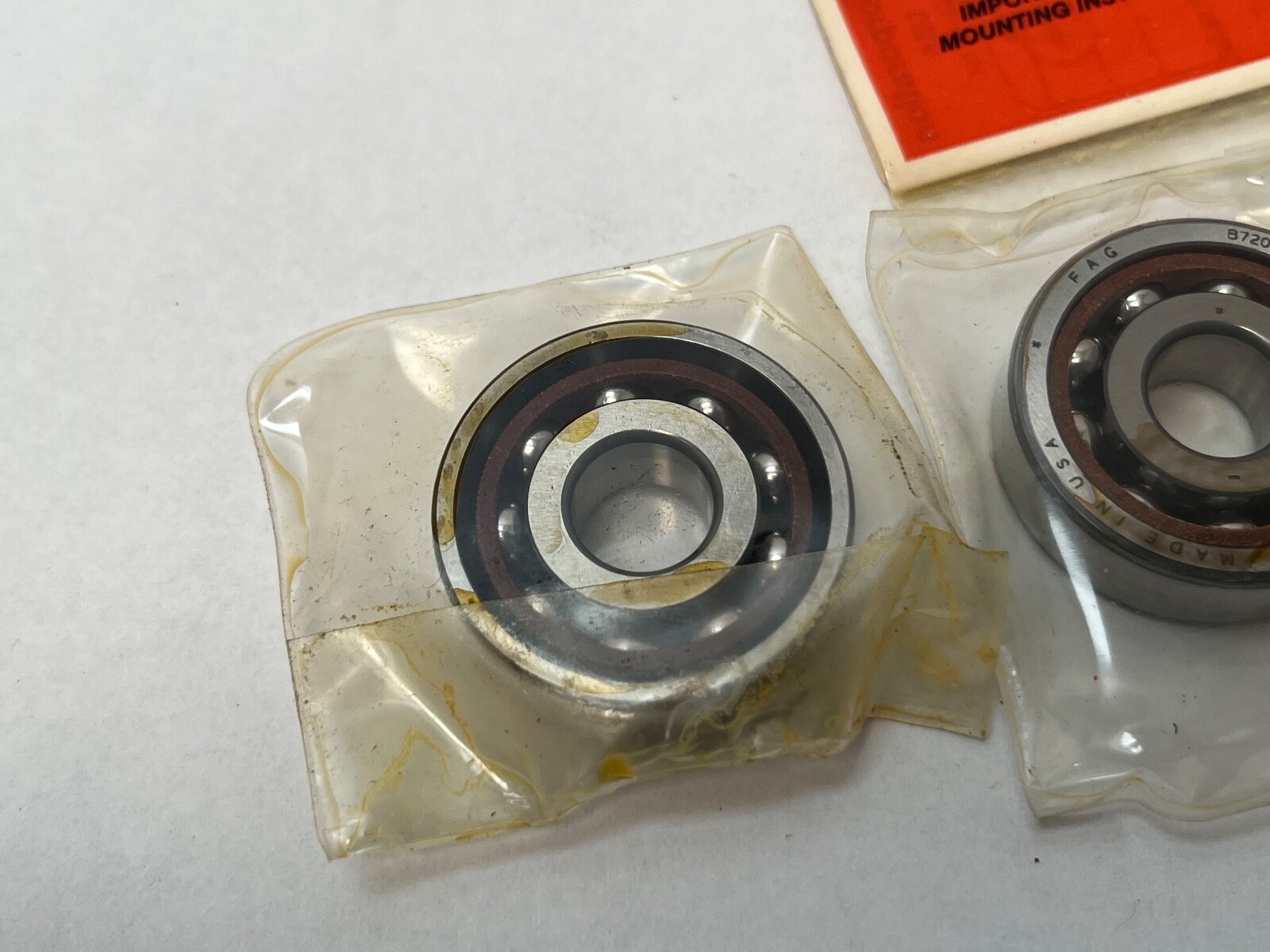

Angular Contact Bearing – 10 mm ID, 30 mm OD, 9 mm Width, Open, 15°, Light preload.

Condition: New

Model #: B7200C B T P4S DUL / 2MM9100

Availability:

3 in stock

Categories: Uncategorized

Product Description

Can’t find a part you’re looking for?

CLICK HERE TO CONTACT US!

-We can get all parts needed at competitive prices

-International shipping is offered on every item and all orders

-Shipping is combined on all orders

-Collect Shipping offered for UPS, Fedex, NDH, Freight

SAME DAY SHIPPING ON ALL ITEMS

NEXT DAY SHIPPING AVAILABLE AT CHECKOUT

Same day shipment

List Price

$110.33

3 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Additional information

Key Specifications

MFR / Brand	FAG
MPN	B7200CBTP4SDUL
Model	B7200C B T P4S DUL / 2MM9100
Bearing Type	Angular Contact Ball Bearing, Open
ID	10 mm
OD	30 mm
Width	9 mm

Specifications

Advertise	1
Material	High Carbon Chrome Steel
Min Temp	-30°C
Cage Type	Machined
Dynamic Load Rating	5.8 kN / 1304 lbf
Static Load Rating	3 kN / 674 lbf
Precision Rating	ABEC 7 / P4
Series	7200
Rolling Elements	Ball
Max Temp	120°C
Condition	New
Item Weight	0.06 lbs
Cage Material	Phenolic
Limiting Speed	80000 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Lubricant	Oil
Harmonization Code	8482.10.50
Contact Angle	15°
Preload	Light Preload
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7200 CD/P4ADGA
