Single-row angular contact ball bearing, 80 x 140 x 26 mm, 40° contact angle, pressed steel cage, universal matching for matched mounting, CN clearance.
List Price
$91.61
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 7216B |
| Model | 7216-BG |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Condition | New – Open box |
|---|---|
| Material | Bearing Steel |
| Base Number | 7216 |
| Industry Terms | 40 degree angular contact bearing, high thrust ball bearing, universal matching bearing, flush ground bearing, 72 series angular contact |
| Common Misspellings | 7216 BG, 7216-B-G, 7216BJ, NSK 7216GB |
| Condition Note | Made In USA, No Box |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 7216BG, 7216-BG, 7216 B G, 7216B, 7216BW, 7216 B |
| Compatible With Replaces | Pumps, gearboxes, worm drives, machine tool feed screws and general machinery needing high one-direction thrust capacity at an 80 mm shaft |
| Arrangement Configuration | Single bearing, universal matching (G) for back-to-back, face-to-face or tandem mounting |
| Precision Class | ISO Normal / ABEC 1 / P0 |
| Additional Attributes | Effective load centre a: 59.1 mm. Shaft abutment da min 90 mm. Housing abutment Da max 130 mm. Fillet radius ra max 2 mm. Chamfers r min 2 mm, r1 min 1 mm. Tolerance class ISO Normal. |
| Min Temp | -30 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 88.5 kN / 19,900 lbf |
| Static Load Rating | 69.5 kN / 15,620 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 7200 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 3.28 lbs (1.49 kg) |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Universally matchable |
| Part Number | 7216BG |
| Cross Reference 1 | SKF 7216 BE |
|---|---|
| Cross Reference 2 | FAG 7216-B-TVP |
| Cross Reference 3 | NTN 7216B |
| Cross Reference 4 | Koyo 7216B |
| Cross Reference 6 | 7216C (related size, 15° contact angle) |

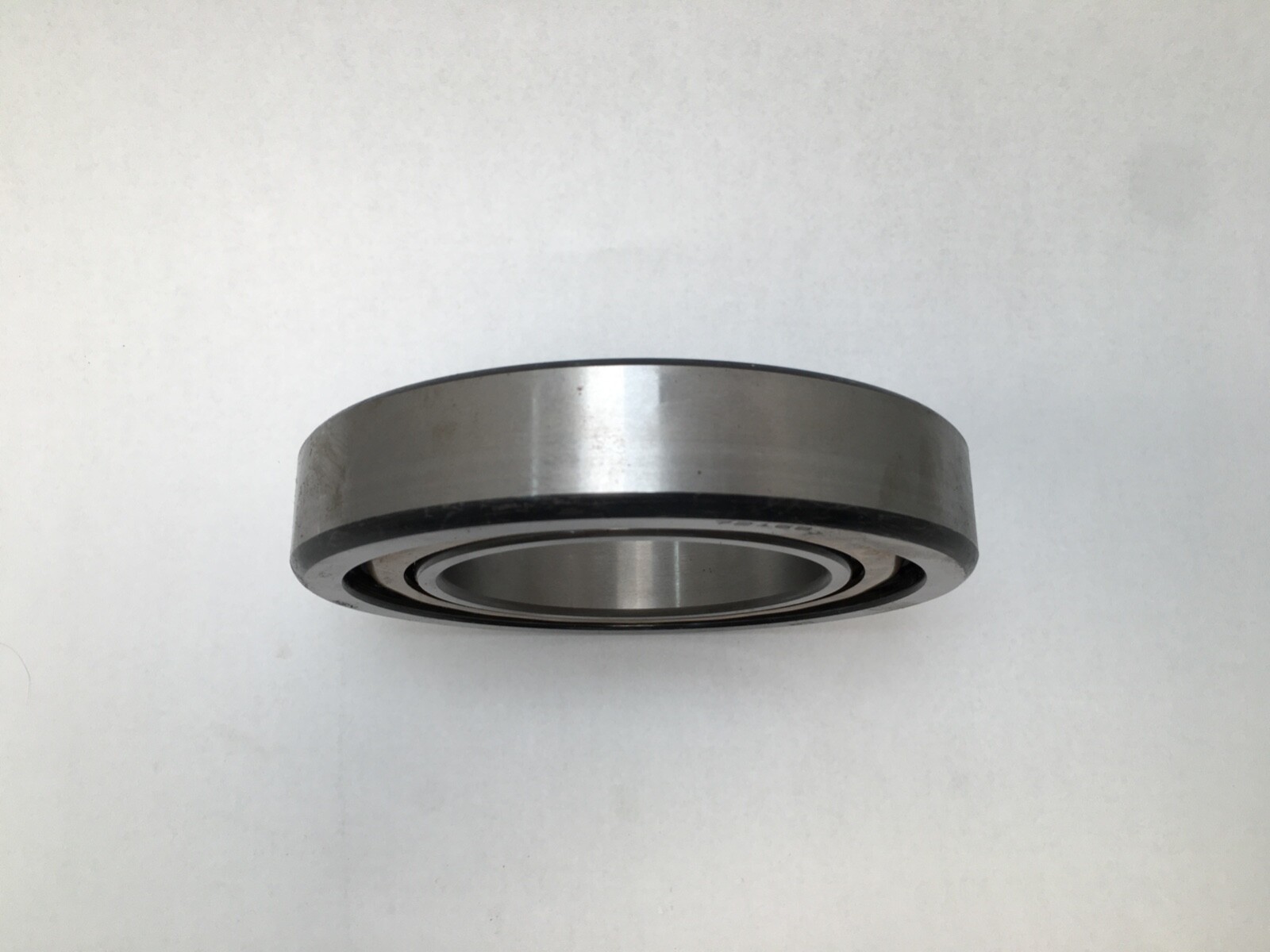

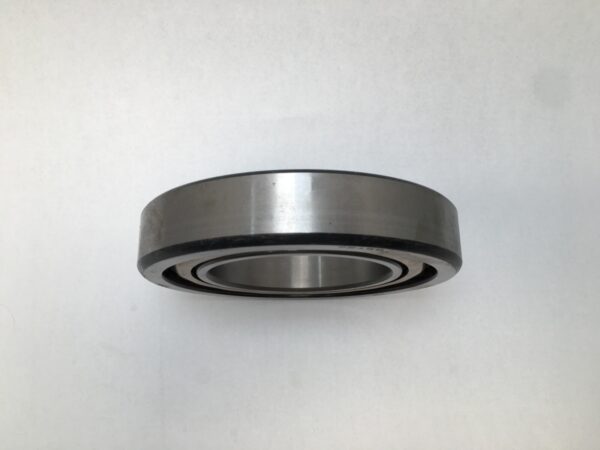

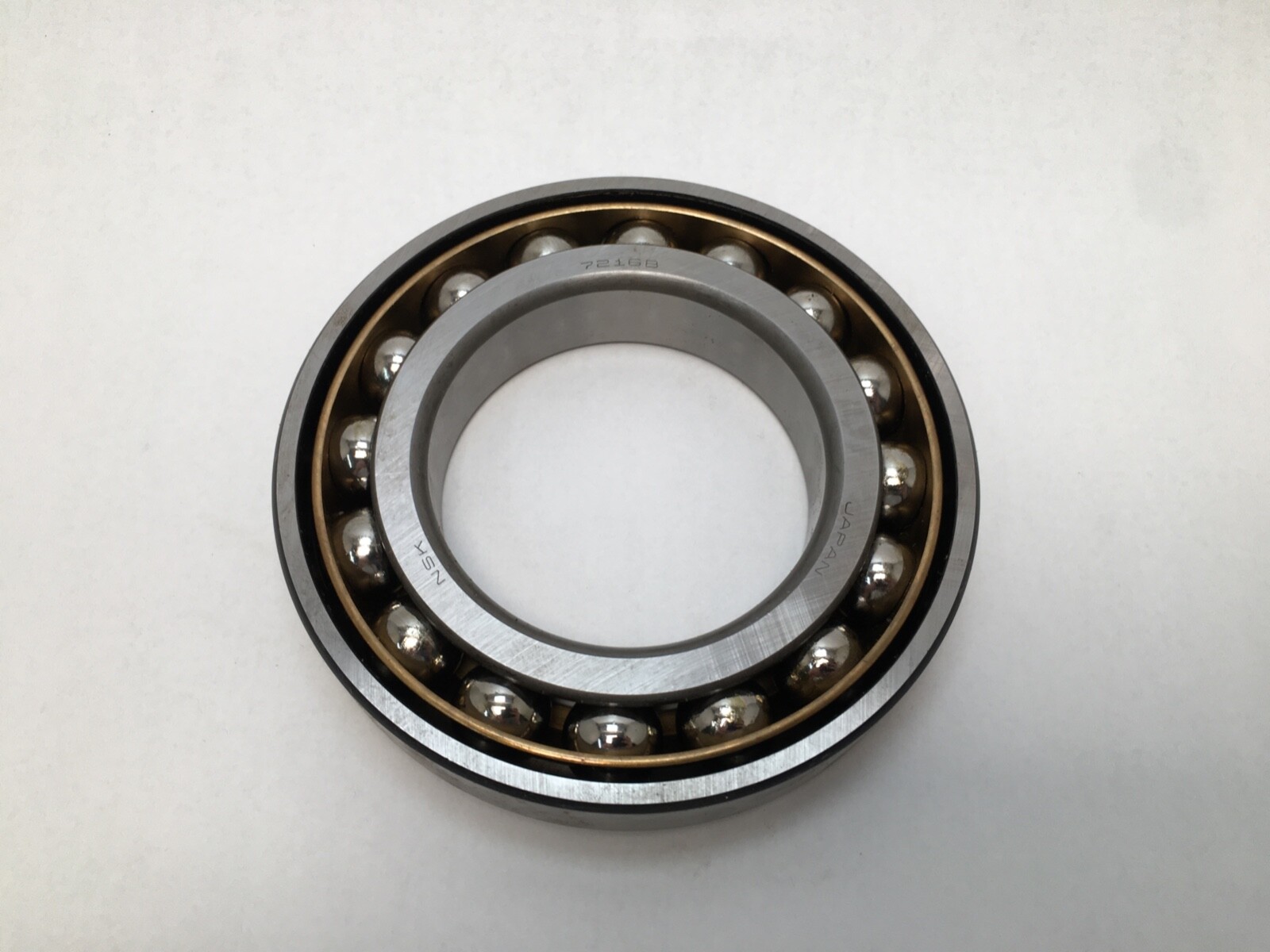

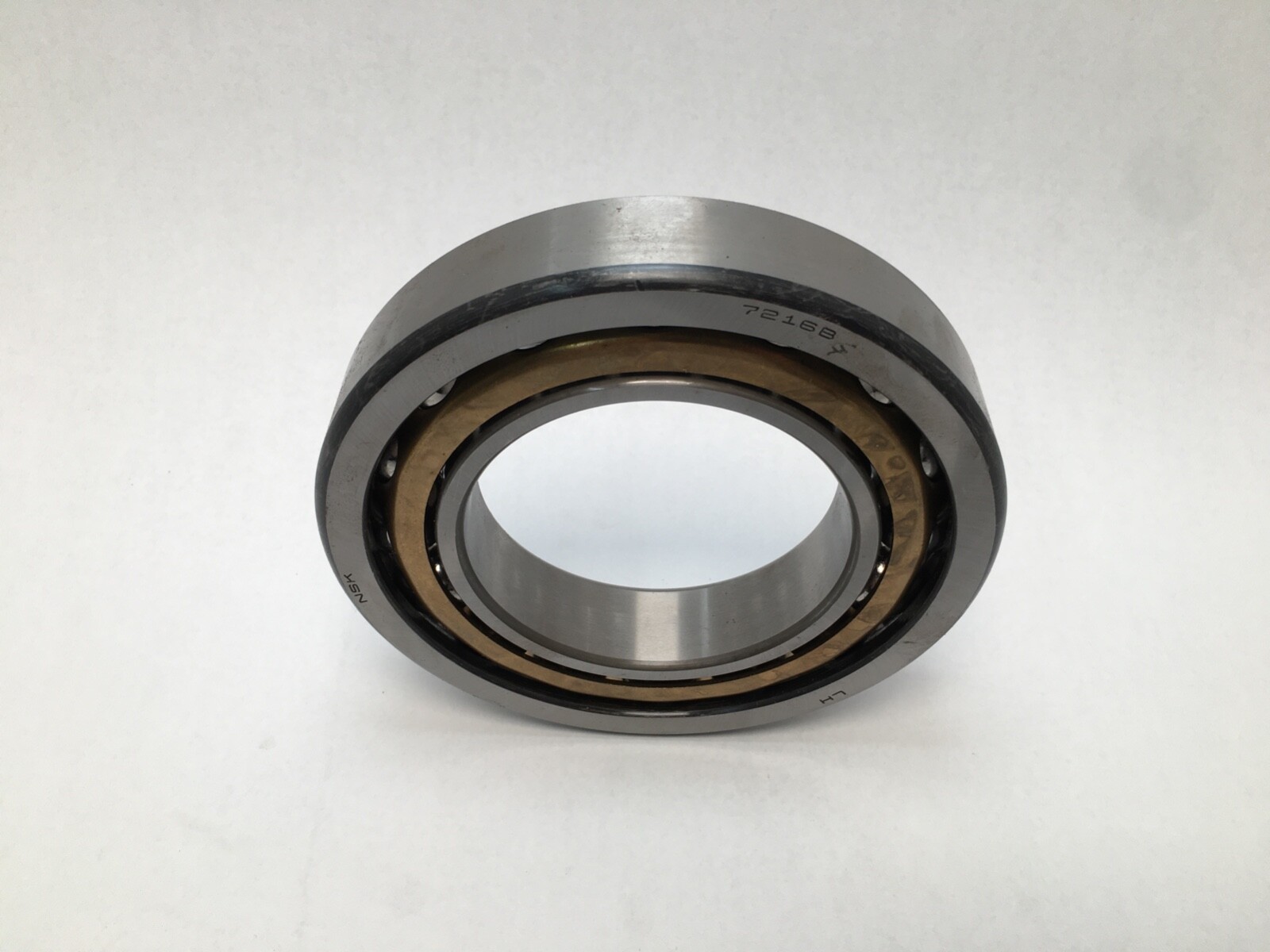

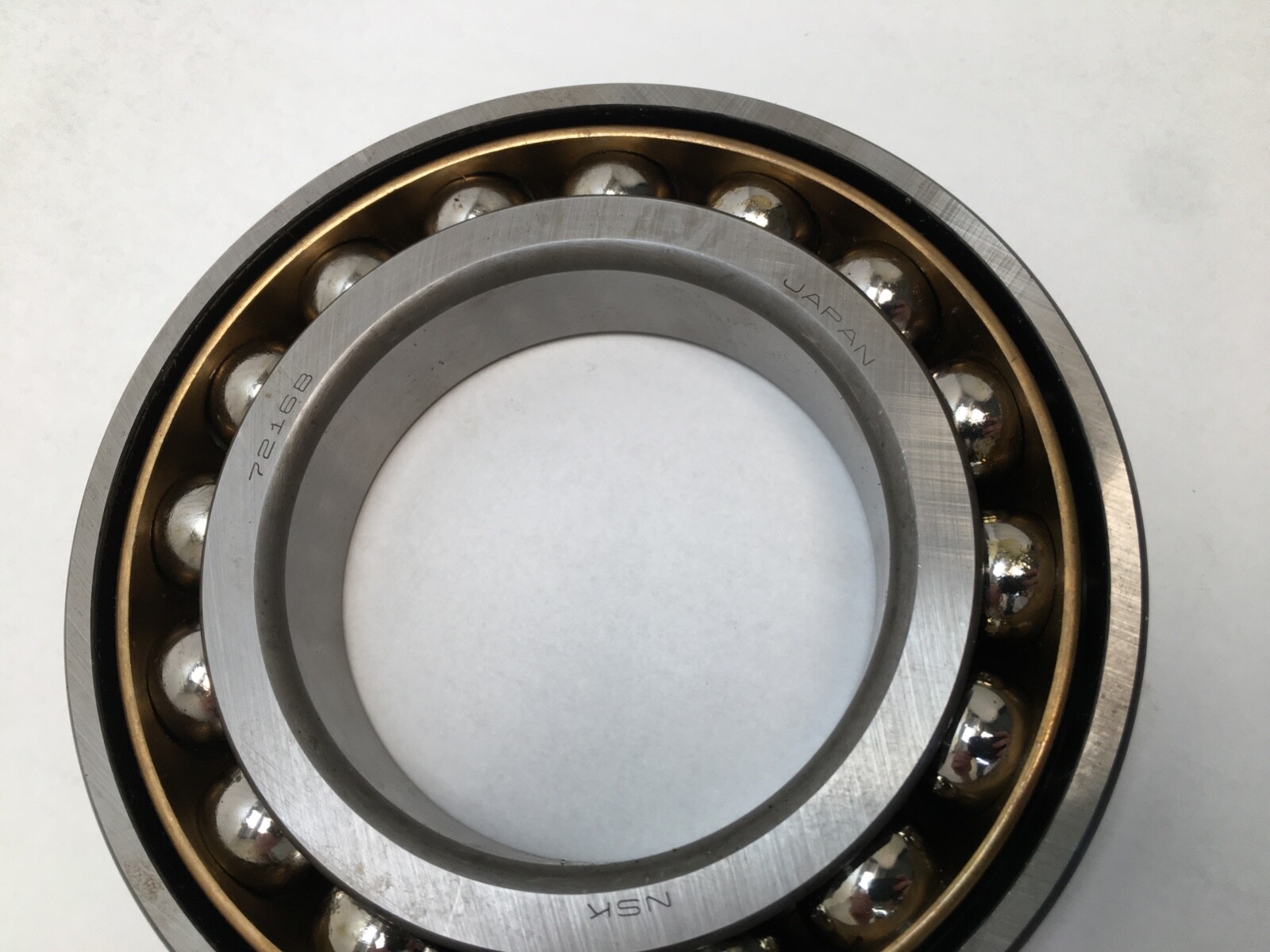

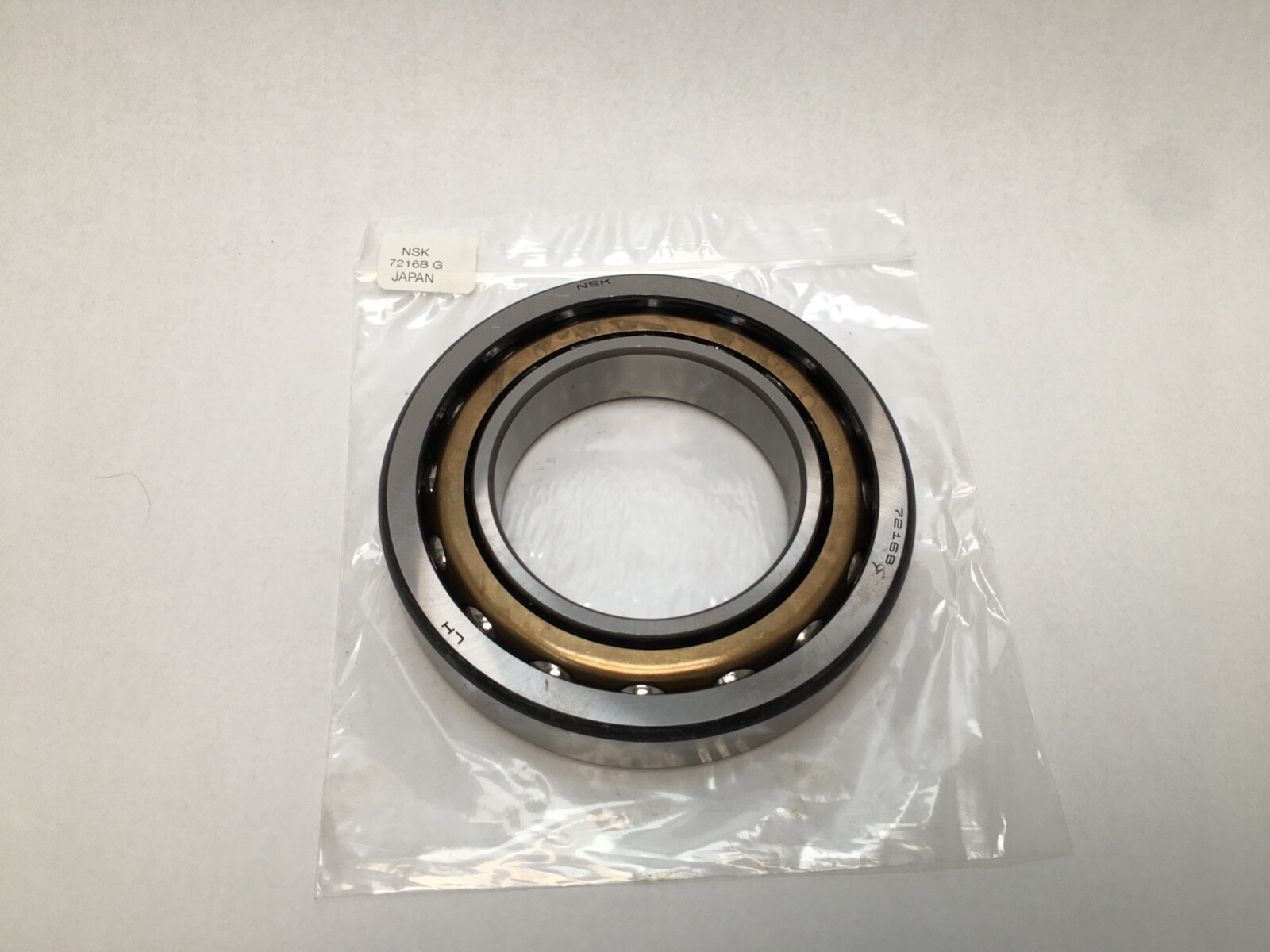

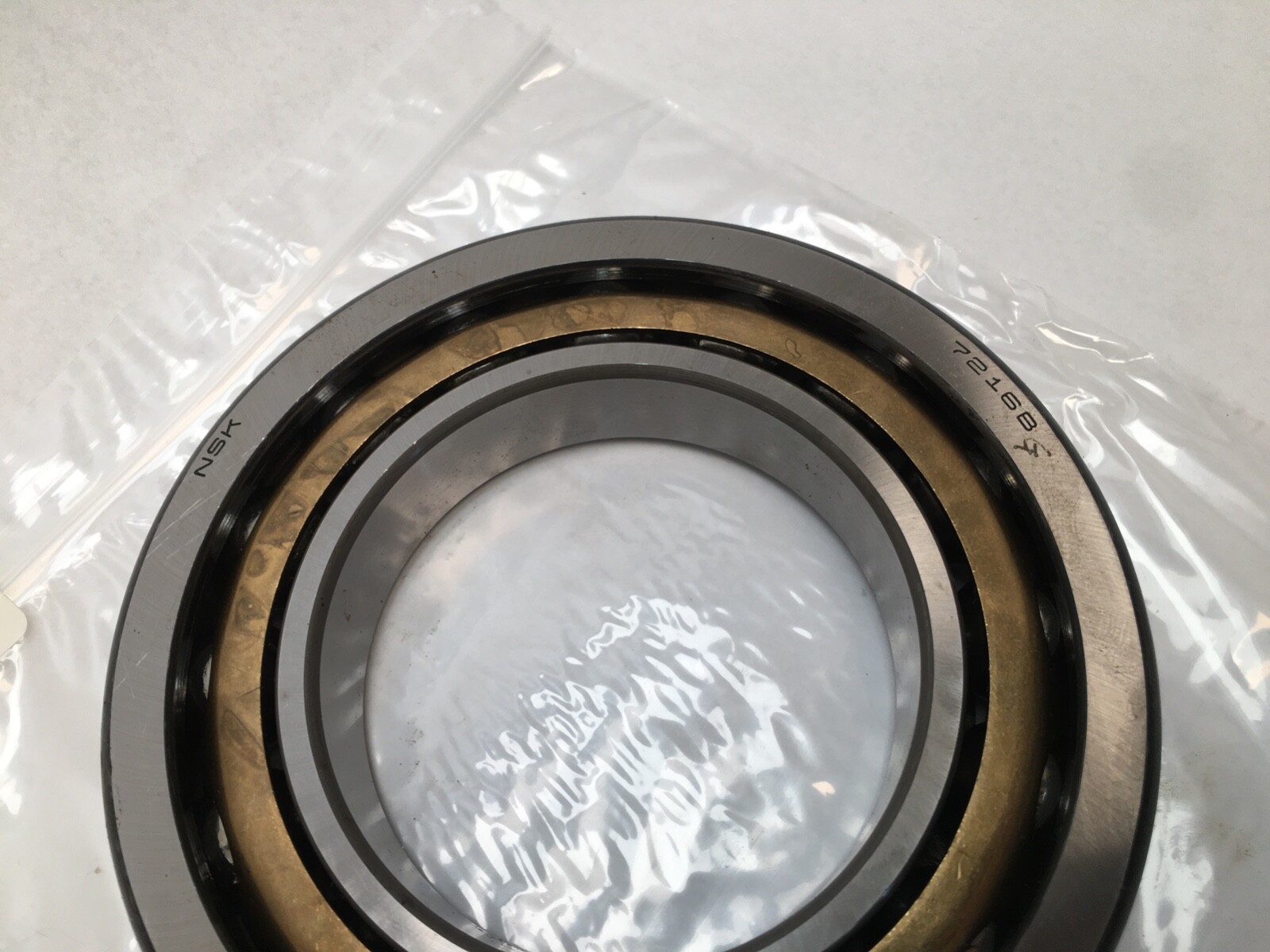

NSK 7216BG single-row angular contact ball bearing. Bore: 80 mm. Outside diameter: 140 mm. Width: 26 mm. Series: 7200, 72 dimension series. Contact angle: 40°. Precision Class: ISO Normal (ABEC 1 / P0). Internal Clearance: CN. Open on both faces, pressed steel cage. Country of origin as recorded on this listing: Japan.
7216 = 72 series, 80 mm bore. B = the 40° contact angle series. G = universal matching, so faces are flush ground and any two bearings from the range mount together as a matched set. Searchable forms: 7216BG, 7216-BG, 7216 B G, 7216B, 7216BW. The NSK B-series code is its own scheme and is separate from a FAG B70 spindle designation.
A 40° contact angle is the highest thrust capacity in the single-row angular contact range, carrying axial load in one direction with high stiffness. Speed capability is correspondingly lower than a 15° or 25° execution. Universal matching means two or three of these bearings can be set back-to-back, face-to-face or in tandem without shims or grinding. The pressed steel cage suits grease and oil-bath lubrication in general machinery service.
Basic dynamic load rating Cr: 88.5 kN (19,900 lbf). Basic static load rating C0r: 69.5 kN (15,620 lbf). Limiting speed: 2,800 rpm on grease and 4,000 rpm in an oil bath. Effective load centre a: 59.1 mm. Mass: 1.49 kg (3.28 lb).
One bearing ships. Axial load is carried in one direction, so a two-direction location uses a pair of these bearings set back-to-back or face-to-face.
Shaft abutment diameter da: 90 mm minimum. Housing abutment diameter Da: 130 mm maximum. Shaft and housing fillet radius ra: 2 mm maximum. Chamfer dimensions r 2 mm and r1 1 mm minimum. The bearing is clearance-set at CN rather than preloaded, so it takes standard interference fits for the shaft and housing.
Direct equivalents at the same 40° angle and envelope: SKF 7216 BE, FAG 7216-B-TVP, NTN 7216B, Koyo 7216B. Related size: 7216C shares the 80 x 140 x 26 mm envelope at a 15° contact angle, which trades thrust capacity for speed, so it is a different part rather than a substitution.
