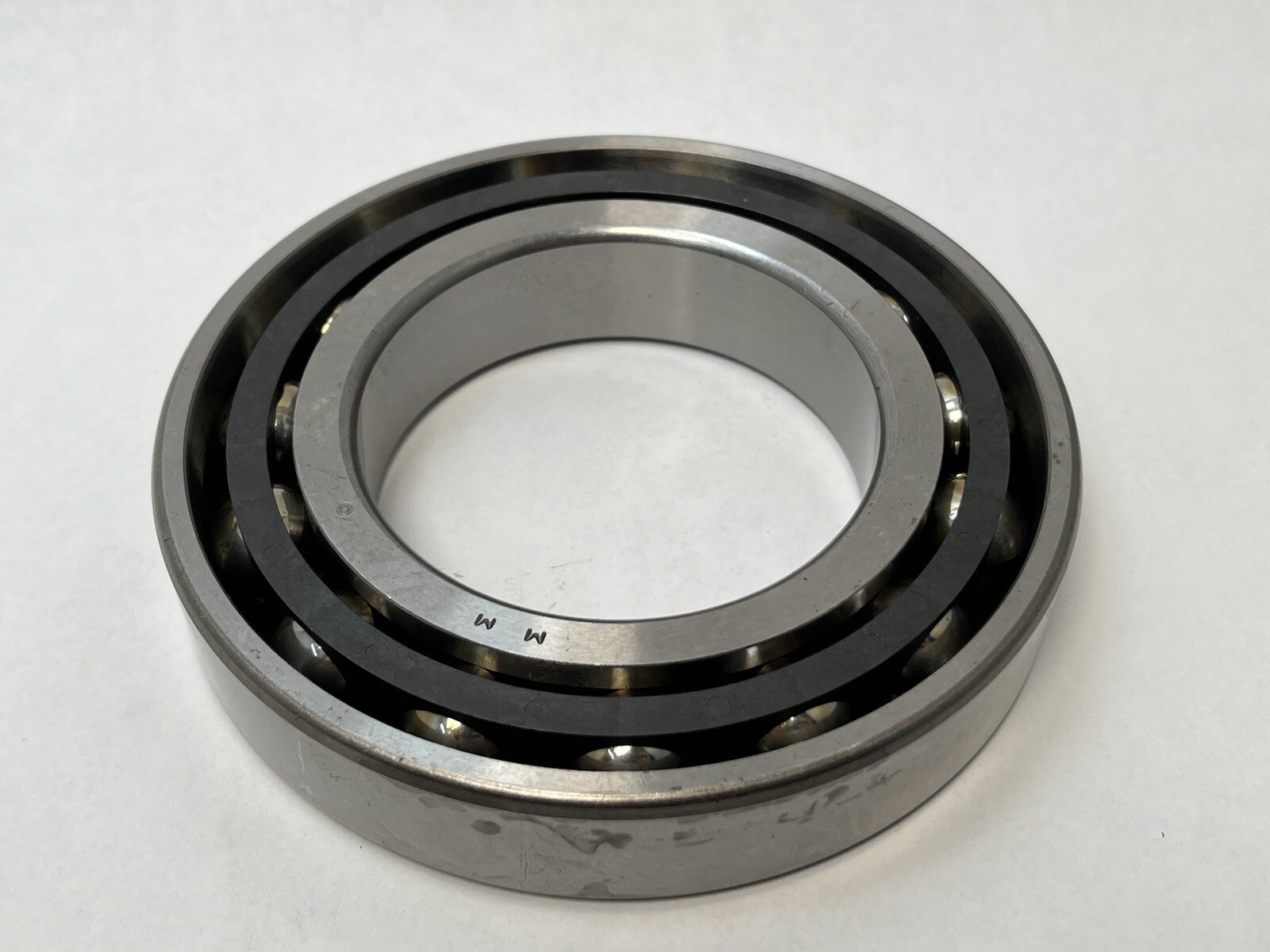

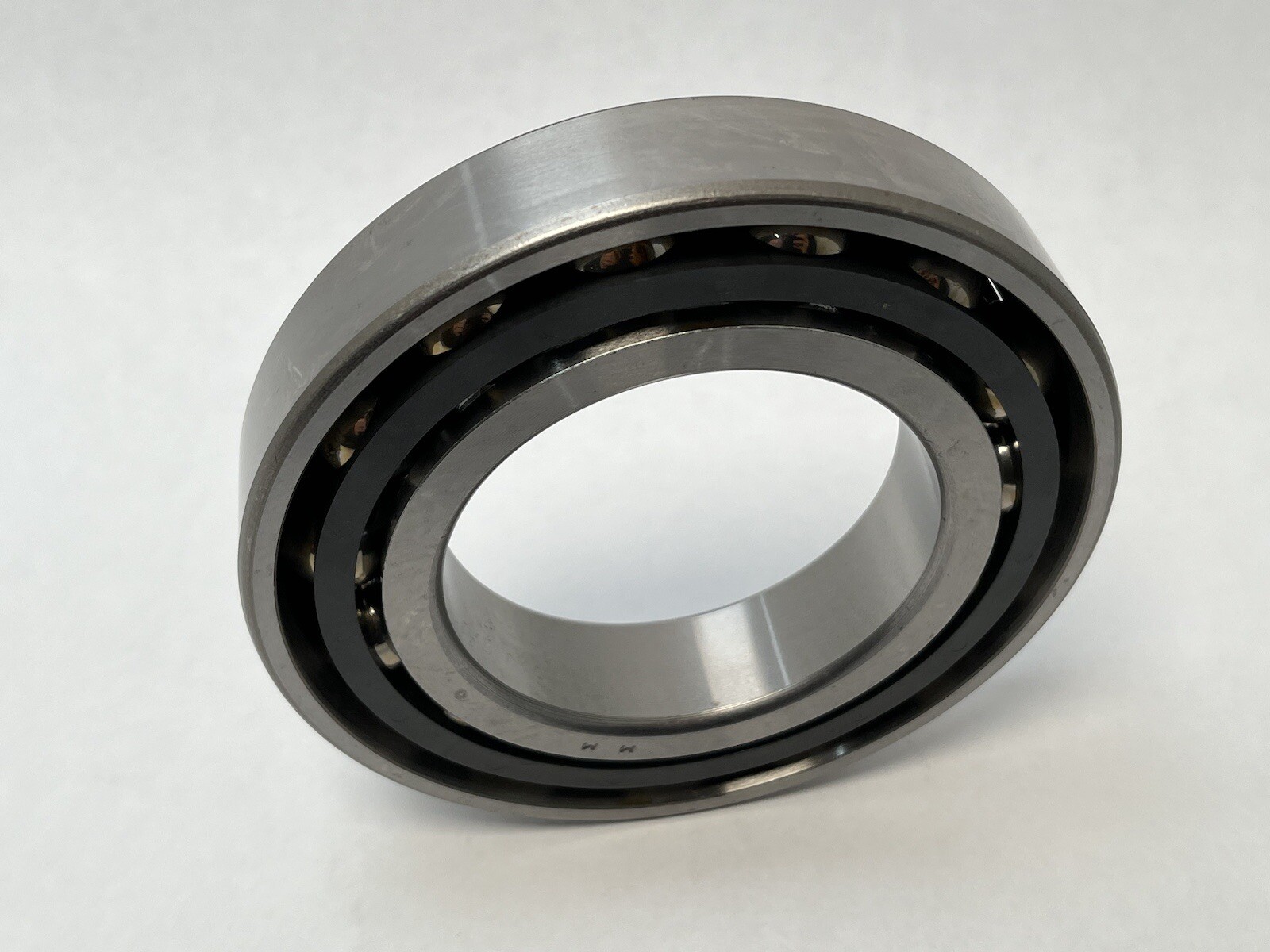

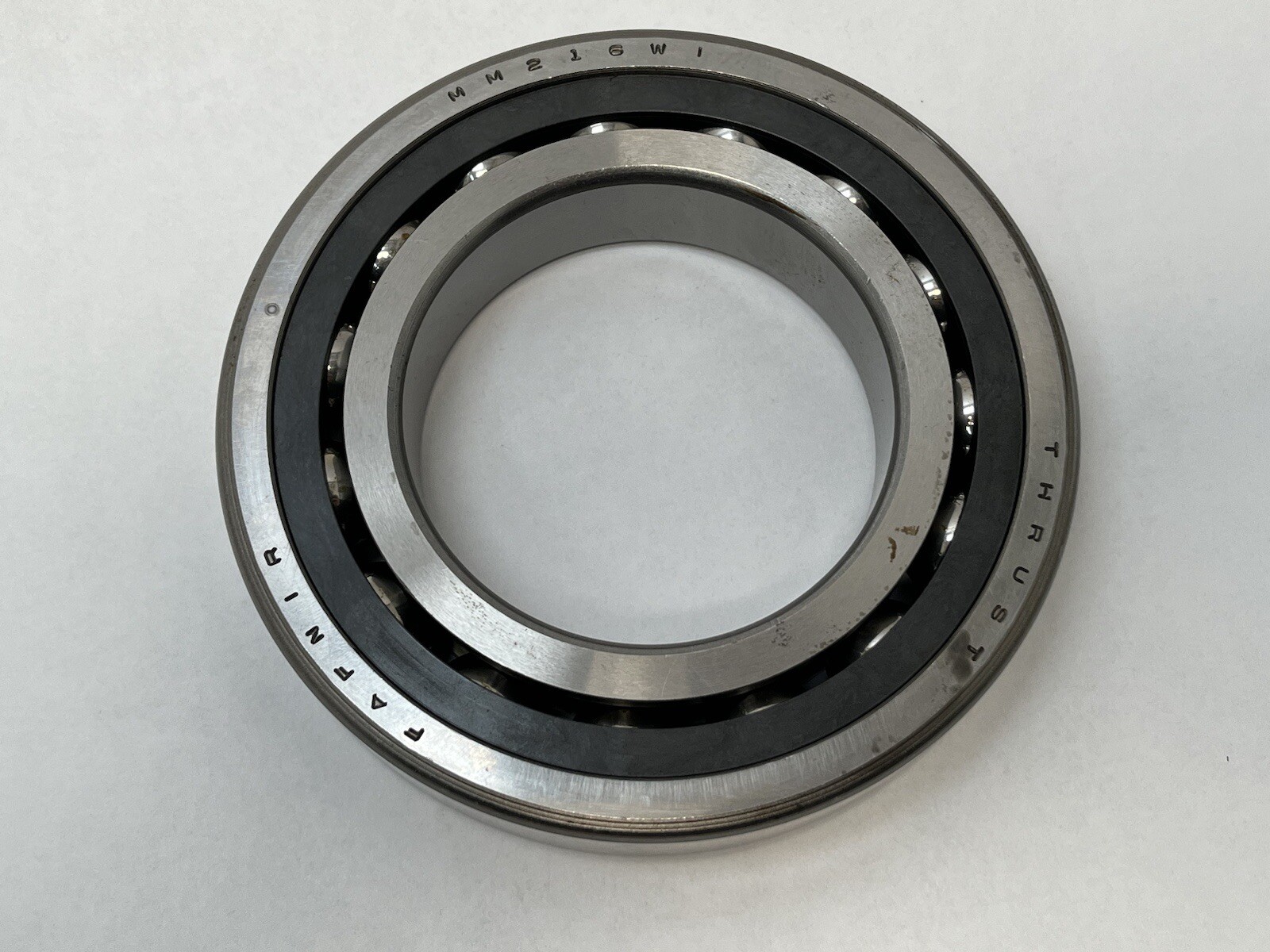

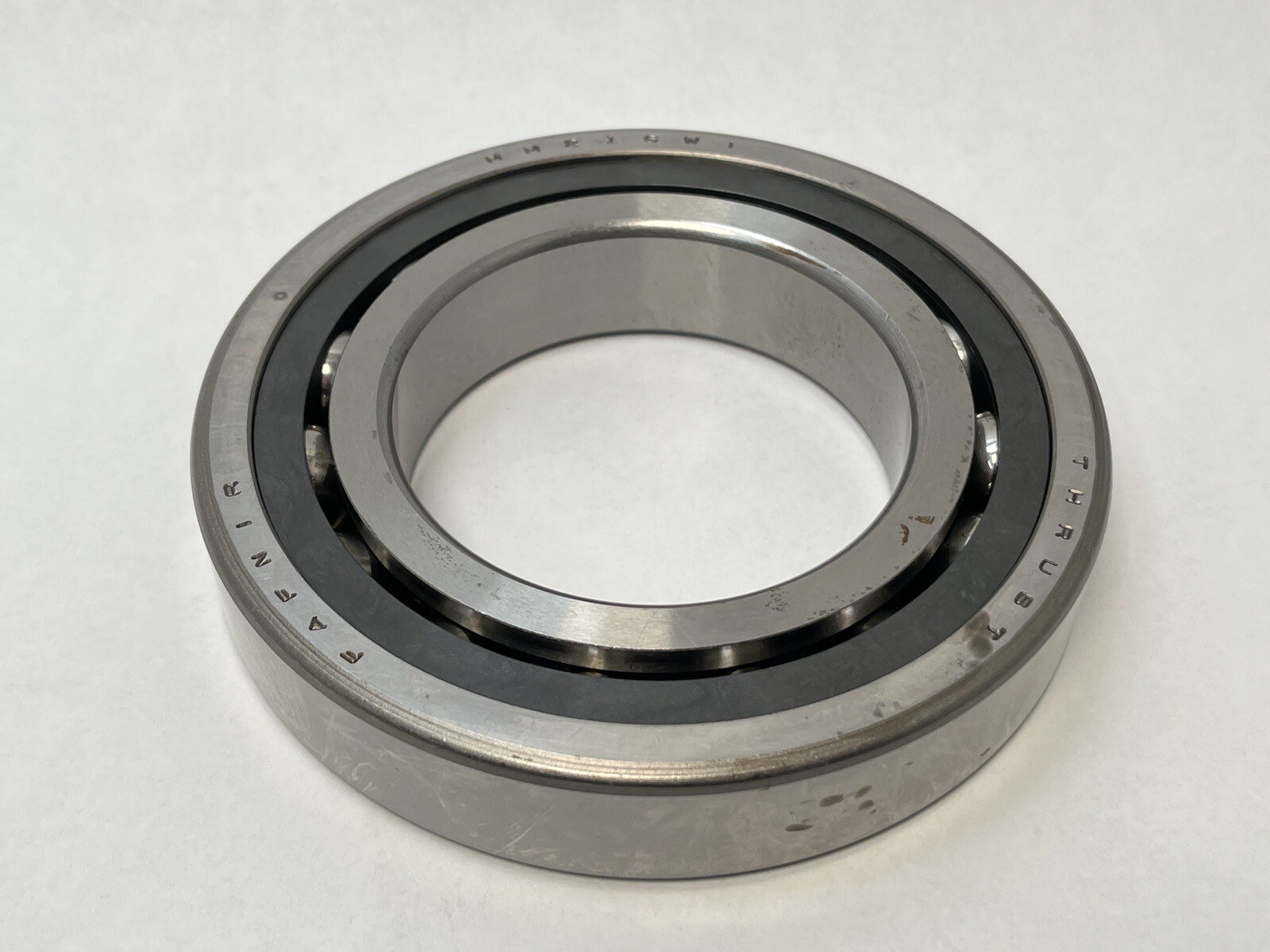

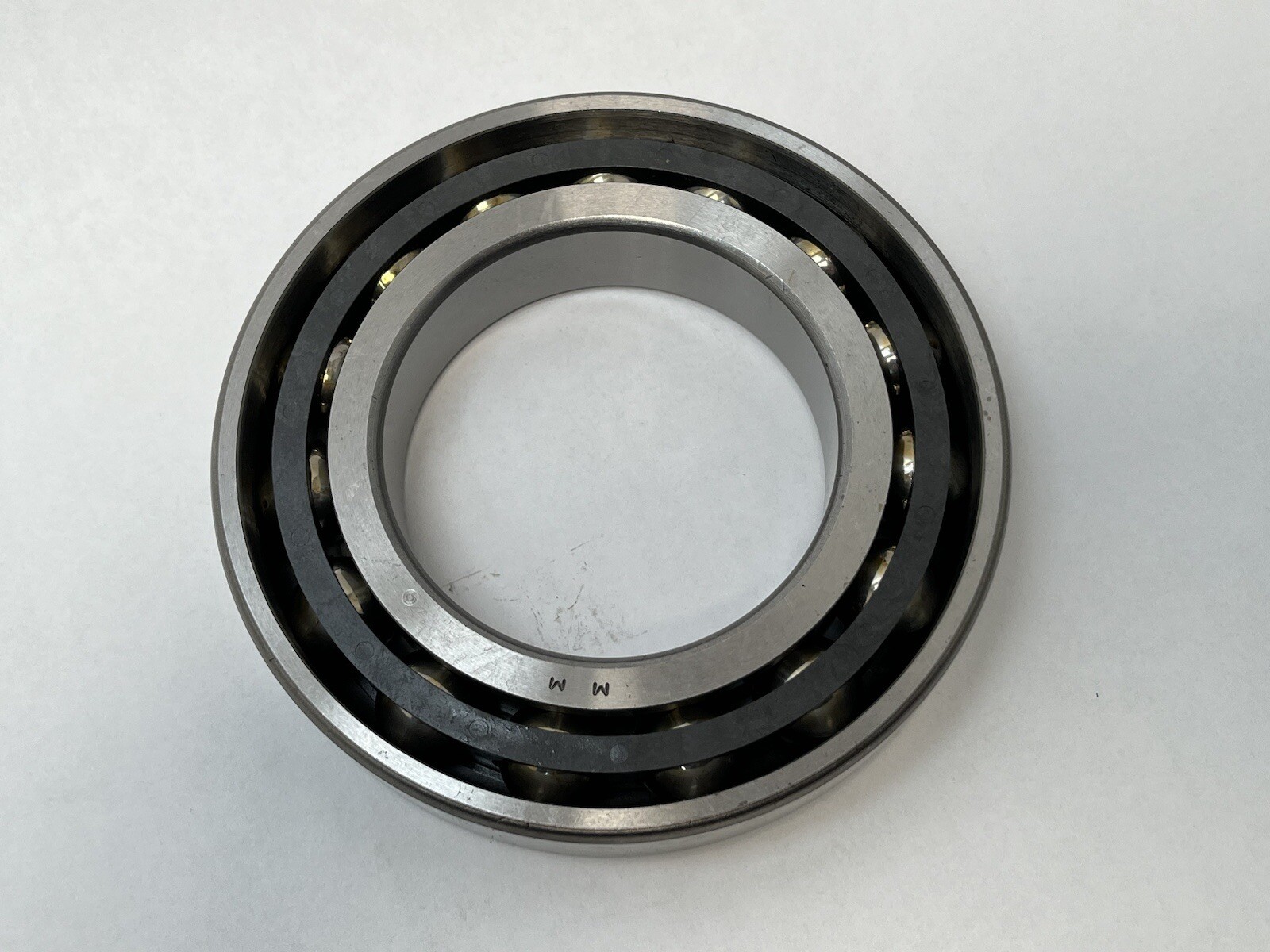

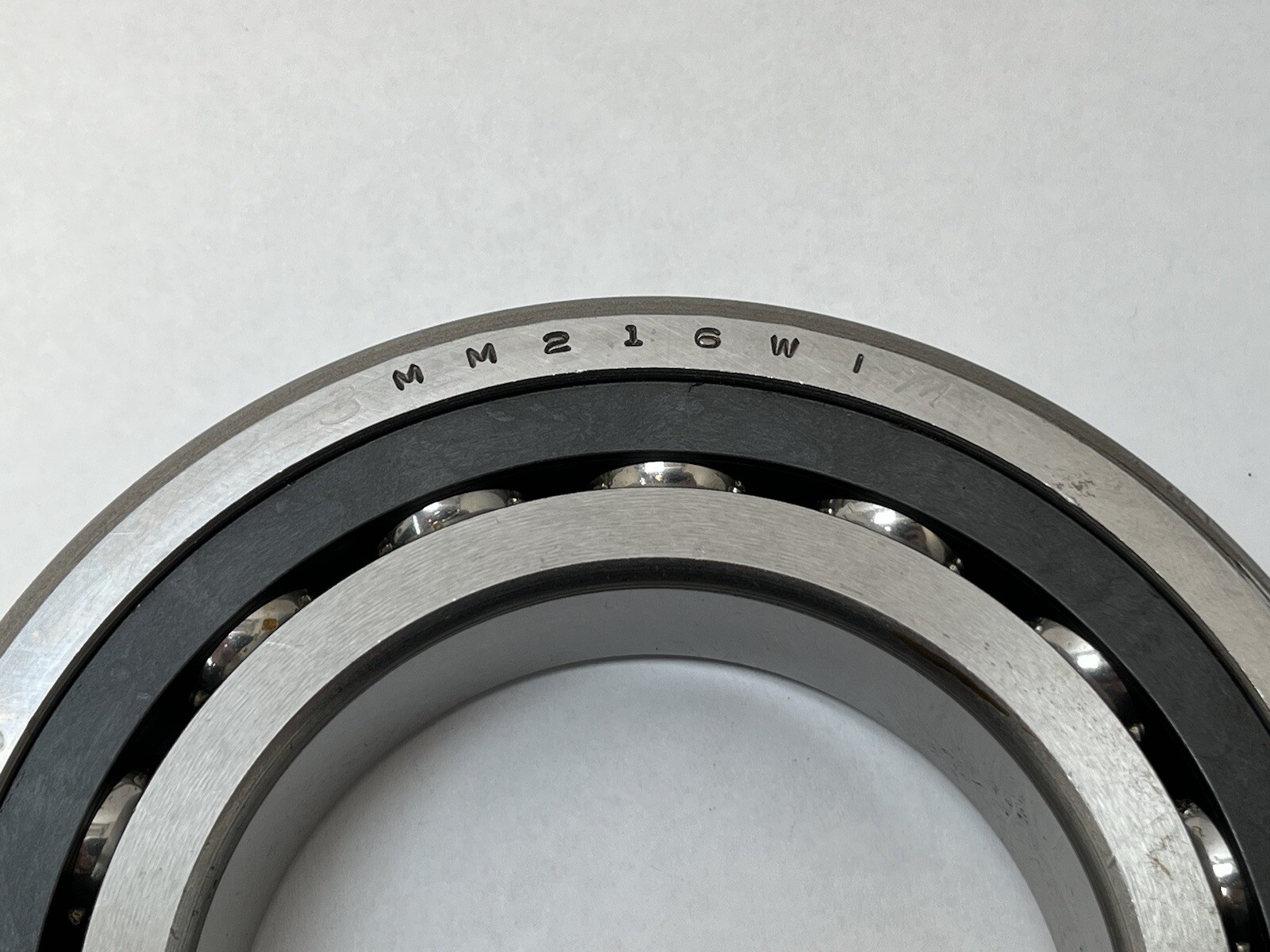

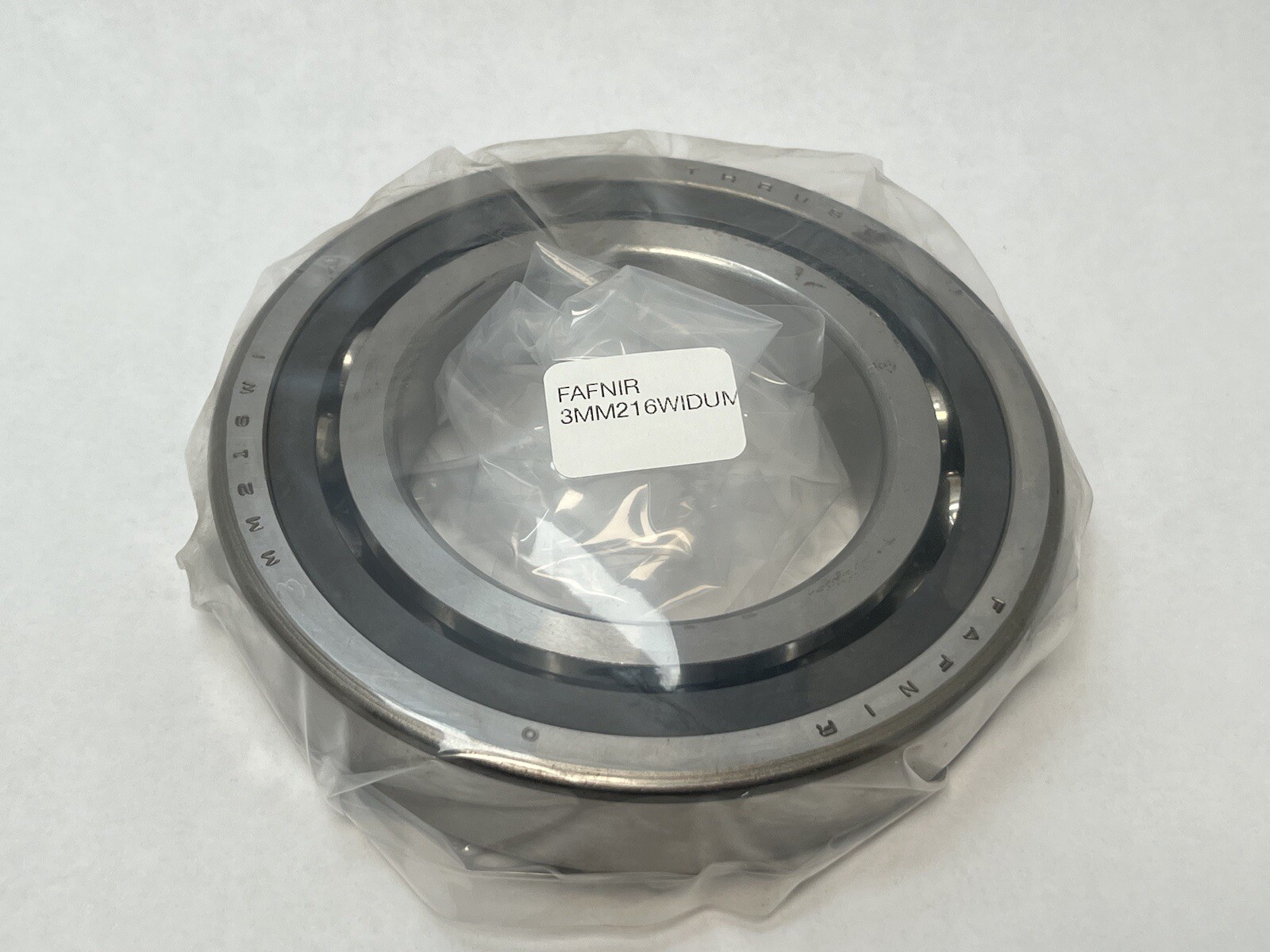

Name: Angular Contact Ball Bearing - 80 mm ID, 140 mm OD, 26 mm Width, Open, 25° Contact Angle, Medium Preload.
Brand: Fafnir
SKU: AP6B2#ZPZHTZ
Price: 72.26 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Fafnir
MPN	3MM216WIDUM
Model	3 MM 216 WI DUM / 7216 A-C D P4A
Bearing Type	Angular Contact Ball Bearing, Open
ID	80 mm
OD	140 mm
Width	26 mm

Specifications

Advertise	1
Condition	New – Open box
Preload	Medium
Material	Bearing Steel
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	85 kN
Static Load Rating	75 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Balls
Max Temp	120°C
Item Weight	3.20 lbs
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Contact Angle	25°
Mounting Arrangement	Universal
Running Accuracy	P4
Running Accuracy Radial And Axial Runout	P4

Cross-References

Cross Reference 1	SKF 7216 ACD/P4ADGB
