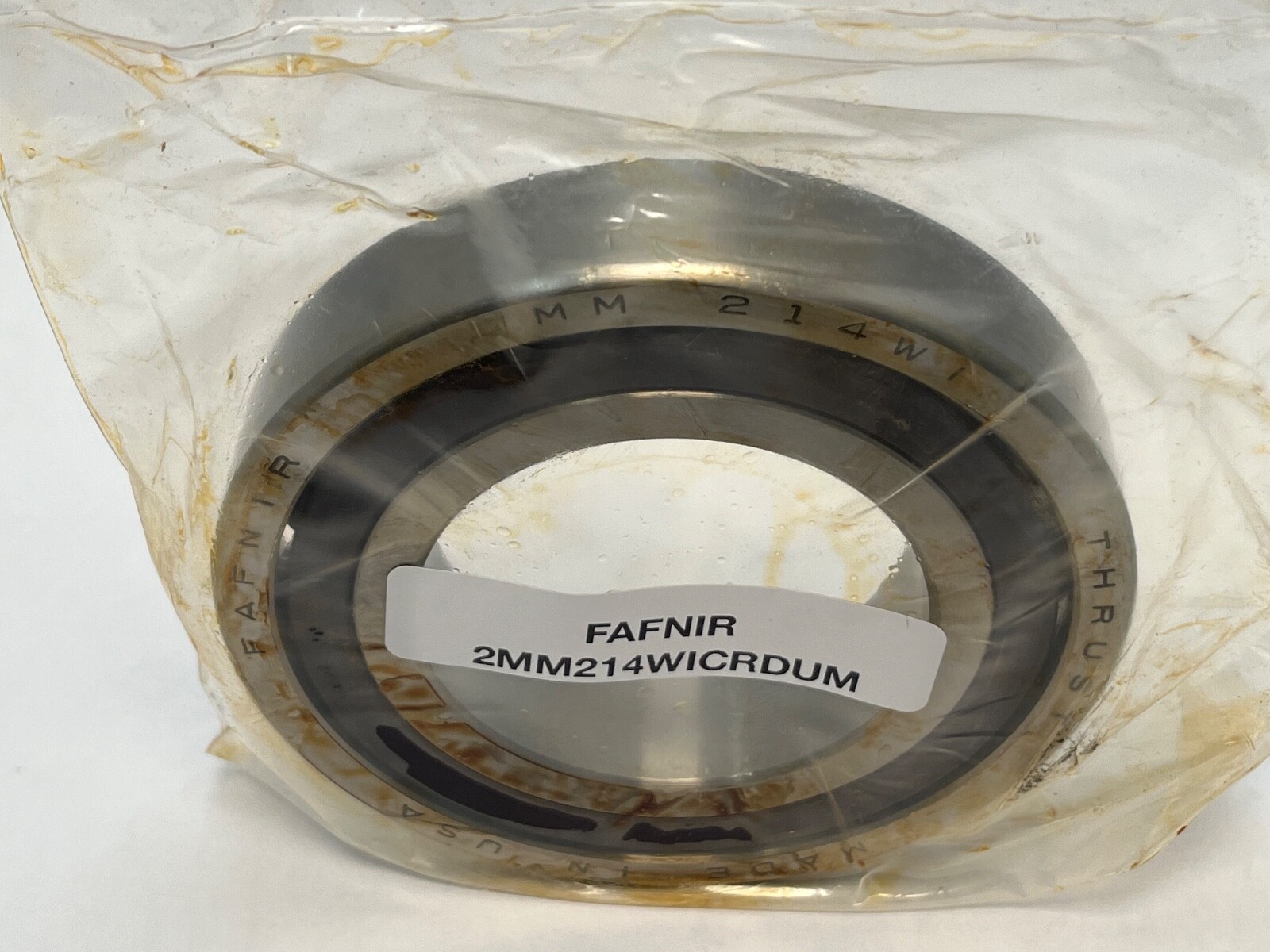

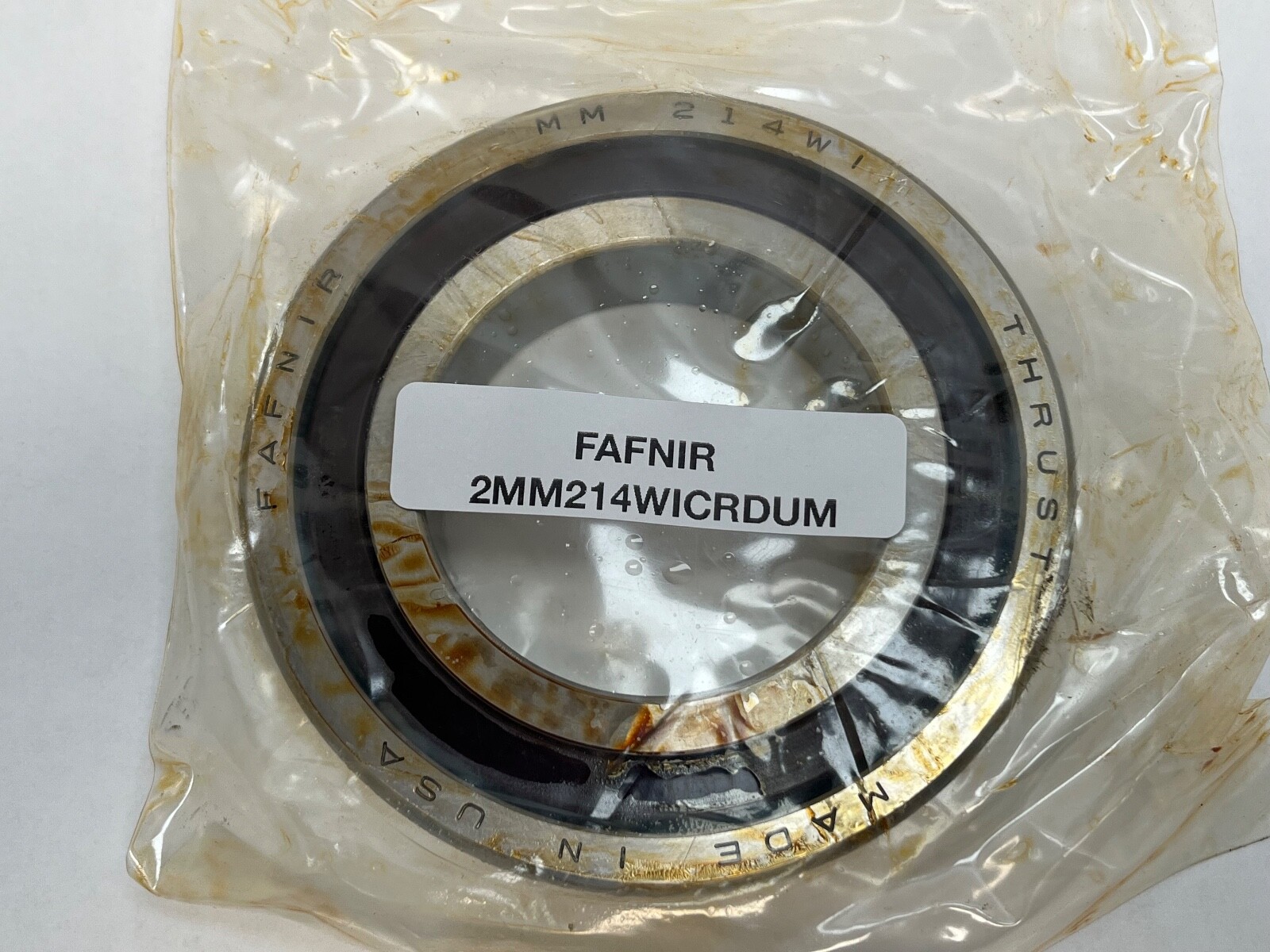

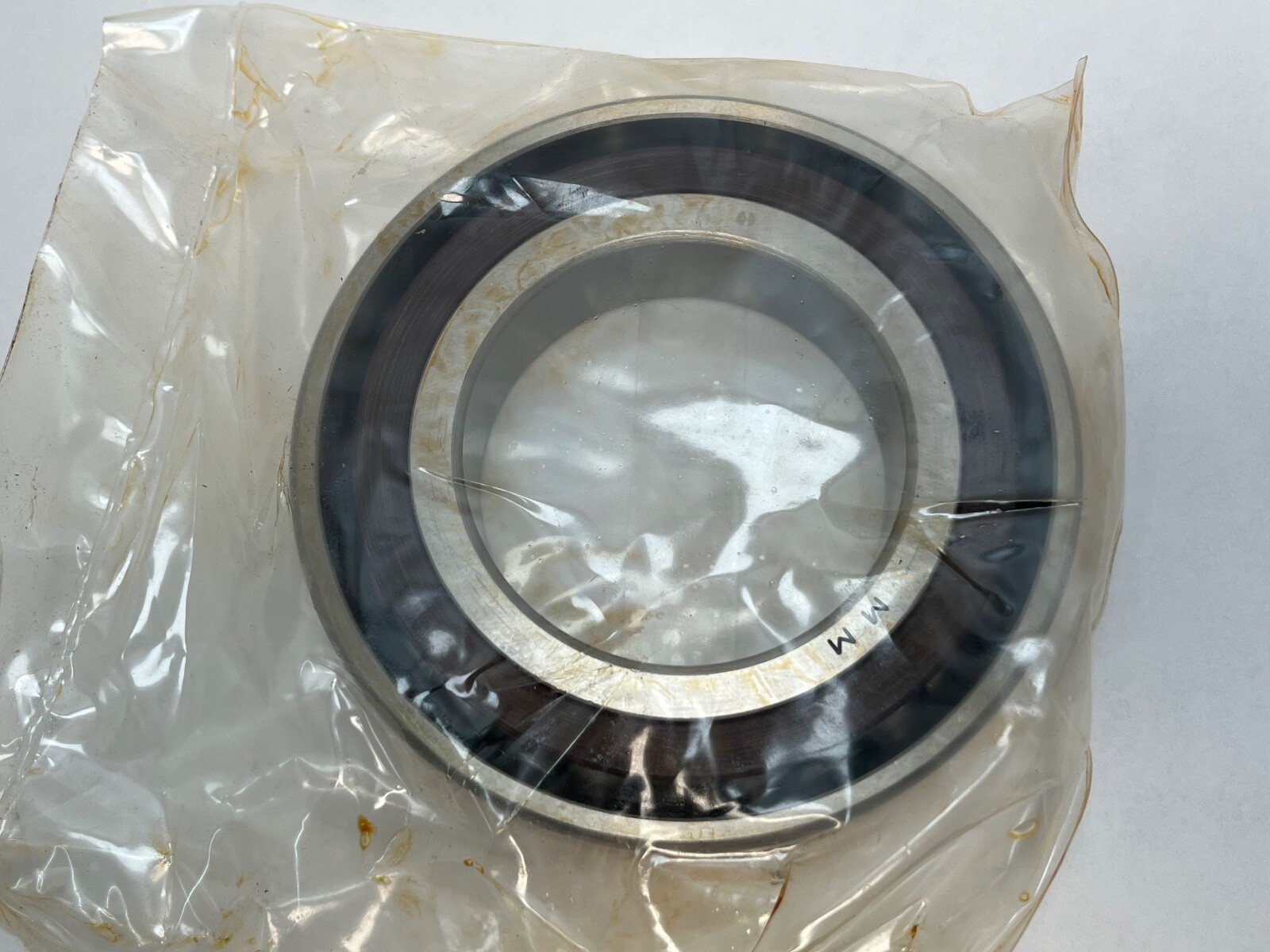

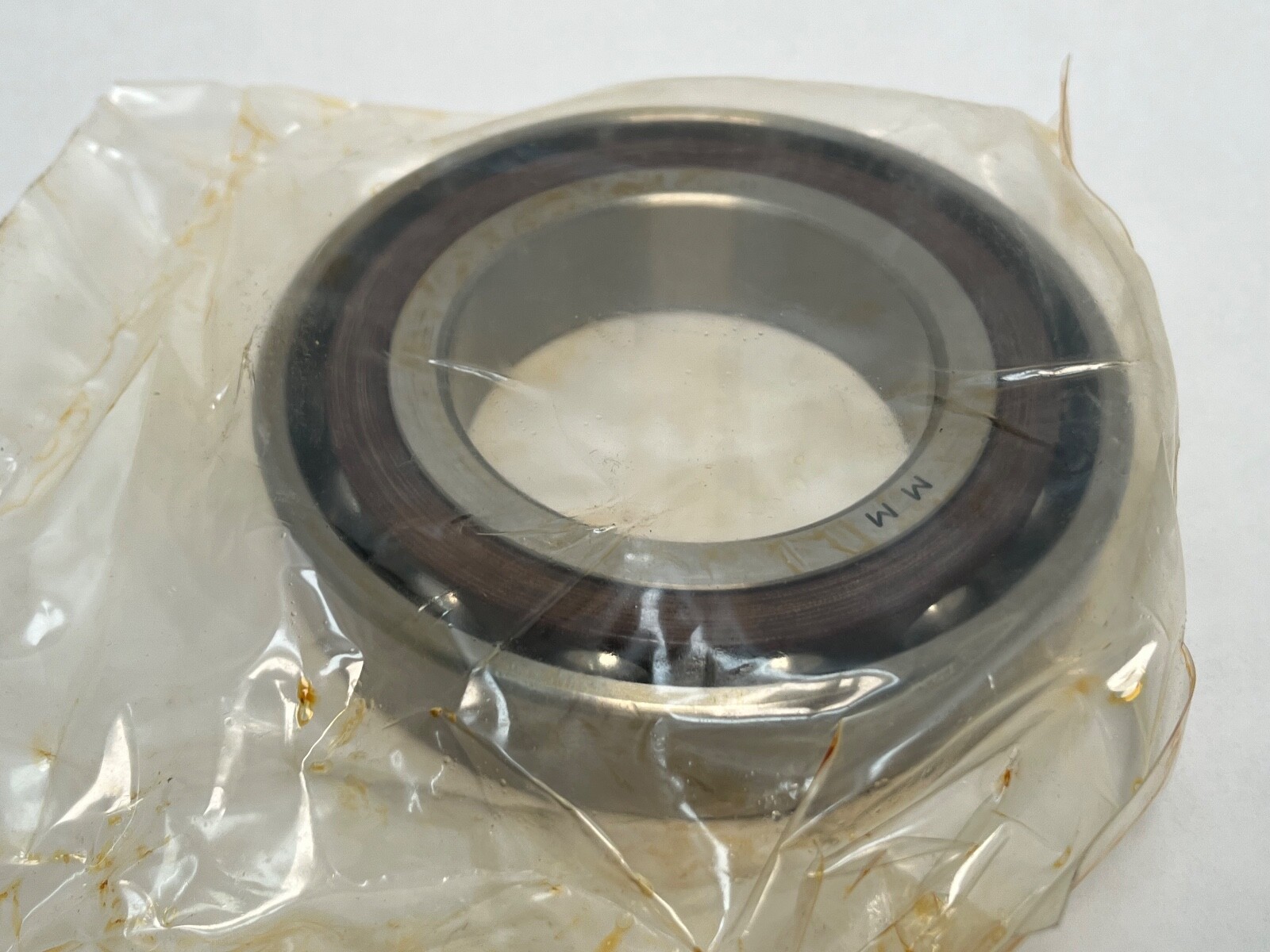

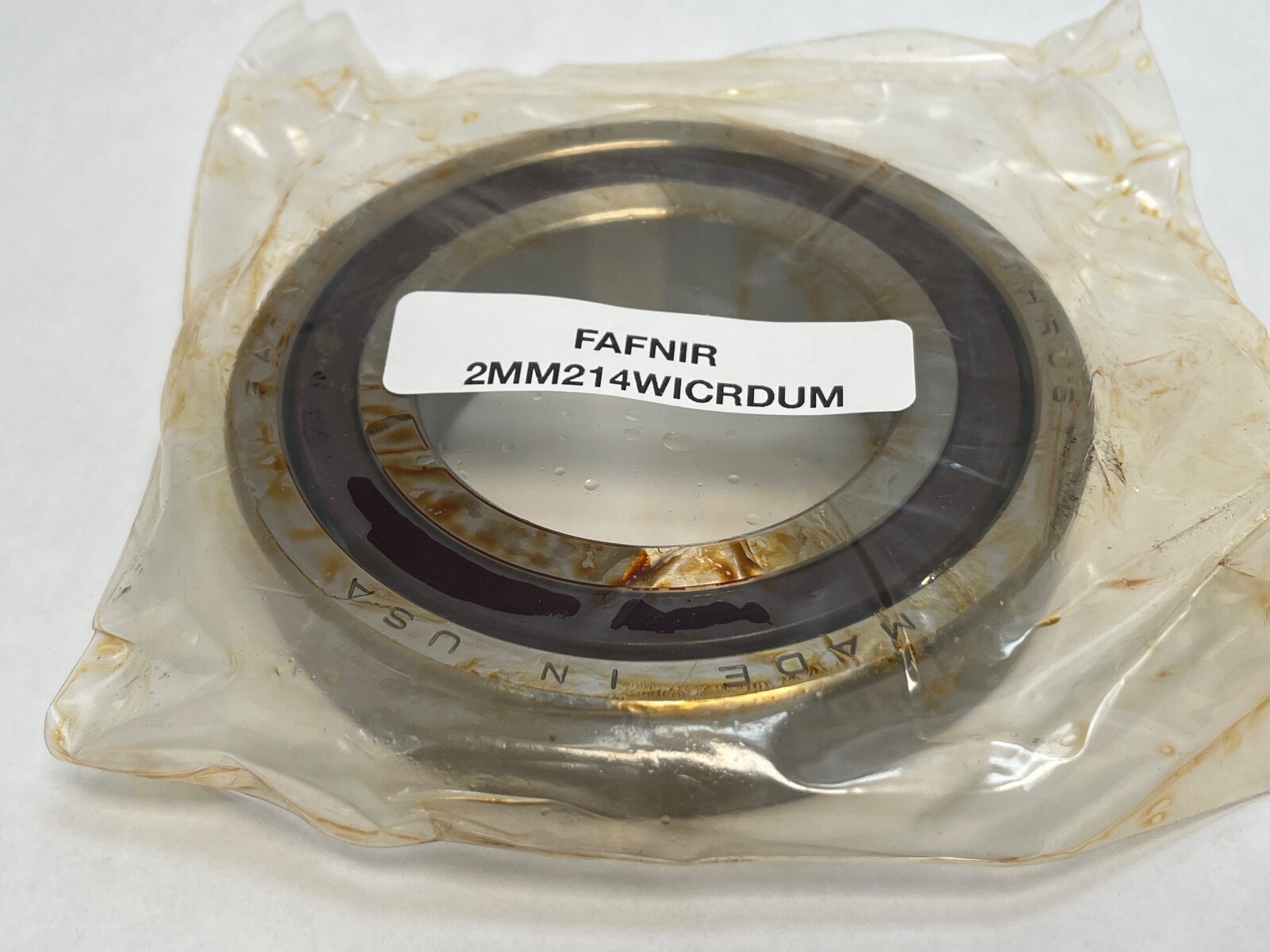

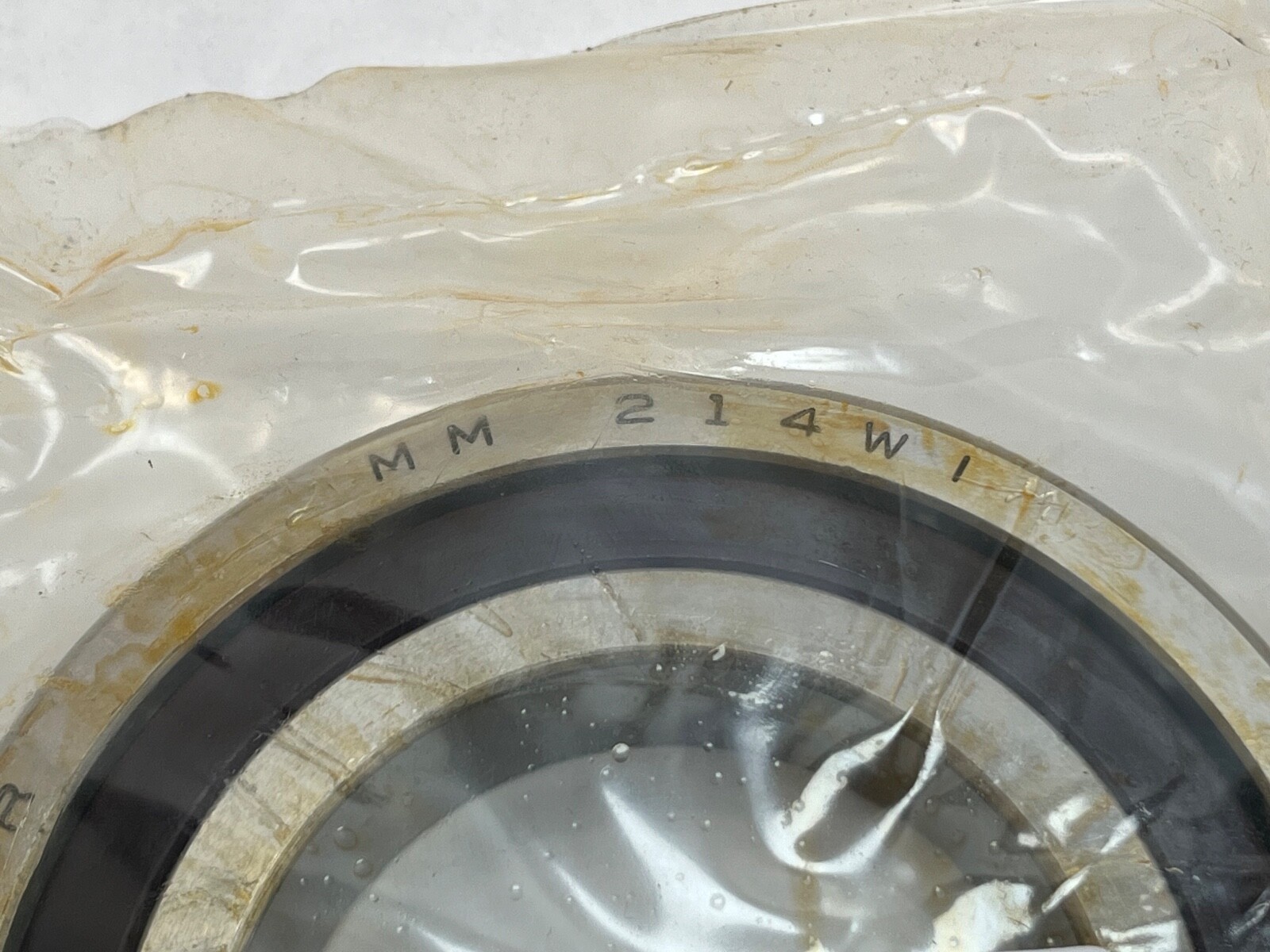

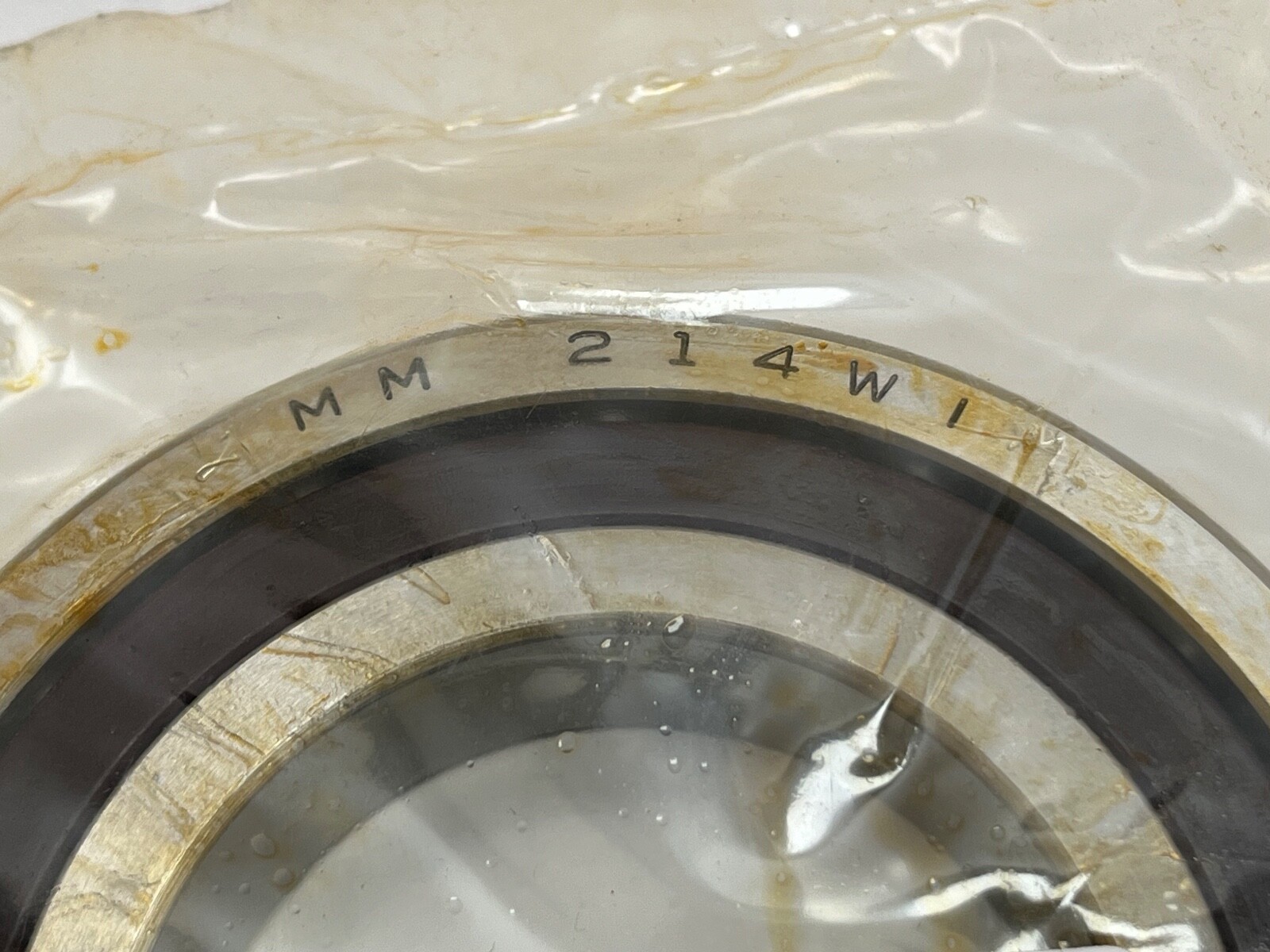

Name: Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Medium Preload.
Brand: Fafnir
SKU: AO2B5#6VRPUB
Price: 84.13 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	Fafnir
MPN	2MM214WICRDUM
Model	2 MM 214 WI CR DUM / 7214 C T DUM P4
Bearing Type	Angular Contact Ball Bearing, Open
ID	70 mm
OD	125 mm
Width	24 mm

Specifications

Advertise	1
Condition	New – Open box
Preload	Medium
Material	Bearing Steel
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	79 kN
Static Load Rating	72 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Balls
Max Temp	120°C
Item Weight	2.50 lbs
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Contact Angle	15°
Mounting Arrangement	Universal
Running Accuracy	P4
Running Accuracy Radial And Axial Runout	P4

Cross-References

Cross Reference 1	SKF 7214 CD/P4ADGB
Cross Reference 2	GMN S6214 C TA A7
