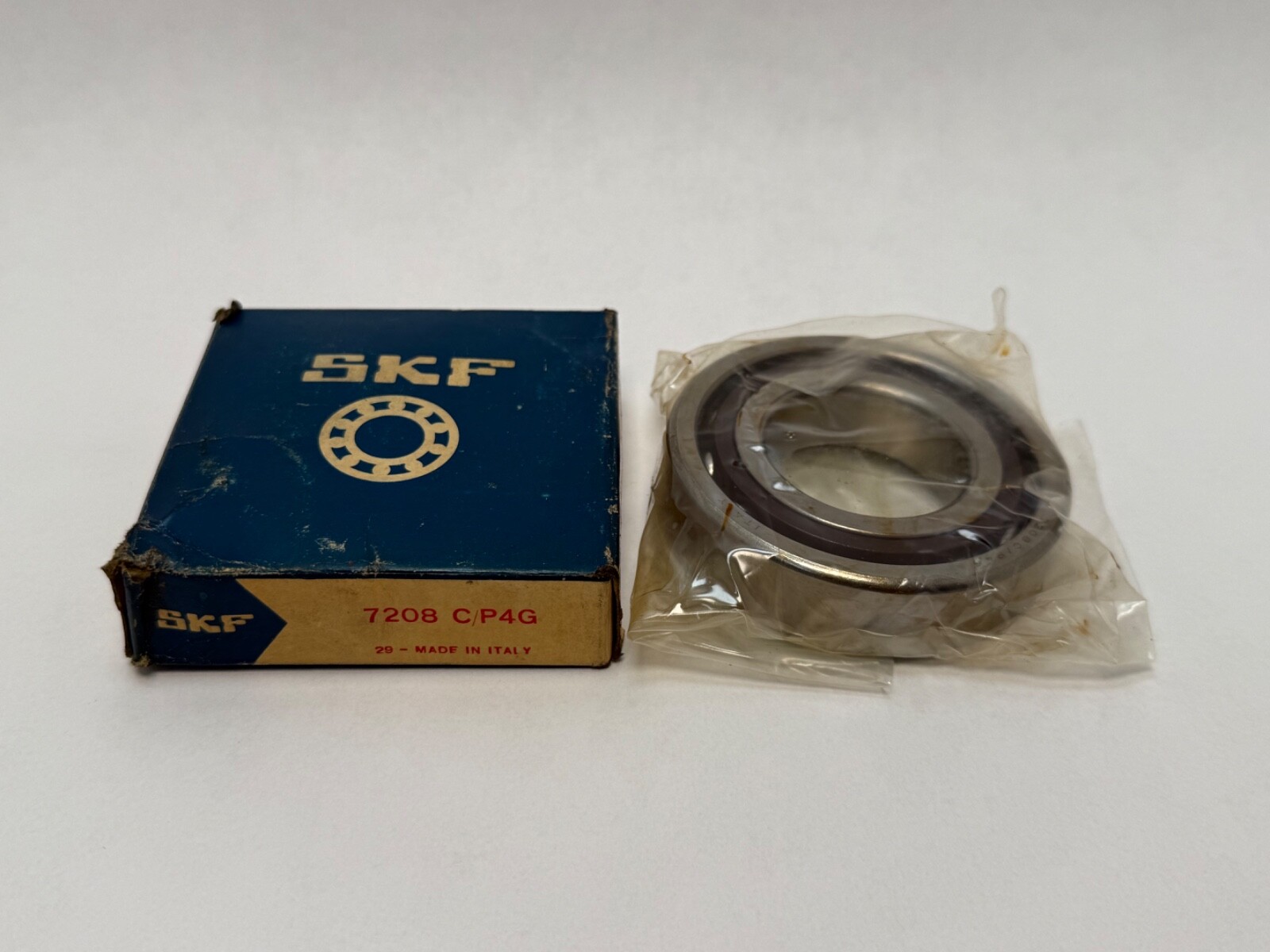

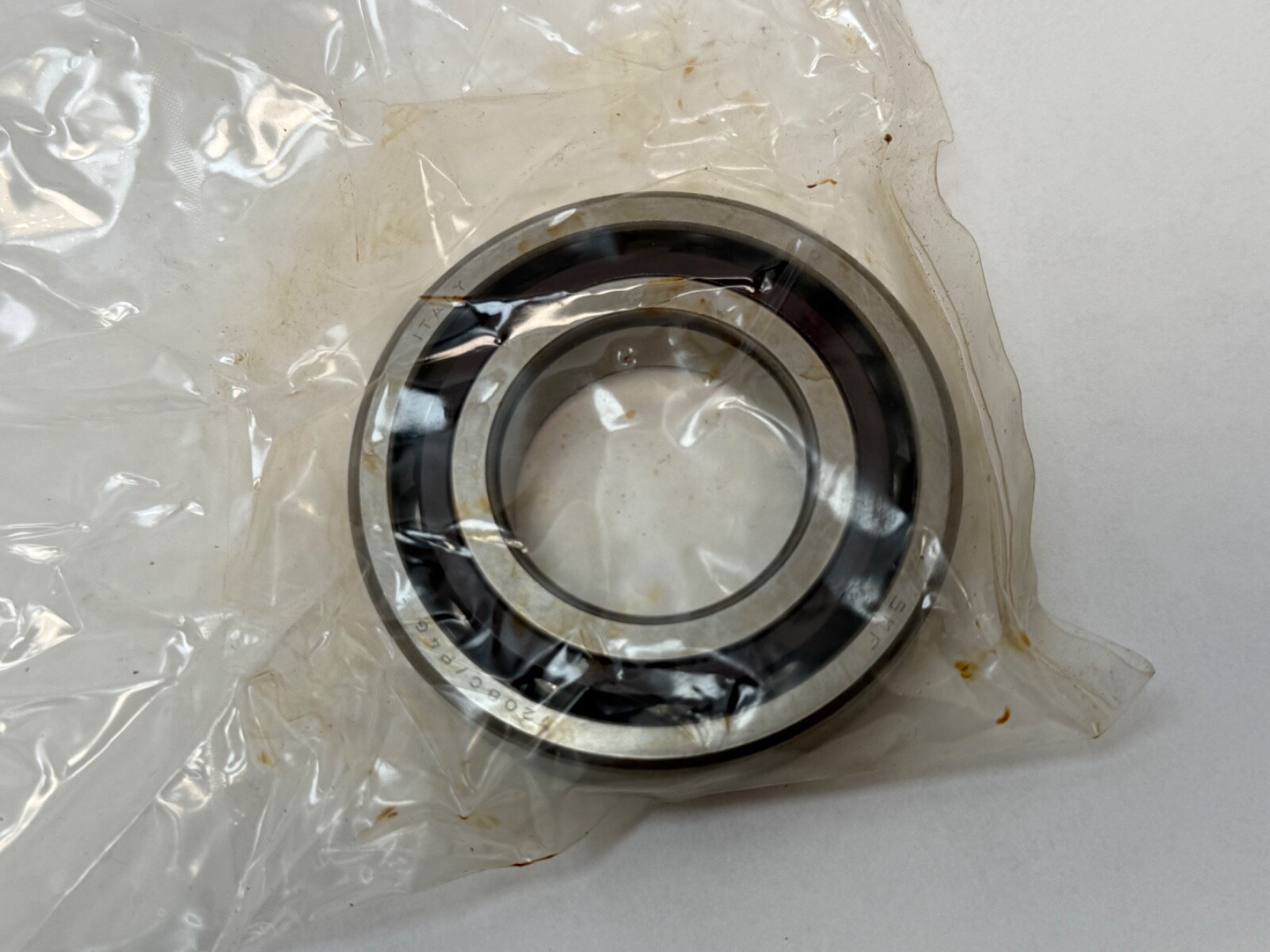

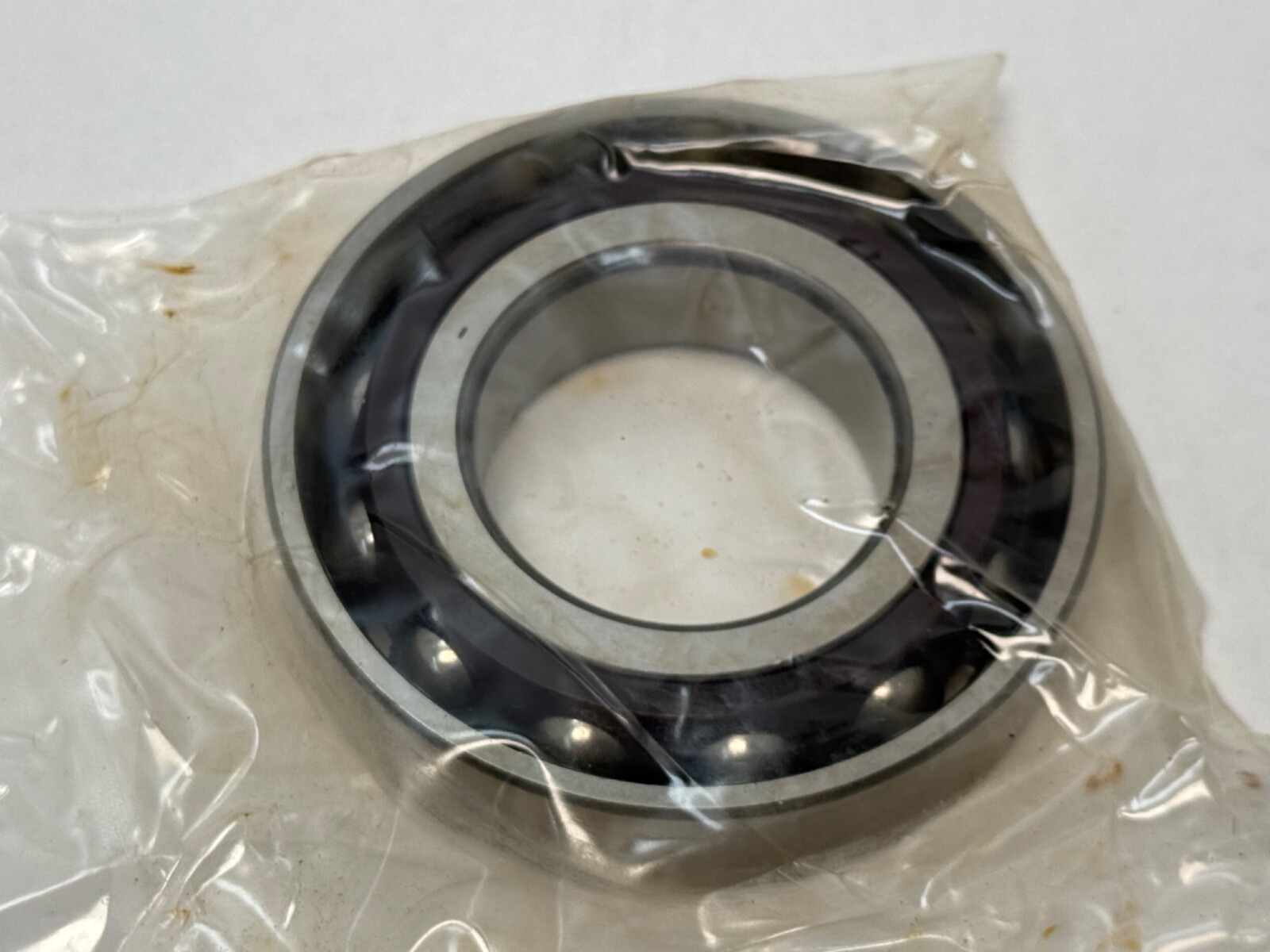

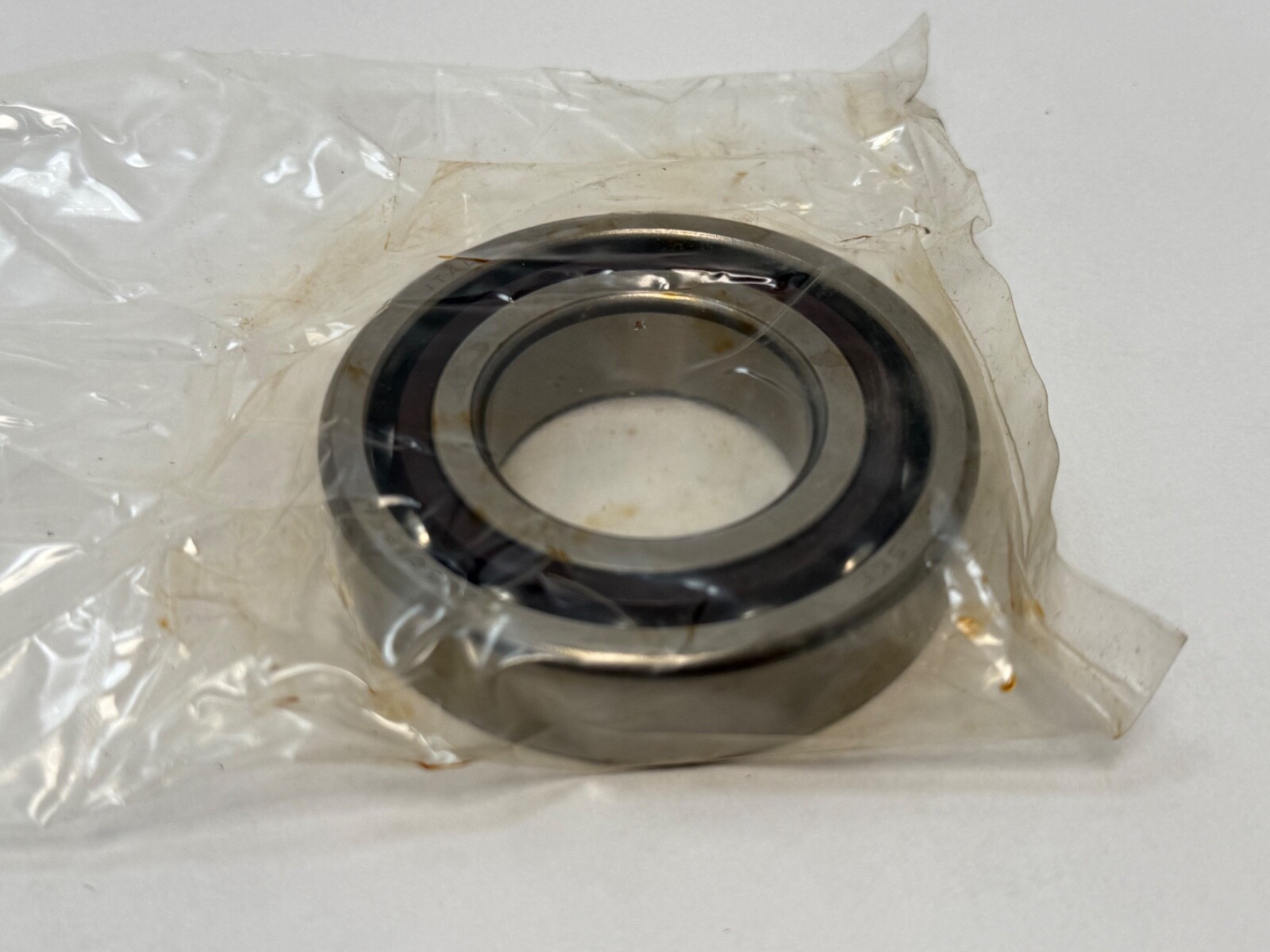

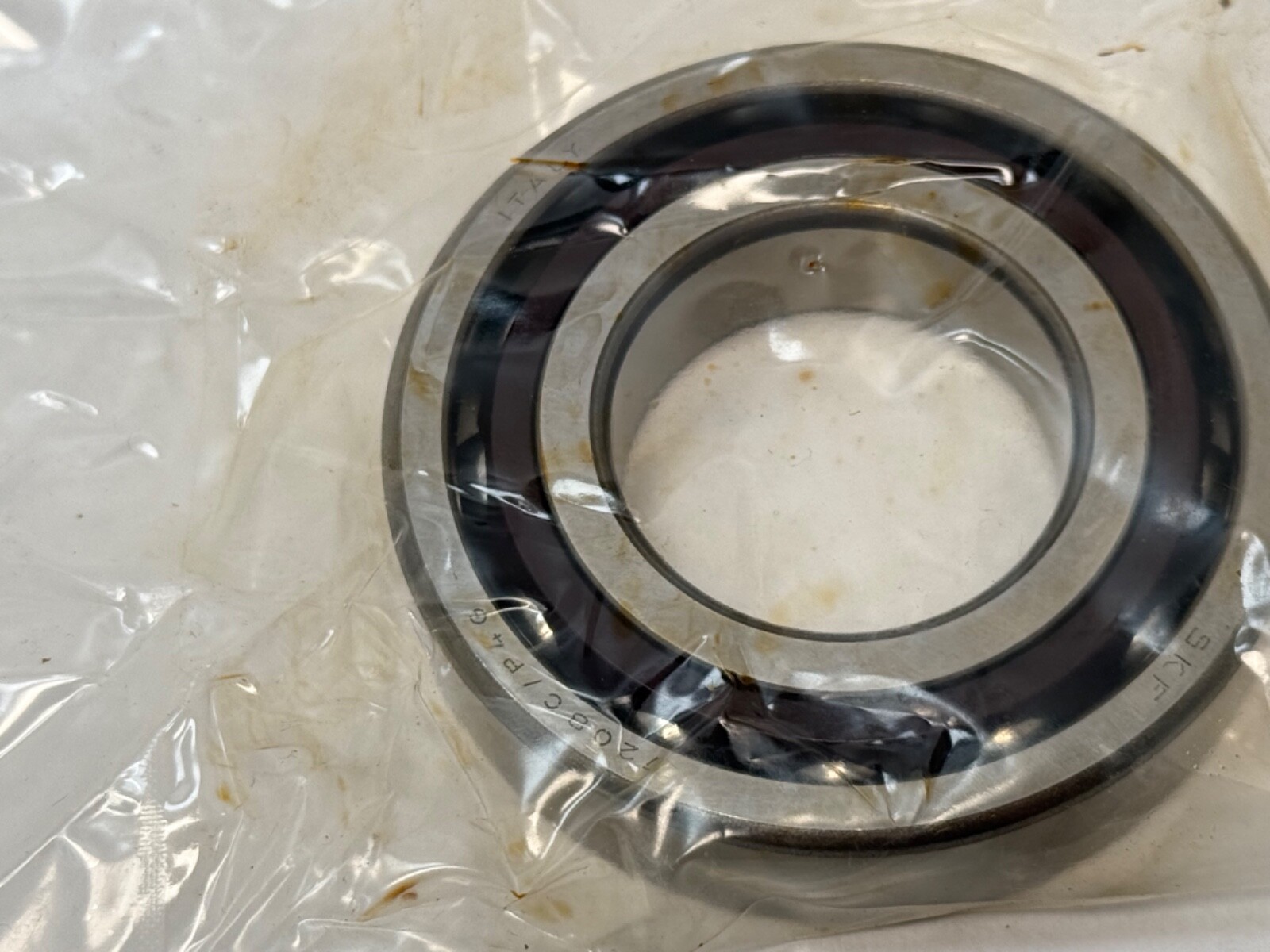

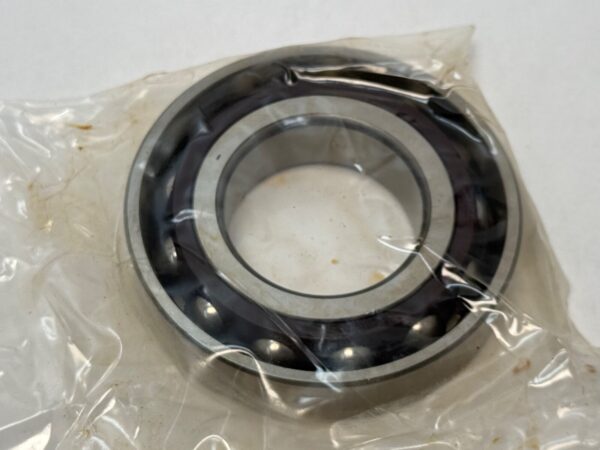

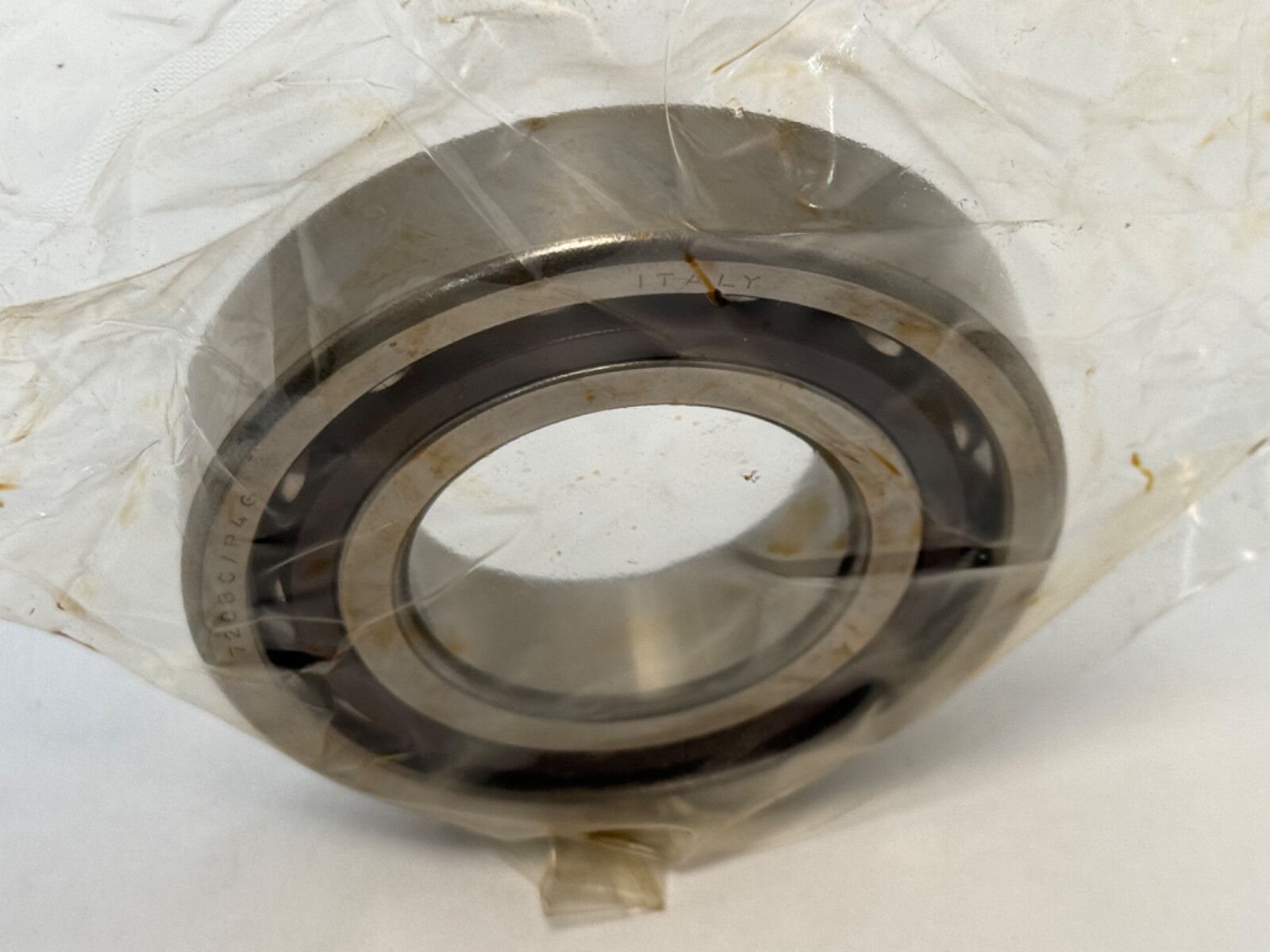

Name: Angular Contact Ball Bearing - 40 mm ID, 80 mm OD, 18 mm Width, Open, 15° Contact Angle, Universal Matching.
Brand: SKF
SKU: B-AB3B2#5HRFIK
Price: 86.9 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	SKF
MPN	7208-CP4G
Model	7208 C P4G 2MM208WI
Bearing Type	Angular Contact Ball Bearing, Open
ID	40 mm
OD	80 mm
Width	18 mm

Specifications

Advertise	1
Condition	New
Material	Bearing Steel
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	32.5 kN
Static Load Rating	22.4 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Balls
Max Temp	120°C
Item Weight	0.81 lbs
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Contact Angle	15°
Mounting Arrangement	Universal
Running Accuracy	P4
Running Accuracy Radial And Axial Runout	P4

Cross-References

Cross Reference 1	Fafnir 2MM208WI
Cross Reference 2	FAG B7208-C-T-P4S
