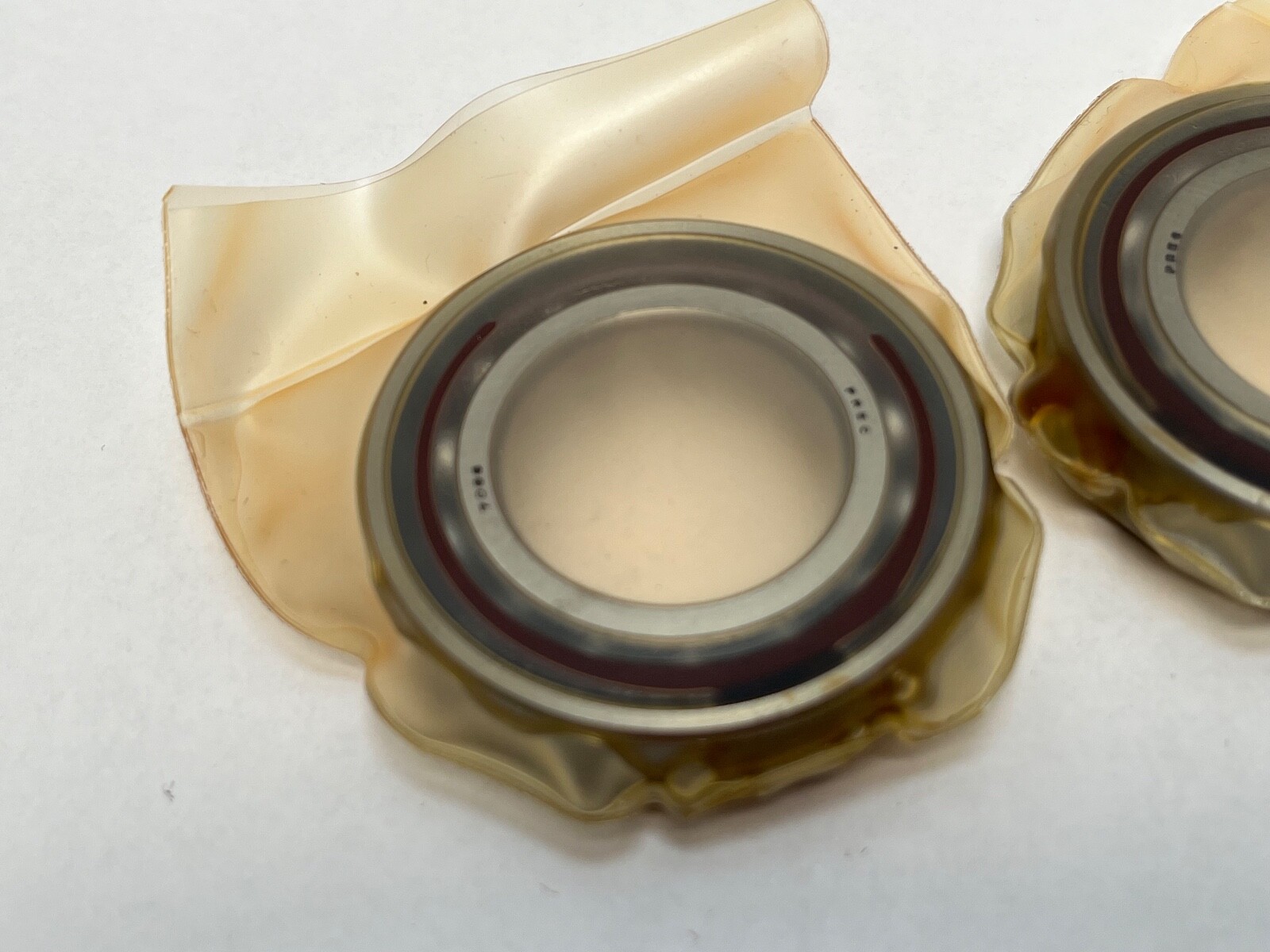

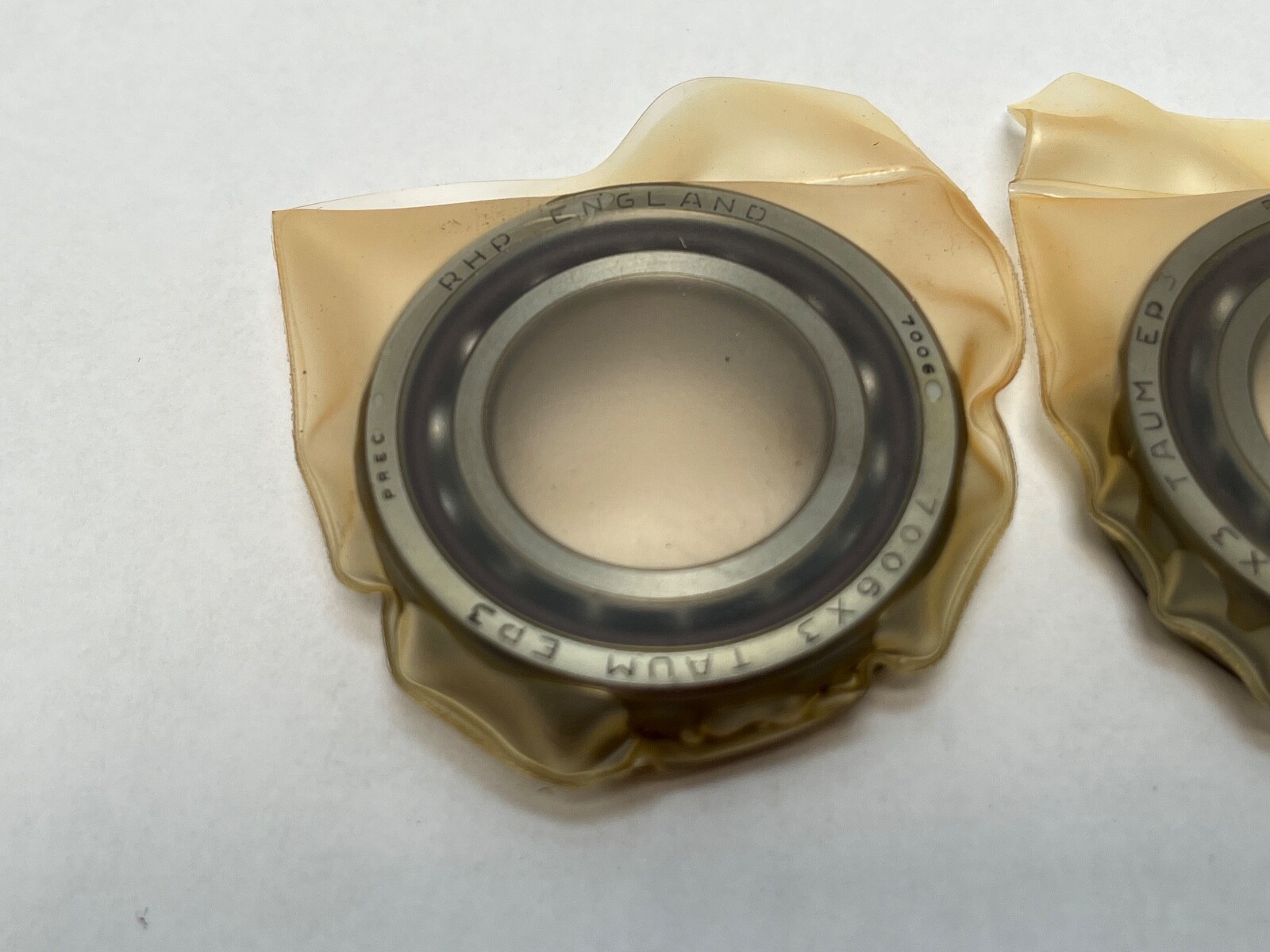

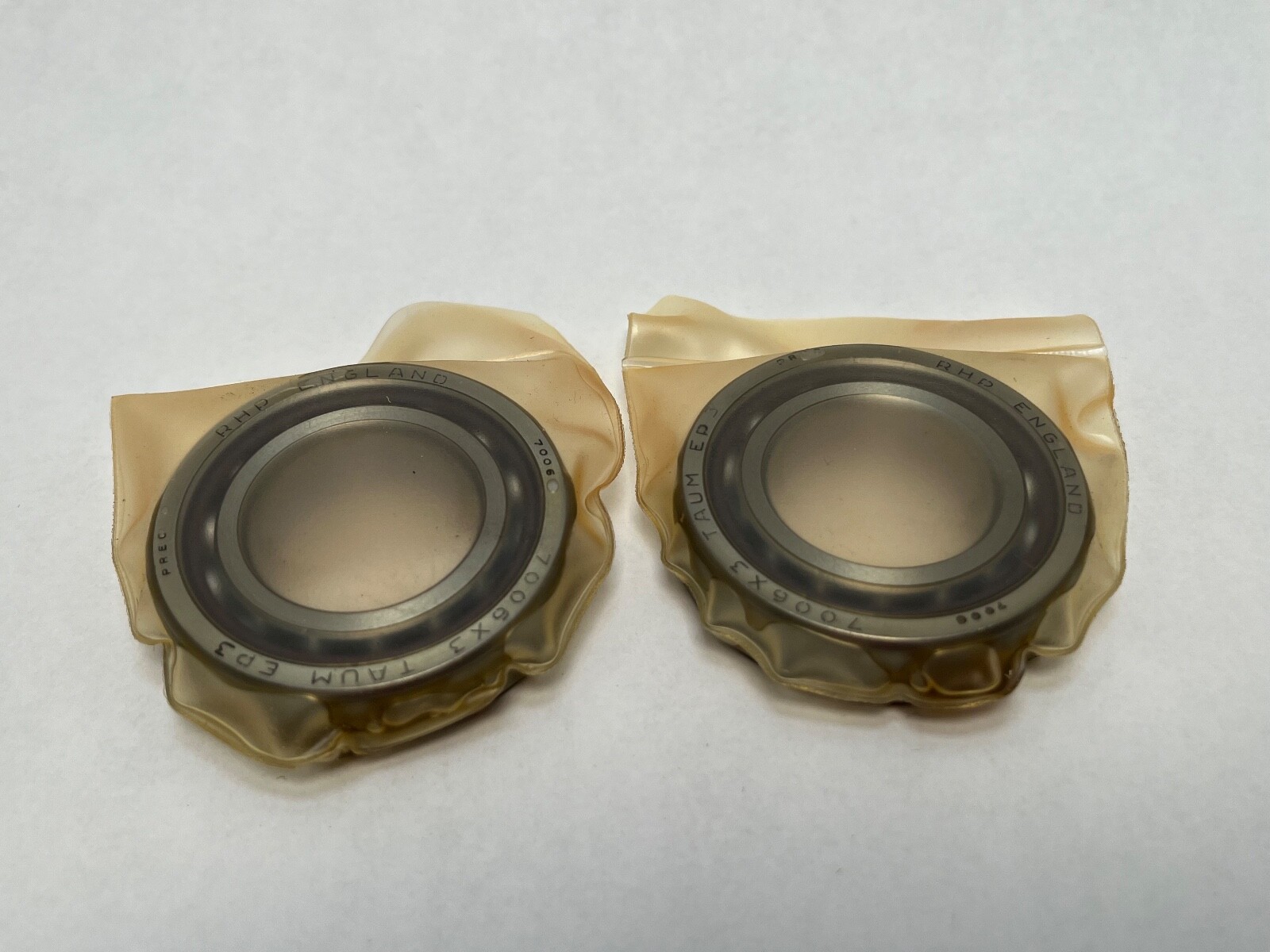

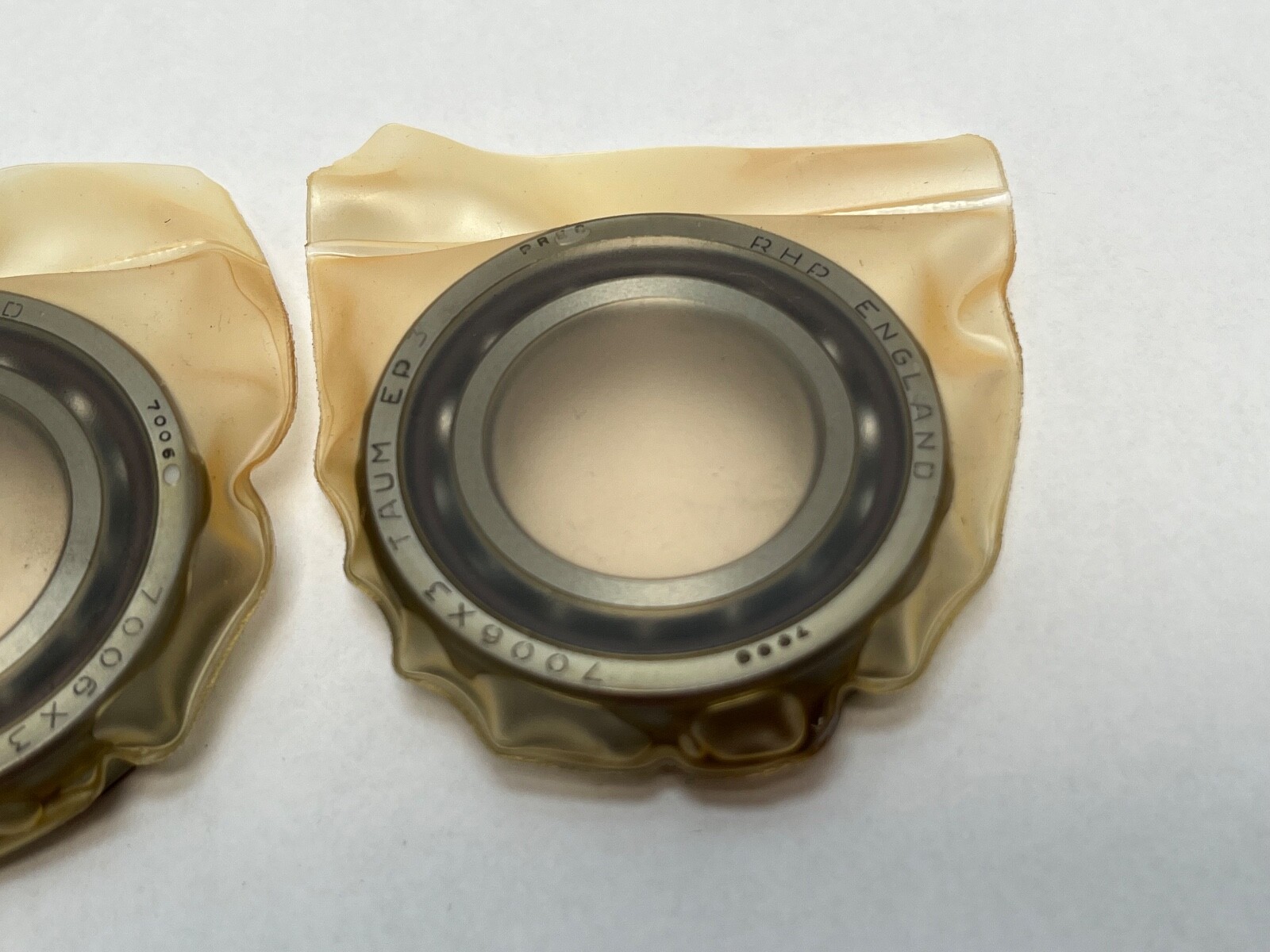

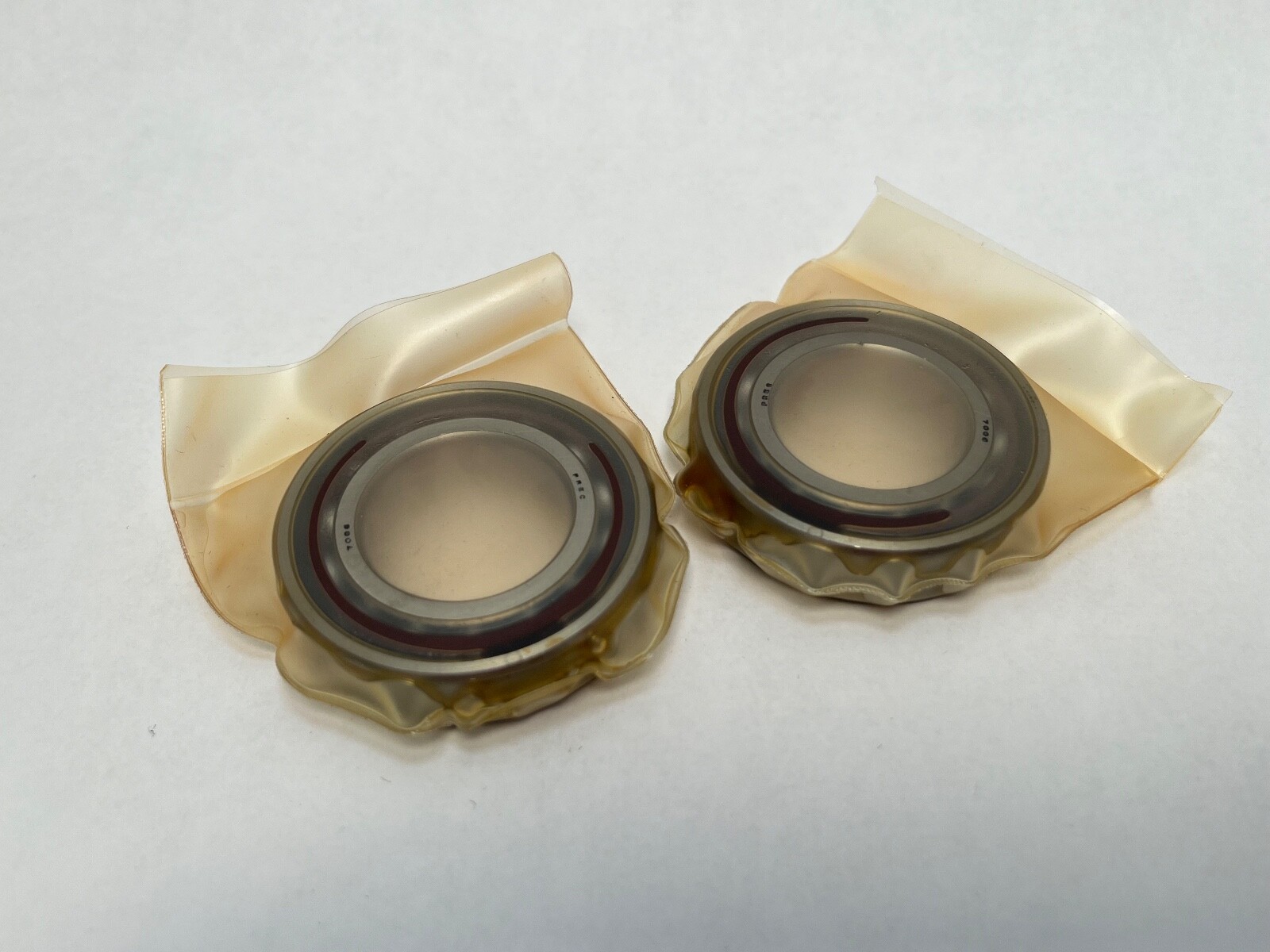

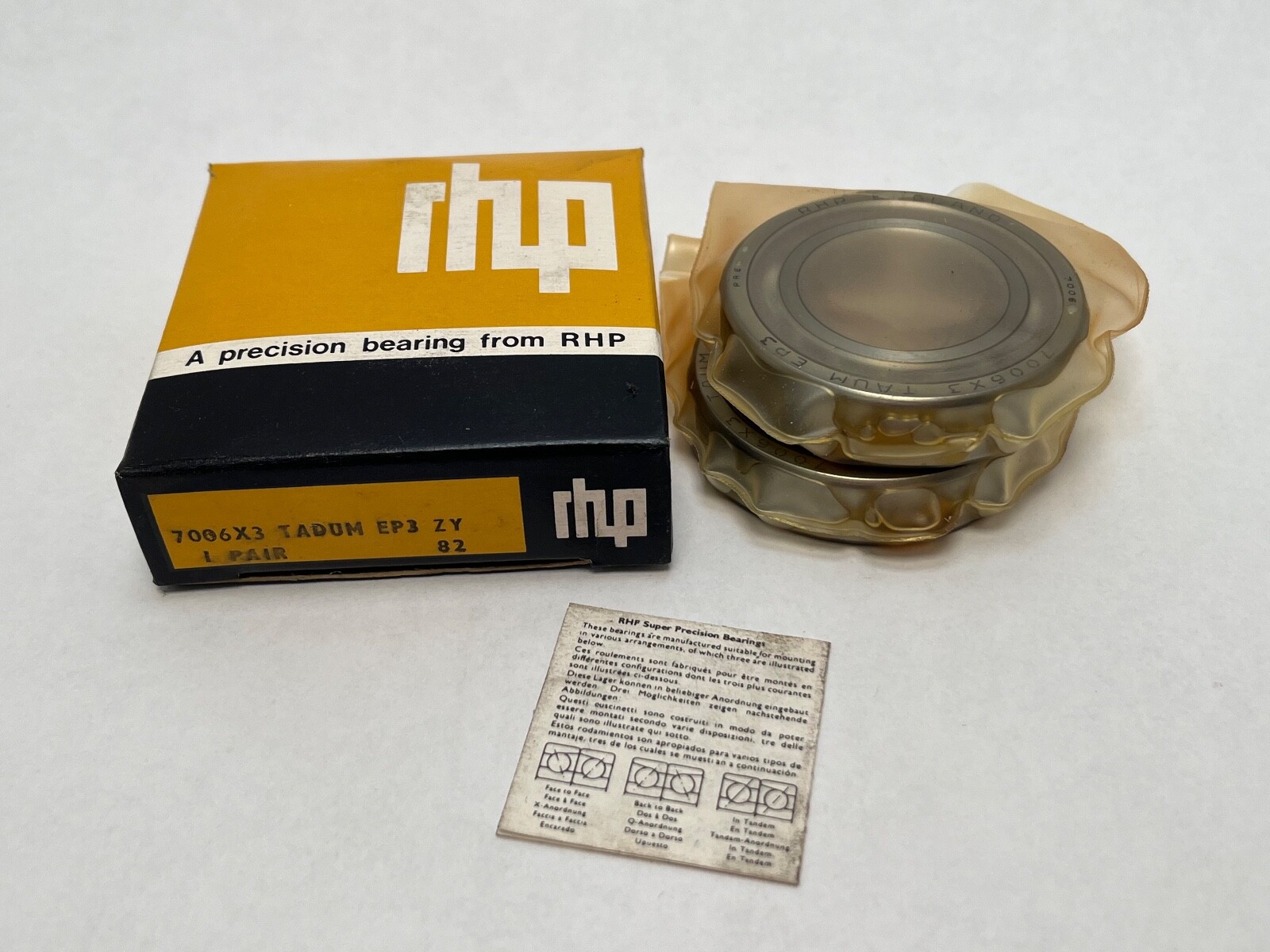

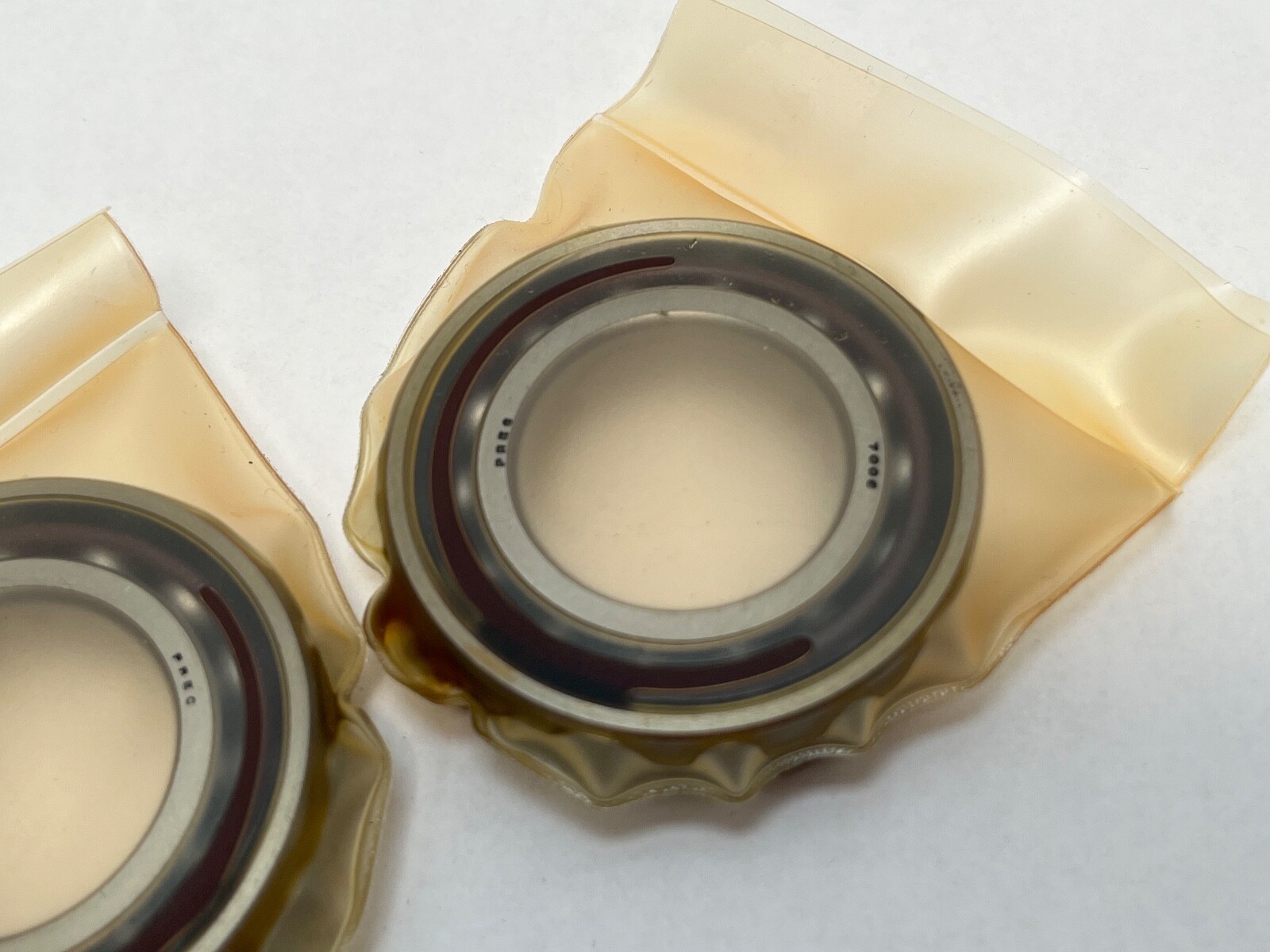

Name: Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 25°, Medium preload.
Brand: RHP
SKU: B-AO1B2#BZWARC
Price: 134.24 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	RHP
MPN	7006ETDUMP6
Model	B7006X3TADUMEP3 / 7006 E T DUM P6 / 3M9106WI CR DUM
Bearing Type	Angular Contact Ball Bearing, Open
ID	30 mm
OD	55 mm
Width	13 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7000
Condition	New
Preload	Medium Preload
Materials Sourced From	United Kingdom
Cage Type	Outer Ring Guided
Dynamic Load Rating	15.6 kN / 3507 lbf
Static Load Rating	10.4 kN / 2338 lbf
Precision Rating	ABEC 3 / P6
Rolling Elements	Ball
Max Temp	120°C
Item Weight	0.28 lbs
Cage Material	Phenolic Resin
Limiting Speed	26000 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	25°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7006 ACD/P6ADGB
Cross Reference 2	FAG B7006-E-T-P6-DUM
Cross Reference 3	NSK 7006A5TYDUMP6
