Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
3 in stock
List Price
$116.42
3 in stock
3 in stock
Get Estimated Arrival Date

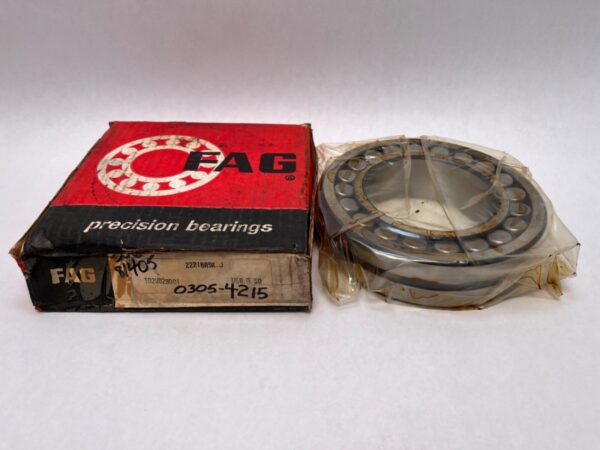

The product is a FAG 22218ASKJW33 Spherical Roller Bearing with a precision rating of ABEC 1/P0. It has a dynamic load rating of 335 kN and a static load rating of 390 kN. The bearing is made of bearing steel material, has a bore diameter of 90 mm, an outside diameter of 160 mm, and a width of 40 mm. It is designed for high temperatures up to 200°C and can withstand a limiting speed of 4300 rpm. The cage type is machined, and it is lubricated with oil, making it suitable for industrial automation and motion control applications.
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ASKJW33 |
| Model | 22218 A S K J W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Machined |
| Dynamic Load Rating | 335 kN / 75311 lbf |
| Static Load Rating | 390 kN / 87675 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 22200 |
| Rolling Elements | Ball |
| Max Temp | 200°C |
| Condition | New |
| Item Weight | 7.5 lbs |
| Cage Material | Brass |
| Limiting Speed | 4300 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Lubricant | Oil |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 22218 EK |
|---|---|
| Cross Reference 2 | NSK 22218EAKE4 |
