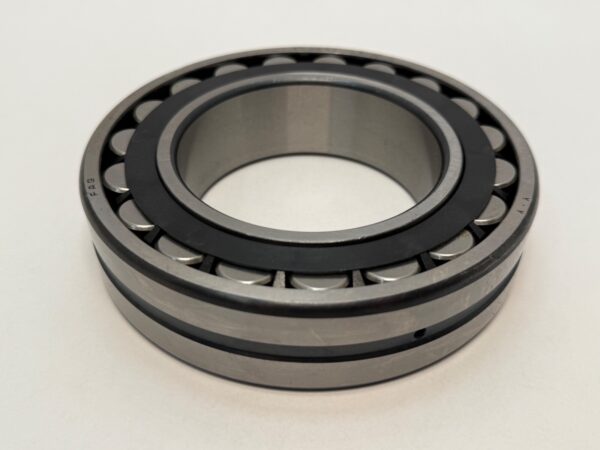

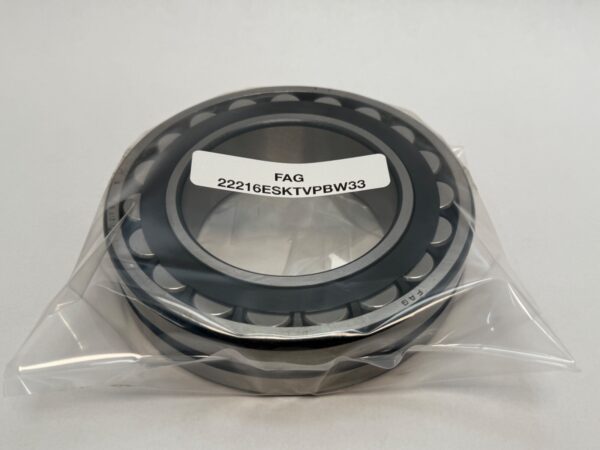

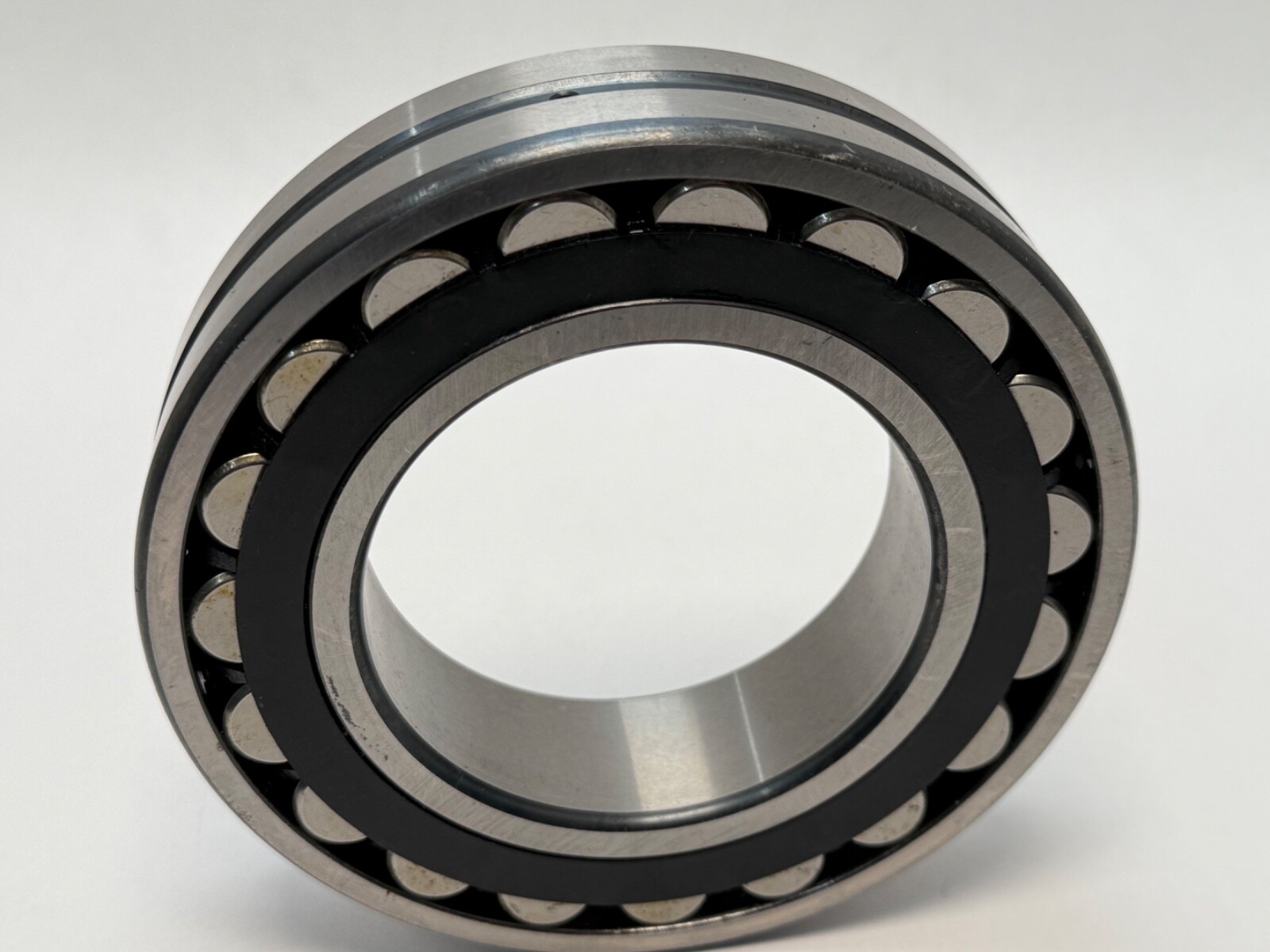

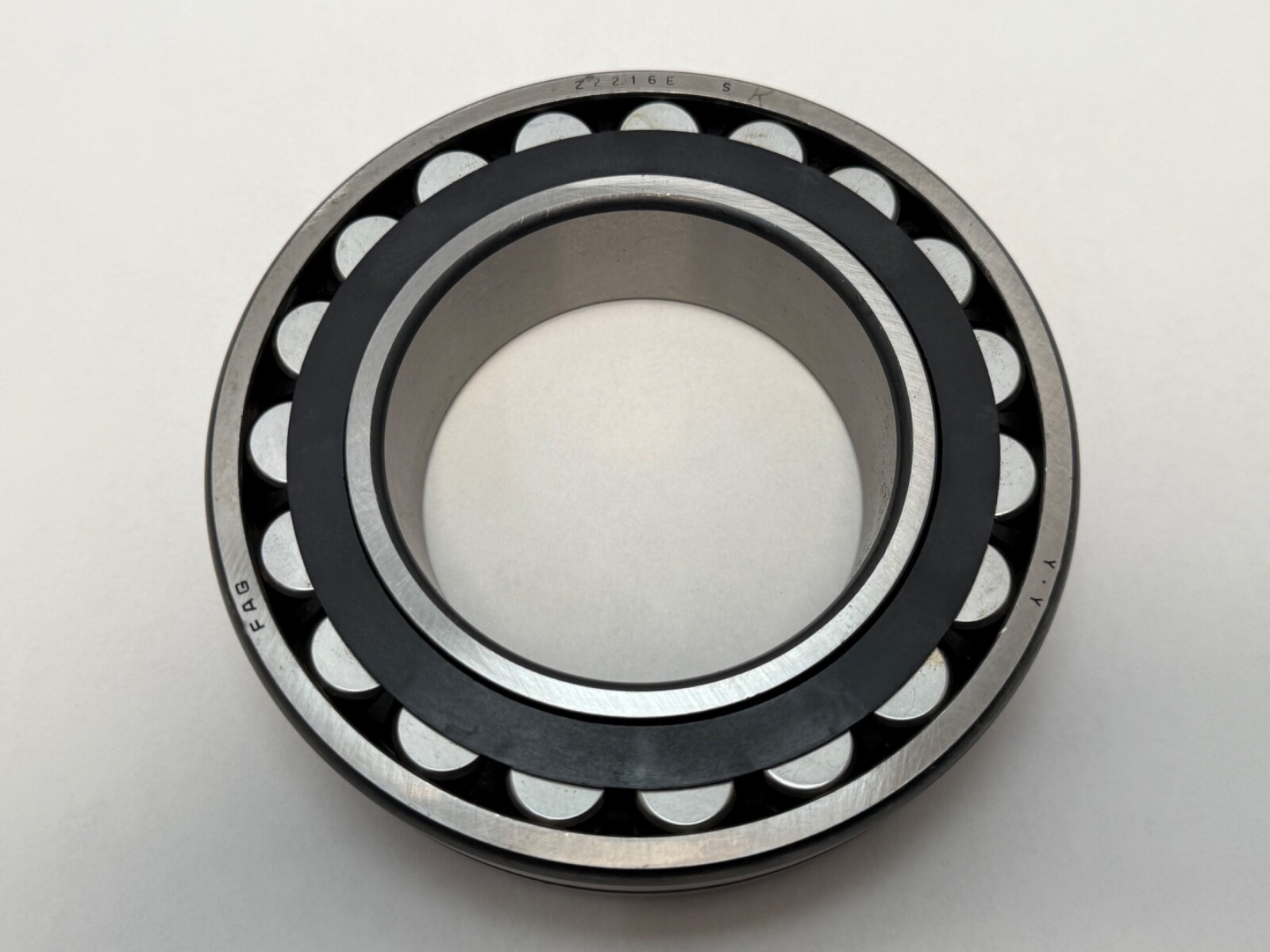

Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
1 in stock
List Price
$49.71
1 in stock
1 in stock
Get Estimated Arrival Date

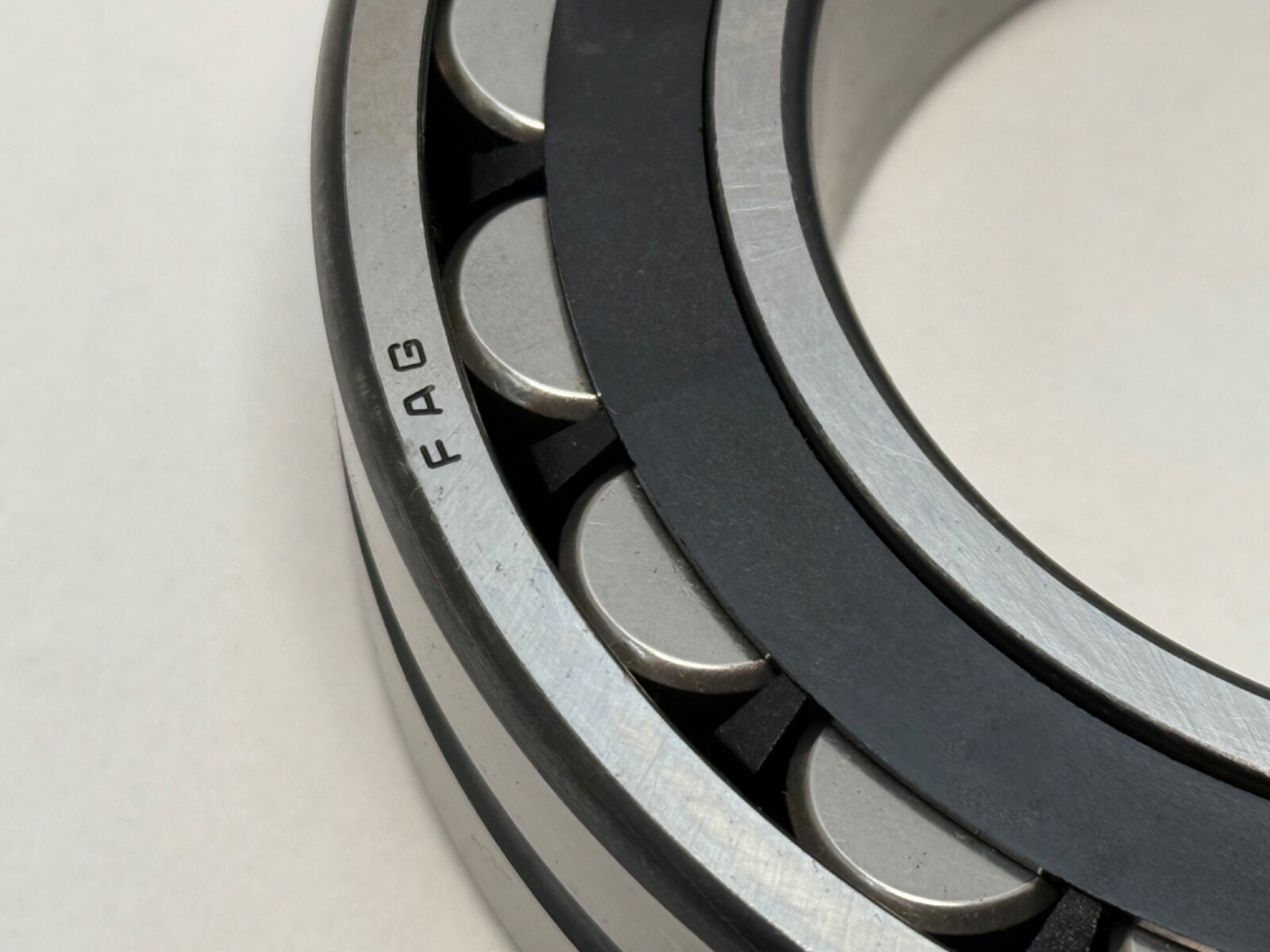

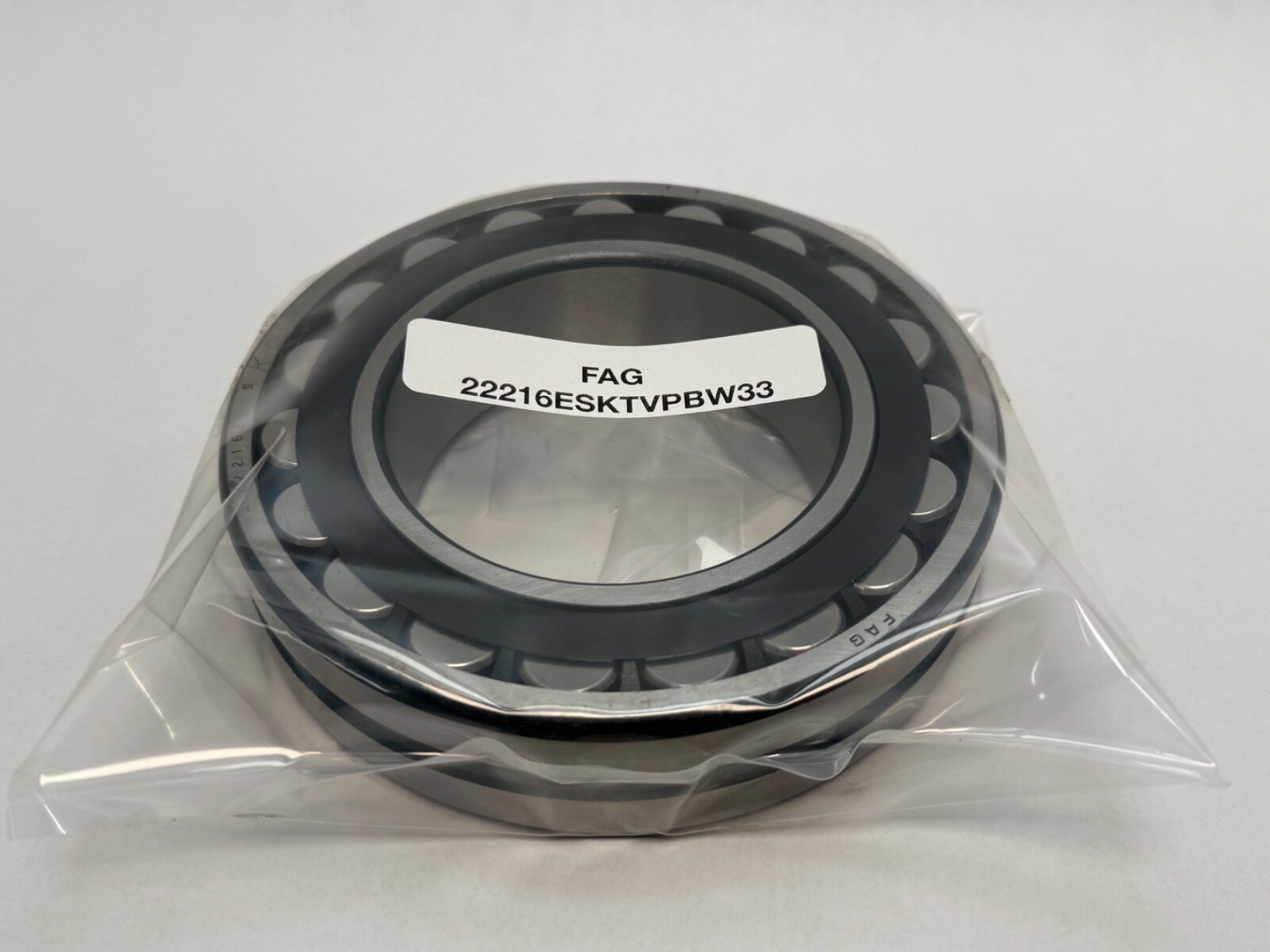

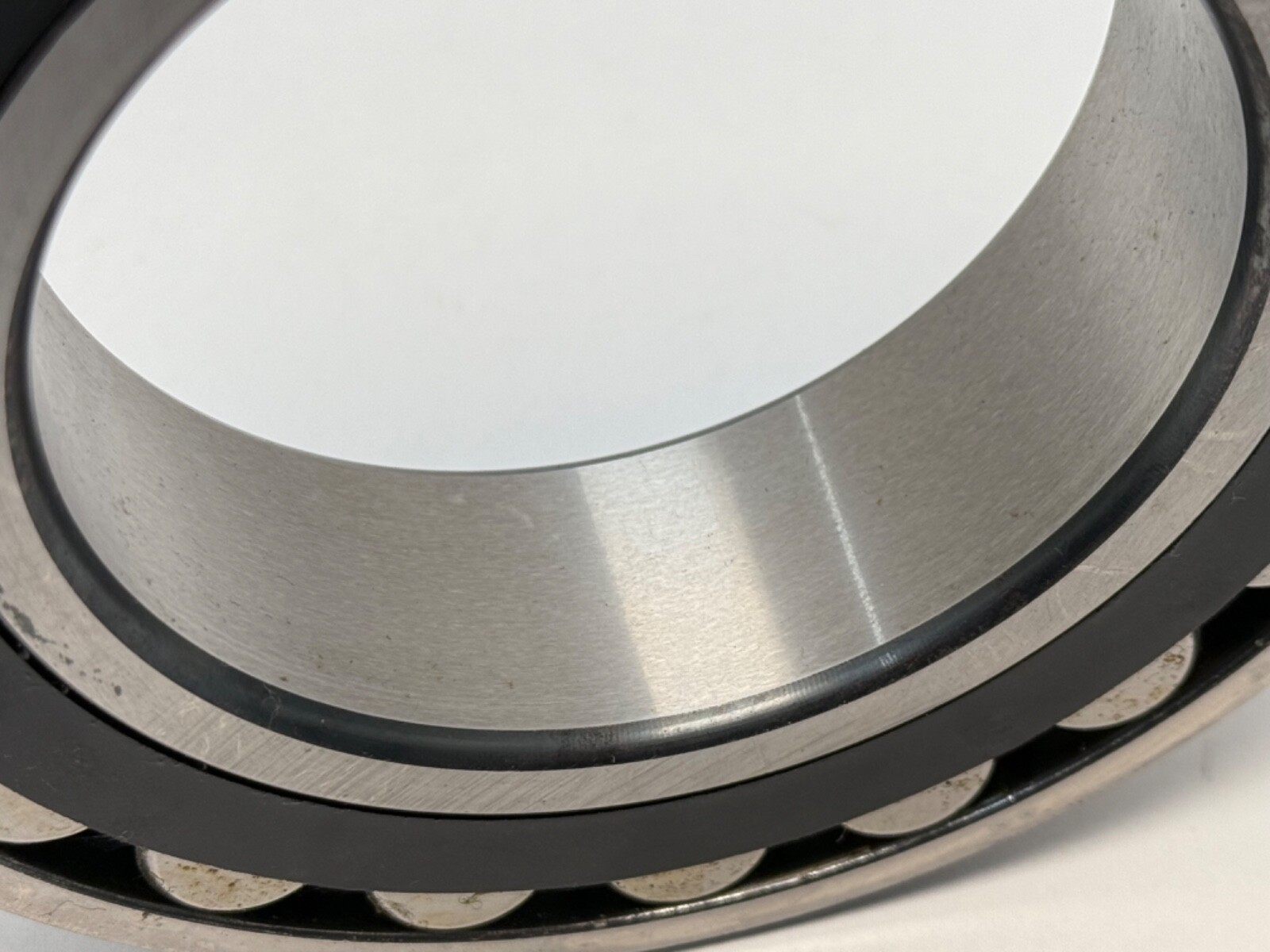

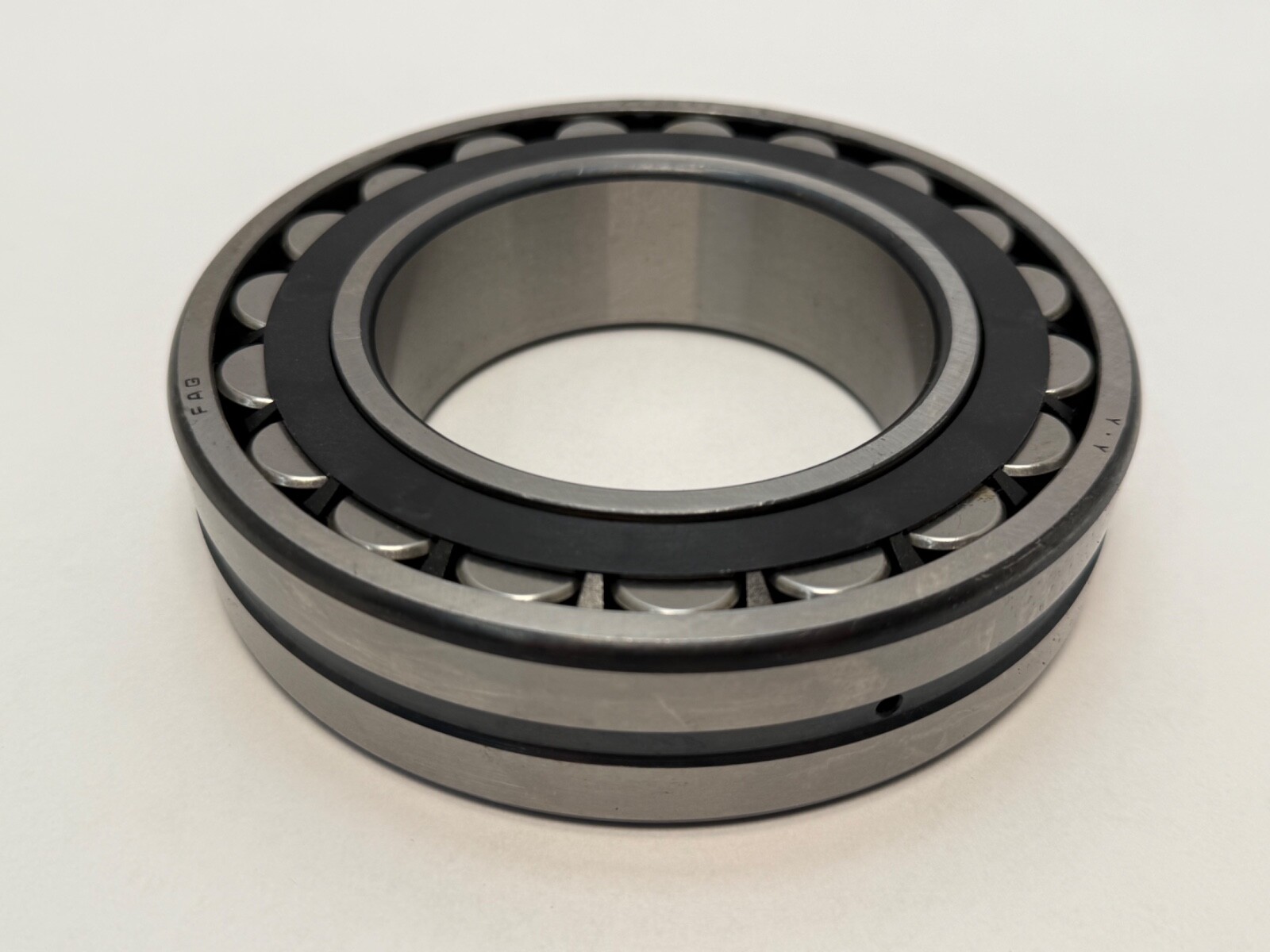

| MFR / Brand | FAG |
|---|---|
| MPN | 22216ESKTVPBW33 |

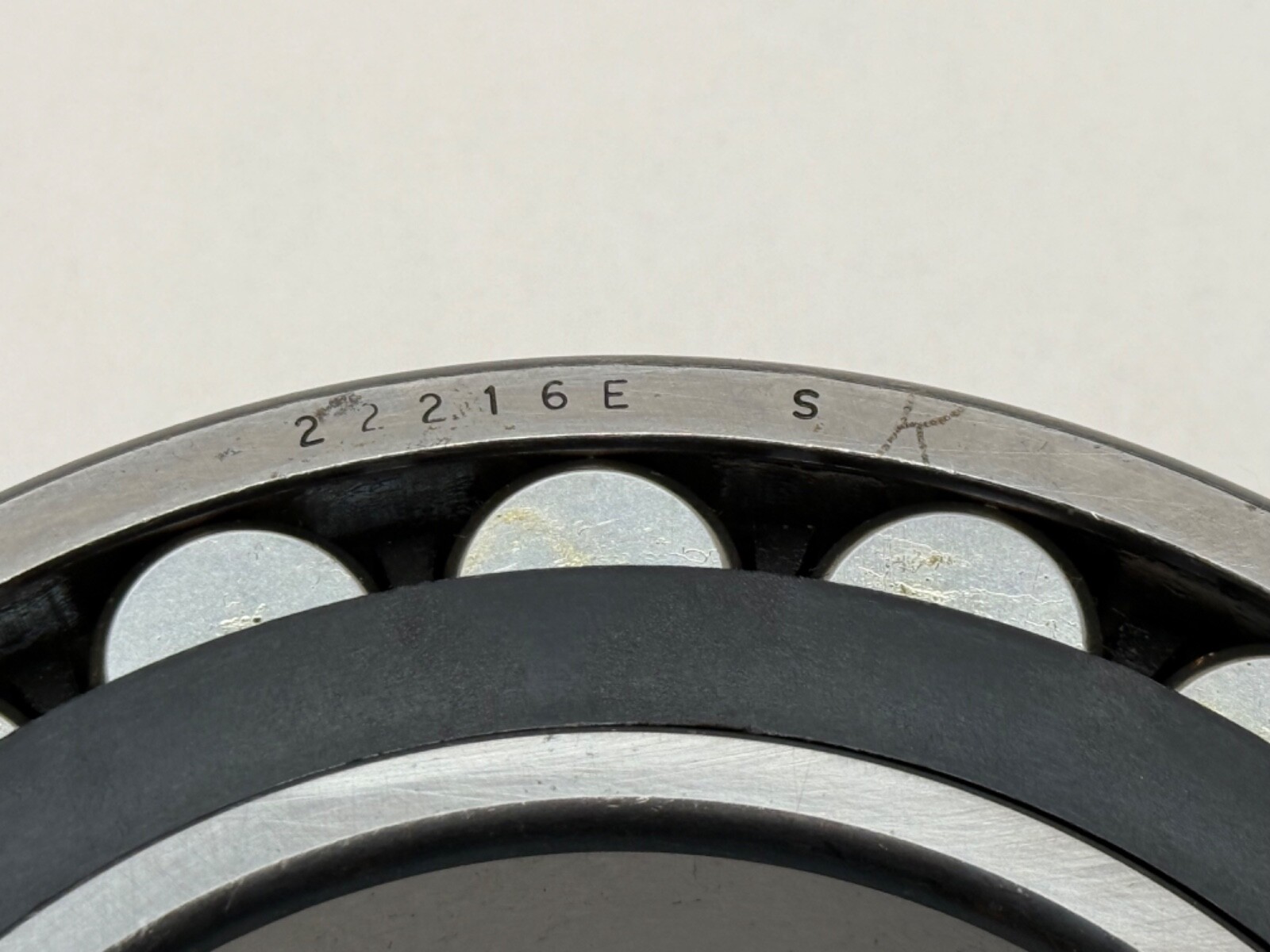

| Model | 22216 ES K TVPB W33 / 22216ESK.TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80mm |
| OD | 140mm |
| Width | 33mm |
| Min Temp | -30°C |
|---|---|
| Cage Type | TVPB - Polyamide |
| Dynamic Load Rating | 232 kN / 52100 lbf |
| Static Load Rating | 260 kN / 58400 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 22200 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 120°C |
| Condition | New – Open box |
| Item Weight | 4.63 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 5000 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |

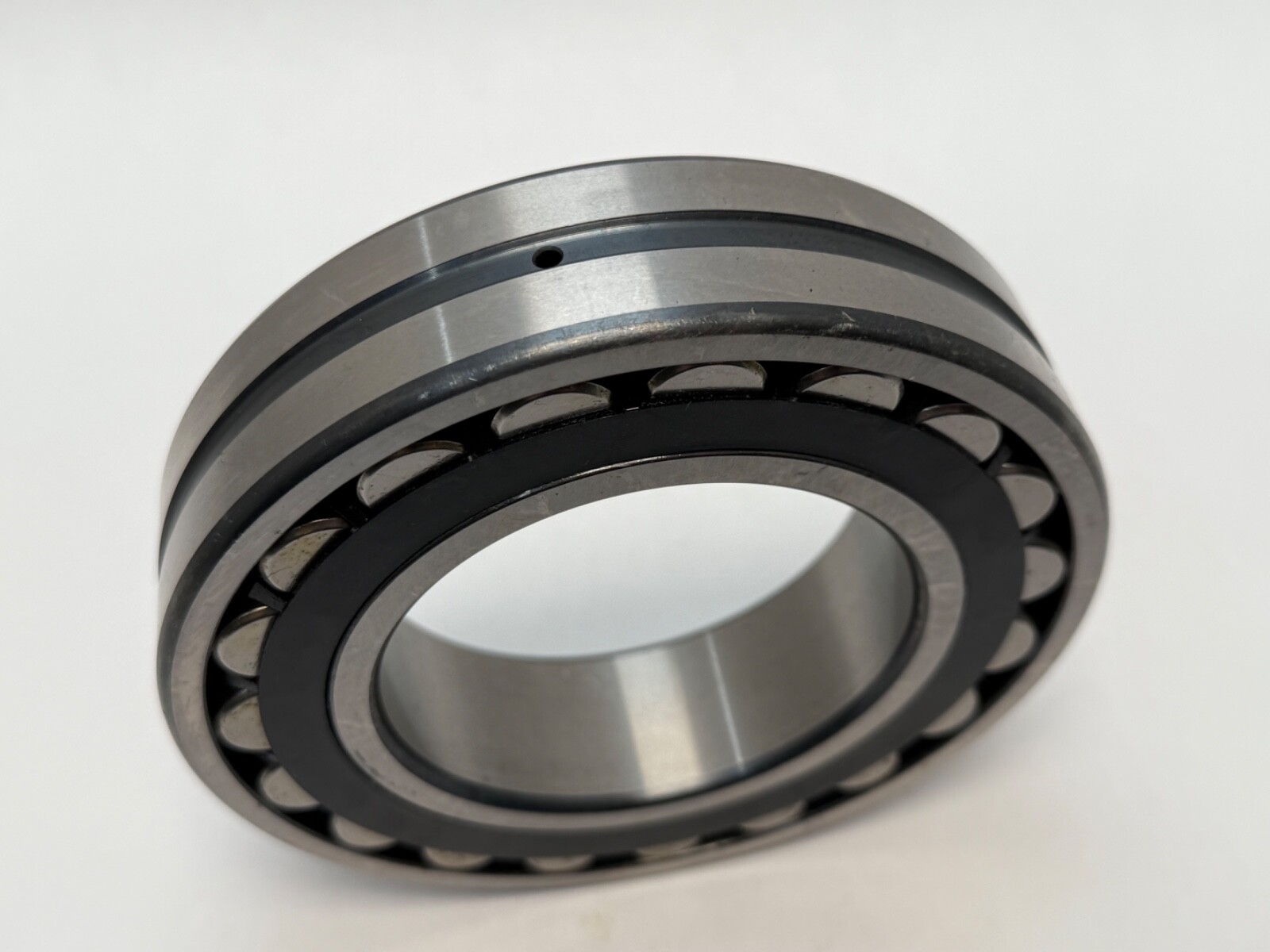

| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00 |

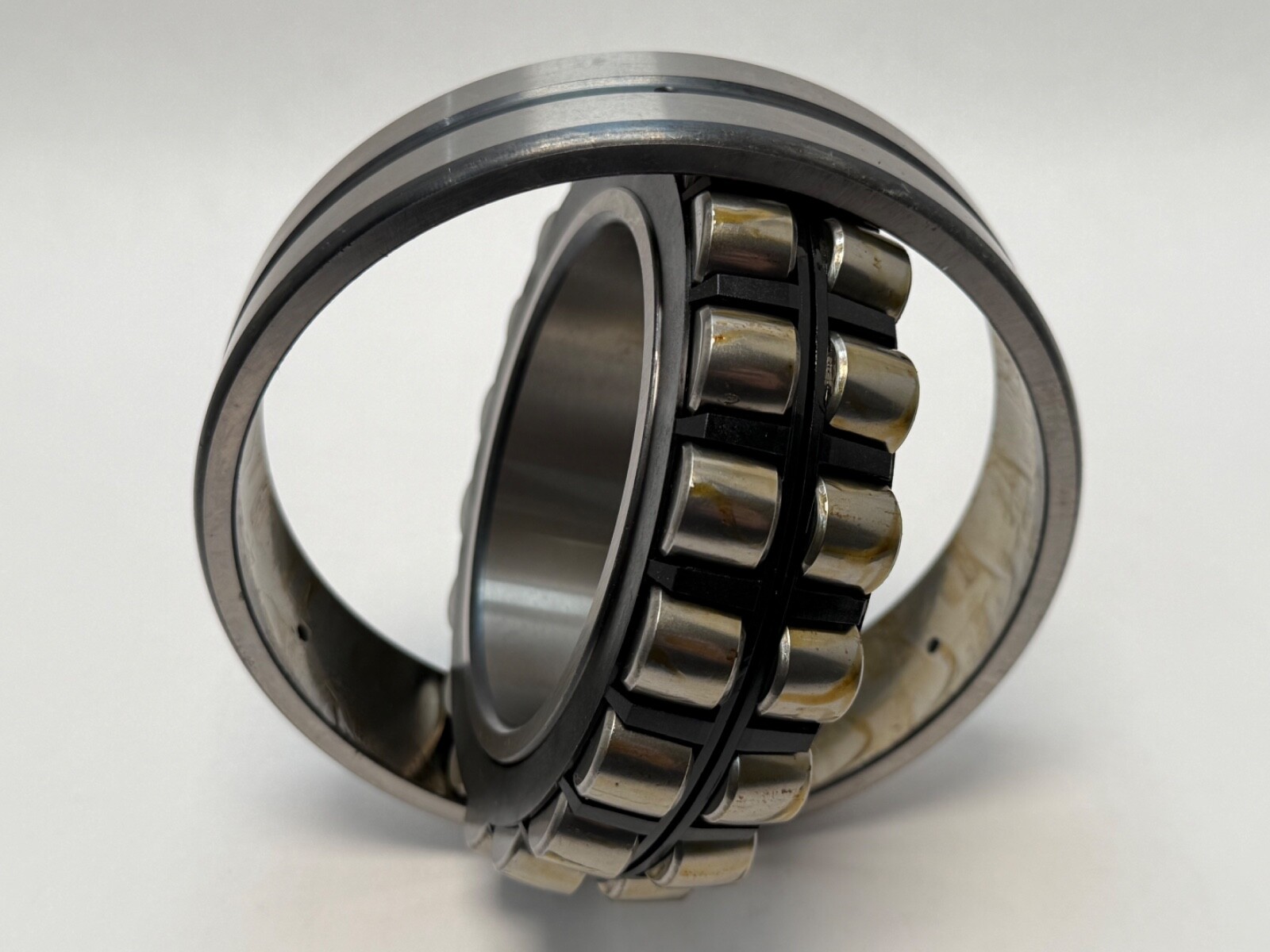

| Maximum Permissible Misalignment | 2° |
| Bore | Taper Bore |
| Material | Bearing Steel |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 22216 EK TN9 |
|---|---|
| Cross Reference 2 | NTN 22216EAKD1 |
| Cross Reference 3 | NSK 22216EAKE4 |
