Availability:
2 in stock
Single-row barrel roller bearing, 100 mm bore x 215 mm OD x 47 mm wide. 1:12 tapered bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$472.63
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20320KMB |
| Model | 20320 K MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 100 mm |
| OD | 215 mm |
| Width | 47 mm |
| Material | Chrome Steel |
|---|---|
| Series | 20300 |
| Condition | New |
| Base Number | 20320 |
| Bore Shaft Size | 100 mm (3.9370 in) |
| Mpn Variants | 20320-K-MB, 20320K.MB, 20320KMB, 20320K |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 475 kN / 106784 lbf |
| Static Load Rating | 520 kN / 116900 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Rollers |
| Max Temp | 200 °C |
| Item Weight | 18.5 lbs |
| Cage Material | Machined brass |
| Limiting Speed | 3600 rpm |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 20320 K |
|---|---|
| Cross Reference 2 | NTN 20320K |
| Cross Reference 3 | NSK 20320K |

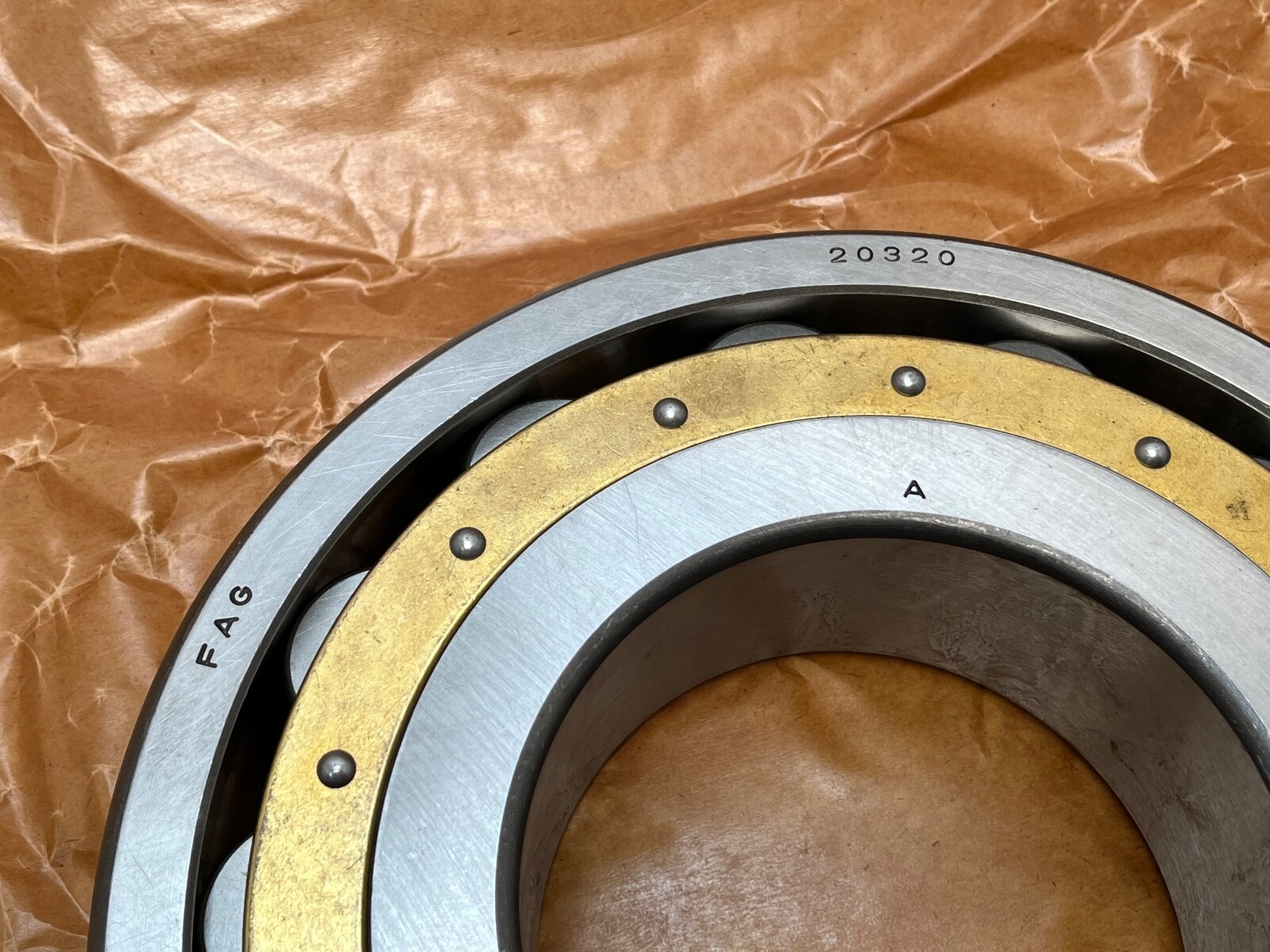

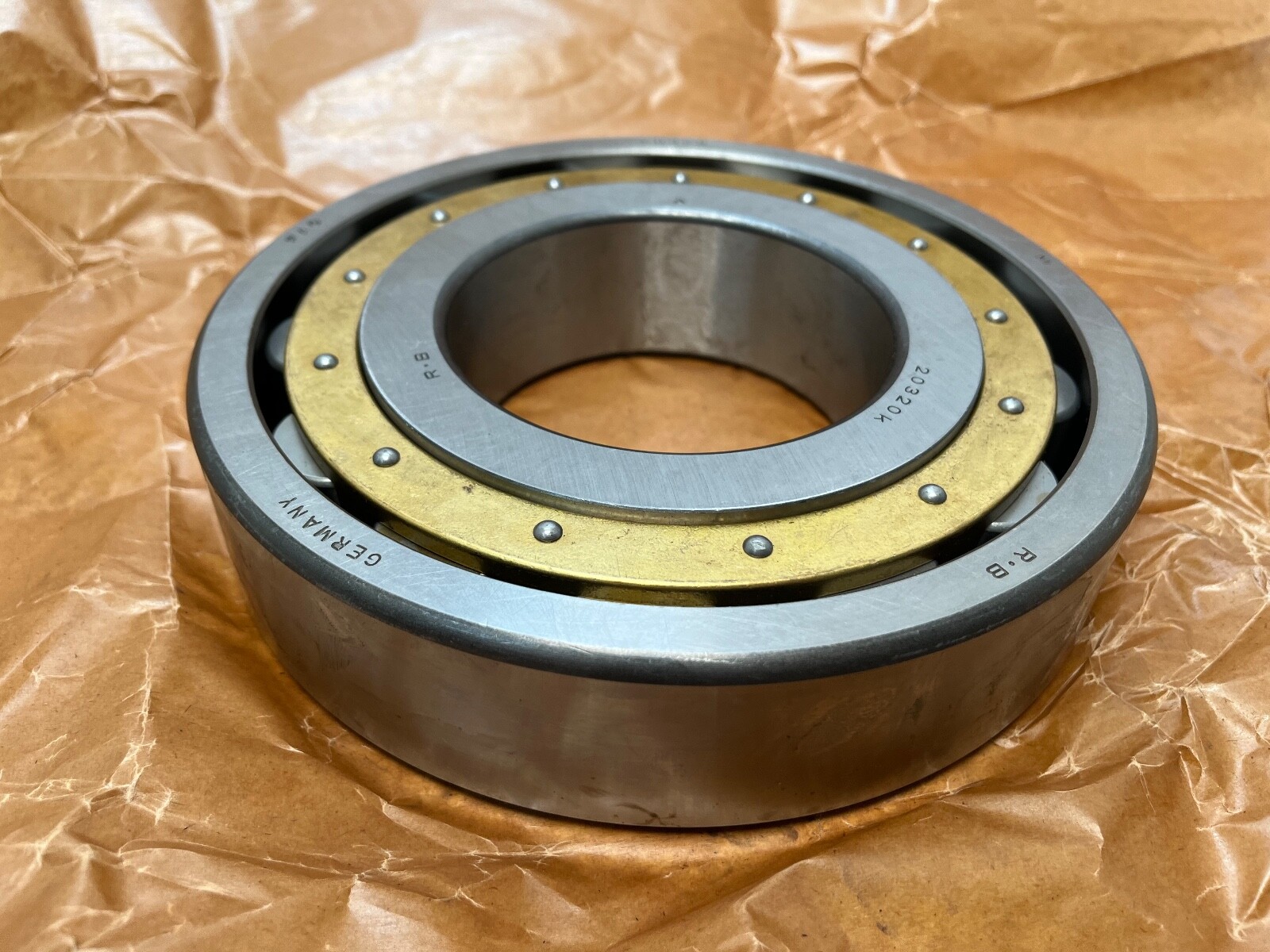

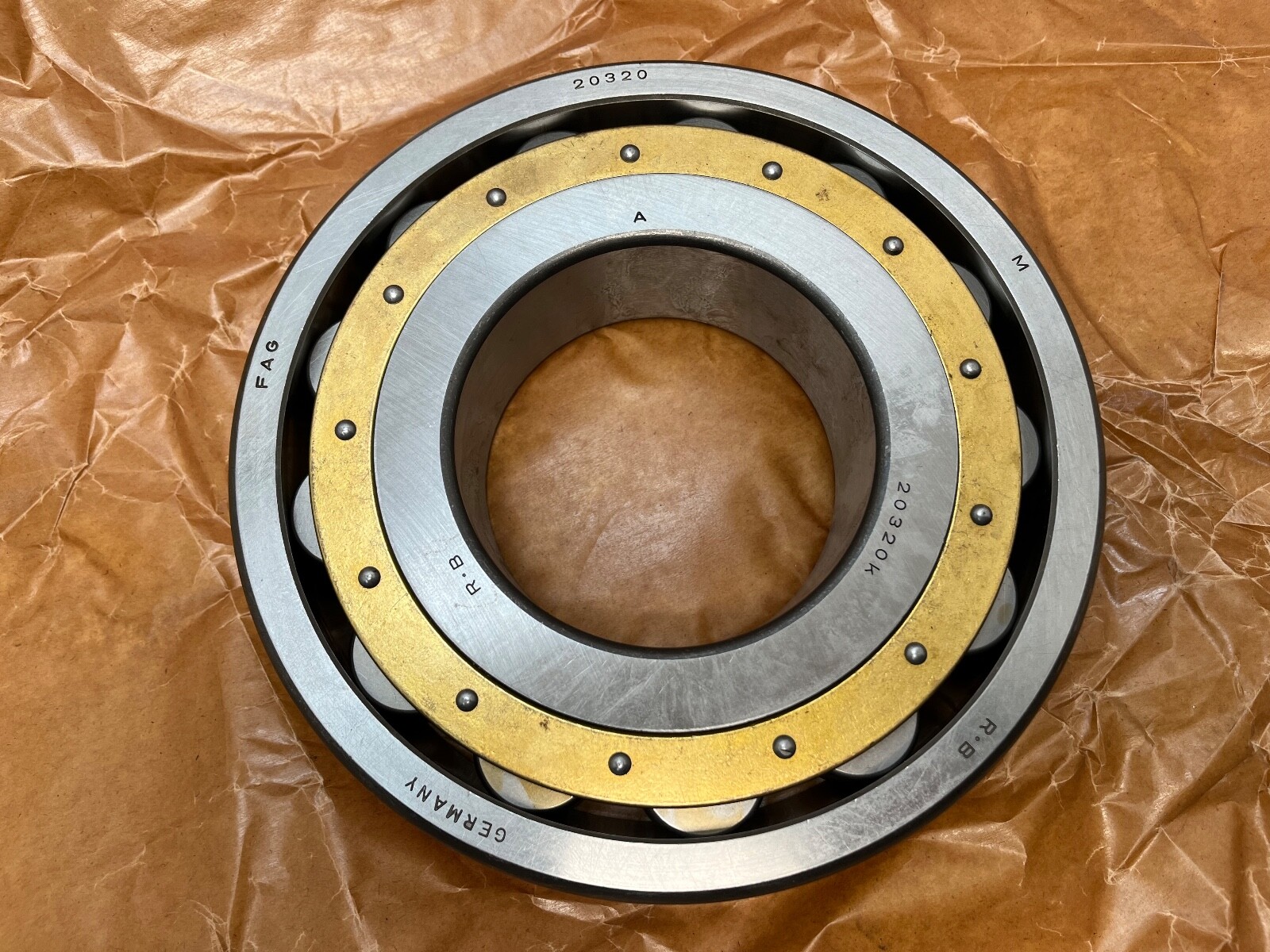

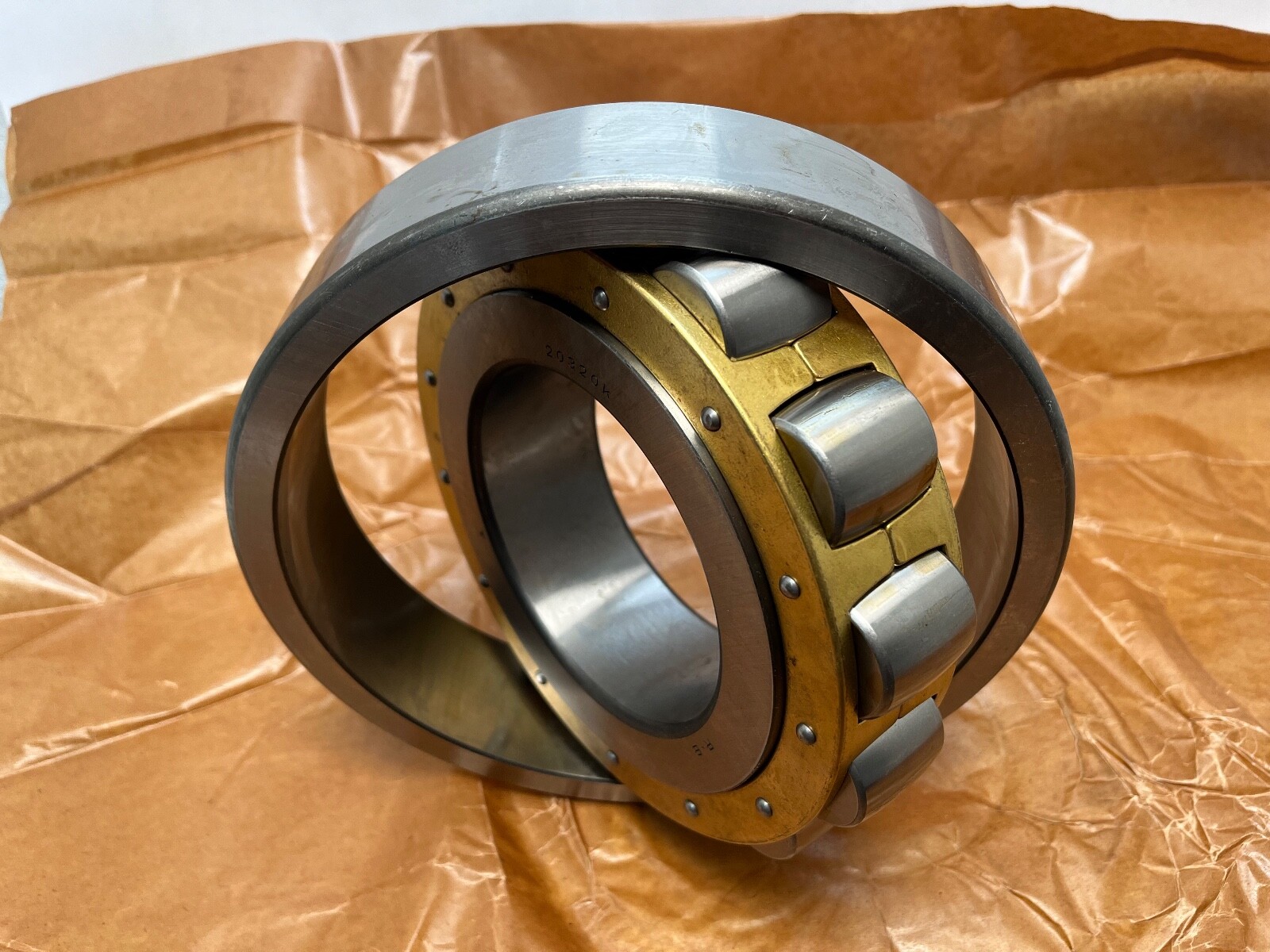

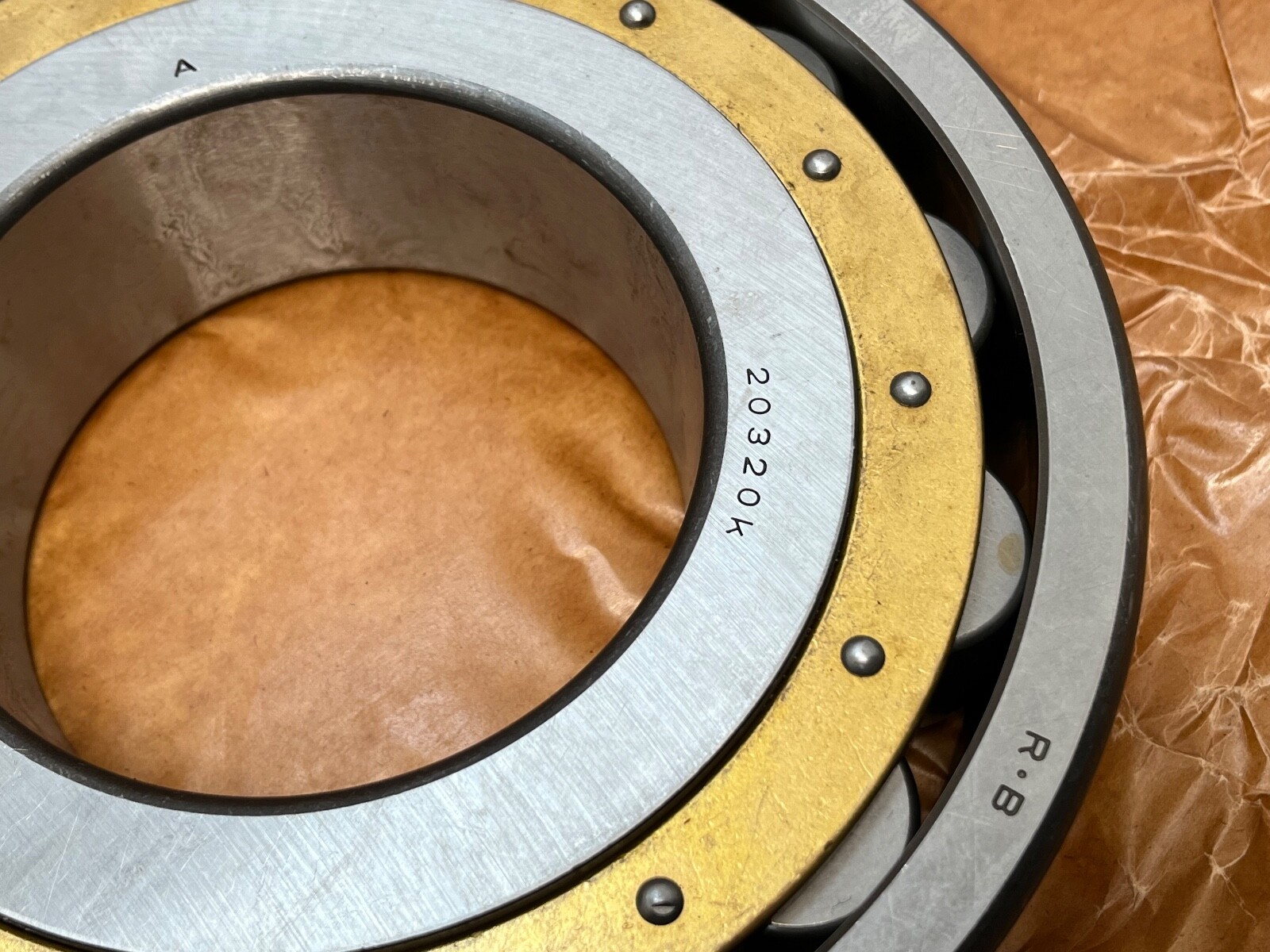

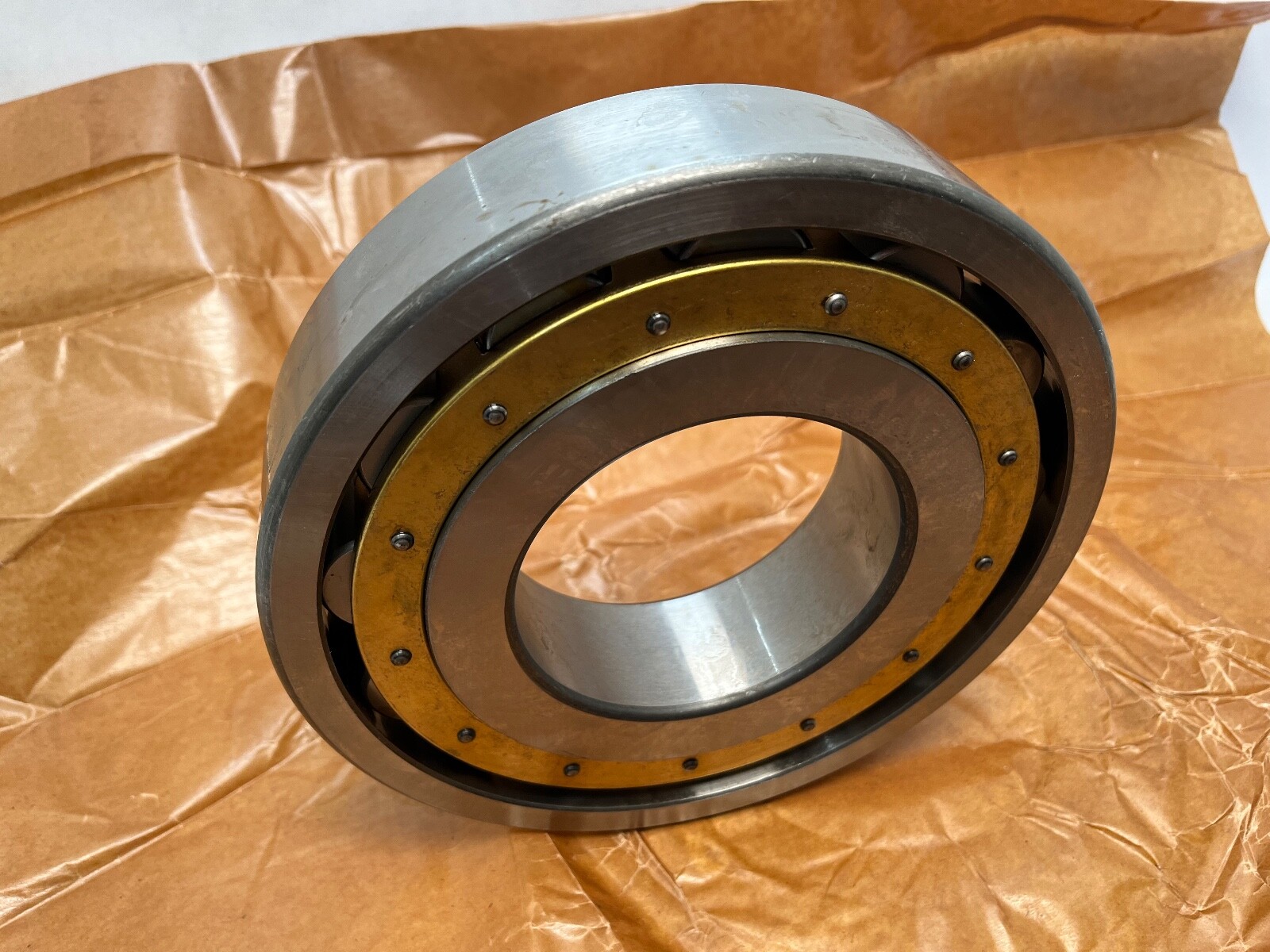

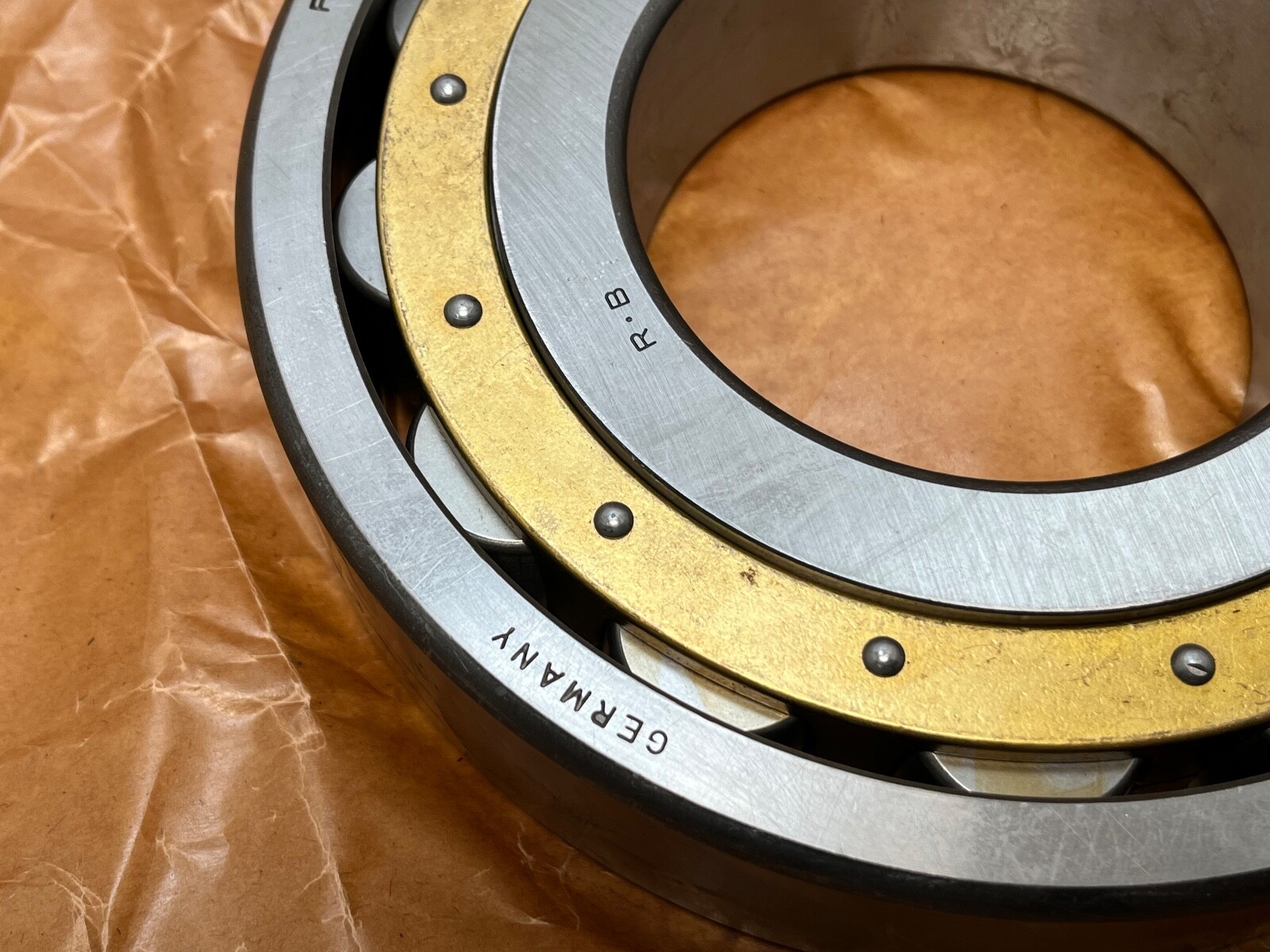

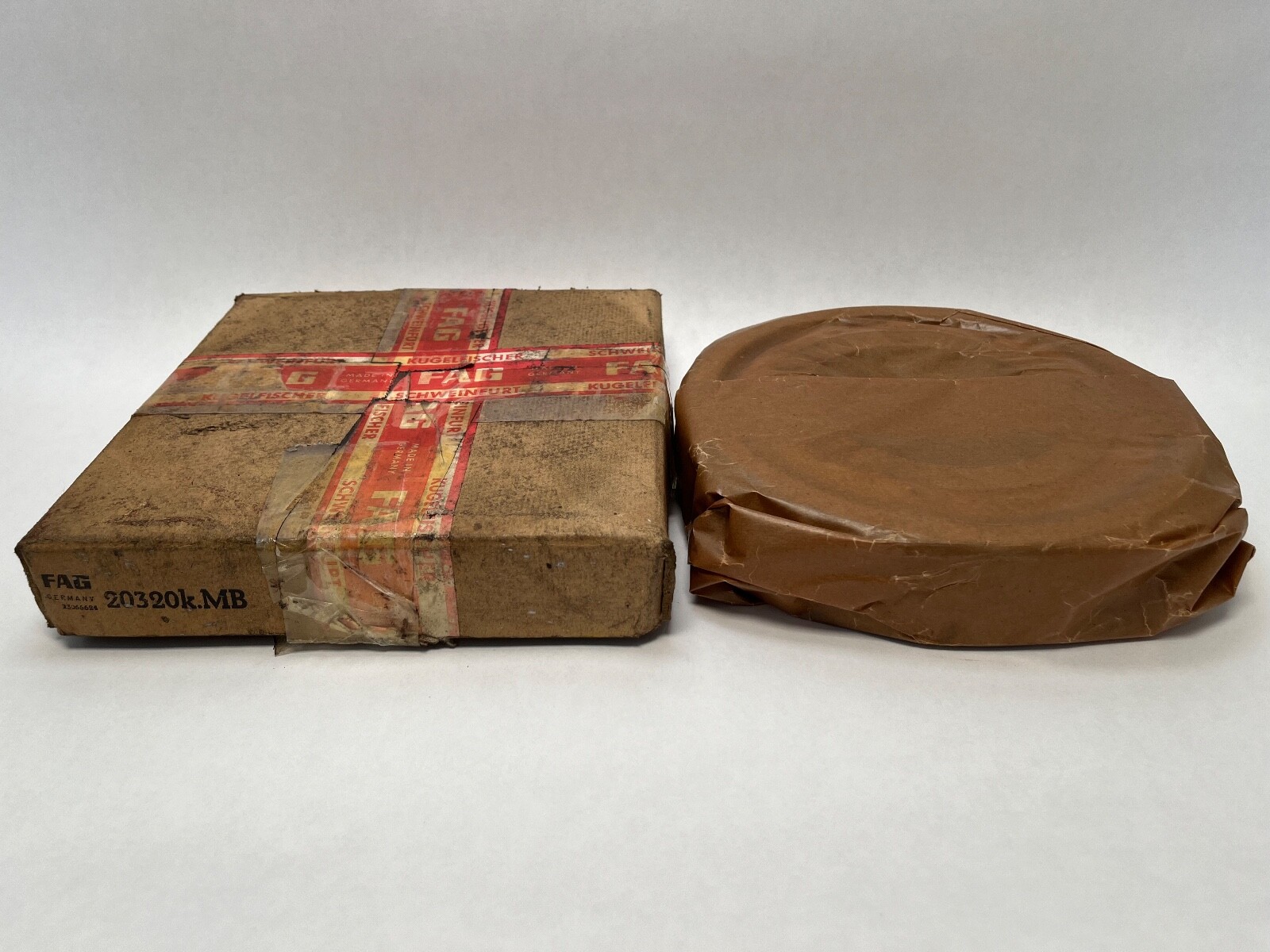

FAG 20320-K-MB, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 100 mm bore × 215 mm outside diameter × 47 mm width. Tapered bore, 1:12.
20 – barrel roller, single row3 – ISO dimension series, heavier section than the 202xx range on the same bore20 – bore code, 20 × 5 = 100 mm boreK – tapered bore, taper 1:12MB – machined brass cage, inner-ring guided
The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. The 203 section is wider and larger in outside diameter than a 20220 on the same 100 mm shaft, which buys longer rollers and higher radial capacity. The machined brass cage runs at higher speed and temperature than a pressed steel cage.
Bore: 100 mm (3.9370 in)Outside diameter: 215 mm (8.4646 in)Width: 47 mm (1.8504 in)Rows: 1Bore form: tapered, 1:12Cage: machined brass, MBInternal clearance: CN (normal)
1 Pc. Bearing only. Supplied without adapter sleeve.
A tapered-bore barrel roller seats on an adapter sleeve when it goes onto a plain cylindrical shaft; the sleeve for a 20320K is an H320, whose shaft seat is 90 mm, one bore-code step below the bearing bore.
Alternate written forms of the same bearing: 20320-K-MB, 20320K.MB, 20320KMB, 20320K. The cylindrical-bore 20320MB is a related size on the same envelope with a different bore form. The 22320K is a double-row spherical roller bearing, a different bearing type.
