Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
1 in stock
List Price
$117.59
1 in stock
1 in stock
Get Estimated Arrival Date

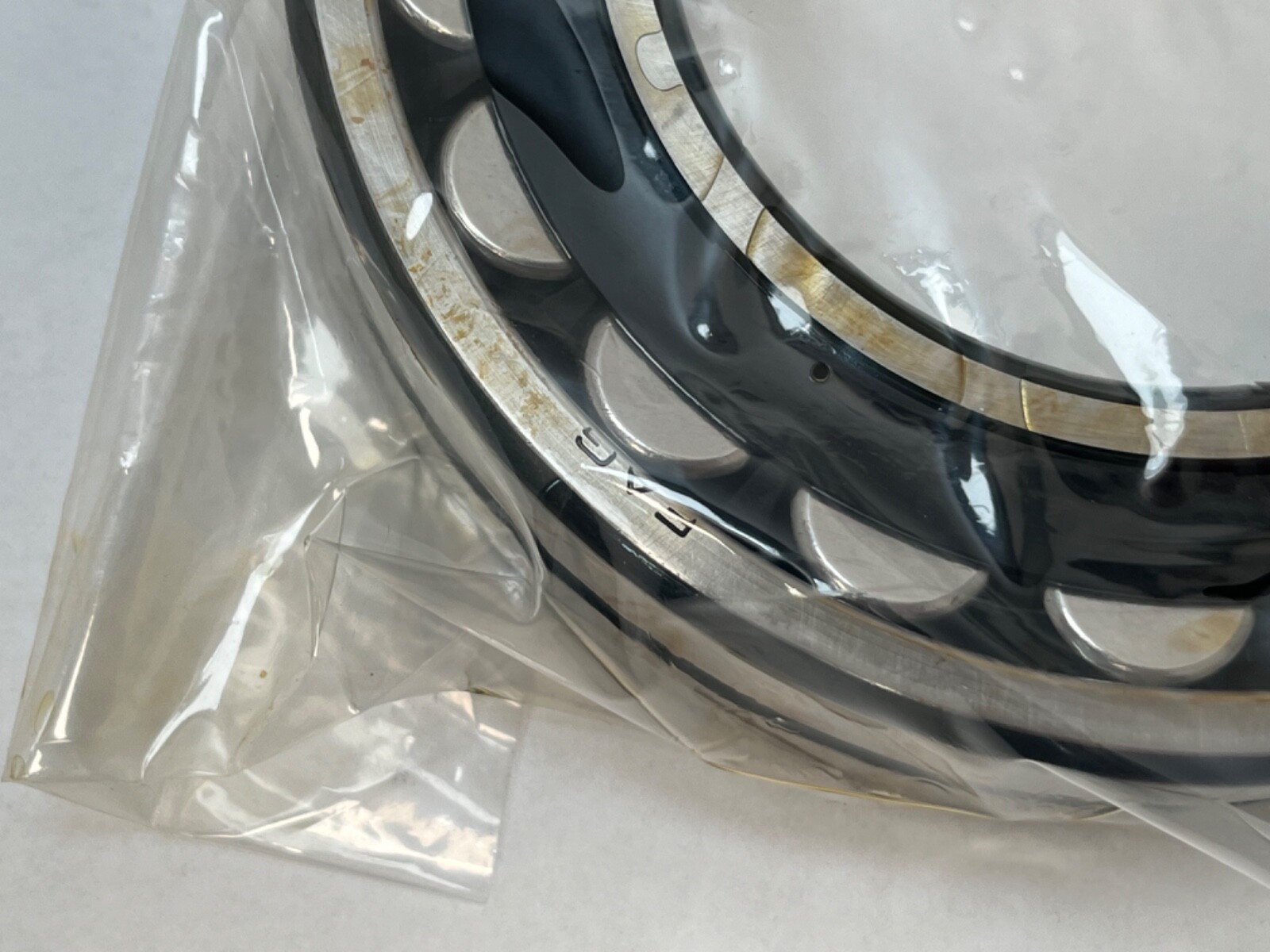

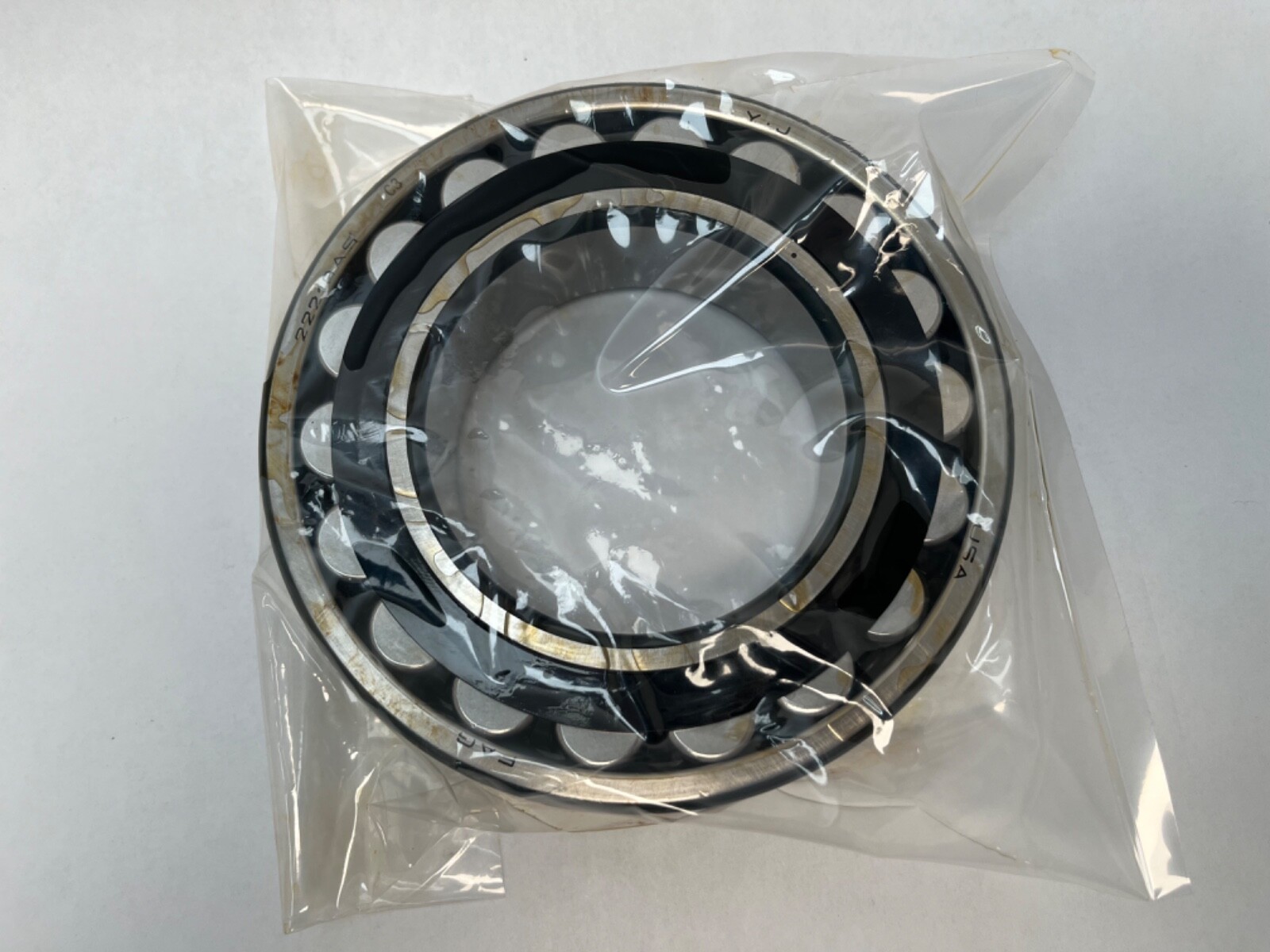

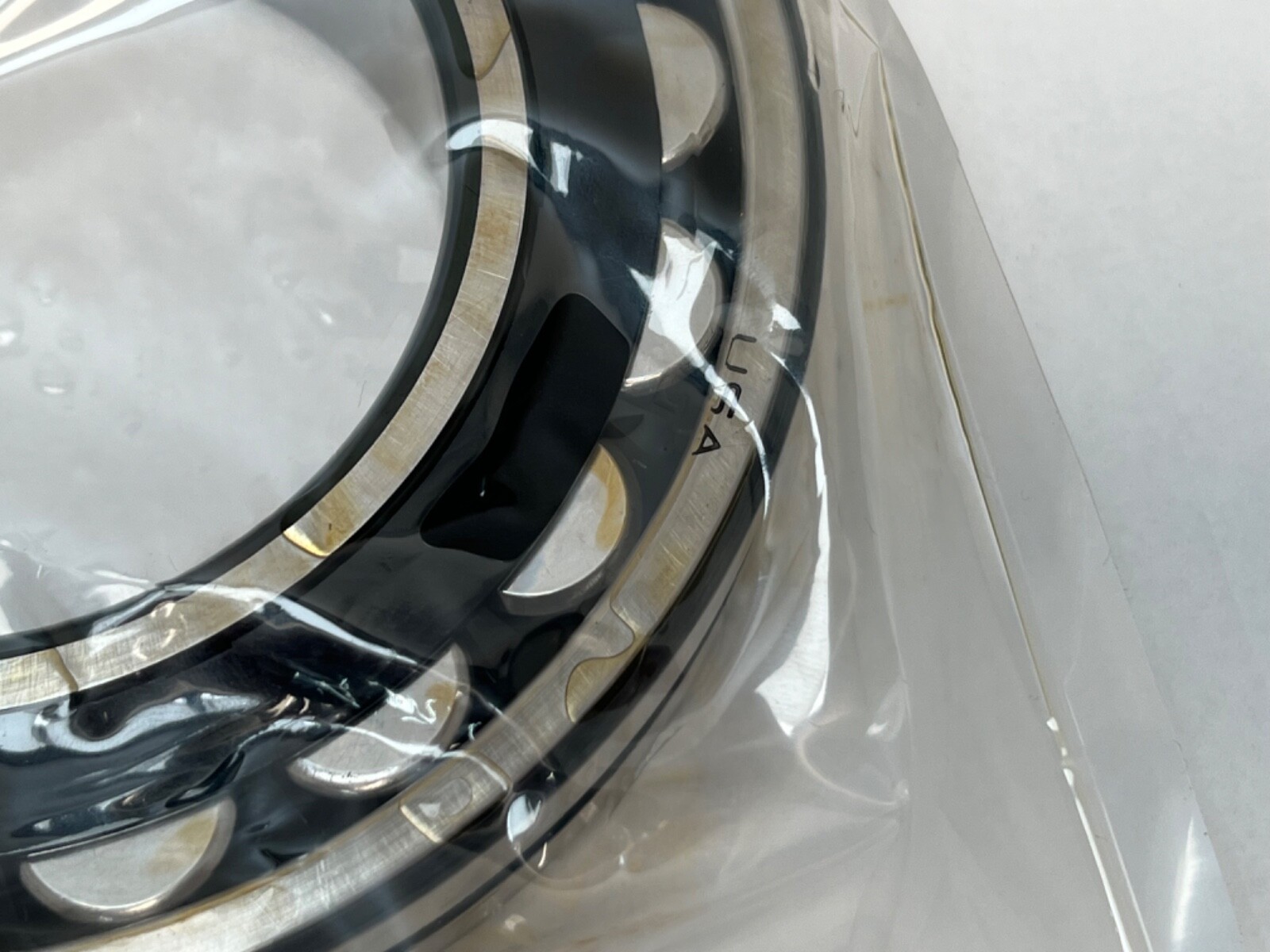

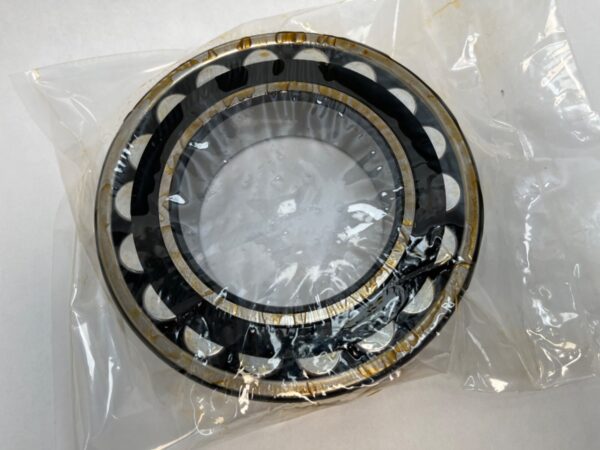

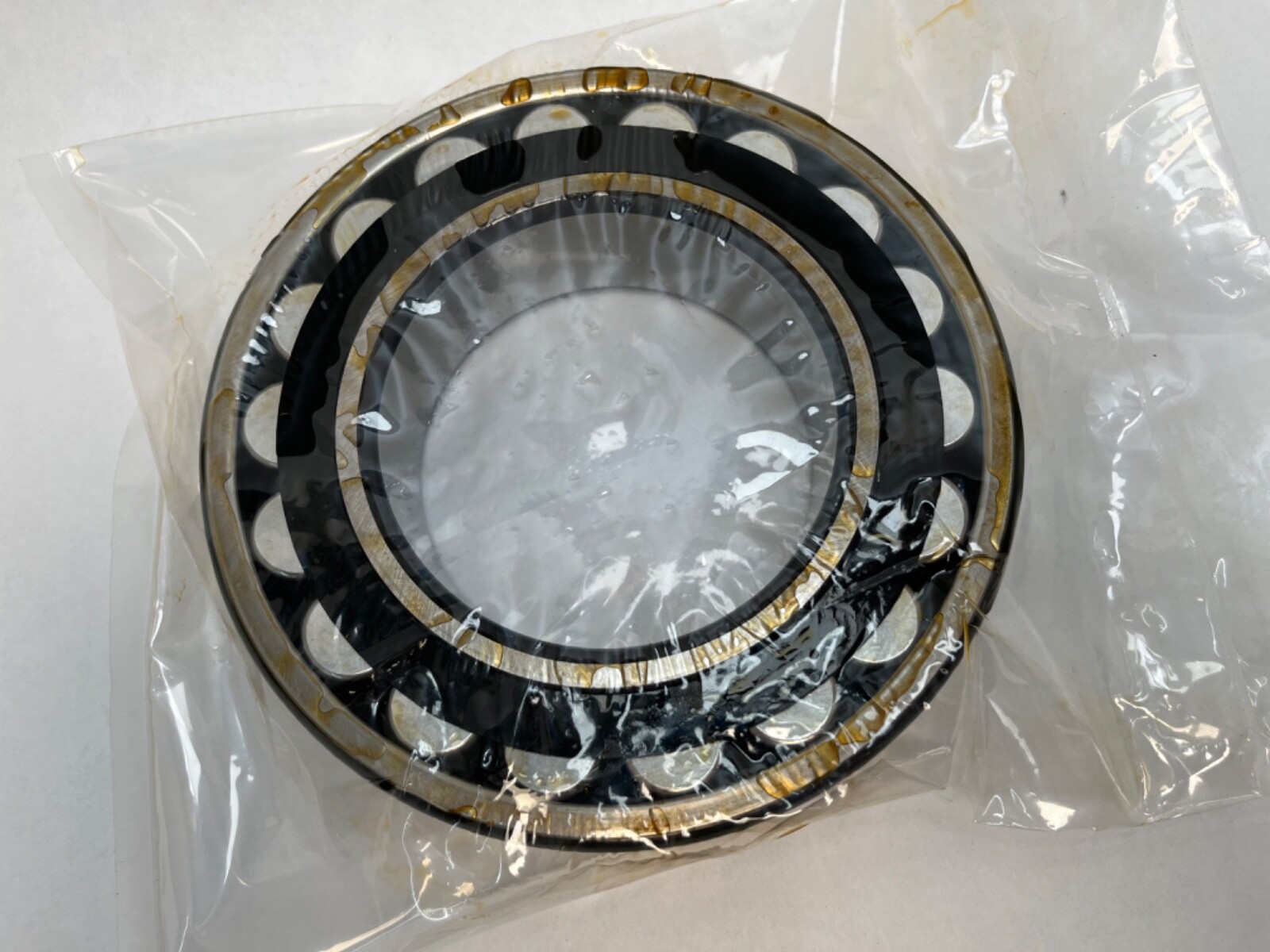

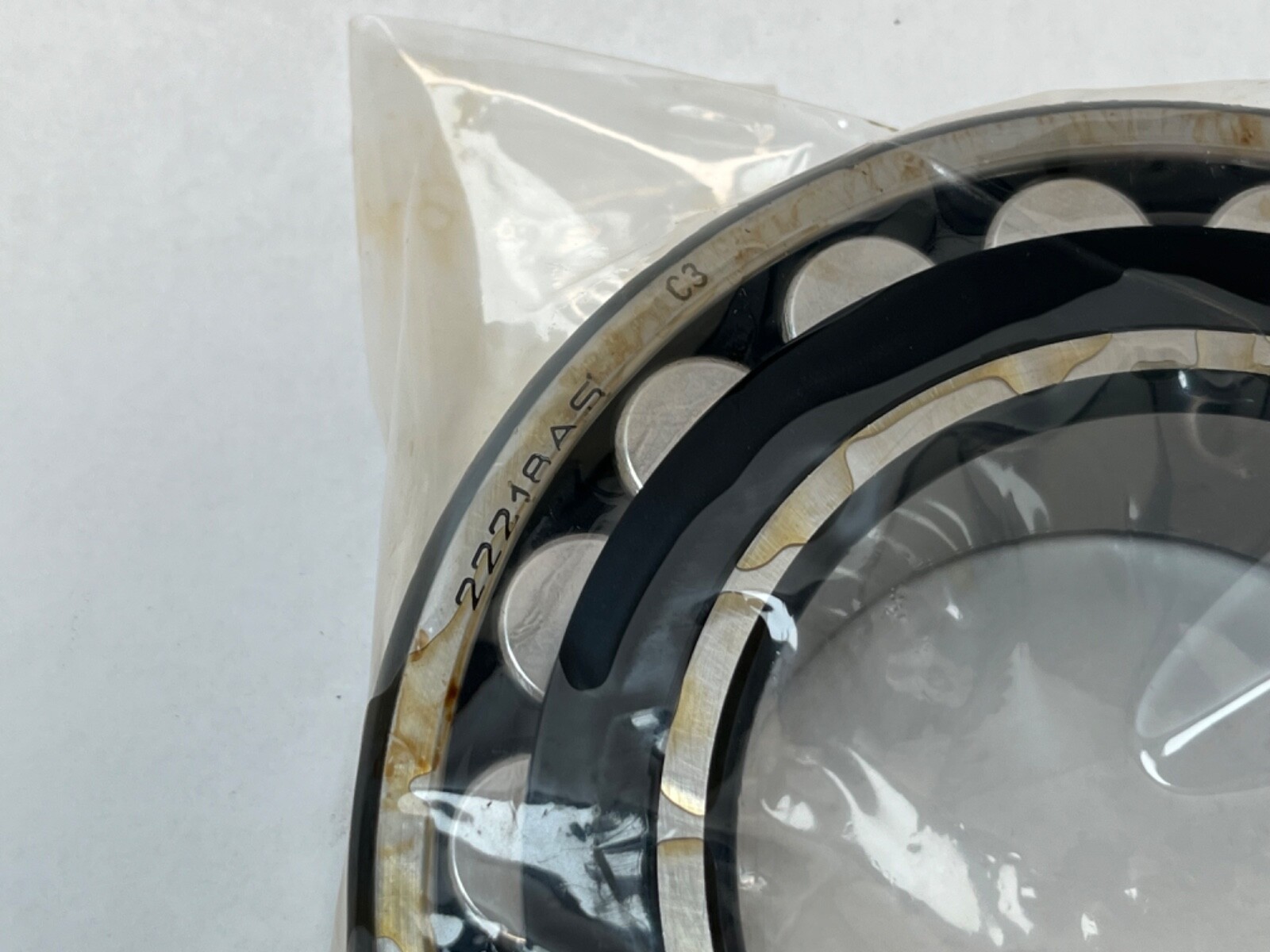

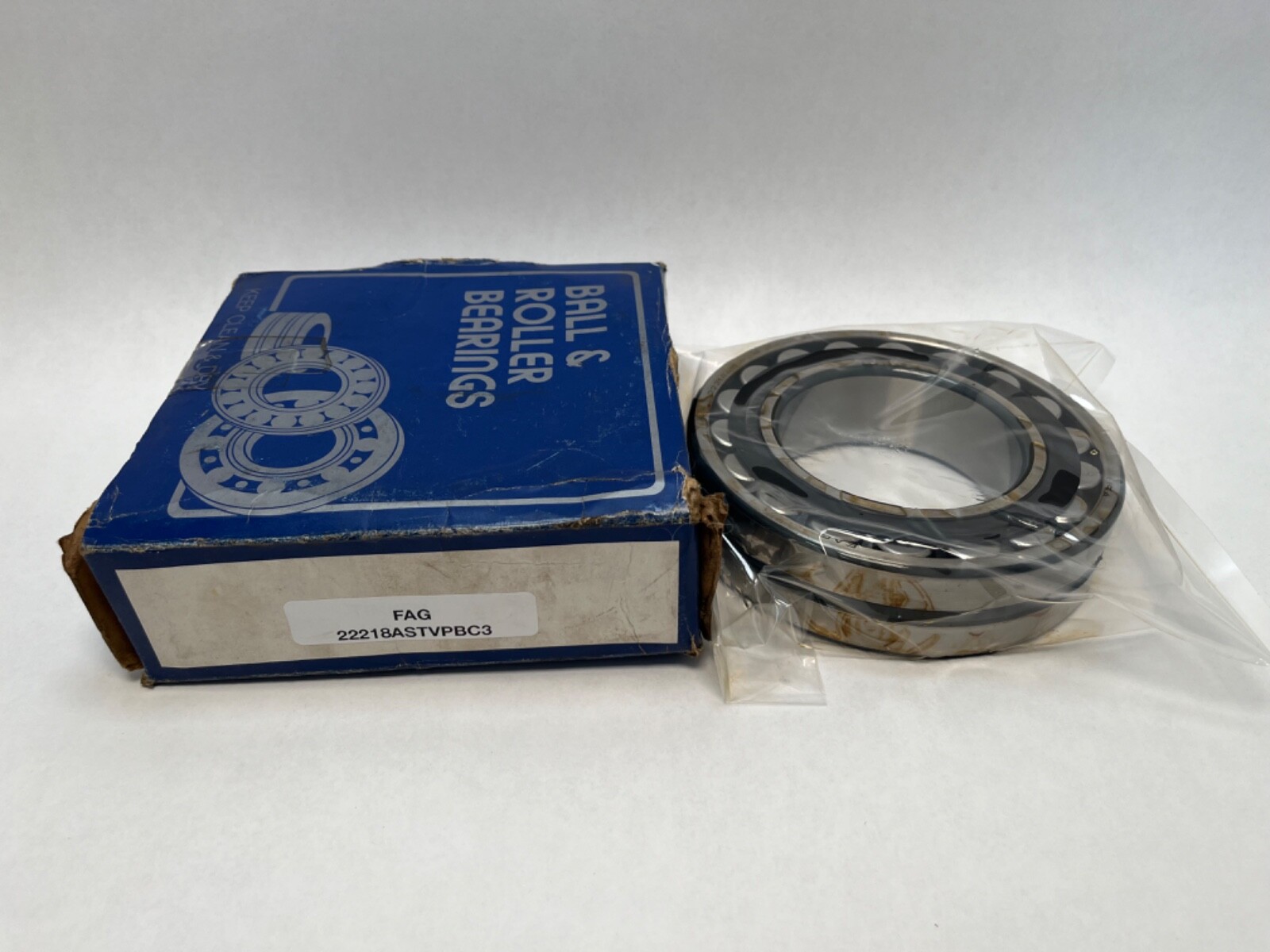

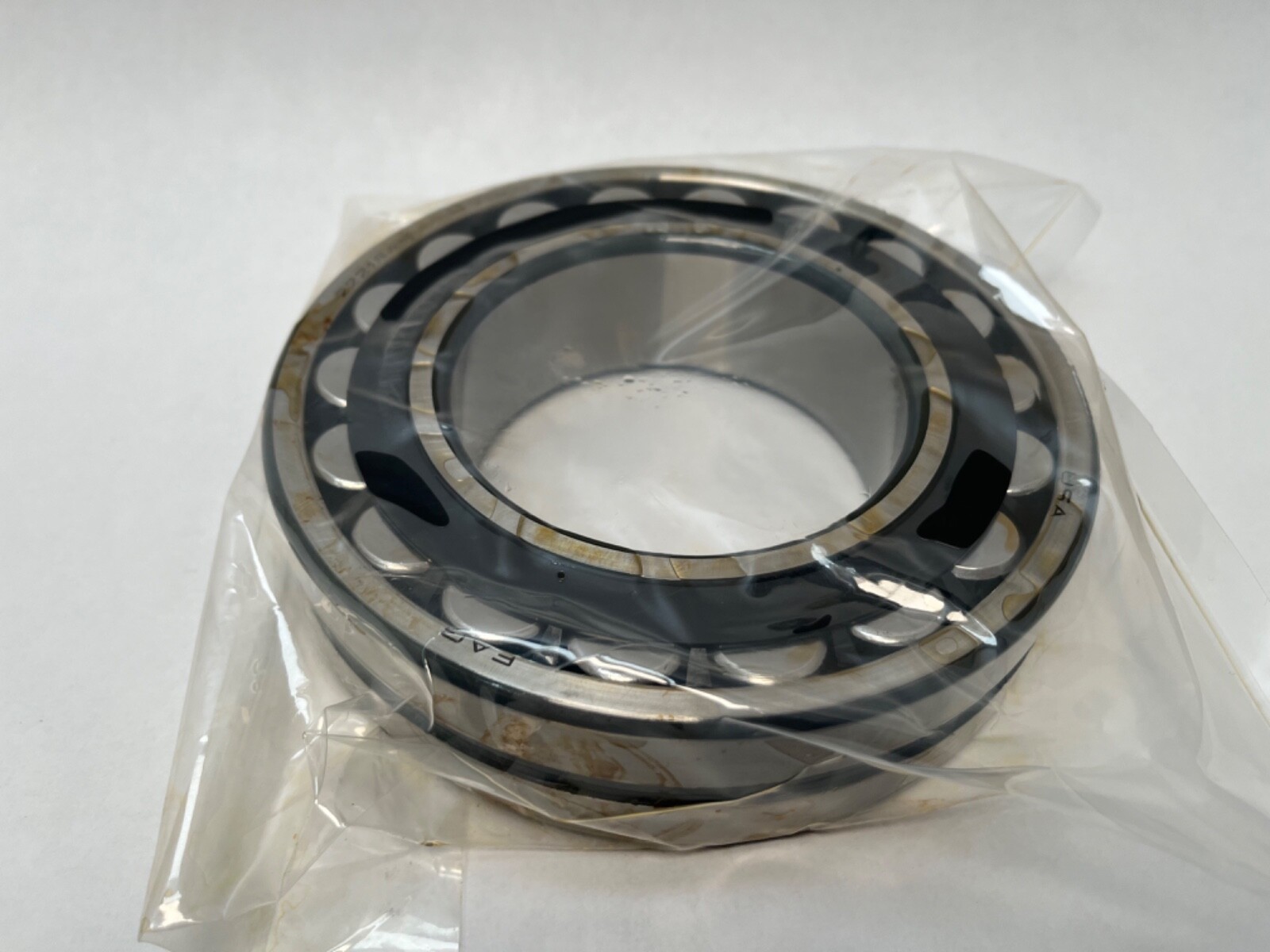

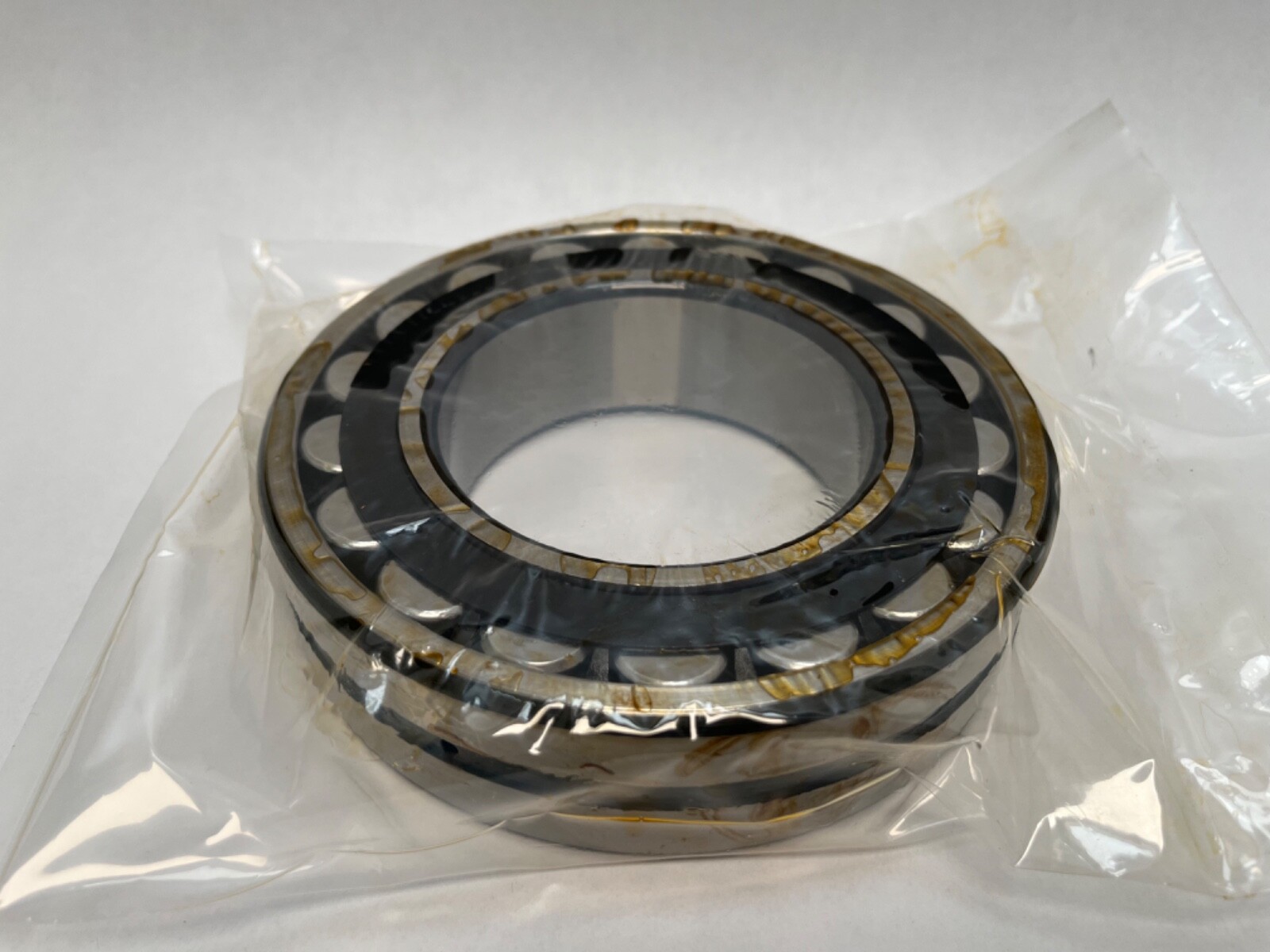

The product is a FAG 22218AS.TVPB.C3 Spherical Bearing with a precision rating of normal. It has a bore diameter of 90mm, outside diameter of 160mm, and width of 40mm. The bearing is made of bearing steel, with cylindrical rolling elements and a polymer cage type. The dynamic load rating is 345 kN, static load rating is 390 kN, and it is suitable for a maximum temperature of 120°C and minimum temperature of -30°C. This bearing is designed for industrial automation and motion control applications, providing reliable performance and durability.
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ASTVPBC3W33 |
| Model | 22218 A S TVPB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Material | Bearing Steel |
|---|---|
| Min Temp | -30°C |
| Cage Type | Polymer |
| Dynamic Load Rating | 345 kN |
| Static Load Rating | 390 kN |
| Precision Rating | Normal |
| Series | 22200 |
| Rolling Elements | Cylindrical |
| Max Temp | 120°C |
| Condition | New |
| Item Weight | 7.39 lbs |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Cross Reference 1 | SKF 22218 E/C3 |
|---|---|
| Cross Reference 2 | NSK 22218EAE4C3 |
| Cross Reference 3 | Timken 22218EJW33C3 |
