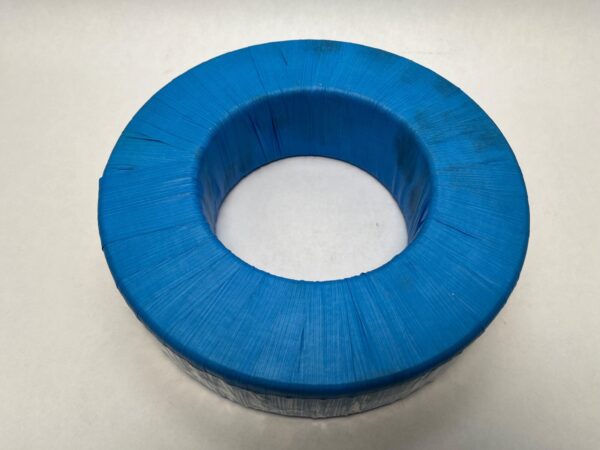

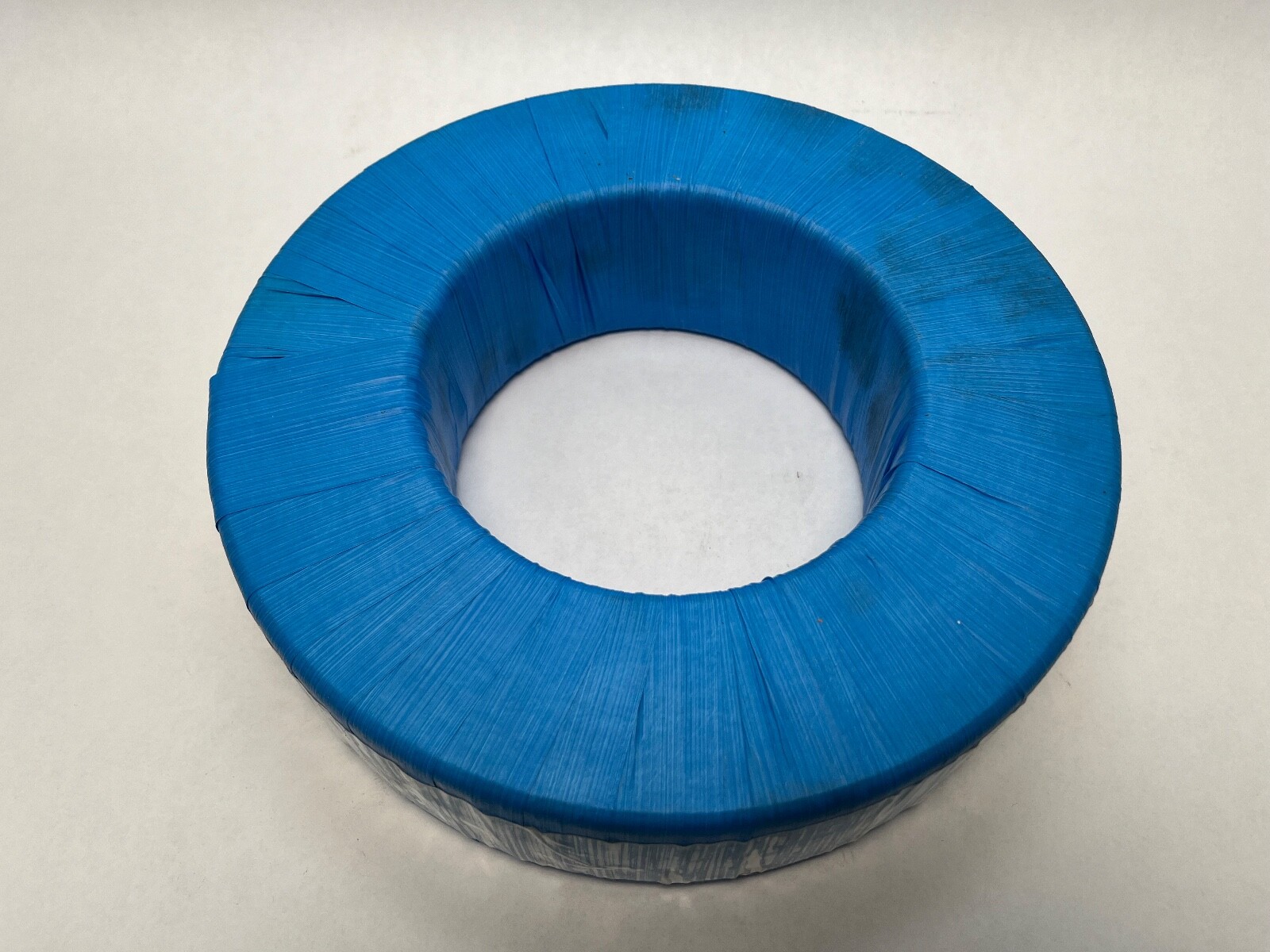

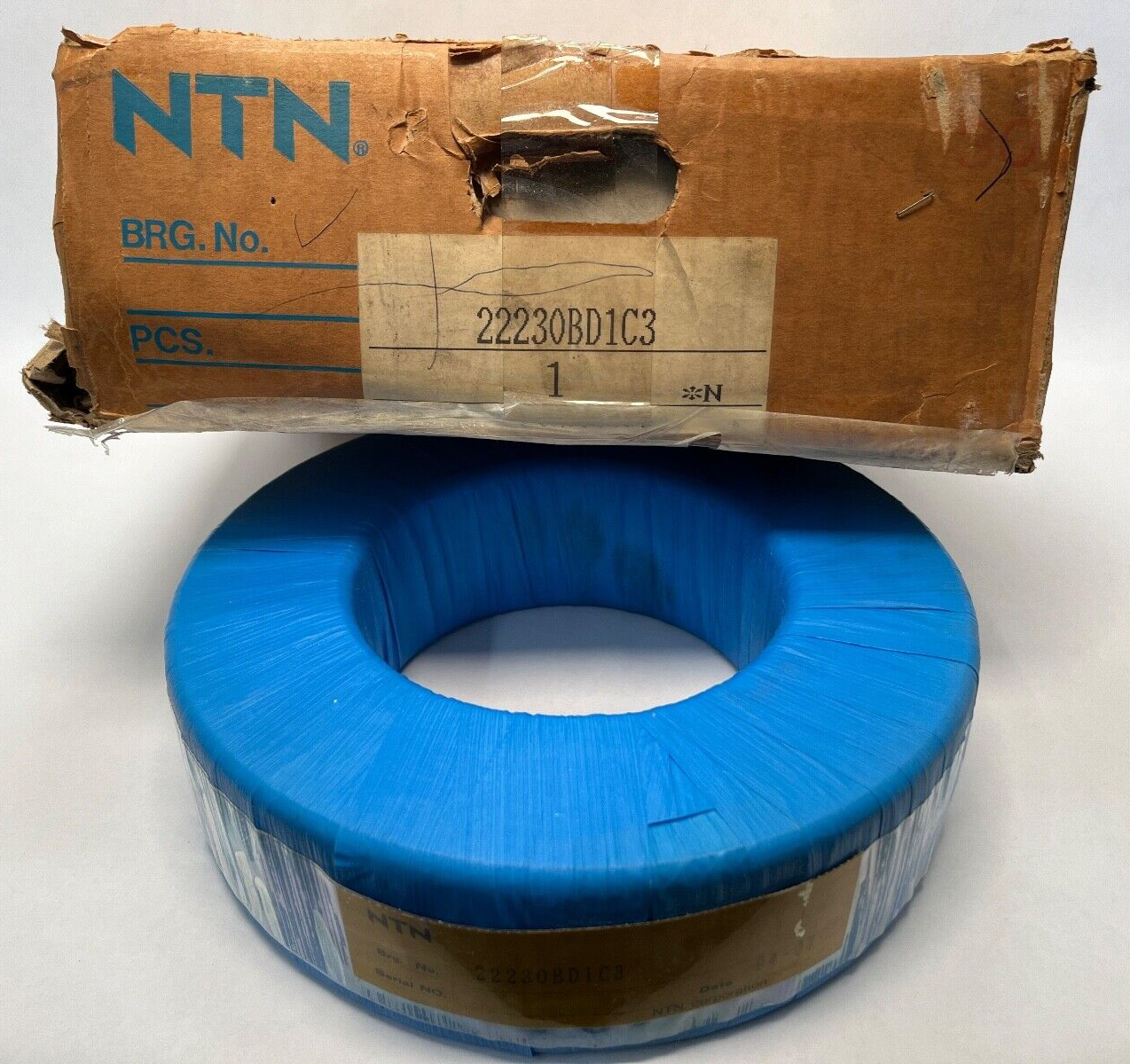

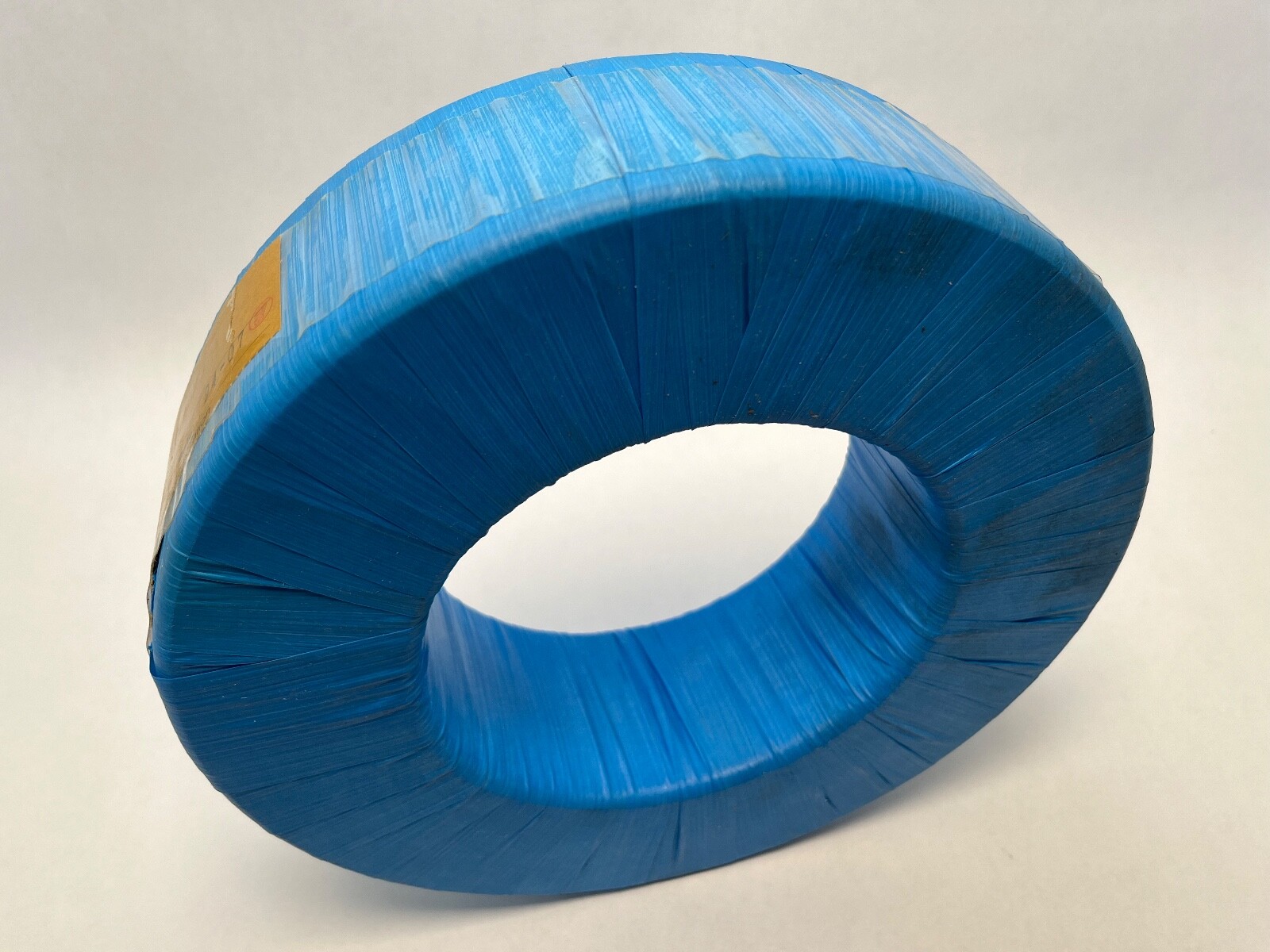

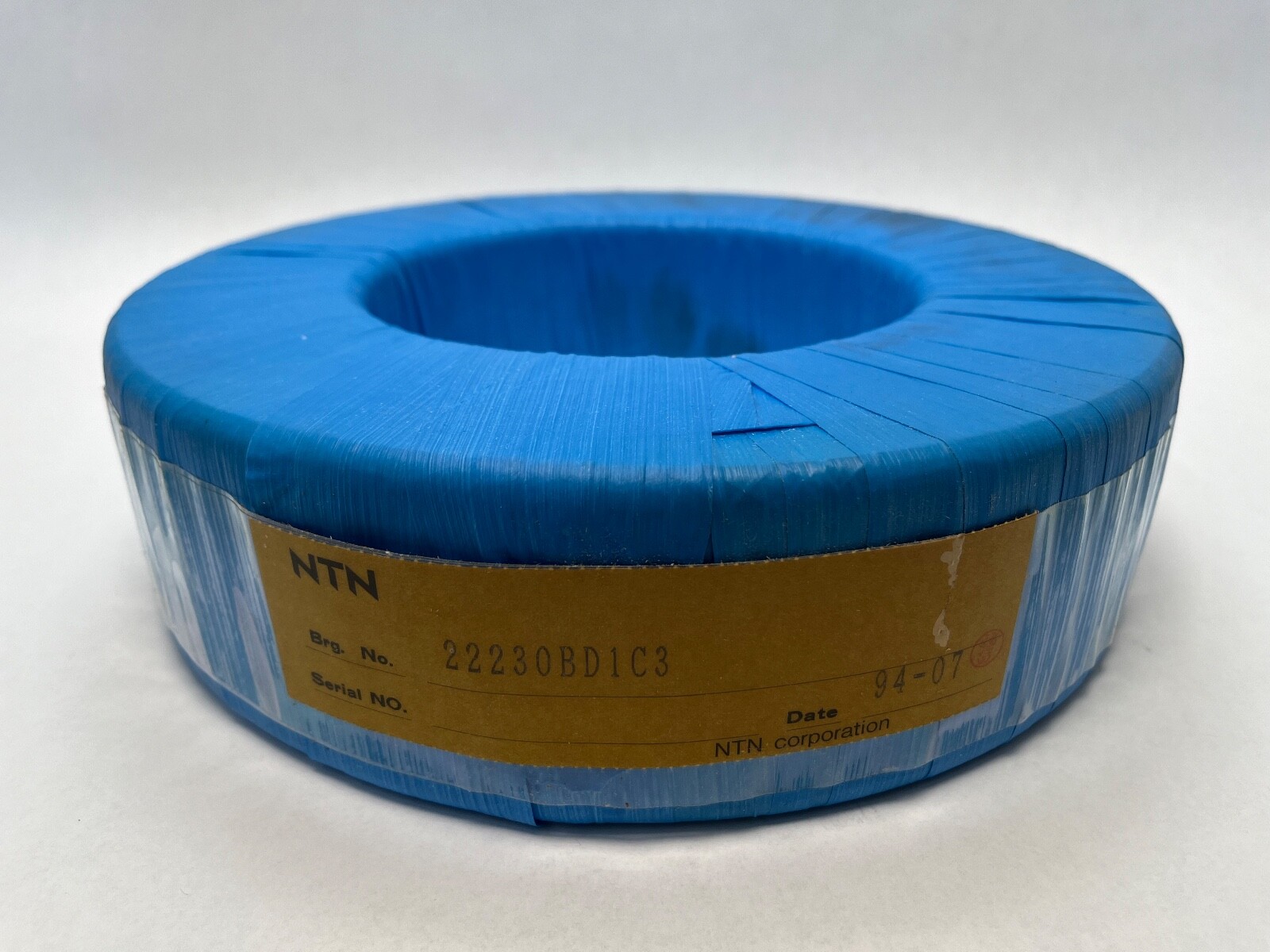

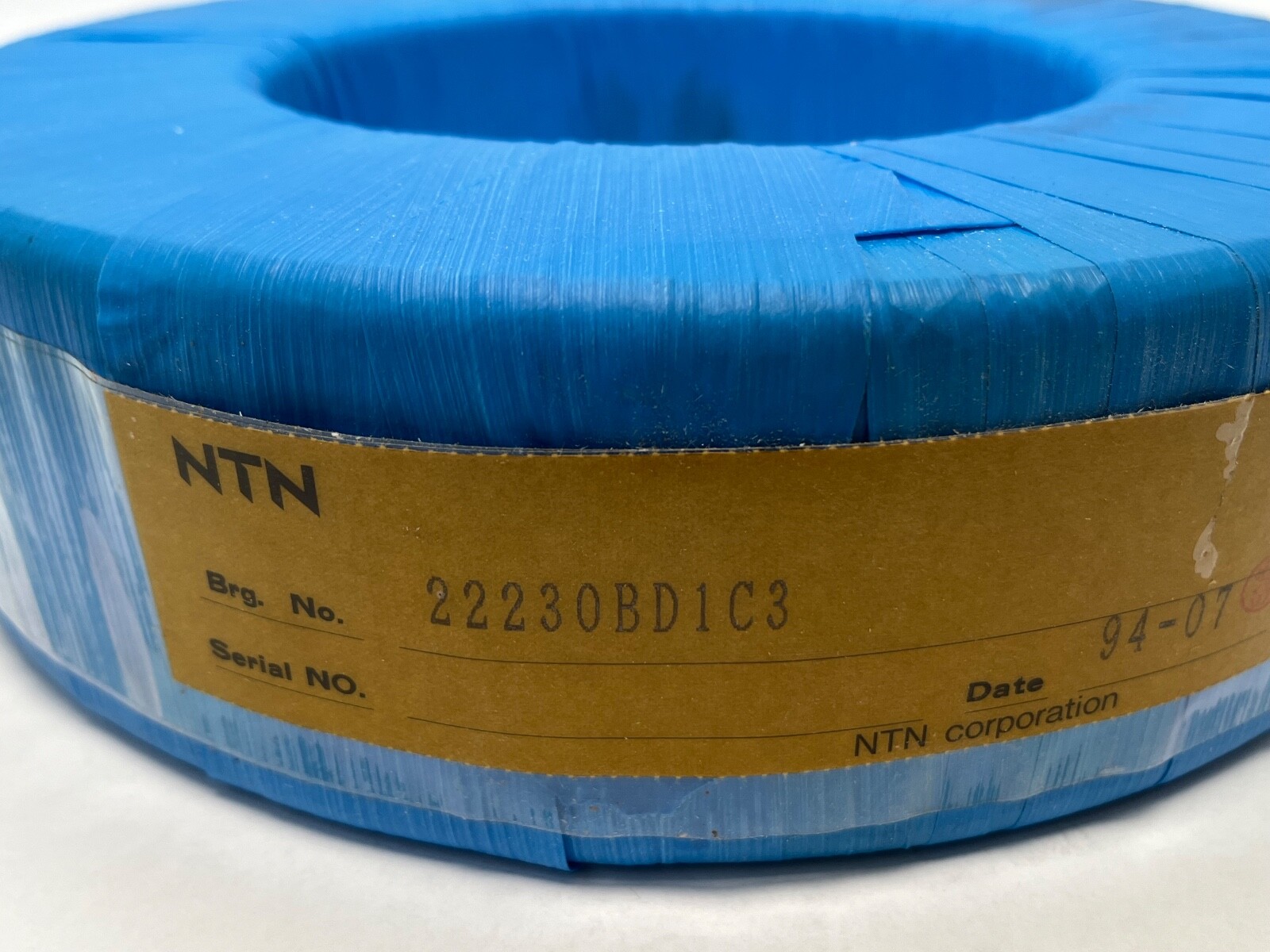

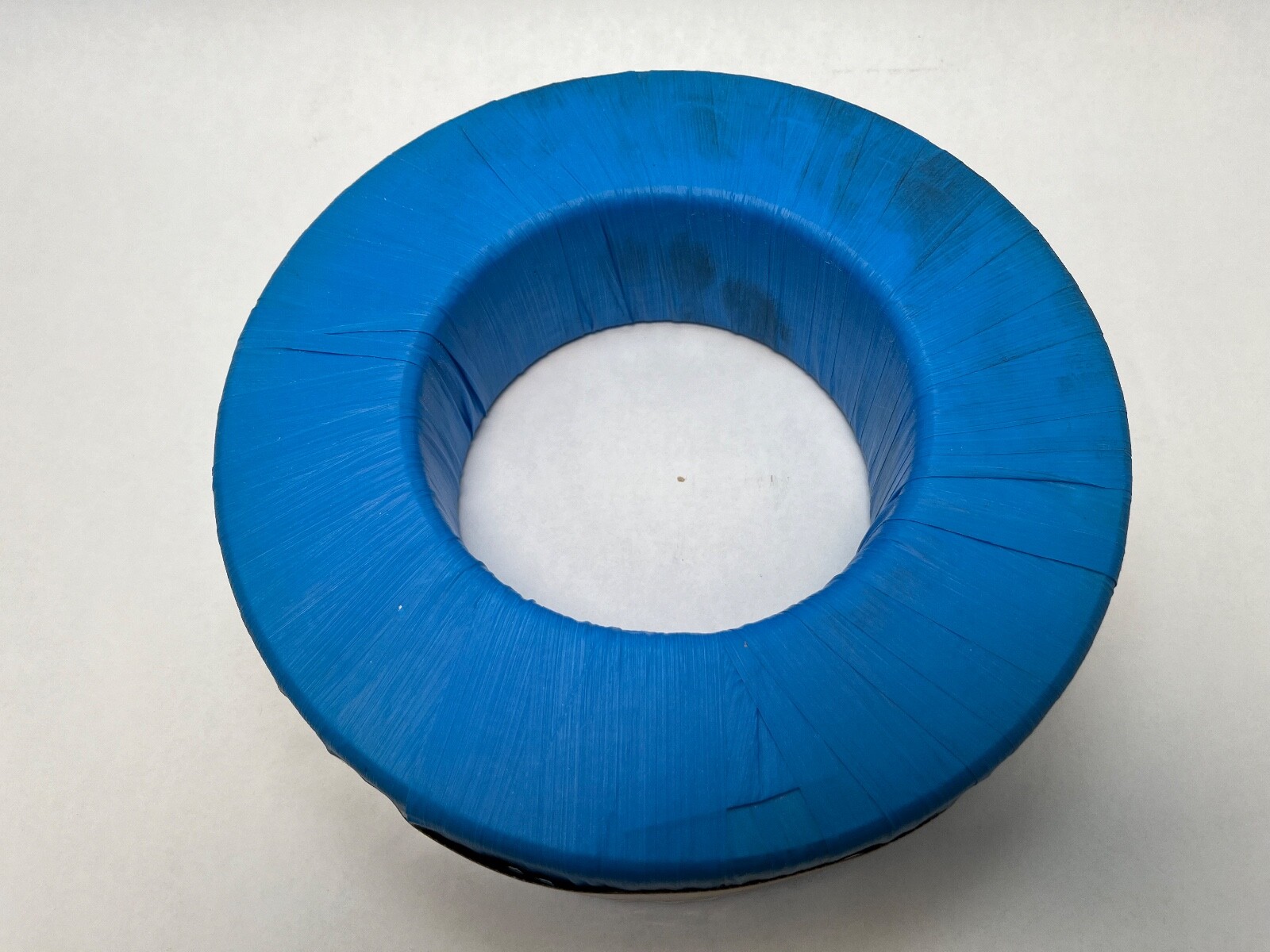

Name: Spherical Roller Bearing - Straight Bore, 150 mm ID, 270 mm OD, 73 mm Width, Open, C3 Internal Clearance.
Brand: NTN
SKU: B-EC4#5ENAHG
Price: 374.82 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	NTN
MPN	22230BD1C3
Model	22230 B/J D1/W33 C3 / 22230 CJ/CCJ C3 W33
Bearing Type	Spherical Roller Bearing, Open
ID	150 mm
OD	270 mm
Width	73 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	22200
Condition	New
Lubricant	Oil/Grease
Min Temp	-40 °C
Cage Type	Stamped Steel
Dynamic Load Rating	930.0 kN
Static Load Rating	1140.0 kN
Precision Rating	ABEC 1 / P0
Rolling Elements	Spherical Roller
Max Temp	200 °C
Item Weight	37.00 lbs
Cage Material	Steel
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Relubrication Feature	Yes
Harmonization Code	8482.30.00
Internal Clearance	C3

Cross-References

Cross Reference 1	SKF 22230 CC/W33
Cross Reference 2	FAG 22230-E1-C3
