Availability:
1 in stock
Double-row self-aligning ball bearing, 75 mm 1:12 tapered bore x 130 mm OD x 25 mm wide, open type. Mounts on an H215 adapter sleeve for a 65 mm shaft.
List Price
$53.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 1215K |
| Model | 1215-K |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Series | 1200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 1215 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, tapered bore bearing, adapter sleeve bearing, 1200 series |
| Common Misspellings | 1215X, 12I5K, 1251K, 1215KK |
| Overall Width | 25 mm |
| Mpn Variants | 1215K, 1215 K, 1215-K, 1215.K, 1215KJ30, 1215K J30, 1215K C3, 1215KC3 |
| Compatible With Replaces | Mounts on H215 adapter sleeve (65 mm shaft) with KM15 locknut and MB15 lock washer |
| Precision Class | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 1215 K |
|---|---|
| Cross Reference 2 | FAG 1215-K-TVH - polyamide cage |
| Cross Reference 3 | NSK 1215K |
| Cross Reference 4 | NTN 1215K |
| Cross Reference 5 | Koyo 1215K |

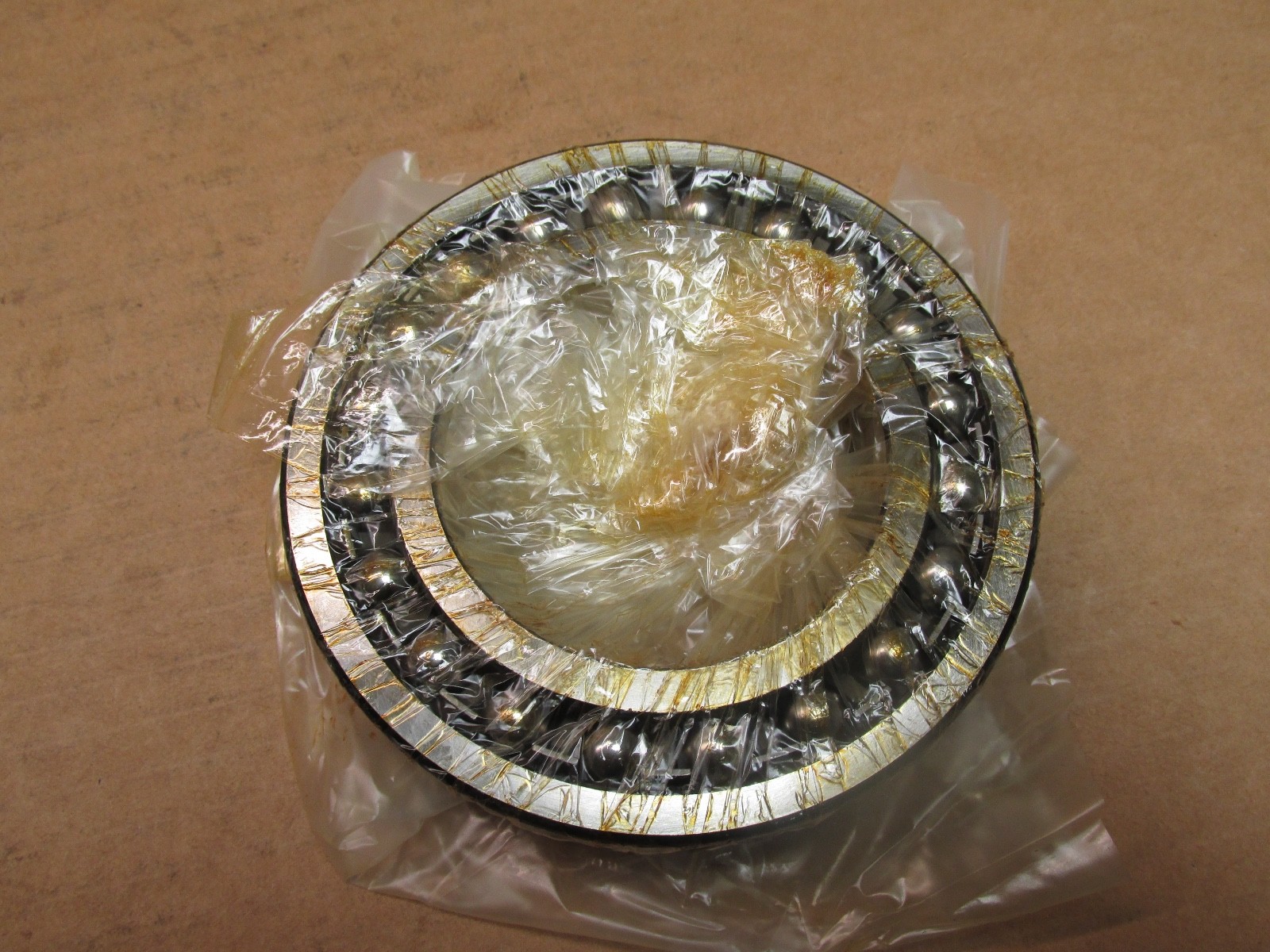

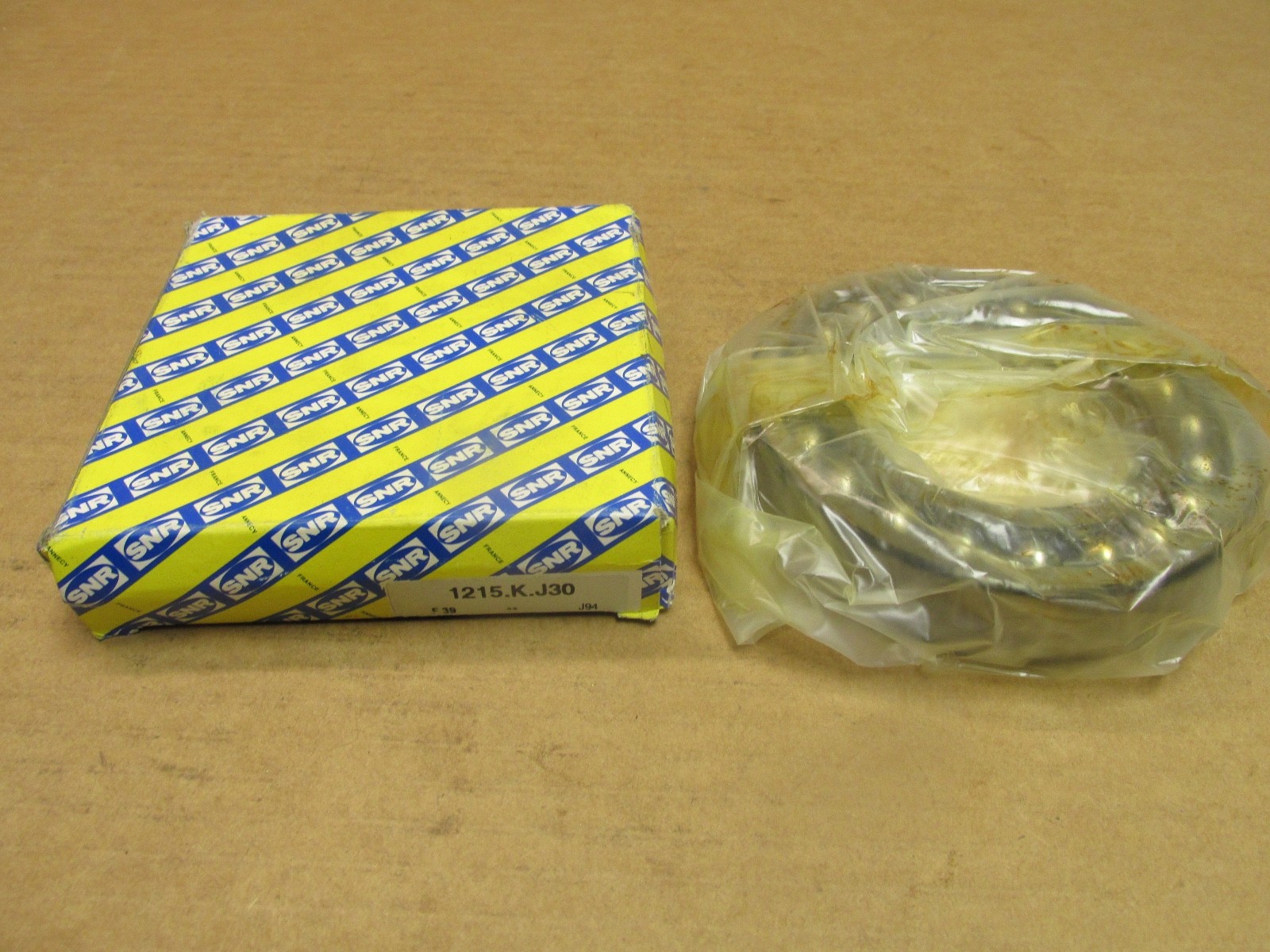

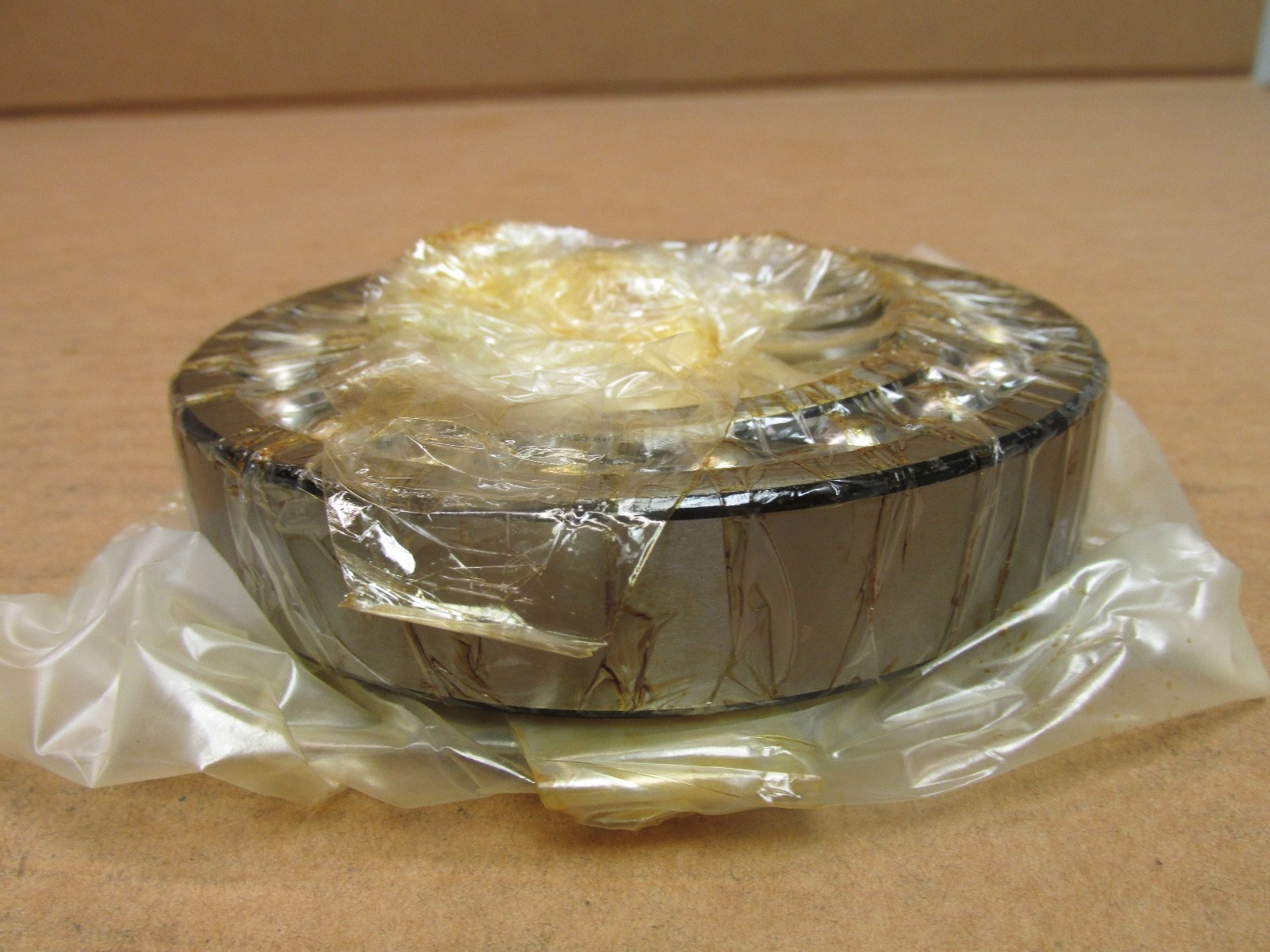

The SNR 1215K is a double-row self-aligning ball bearing with a tapered bore, from the ISO 12 light series. Two rows of balls run on a common spherical raceway in the outer ring, so the inner ring, balls and cage swivel relative to the outer ring. Unit Quantity: 1 Pc.
12 — double-row self-aligning ball bearing, ISO dimension series 02.
15 — bore code 15: 75 mm bore, 130 mm outside diameter, 25 mm width.
K — 1:12 tapered bore.
Bearing Type: Self-aligning ball bearing. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open. Precision Class: ABEC 1 / P0. Material: Bearing steel. Lubricant: Grease or oil. Snap Ring Included: No. Series: 1200.
Bore Diameter: 75 mm (1:12 taper). Outside Diameter: 130 mm. Overall Width: 25 mm. Adapter sleeve: H215, for a 65 mm shaft, with KM15 locknut and MB15 lock washer. The tapered bore also fits a matching 1:12 tapered journal.
75 x 130 x 25 mm double-row self-aligning ball bearings with 1:12 tapered bore: SKF 1215 K, NSK 1215K, NTN 1215K, Koyo 1215K, FAG 1215-K-TVH (polyamide cage). MPN Variants: 1215K, 1215 K, 1215-K, 1215.K, 1215KJ30, 1215K J30, 1215K C3, 1215KC3.
75 mm tapered bore, 130 mm outside diameter, 25 mm width.
H215, for a 65 mm shaft, with a KM15 locknut and MB15 lock washer.
A 1:12 tapered bore.
