SchmersalSLC440-ER-0250-30-01Type 4 Safety Light Curtain Set, 250 mm Protective Height, 30 mm Resolution, 3-10 m Range, PL e / SIL 3

Product Description

What this part is

A Schmersal SLC440-ER-0250-30-01 — a Type 4 safety light curtain with a 250 mm protective field height and 30 mm resolution. It is an active opto-electronic protective device (AOPD): the emitter projects a grid of infrared beams to the receiver, and interrupting any beam switches the safety outputs off. Used to guard an opening on a machine so that a hand or arm entering the field stops the hazardous motion.

Decoding the order code

SLC440 — Schmersal SLC440 safety light curtain series, Type 4ER — emitter and receiver, the matched pair that makes up a working curtain0250 — protective field height in millimetres: 250 mm30 — resolution in millimetres: 30 mm, the hand-detection class01 — model / function variant within the series

Published specifications

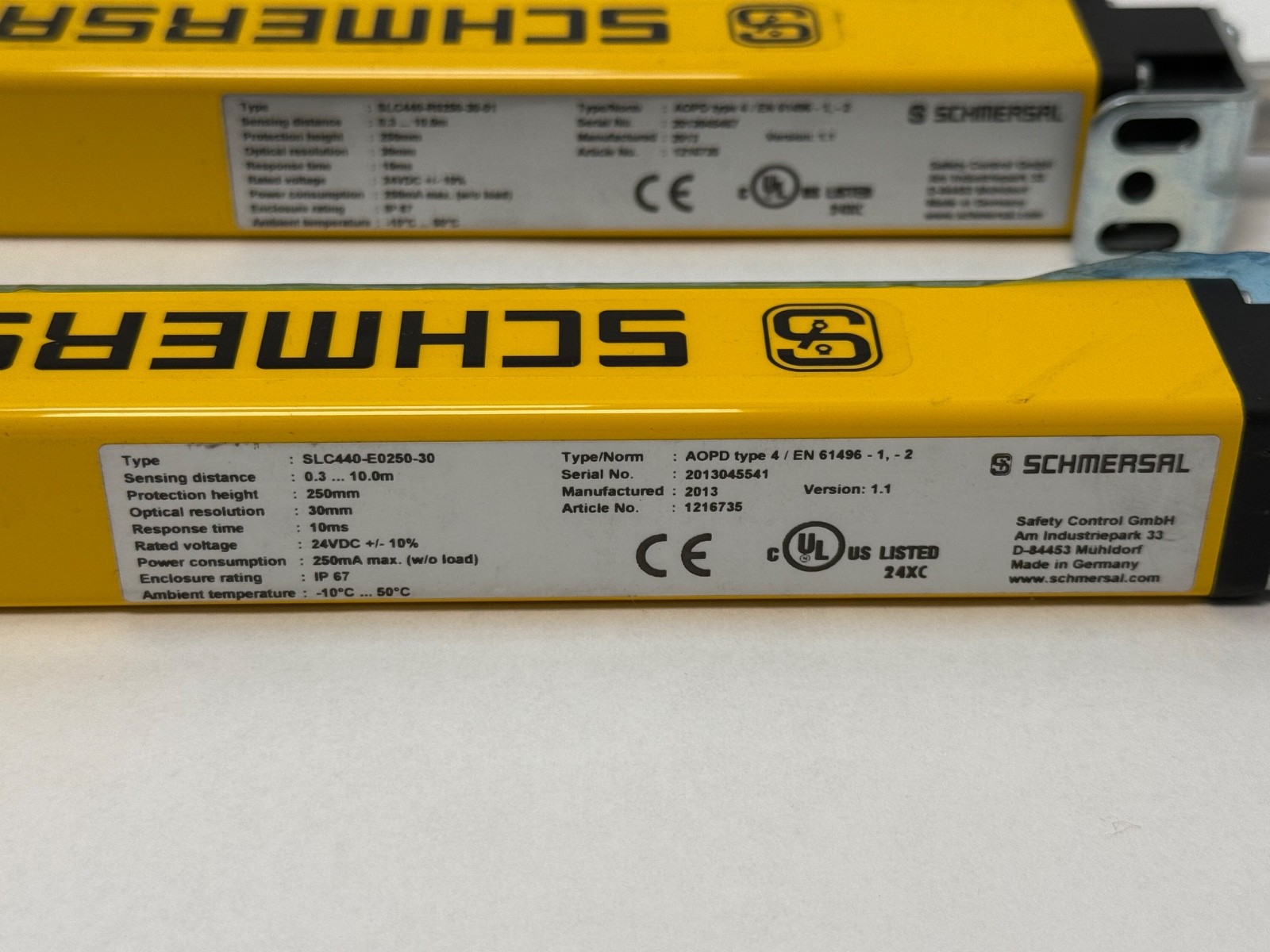

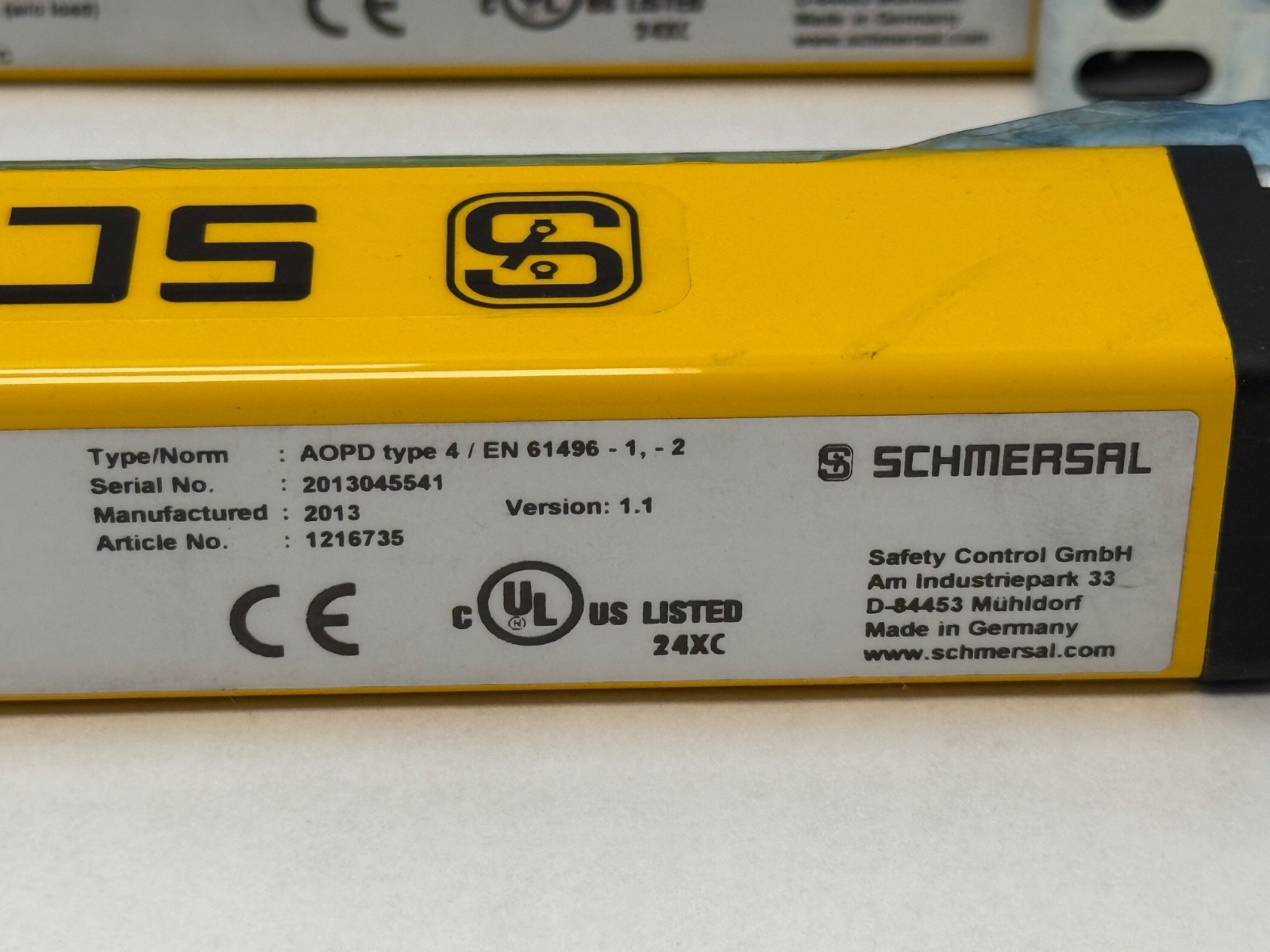

Type: Type 4 safety light curtain (AOPD) per IEC 61496Protective field height: 250 mmResolution: 30 mm (hand protection)Operating range: 3 m to 10 m at 30 mm resolutionSafety rating: suitable for safety circuits up to PL e (EN ISO 13849) / SIL 3 (IEC 61508)Housing: one-piece extruded reinforced profile, approx. 33 mm section — resistant to bending and torsional misalignmentEnclosure rating: IP65Operating temperature: −30 °C to +70 °COrigin: Germany (Schmersal nameplate)

What these specs mean in practice

Resolution and protective height are the two numbers that decide whether a curtain is legal for your guard, and they are not adjustable. 30 mm resolution is the hand-detection class — it will not detect a finger, so a finger-protection application needs a 14 mm curtain instead. The 250 mm field height is short: this is an opening or point-of-operation guard, not a perimeter or access guard. Safety distance must be recalculated for the curtain you fit, using its response time and your machine’s stopping time; a shorter or longer curtain changes the mounting geometry but not that calculation. The one-piece extruded housing is the practical selling point on this series — the sticks stay straight, which is where cheaper curtains generate nuisance trips.

Hazard and rating notes

Rated up to PL e / SIL 3, but the achieved performance level depends on the whole safety function: the curtain, the safety relay or controller, the contactors and the feedback loop. Commissioning must include a verification of the protective field and the safety distance.

Installation and setup notes

Emitter and receiver must be aligned squarely and at the same height, with no reflective surface close enough to the beam path to allow a bypass reflection. Mind the minimum range: at 30 mm resolution the range starts at 3 m, so a very short span may need a different configuration. IP65 suits general machine-shop conditions but not high-pressure washdown.

Quantity and configuration

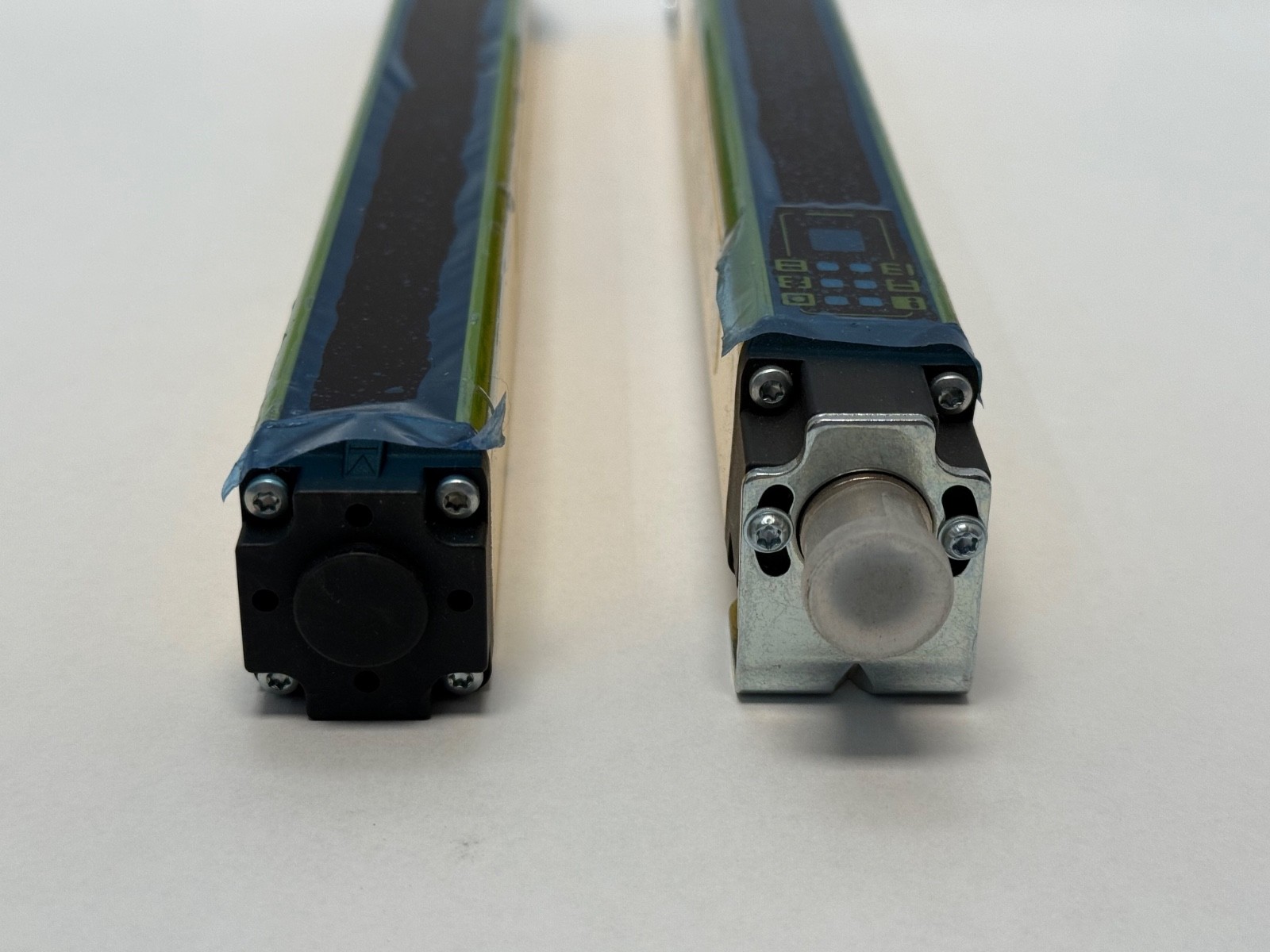

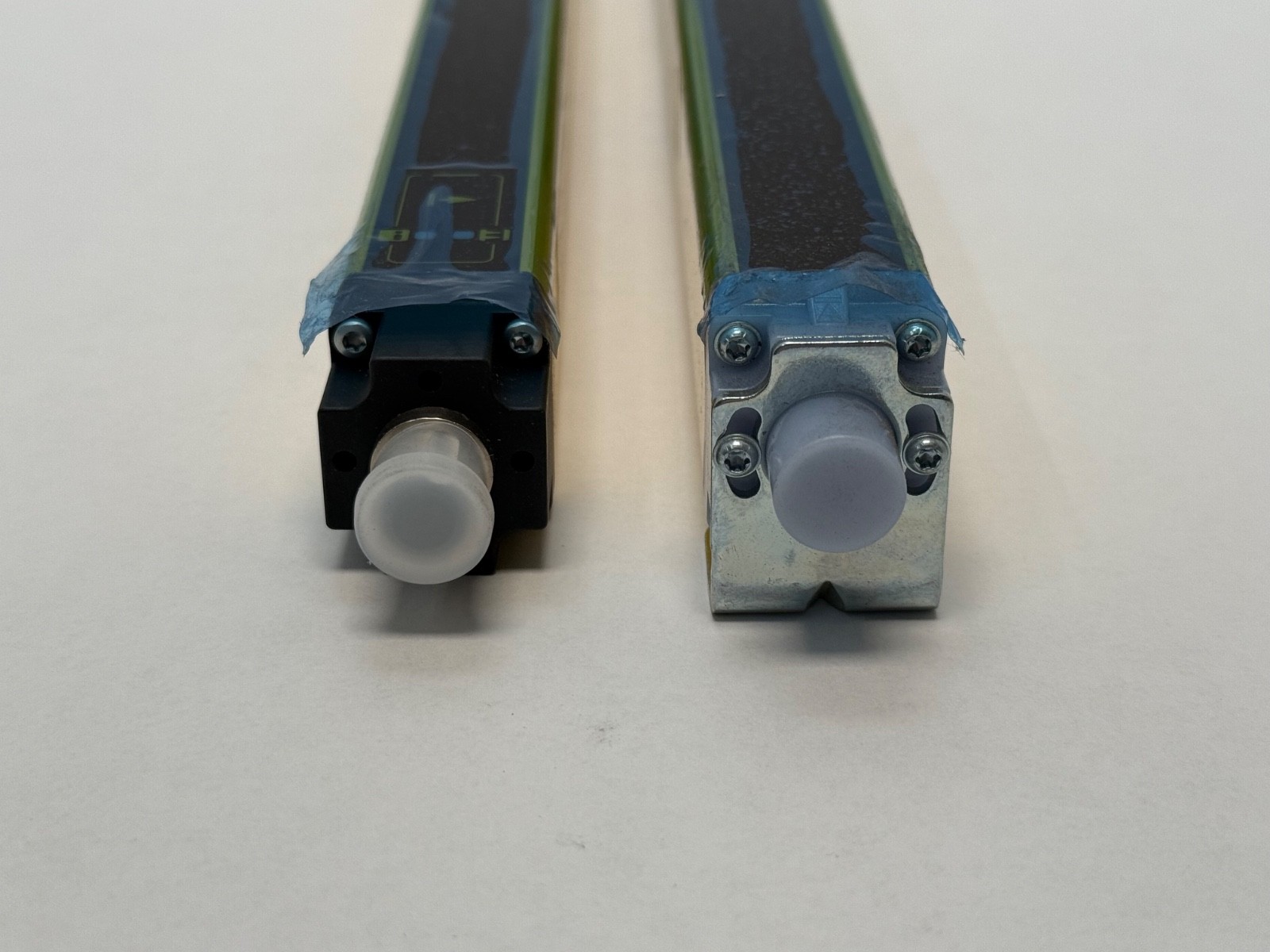

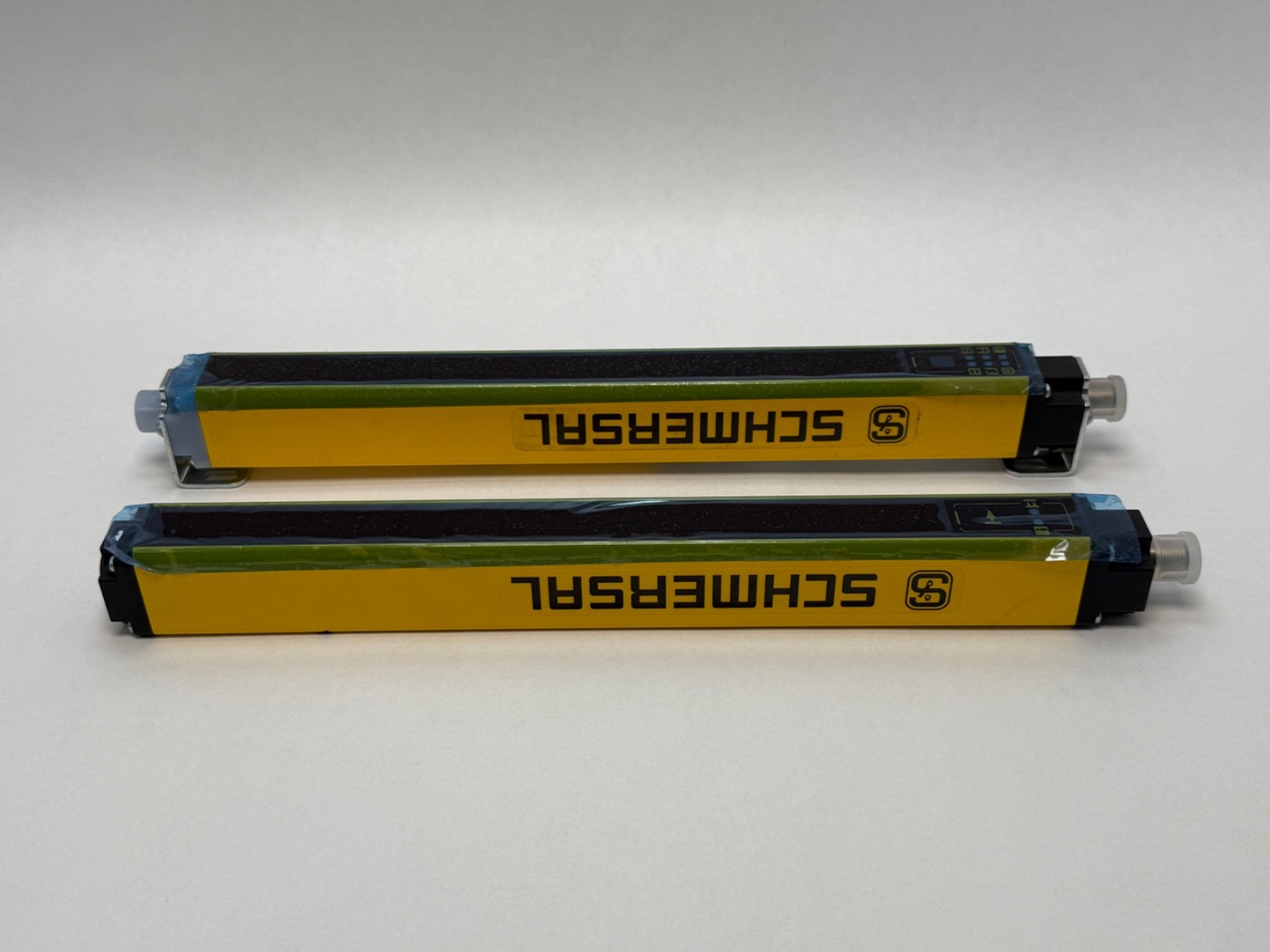

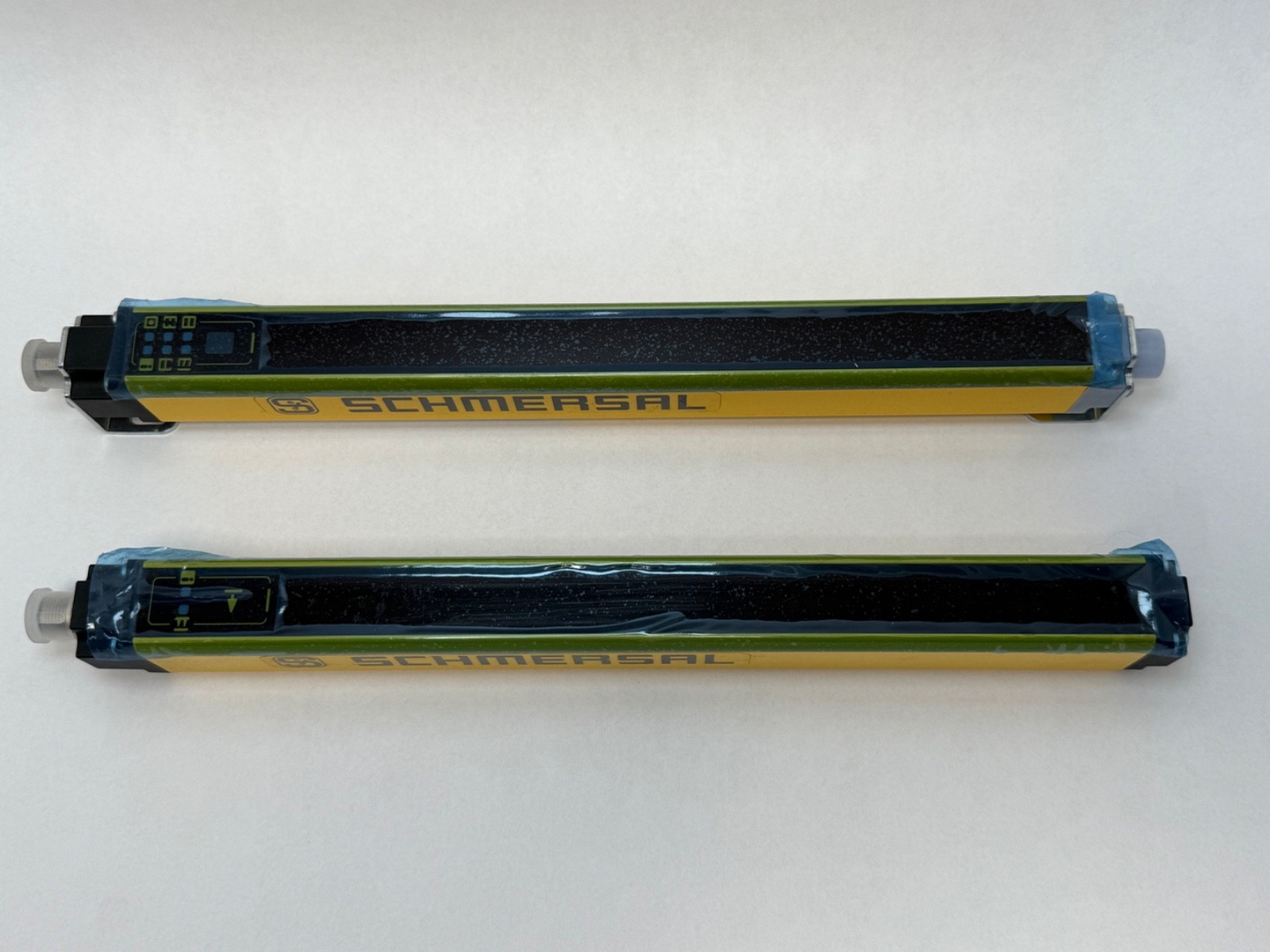

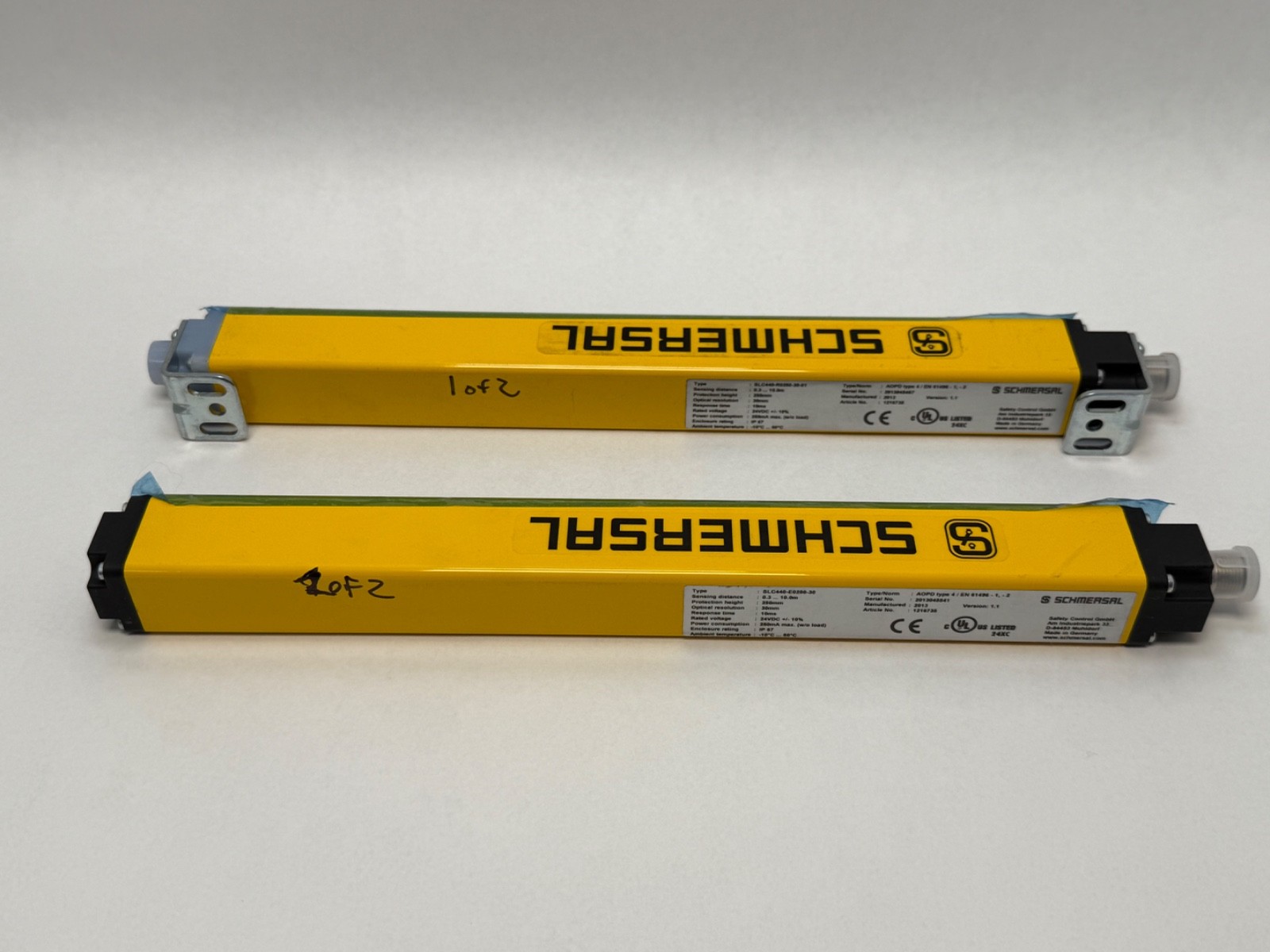

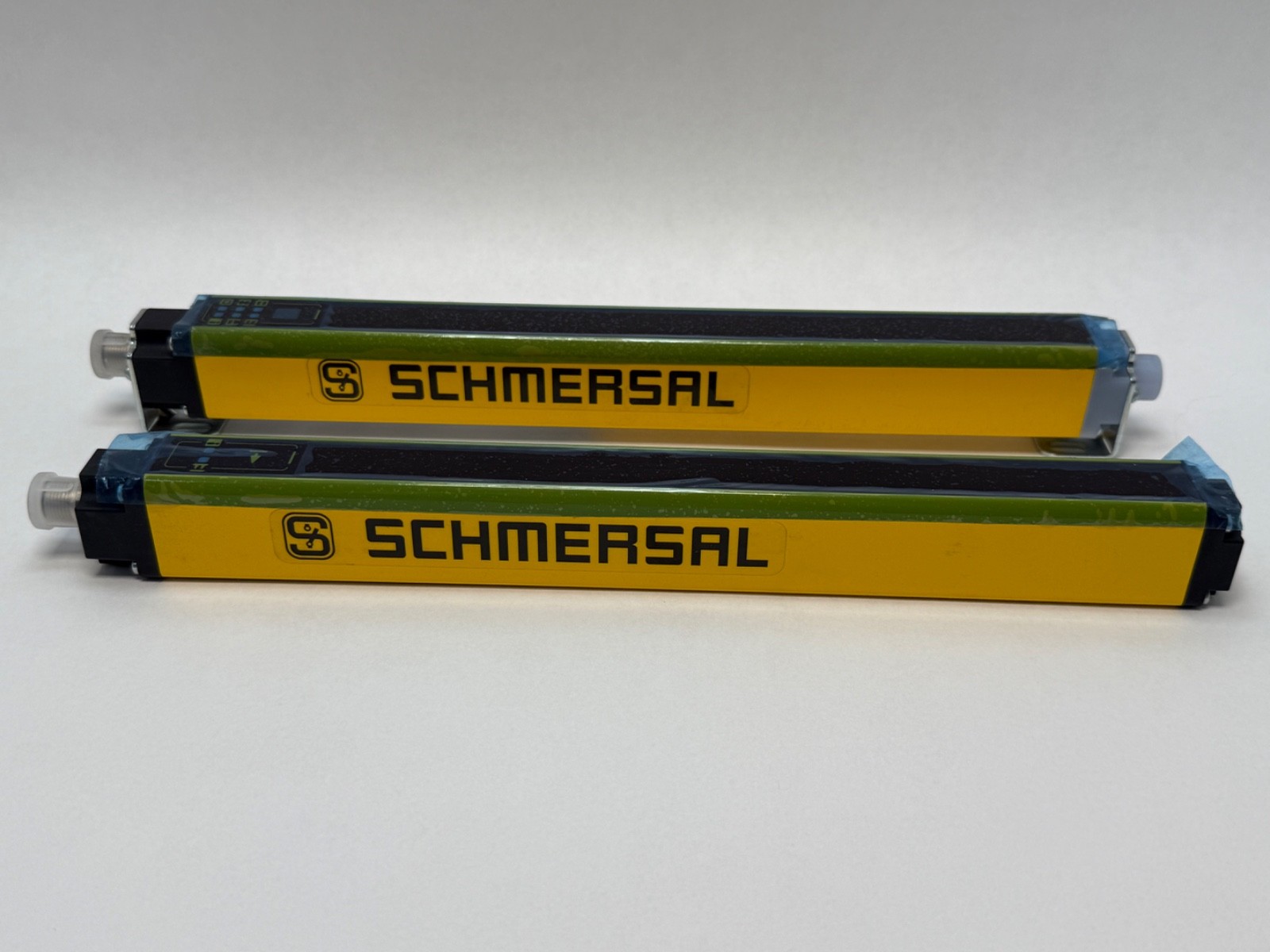

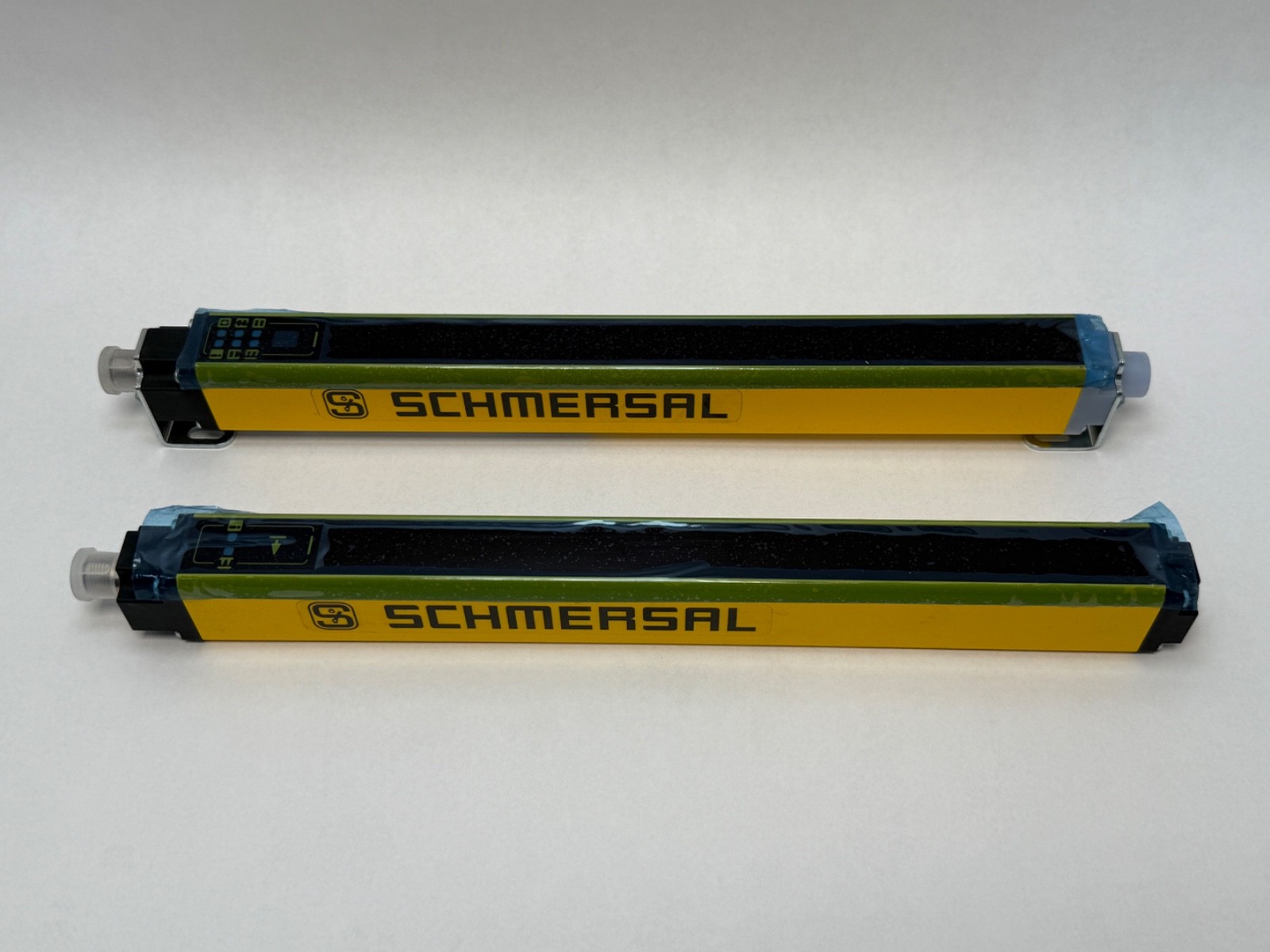

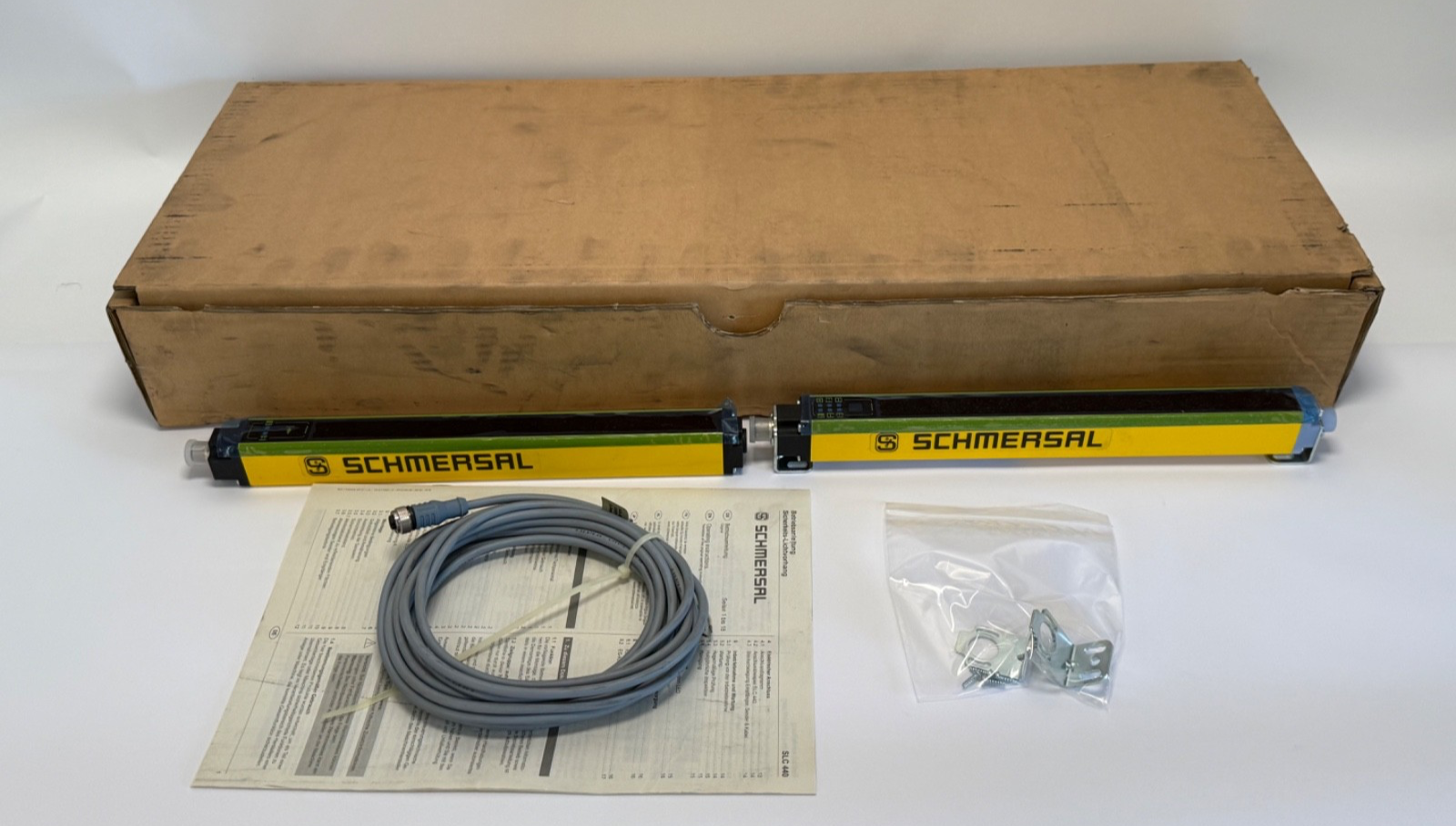

Sold as one emitter/receiver set — both sticks, as the ER designation denotes. A curtain does not function with only one half.

What is not included

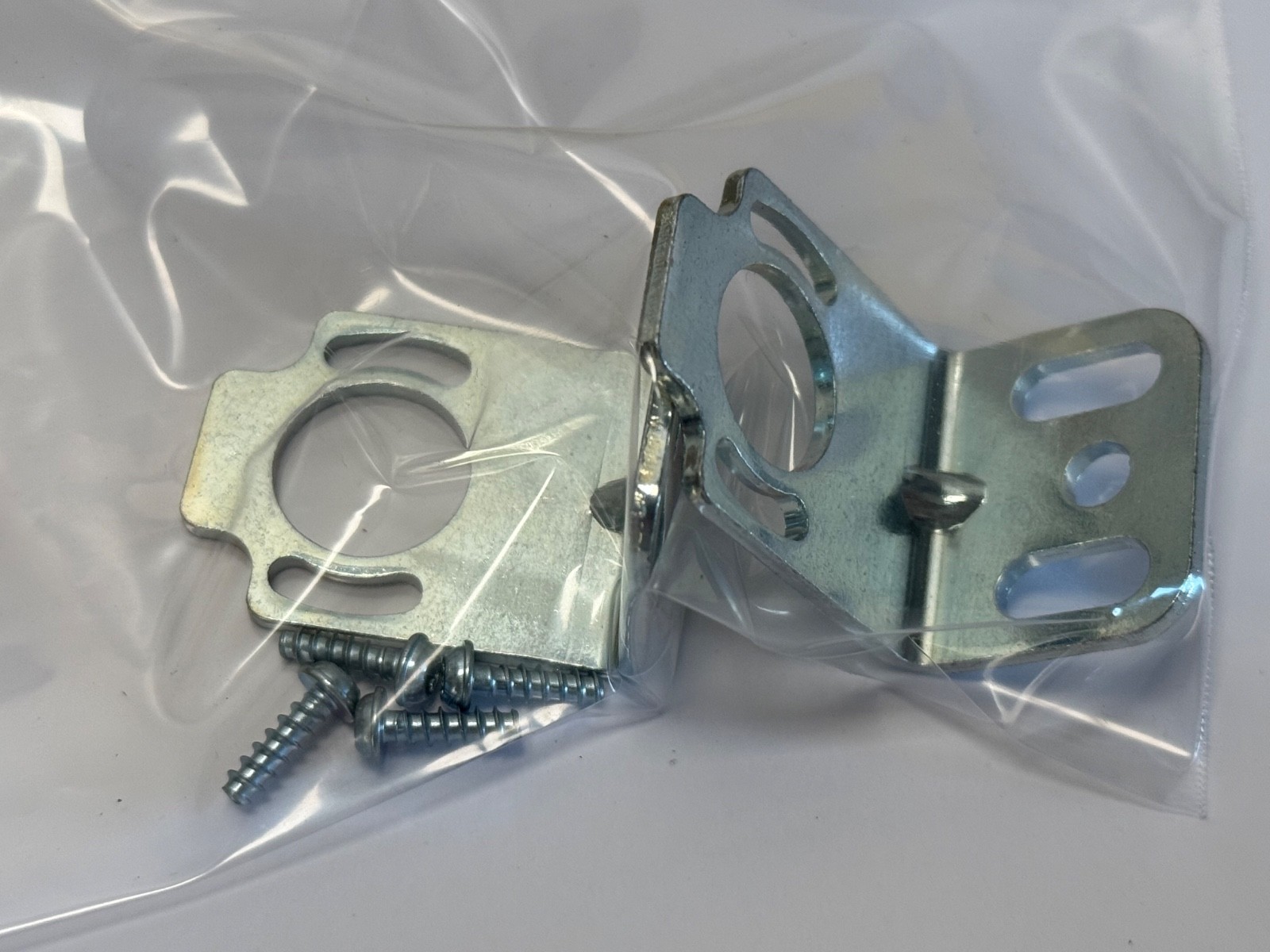

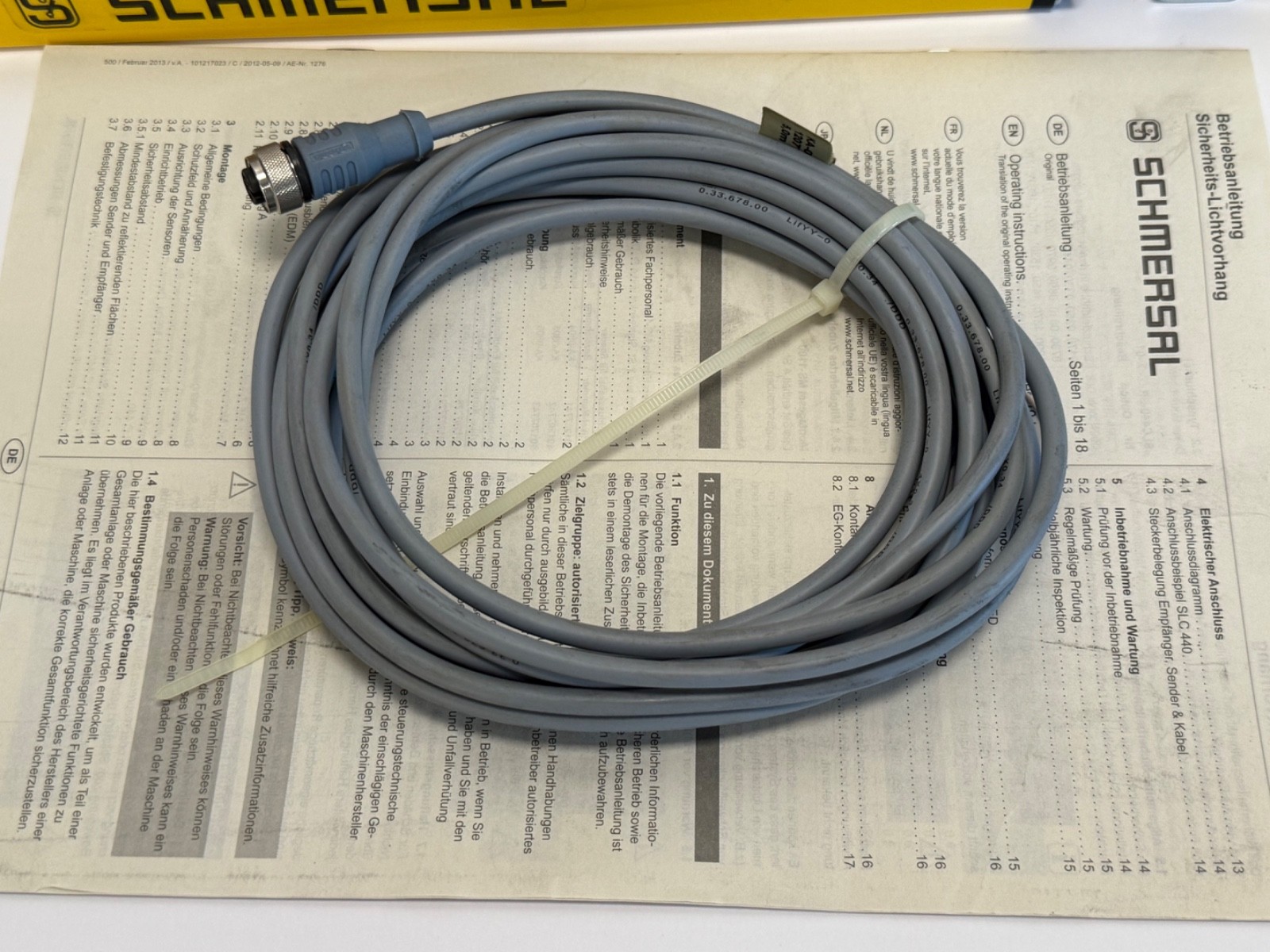

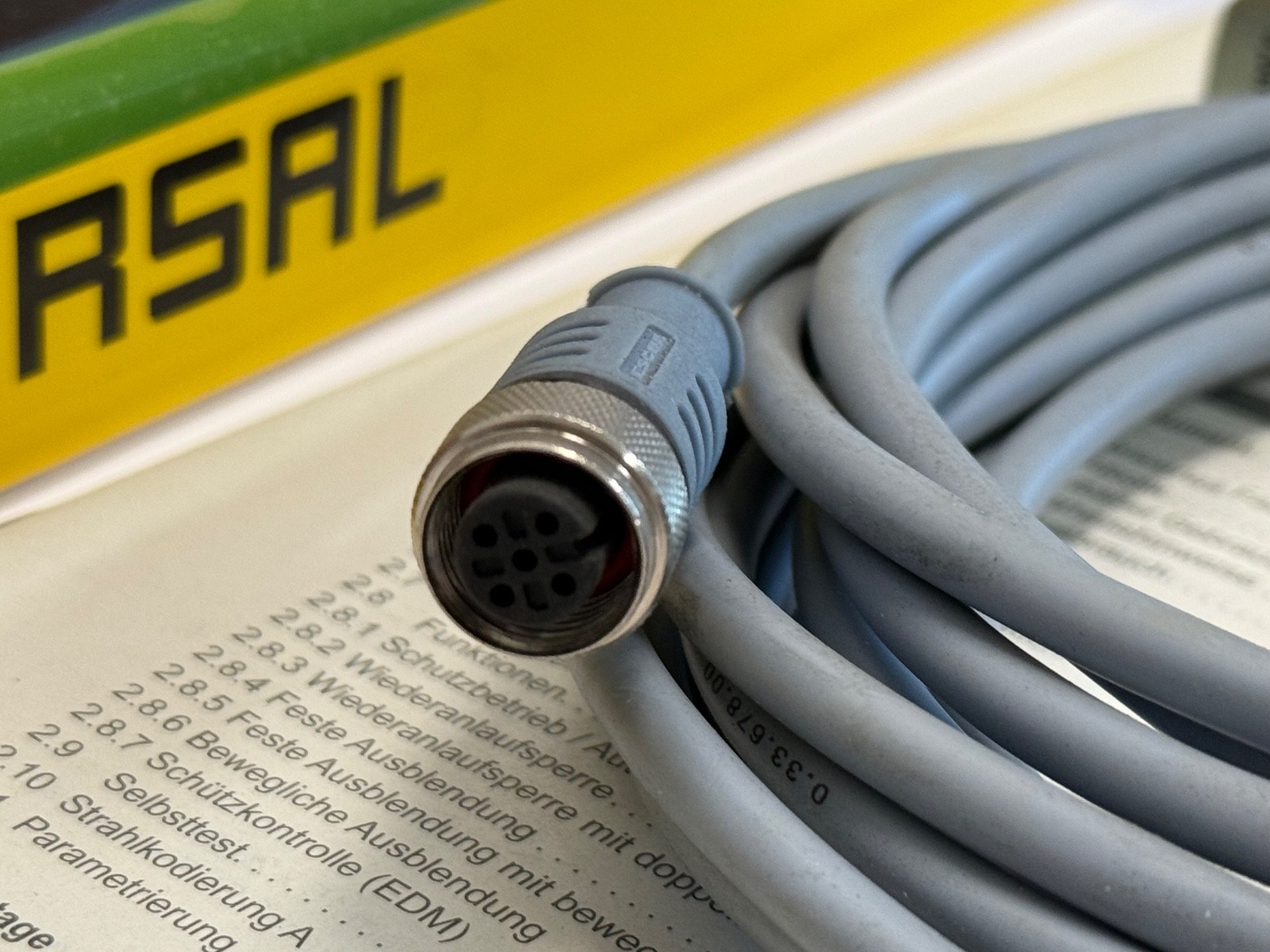

Curtain sticks only. No mounting brackets, swivel mounts or protective columns, no cordsets or connection cables, no safety relay or safety controller, no muting sensors, muting arm or muting kit, no deflecting mirrors, no laser alignment aid, no test rod and no documentation.

Interchange guidance

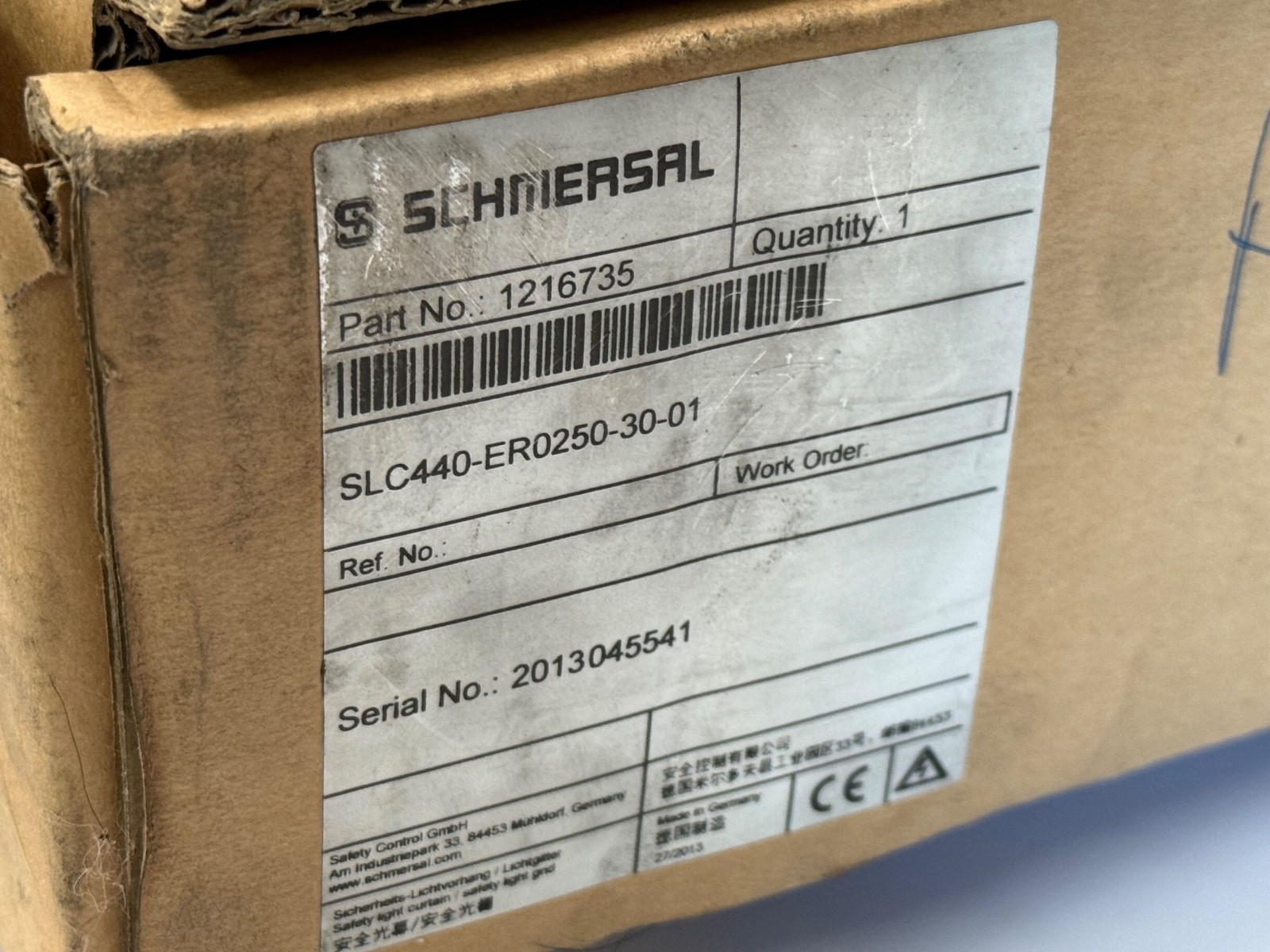

SLC440-ER-0250-30-01 and SLC440ER02503001 are the same part. Other SLC440 numbers differ in the fields that matter: SLC440-ER-1610-30-01 and SLC440-ER-1850-30-01 are the same 30 mm resolution at 1610 mm and 1850 mm protective heights, and a 14 mm resolution version is a different detection class entirely. SLC440COM is the communicating variant of the series. None of these substitute for one another in a validated safety function without recalculating the safety distance.
