Availability:
3 in stock

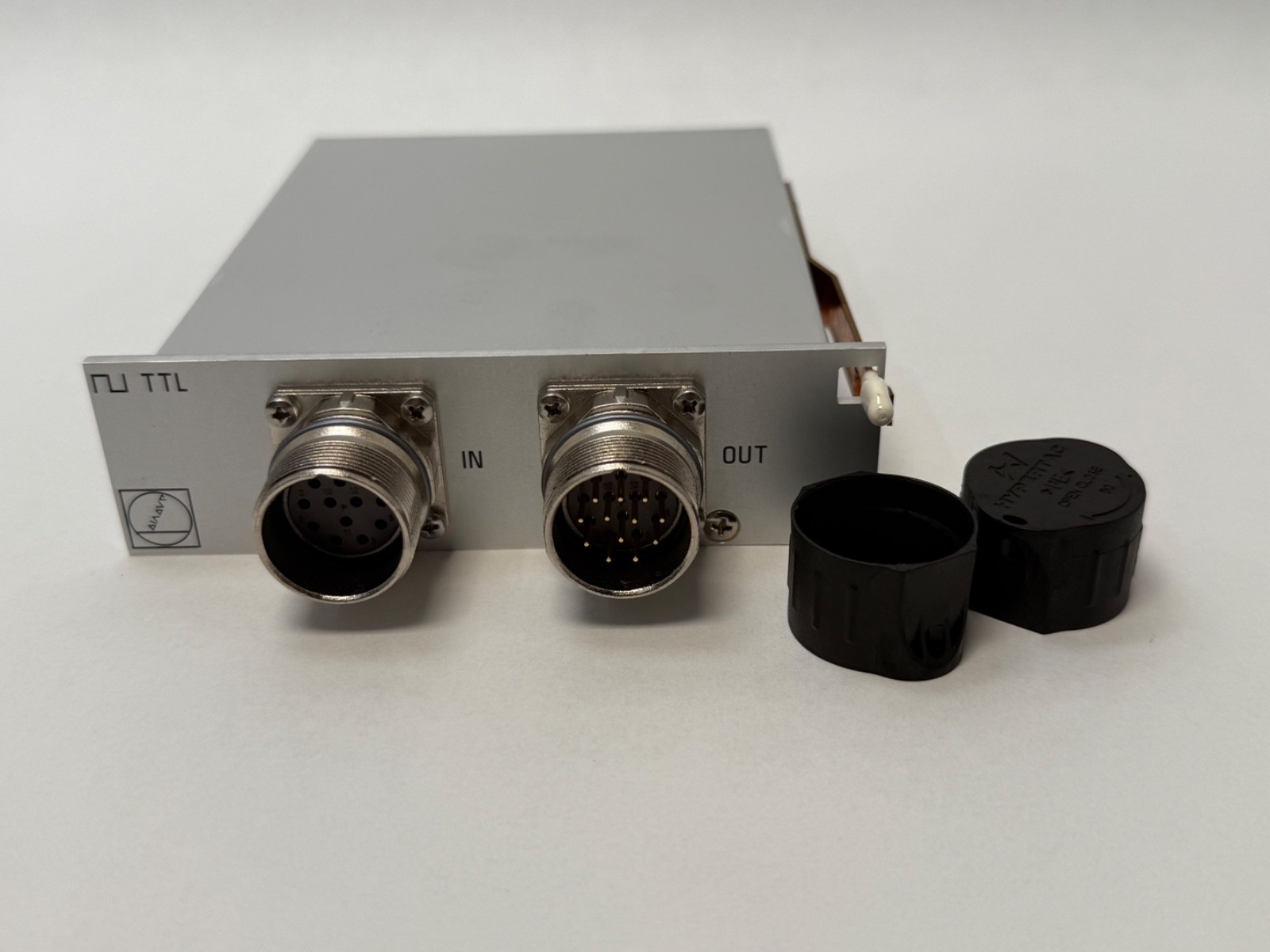

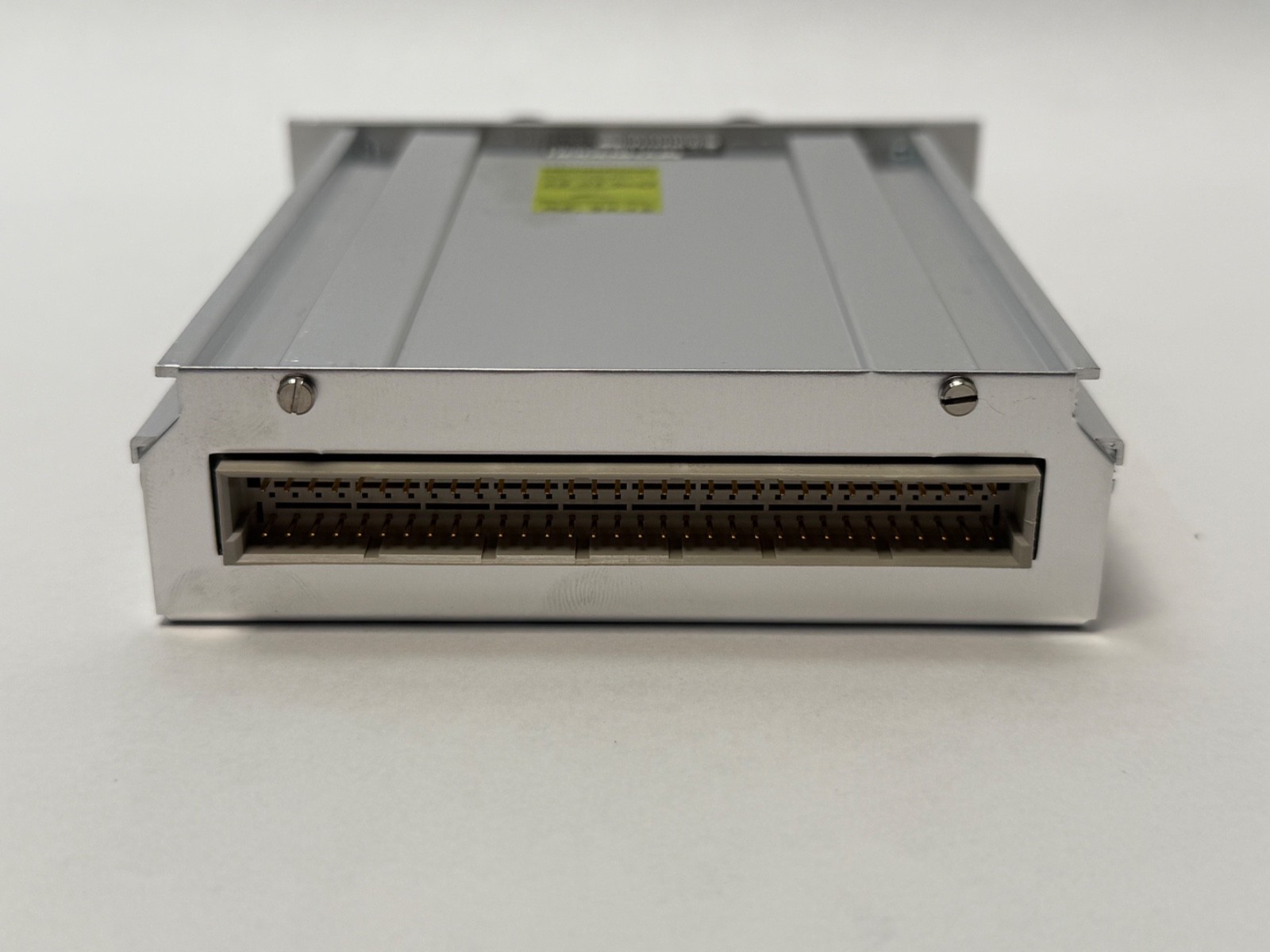

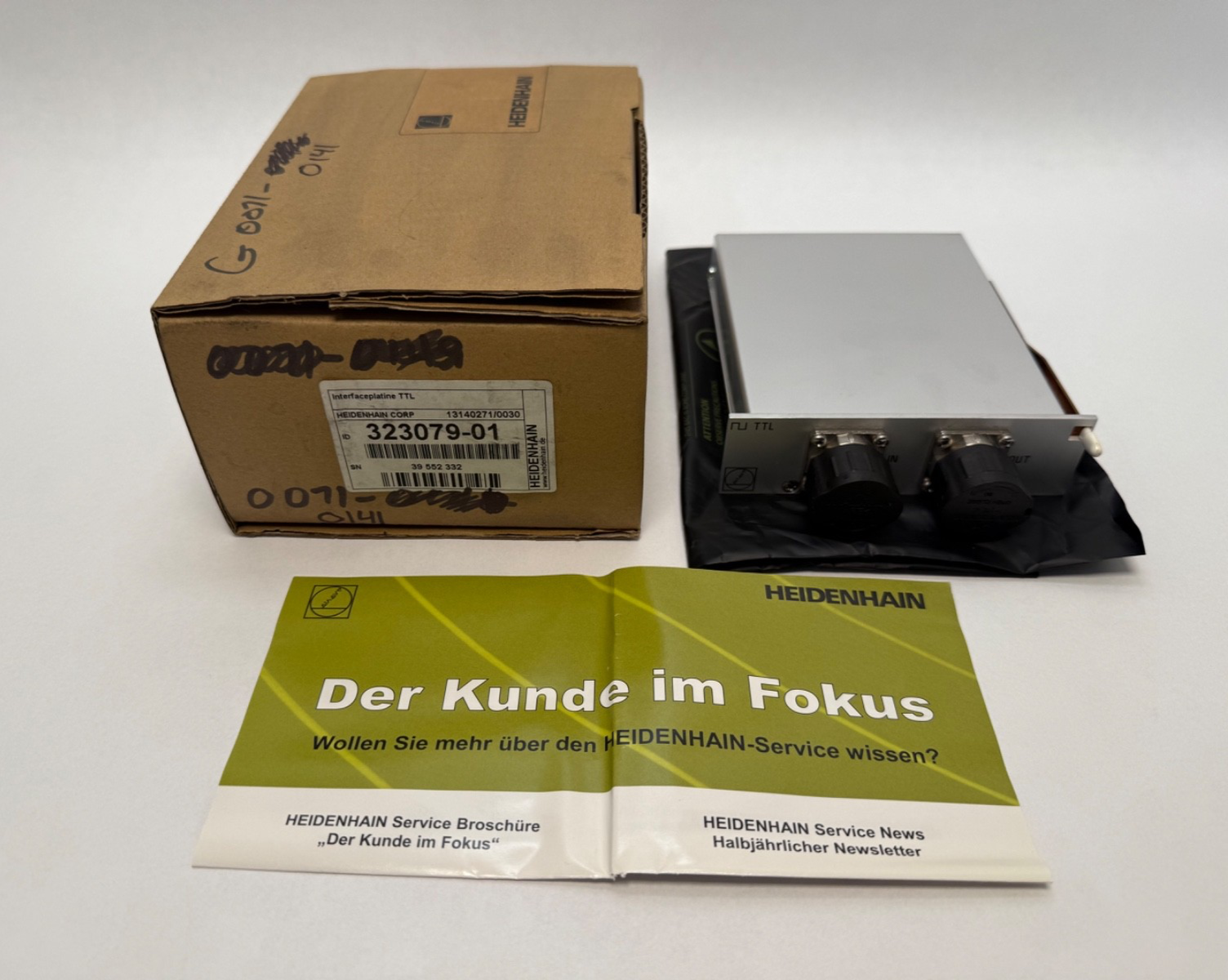

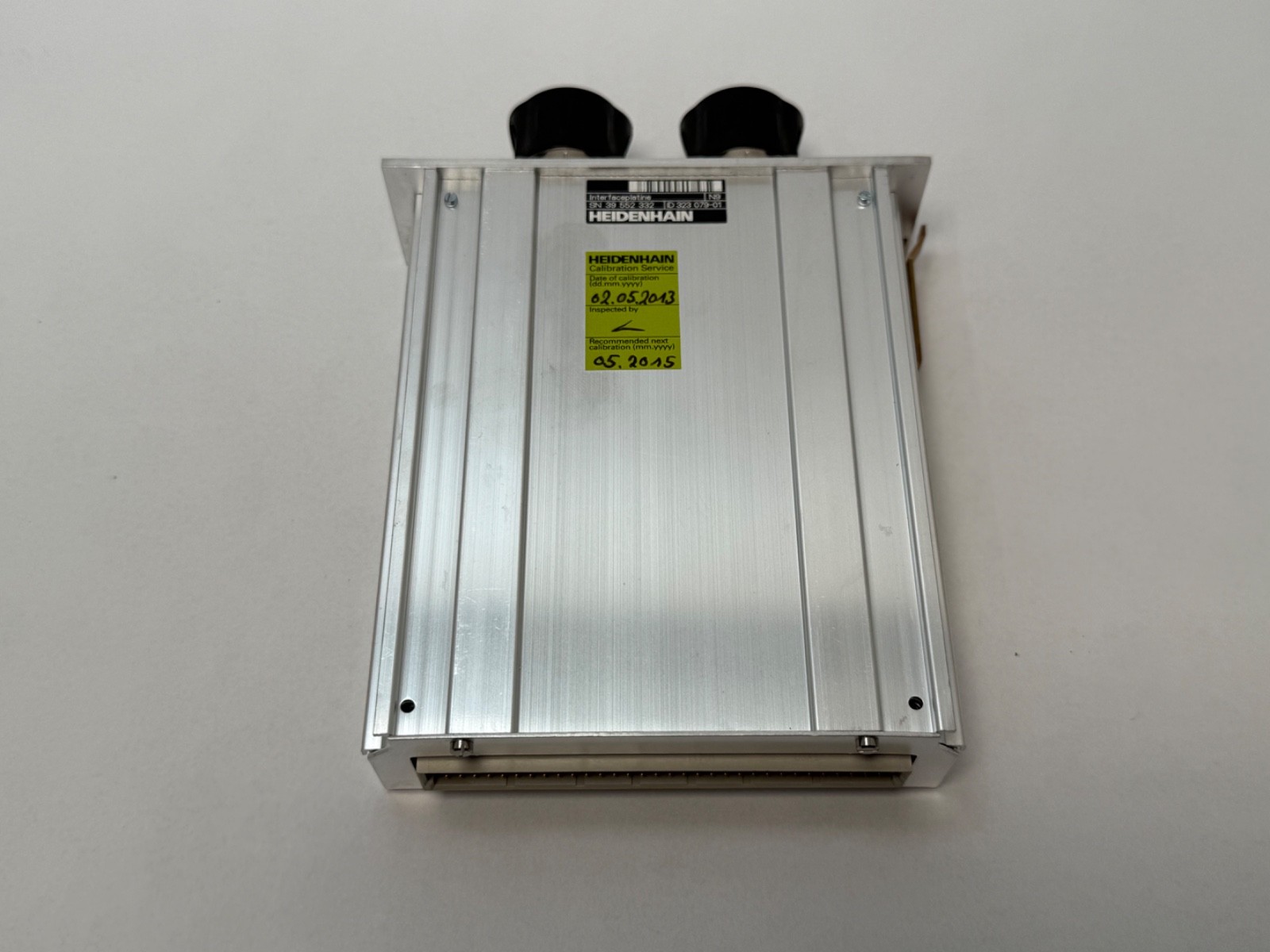

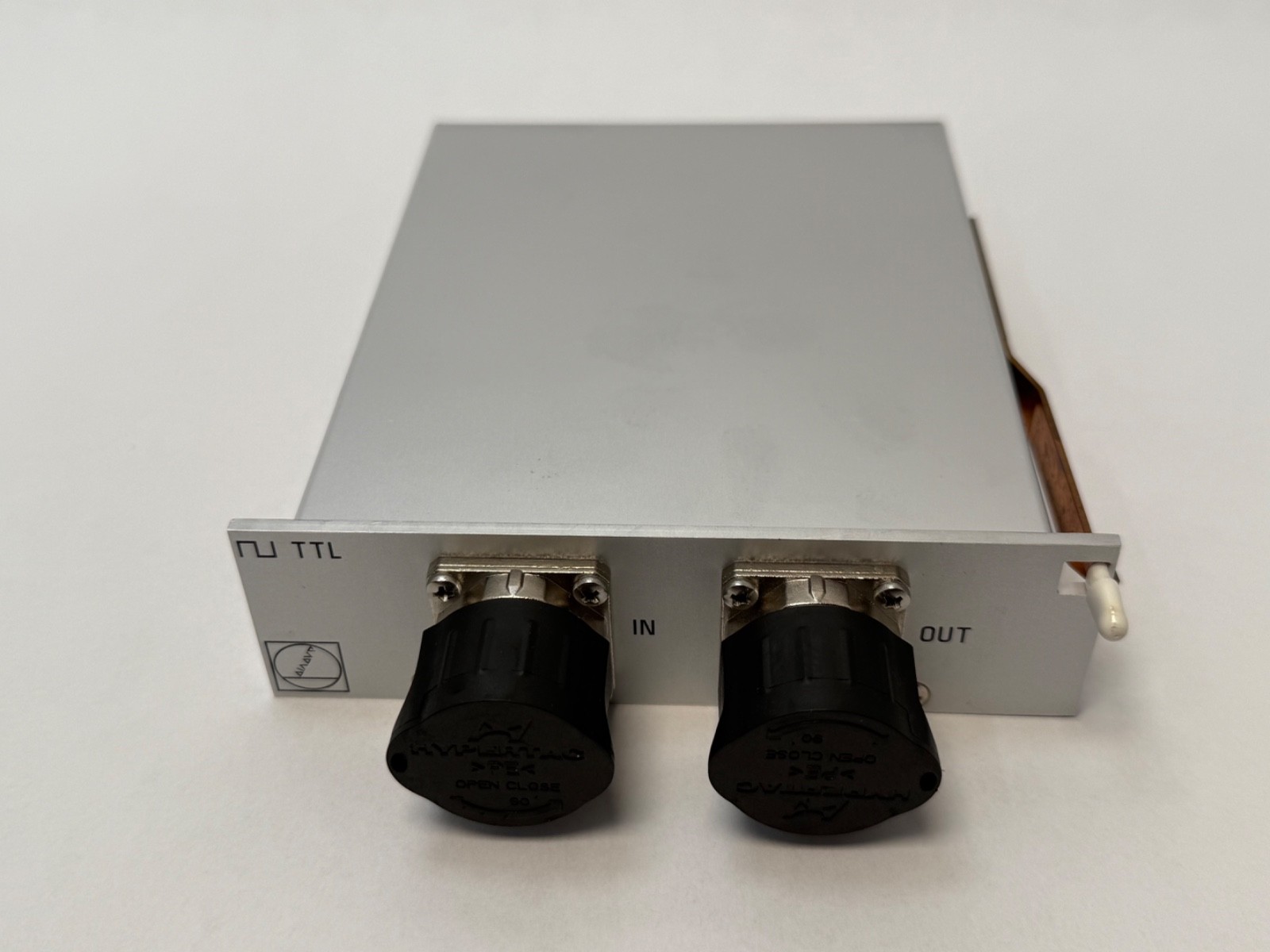

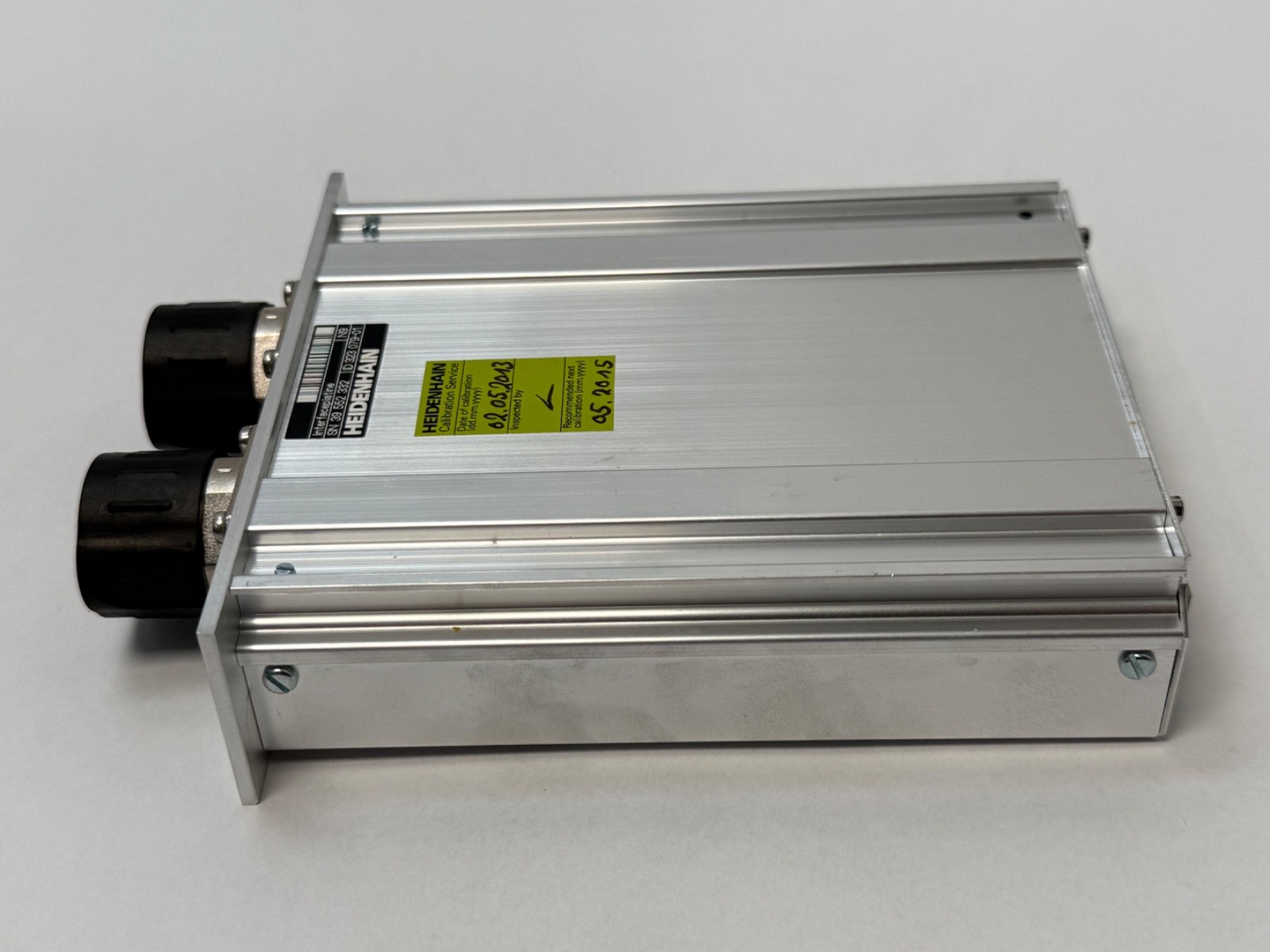

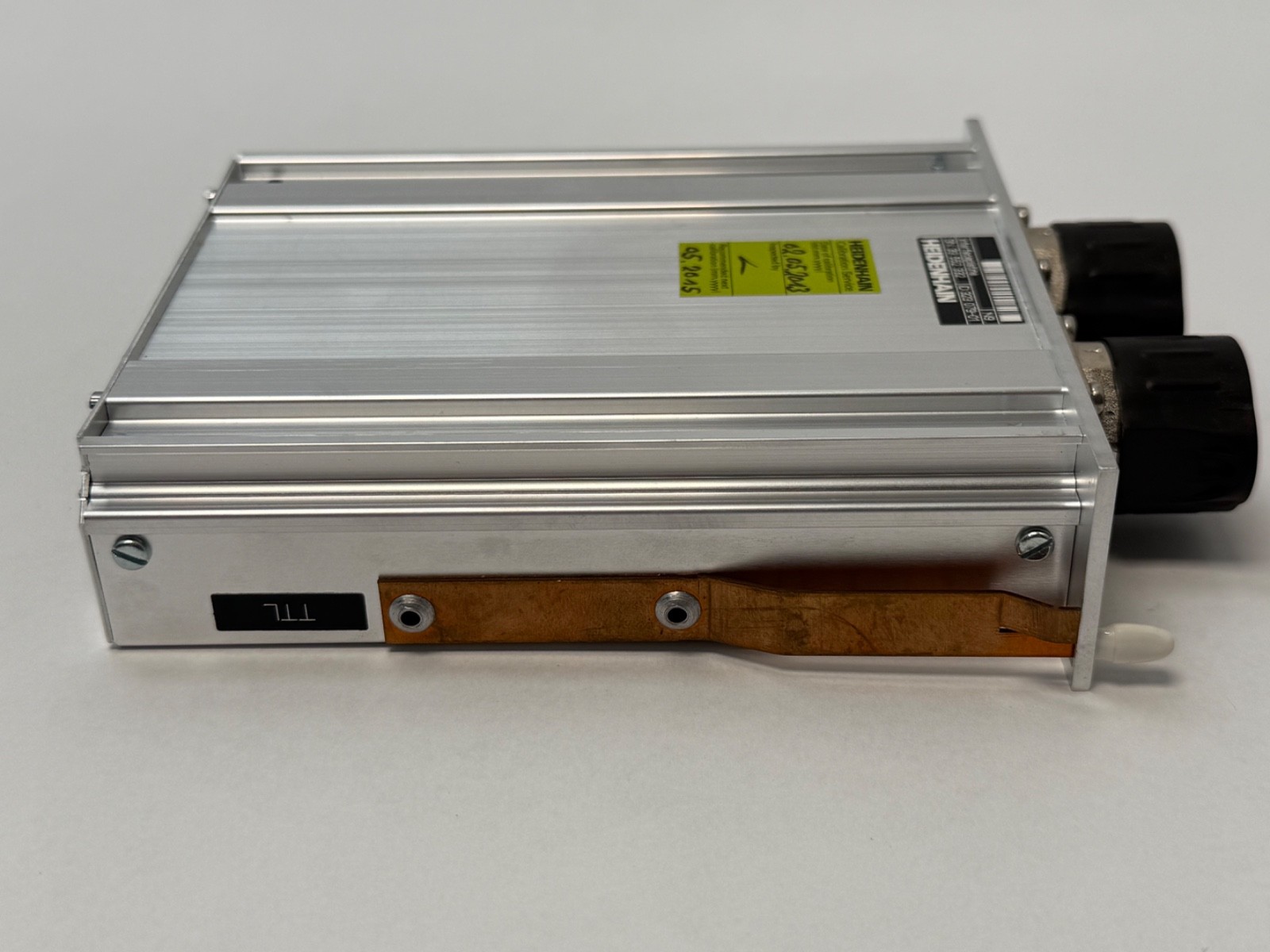

Heidenhain 323079-01 TTL interface board, plug-in expansion module for the PWM 8 and PWM 9 phase angle measuring units used to test TTL encoder signals.
List Price
$550.20
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Heidenhain |
|---|---|
| Model | 323-079-01 |
| Industry Terms | TTL interface board; Interfaceplatine TTL; PWM expansion module; phase angle measuring unit board; encoder diagnostic |
|---|---|
| Common Misspellings | Heidenhein; Heidenhan; 323097-01 |
| Mpn Variants | 323079-01; 323 079-01; 323-079-01; 32307901; PWM9 323079-01 |
| Compatible With Replaces | HEIDENHAIN PWM 9; HEIDENHAIN PWM 8 |
| Additional Attributes | Interface: TTL; Board Type: plug-in expansion module; Fits: PWM 9, PWM 8 |
| Type | TTL Interface Board |
| Application | Encoder signal testing and adjustment with HEIDENHAIN PWM 8 / PWM 9 |
| Compatible Model | HEIDENHAIN PWM 9; PWM 8 |
| Communication Standard | TTL |
Heidenhain ID 323079-01 is the TTL interface board for the HEIDENHAIN PWM 9 phase angle measuring unit (PWM 9 diagnostic kit) and its predecessor, the PWM 8. Type: TTL Interface Board (plug-in expansion module). Interface: TTL. The board adapts the PWM to encoders with TTL square-wave output signals.
The PWM 9 accepts one interface board at a time, and each board supports one encoder interface. The boards change from outside the PWM housing. With the TTL board fitted, the PWM checks and adjusts incremental linear and angle encoders with TTL output, measuring signal on-off ratio, phase angle, operating voltage, current consumption and scanning frequency.

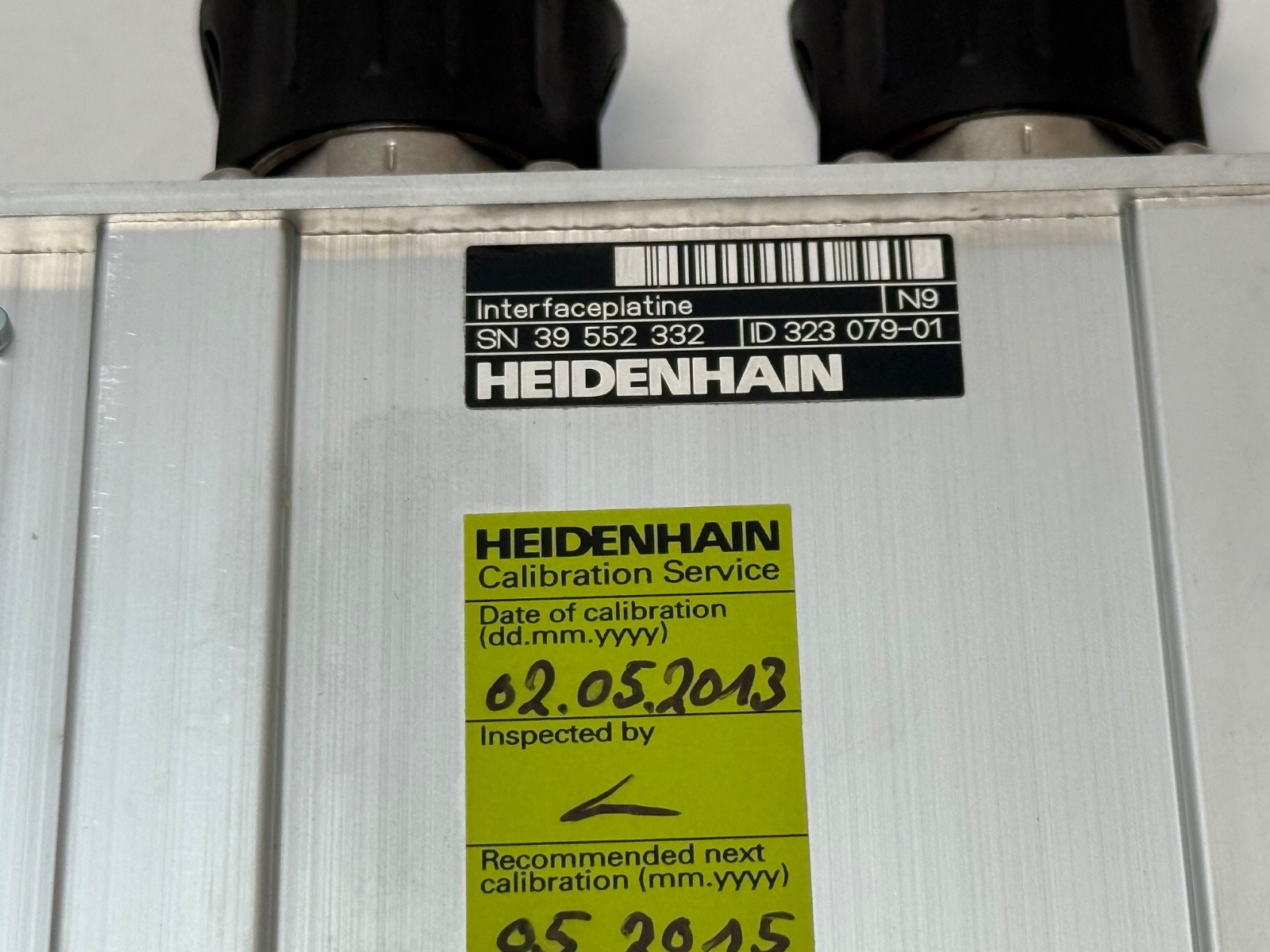

Heidenhain lists ID 323079-01 as the TTL interface board in the PWM 9 user’s manual. Related Heidenhain parts listed with it: adapter cables FANUC TTL 20-pin to HEIDENHAIN TTL 12-pin, ID 556558-xx and ID 577345-01. Sister boards cover 1 Vpp, 11 µApp, HTL and EnDat/SSI interfaces.
