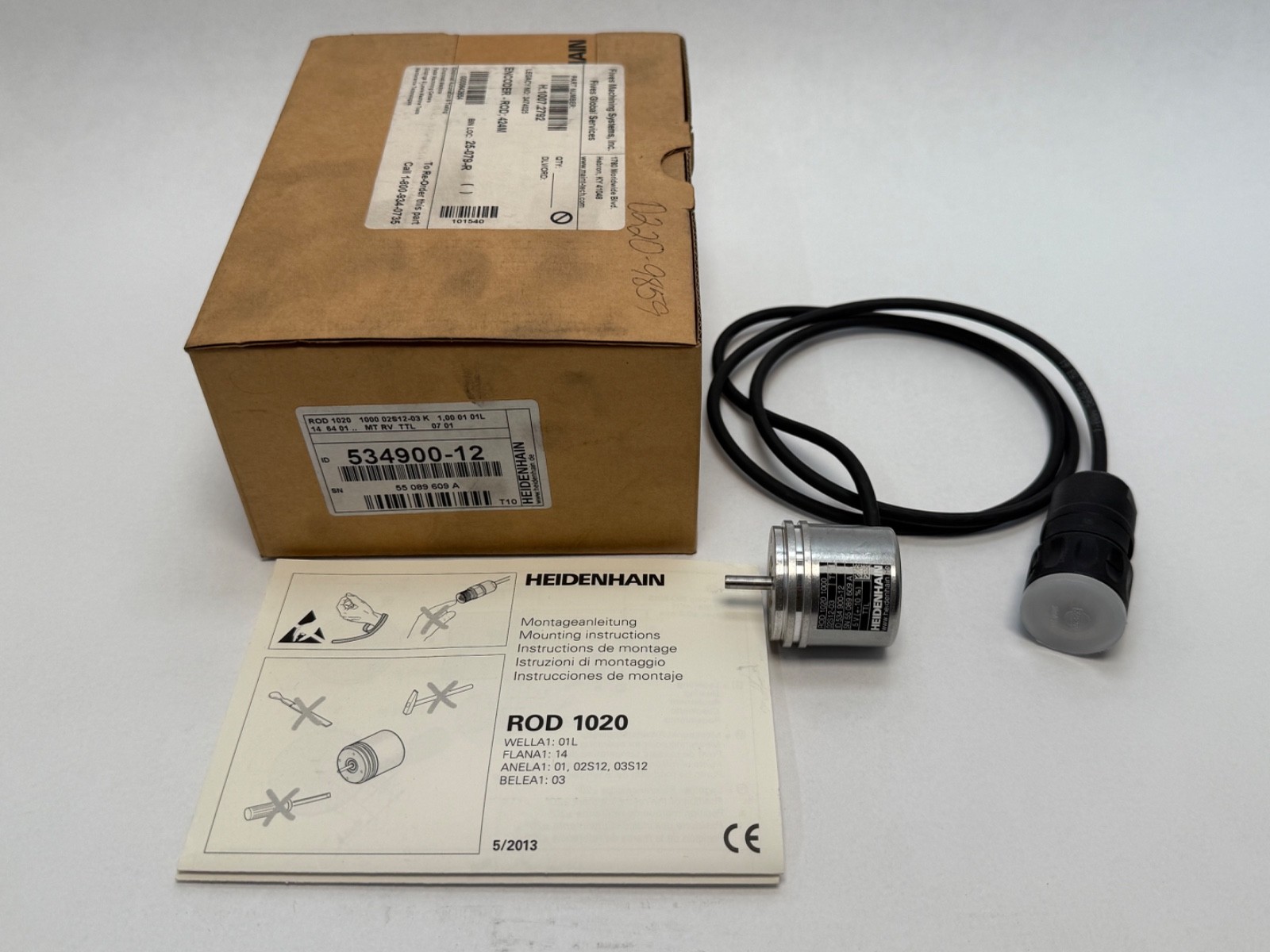

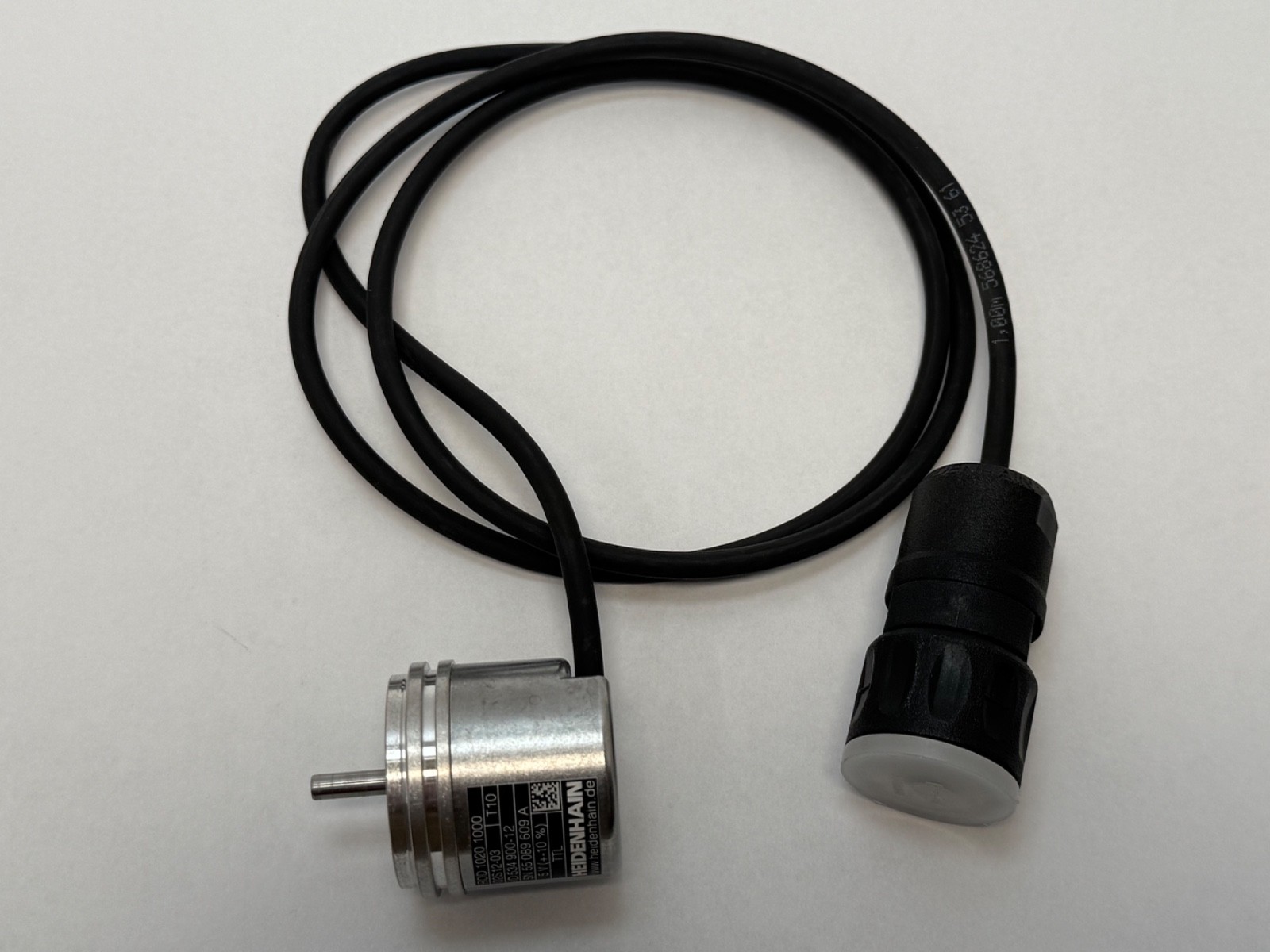

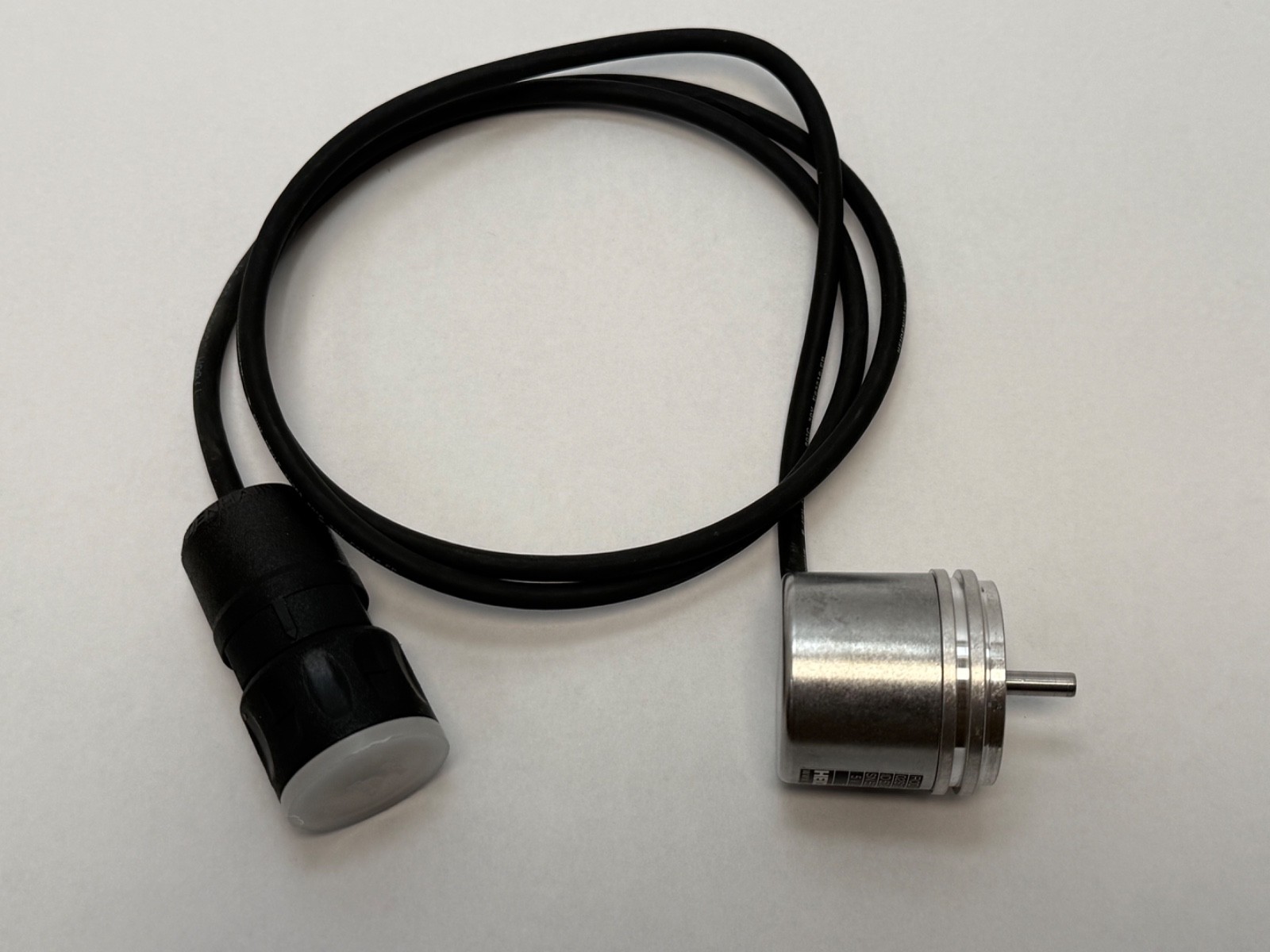

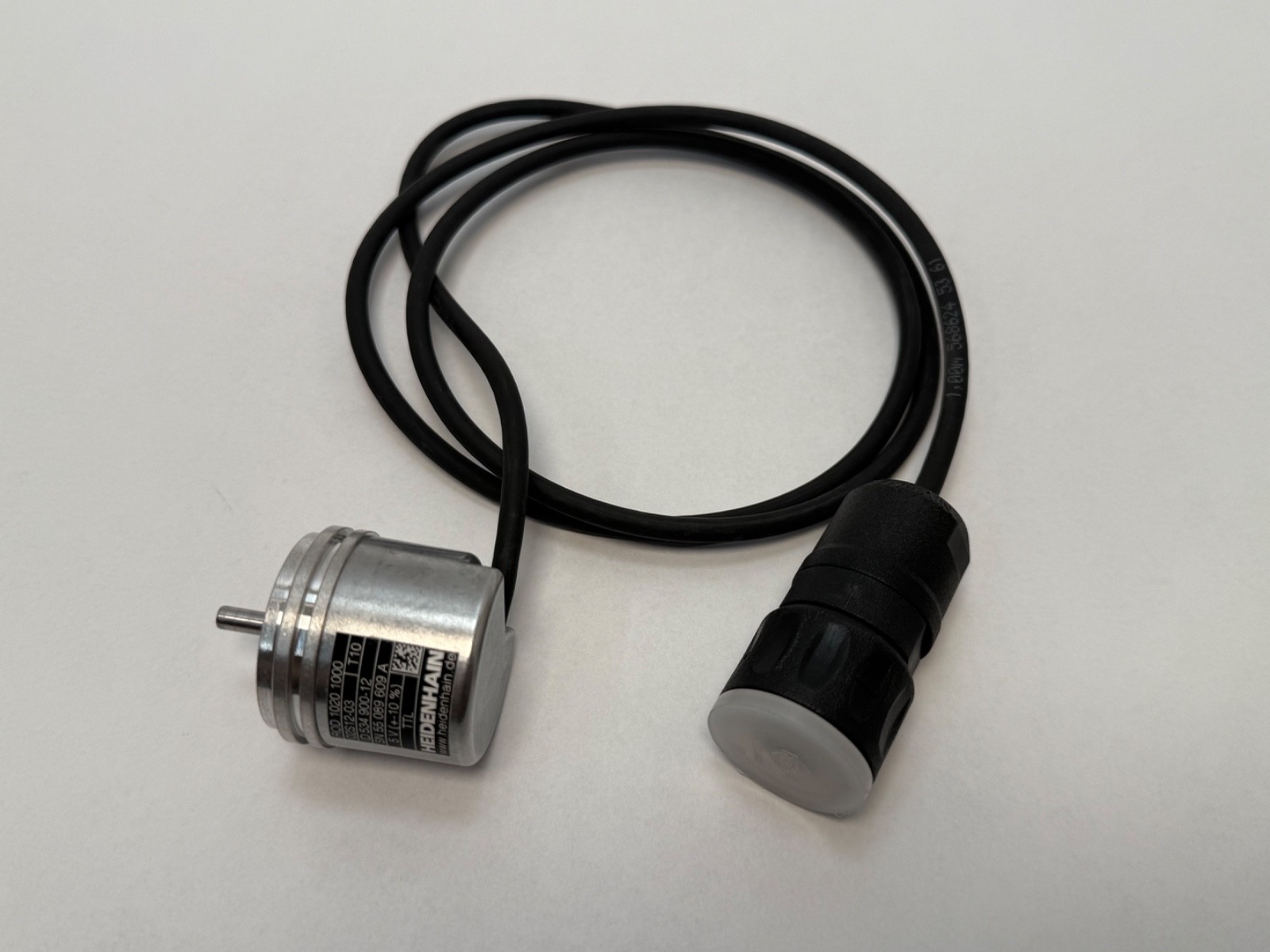

Heidenhain ROD 1020 1000 incremental rotary encoder, TTL output, 1000 lines, 35 mm ROD 1000 series housing, ID 534900-12. New condition.
List Price
$197.09
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Heidenhain |
|---|---|
| Model | ROD 1020 1000 |
| Condition | New |
|---|---|
| Base Number | ROD 1020 |
| Industry Terms | incremental encoder, rotary encoder, shaft encoder, TTL encoder, pulse generator |
| Common Misspellings | Heidenhein, Heidenheim, ROD1020-1000, R0D 1020 |
| Encoding Type | Incremental |
| Mpn Variants | ROD 1020 1000, ROD-1020-1000, ROD1020, ROD 1020, 534900-12, 534 900-12, 53490012 |
| Additional Attributes | Interface: TTL; Line Count: 1000; Housing Diameter: 35 mm; Heidenhain ID: 534900-12 |
| Type | Rotary Encoder |

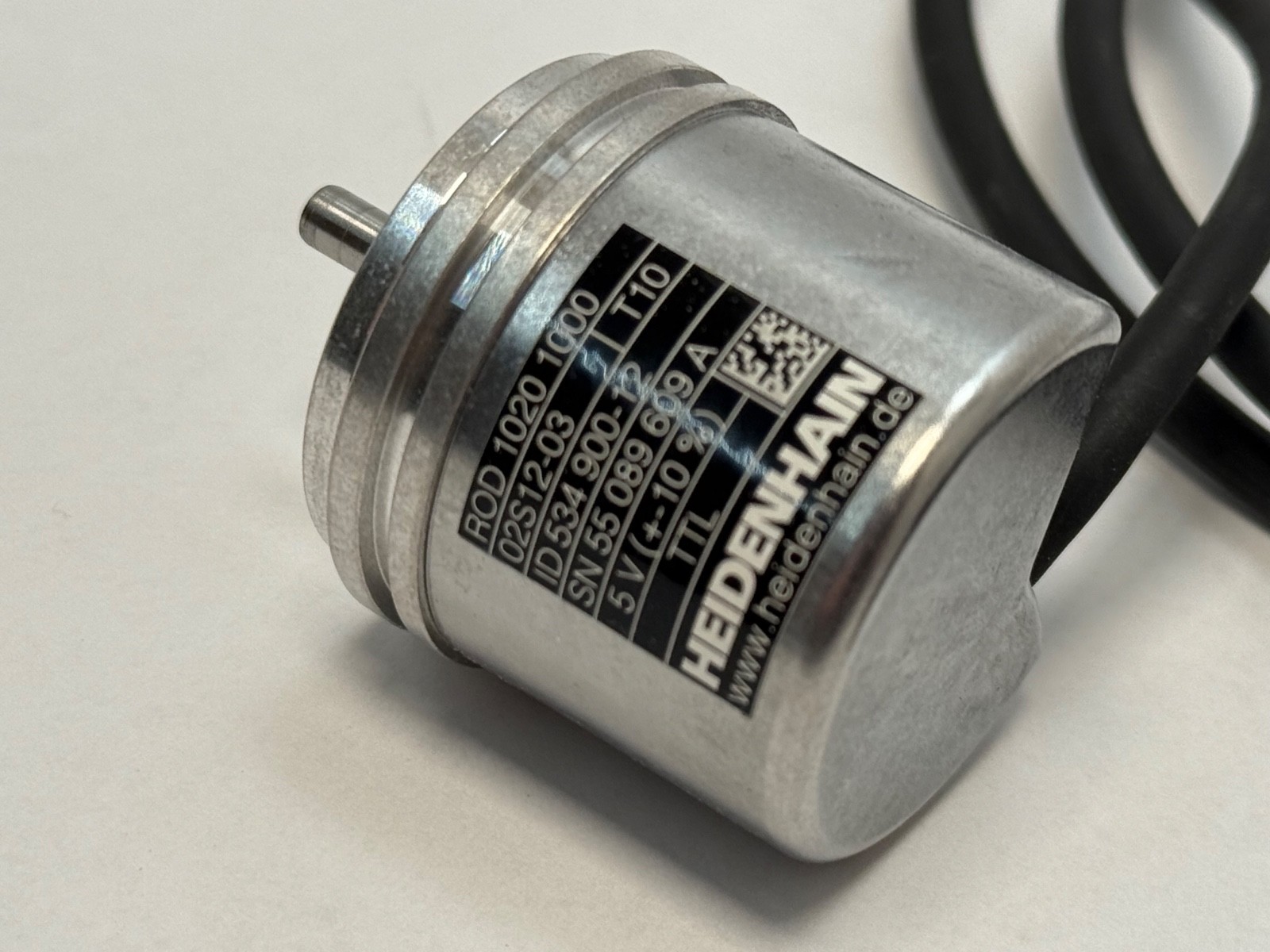

The Heidenhain ROD 1020 1000 is an incremental rotary encoder from the Heidenhain ROD 1000 series, Heidenhain ID 534900-12. Interface: TTL. Line Count: 1000. Housing Diameter: 35 mm. Encoding Type: Incremental.

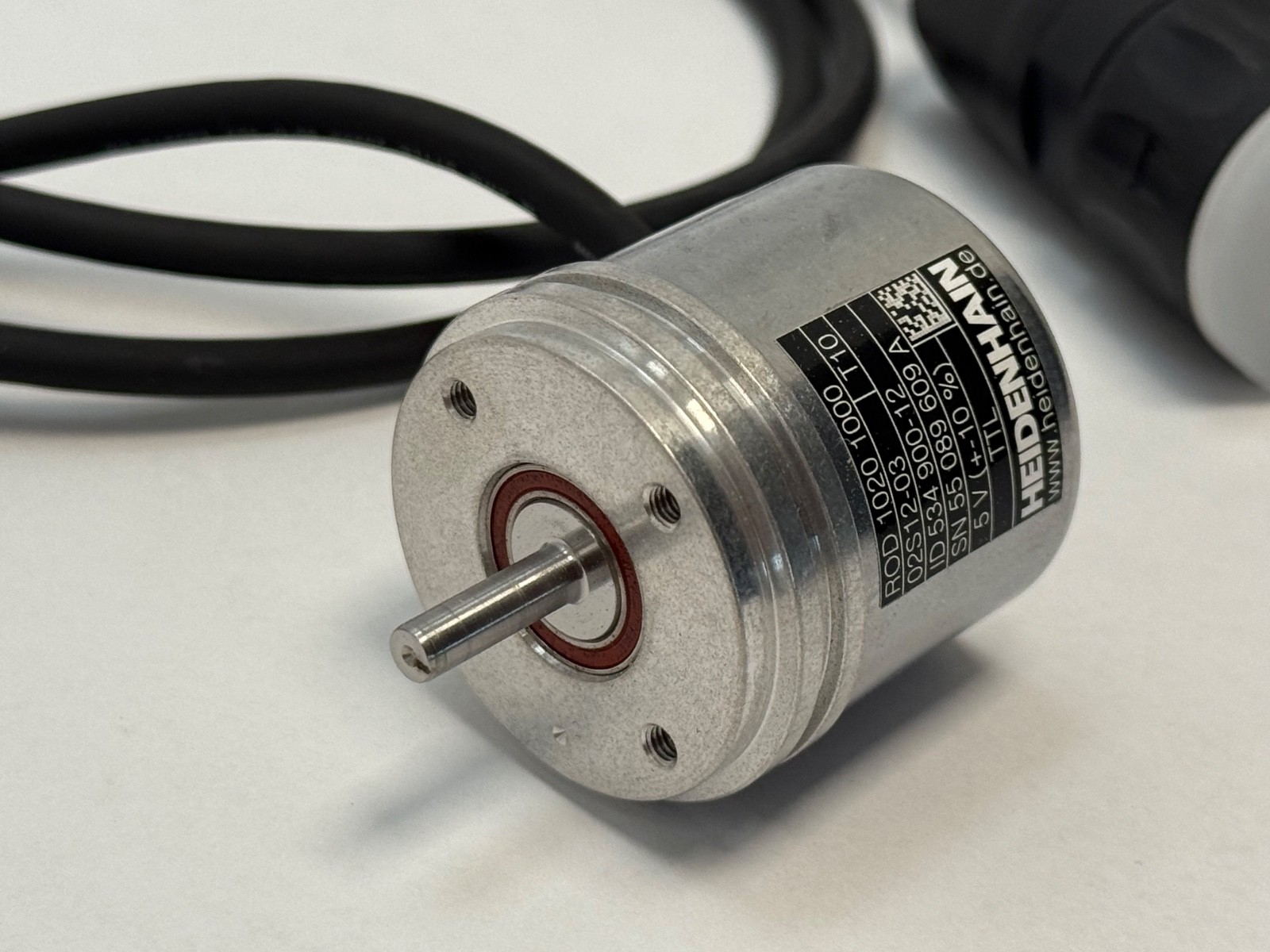

ROD — Heidenhain rotary encoder with integral bearing and solid shaft, incremental output.
1020 — ROD 1000 series model with TTL square-wave output.
1000 — line count, 1000 signal periods per revolution.
534900-12 — Heidenhain ID number identifying the exact ordered version.
TTL output delivers two square-wave signals 90° apart plus a reference pulse and their inverted signals over an RS-422 differential line driver. The 35 mm housing suits compact servo motors and small machine axes.

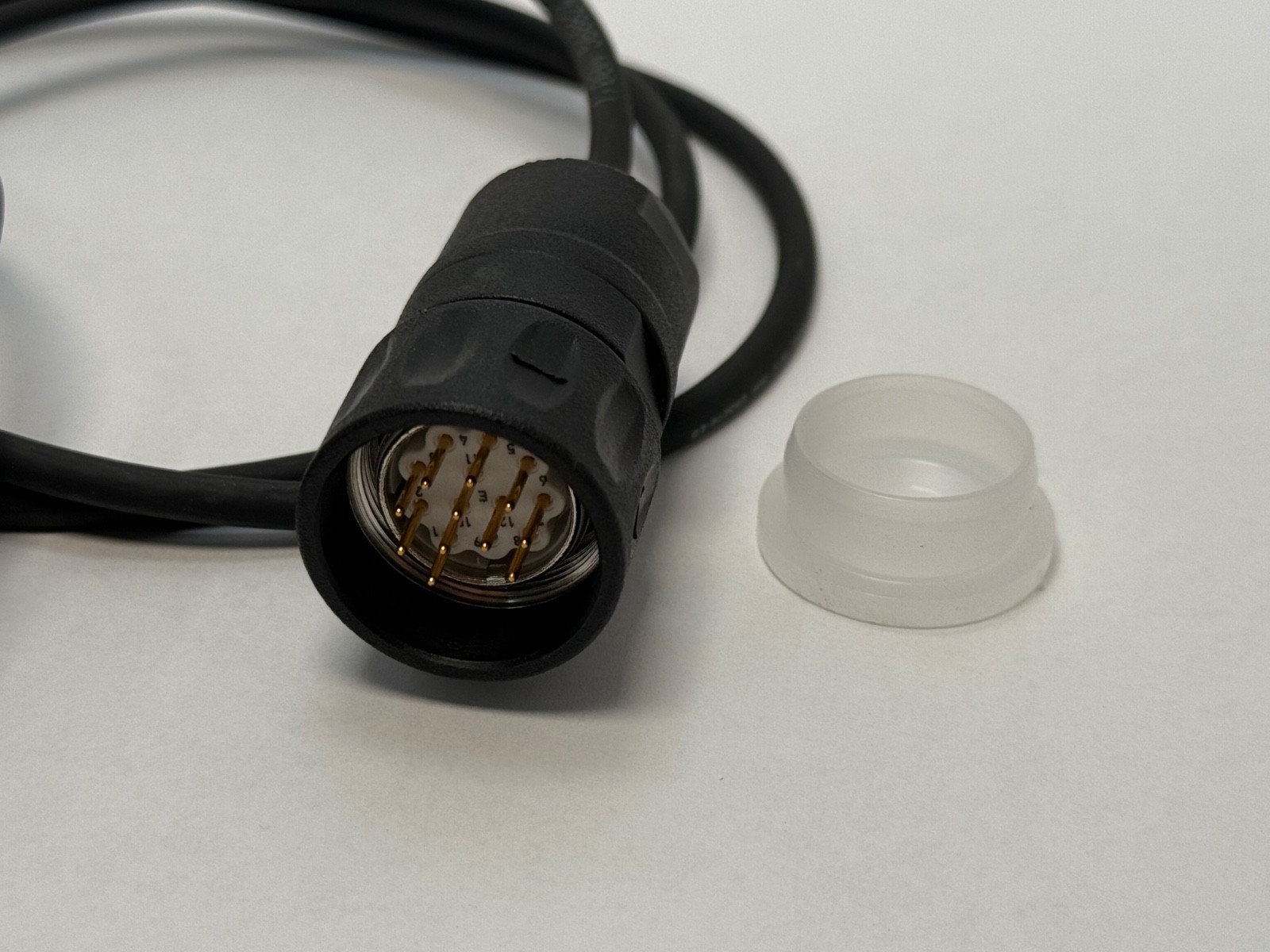

Replacement for a Heidenhain ROD 1020 with 1000 lines and ID 534900-12. The ID number defines shaft, flange, cable and connector.
