Product Description

What this part is:

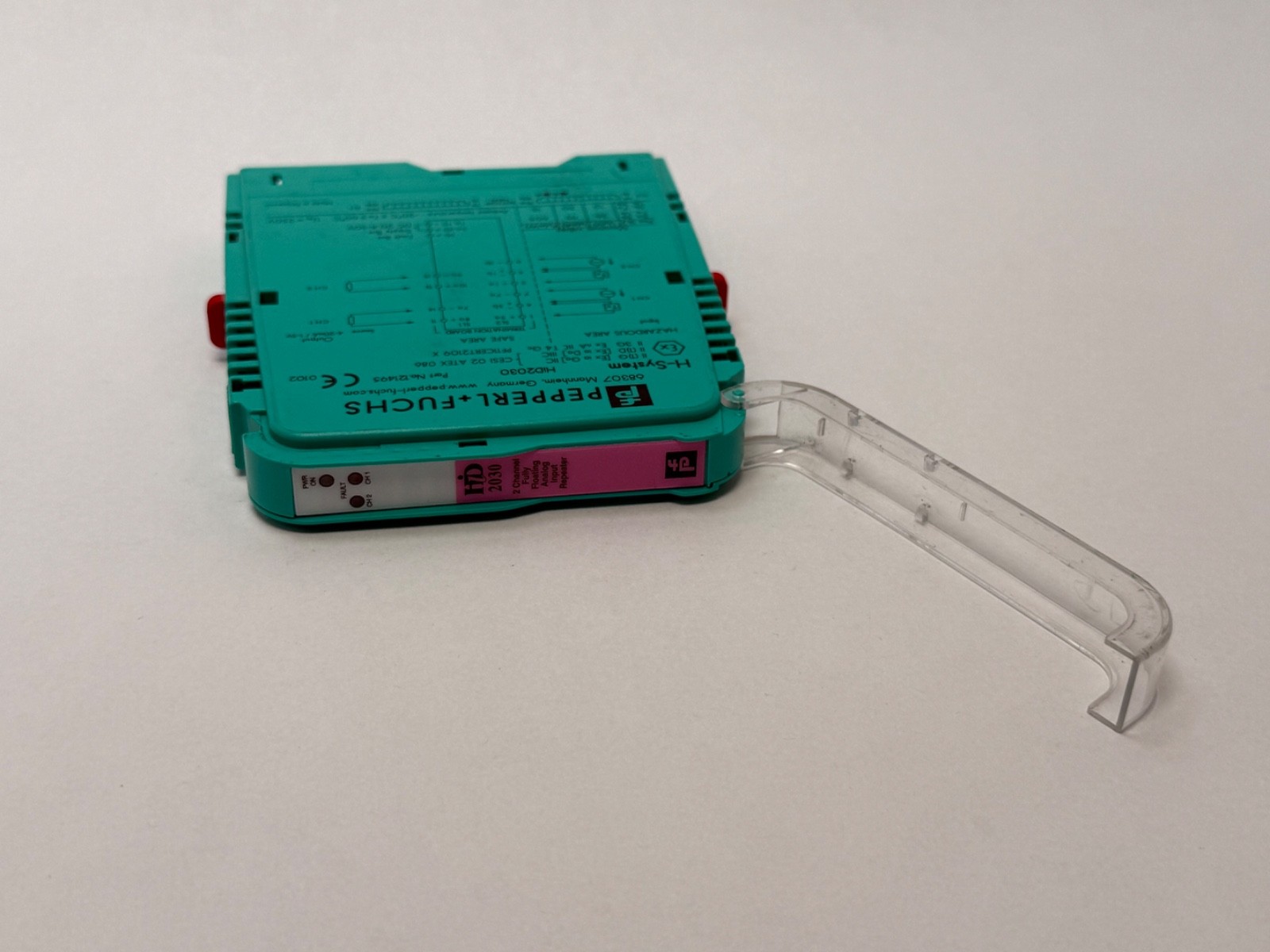

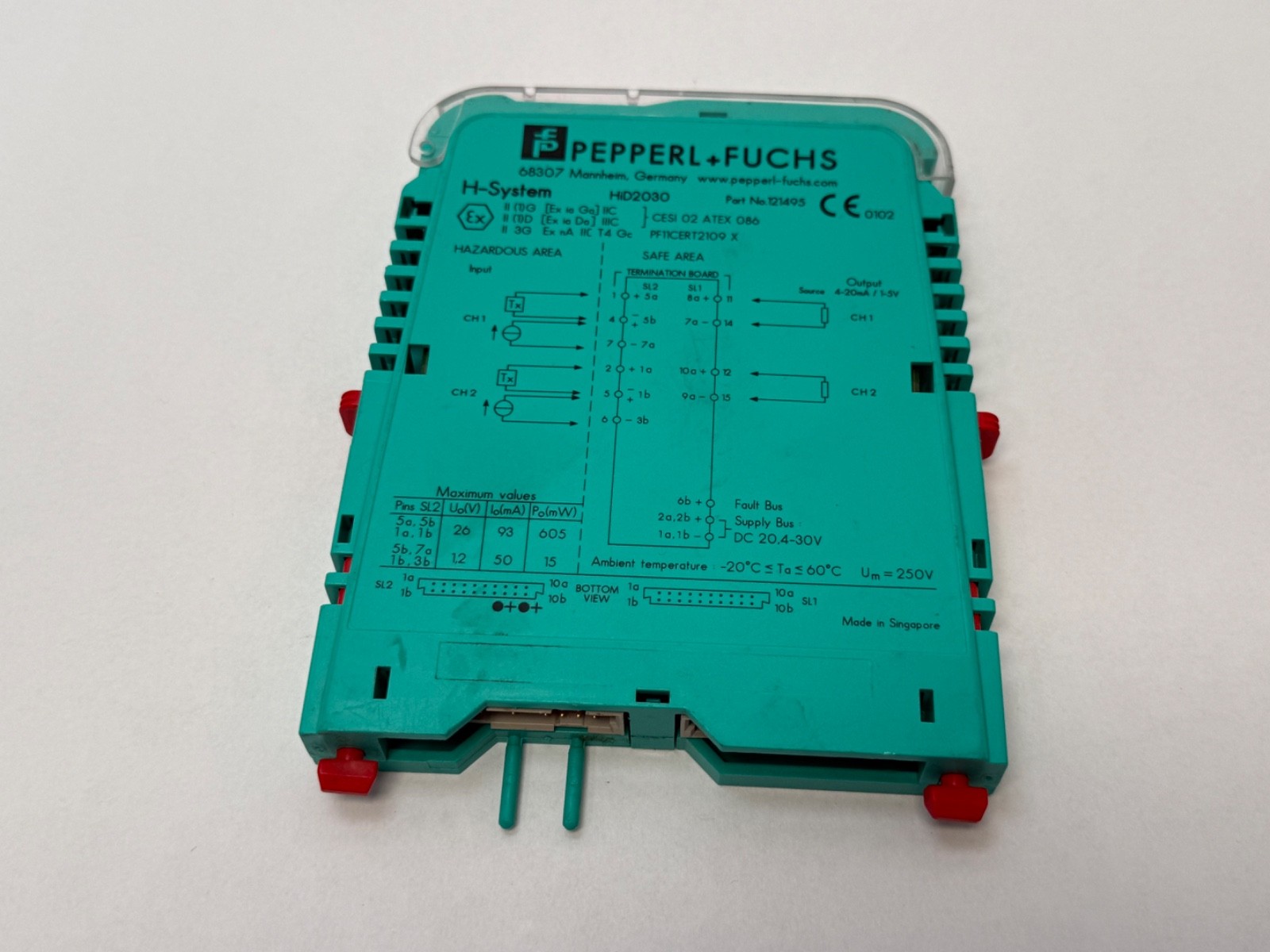

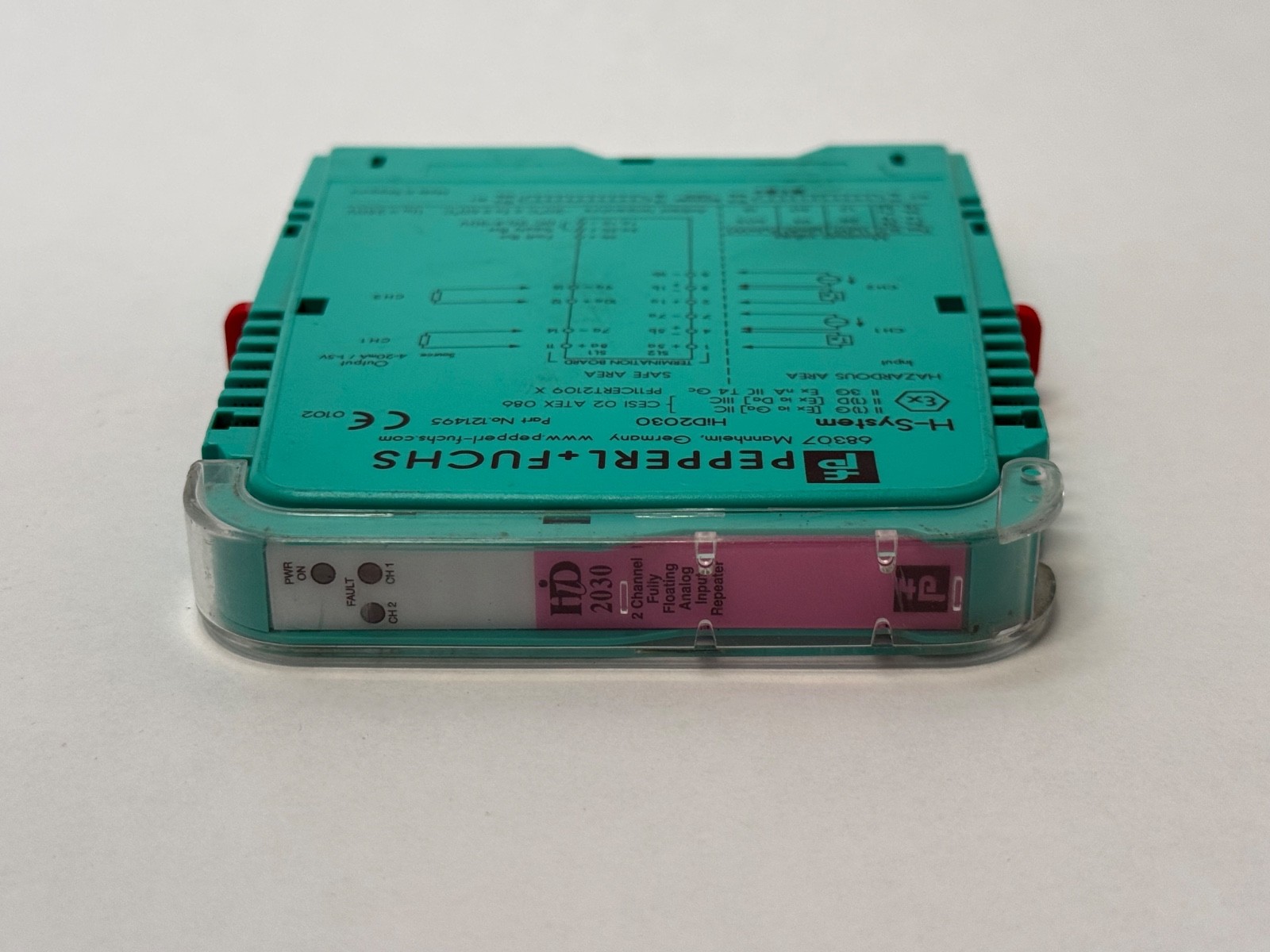

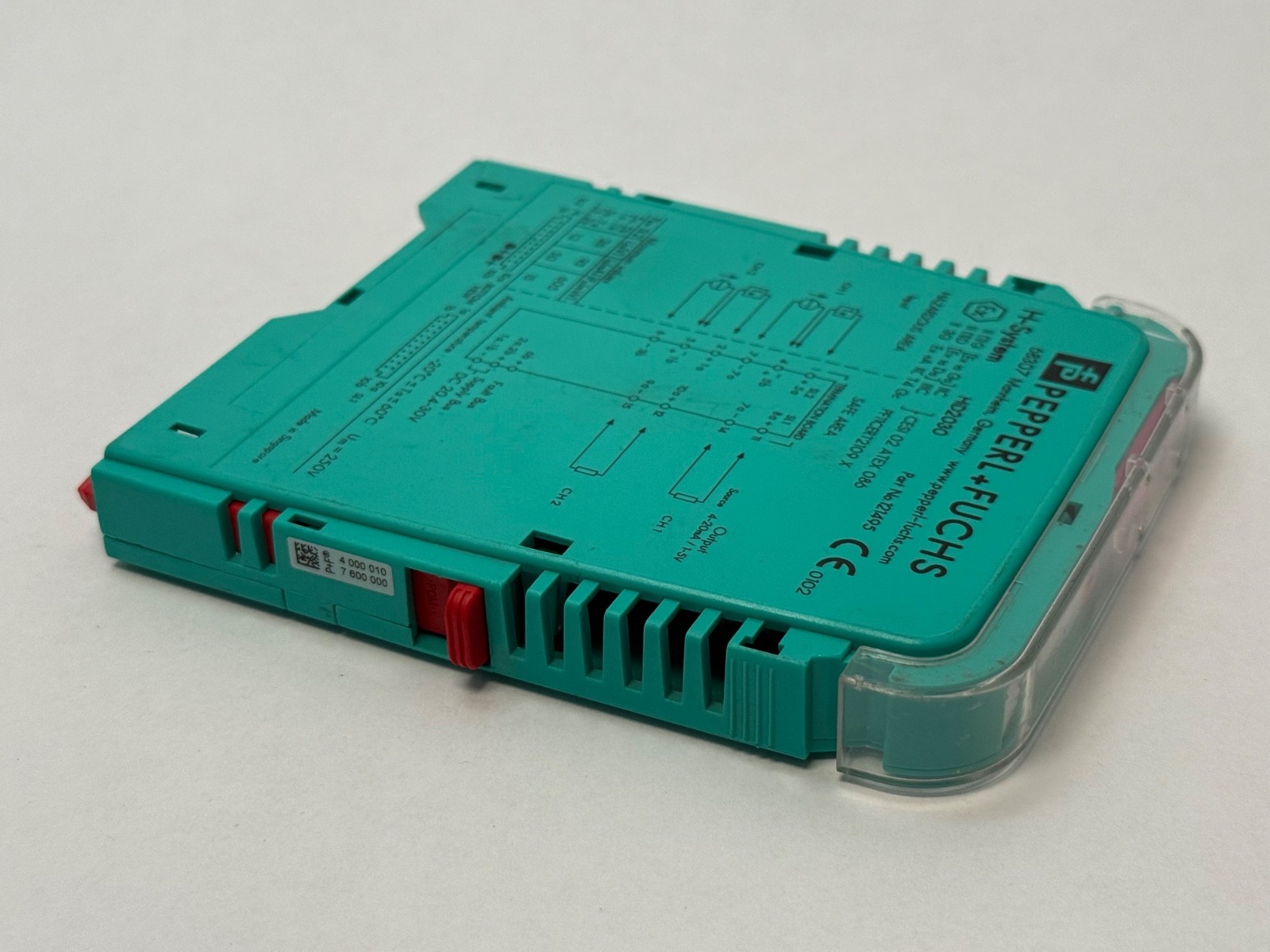

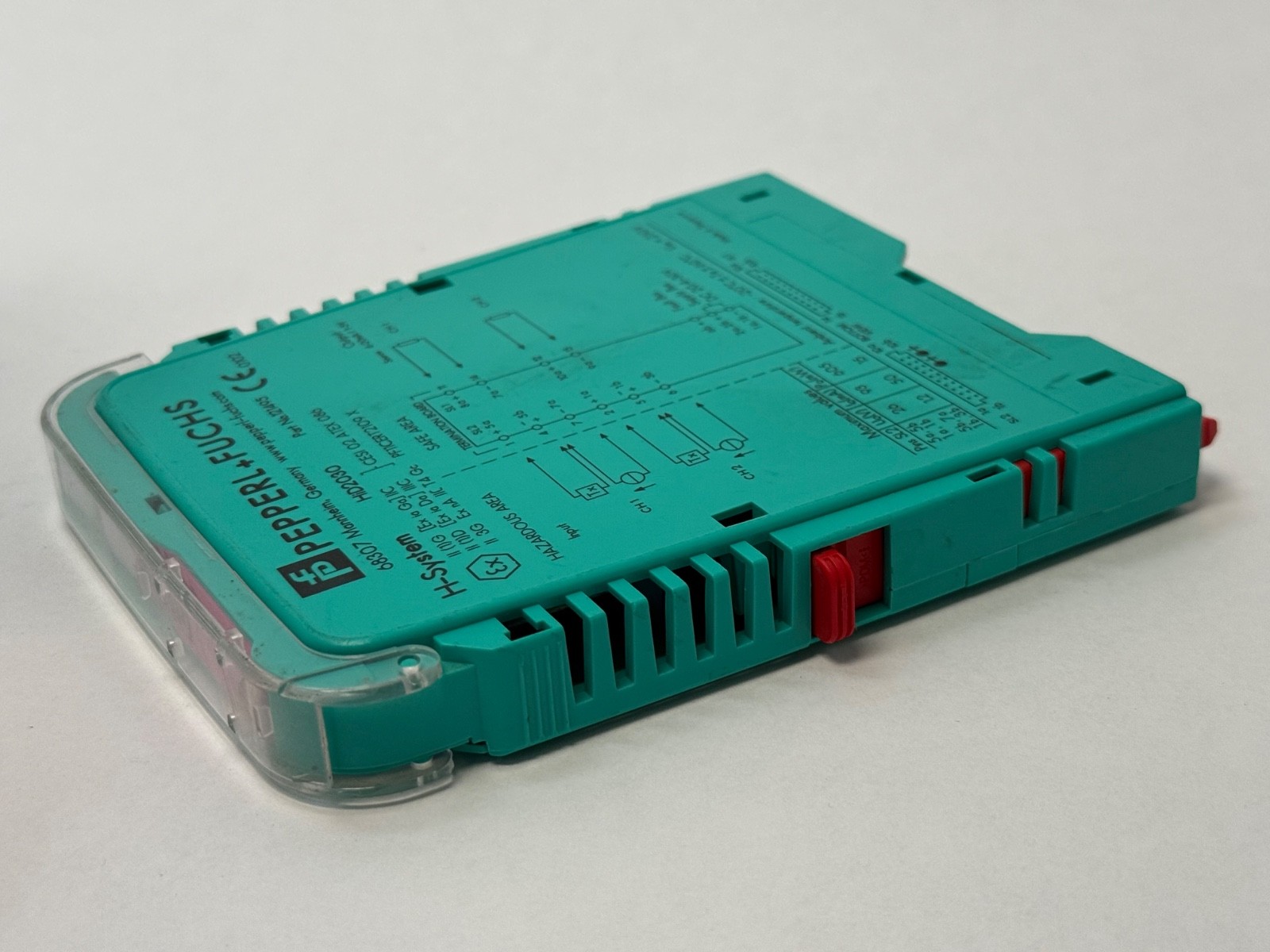

A Pepperl+Fuchs HiD2030 SMART Transmitter Power Supply — a two-channel intrinsically safe isolated barrier from the HiD system. It provides a fully floating supply to 2-wire SMART transmitters located in a hazardous area and repeats their 4 to 20 mA current into a safe-area load, so the control system sees an isolated signal. It also works with 2-wire current sources, and can be wired as a signal splitter taking one input and driving two outputs.

Correcting the source data:
The HiD2030 is a two-channel module, and Pepperl+Fuchs classifies it as a SMART Transmitter Power Supply and isolated barrier rather than simply an analog input repeater. Both points matter when you specify it: you get two channels, and the module supplies the field transmitter as well as repeating its signal, with intrinsic-safety isolation between the hazardous-area device and the safe-area input. A plain signal repeater will not provide that isolation.

Decoding the designation:

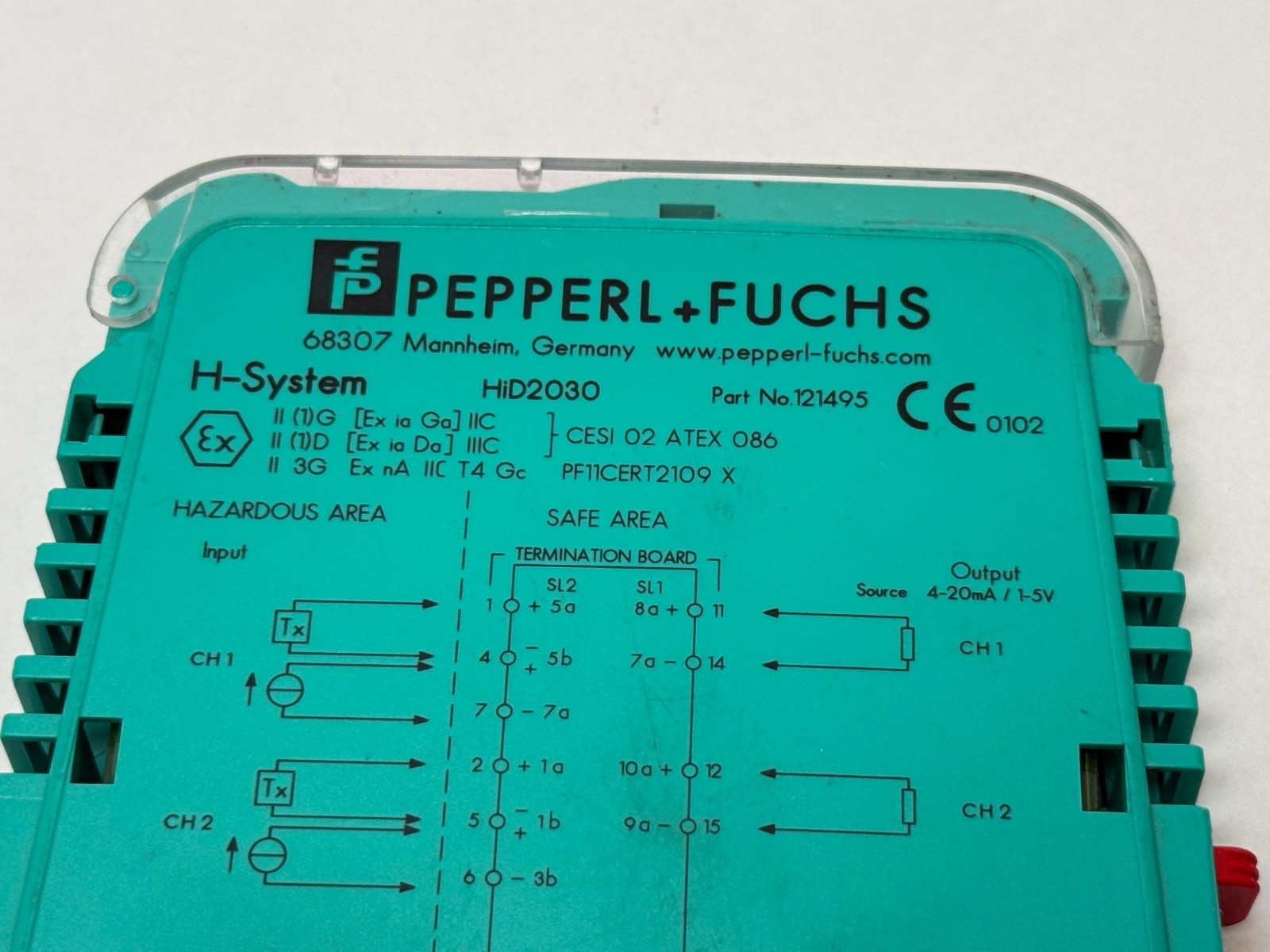

HiD – Pepperl+Fuchs HiD system, termination-board mounted modules for large process installations2030 – two-channel SMART transmitter power supply with line fault detection121495 – Pepperl+Fuchs order/part number for the HiD2030; HiD2030SK (121500) is the related variant

What these specs mean in practice:

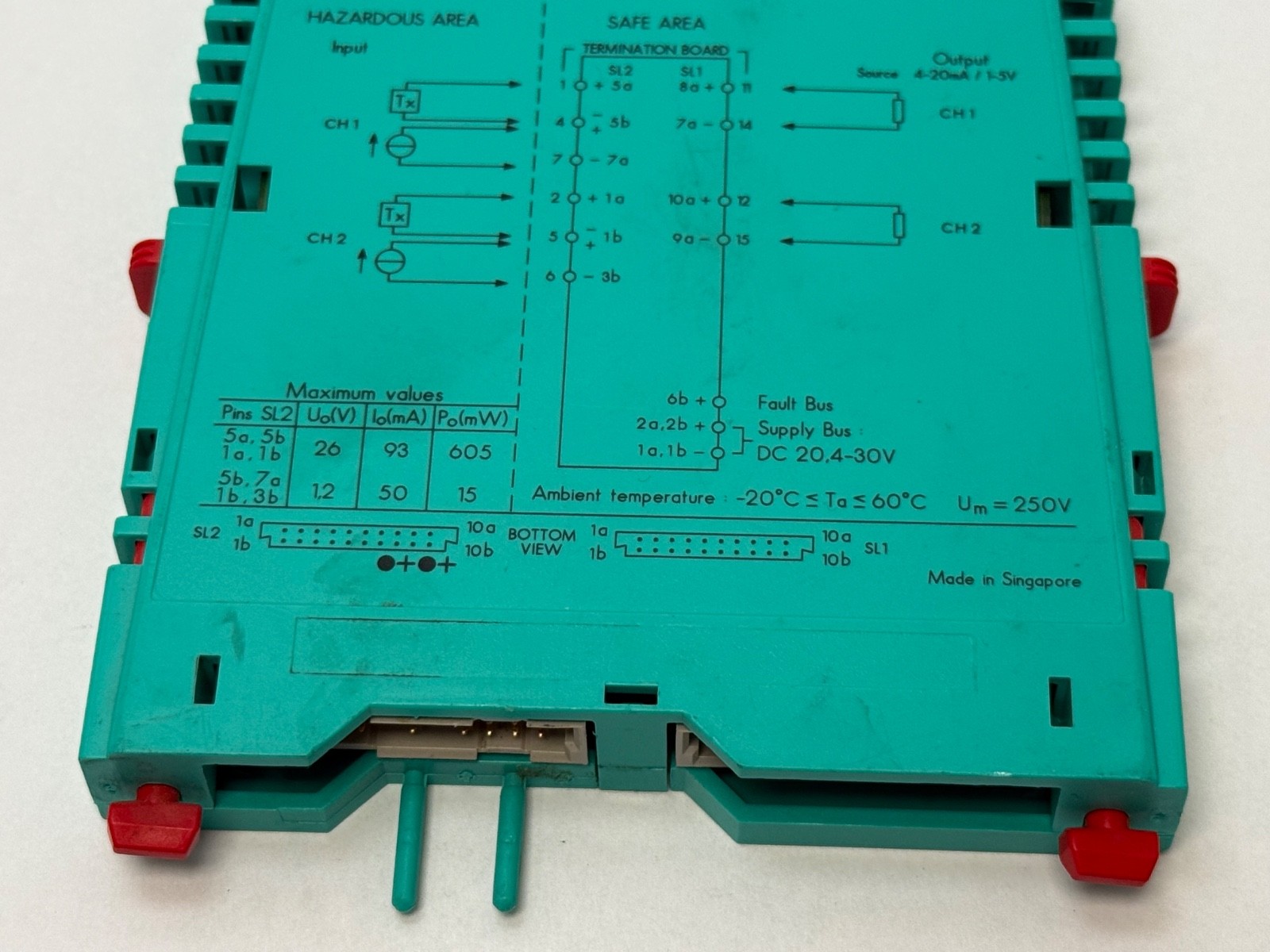

Three things decide whether this drops into your system. First, it is bus powered through a HiD Termination Board, not through terminals on the module — there is no DIN rail option and no direct 24 V connection on the module itself. Second, HART pass-through works on channel 1 only; channel 2 carries the analog value but not the digital signal, and the current-sink terminals 4/7 and 5/6 do not pass HART to the safe area at all. Third, the field transmitter sees a minimum of 14.7 V at 20 mA, which is the number to check against your transmitter’s lift-off voltage before committing. Line fault detection flags an input outside 0.2 to 24 mA on a shared open-collector fault bus, so the fault signal is collective across both channels rather than per channel.

Published specifications:
Channels: 2, analog inputFunctional safety: SIL 2 per IEC/EN 61508Supply: 20.4 to 30 V DC, bus powered via Termination Board; 60 mA at 24 V per channel at 20 mA output; 1.05 W dissipation per channelInput: 4 to 20 mA, current limit typ. 26 mA, input resistance 40 Ω for a current source, min. 15.5 V at 20 mAField transmitter supply: minimum 14.7 V available at 20 mAOutput: 4 to 20 mA or 1 to 5 V (across a 250 Ω 0.1% internal shunt), DIP selectable; load 0 to 650 ΩResponse time: 70 ms for a 10 to 90% stepLine fault detection: no fault 1 to 23.5 mA; fault below 0.2 mA or above 24 mAFault output: open-collector transistor, common to both channels, collective error messageCalibrated accuracy: better than ±0.1% of full scale (current output); linearity ±0.05%; load influence ±0.1% over 0 to 650 Ω; temperature influence ±0.01%/KCommunication: bidirectional digital signals superimposed on the analog value; 0.5 to 40 kHz within 3 dB (−6 dB at 100 kHz); supports HART, BRAIN, Bailey STT02 and Foxboro protocolsHazardous area: II (1)G [Ex ia Ga] IIC and II (1)D [Ex ia Da] IIIC; Uo 26 V, Io 93 mA, Po 605 mW (27.2 V / 93 mA / 633 mW in the splitter configuration); Um 250 V ACDevice-in-zone-2 marking: II 3G Ex nA IIC T4 Gc, certificate PF 11 CERT 2109 XCertificates: EU-type examination CESI 02 ATEX 086; IECEx TUN 04.0012; CSA control drawing 366-005CS-12B (cCSAus)Isolation: input/input 60 V peak; input/output and input/supply 375 V peak per IEC 60079-11Indicators: green power LED, red fault LED per channel; 4-position DIP switch; front labelling areaAmbient temperature: −20 to +60 °C; humidity 5 to 90% non-condensing to 35 °CDegree of protection: IP20Dimensions: 18 x 114 x 130 mm (W x H x D); mass approx. 140 gCoding pins 1 and 3 trimmed

Quantity and configuration:

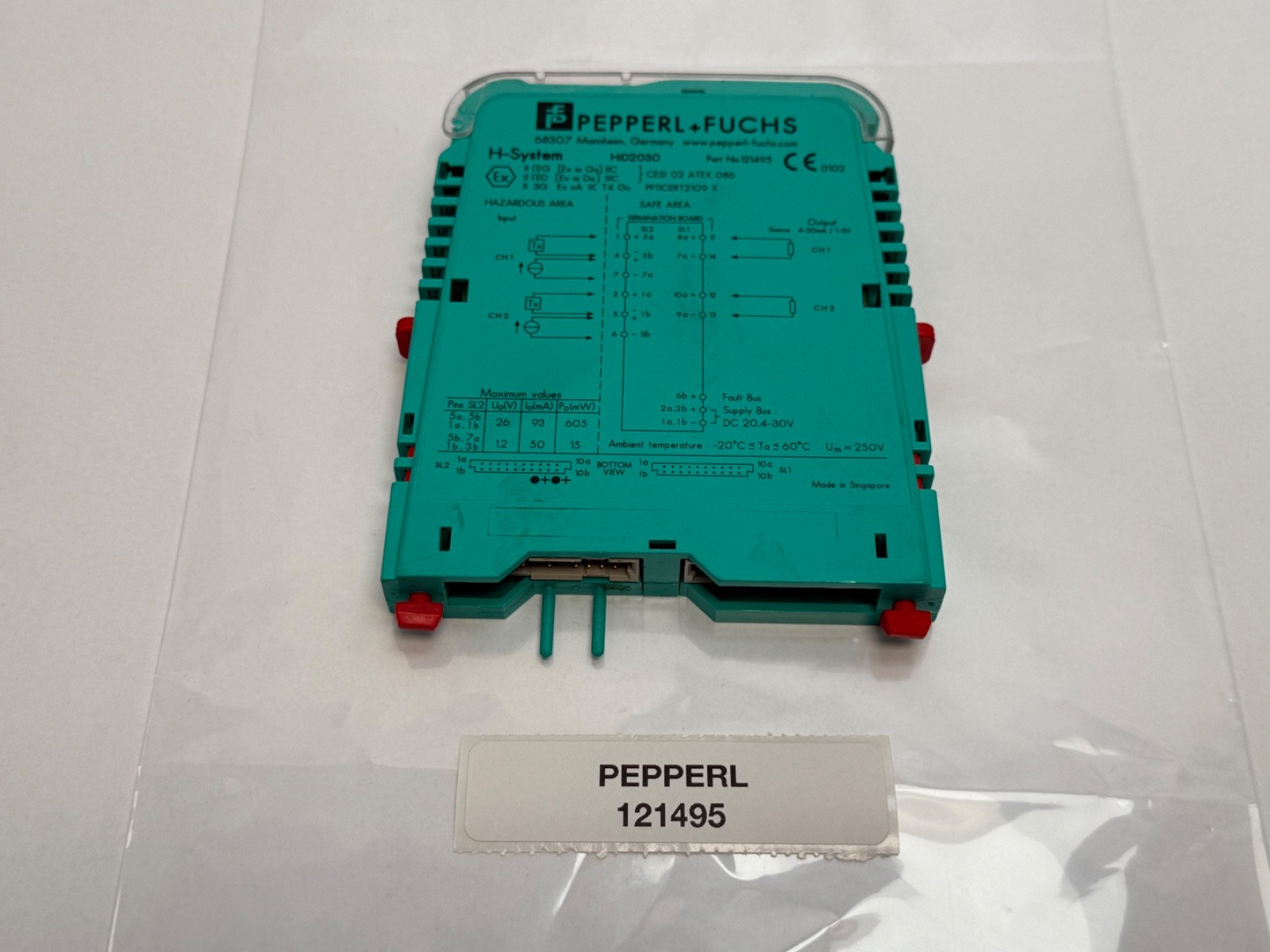

Sold as 1 piece — the module only. The HiD Termination Board is not included and is required: the module has no independent power or field terminals and cannot be mounted on DIN rail. A Fault Indication Board, if you want the fault bus monitored, is also separate.

Installation and setup notes:

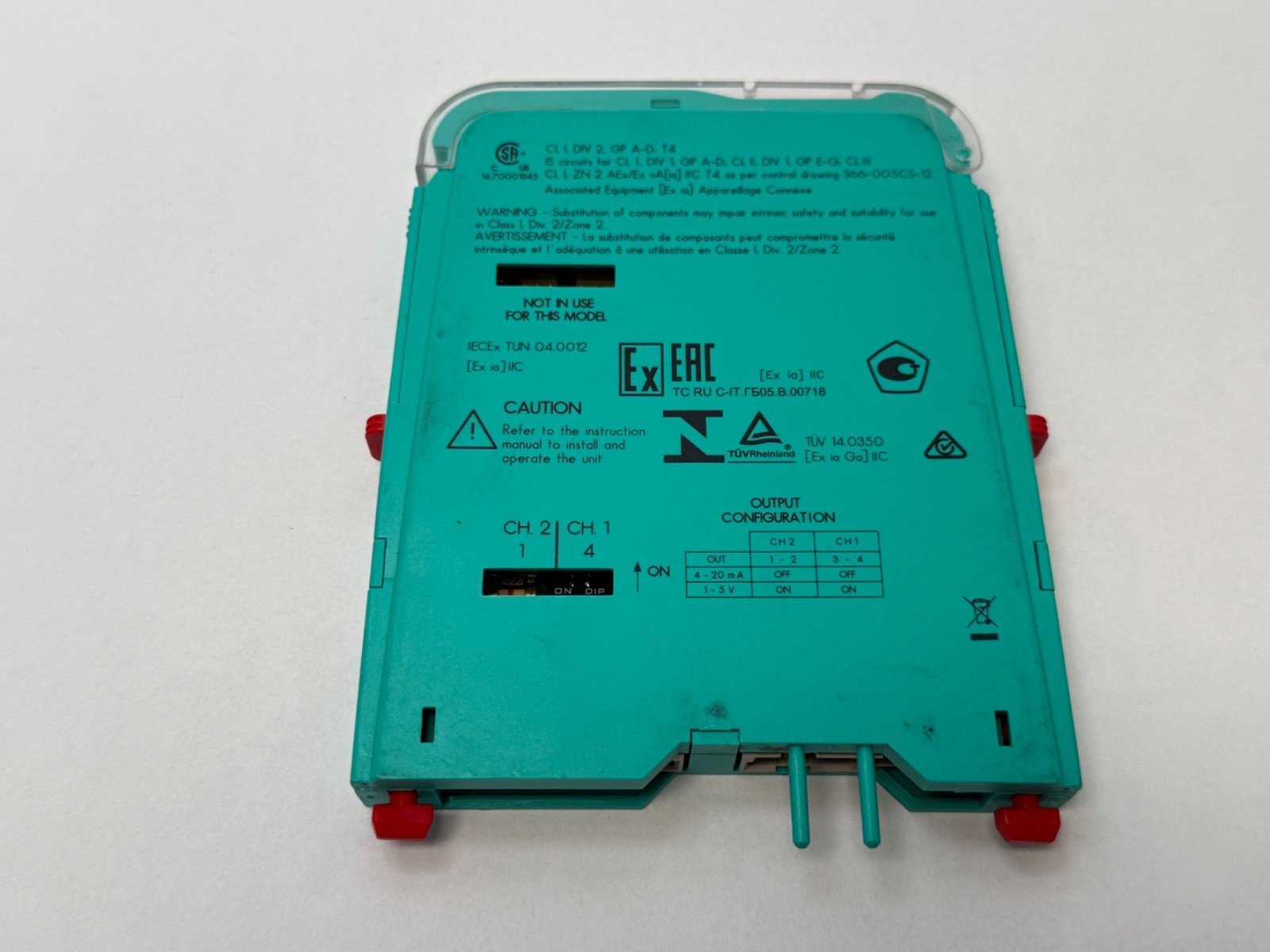

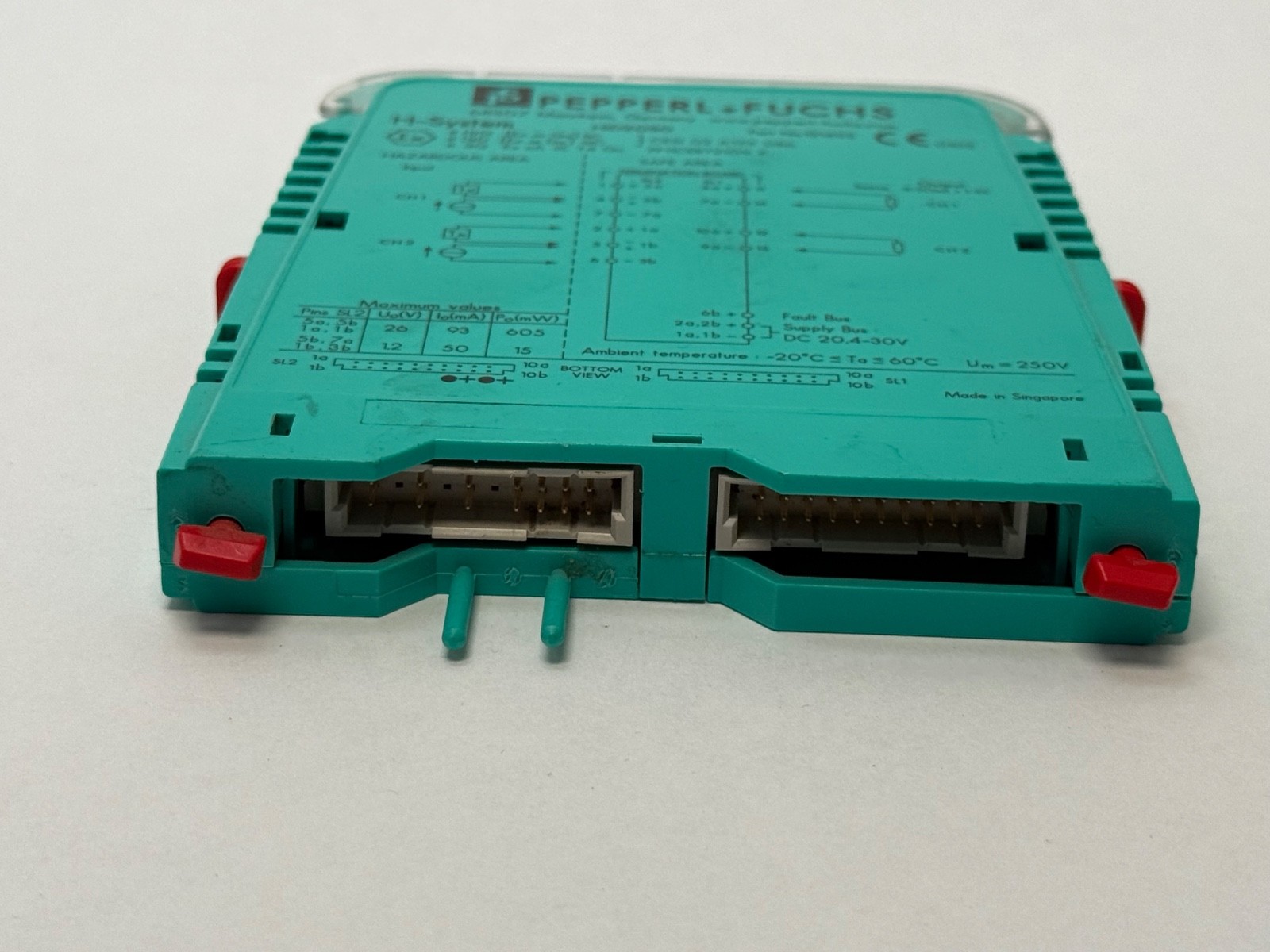

To change the output between 4 to 20 mA and 1 to 5 V, push the red Quick Lok bars on each side of the module upward, lift it off the termination board and set all four DIP switches: all OFF for current output, all ON for voltage output. The coding pins are trimmed to match this module’s safety parameters and must not be altered — that is what stops a module with different Ex parameters being plugged into the same slot. Where HART access matters, plan the loop so the smart device sits on channel 1.

Interchange guidance:
HiD and K-System modules are not interchangeable: a KFD2-STC series barrier mounts on 35 mm DIN rail with its own terminals, while the HiD2030 needs a termination board, so the two are different installation systems entirely even where the signal function matches. HiD2030SK is the closely related variant and carries its own part number and coding; check the coding pins and the termination board slot before assuming it fits. HiD2029 and HiD2032 are neighbouring modules in the same family with different channel counts and functions.
