FANUCA03B-0807-C053I/O Unit-MODEL A High Speed Counter Module ACT01A, 1 Channel to 500 kHz, A/B Phase and Pulse Modes

Product Description

What this part is

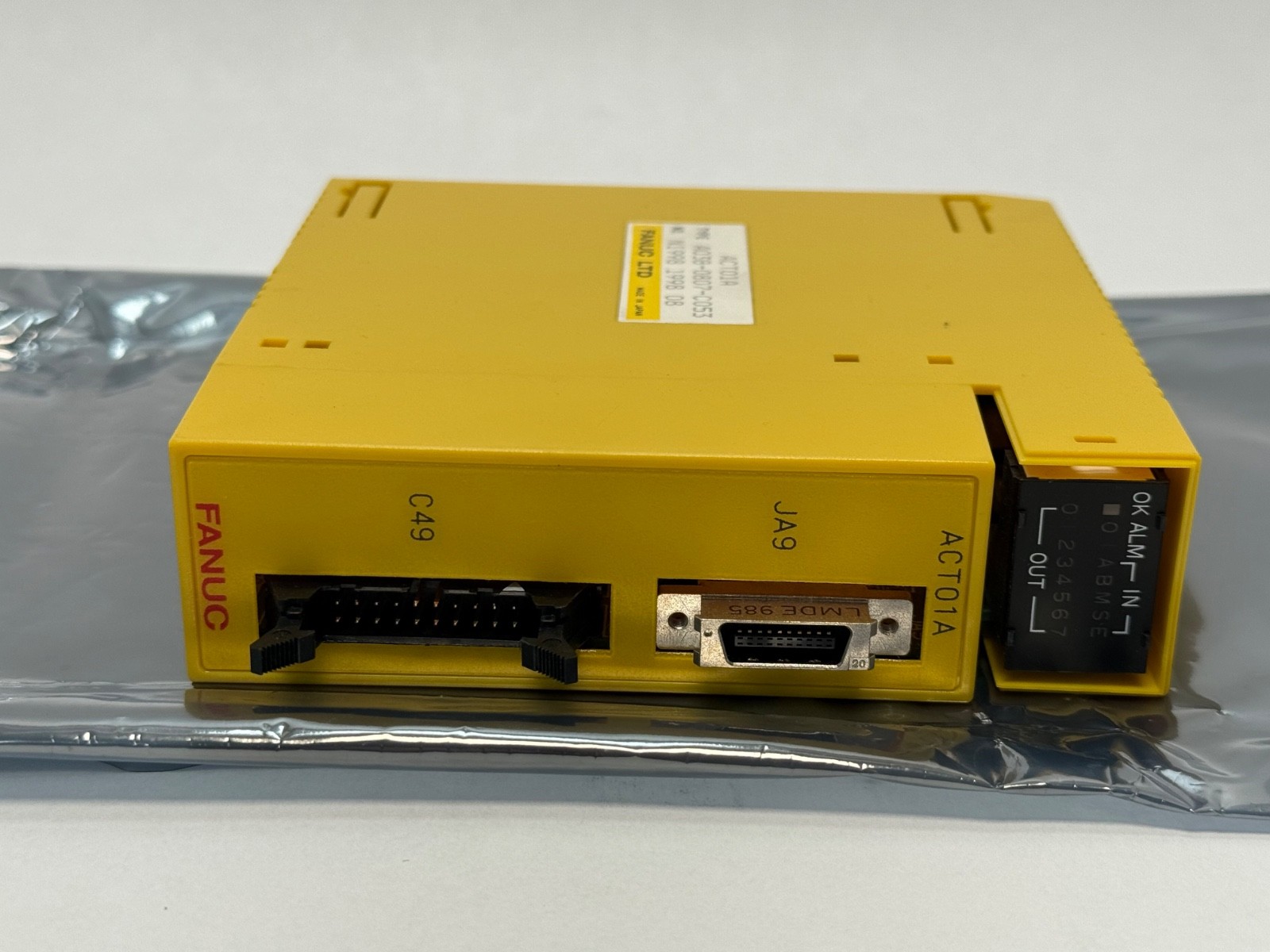

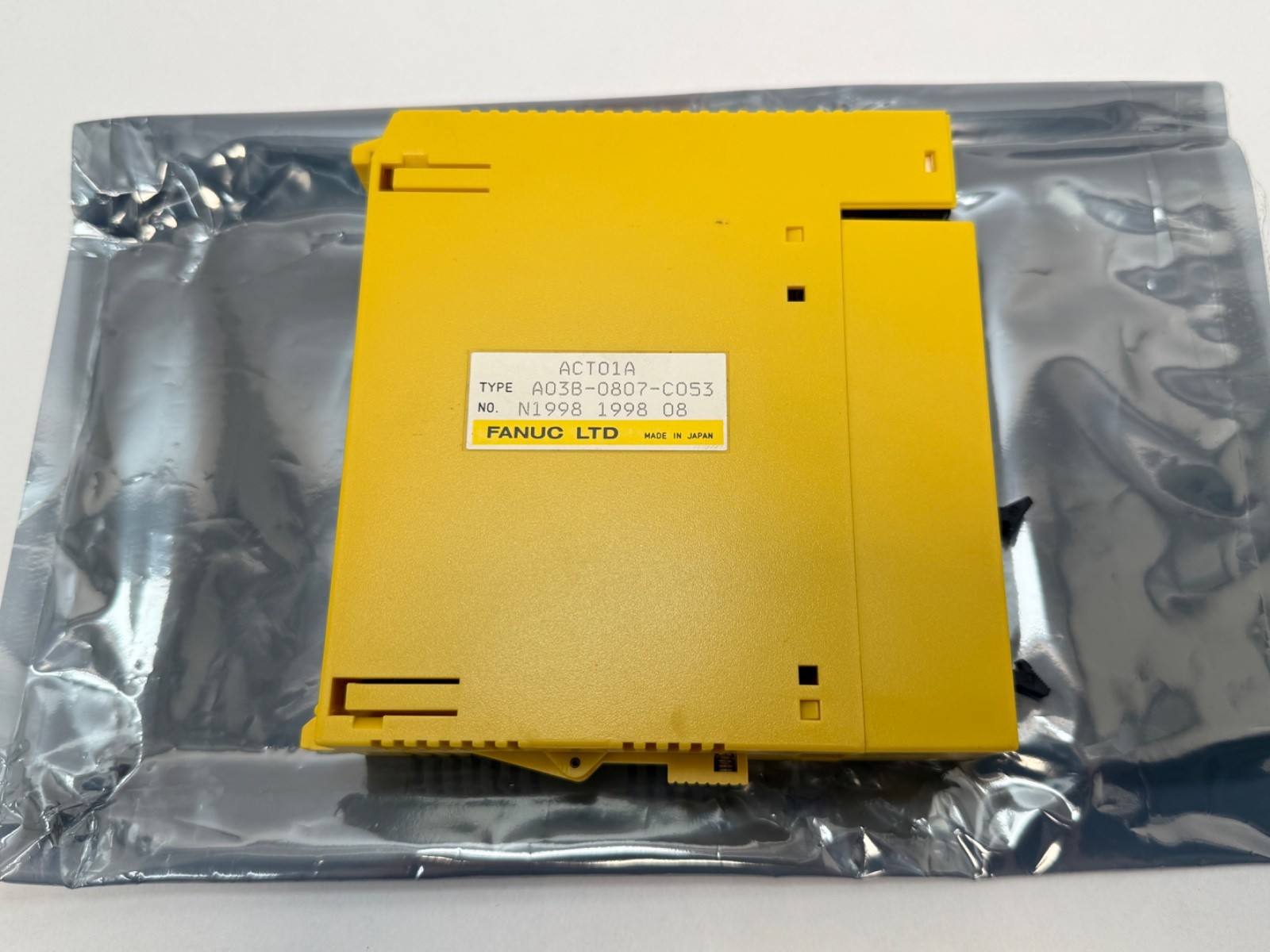

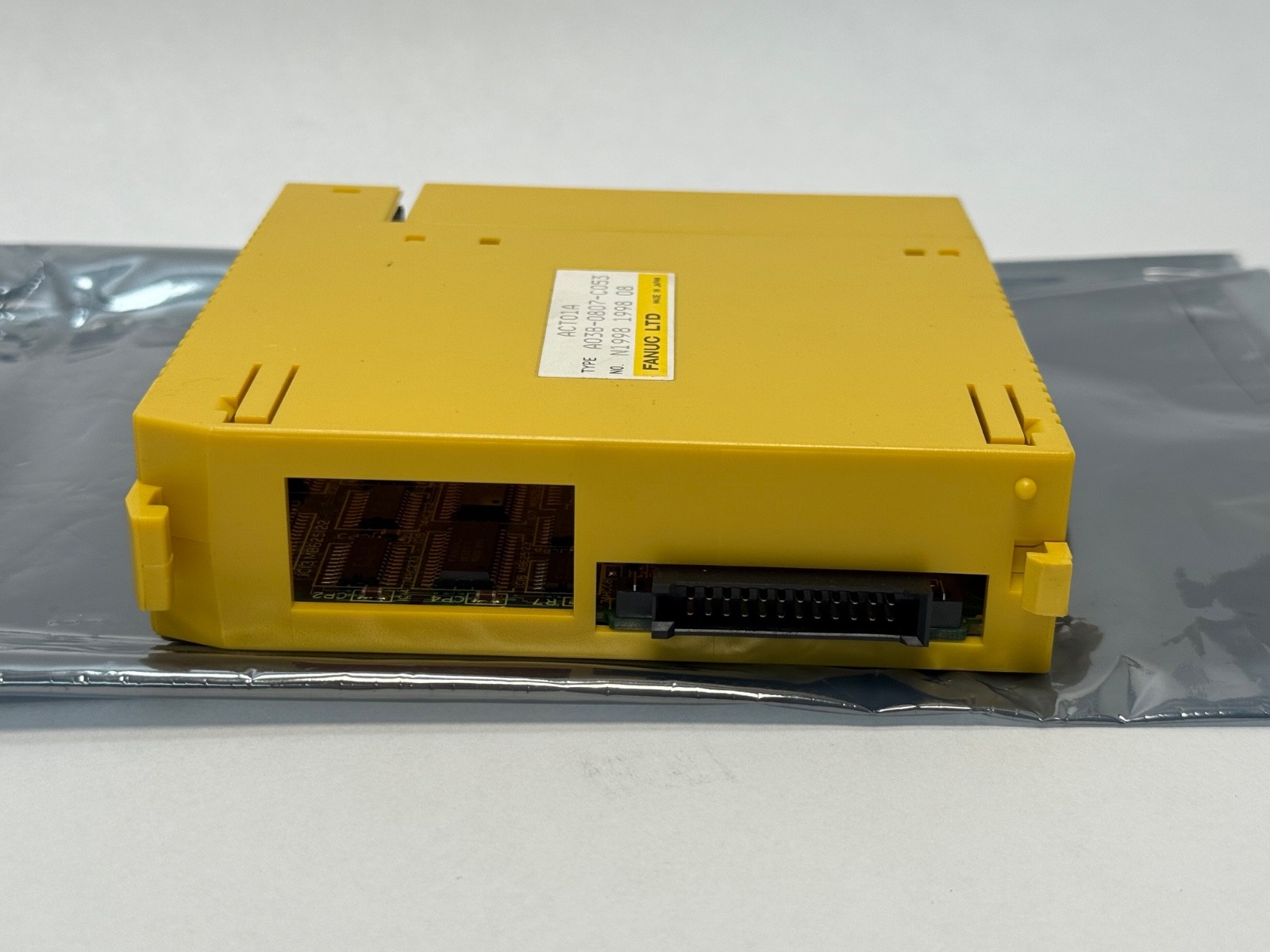

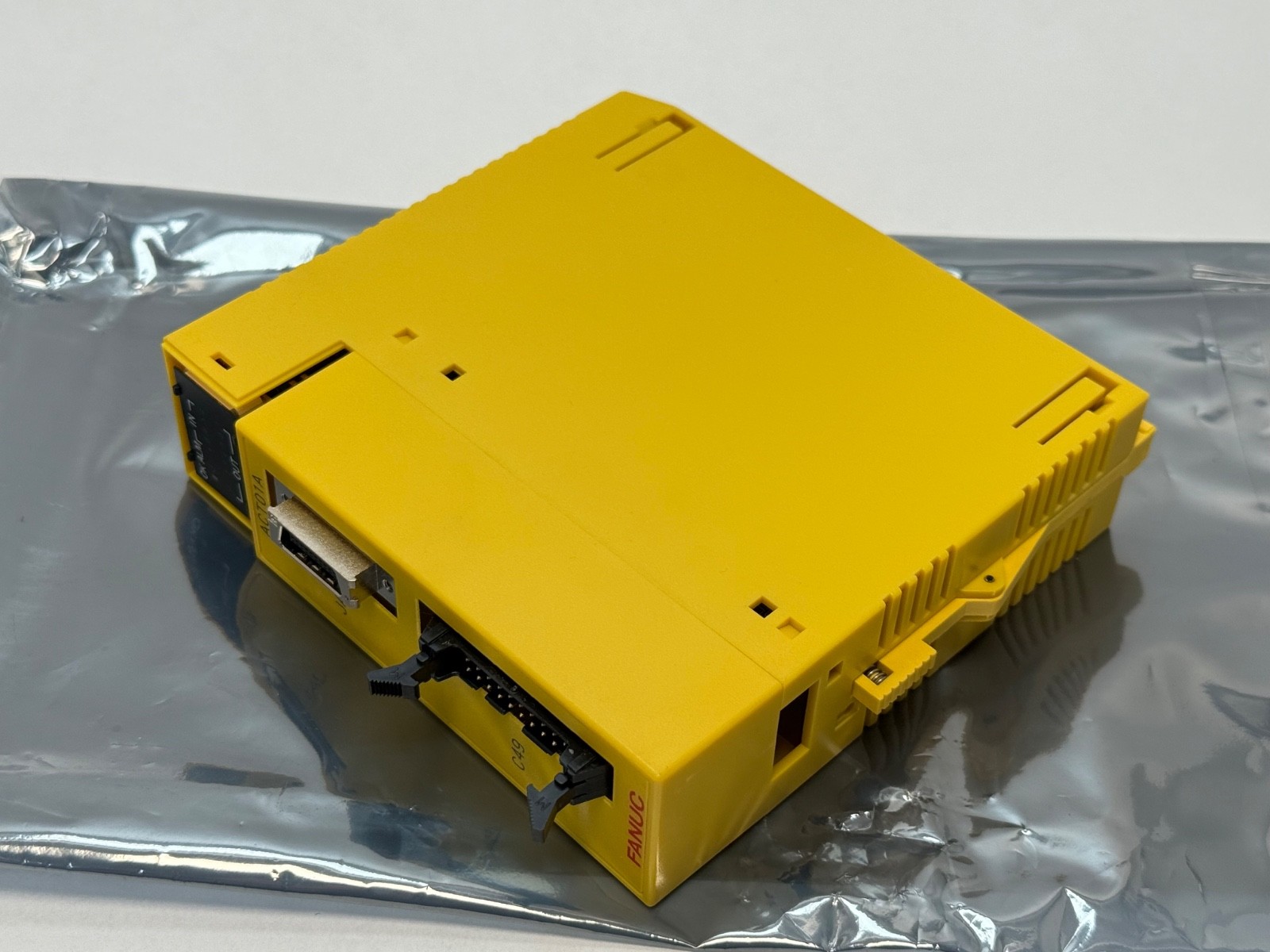

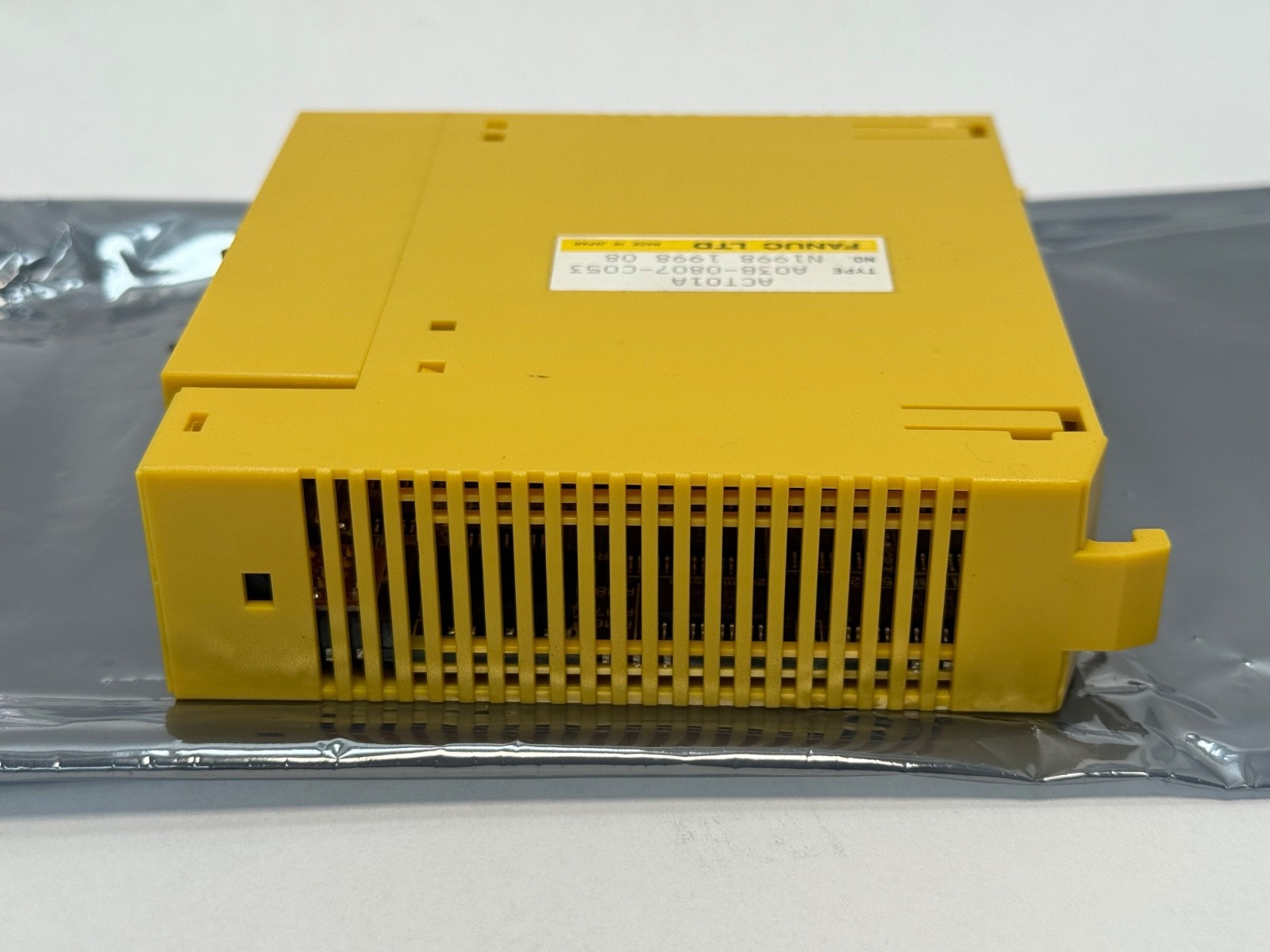

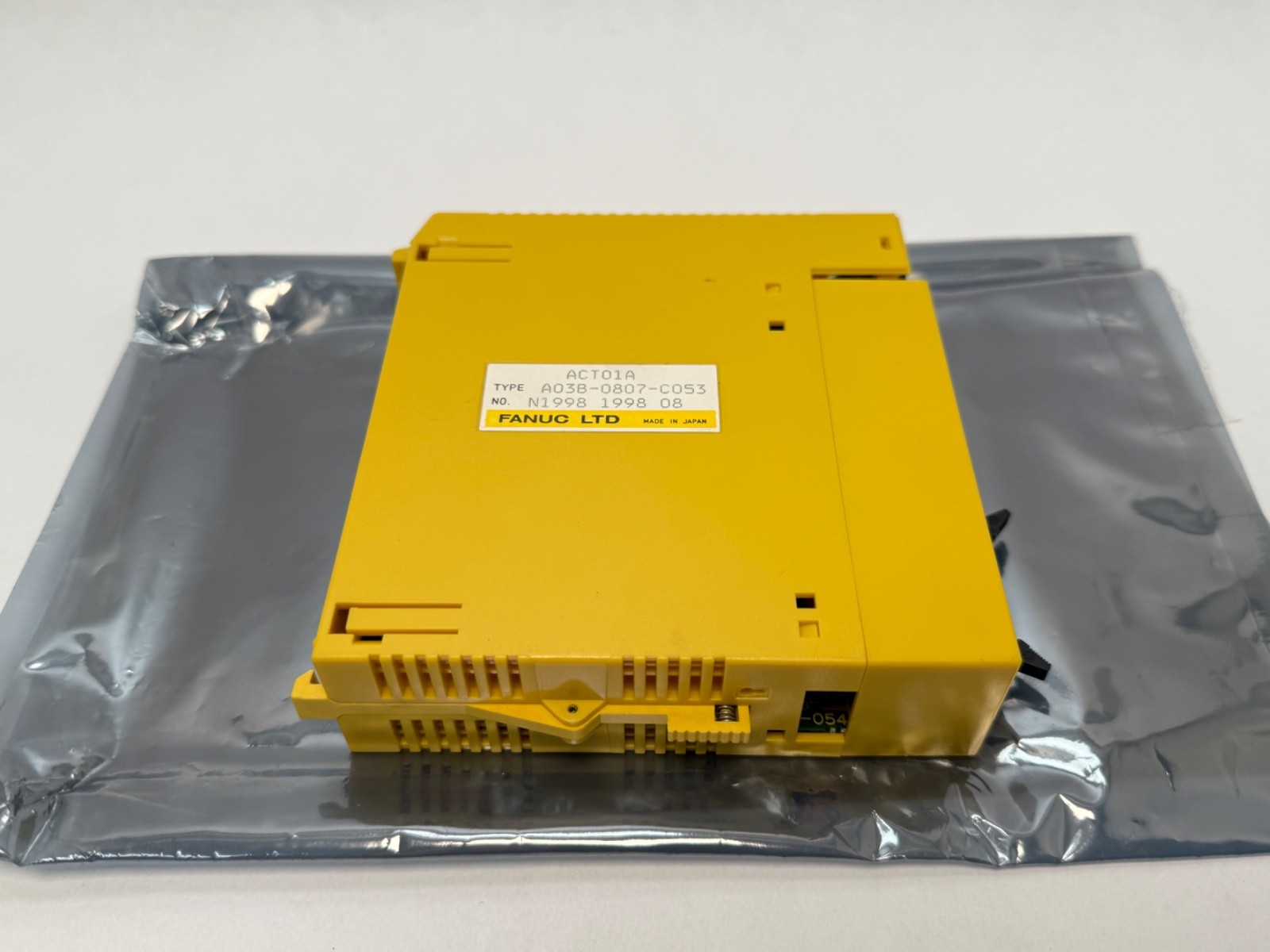

Fanuc A03B-0807-C053, module type ACT01A — the high-speed counter module for the FANUC I/O Unit-MODEL A. It counts fast pulse trains: encoder quadrature signals, or positive and negative pulse streams, at rates far above what an ordinary discrete input module can follow. It is a counting input module. It does not switch any loads.

Correcting the source data

Earlier copy for this item described it as an “Output Module”. That is wrong, and it matters — ACT01A is a high-speed counting module and drives nothing. Fanuc’s own I/O Unit-MODEL A module list names ACT01A under high-speed counting; the discrete output modules in this family are the AOD, AOA and AOR ranges (AOD32A1, AOD16C, AOR16G and so on). If you need to turn on solenoids, contactors or lamps, this is the wrong module. If you need to count an encoder or a flowmeter pulse train, it is the right one.

Decoding the order code

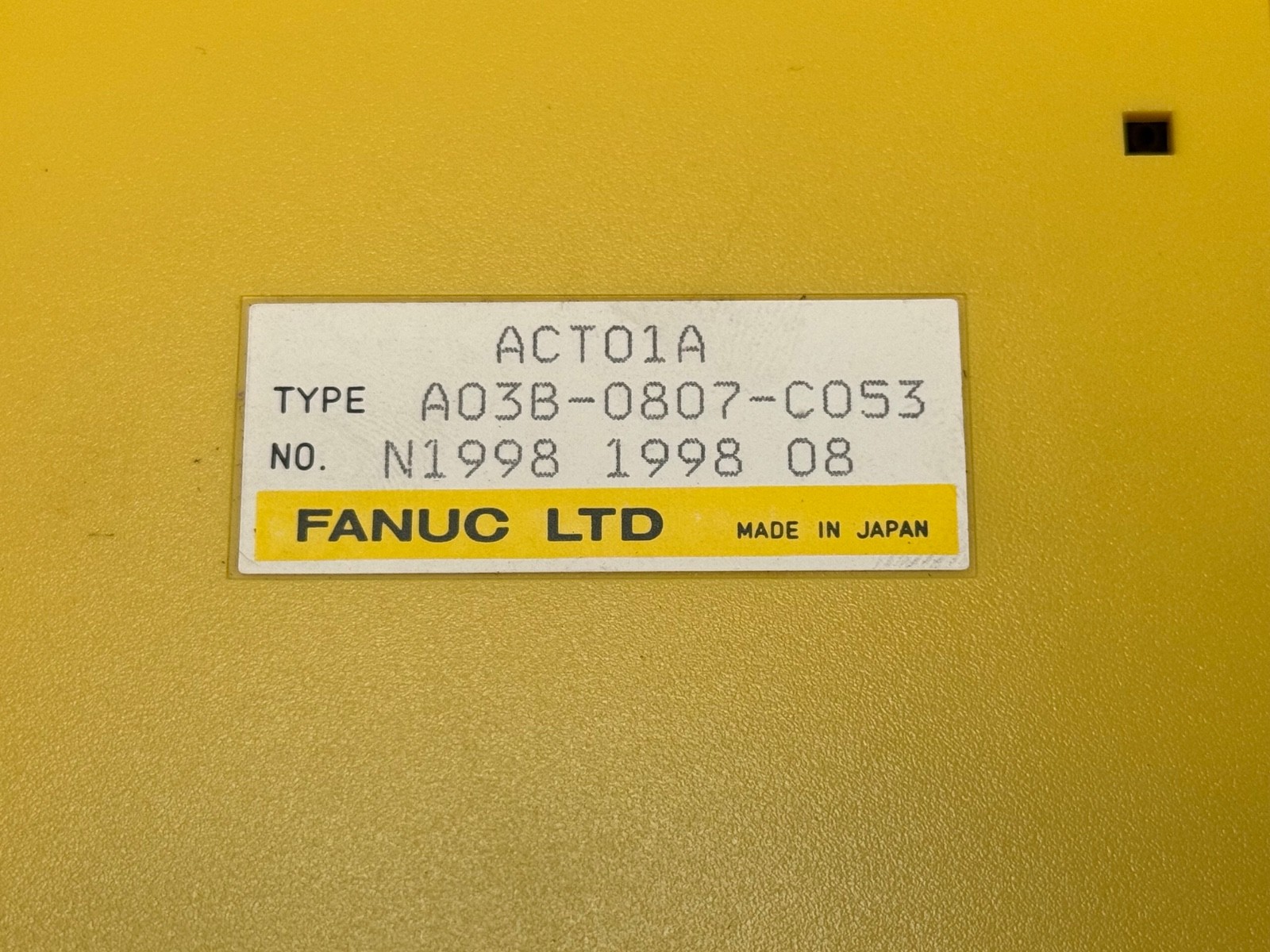

A03B – Fanuc’s own product scheme for CNC peripheral and I/O hardware. This is a Fanuc number, not a GE Fanuc IC-prefix number; the two catalogues are different and should not be conflated.0807 – the FANUC I/O Unit-MODEL A rangeC053 – in this family Fanuc lists two numbers per module: a J-number for the complete unit and a C-number for the printed circuit board (for example base unit ABU10A is unit A03B-0807-J001, PCB A03B-0807-C001). C053 is therefore the circuit-board order number for the ACT01A.ACT01A – the module type name marked on the board. ACT = counter; 01 = one channel; A = version.

Published specifications

Module type: ACT01A, high-speed counting moduleCounting channels: 1Maximum counting frequency: up to 500 kHzCounting modes: A/B phase (quadrature), positive pulse, and negative pulseRequired current: 170 + 0.3 × α mA from the +24 V supplyBasic heat value: 4.1 WPlatform: FANUC I/O Unit-MODEL AFanuc manual reference: B-61813E / B-61813EN, I/O Unit-MODEL A Connection and Maintenance Manual

What these specs mean in practice

500 kHz is the headline number and it is what separates this module from a discrete input card. A standard AID-series digital input on this platform has a response time of 2 to 20 ms, which caps it at a few hundred hertz at best. If you try to count an encoder on a discrete input you lose counts silently as soon as the shaft speeds up. The ACT01A has dedicated counting hardware, so the count stays true at speed and the CPU only reads the accumulated value.

Mode choice depends on the sensor. A/B phase is the quadrature mode for an incremental encoder, and it is the one that gives you direction as well as magnitude — the phase relationship between the two channels tells the counter which way the shaft is turning, so the count goes up or down accordingly. Positive and negative pulse modes are for single-channel sources such as a flowmeter, a proximity switch on a toothed wheel, or a totalising sensor, where there is no direction information and the count only accumulates.

One channel per module is the practical constraint. If you need to count two encoders you need two modules and two slots, and the +24 V budget grows accordingly. The 4.1 W basic heat value is high for this family — most digital modules on the platform are 0.1 to 1.2 W — so factor it into the enclosure heat calculation rather than treating it as just another I/O card.

What is included

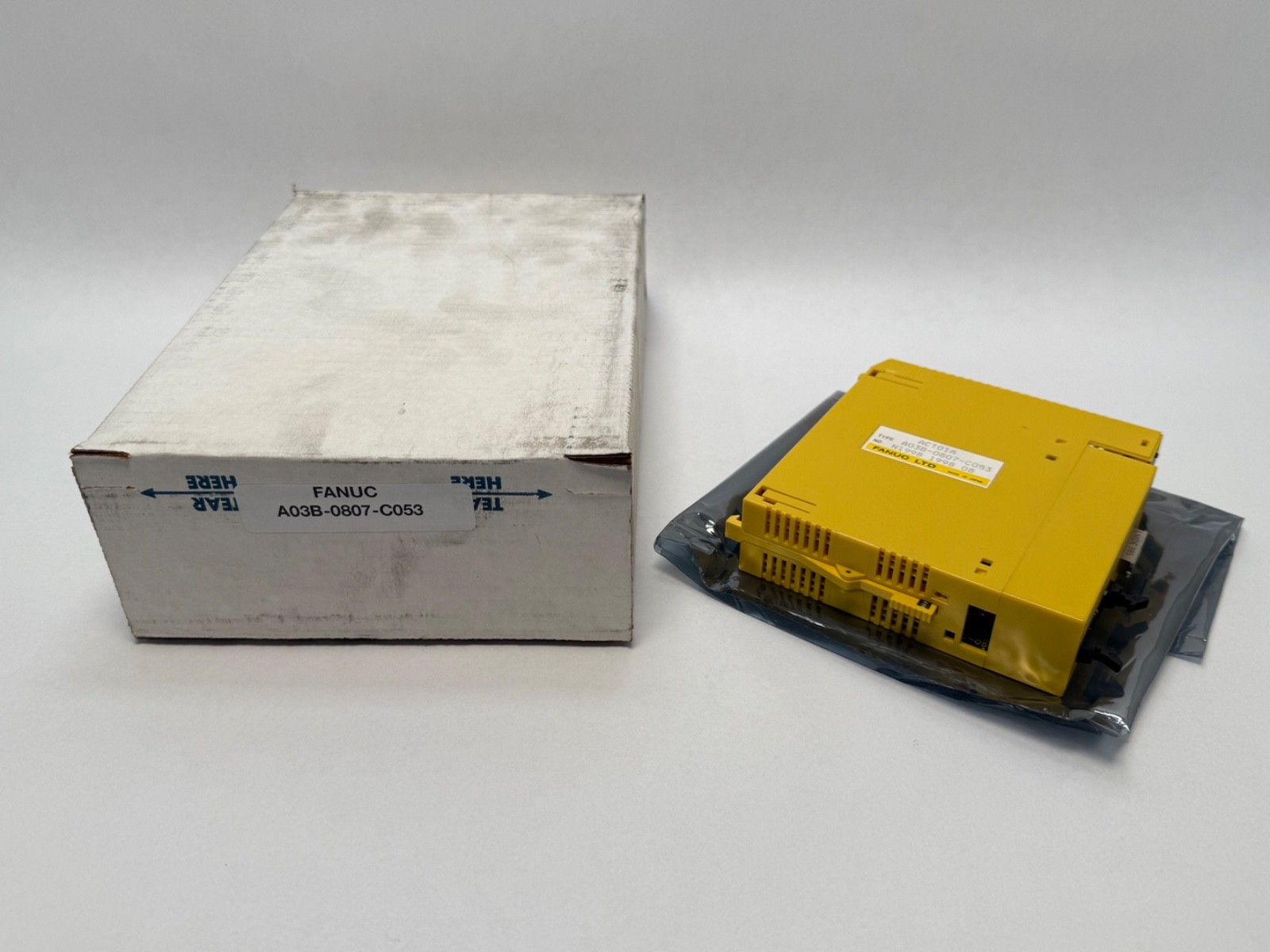

Module as pictured. This listing does not include the I/O Unit-MODEL A base unit (ABU05A, ABU10A, ABU05B or ABU10B); the interface module (AIF01A, AIF01B or AIF02C) that the base unit needs to talk to the CNC; the +24 V DC supply; encoder or sensor cables, connectors or connector kits; the terminating resistor unit (A03B-0807-K806) required at the end of an I/O Link group; a terminal board; a rack or cabinet; or documentation. An I/O Unit-A is a base unit plus an interface module plus I/O modules, and this is one of the I/O modules — on its own it cannot function.

Installation and setup notes

The module seats in a slot of an I/O Unit-MODEL A base unit and is addressed by its slot position, so the module’s place in the unit determines how the CNC or PMC sees it. Set the counting mode to suit the sensor before commissioning — a quadrature encoder wired into a pulse mode will count but will not give direction. Route encoder wiring as shielded twisted pair, kept clear of servo motor power and spindle cabling; at 500 kHz the module will faithfully count induced noise as well as real pulses, and a miscount here shows up as slowly drifting position rather than an obvious fault. Remember the terminating resistor at the end of the I/O Link group. Handle as static-sensitive.

Interchange guidance

A03B-0807-C053 is the PCB order number for the ACT01A; A03B-0807-J053 is the corresponding complete-unit number for the same module. The AOD, AOA and AOR modules in this family are outputs and are not equivalents — they are a different function entirely. The analog modules AAD04A (4-channel 12-bit analog input), ADA02A and ADA02B (analog output), and the temperature-input modules ATI04A and ATI04B are likewise separate functions on the same platform, listed here as related rather than interchangeable. Also searched as A03B0807C053, A03B 0807 C053, ACT01A, ACT-01A, Fanuc high speed counter module, and Fanuc I/O Unit A counter card. Sold as 1 piece.
