Availability:
1 in stock
Graphic controller card for the B&R Maestro OS-9/68000 CNC control system. MGC1 module from the HC-series board range, supplied as new old stock.
List Price
$553.81
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | B&R |
|---|---|
| MPN | HCMGC1-0 |
| Type | Video Processor |
|---|---|
| Industry Terms | CNC graphics board, graphic controller card, Maestro rack card, OS-9 CNC board, machine control display board |
| Common Misspellings | HCMGC1-O, MCG1, HCMCG1-0, B and R Maestro, Bernecker Rainer Maestro |
| Application Types | Machine tool CNC retrofit and repair, legacy Maestro control system spares |
| Controller Platform | B&R Maestro, OS-9/68000 |
| Mpn Variants | HCMGC1-0, HCMGC1-O, HCMGC1, MGC1, MCG1, HC-MGC1-0 |
| Manufacturer Status | Discontinued legacy platform |
| Series | Maestro HC board range |
| Part Number | HCMGC1-0 |
| Mounting Type | Plug-in card, Maestro rack slot |
| Cross Reference 1 | HCMAC1-0 / MAC1 (related Maestro board, axis controller, different function) |
|---|---|
| Cross Reference 2 | HCMAC1-1 / MAC1 (related Maestro board, axis controller, different function) |
| Cross Reference 3 | HCMCO1-0 / MCO1 (related Maestro board, OS-9/68000 coprocessor, different function) |

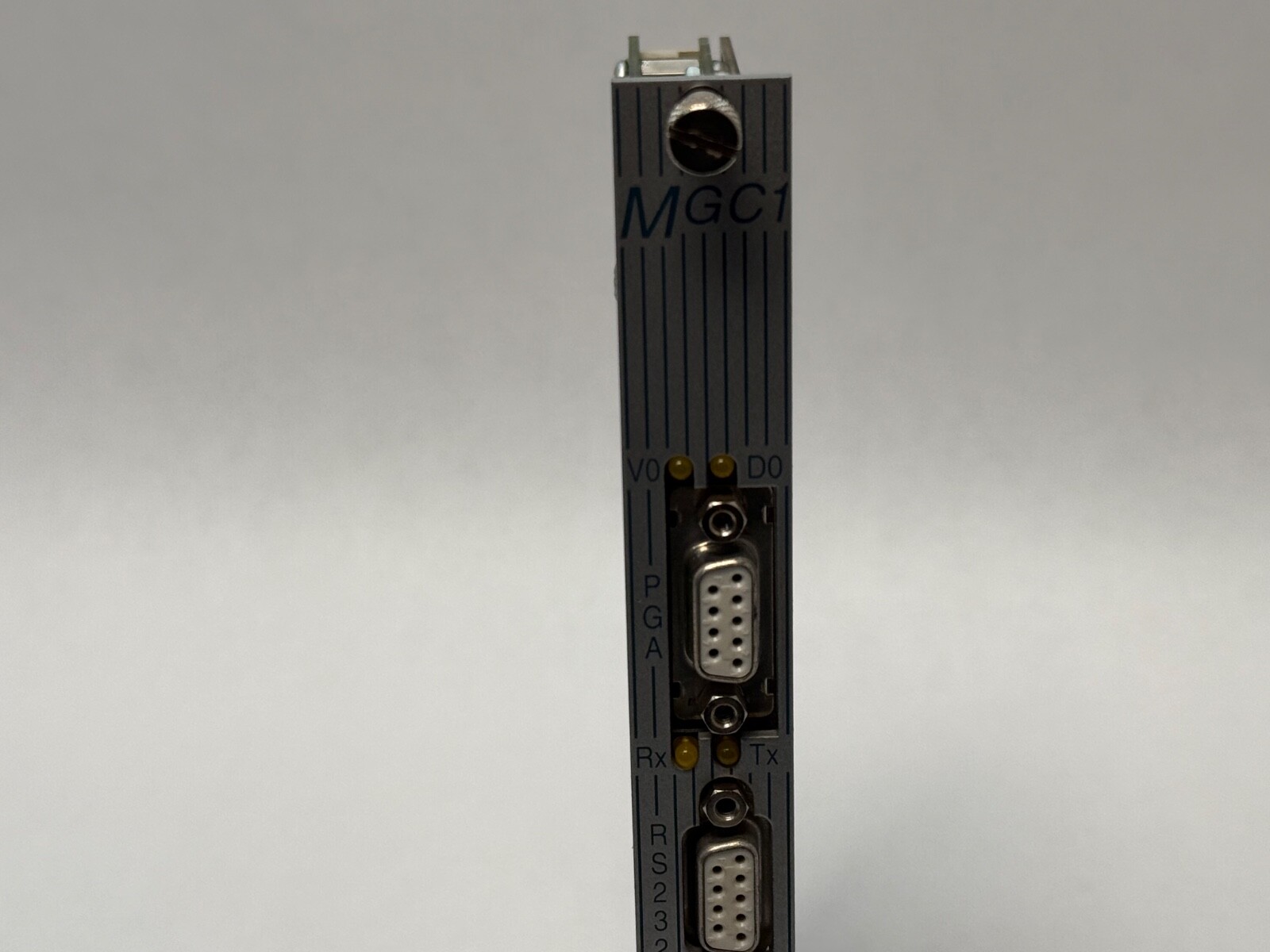

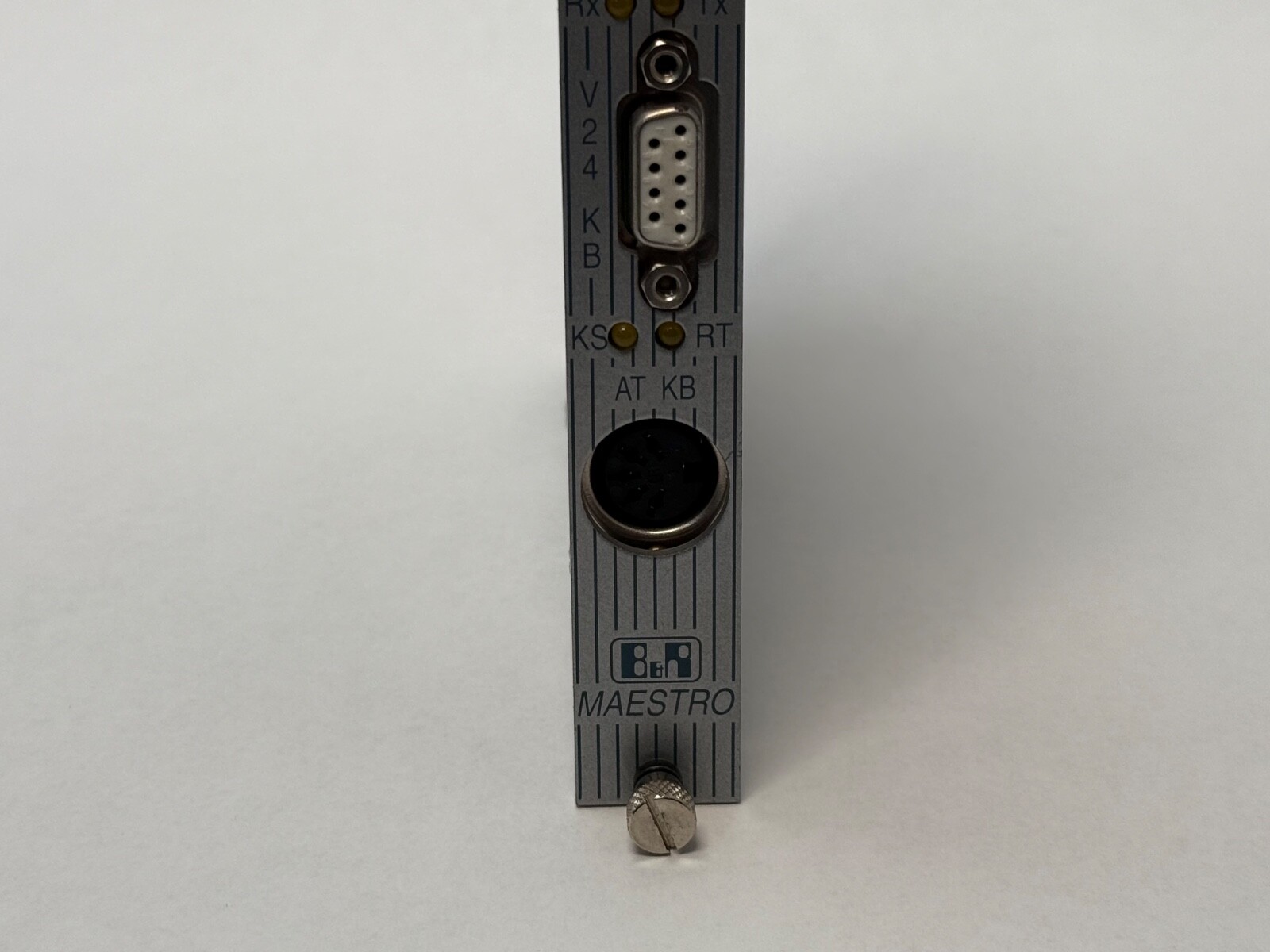

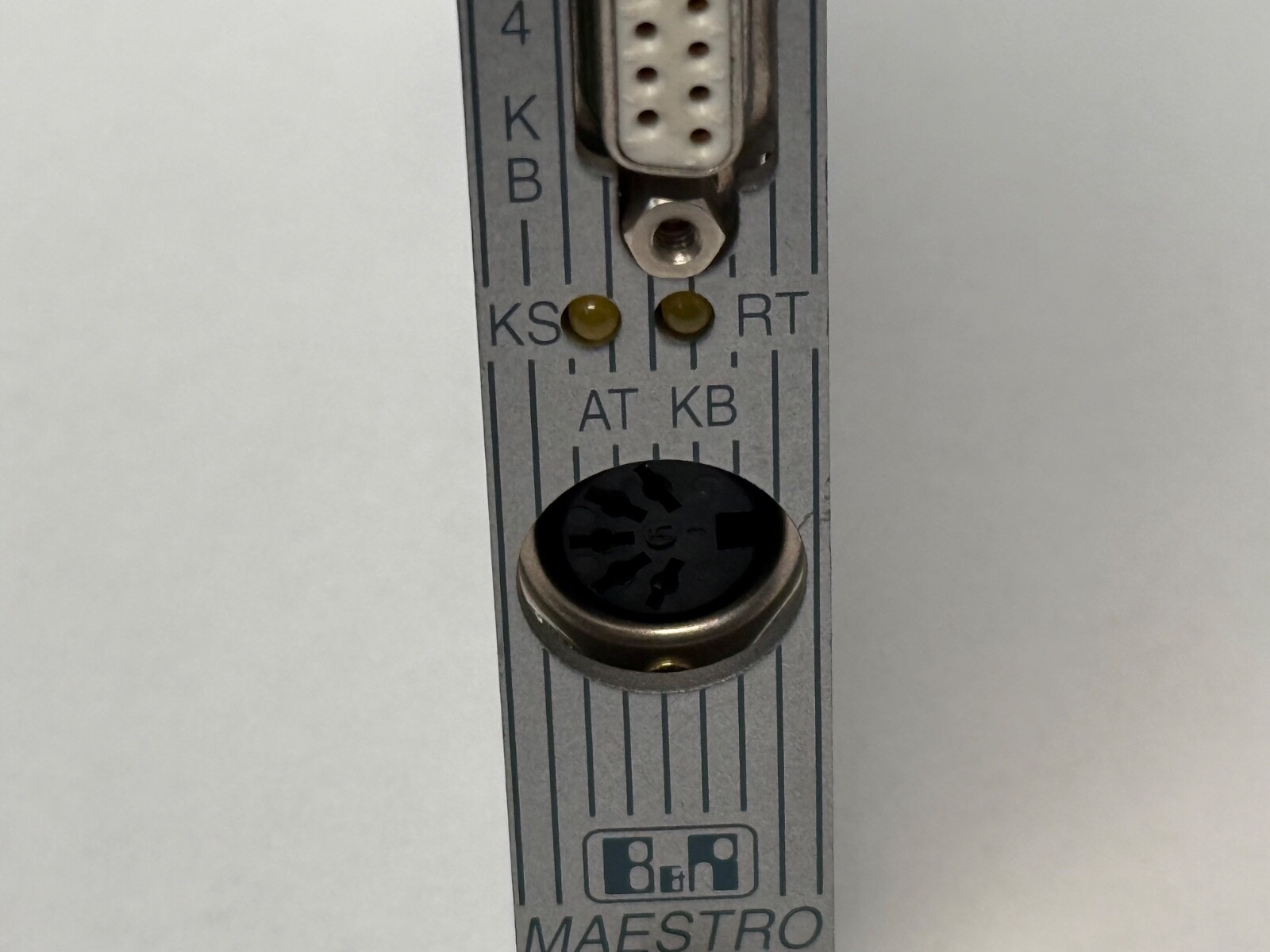

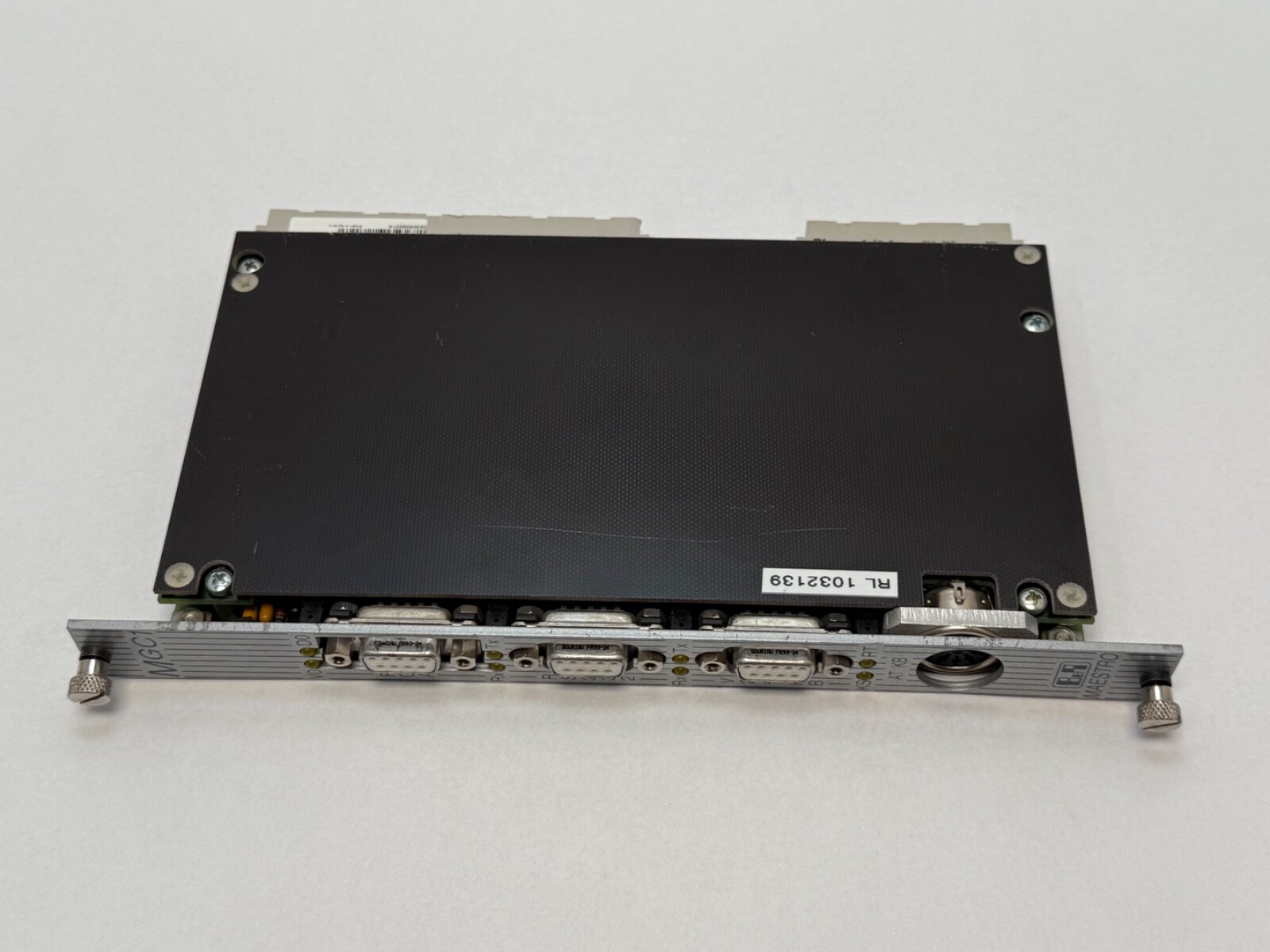

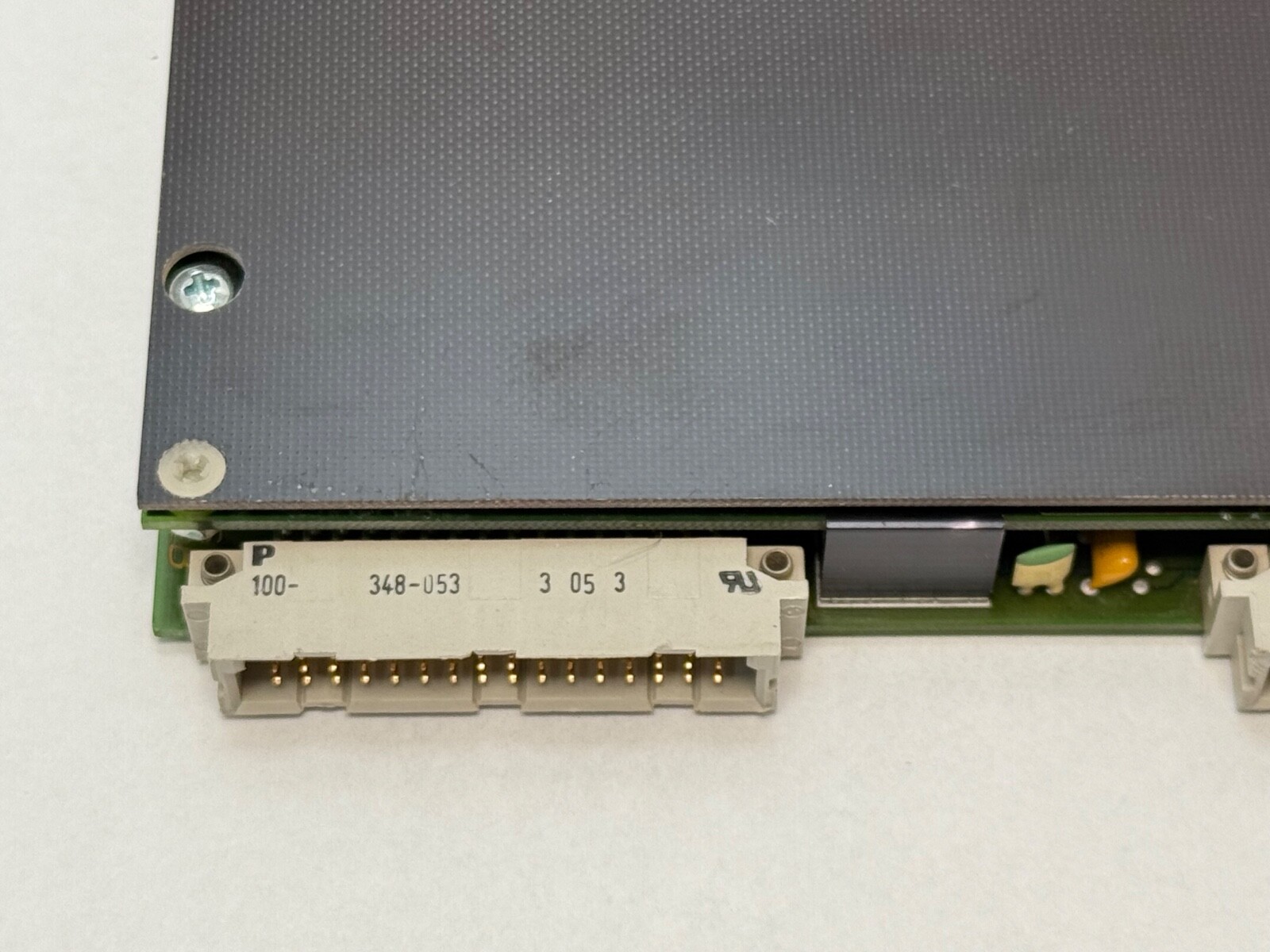

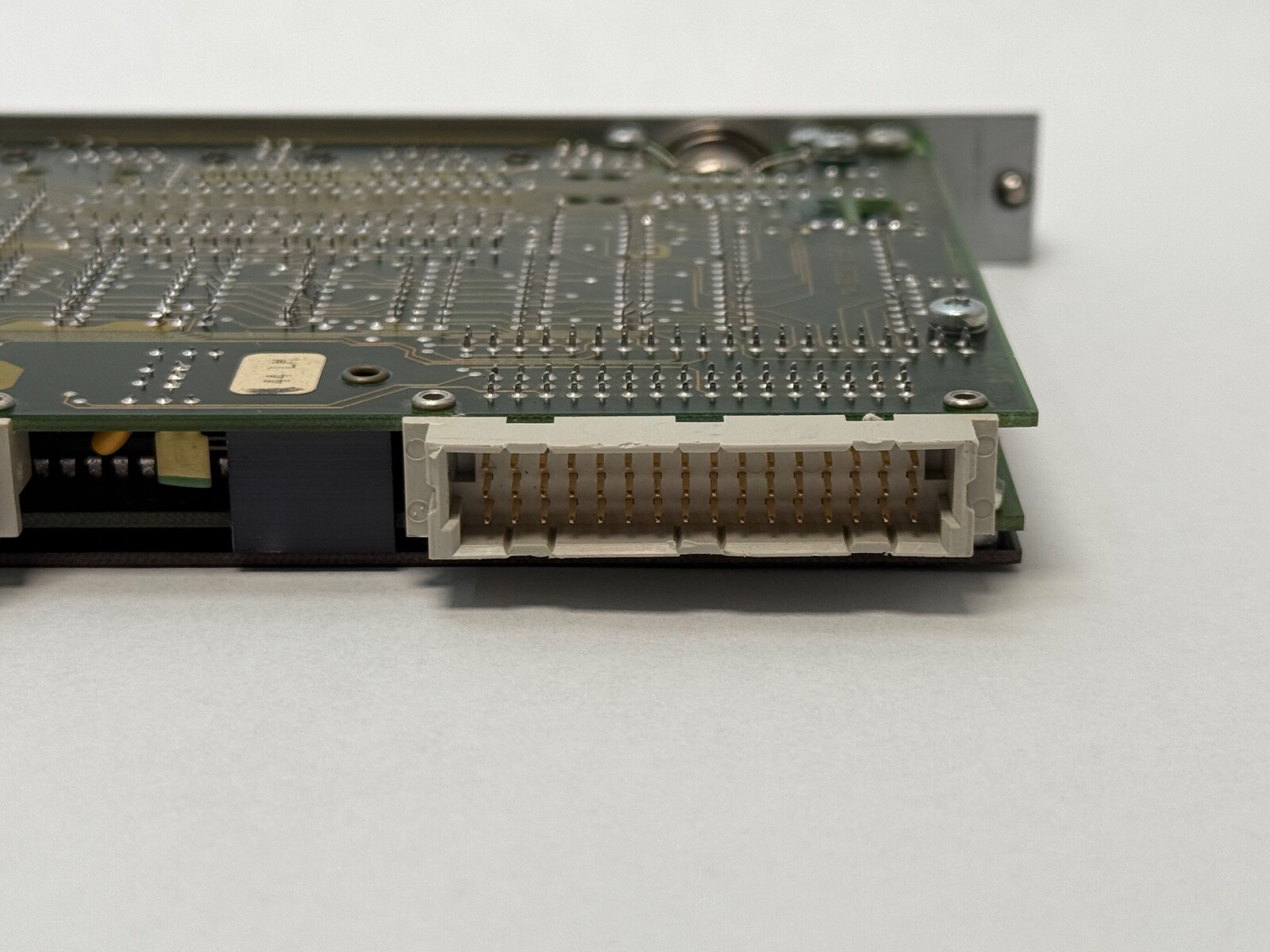

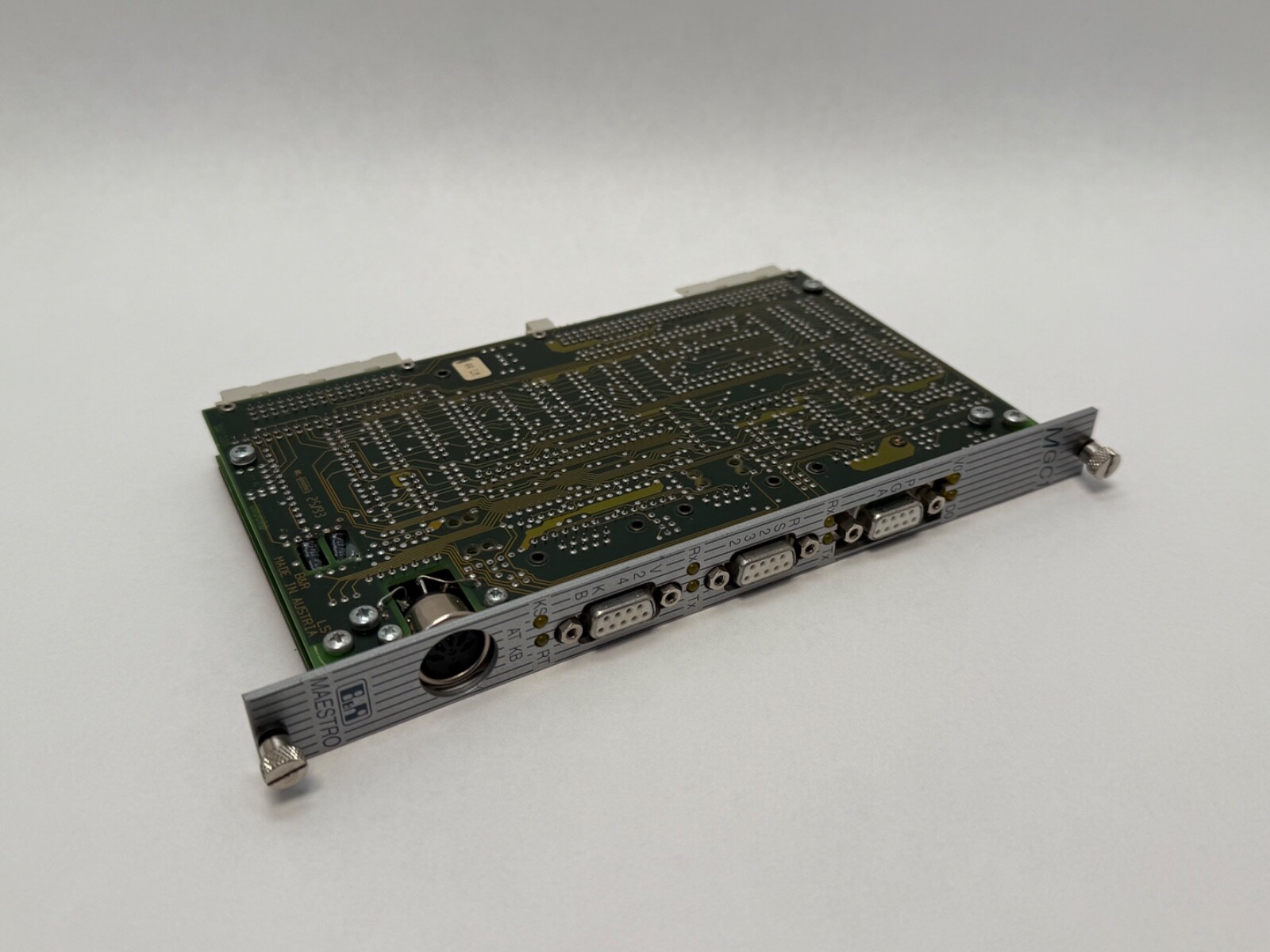

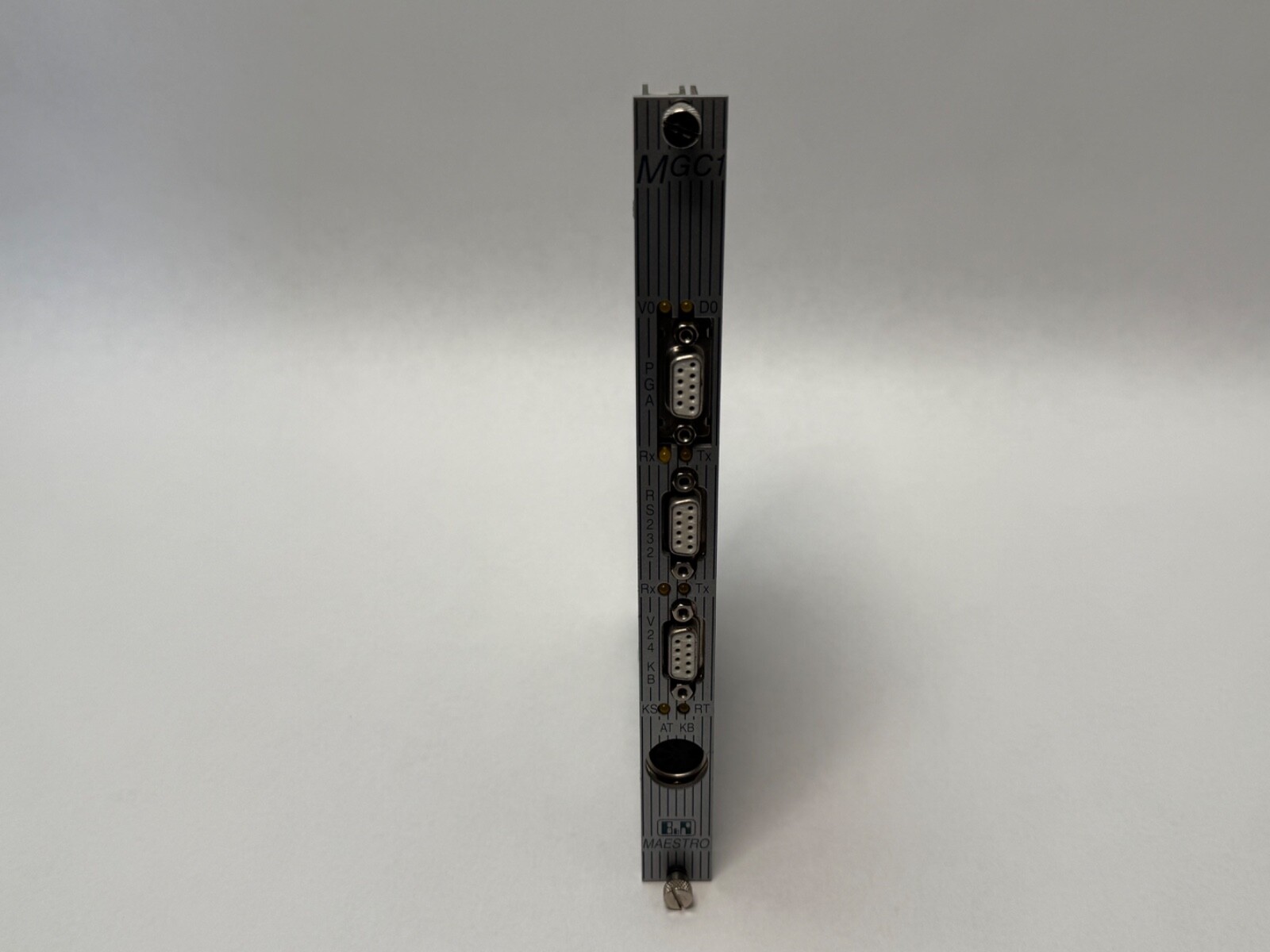

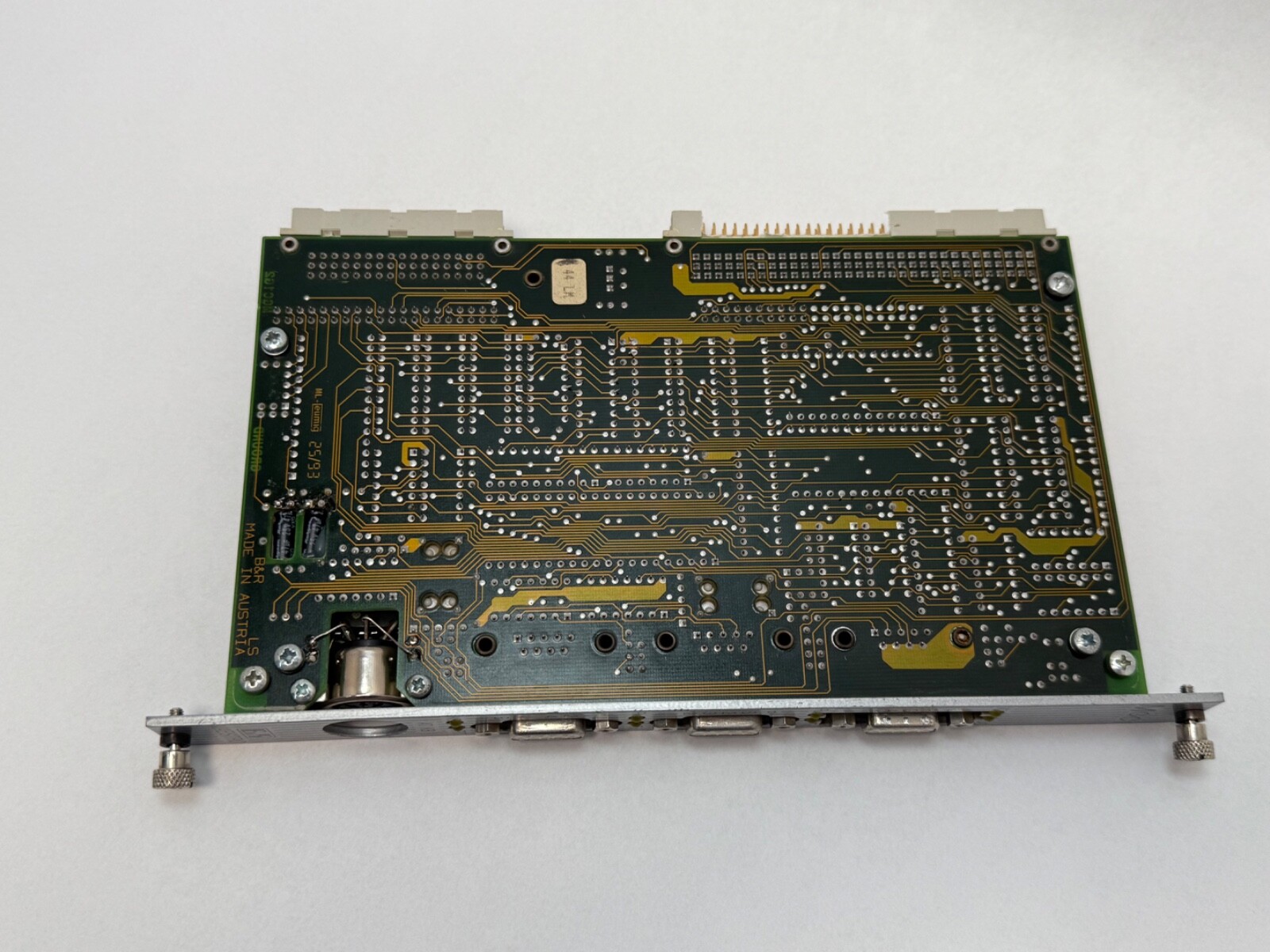

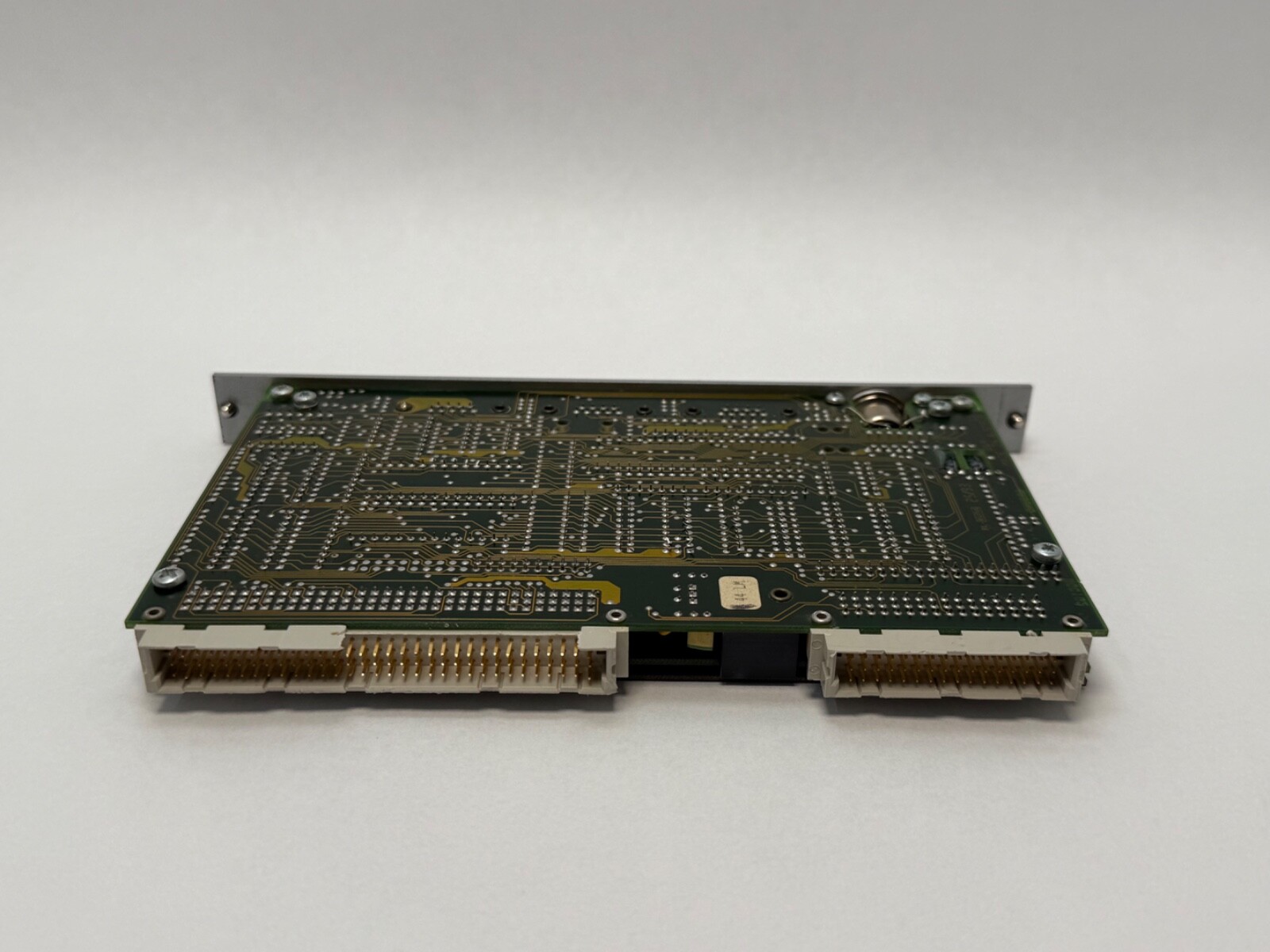

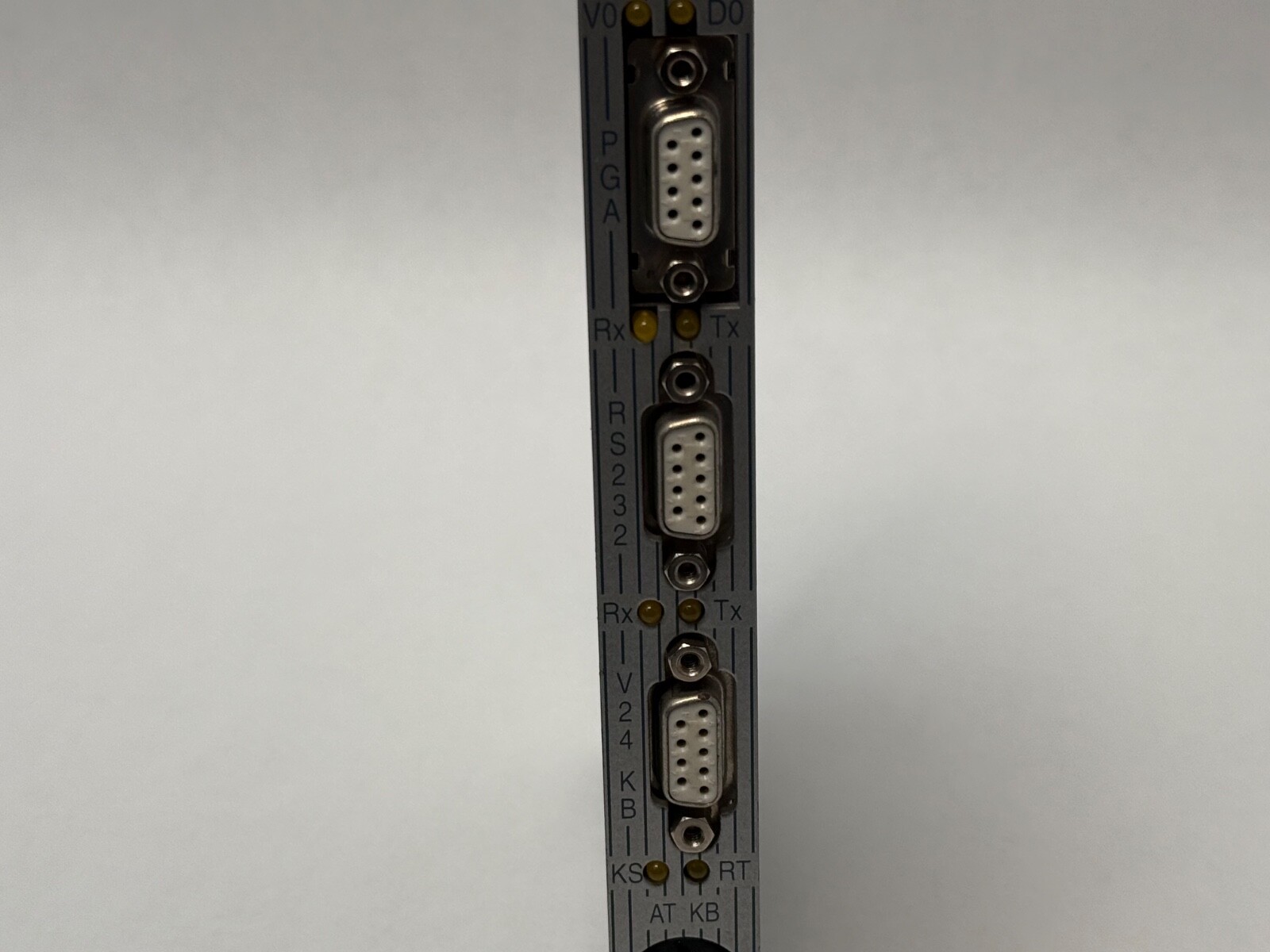

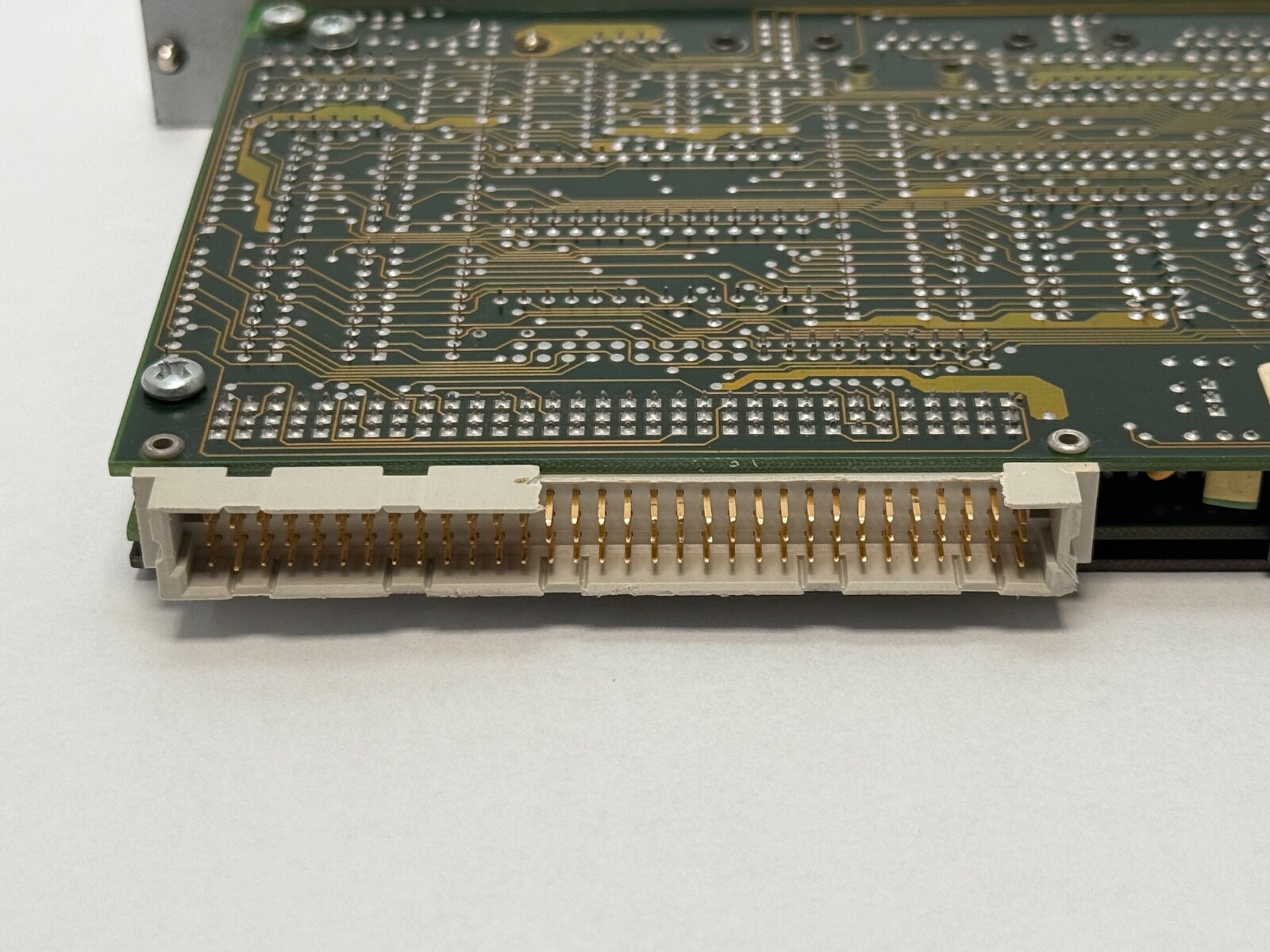

B&R HCMGC1-0, the MGC1 graphic controller board for the B&R Maestro control system. Manufacturer: B&R, Bernecker + Rainer Industrie-Elektronik. Function: graphics generation and display interface for a Maestro CNC control. Form: a plug-in circuit board for a Maestro card rack.

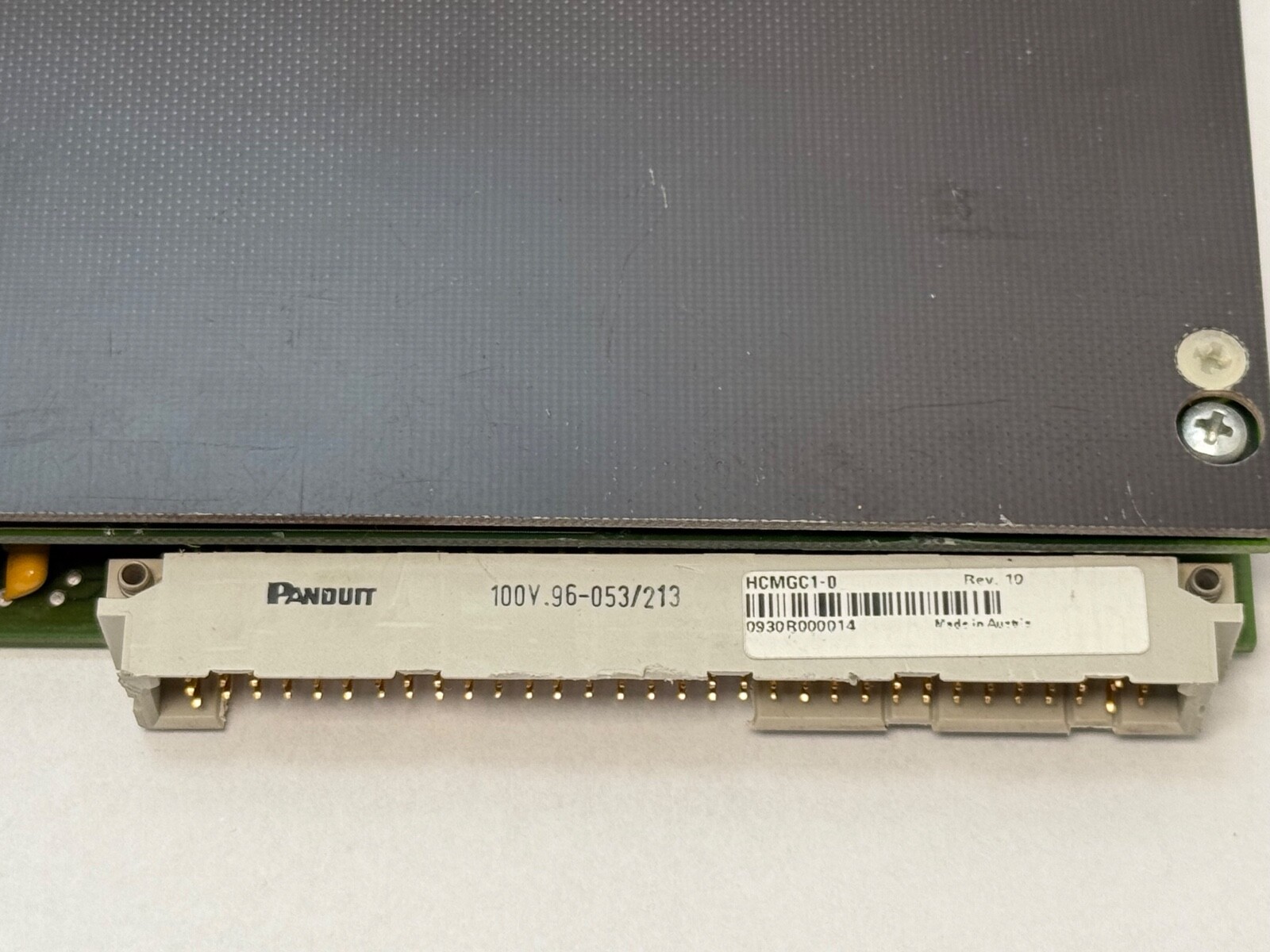

MGC1 is the module name: Maestro Graphic Controller, first generation. HCMGC1-0 is the board order number, with HC the prefix B&R uses across the Maestro card range and the trailing 0 the hardware revision index. HCMGC1-O and MCG1 are variant spellings of the same board that appear in service records and parts lists.
Maestro is B&R’s CNC and machine control platform built on the OS-9/68000 real-time operating system. The system is assembled from single-function boards in one rack: the MGC1 handles graphics, the MAC1 axis controller board (HCMAC1-0, HCMAC1-1) handles servo axis control, and the MCO1 coprocessor board (HCMCO1-0) adds OS-9/68000 processing capacity. The MGC1 is the board that drives the operator display on that platform.

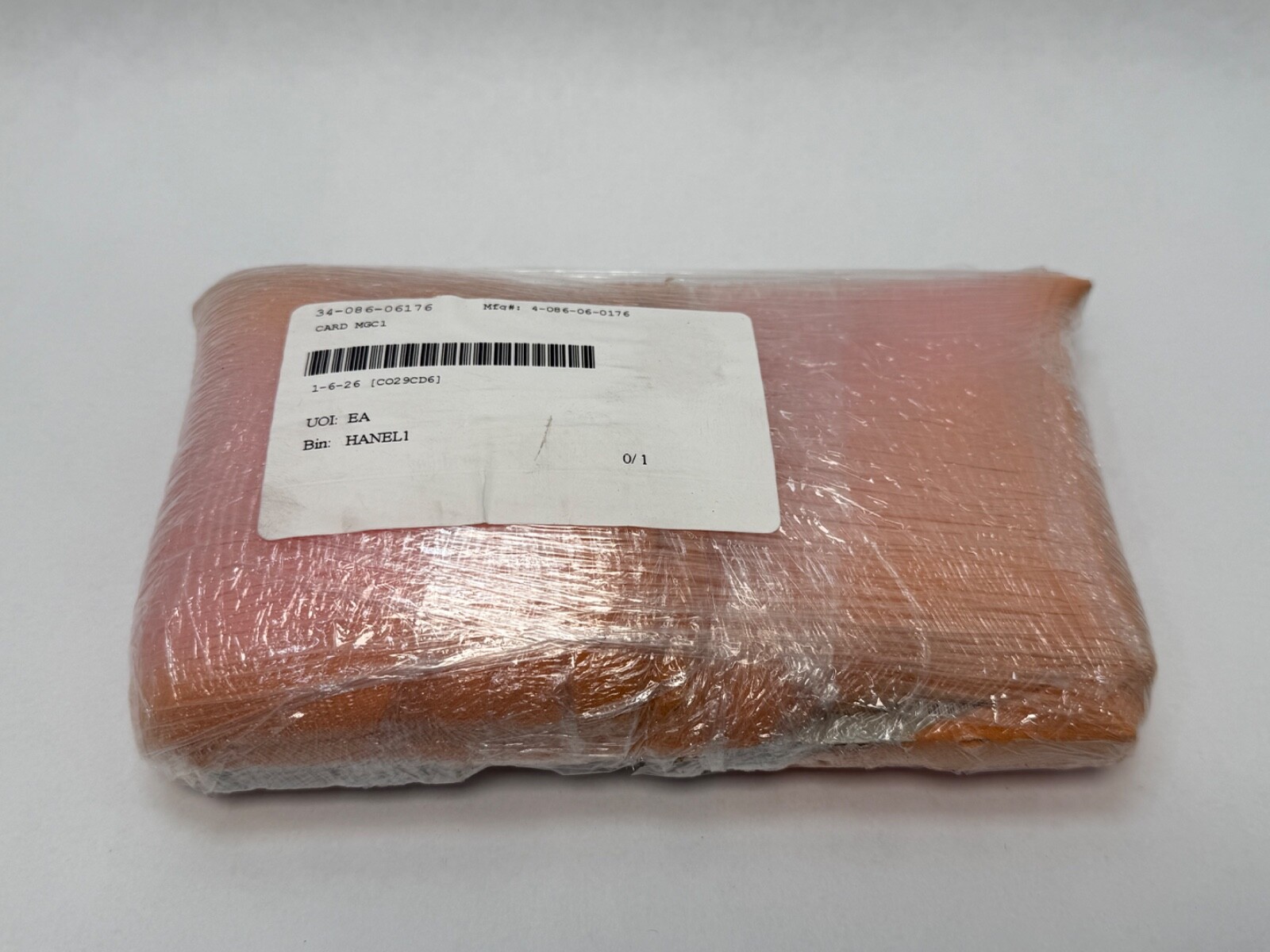

One board. New old stock, open box.
HCMGC1-0 is specific to the Maestro rack and its OS-9 software. The other HC-series Maestro boards — HCMAC1-0, HCMAC1-1, HCMCO1-0 — are different functions in the same system, not substitutes for the graphics board.
