Middex-ElectronicDC2Q-ASBrushed DC Motor Speed Controller, Two-Quadrant, 24 V DC, 0-5 A with 6 A Peak, Adjustable Current Limit, DIN Rail

Product Description

What this part is:

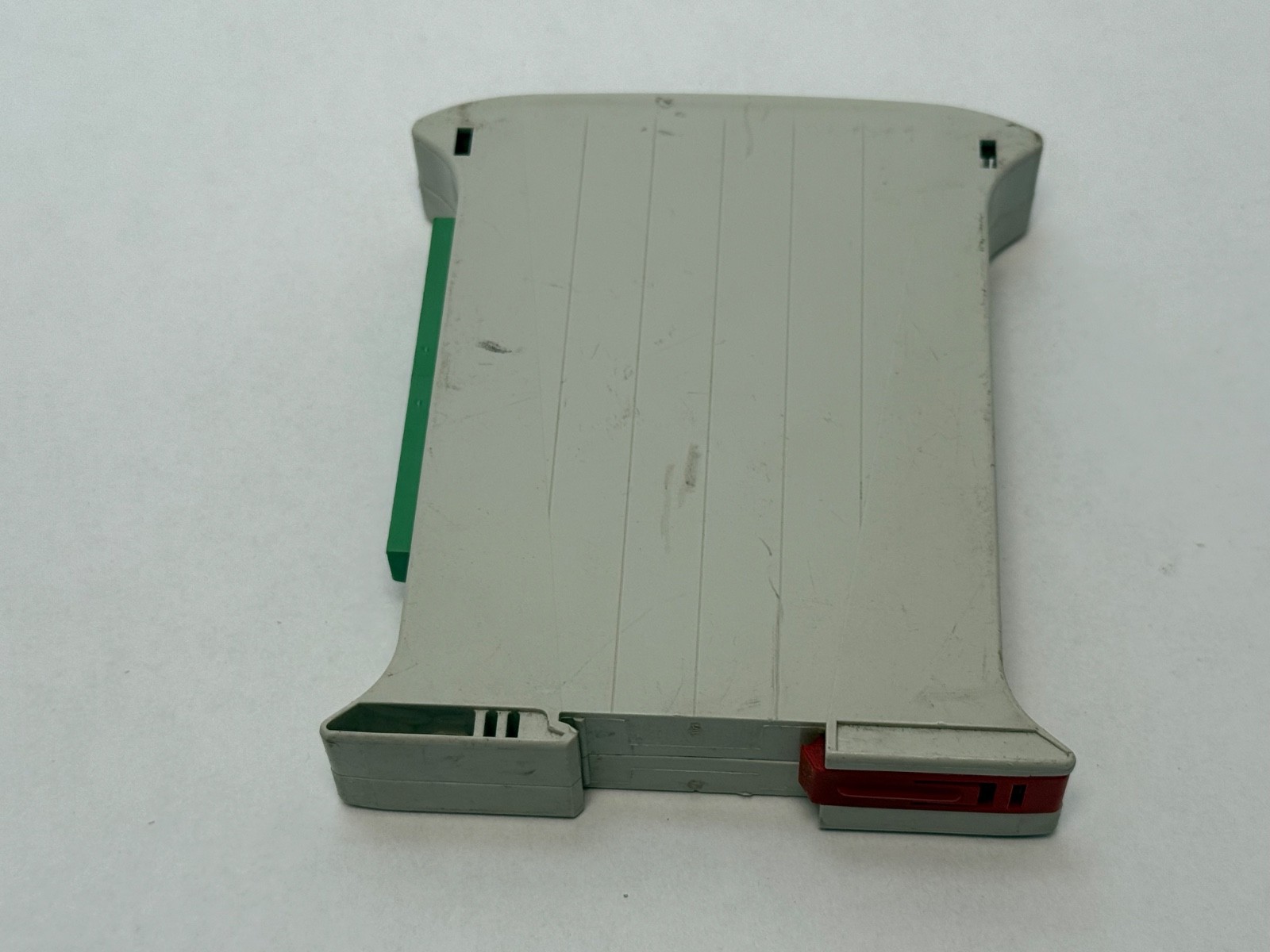

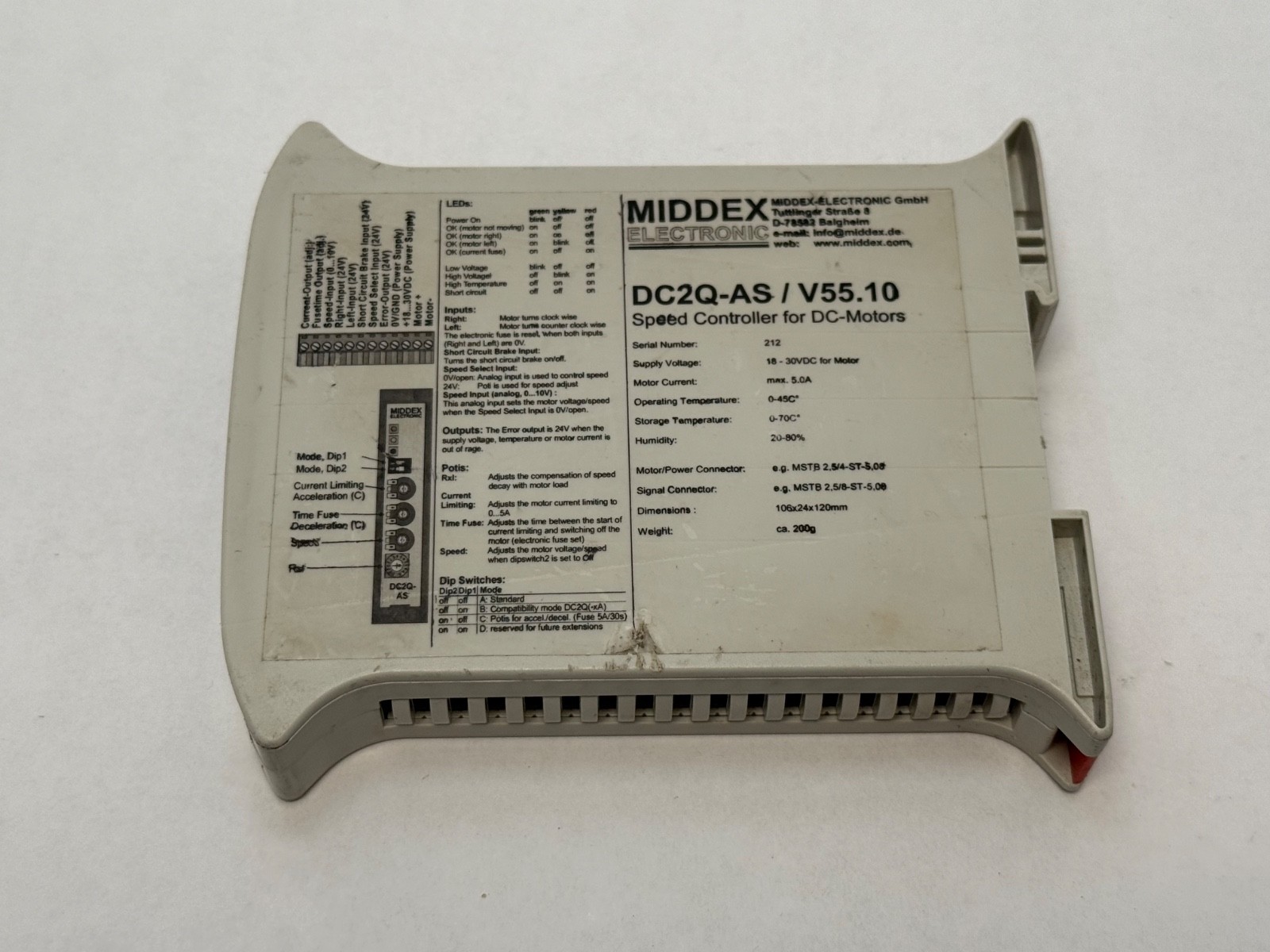

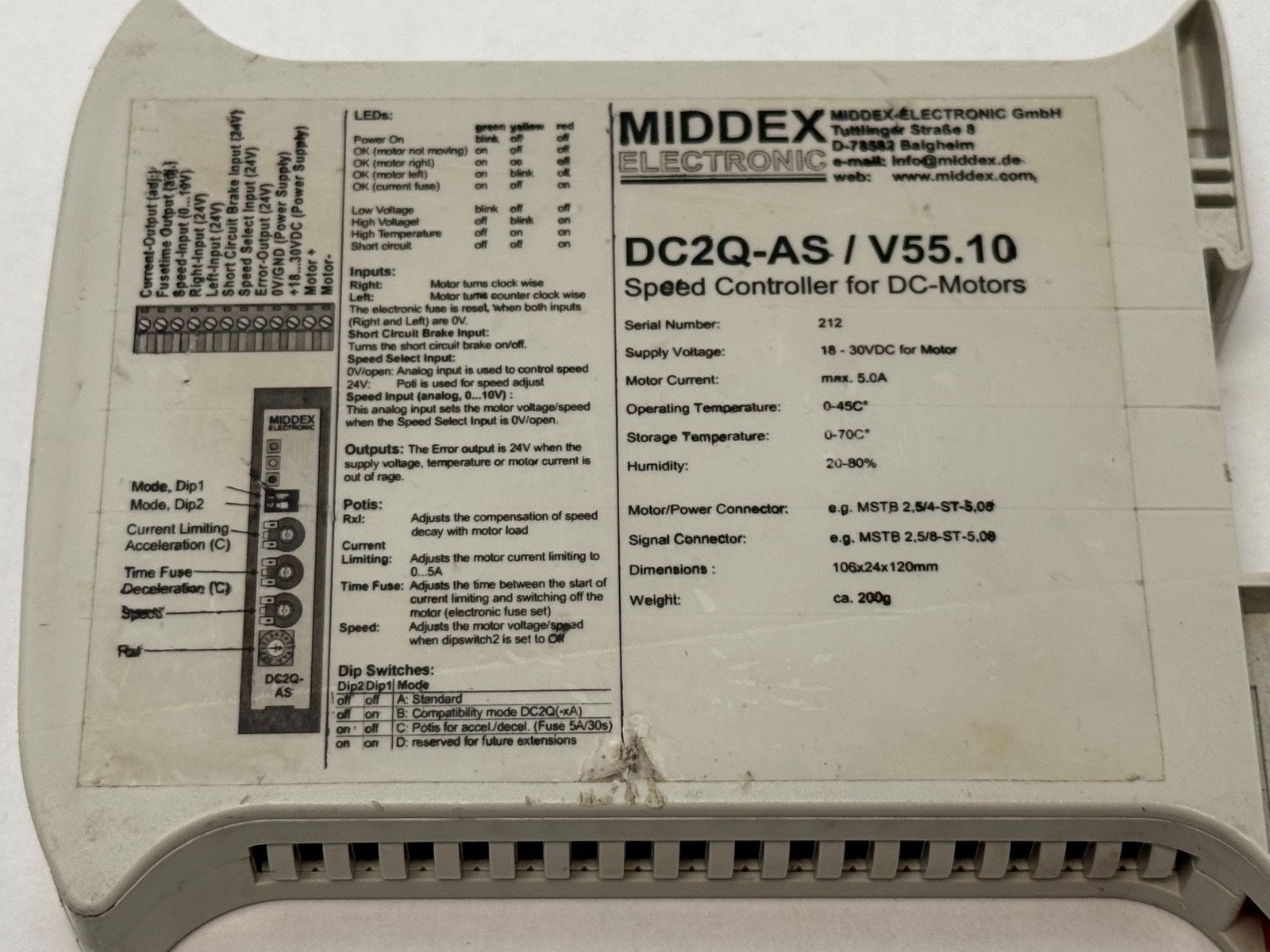

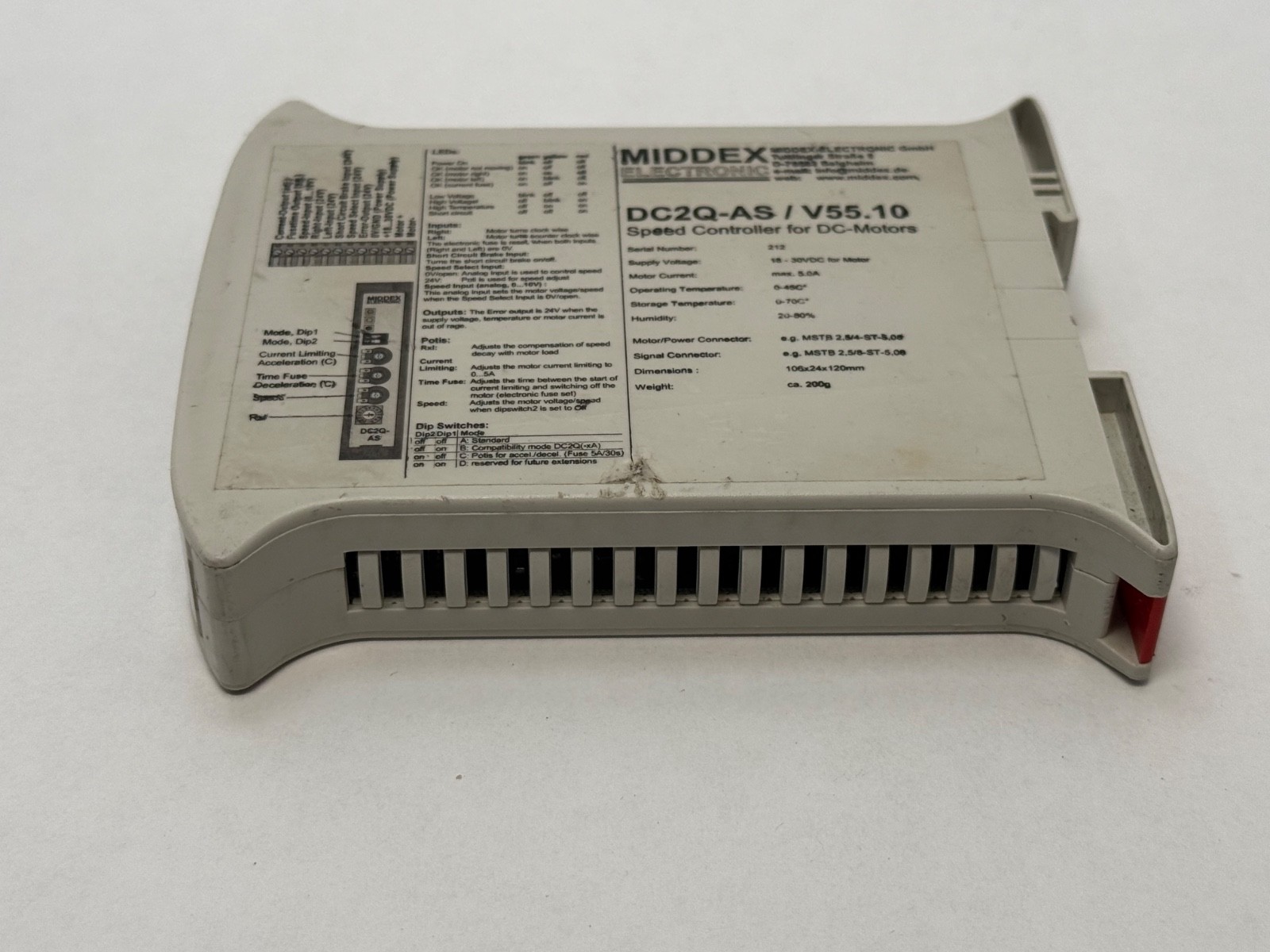

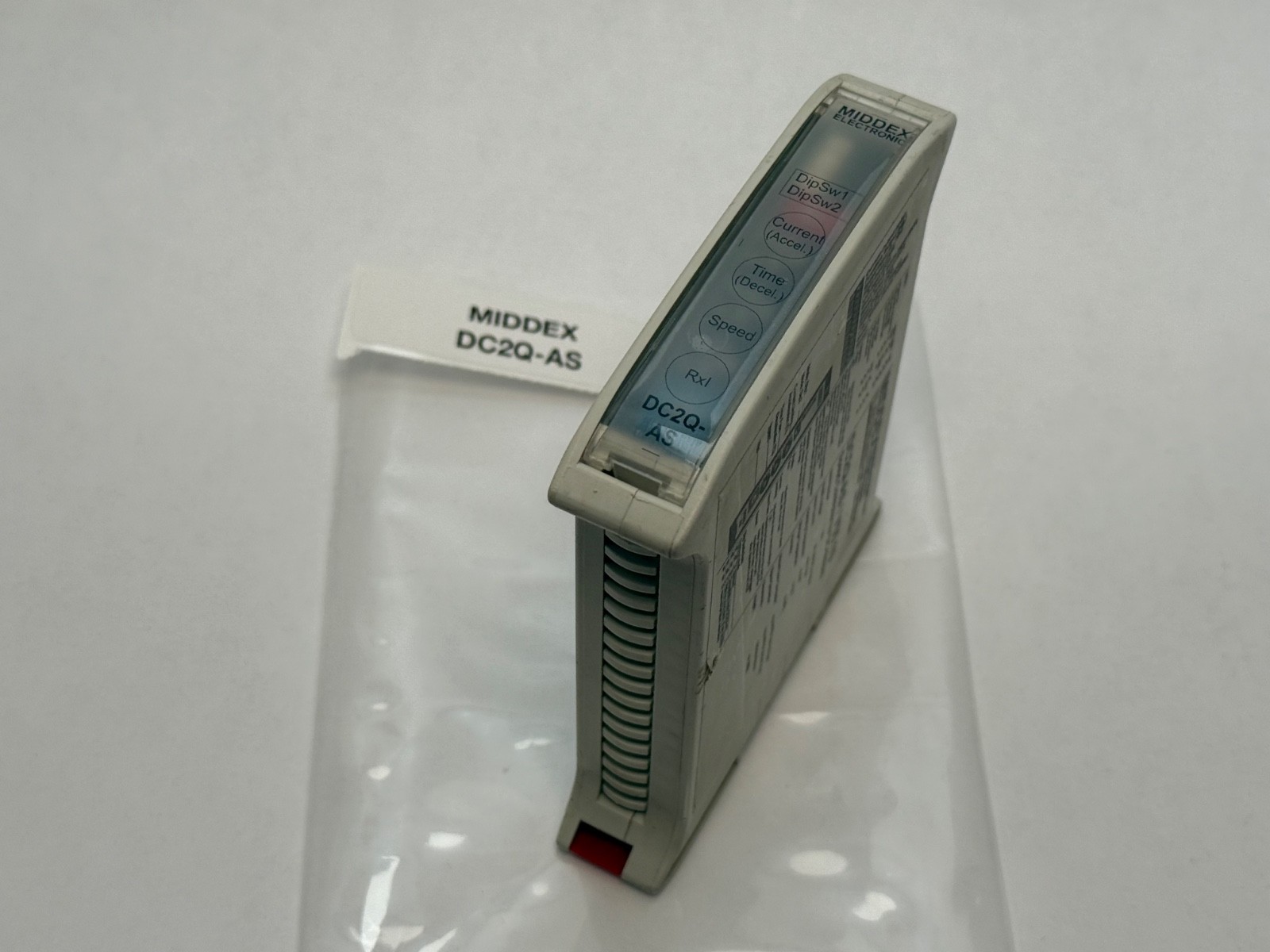

Middex-Electronic DC2Q-AS is a speed controller for brushed DC motors. It is a DIN-rail mounted drive module that takes a 24 V DC supply, drives a brushed DC motor at up to 5 A continuous with 6 A peak, and accepts digital inputs for clockwise and counter-clockwise running. The current limit is built in and adjustable. Unit Quantity: 1 Pc.

Decoding the designation:

DC2Q-AS — Middex-Electronic order designation for this brushed DC motor controller.

DC2Q — the Middex-Electronic DC2Q two-quadrant brushed DC motor controller family.

AS — this variant of the module. DC2Q-ASX is a separate variant in the same family.

Specifications:

Function: speed controller for brushed DC motors. Operation: two-quadrant. Supply Voltage: 24 V DC ±2 V. Motor Current: 0–5 A continuous. Peak Motor Current: 6 A. Current Protection Range: 0–5 A. Current Protection Reaction Time: 1–700 ms, potentiometer adjustable. Control Signal: digital inputs for clockwise and counter-clockwise running. Motor Type: brushed DC. Mounting Type: DIN rail. Connector Style: screw terminals. Unit Quantity: 1 Pc.

Dimensions and mounting:

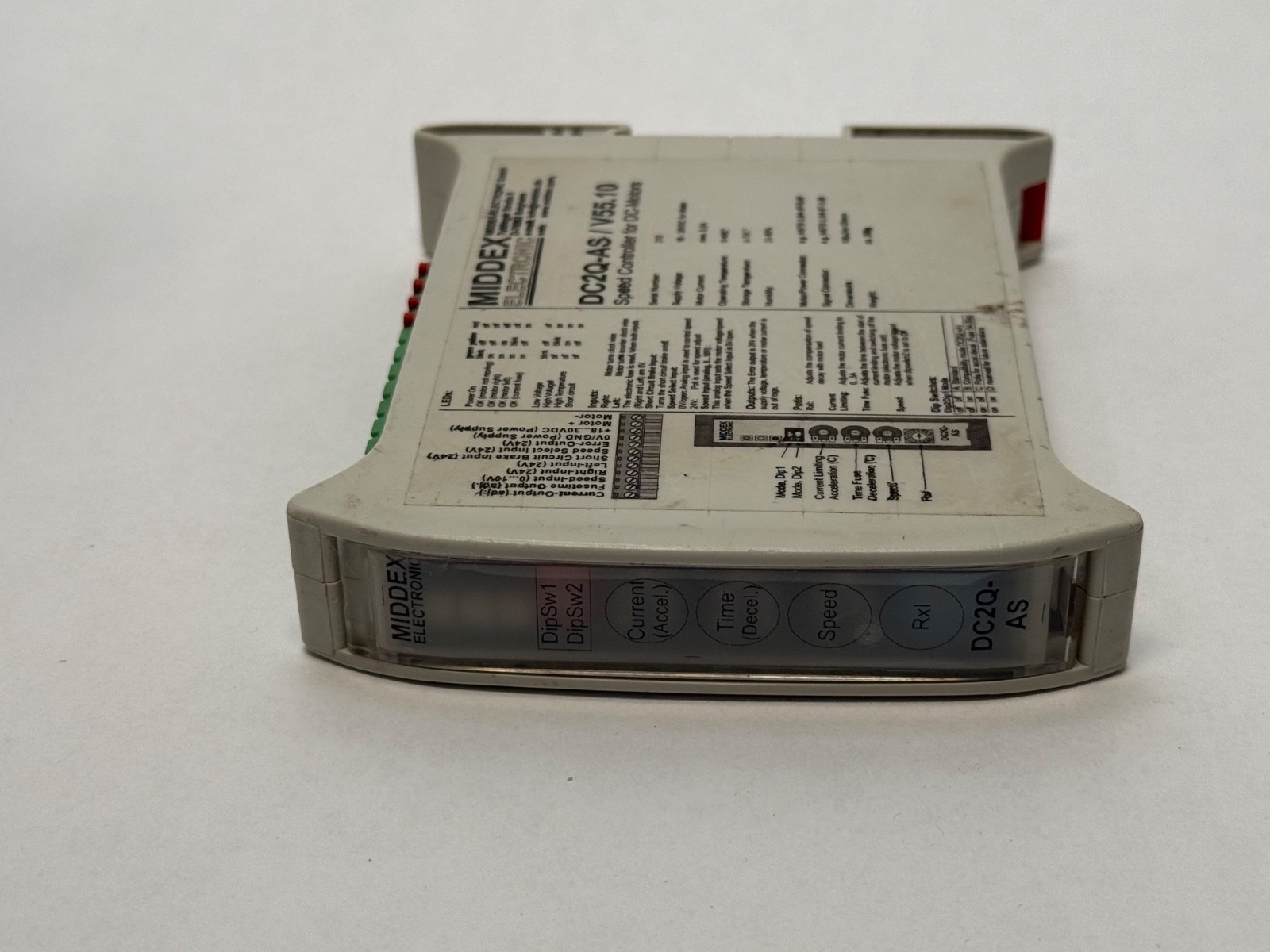

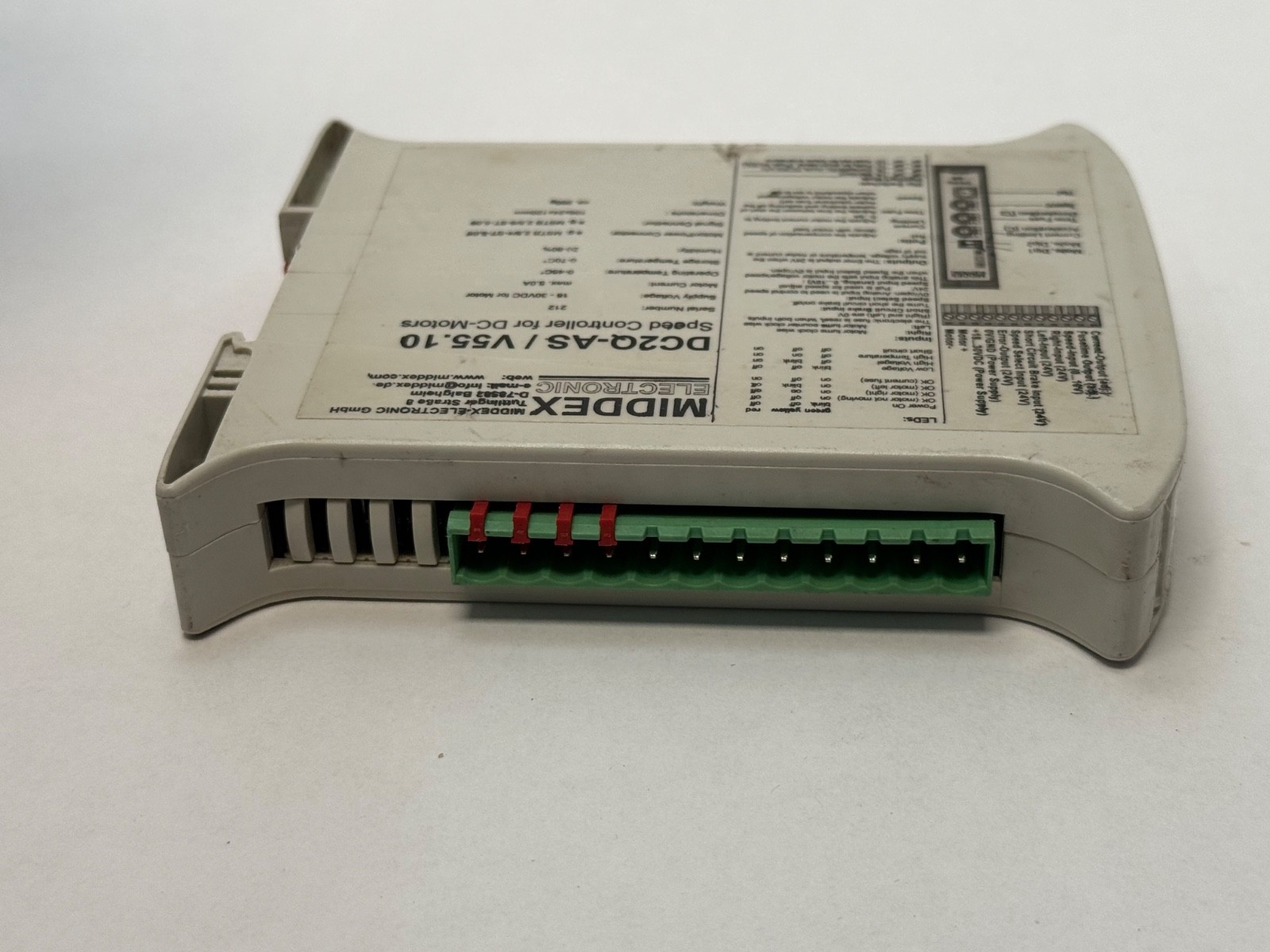

The module clips to DIN rail. Screw terminals take the 24 V DC supply, the motor armature and the digital control inputs. Speed, current limit threshold and reaction time are set on front-mounted potentiometers.

Compatibility and replacement:

Order designation DC2Q-AS. Also written DC2QAS, DC2Q AS and DC-2Q-AS. DC2Q-ASX is a related variant in the same Middex-Electronic DC2Q family.

Frequently asked questions:

What supply voltage does the Middex-Electronic DC2Q-AS use?

24 V DC ±2 V.

What motor current does the DC2Q-AS deliver?

0–5 A continuous with 6 A peak.

How is the current limit set on the DC2Q-AS?

Current protection range 0–5 A, with a reaction time of 1–700 ms adjustable by potentiometer.
