RexnordHP5705-6 MTWMatTop Conveyor Chain — 6 in Wide Molded-to-Width, 1.5 in Pitch, Solid Top, Straight Running, 600 lb, 6 ft Length

Product Description

What this part is:

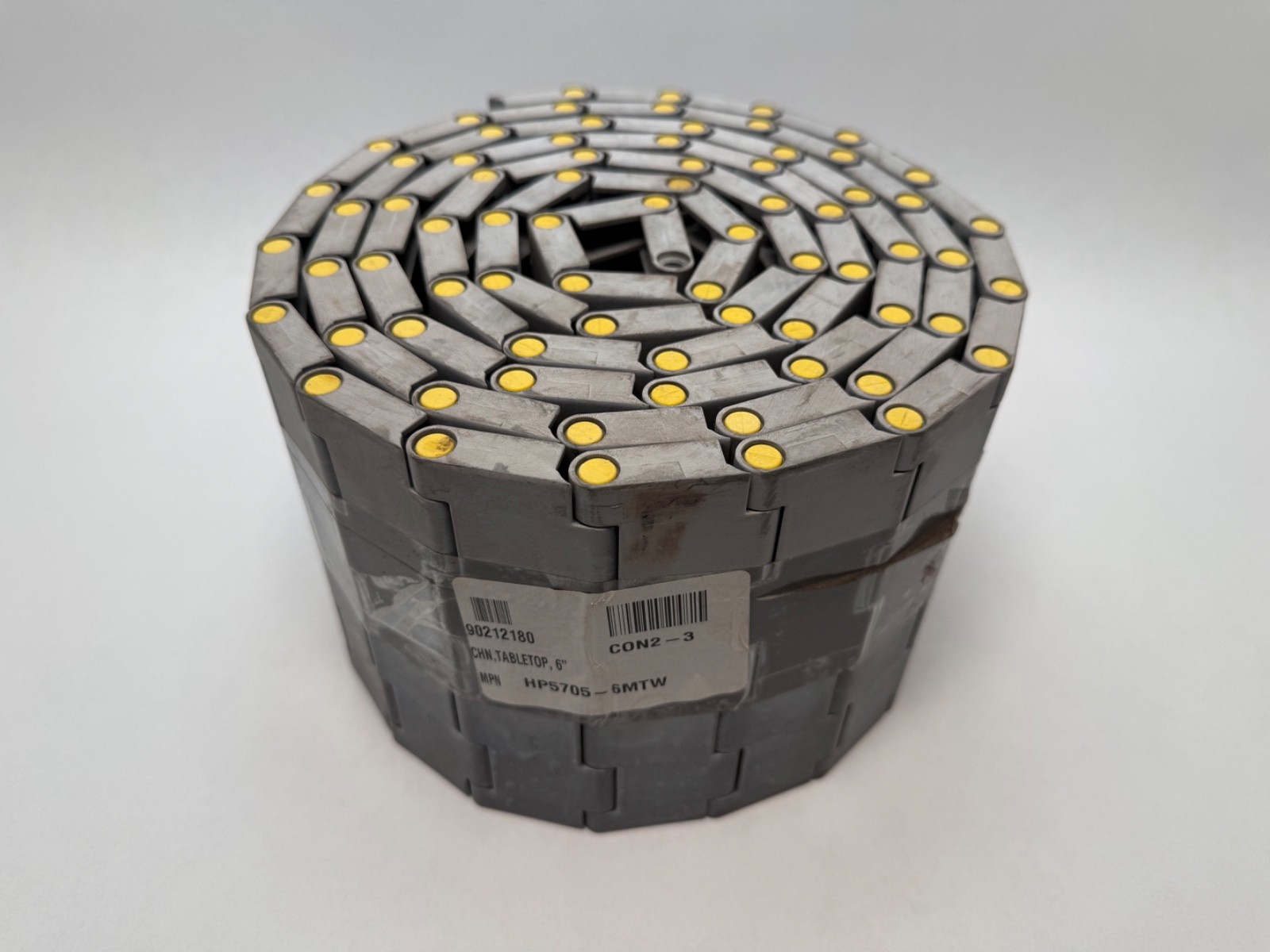

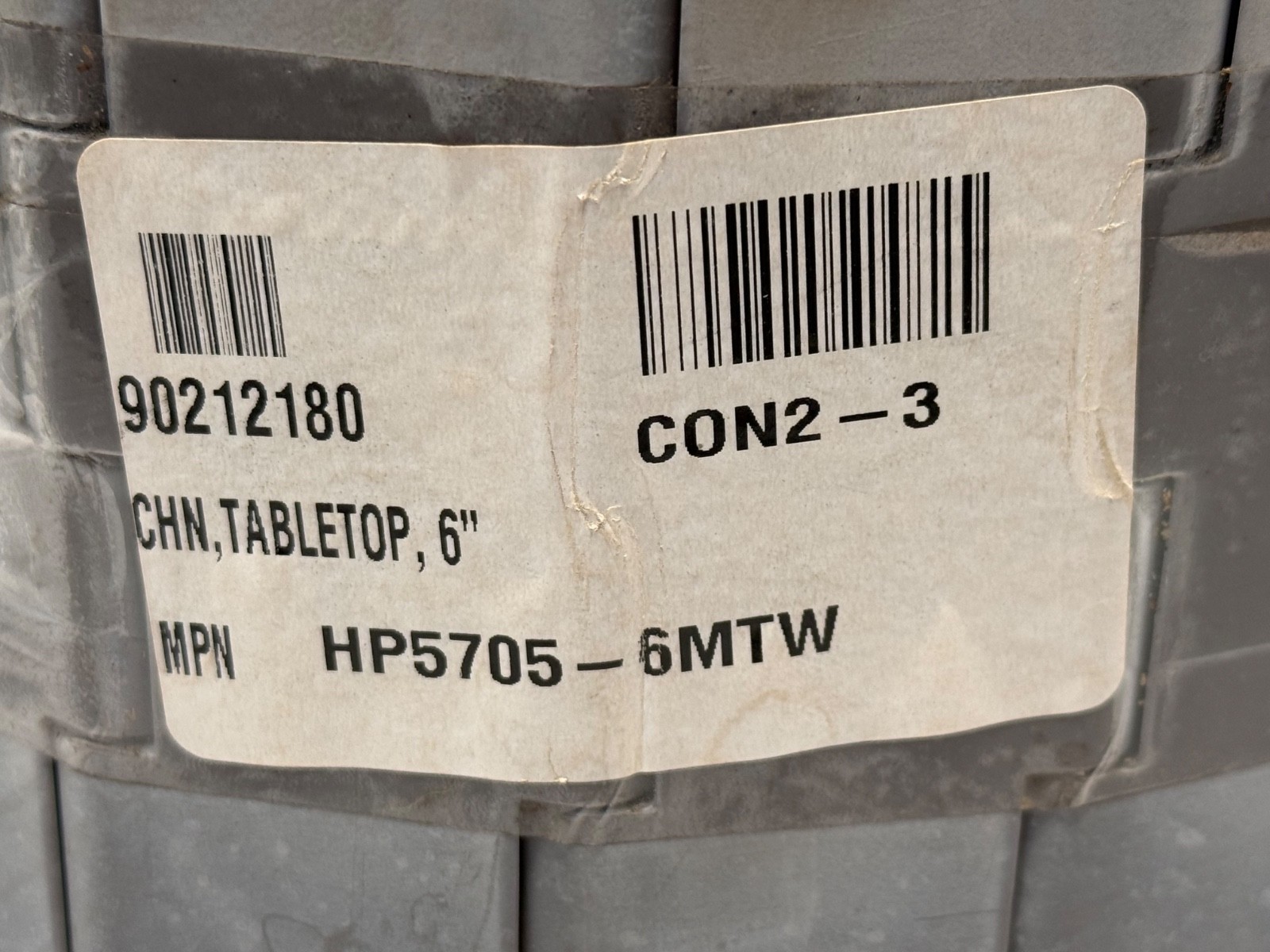

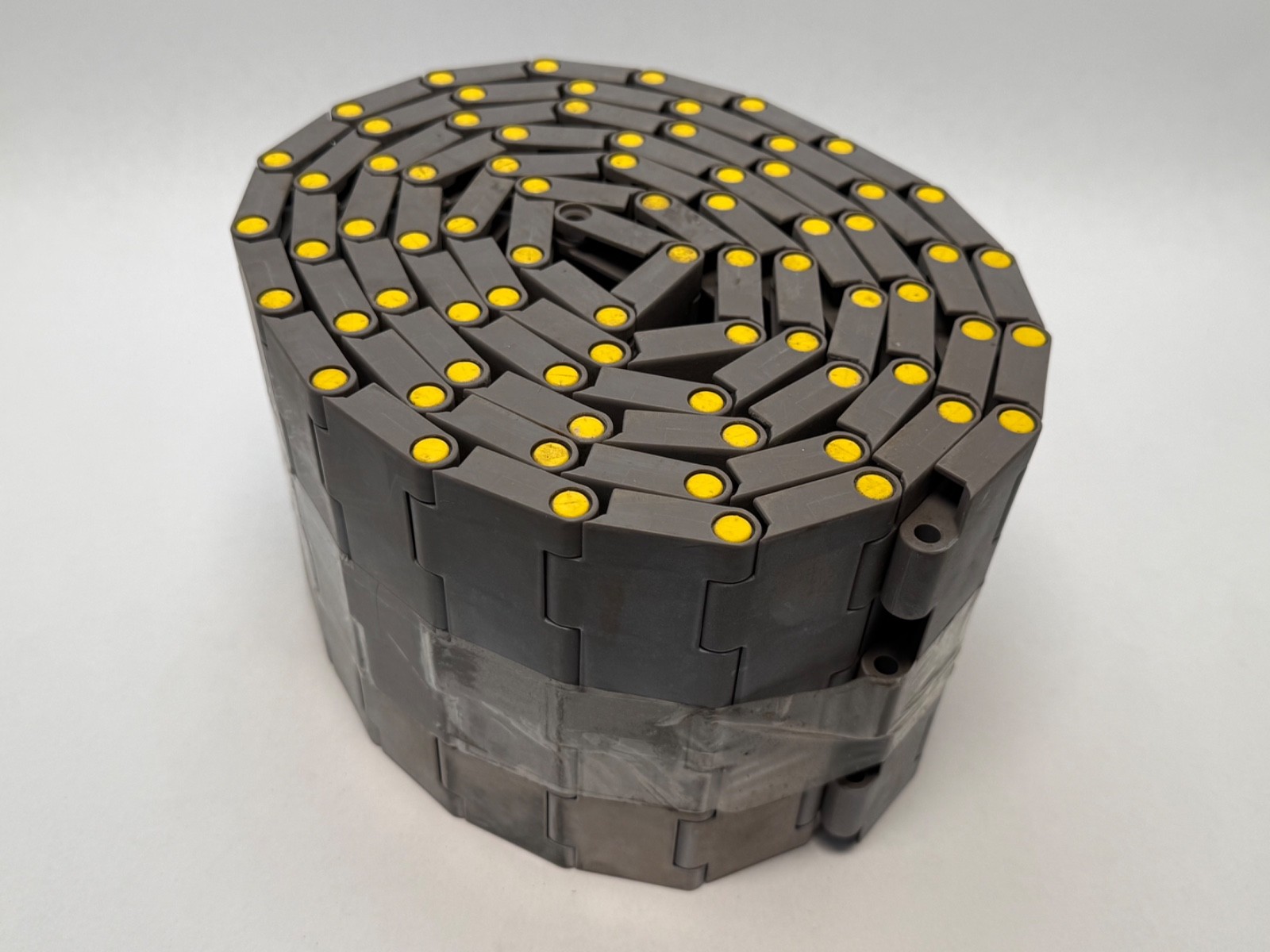

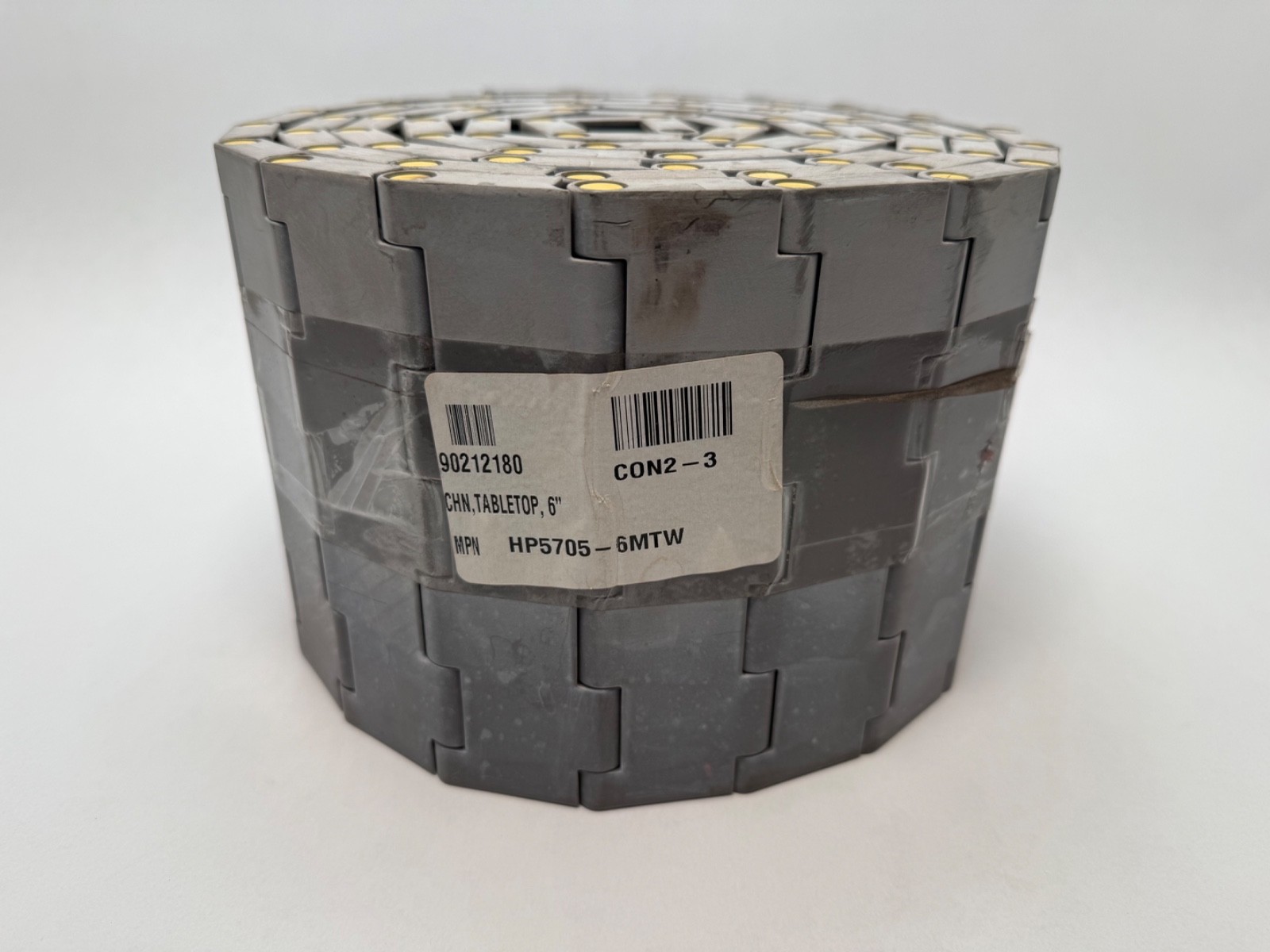

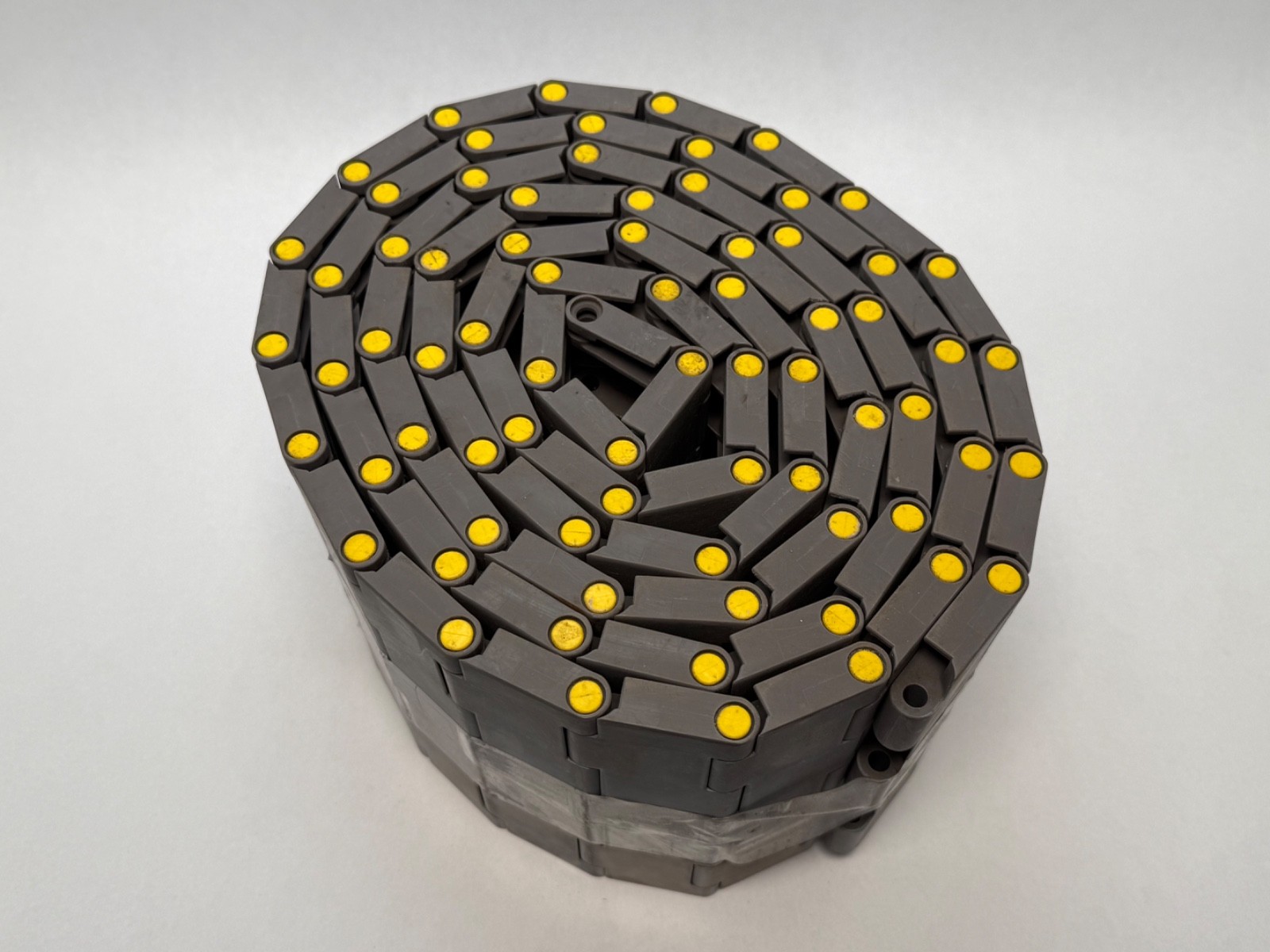

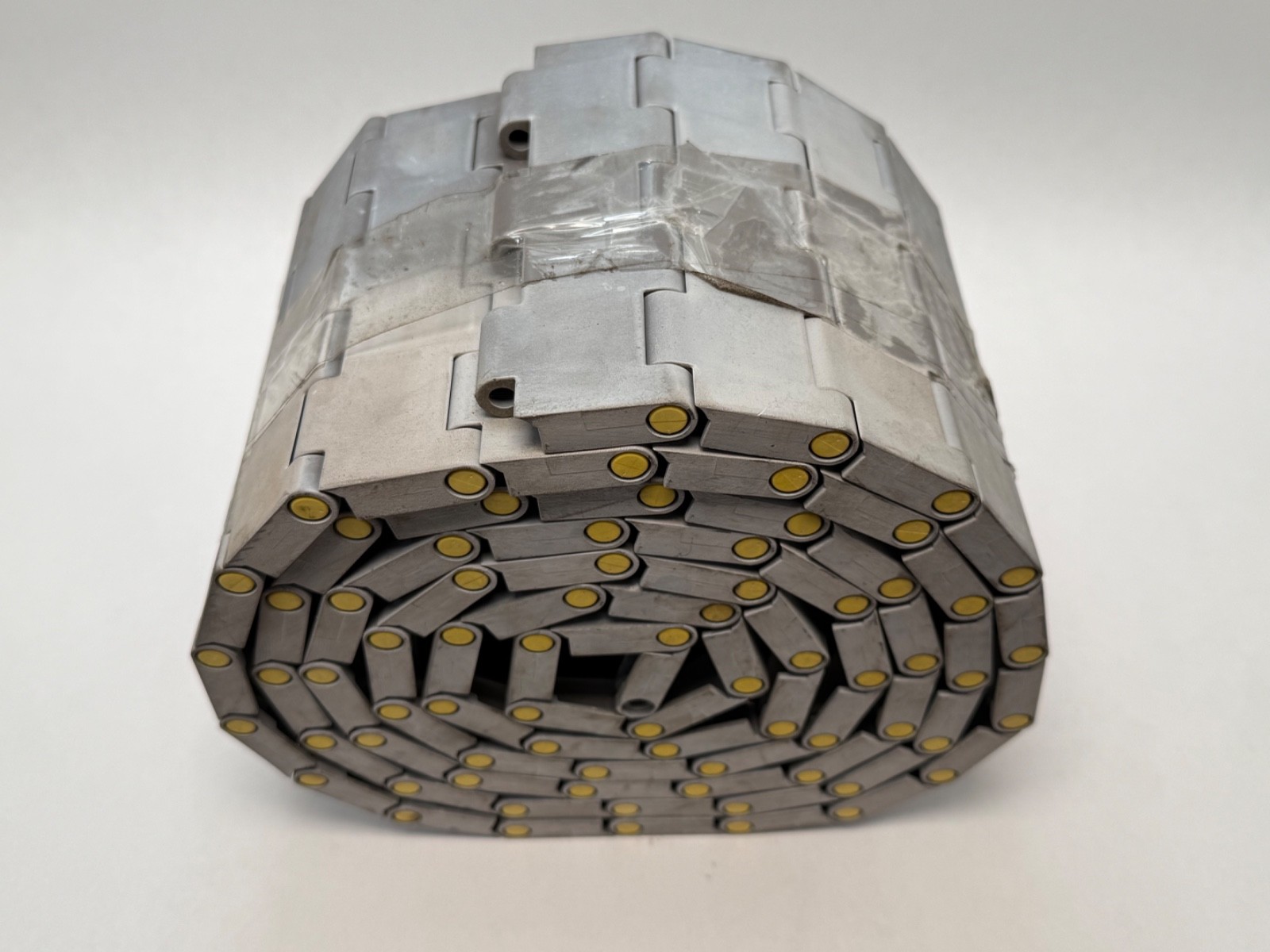

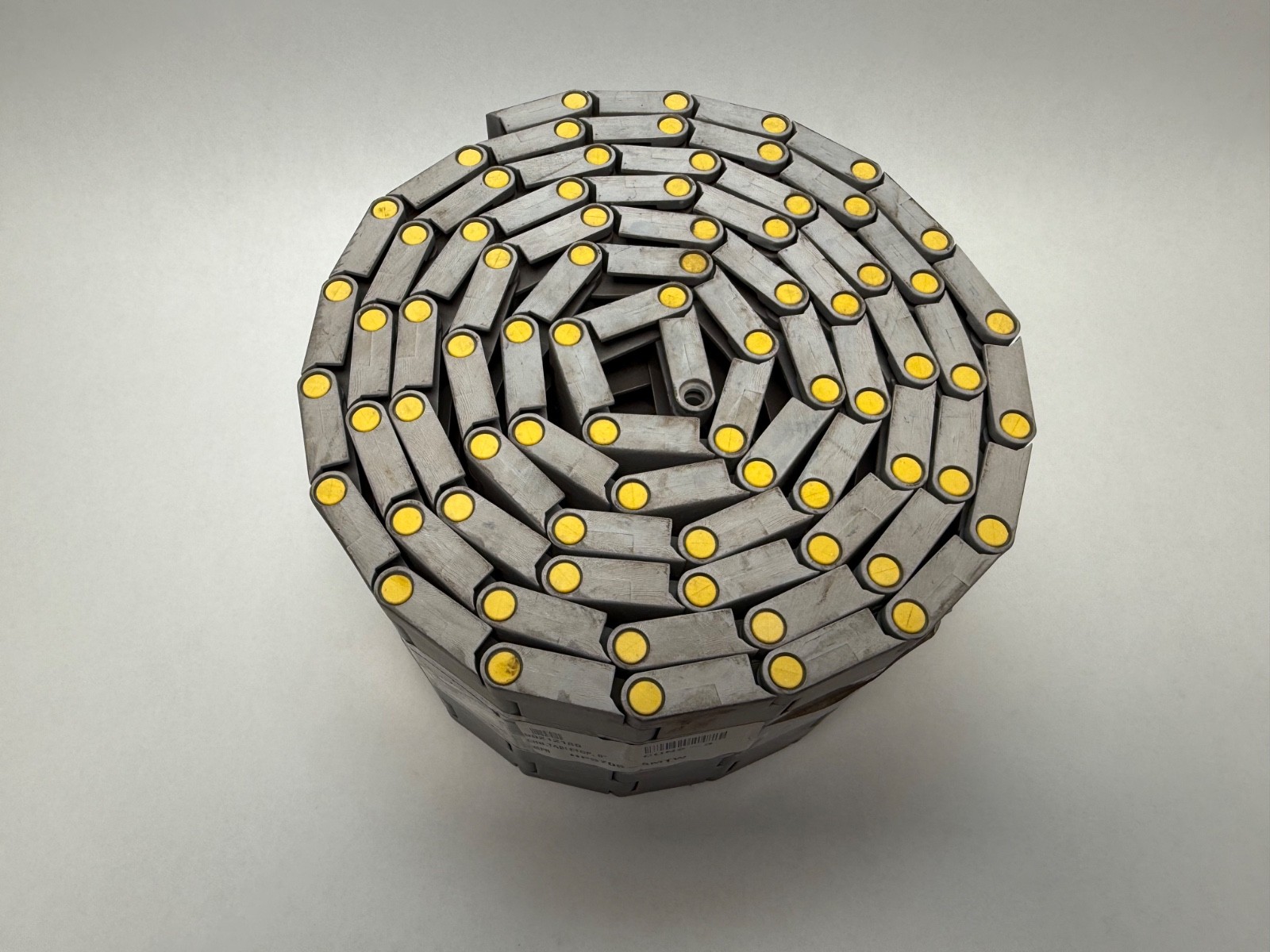

Rexnord HP5705-6 MTW is a 6 in wide molded-to-width MatTop 5700 series modular plastic conveyor chain, molded in brown HP High Performance material and assembled with polyester pins. Solid top, straight running, 1.5 in pitch. Rexnord item number 81416723. This listing is a 6 ft length.

Decoding the designation:

HP — Rexnord High Performance chain material, brown.

5705 — Rexnord MatTop 5700 series chain, solid top.

6 — chain width, 6 in.

MTW — molded to width: each module is a single full-width molding.

What these specs mean in practice:

Chain Width: 6 in (152.4 mm). Chain Pitch: 1.5 in (38.1 mm). Mat Thickness: 0.50 in (12.7 mm). Chain Strength: 600 lb (2,664 N). Weight per Foot: 1.86 lb. Minimum Backflex Radius: 1.5 in. Surface Type: Solid Top. Open Area: 2.1%. Pin Material: Polyester. The single-piece molded width gives a narrow chain with no brick joints across the carrying surface.

Quantity and configuration:

Unit Quantity: 1 Pc. One 6 ft length of 6 in wide chain.

Interchange guidance:

Runs on 5705 MatTop sprockets and wearstrips. Joins with other HP5705-6 MTW chain.
