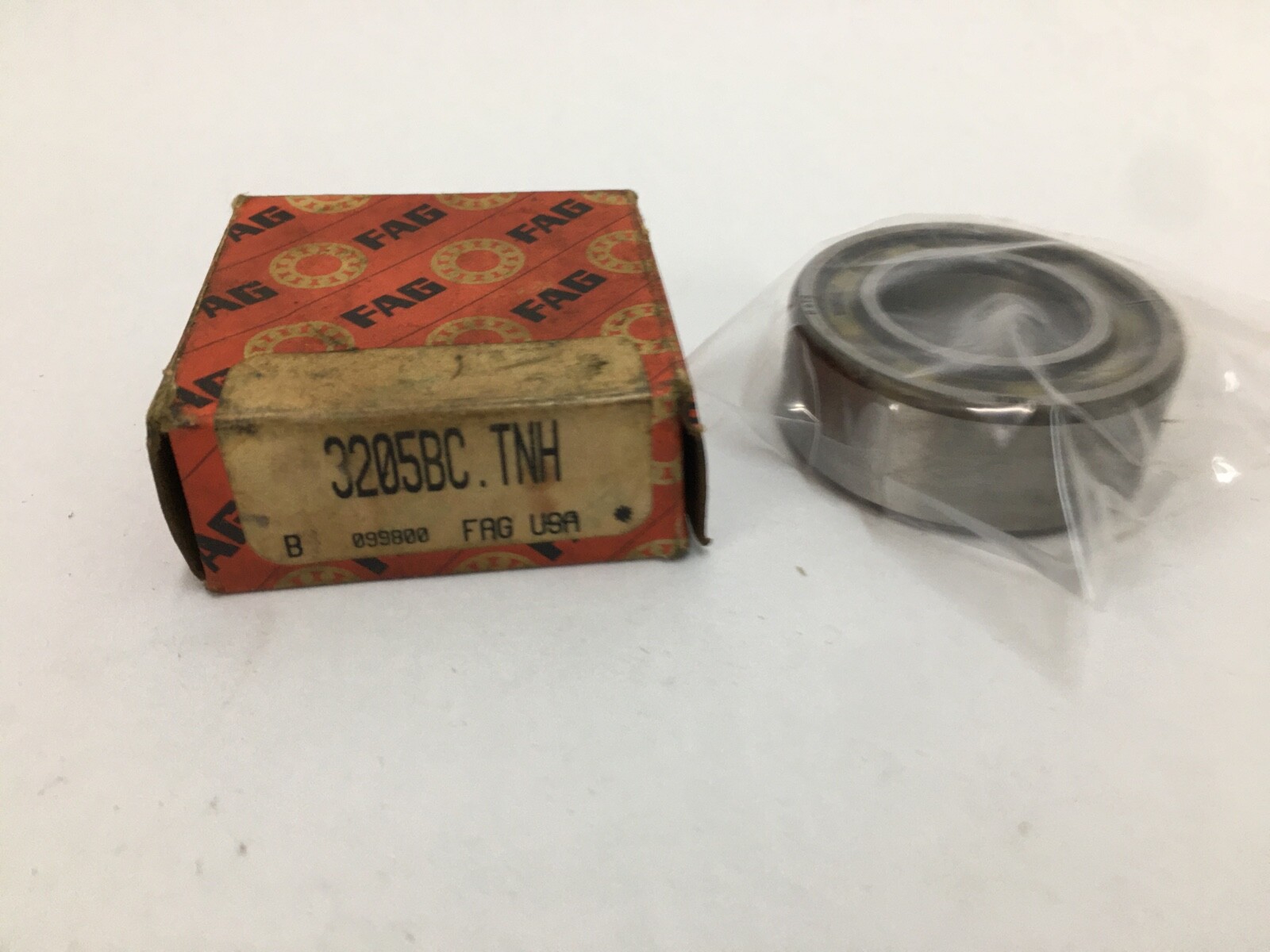

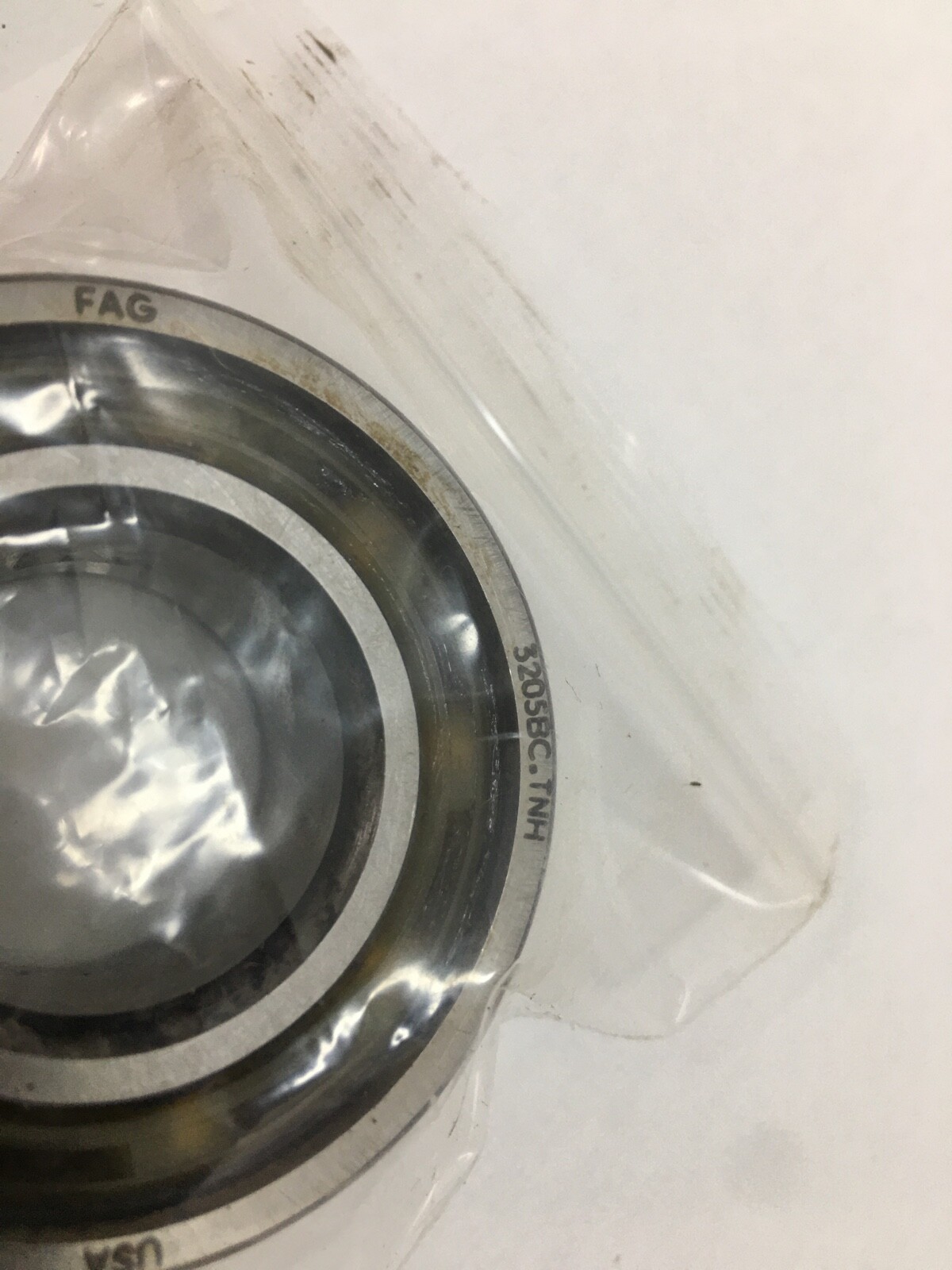

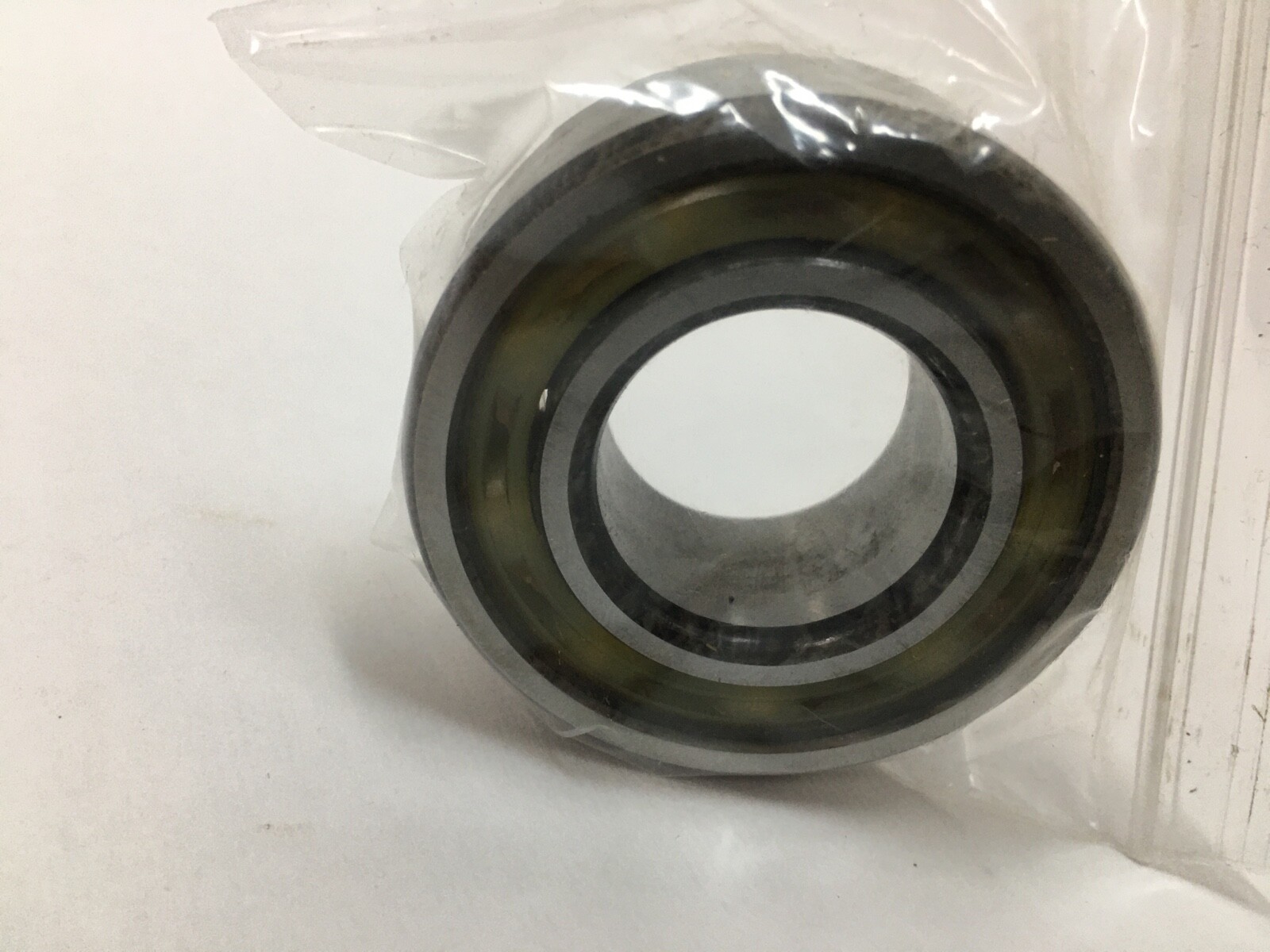

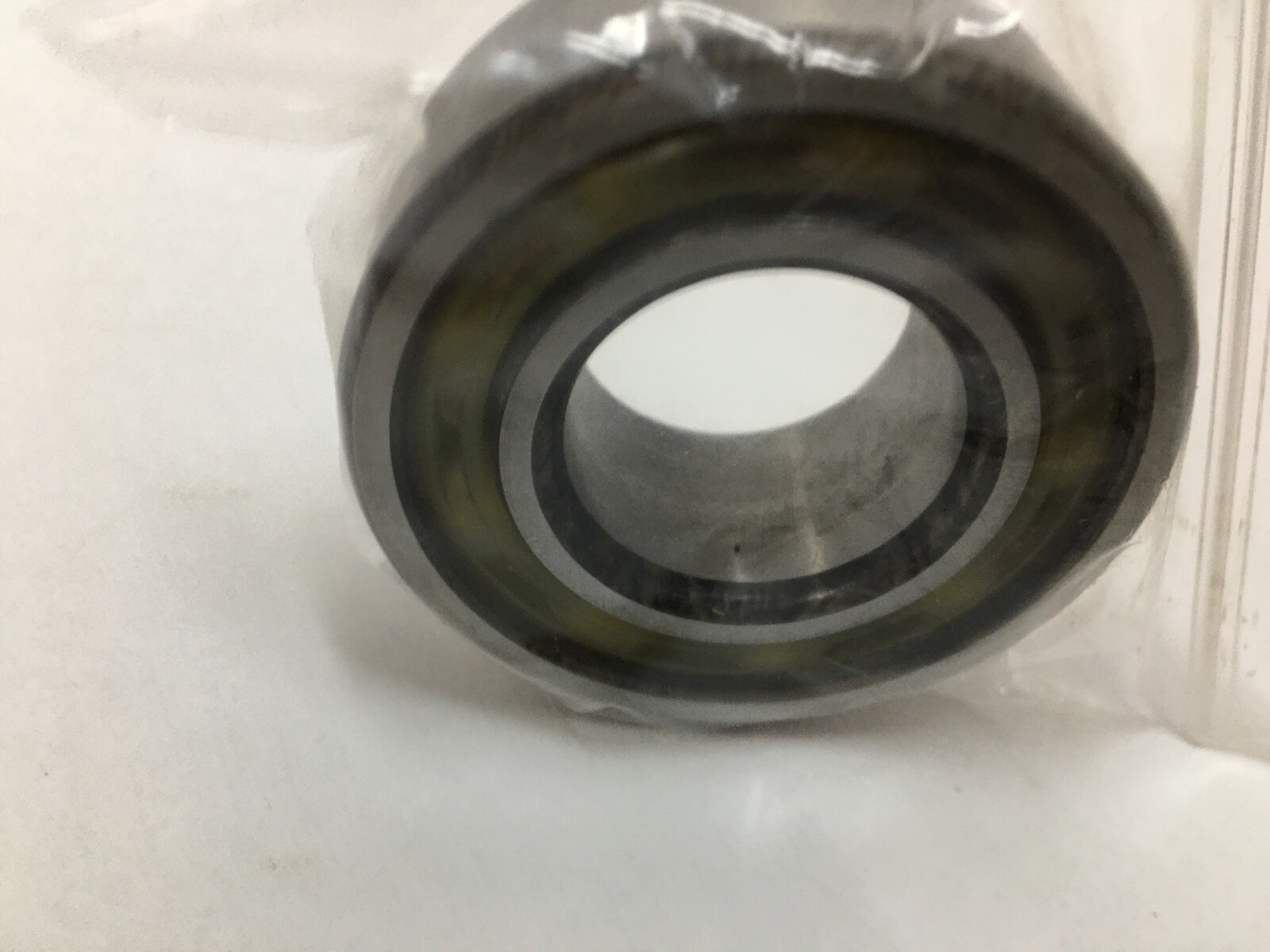

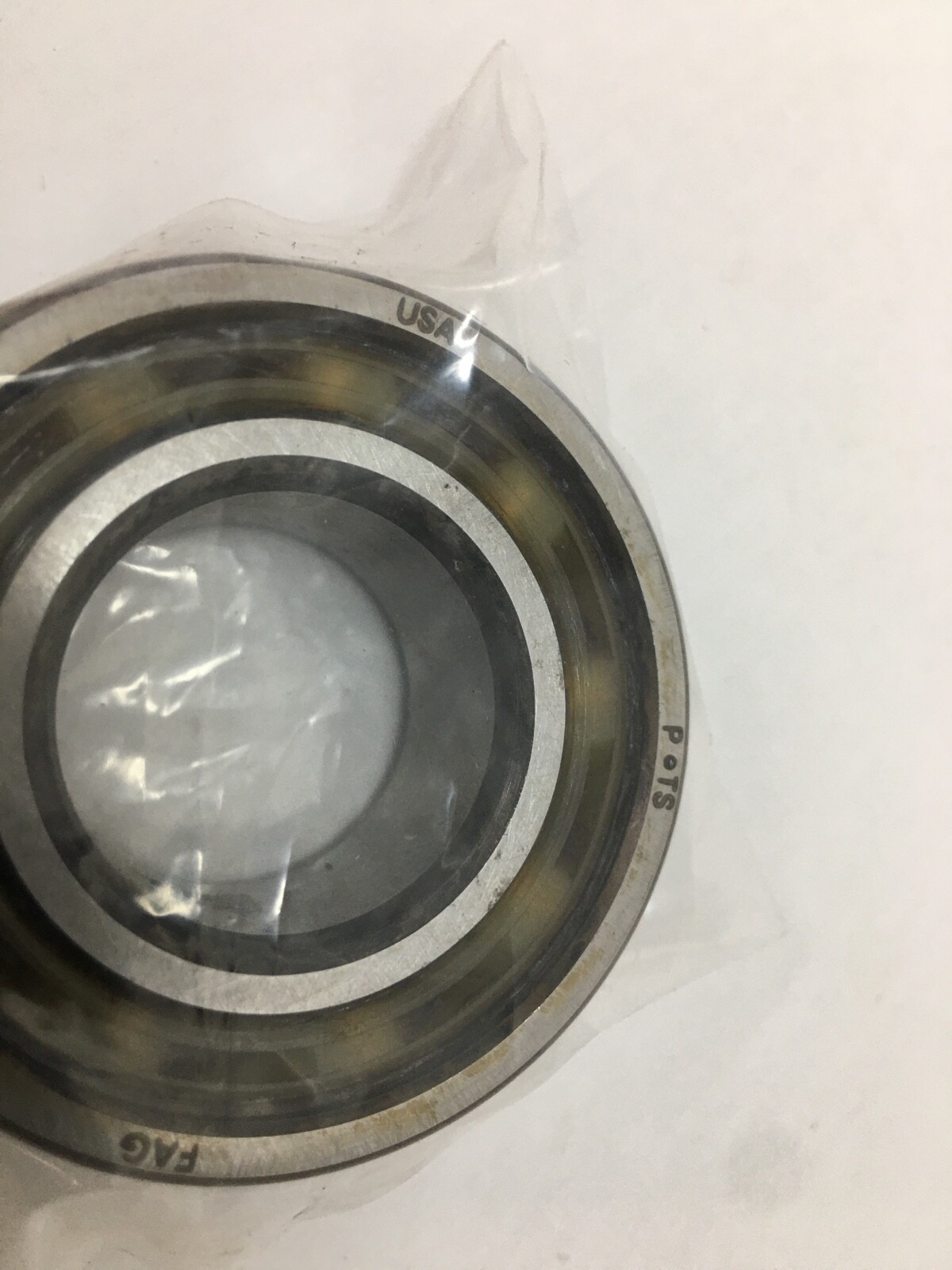

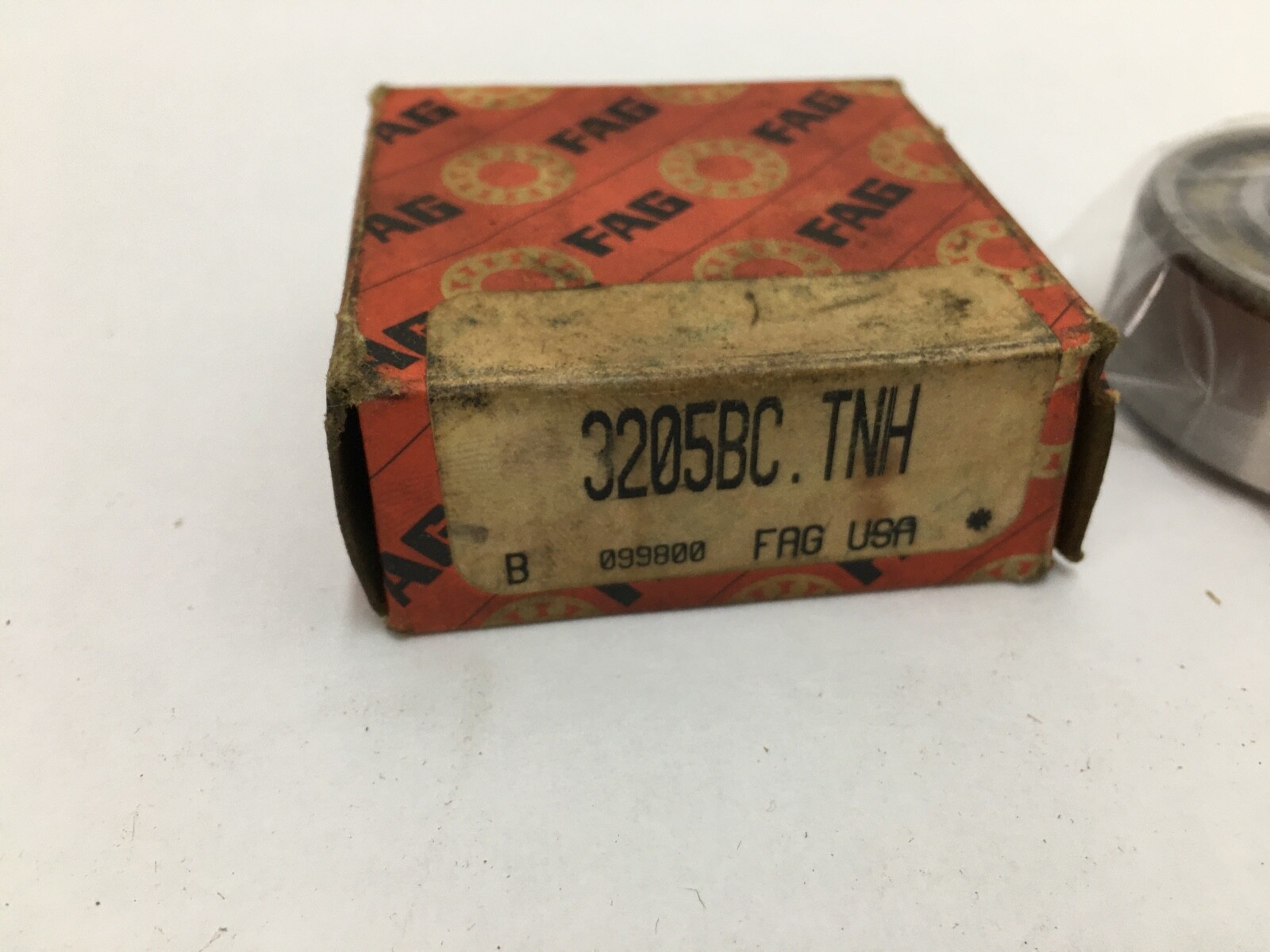

FAG 3205BC.TNH Double Row Angular Contact Bearing 25x52x20.6mm. Polyamide cage for high-speed operation. Designed to handle combined radial and axial loads.
List Price
$33.91
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 3205BC.TNH |
| Model | 3205BC-TNH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 13/16 in |
| Min Temp | -30°C |
|---|---|
| Cage Type | TNH |
| Dynamic Load Rating | 22.8 kN / 5126 lbf |
| Static Load Rating | 14.5 kN / 3260 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | 3200 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Condition | New – Open box |
| Item Weight | 0.38 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 15000 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Oil |
| Duty Type | Standard Duty |
| Harmonization Code | 8482.1 |
| Contact Angle | 30 ° |
| Material | Bearing Steel |
| Internal Clearance | CN |
