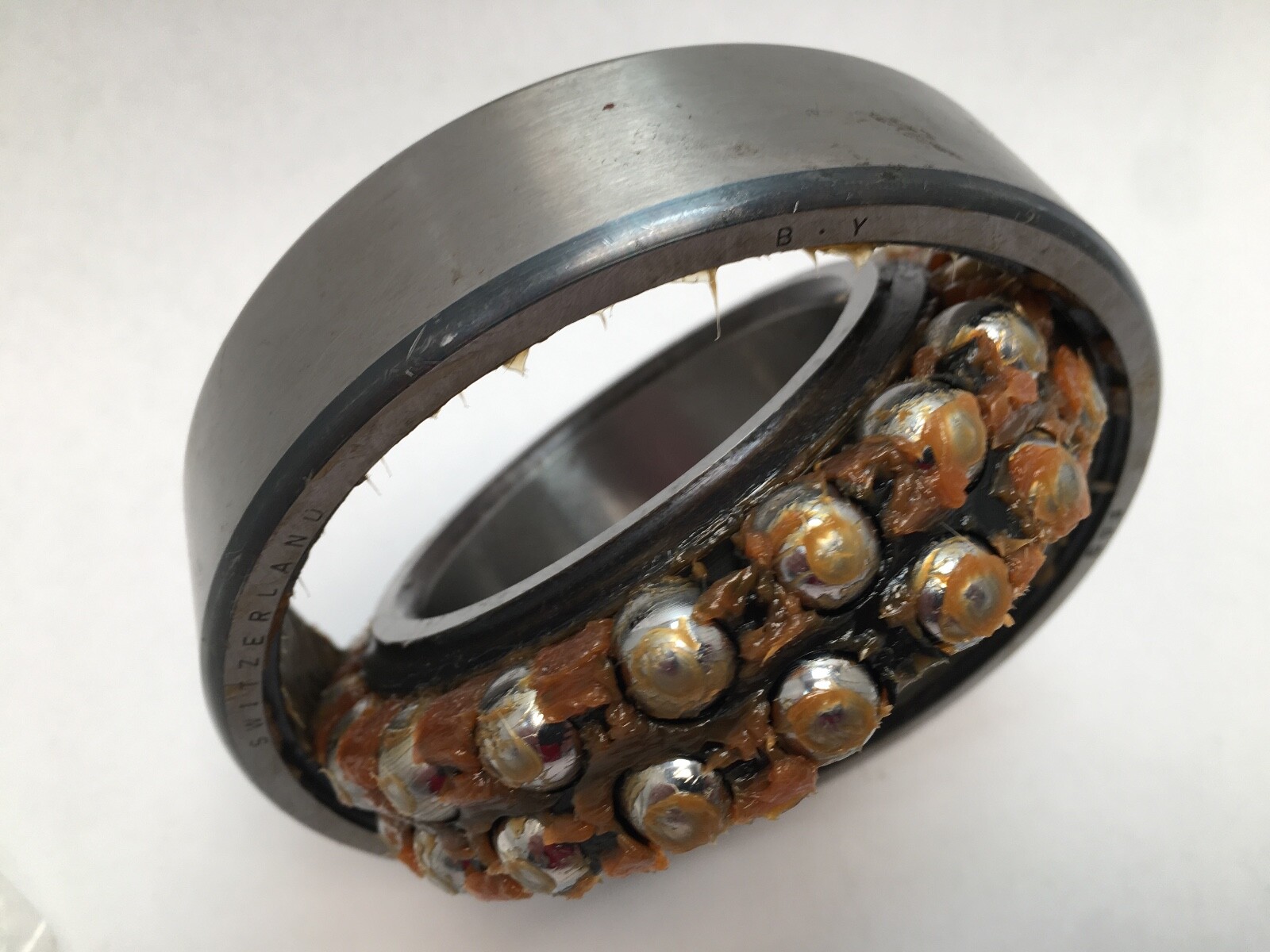

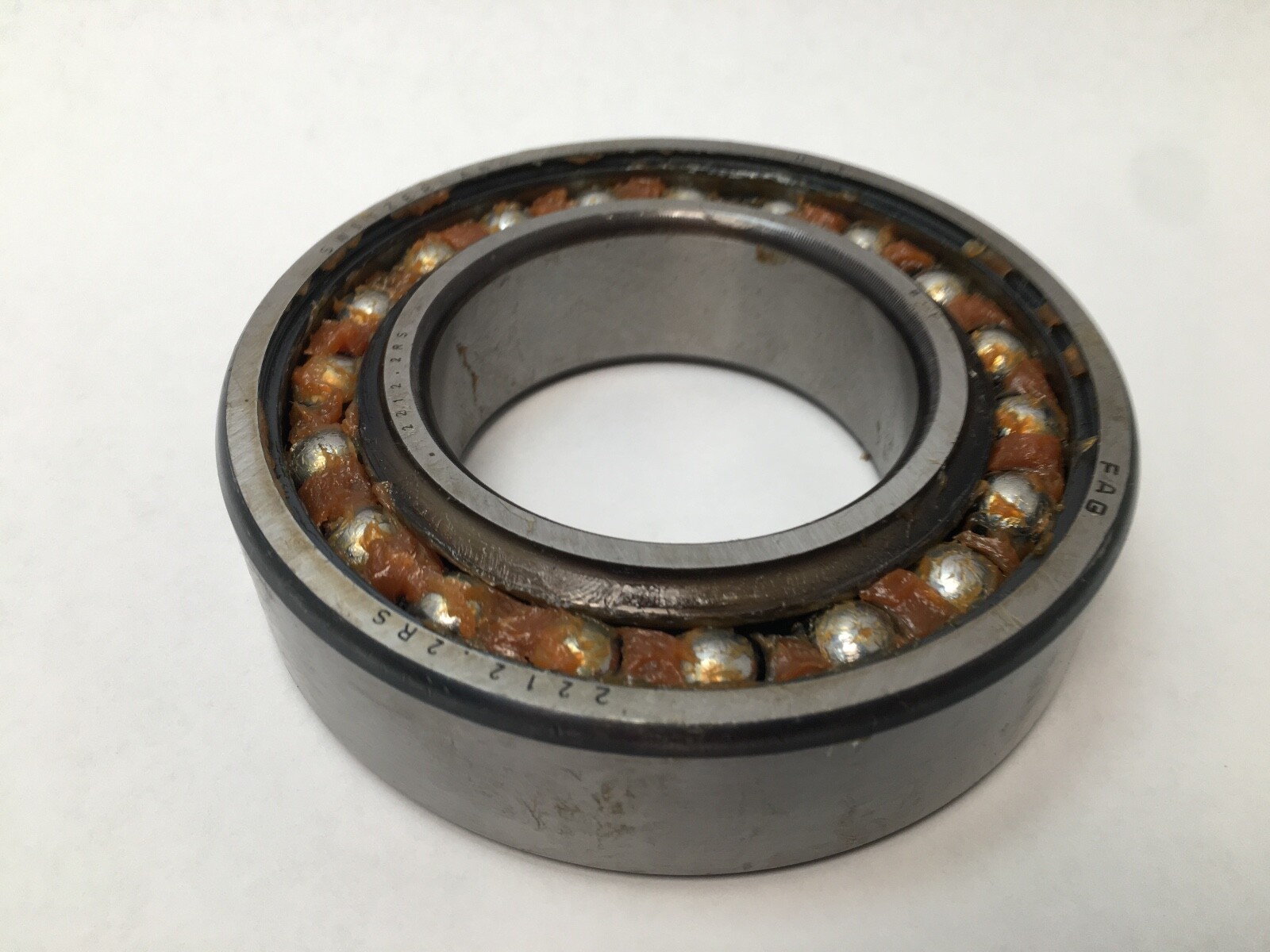

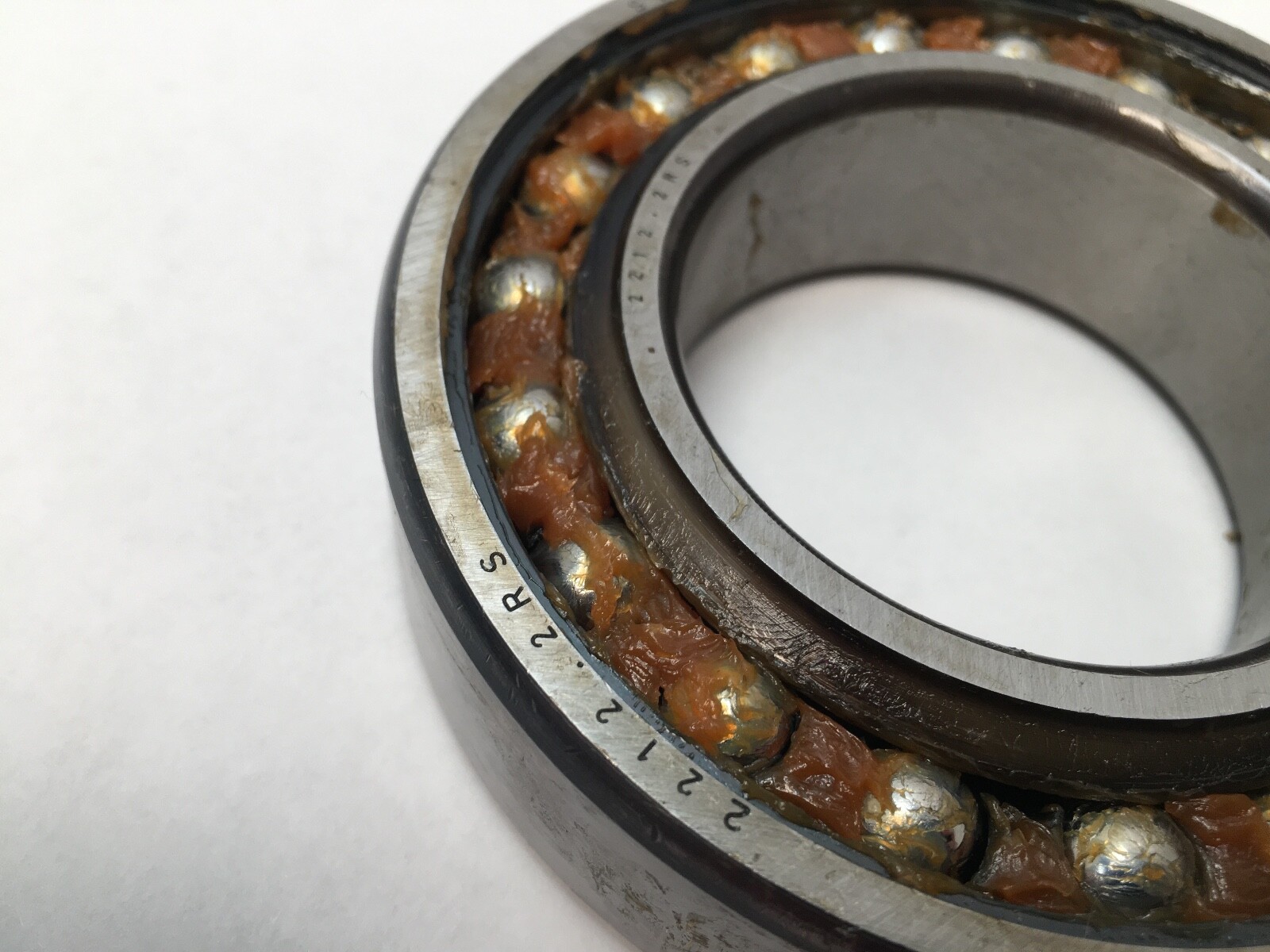

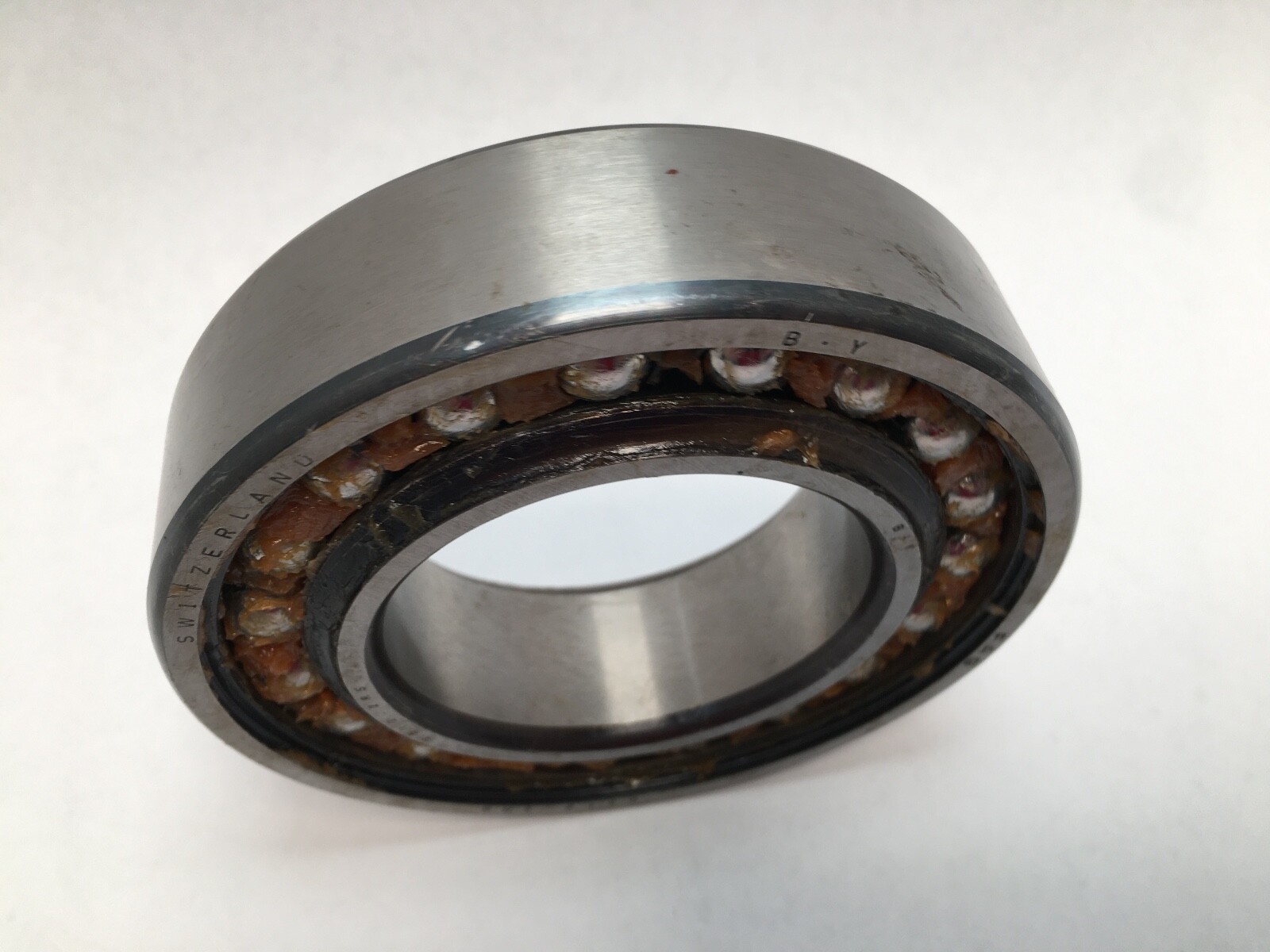

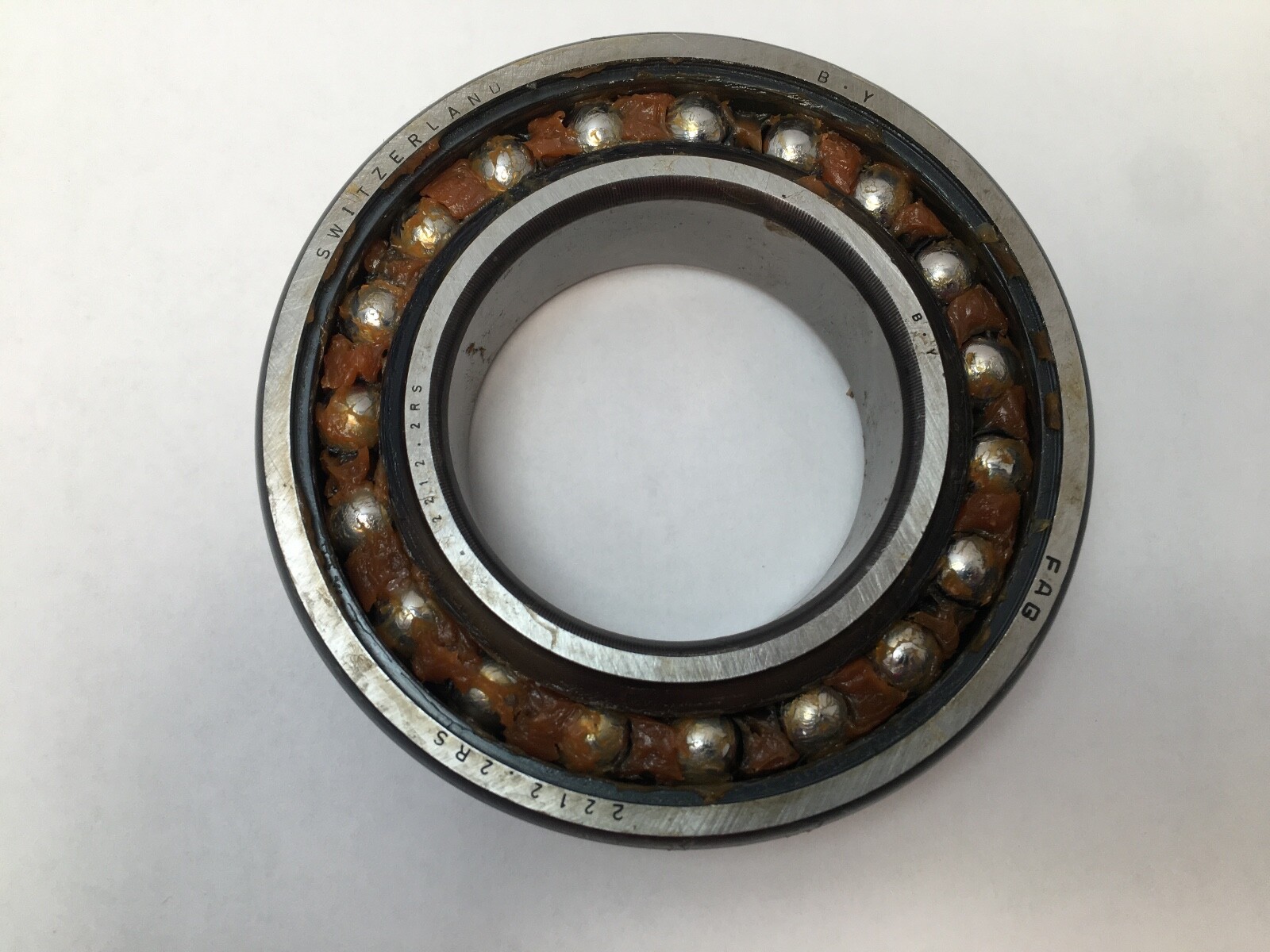

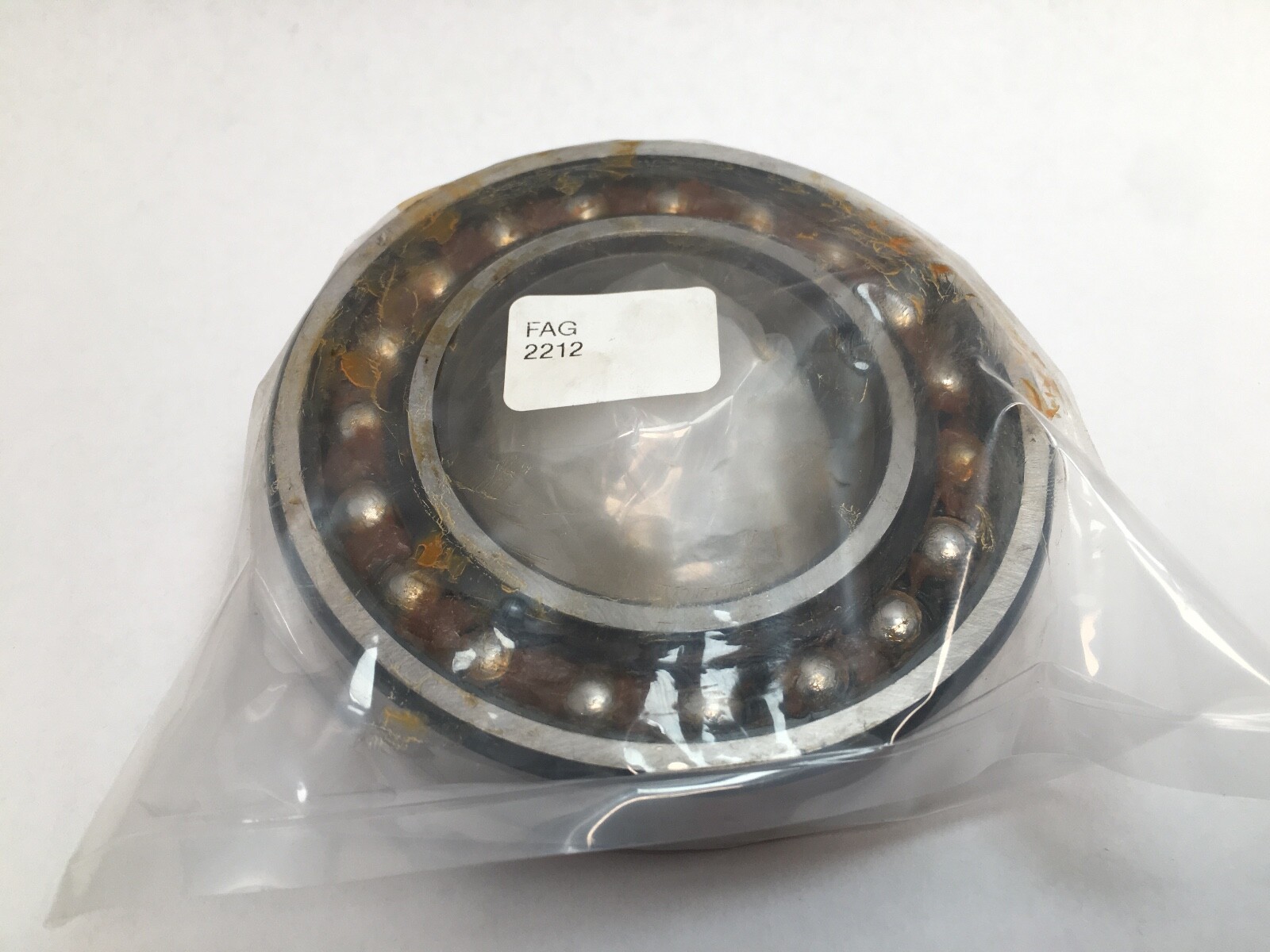

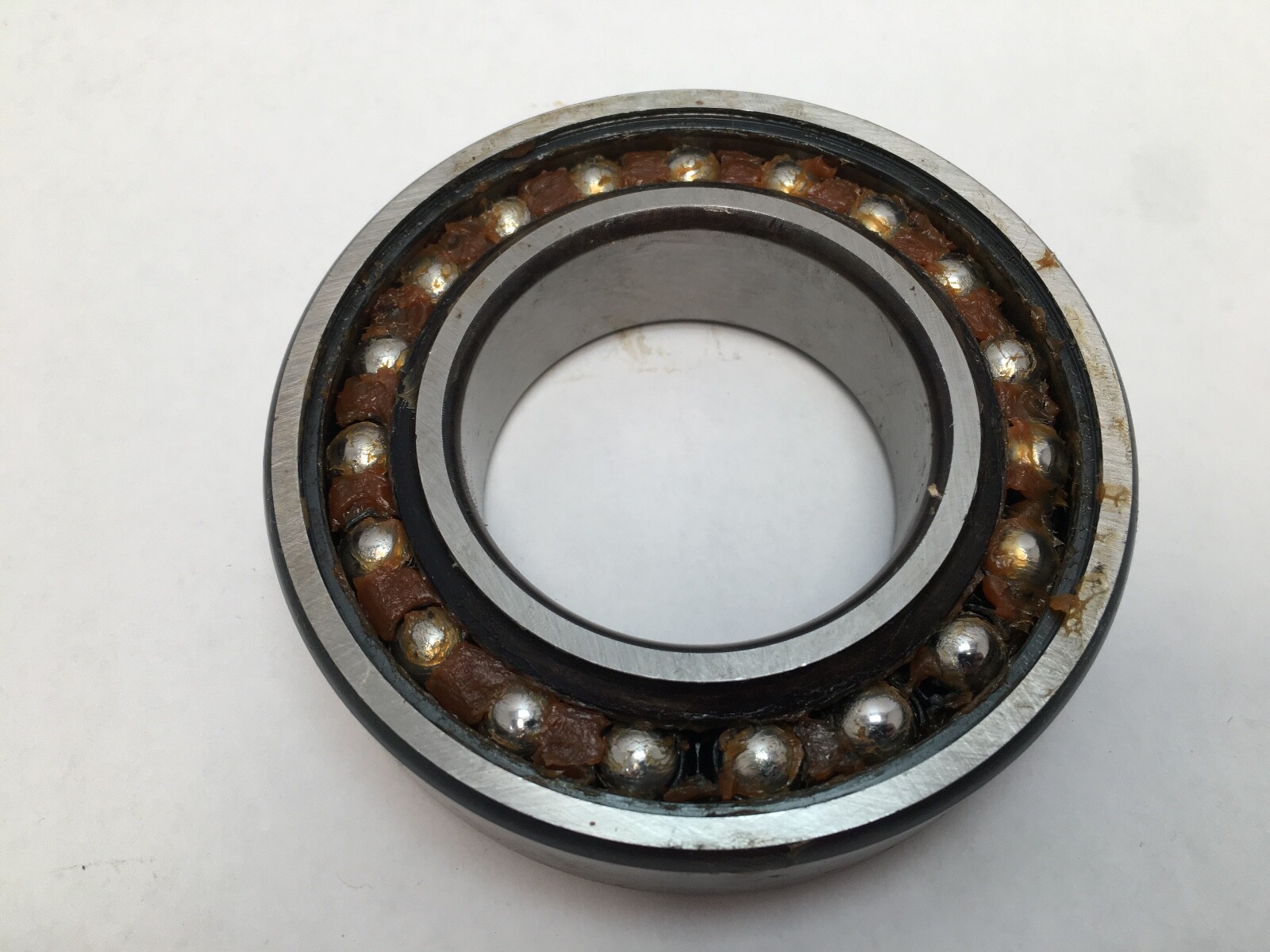

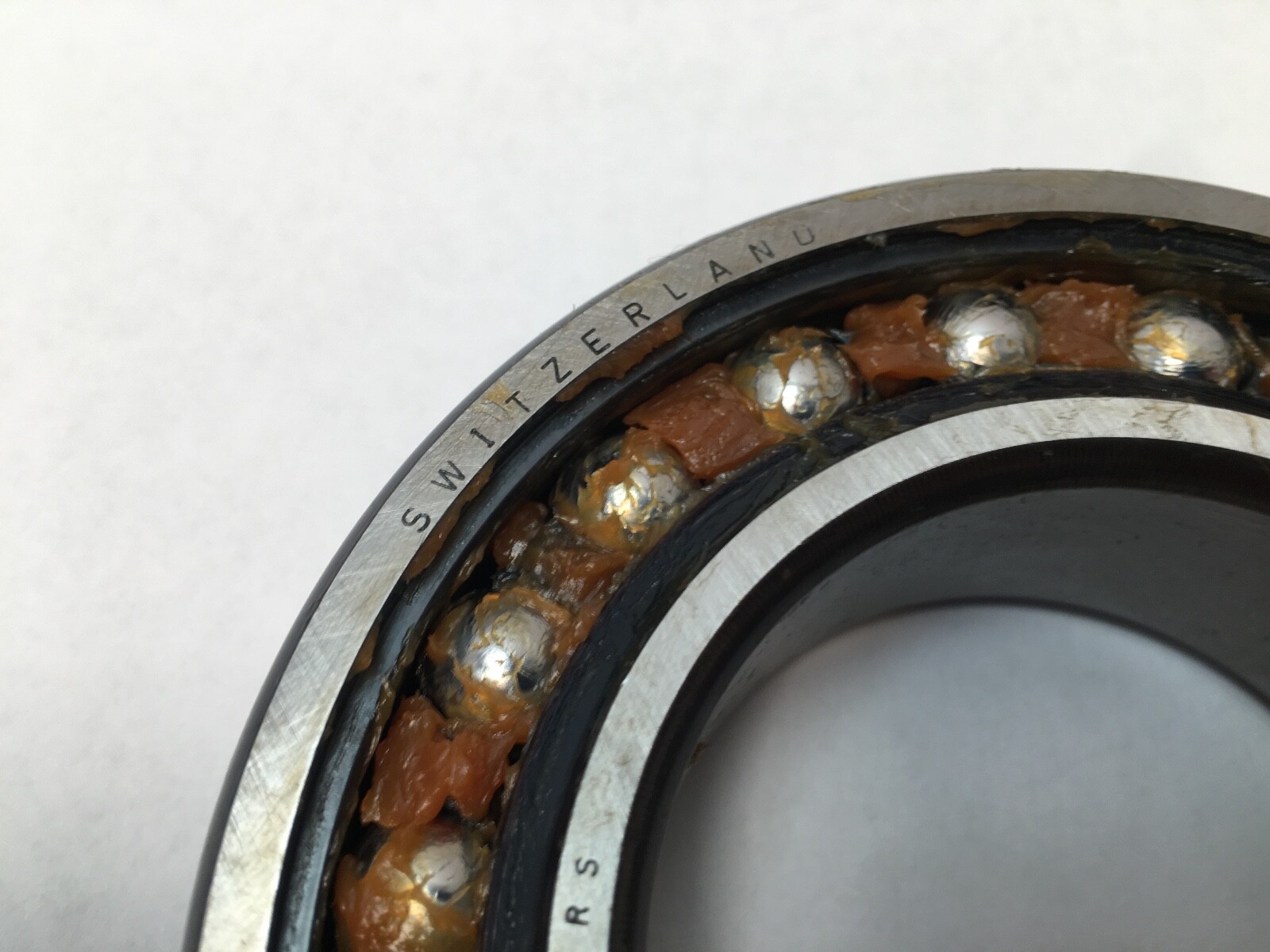

Name: FAG 2212 Self-Aligning Ball Bearing 60x110x28mm. Steel cage, open design. Ideal for machinery where shaft bending or misalignment is anticipated.
Brand: FAG
SKU: AI5B4#6LF5BK
Price: 32.19 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	FAG
MPN	2212
Model	2212
Bearing Type	Self Aligning Ball Bearing, Open
ID	60 mm
OD	110 mm
Width	28 mm

Specifications

Series	2200
Condition	New – Open box
Lubricant	Oil
Material	Bearing Steel
Min Temp	-30 C
Cage Type	Pressed
Dynamic Load Rating	47.5 kN / 10678 lbf
Static Load Rating	15.6 kN / 3507 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	120 C
Item Weight	1.96 lbs
Cage Material	Steel
Limiting Speed	8000 rpm
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	No
Duty Type	Standard Duty
Internal Clearance	CN
Maximum Permissible Misalignment	2.5 degrees

Cross-References

Cross Reference 1	SKF 2212 E
Cross Reference 2	NTN 2212
Cross Reference 3	NSK 2212
Cross Reference 4	KOYO 2212
Cross Reference 5	TIMKEN 2212
