GE Fanuc IC600CB516A Series Six CCM2 serial communications module, two ports (25-pin and 9-pin D-type), RS-232C and RS-422, 300 to 38,400 bps.
List Price
$130.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | GE-Fanuc |
|---|---|
| MPN | IC600CB516A |
| Model | CB 516A |
| Type | Circuit Board |
|---|---|
| Base Number | IC600CB516 |
| Industry Terms | CCM2, communications control module, serial interface module, PLC comms card, RS-422 module, SCADA interface board, Series 6 comm board |
| Common Misspellings | IC600CB-516A, IC6OOCB516A, IC600CB615A, IC600 CB-516A |
| Application Types | Host computer and SCADA data collection, colour-graphics terminal interfacing, PLC-to-PLC peer communications, operator interface links, modem and radio telemetry |
| Connector Style | J1 25-pin D-type female; J2 9-pin D-type female |
| Controller Platform | GE Fanuc Series Six / Series Six Plus |
| Mpn Variants | IC600CB516A, IC600CB516, IC600CB516L, IC600CB516C, IC600-CB516A, CB-516A, CB516 |
| Manufacturer Status | Discontinued and superseded by IC600CB536; supported through surplus and repair |
| Compatible With Replaces | GE Fanuc Series Six Model 60, 600, 6000 and Series Six Plus — dedicated communications slot only |
| Nominal Rated Input Voltage | +5 V DC, +12 V DC and -12 V DC from rack CPU power supply |
| Part Number | IC600CB516A |
| Mounting Type | Dedicated communications slot, Series Six CPU rack backplane |
| Communication Standard | RS-232C, RS-422, RS-422 with clocks; CCM protocol; 300 to 38,400 bps |

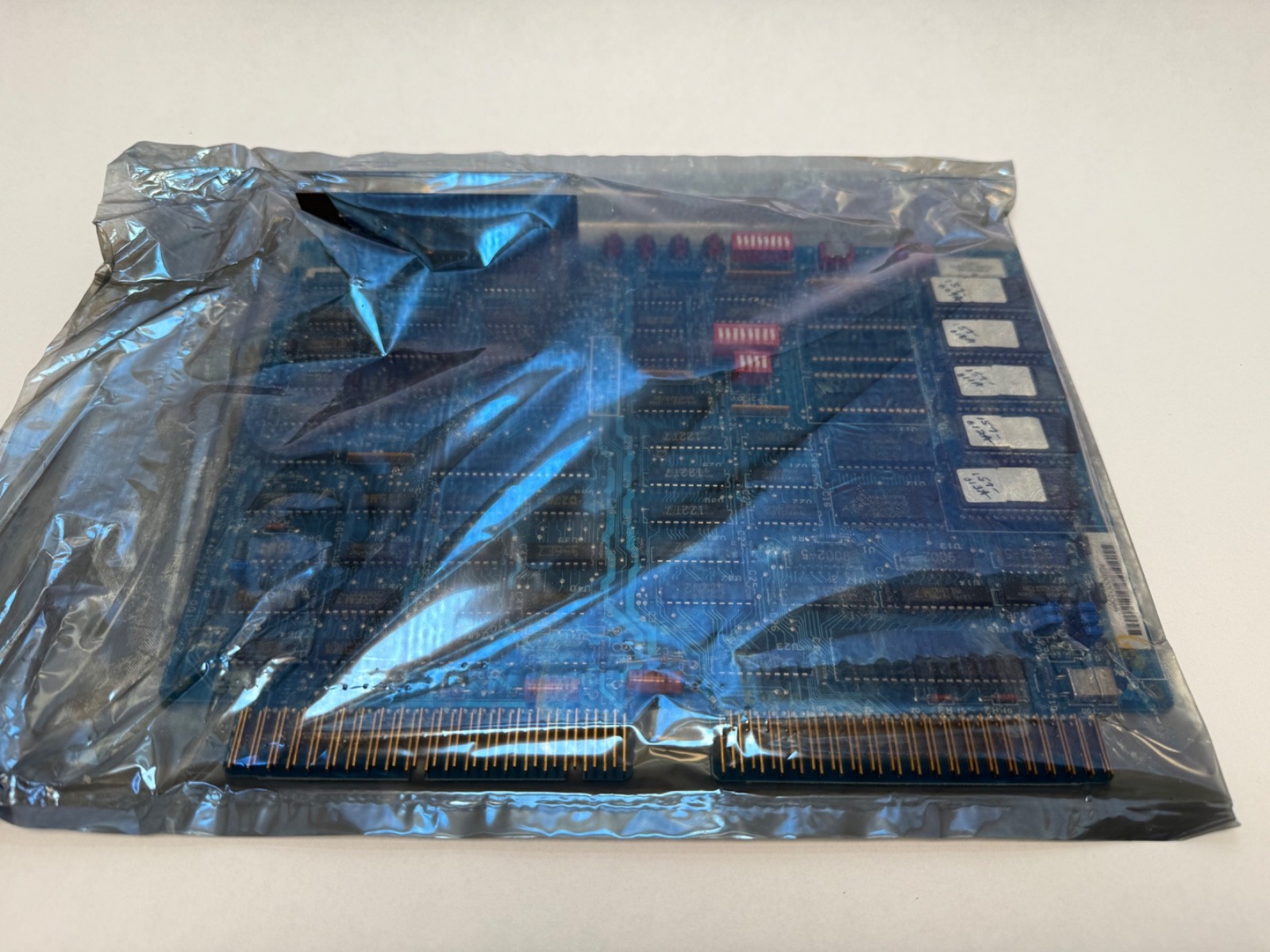

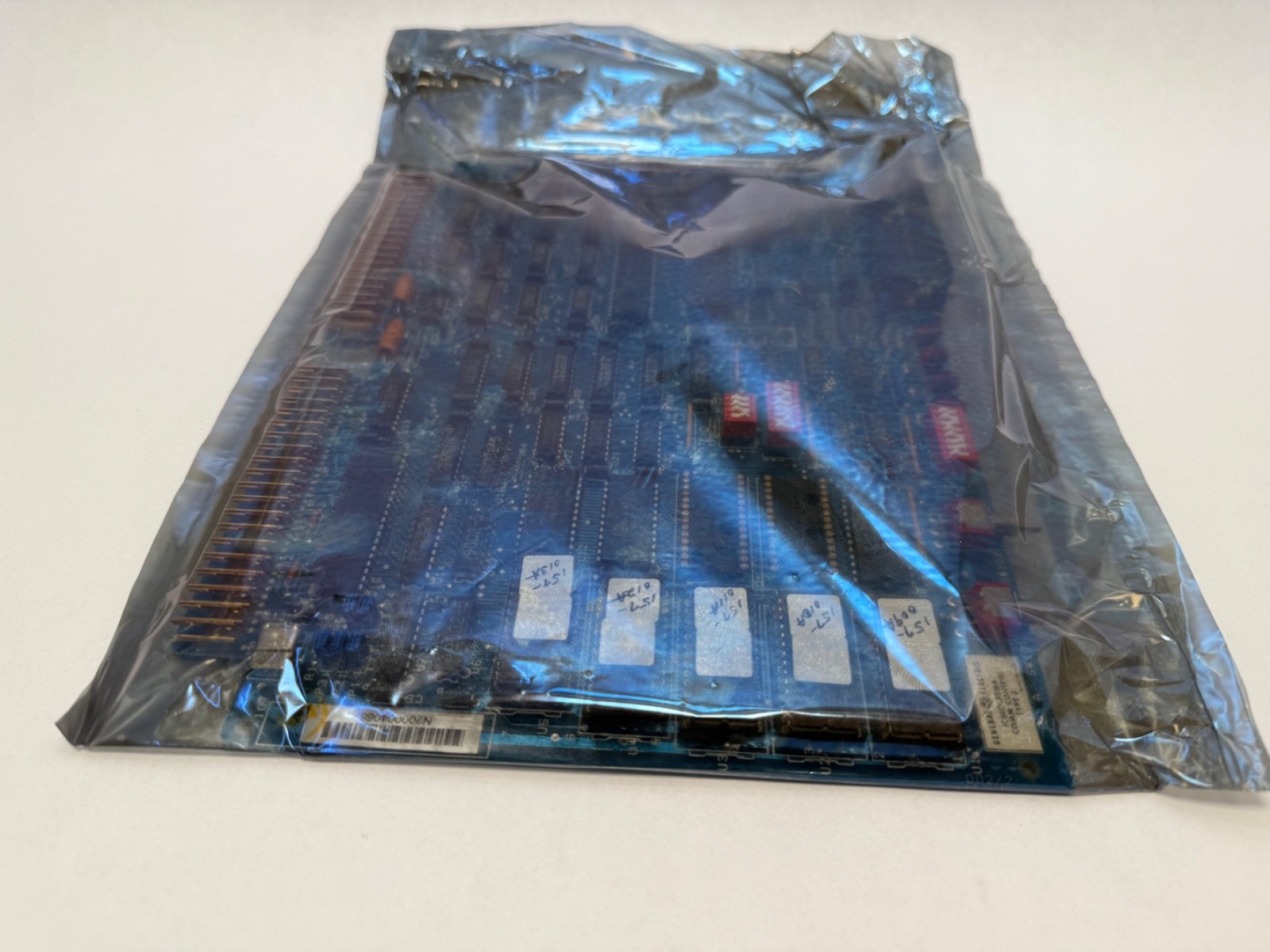

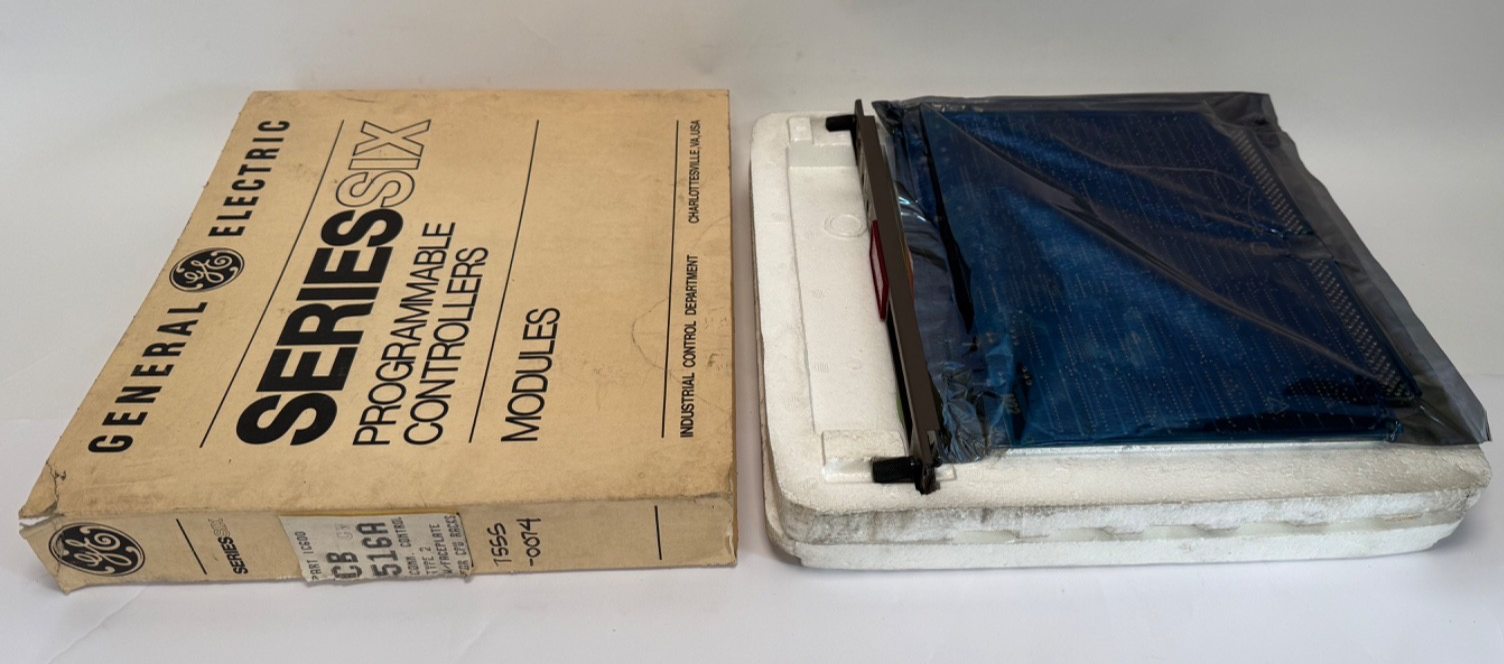

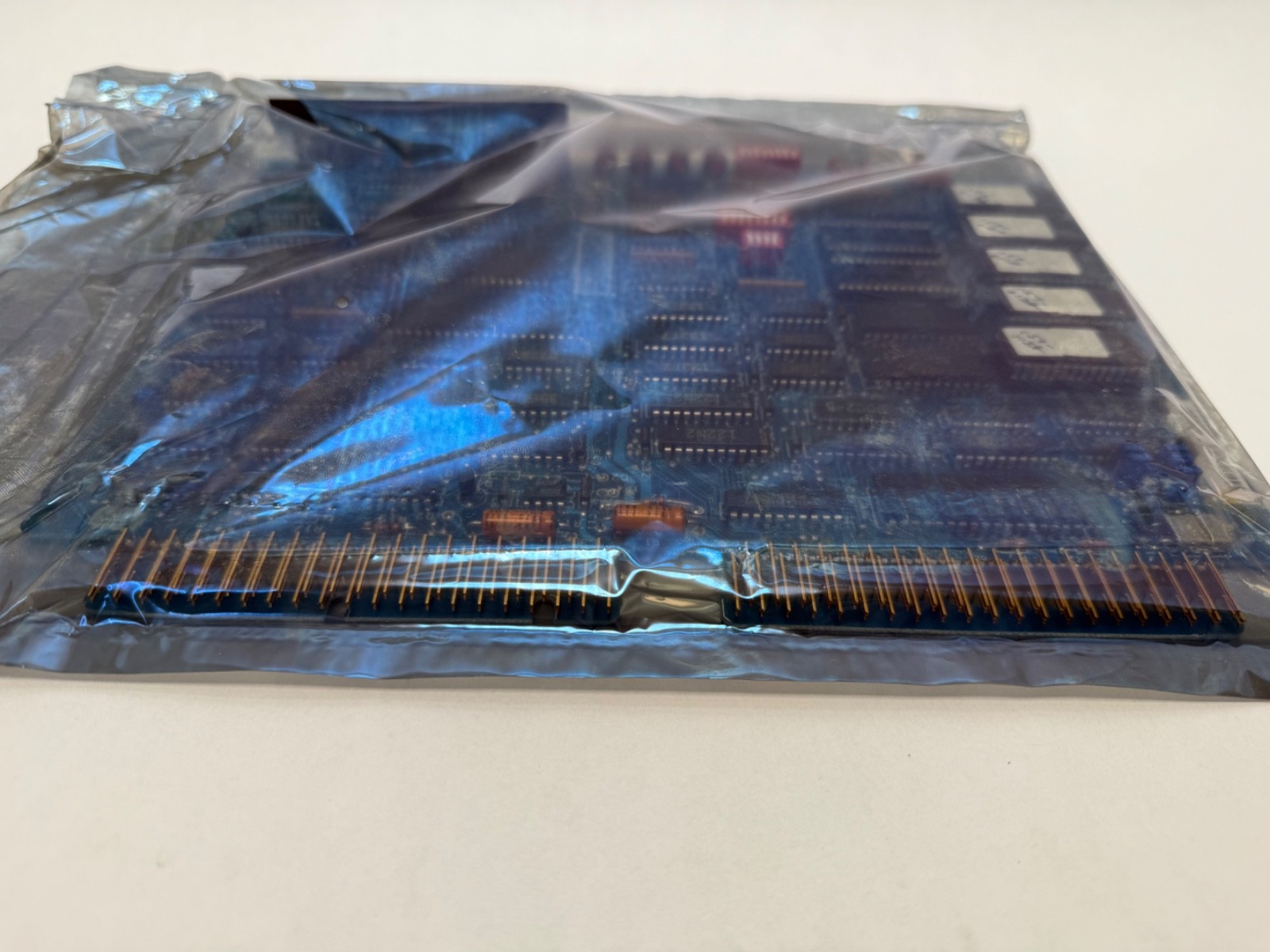

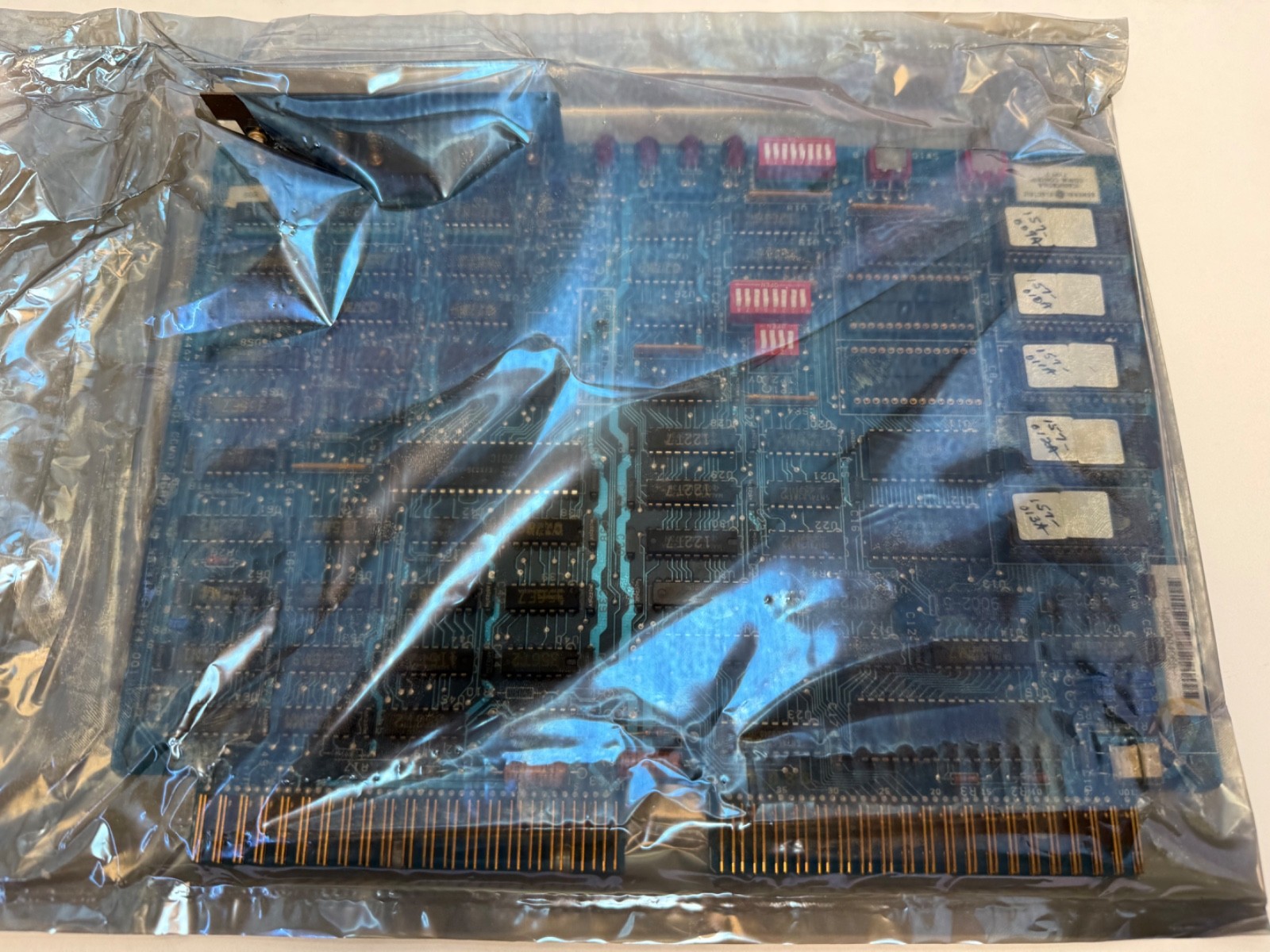

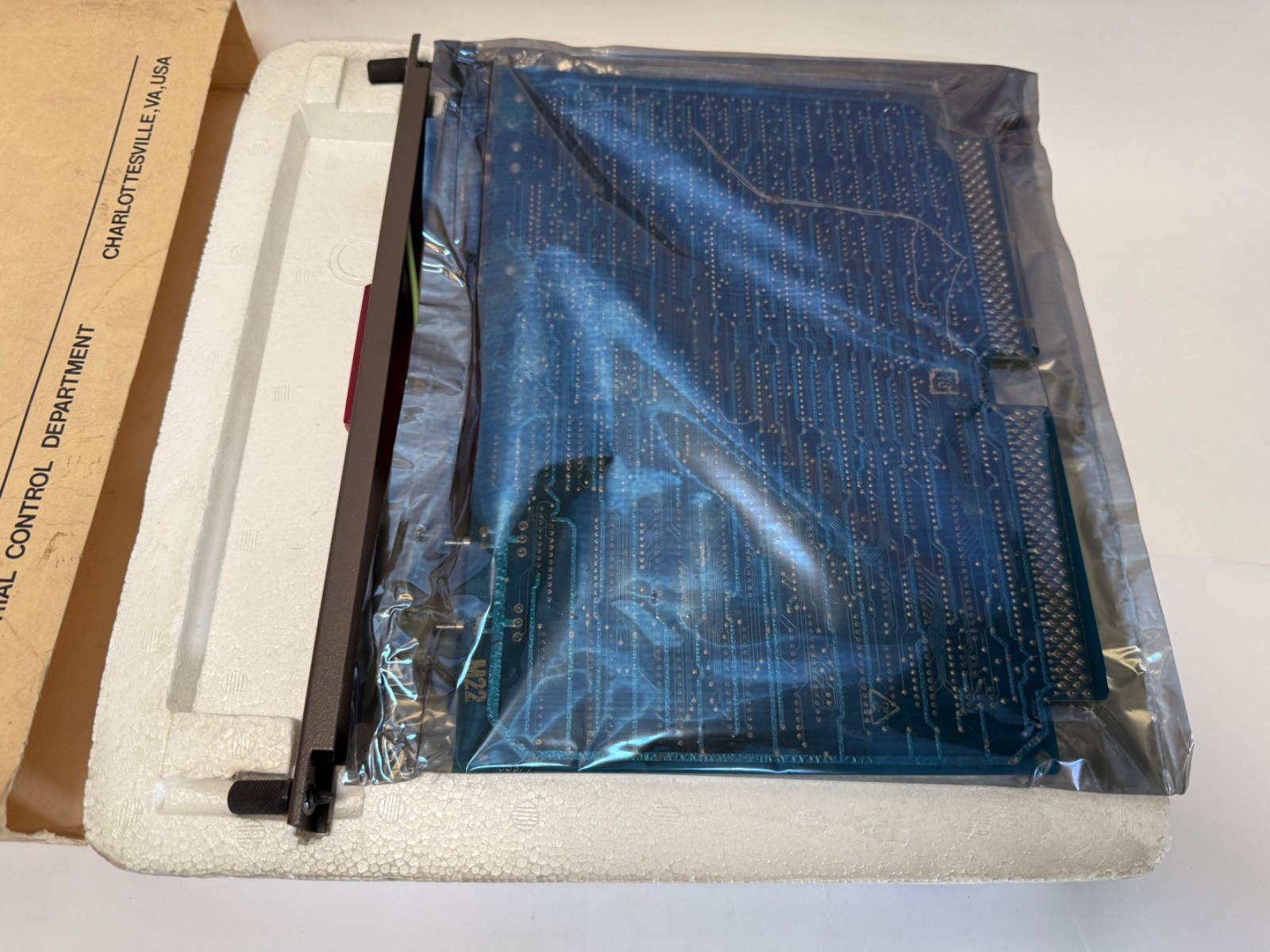

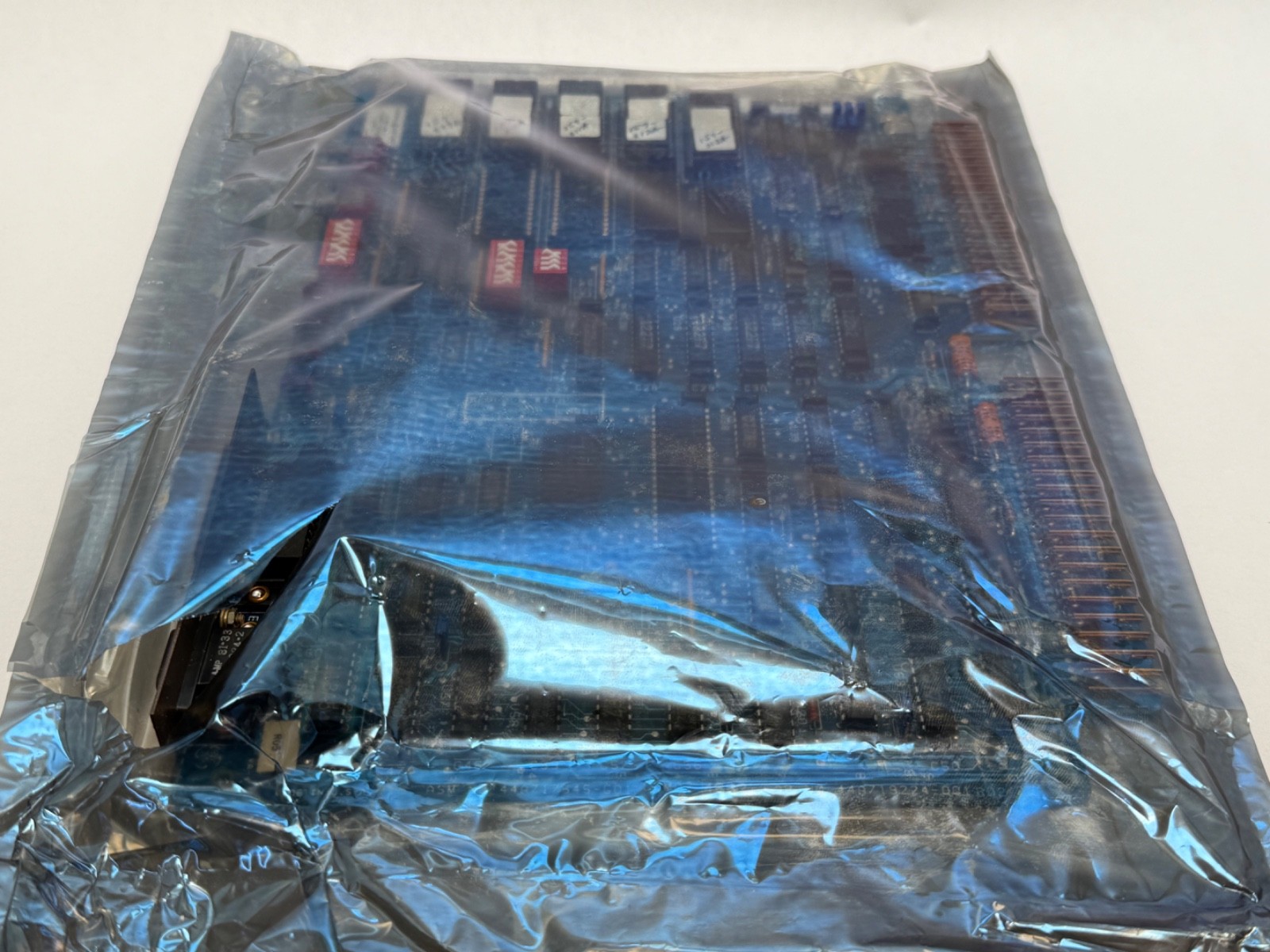

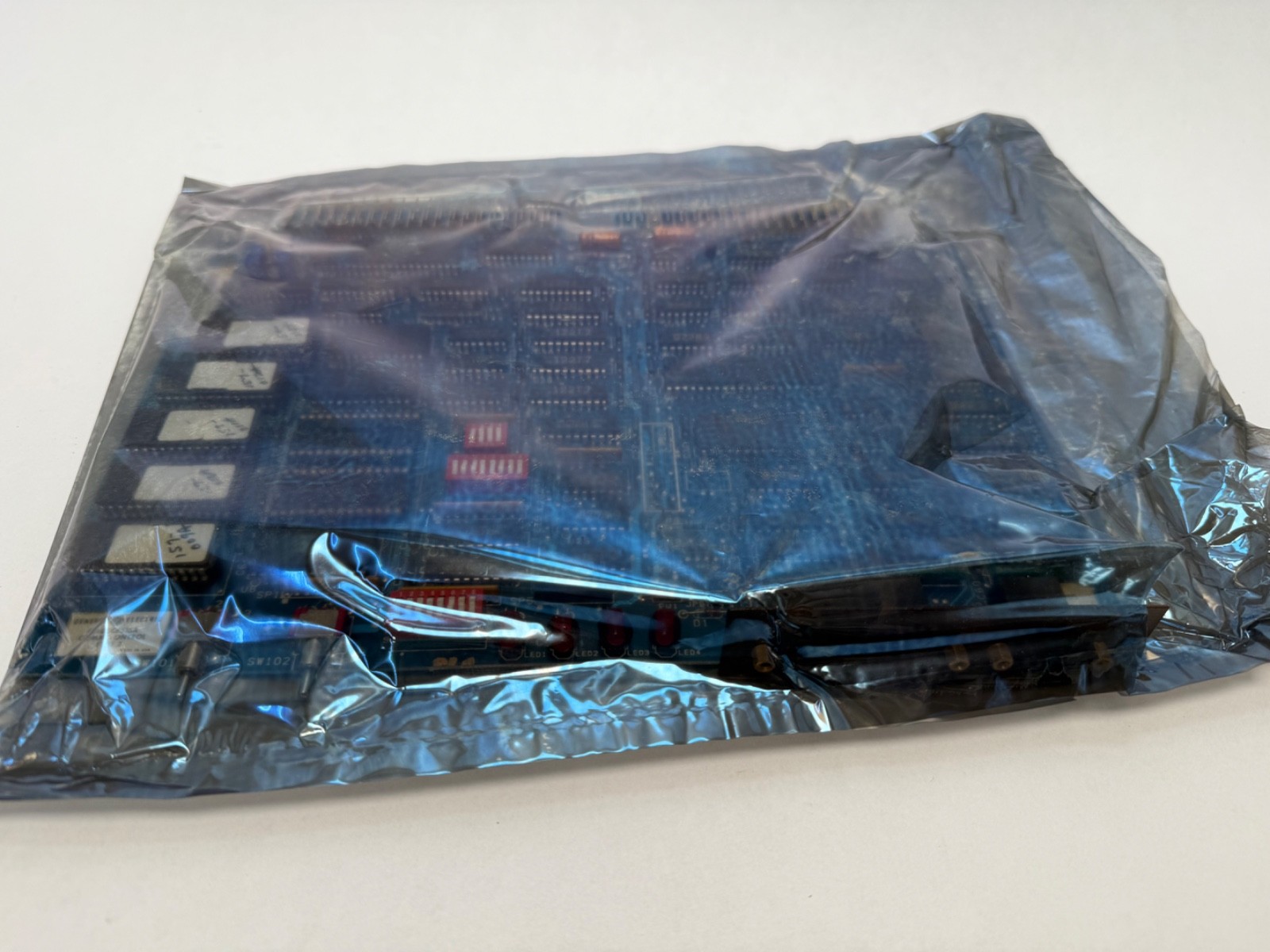

GE Fanuc IC600CB516A is a Communications Control Module Type 2, CCM2, for the Series Six programmable controller. It is a serial communications module with two serial ports, so an outside intelligent device can read and write the PLC’s memory. Typical partners are a host computer, a supervisory or SCADA package, a colour-graphics terminal, a process control system, an operator interface unit, or another GE Fanuc PLC speaking the same CCM protocol. GE’s drawing number for this board is 44A717545-G01. Sold as 1 piece: circuit board with faceplate. It occupies a dedicated communications slot, the second slot to the left of the CPU power supply on a Series Six 60, 600 or 6000.
IC600 — GE Fanuc Series Six / Series Six Plus family.
CB — communications board.
516 — Communications Control Module Type 2 (CCM2), the earlier generation, which includes tape-cassette load/save functionality.
A — hardware revision level.

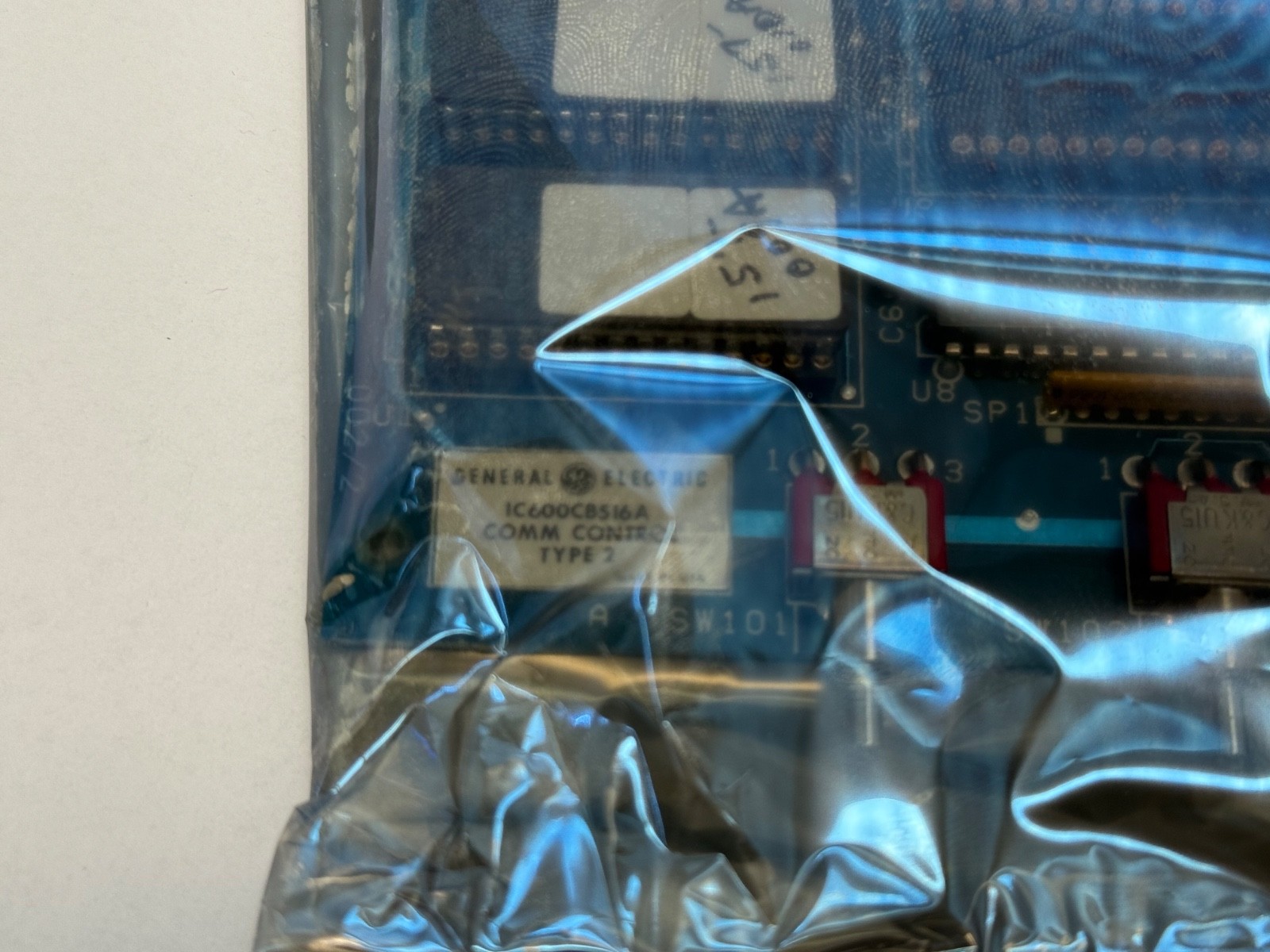

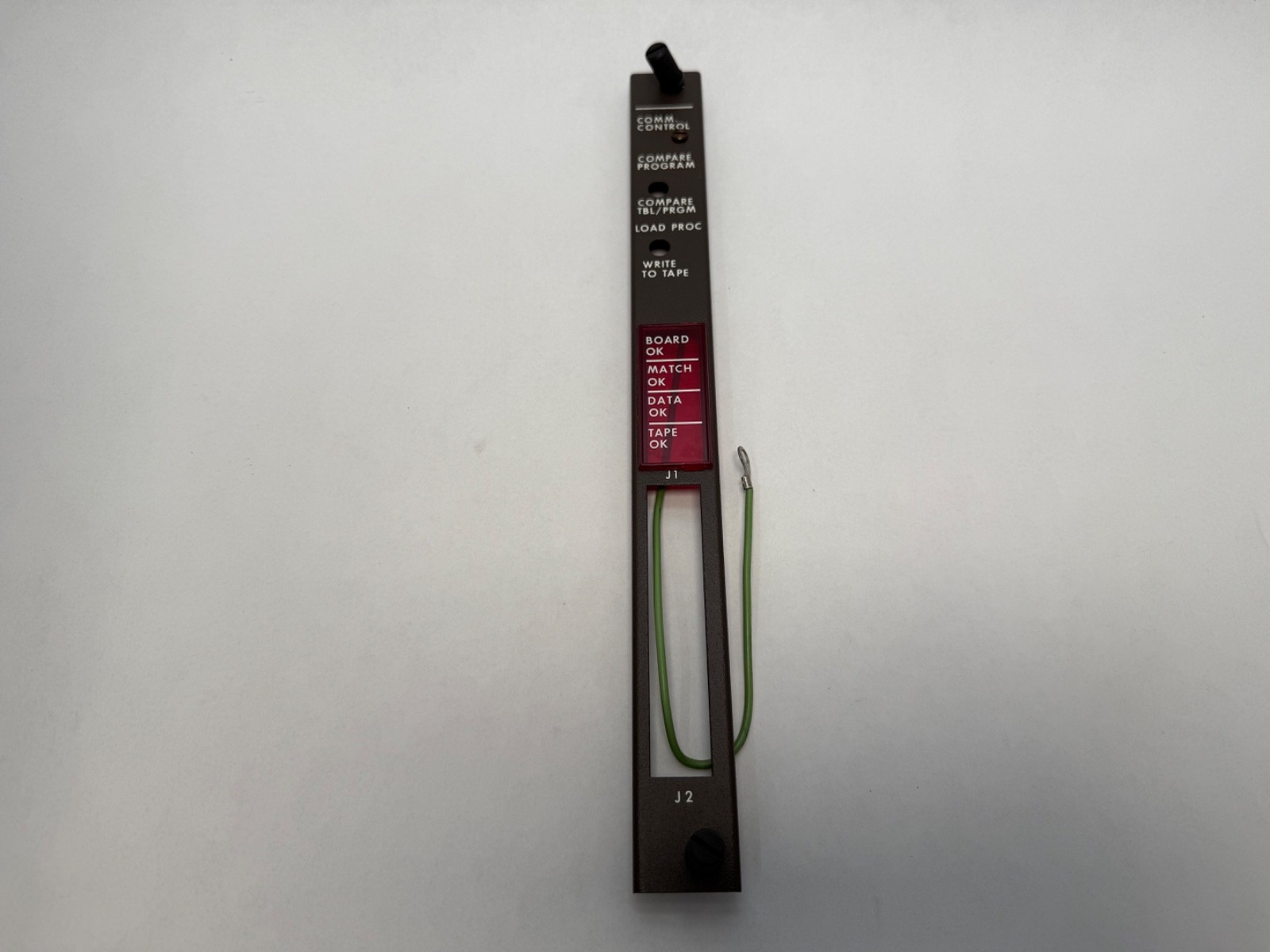

Function: serial communications interface, CCM protocol. Ports: two, J1 a 25-pin D-type female for RS-232D/RS-422 and J2 a 9-pin D-type female for RS-232D/RS-422. Line interfaces: RS-232C, RS-422, and RS-422 with clocks, the clocked mode being a CCM2 feature. Data rates: 300, 600, 1200, 2400, 4800, 9600, 19.2K and 38.4K bps. Protocol roles: peer-to-peer, master, or slave, a master polling up to eight slaves. Data format: 8 data bits, 1 stop bit, optional parity, odd, even or none. Configurations: point-to-point and multidrop. Maximum distance: 50 ft (15 m) on RS-232C, 4,000 ft (1,200 m) on RS-422. Multidrop: up to eight slaves on an RS-422 daisy chain, with longer runs via modems on RS-232. Power from the rack CPU power supply: +5 V DC, +12 V DC and −12 V DC. Units of load: 17, 4, 4. Front panel: four LED status indicators and two centre-off SPDT momentary switches (A and B) for CCM error diagnostics. Operating temperature: 0 to 60 °C. Storage temperature: 0 to 70 °C. Humidity: 5–95% non-condensing. Unit Quantity: 1 Piece.

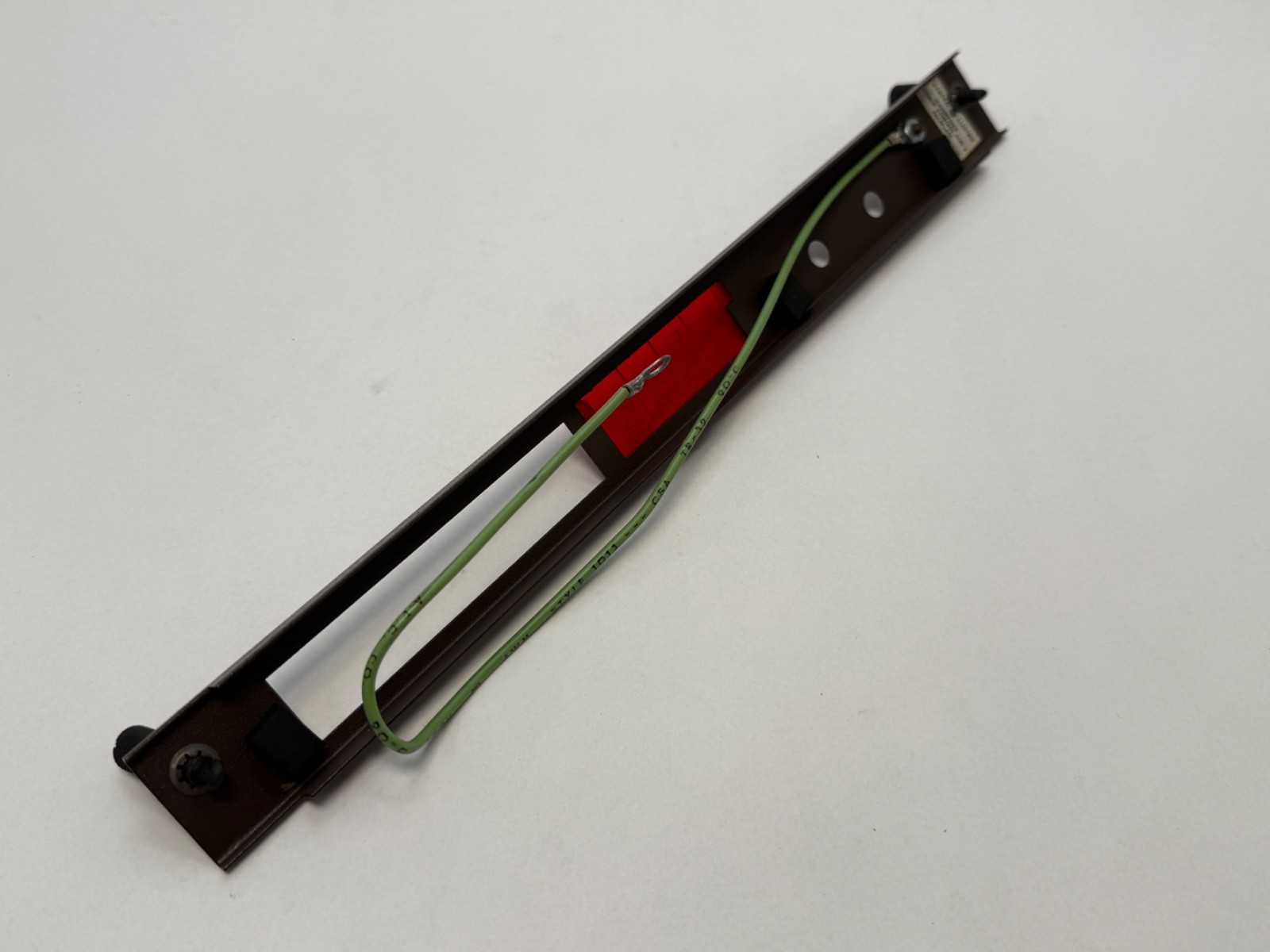

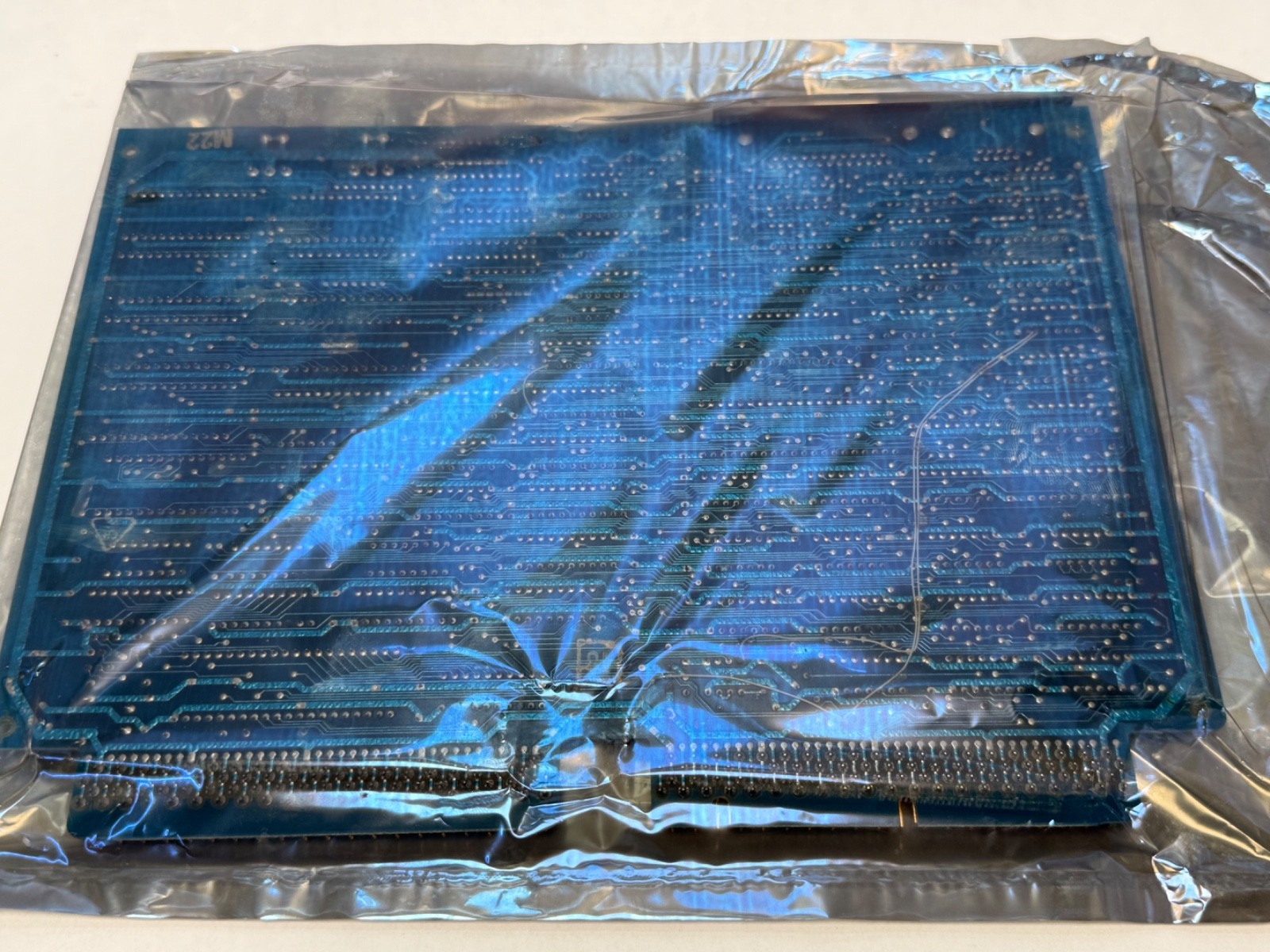

Circuit board: 8.15 x 11.0 in (208 x 280 mm). Faceplate: 12.46 x 1.175 in (317 x 30 mm). Slot: the dedicated communications slot, second to the left of the CPU power supply on a Series Six 60, 600 or 6000, and slot 5 or 6 on a Series Six Plus. Factory-set jumpers JP1 through JP8 and T2/T4/T6/T8 carry the board configuration, with JP4 selecting operator-interface enable or disable and JP6 controlling whether +5 V appears on pin 20 of J1. DIP switches 9 to 16 configure port J1, 1 to 8 configure port J2, and 18 to 20 set options common to both. The module takes its ID number from the Series Six CPU scratchpad, set with Logicmaster software.

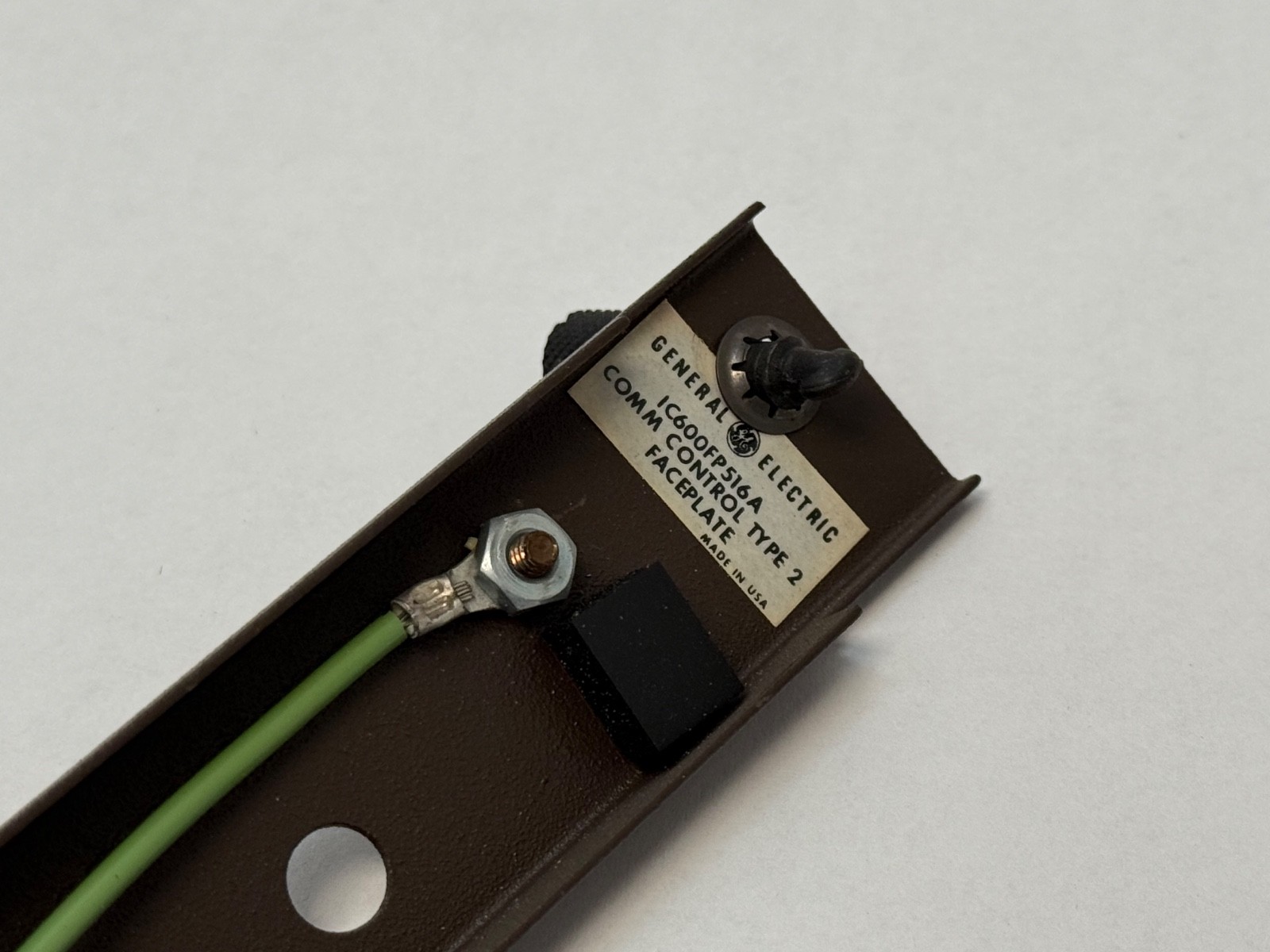

IC600CB516A, IC600CB516C and IC600CB516L are the same catalogue item at different revisions. IC600CB536 is the superseding enhanced CCM2 and IC600CB537 is the Type 3 (CCM3) module, both related rather than drop-in equivalents; CCM3 adds Remote Terminal Unit (RTU) protocol and process-controller interfacing. IC600FP536 is the faceplate on its own. Searchable forms: IC600CB516, IC600CB516L, IC600CB516C, CB-516A, CB516, IC600-CB516A, 44A717545-G01.
A Series Six Communications Control Module Type 2 (CCM2) with two serial ports, J1 25-pin and J2 9-pin.
RS-232C, RS-422 and RS-422 with clocks, at 300 to 38,400 bps.
The dedicated communications slot, second to the left of the CPU power supply on a Series Six 60, 600 or 6000.
