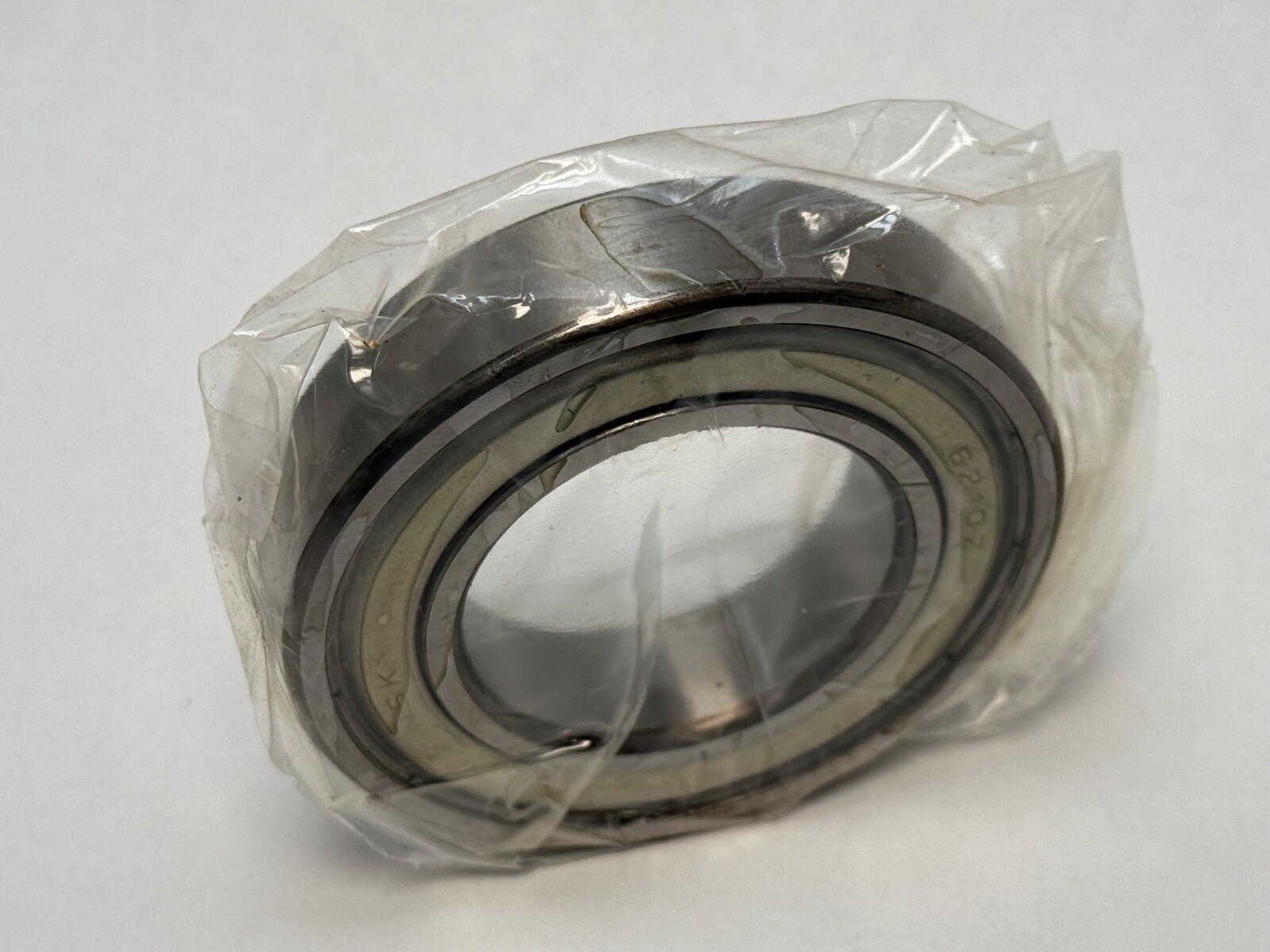

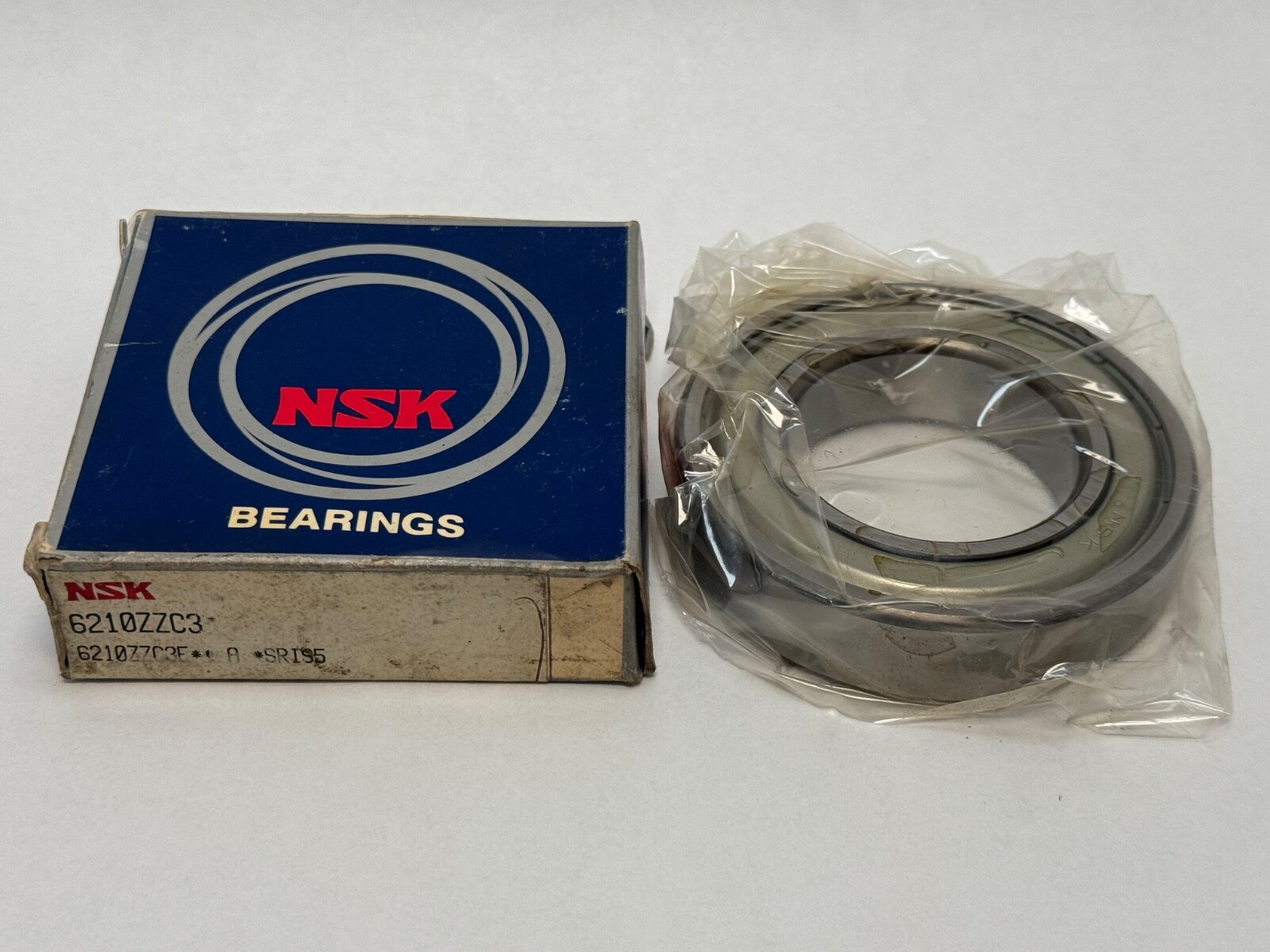

NSK 6210 deep groove ball bearing wrapped in plastic, 50 mm ID, 90 mm OD, 20 mm width

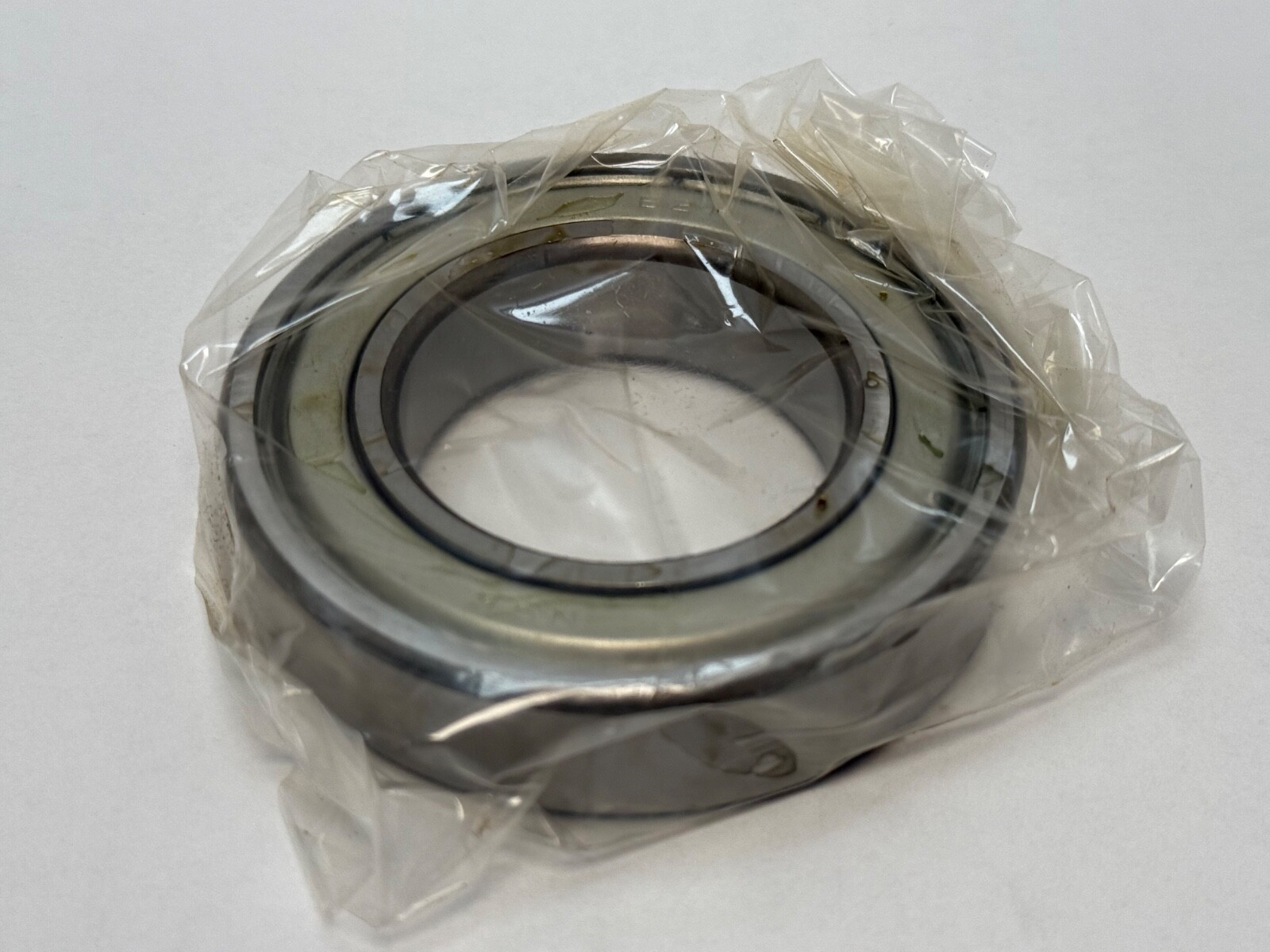

NSK 6210 open deep groove ball bearing wrapped in plastic on a white surface

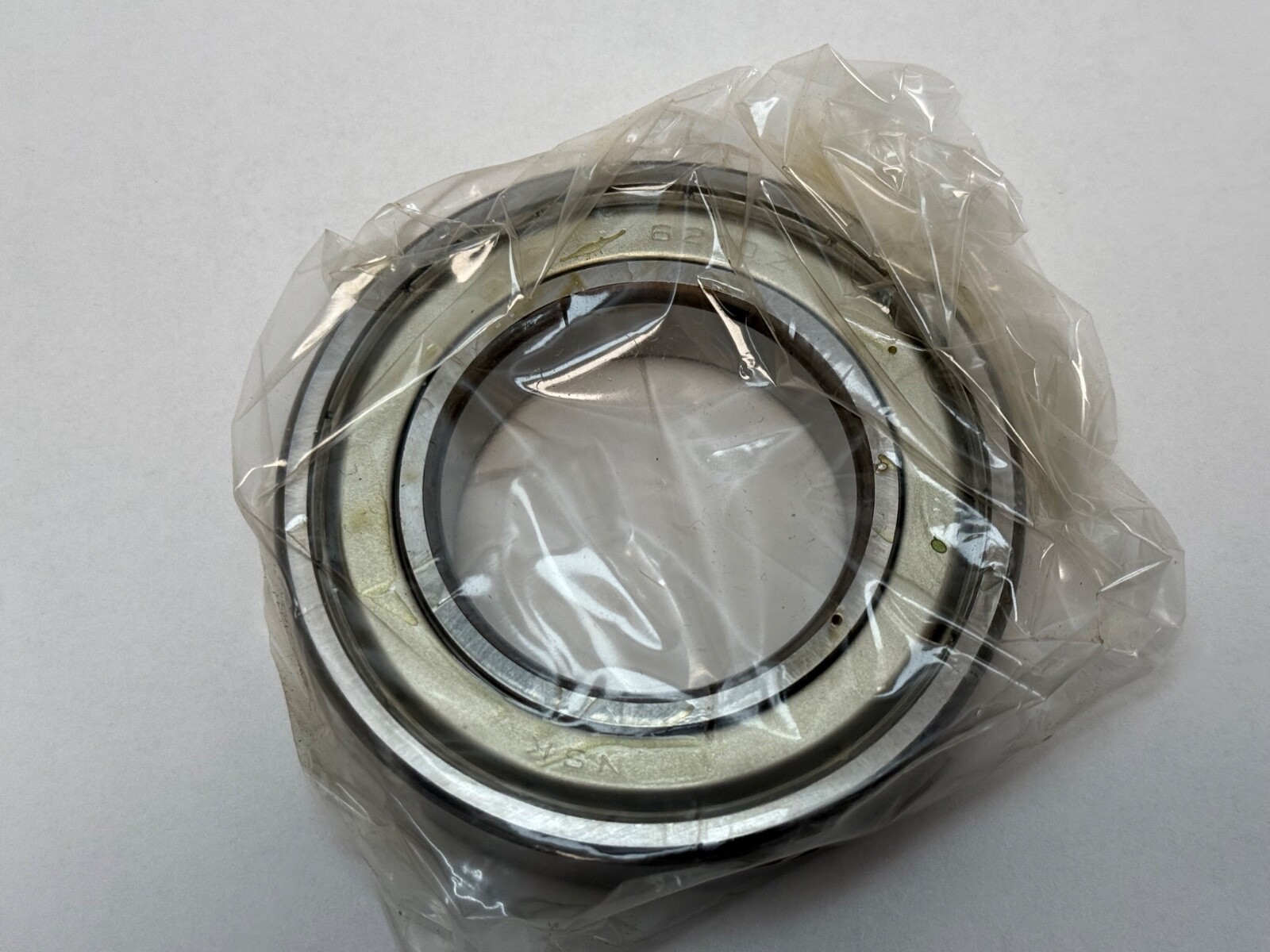

NSK 6210 deep groove ball bearing wrapped in plastic, showing engraved markings on the outer ring

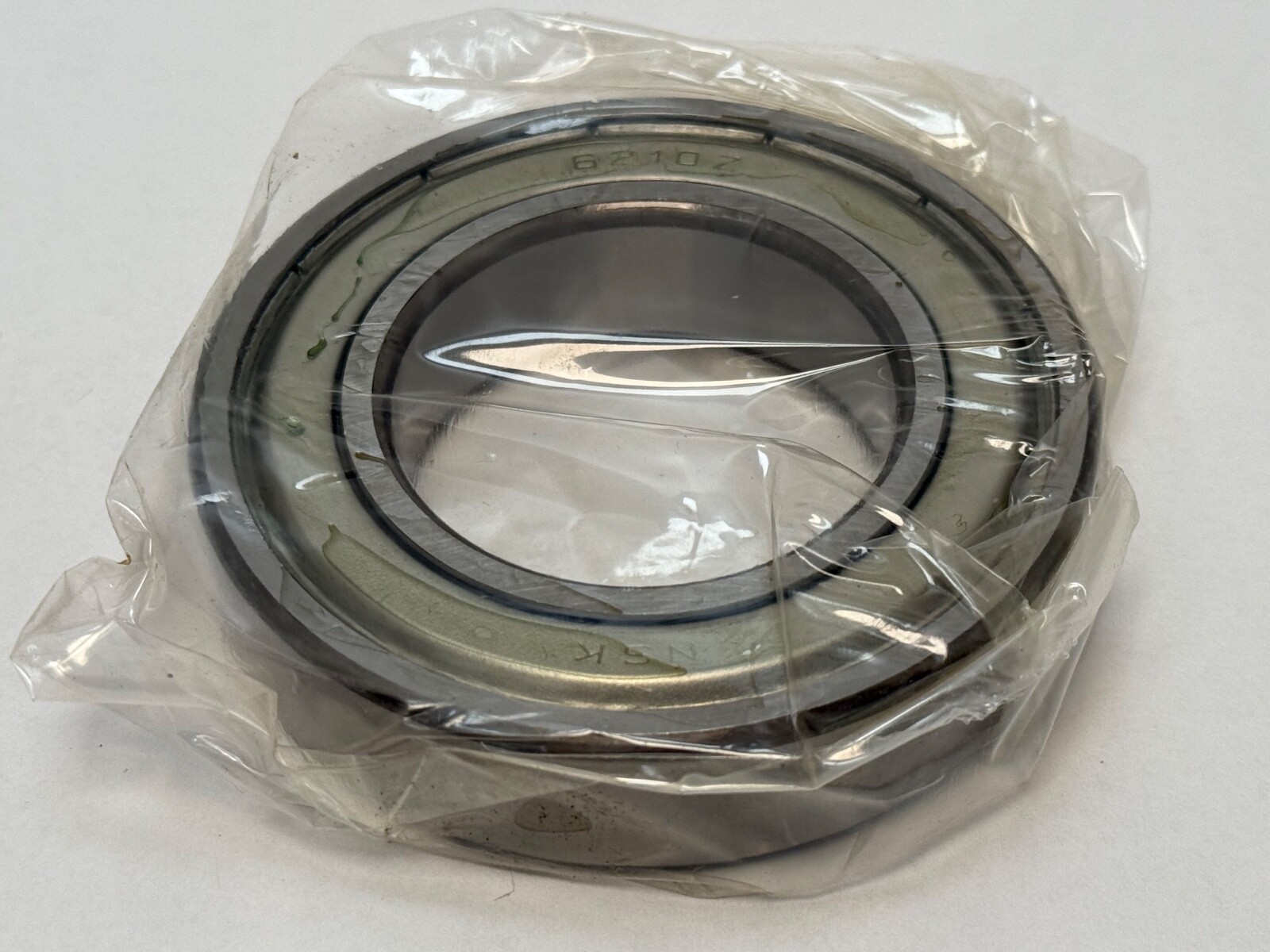

NSK 6210 deep groove ball bearing wrapped in plastic, showing the open bearing race and NSK marking

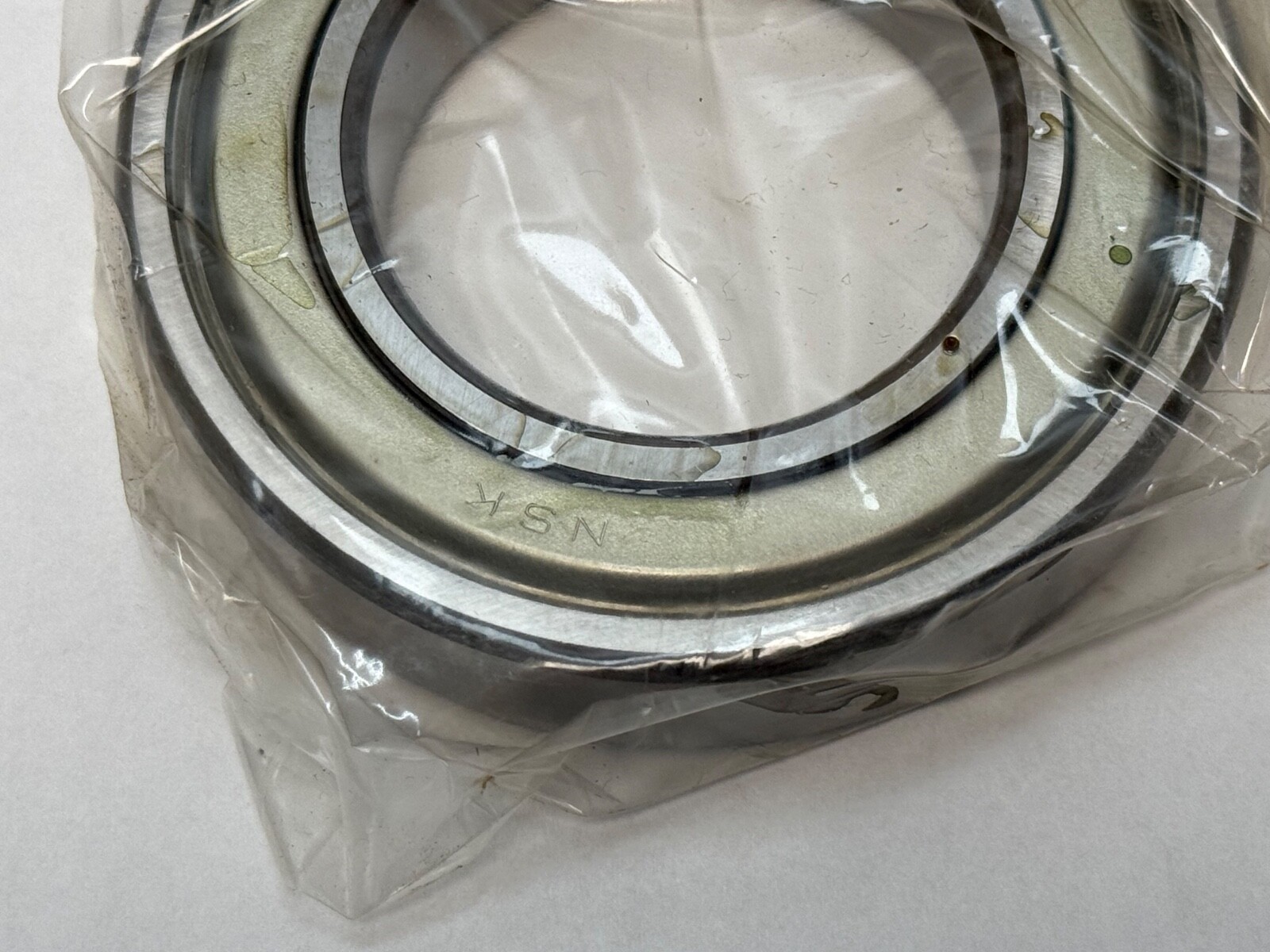

NSK 6210 open deep groove ball bearing in plastic wrap, 50 mm ID, 90 mm OD, 20 mm width

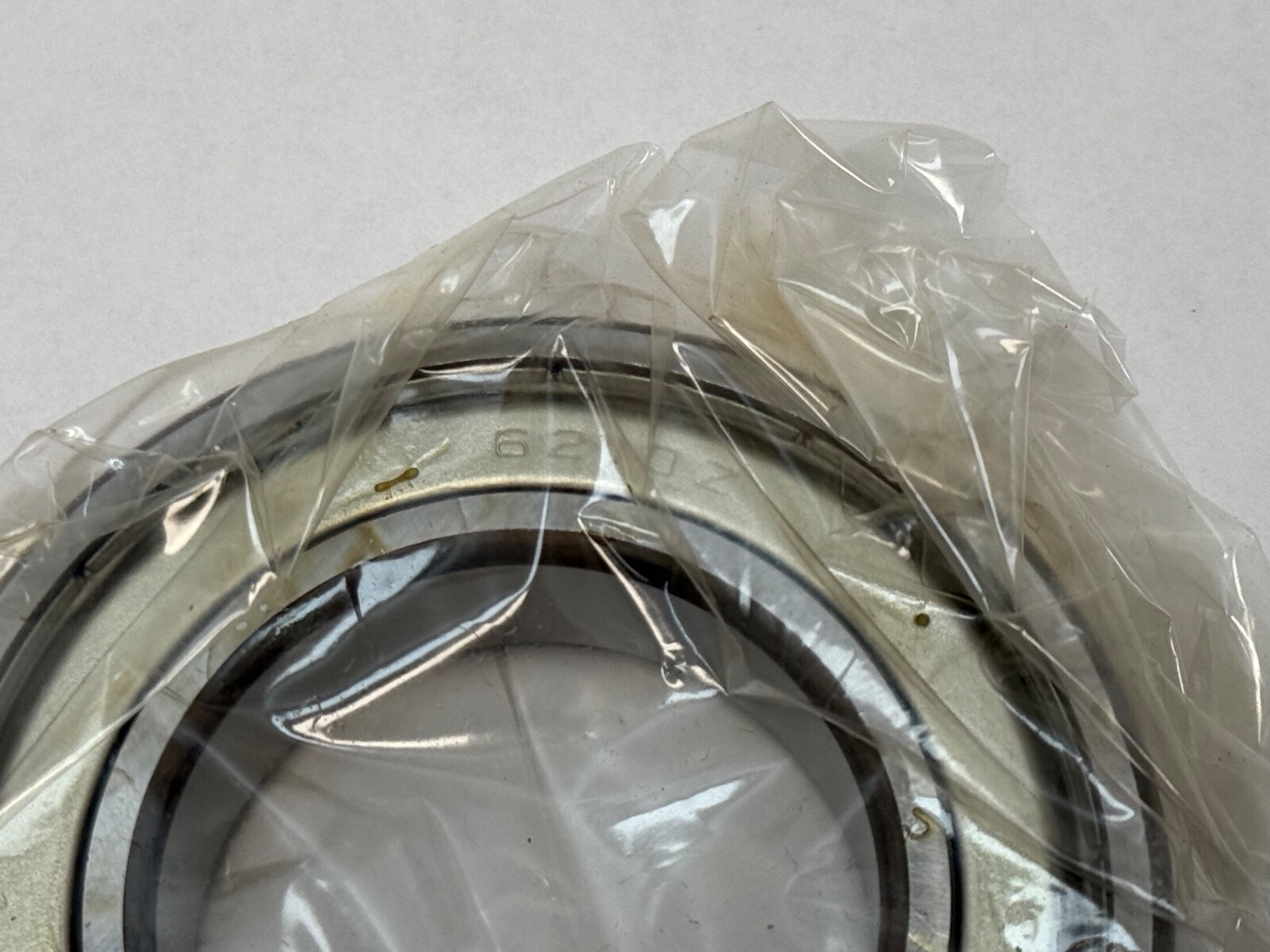

NSK 6210 deep groove ball bearing, shrink-wrapped in clear plastic on a gray surface

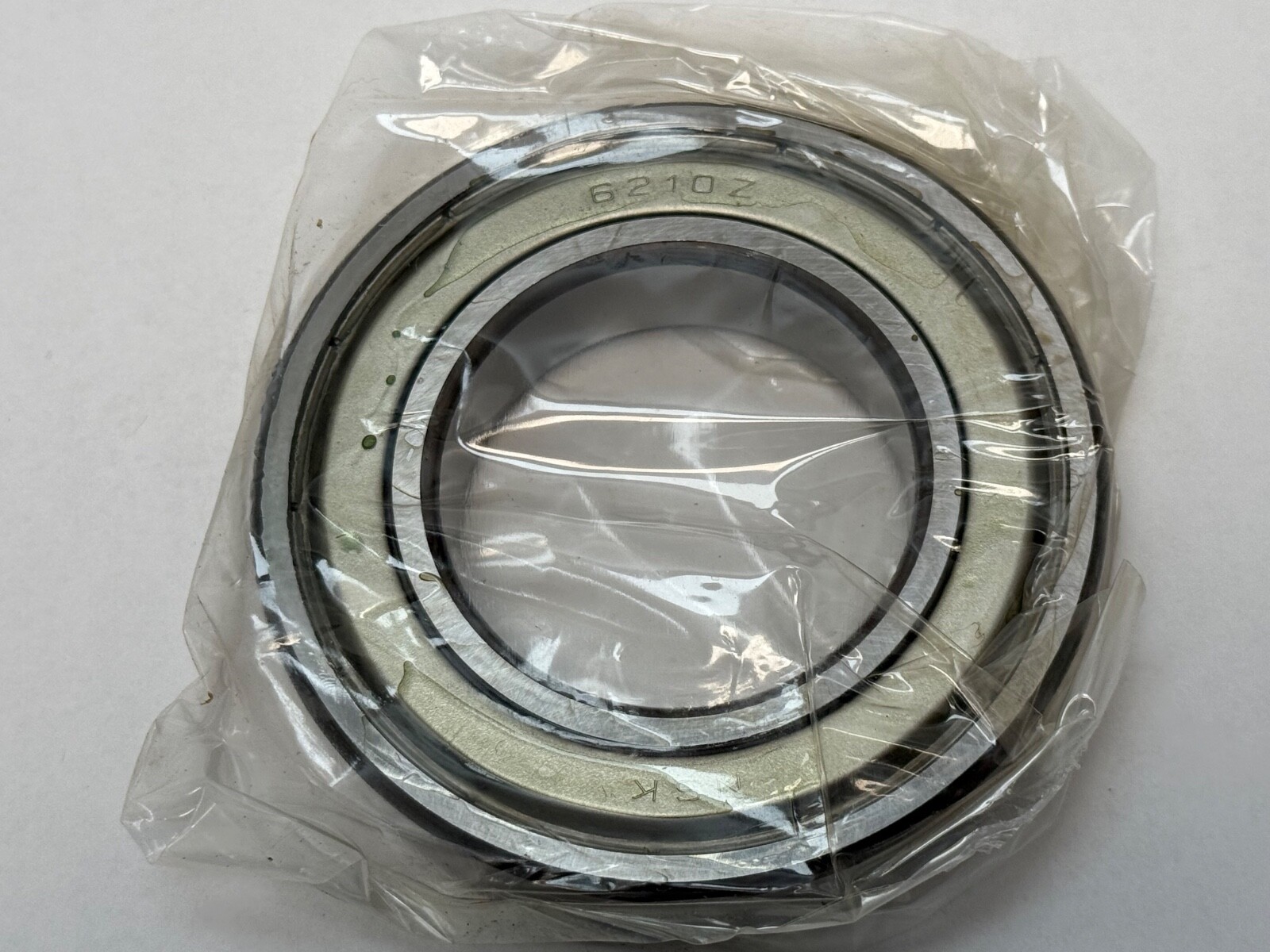

NSK 6210 deep groove ball bearing, single row, open, wrapped in plastic packaging

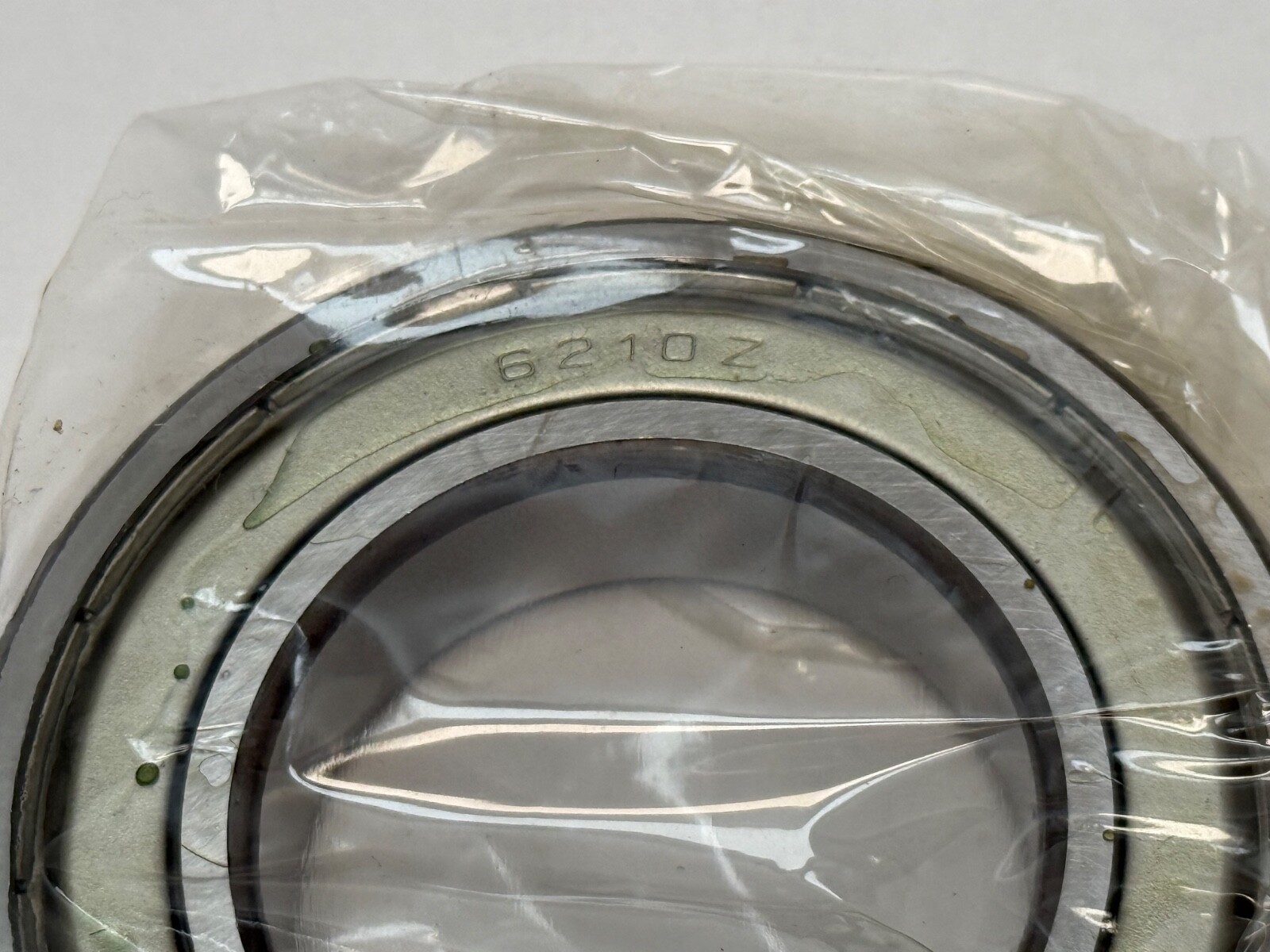

Close-up of NSK 6210 deep groove ball bearing wrapped in plastic, showing the 6210Z marking on the outer race

13k+ reviews

See our eBay reviews

NSK6210Deep Groove Ball Bearing — 50 mm ID, 90 mm OD, 20 mm Width, Single Row, Open, CN Internal Clearance, Pressed Steel Cage

Name: NSK 6210 Deep Groove Ball Bearing — 50 mm ID, 90 mm OD, 20 mm Width, Single Row, Open, CN Internal Clearance, Pressed Steel Cage
Brand: NSK
SKU: B-AG3B5#QKS8K6
Price: 22.23 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Ball Bearing

Deep groove ball bearing, 50 x 90 x 20 mm, open, CN internal clearance, pressed steel cage. Cr 38,500 N. Ten 12.7 mm balls.

List Price

$22.23

1 in stock

Prefer eBay? Visit our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NSK
MPN	6210
GTIN	029176015007
Model	6210
Bearing Type	Ball Bearing, Open
ID	50 mm
OD	90 mm
Width	20 mm

Technical Specifications

Material	Bearing Steel
Series	6200
Base Number	6210
Industry Terms	deep groove ball bearing, single row ball bearing, open ball bearing, radial ball bearing, 6210 bearing, 6200 series bearing, electric motor bearing, pump bearing, conrad bearing
Common Misspellings	NKS 6210, 621O, 6210 bearing NSK, 6-210, 62IO, NSK62I0
Application Types	Electric motors, pumps and blowers, gearbox shafts, fans, conveyor rollers, agricultural drives, general machinery shafts carrying radial load with light two-direction thrust
Mpn Variants	6210, 6210 CN, 6210C3, 6210 open, 62-10
Precision Class	ISO Normal
Additional Attributes	Ball complement z 10, ball diameter Dw 12.7 mm. Shaft abutment da 56.5-60 mm. Housing abutment Da max 83.5 mm. Fillet radius ra max 1 mm. Chamfer r min 1.1 mm.
Dynamic Load Rating	38,500 N
Static Load Rating	23,200 N
Precision Rating	ISO Normal
Rolling Elements	Ball
Item Weight	0.459 kg (1.012 lb)
Cage Material	Pressed steel
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Limiting Speed	8,000 rpm grease; 10,000 rpm oil
Internal Clearance	CN
Harmonization Code	8482.10.50
Design Units	Metric
Bearing Material	Bearing steel

Cross-References

Cross Reference 1	SKF 6210 – same 50x90x20 mm ISO envelope, ratings differ by maker
Cross Reference 2	FAG 6210 – same ISO envelope, ratings differ by maker
Cross Reference 3	Timken 6210 – same ISO envelope, ratings differ by maker
Cross Reference 4	Koyo 6210 – same ISO envelope, ratings differ by maker
Cross Reference 6	MRC 210S – MRC house number for the same ISO envelope
Cross Reference 7	NSK 6210ZZ – same envelope, steel shields both sides
Cross Reference 8	NSK 6210DDU – same envelope, contact seals both sides
Cross Reference 9	NSK 6210C3 – same envelope, greater than normal internal clearance

Seller Part Number: B-AG3B5#QKS8K6

Product Description

What this part is

NSK 6210 single row deep groove ball bearing, open. Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 90 mm (3.5433 in). Overall Width: 20 mm (0.7874 in). Number Of Rows: 1. Rolling Elements: Ball. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ISO Normal.

Decoding the designation

62 — single row deep groove ball bearing, ISO dimension series 02.

10 — bore code, 10 x 5 = 50 mm.

No suffix — open on both faces, CN internal clearance, standard tolerance.

What these specs mean in practice

Dynamic Load Rating: 38,500 N (8,655 lbf). Static Load Rating: 23,200 N (5,215 lbf). Limiting Speed: 8,000 rpm grease; 10,000 rpm oil. Item Weight: 0.459 kg (1.012 lb). Ball complement: 10 balls at 12.7 mm diameter.

A deep groove ball bearing carries radial load and moderate axial load in both directions from a single row, and runs faster than any other rolling type on the same envelope. Its raceway grooves are deep relative to the ball diameter, which is where the two-direction thrust capacity comes from.

Open faces let the housing supply lubricant and let heat out, and allow the bearing to be washed and regreased in service.

Mounting data

Bore Type: Straight. Shaft abutment diameter da: 56.5–60 mm. Housing abutment diameter Da max: 83.5 mm. Fillet radius ra max: 1 mm. Chamfer r min: 1.1 mm.

Quantity and configuration

Unit Quantity: 1 Pc. Single bearing.

Interchange guidance

Same 50 x 90 x 20 mm envelope: SKF 6210, FAG 6210, Timken 6210, Koyo 6210, NTN 6210, MRC 210S. The 6210 designation is an ISO number carried by every maker; internal design, cage and published ratings differ.

Sealed and shielded executions on this envelope: NSK 6210ZZ steel shields both sides, 6210DDU contact seals both sides, 6210VV non-contact seals both sides, 6210N snap ring groove. Clearance variants: 6210C3 greater than normal.

Common spellings: 6210 bearing, 6210-OPEN, 6210 CN, 6210C3.
