AirgasY13-E444DStainless High-Purity Single Stage Regulator, 3500 psig Inlet, 0-150 psig Outlet

Condition: New – Open box

Availability:

1 in stock

Airgas Y13-E444D stainless high-purity single-stage regulator: 3,500 psig inlet, 0-150 psig outlet, Hastelloy C-22 diaphragm, PCTFE seat. Opened box.

Same day shipment

List Price

$212.49

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAirgas
MPNY13-E444D

Technical Specifications

MaterialStainless Steel
Item TypeSingle Stage Regulator
Max Inlet Pressure3500 psig
Outlet Pressure Range0-150 psig
Industry TermsHigh-purity gas regulator; specialty gas regulator; stainless steel cylinder regulator; single-stage regulator; positive-seal regulator
Common MisspellingsY13-E4440; Y13-E44D; Y31-E444D; Y13-E444; Air Gas Y13-E444D
Application TypesHigh-purity and specialty gas delivery; contamination-sensitive gas flow; mildly corrosive or corrosive gas service
Mpn VariantsY13-E444D; Y13E444D; Y13 E444D; E444D
Compatible With ReplacesAirgas E444D regulator family (e.g. Y11E444D-AG)
Additional AttributesMax inlet 3,500 psig; outlet 0-150 psig; Cv 0.04; capacity 3,000 scfh at max delivery pressure; decay inlet characteristic 1.17/100 psi; designed leak rate 2 x 10^-8 ccs helium; ambient -40 to +165 °F; convoluted Hastelloy C-22 diaphragm; PCTFE seat; Type 316 stainless internals, electropolished 32 Ra; two 10-32 UNF mounting holes; inlet and delivery gauges; inlet valve 316, 3500 PSI max (label); label no. 133481
SeriesE444
Part NumberY13-E444D

Cross-References

Cross Reference 1Airgas Y11E444D-AG - E444D, 1/4in FNPT in, 1/4in comp out
Seller Part Number: BE4#8TWFVT

Product Description

What this part is:

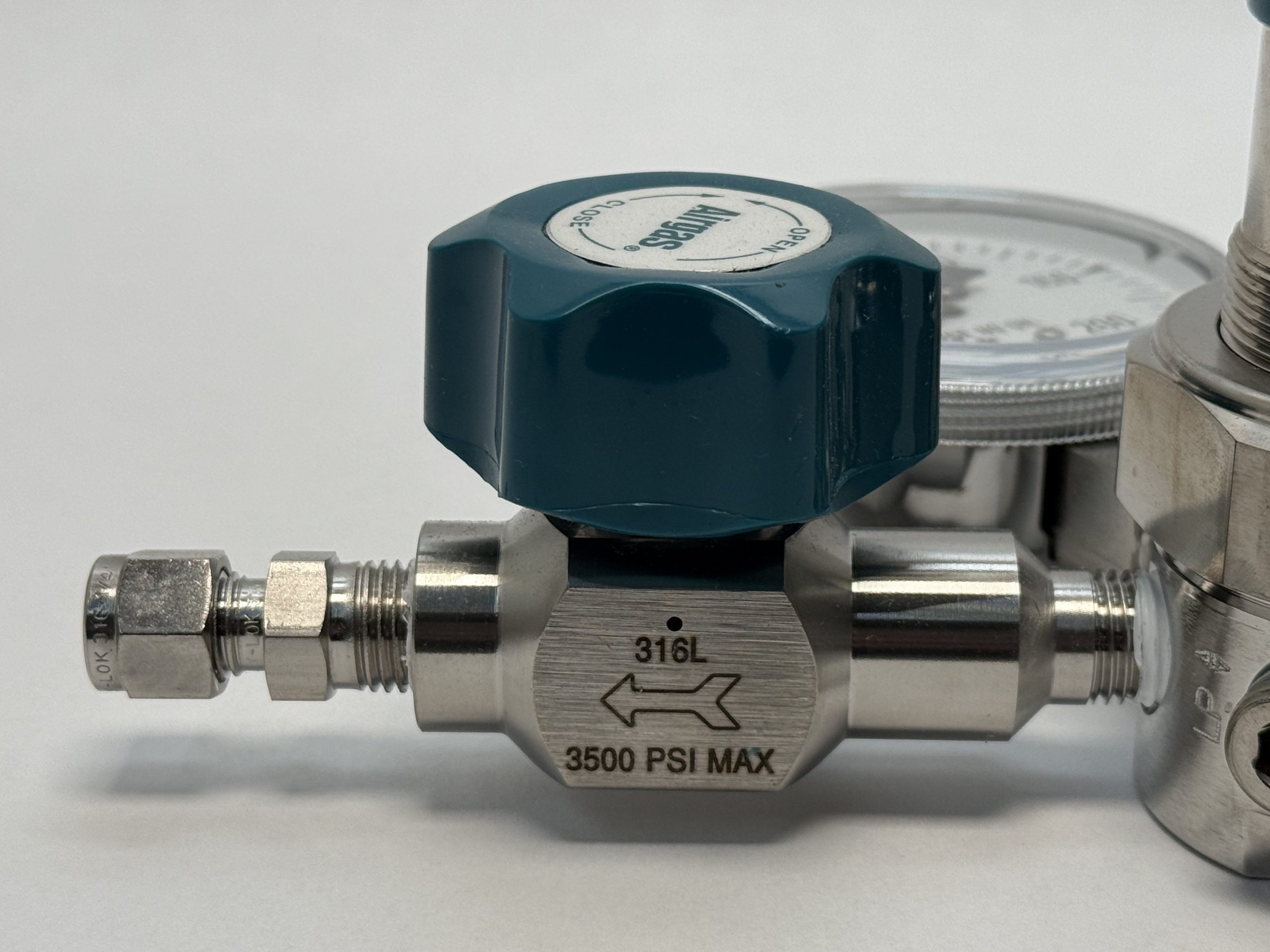

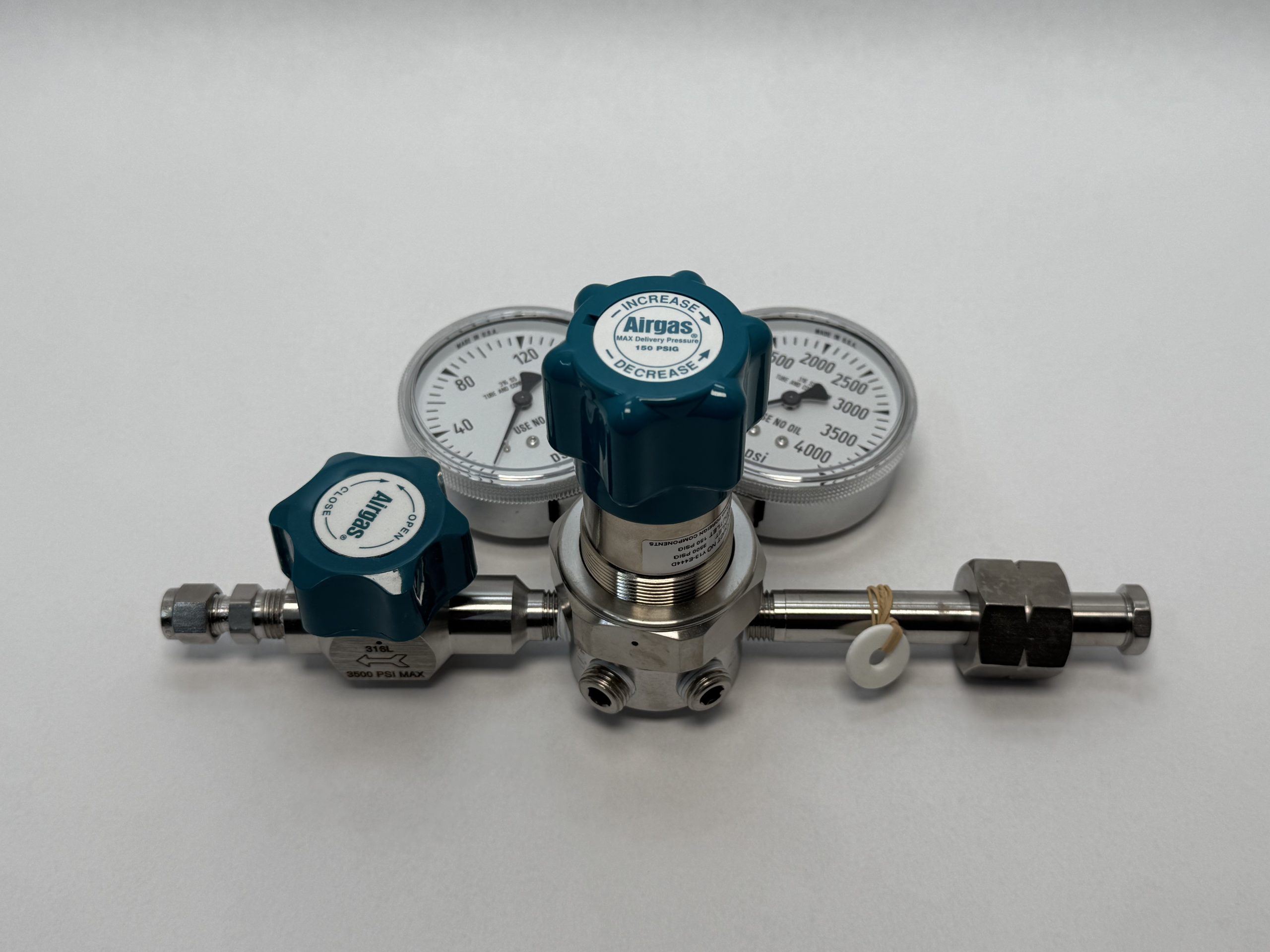

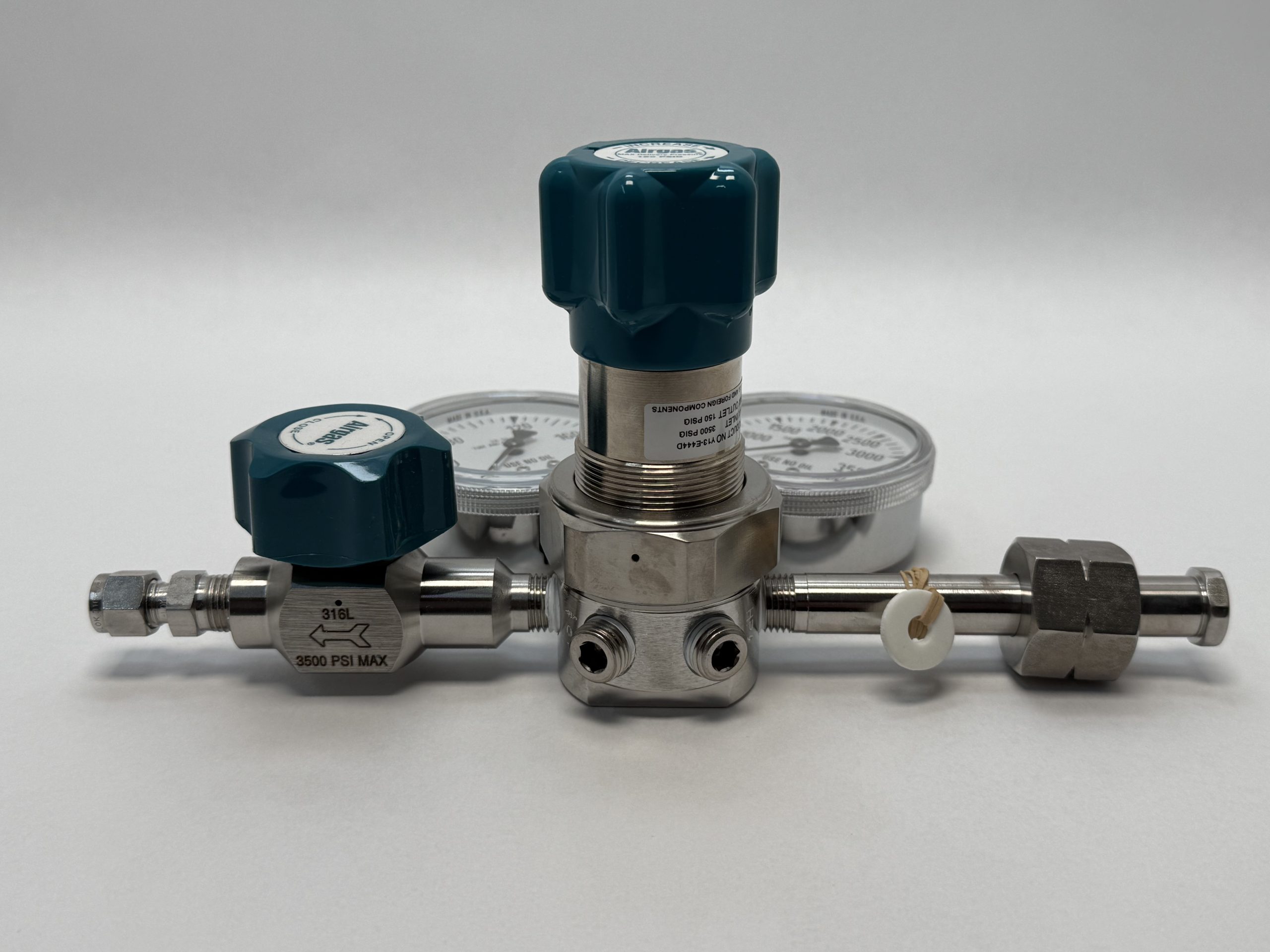

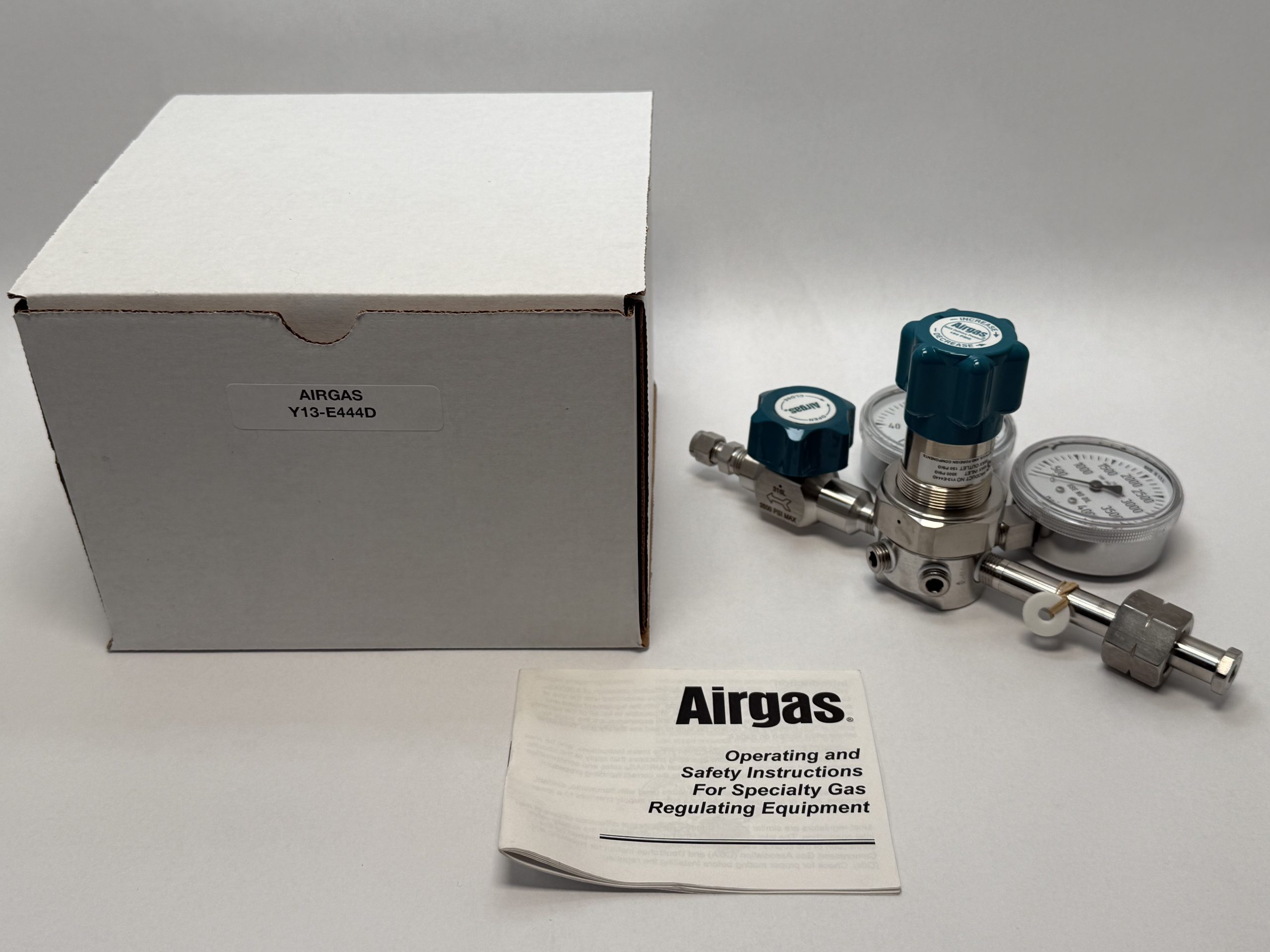

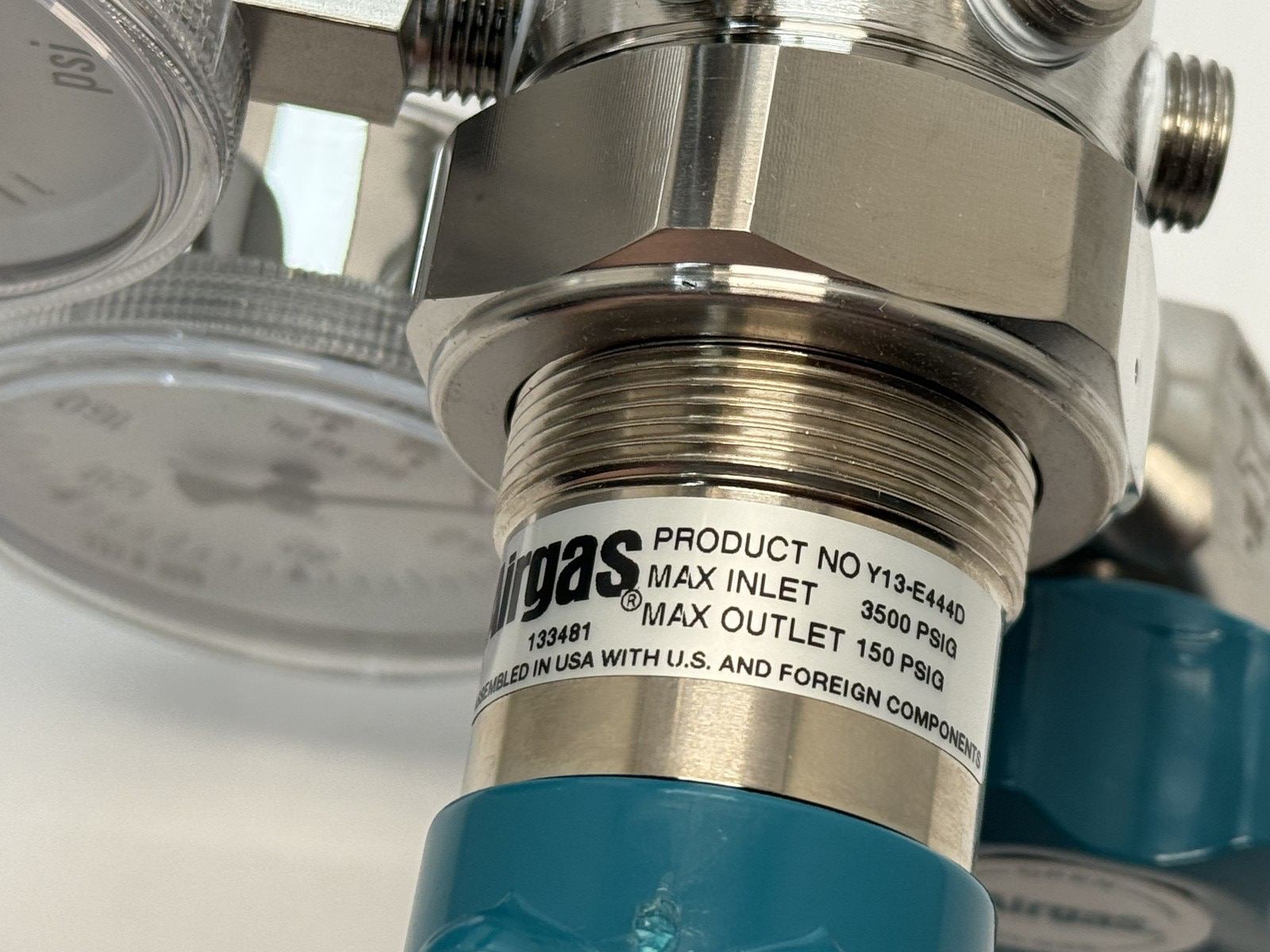

Airgas Y13-E444D is an Airgas model E444D stainless steel high-purity single-stage positive-seal gas regulator, rated for 3,500 psig maximum inlet and 0–150 psig outlet. This unit has inlet and delivery gauges, an inlet valve marked 316 / 3500 PSI MAX and an outlet valve. Unit Quantity: 1 Pc. Condition: new old stock, opened box, in the original white Airgas box with the operating and safety instructions booklet. The body label reads Product No Y13-E444D, Max Inlet 3500 PSIG, Max Outlet 150 PSIG, 133481, assembled in USA with U.S. and foreign components.

Decoding the designation:

E444D — Airgas manufacturer part number for the model E444 stainless steel high-purity single-stage positive-seal regulator.

Y13-E444D — Airgas product number printed on this unit’s label.

Specifications:

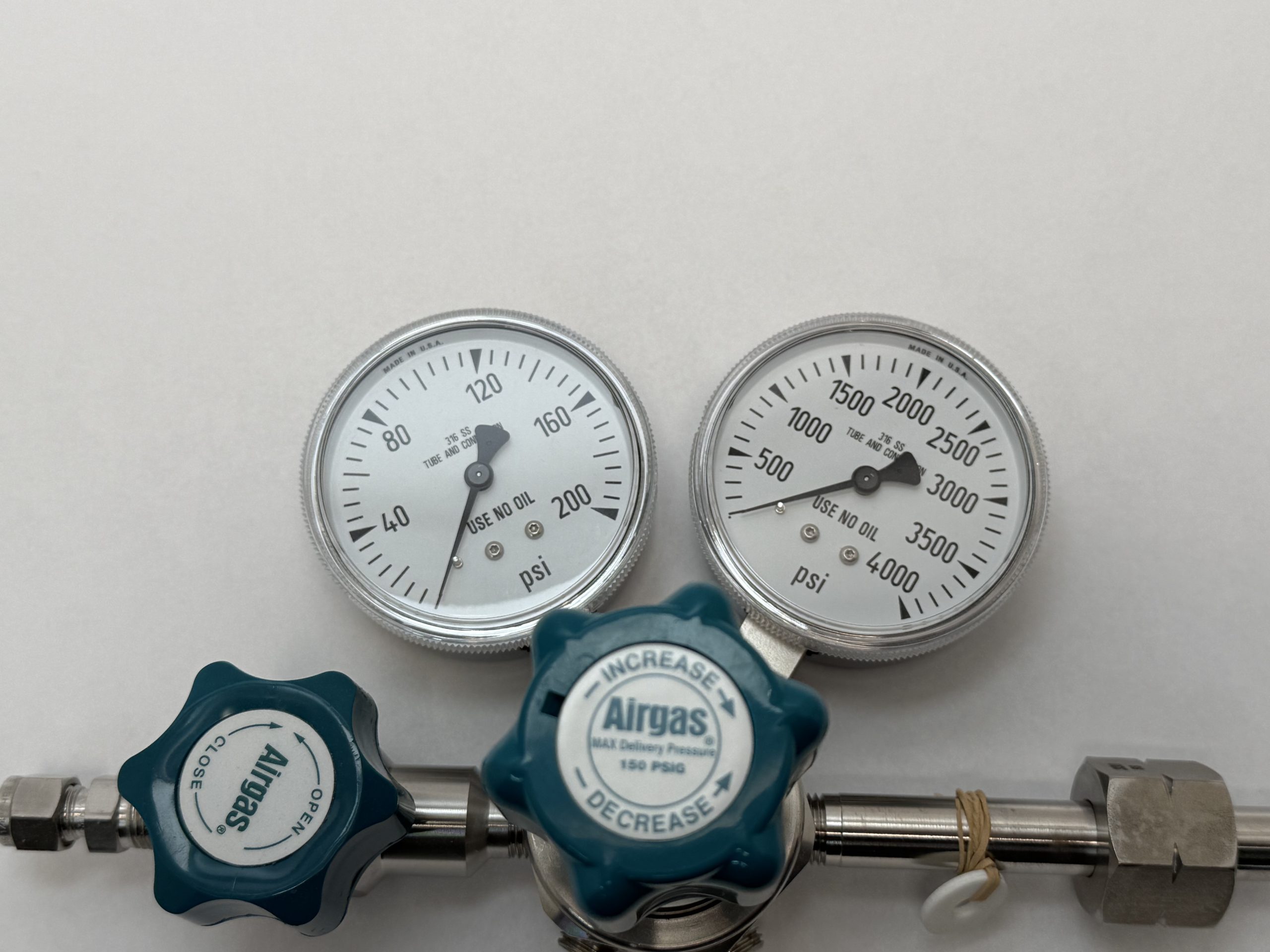

Maximum Rated Inlet Pressure: 3,500 psig. Outlet Pressure Range: 0–150 psig. Flow Capacity: Cv = 0.04. Capacity: 3,000 scfh at maximum delivery pressure. Decay Inlet Characteristic: 1.17 / 100 psi. Designed Leak Rate: 2 x 10−8 ccs (helium). Ambient Operating Temperature: −40 °F to +165 °F. Diaphragm: convoluted Hastelloy C-22. Seat: PCTFE. Internal Components: Type 316 stainless steel, ultrasonically cleaned and electropolished to a 32 Ra finish. Stem: mechanical linkage between diaphragm and valve stem to reduce pressure creep. Gauges: inlet and delivery (as pictured). Inlet Valve: 316, 3500 PSI max (label). Country of origin: USA (assembled with U.S. and foreign components).

Dimensions and mounting:

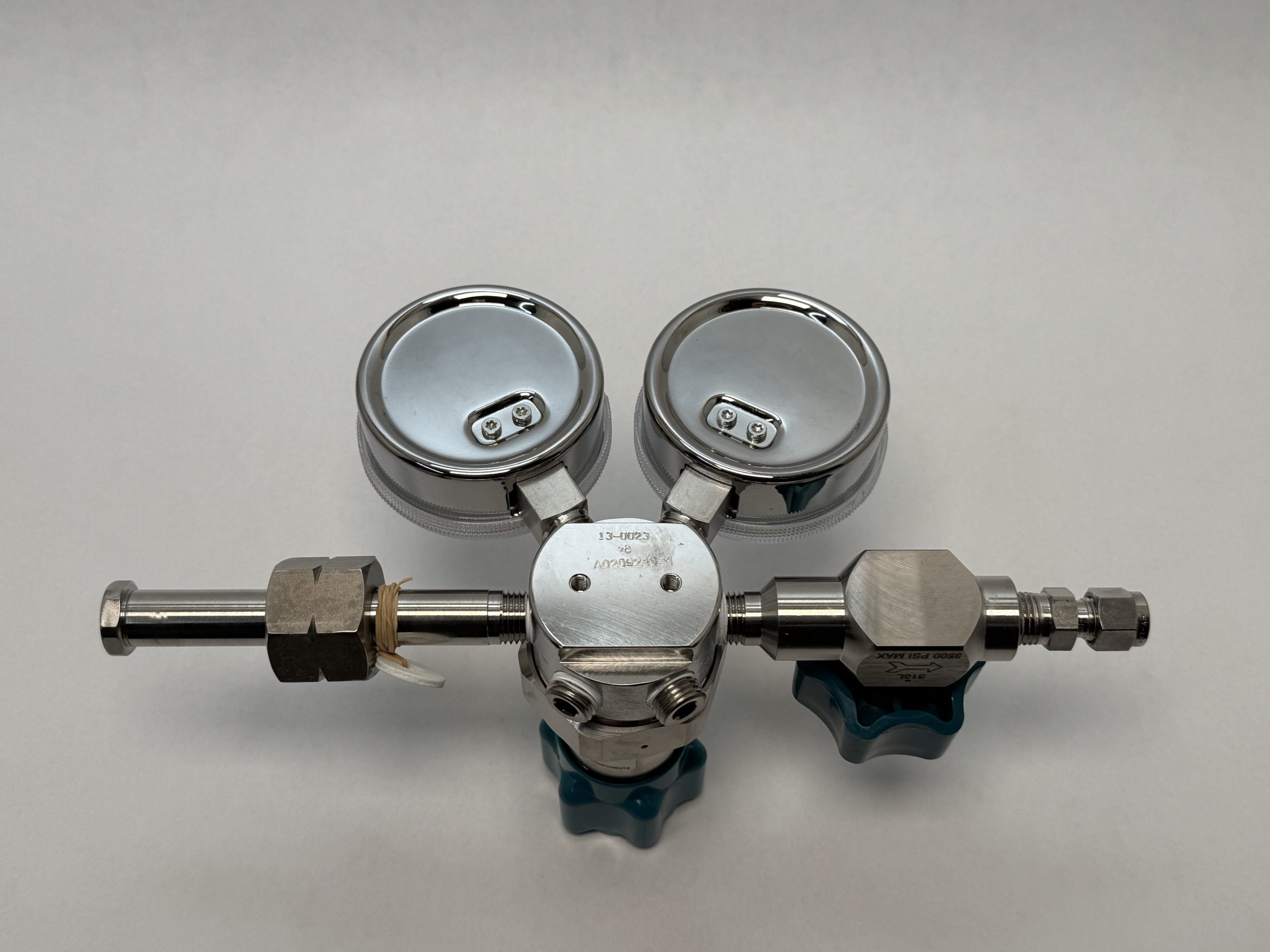

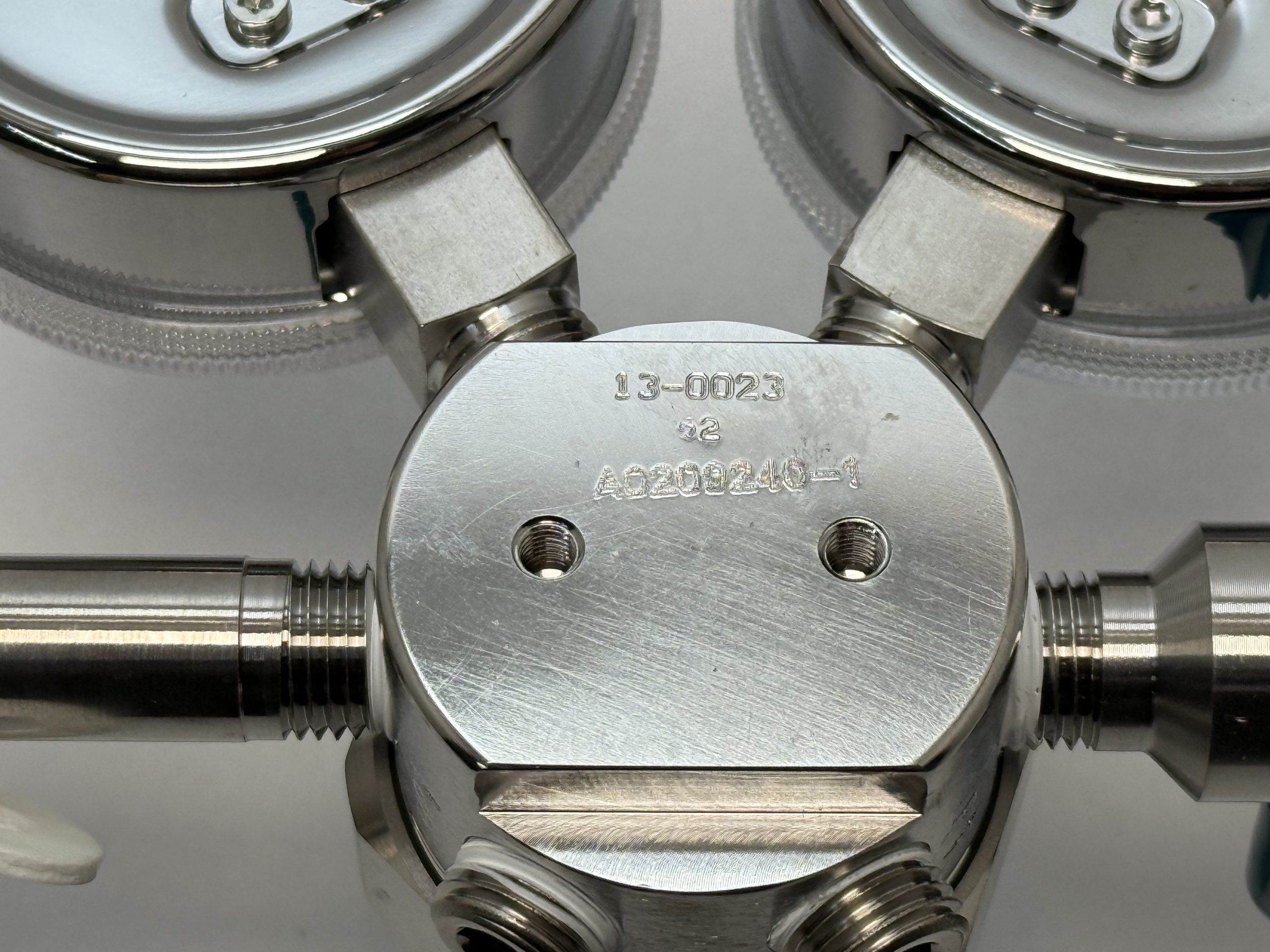

Two 10-32 UNF mounting holes for bracket or panel mounting.

Compatibility and replacement:

Airgas also lists the same E444D regulator model as Y11E444D-AG, with a 1/4 in FNPT inlet, 1/4 in compression outlet and 0–200 delivery gauge. Also written Y13E444D and Y13 E444D.

Frequently asked questions:

What pressures is the Airgas Y13-E444D rated for?

3,500 psig maximum inlet and 0–150 psig outlet, as on the body label and the Airgas E444D data.

What materials are in contact with the gas?

Type 316 stainless steel internals electropolished to 32 Ra, a convoluted Hastelloy C-22 diaphragm and a PCTFE seat.

Is it single stage or two stage?

Single stage. Airgas lists the E444D as a single-stage positive-seal regulator.
