Dodge F2B-SC-008 2-bolt flange ball bearing unit, 1/2 in bore, set screw locking, 3 in bolt centers, 203 series, powder coated, catalog 124198.
List Price
$33.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F2B-SC-008 |
| GTIN | 782475114597 |
| Model | F2B-SC-008 |
| Bearing Type | MOUNTED |
| ID | 1/2 in |
| Series | SC |
|---|---|
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Locking Device | Set screw |
| Harmonization Code | 8483.20.40.40 |
| Expansion Type | Non-expansion |
| Industry Terms | 2-bolt flange bearing, two bolt flange unit |
| Common Misspellings | F2B-8C-008, F2B8C008 |
| Bolt Center To Center Length | 3 in |
| Bore Shaft Size | 1/2 in (0.500 in, 12.7 mm) |
| Housing Style | 2-bolt flange |
| Locking Method | Set screw |
| Mpn Variants | 124198, F2BSC008, F2B SC 008 |
| Dynamic Load Rating | 2,158 lbf (9,599 N) |
| Static Load Rating | 1,079 lbf (4,800 N) |
| Limiting Speed | 7,500 rpm |
| Application Types | Conveyors; light industrial machinery; shaft support |

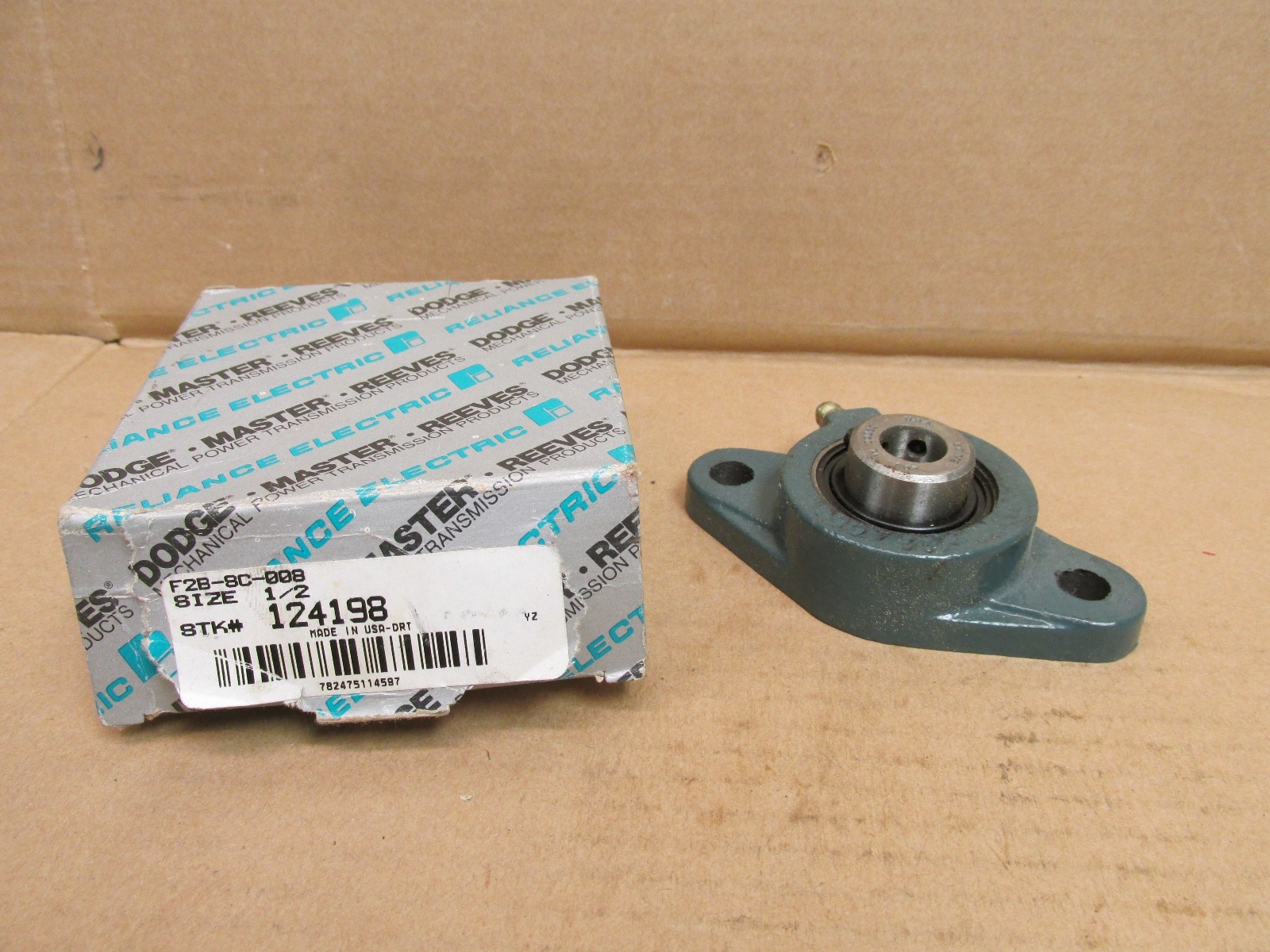

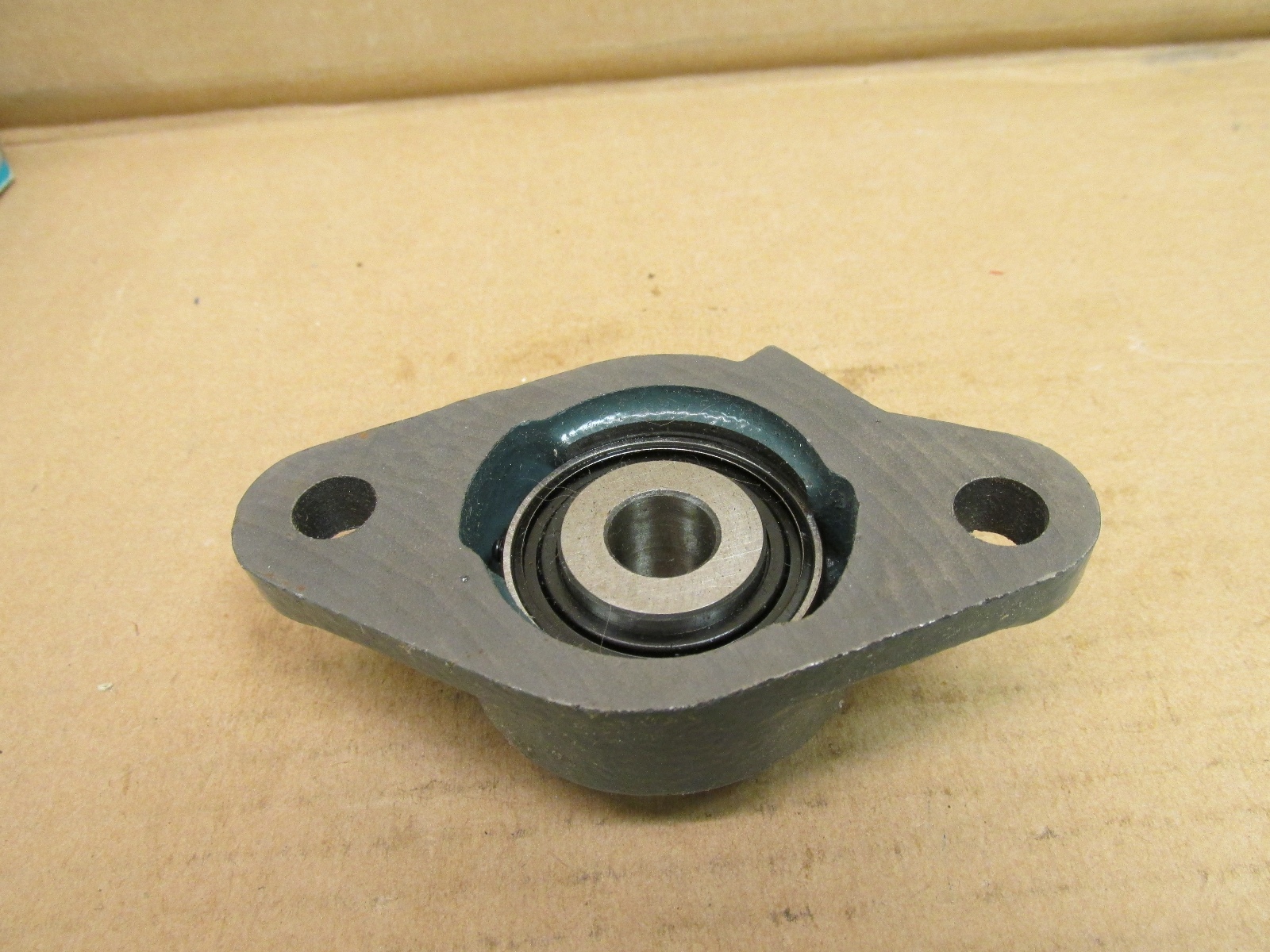

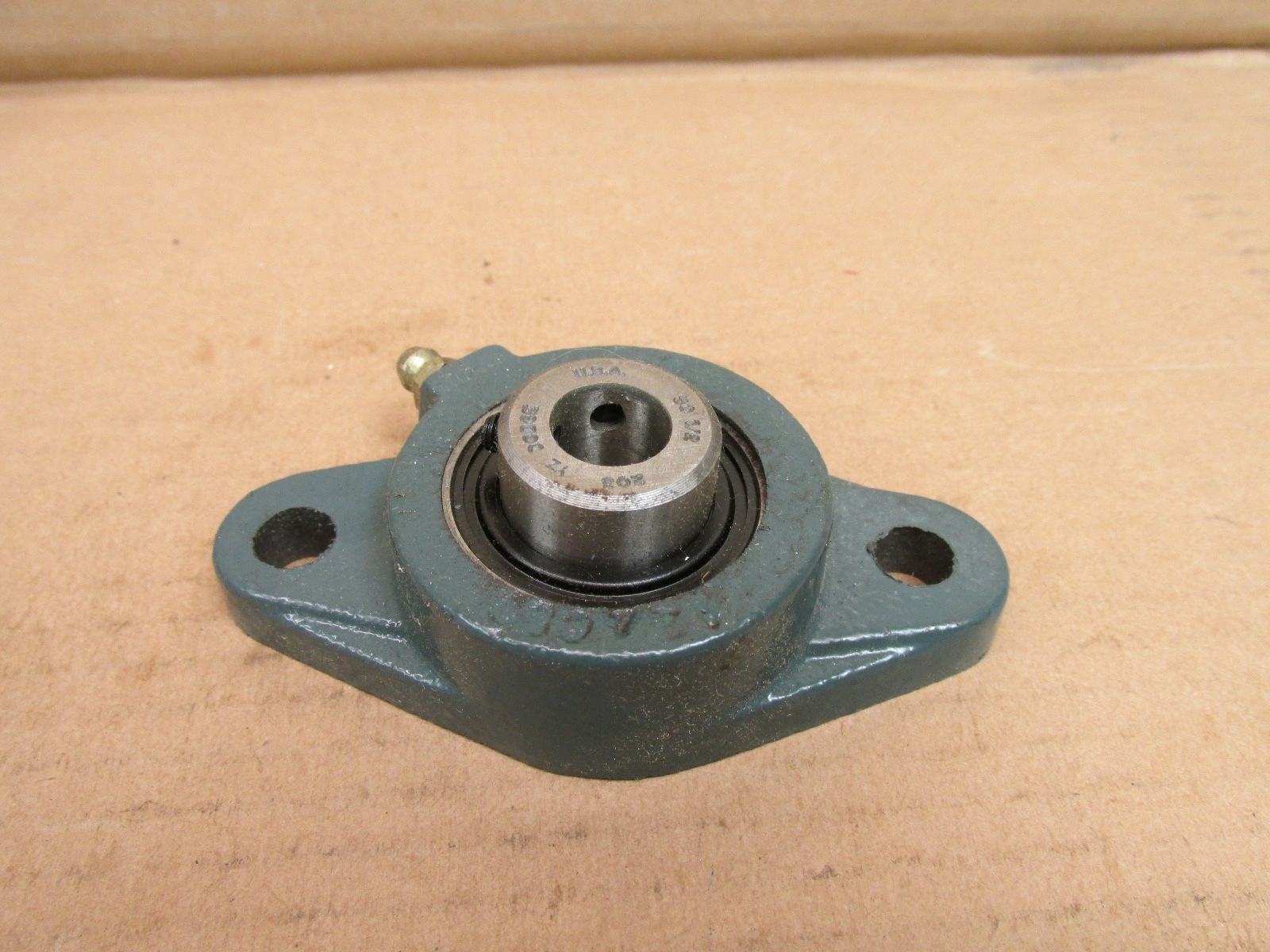

The Dodge F2B-SC-008, catalog number 124198, is a two-bolt flange mounted ball bearing unit for a 1/2 in shaft, with a set screw locking insert. Unit Quantity: 1 Pc. Complete mounted unit: two-bolt flange housing with set screw ball bearing insert installed. GTIN: 782475114597.
F2B — Dodge two-bolt flange ball bearing housing.
SC — Dodge set screw ball bearing line, 65° set screw locking.
008 — 1/2 in shaft size.
Bore / Shaft Size: 1/2 in (0.500 in, 12.7 mm). Housing Style: 2-bolt flange. Bearing Series: 203. Locking Method: Set screw. Dynamic Load Rating: 2,158 lbf (9,599 N). Static Load Rating: 1,079 lbf (4,800 N). Limiting Speed: 7,500 rpm. Seal Type: Single-lip nitrile rubber contact seal. Expansion Type: Non-expansion. Finish: Powder coated.
Number Of Bolt Holes: 2. Bolt Center To Center Length: 3 in. Overall Length: 3.88 in. Overall Height: 2.13 in. Overall Depth: 1.17 in.
Dodge catalog number 124198 and engineering number F2B-SC-008 identify the same part. MPN Variants: 124198, F2BSC008, F2B SC 008, F2B-8C-008.
Bore / Shaft Size: 1/2 in (0.500 in, 12.7 mm).
Bolt Center To Center Length: 3 in, with 2 bolt holes.
Locking Method: Set screw.
