Timken M224710-3 tapered roller bearing single cup, 6.875 in (174.625 mm) OD, 1.0938 in cup width, Class 3 precision, e factor 0.33, Y factor 1.8.
List Price
$143.88
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | M224710-3 |
| Model | M-224710 #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 6.875 in (174.625 mm) |
| Width | 1-3/32 in |
| Material | Steel |
|---|---|
| Base Number | M224710 |
| Industry Terms | Tapered roller bearing cup; taper bearing outer race; TRB cup; single cup; TS cup |
| Common Misspellings | M224710 3; M 224710-3; M22471O; Timkin M224710; taper bering cup |
| Overall Width | 1.0938 in (27.783 mm) |
| Mpn Variants | M224710-3; M224710*3; M224710#3; M-224710; M 224710; M224710 |
| Precision Class | Class 3 |
| Additional Attributes | e Factor 0.33; Y Factor 1.8; Geometry Factor Cg 0.158; Max Housing Fillet Radius 0.06 in (1.52 mm); Housing Backing Shoulder Diameter Da 6.65 in (167.90 mm); Housing Backing Shoulder Diameter Db 6.38 in (162.05 mm) |
| Series | M224700 |
| Item Weight | 5.9 lb (2.7 kg) |
| Number Of Rows | 1 |
| Part Number | M224710-3 |
| Cross Reference 1 | Timken M224710 – standard class, not Class 3 |
|---|

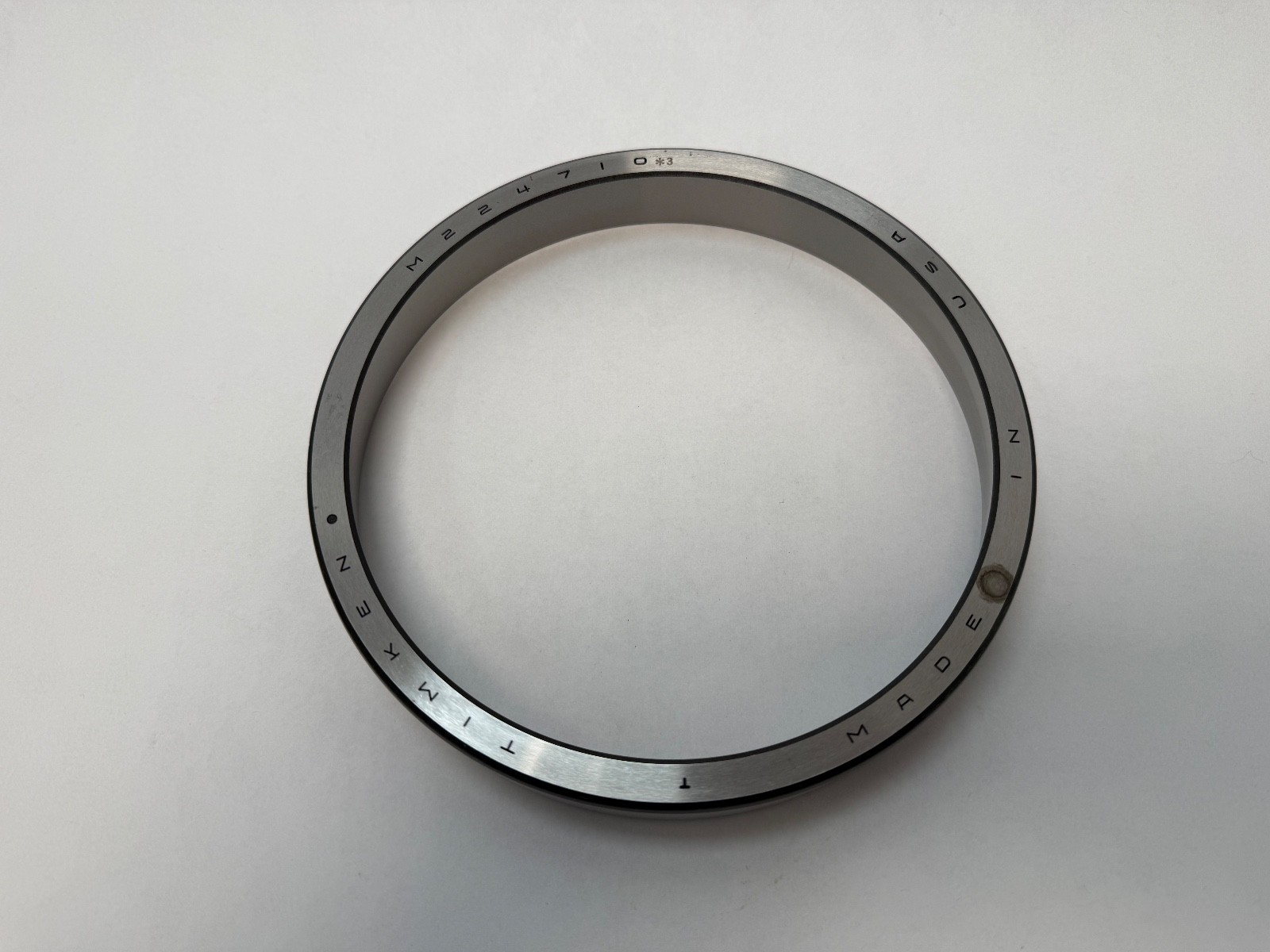

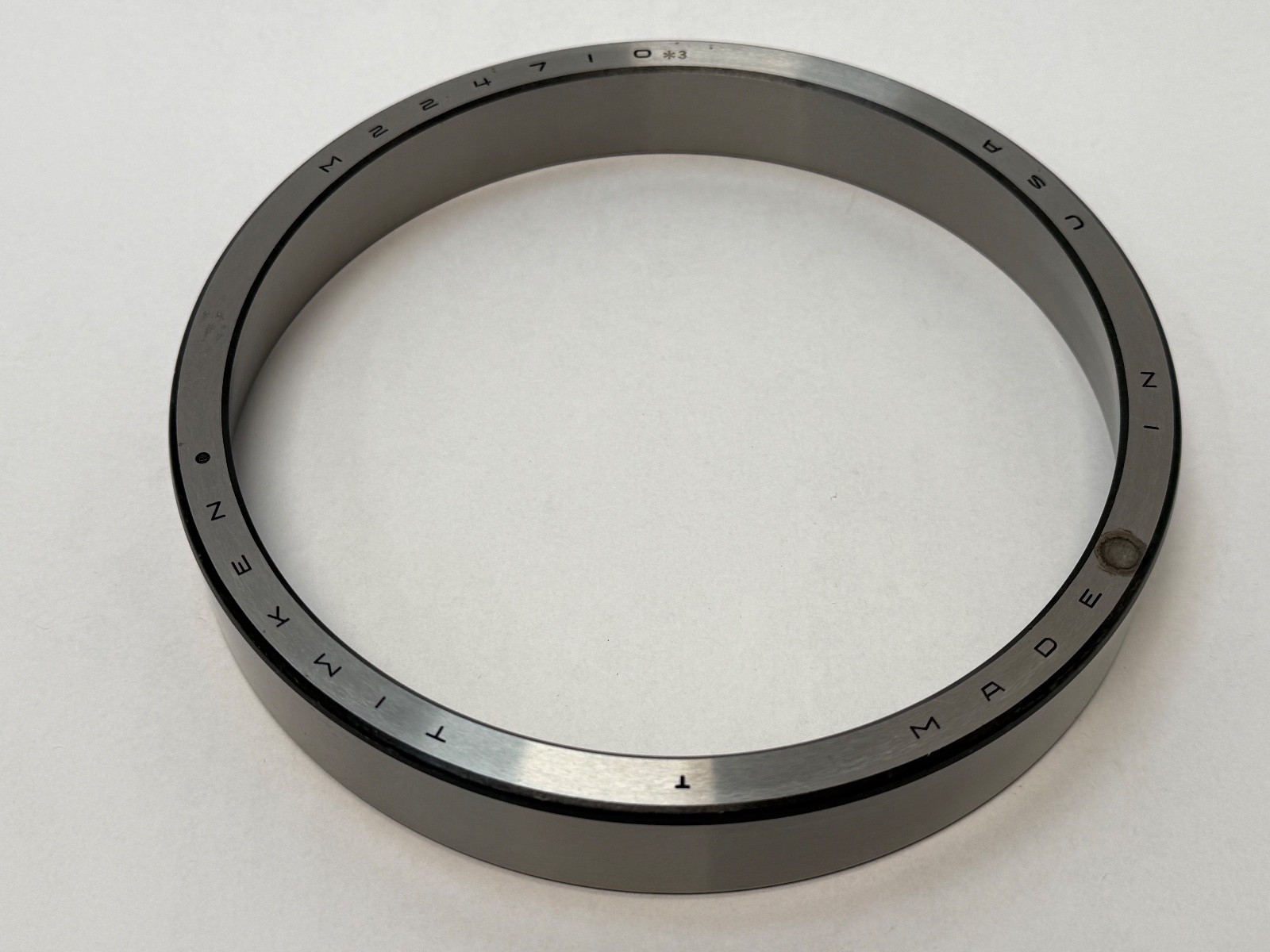

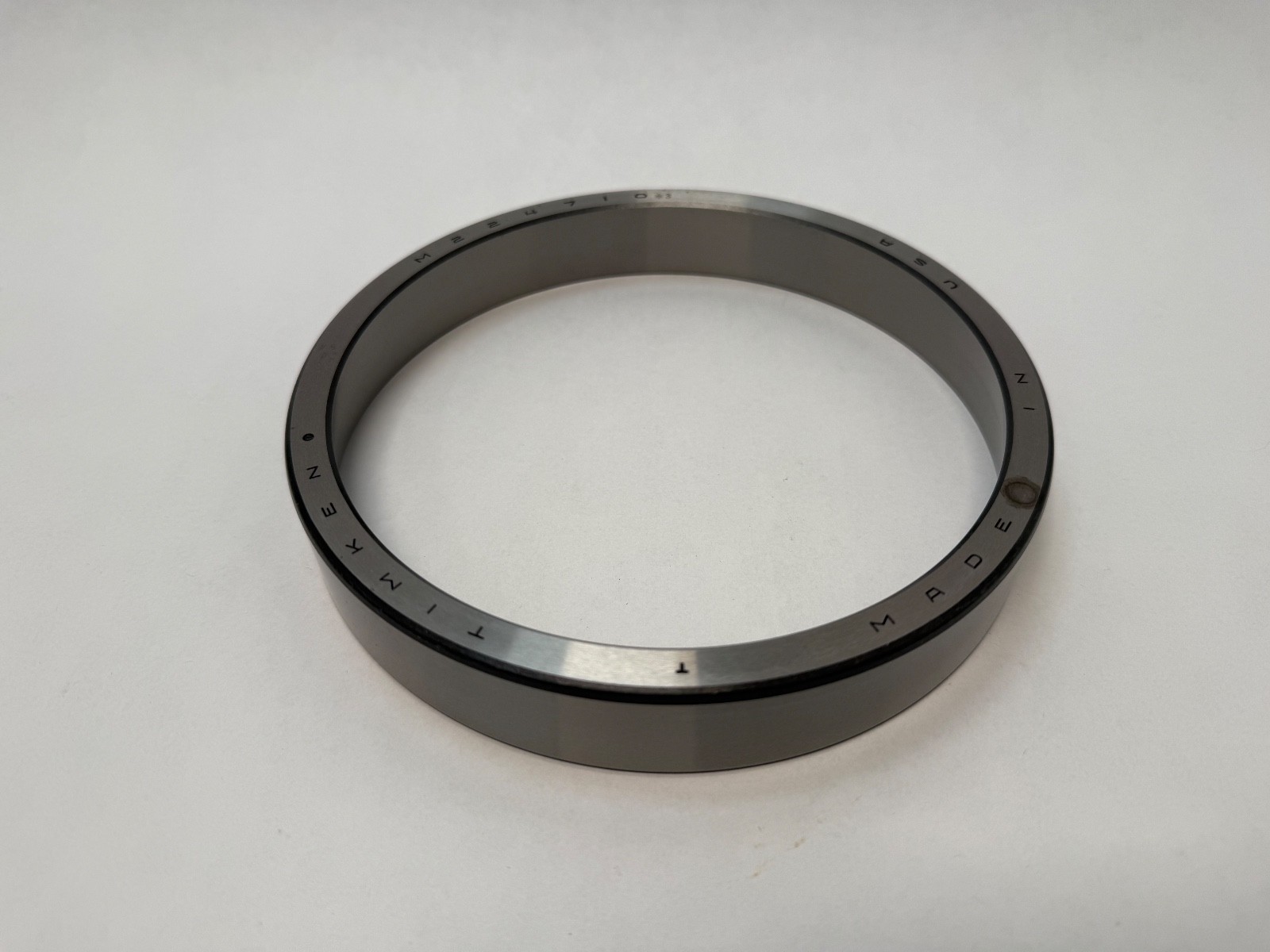

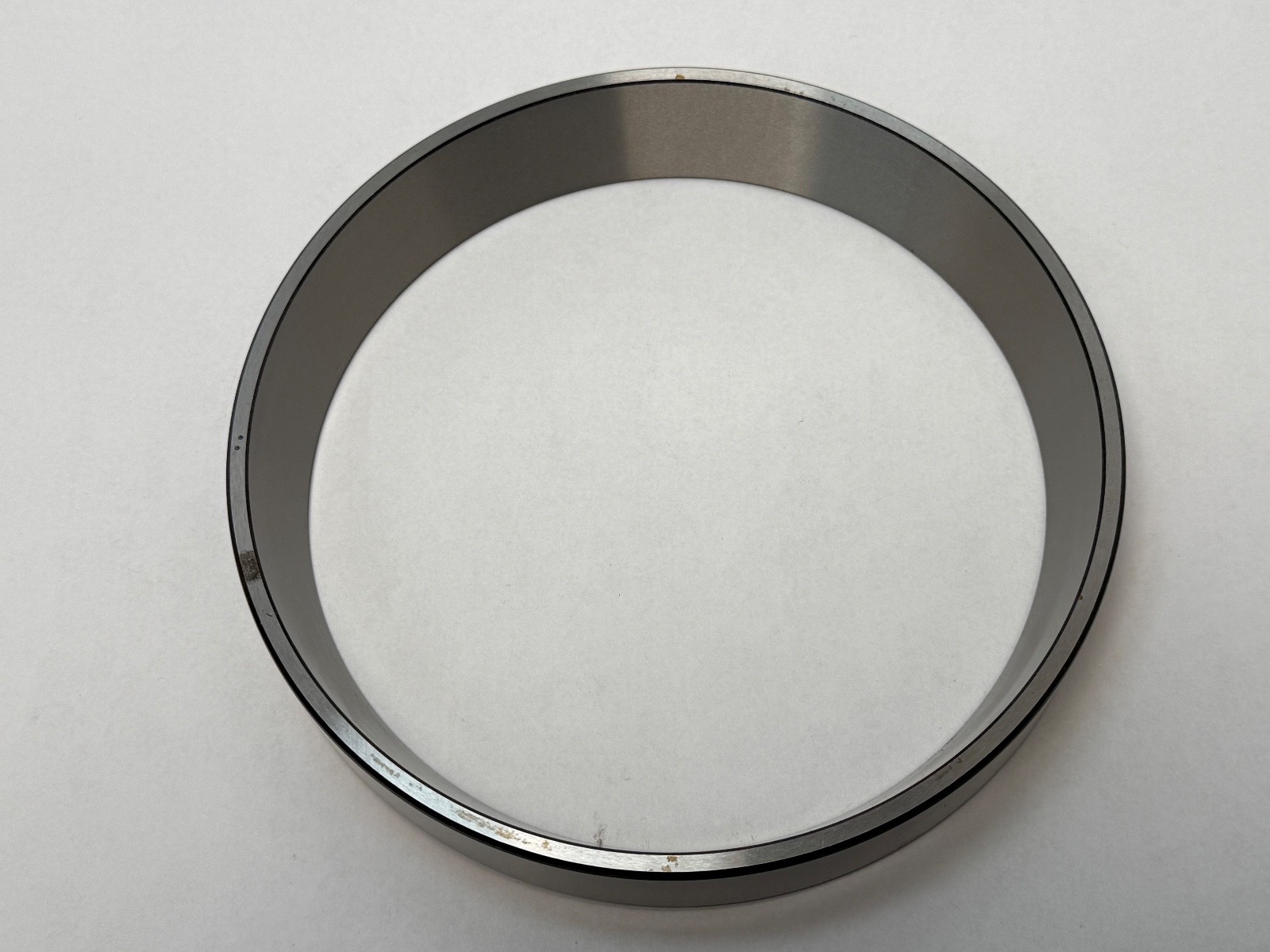

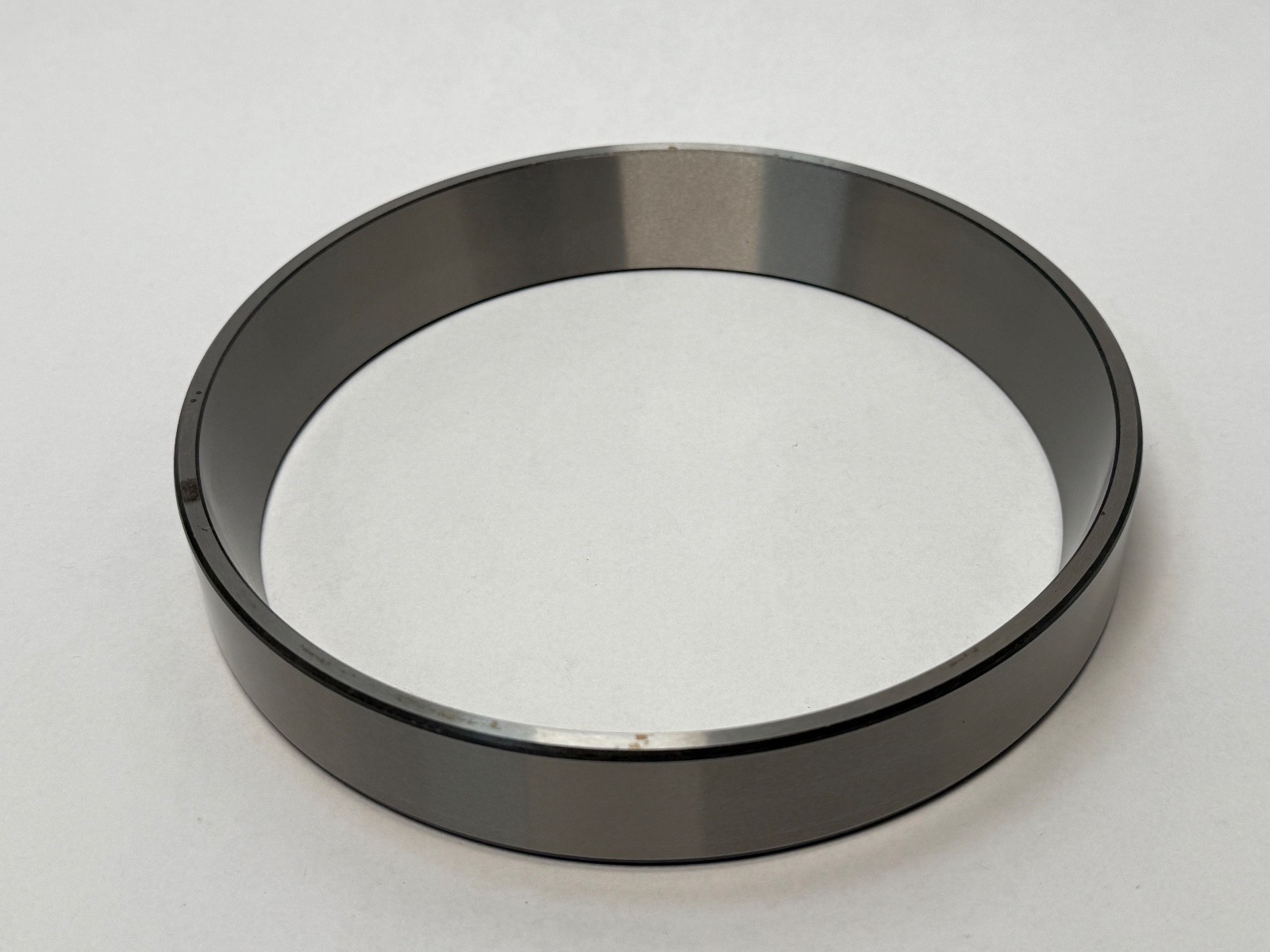

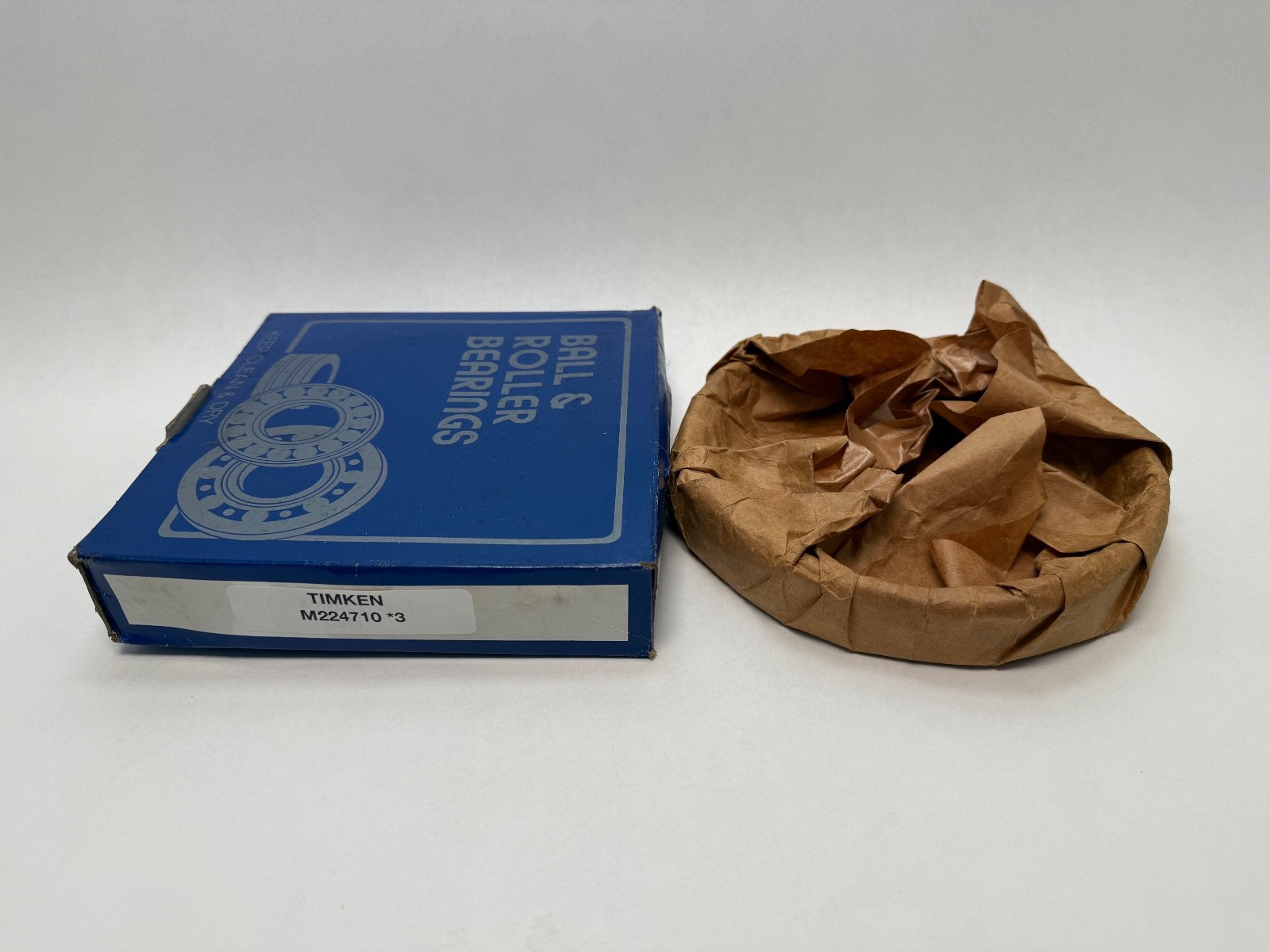

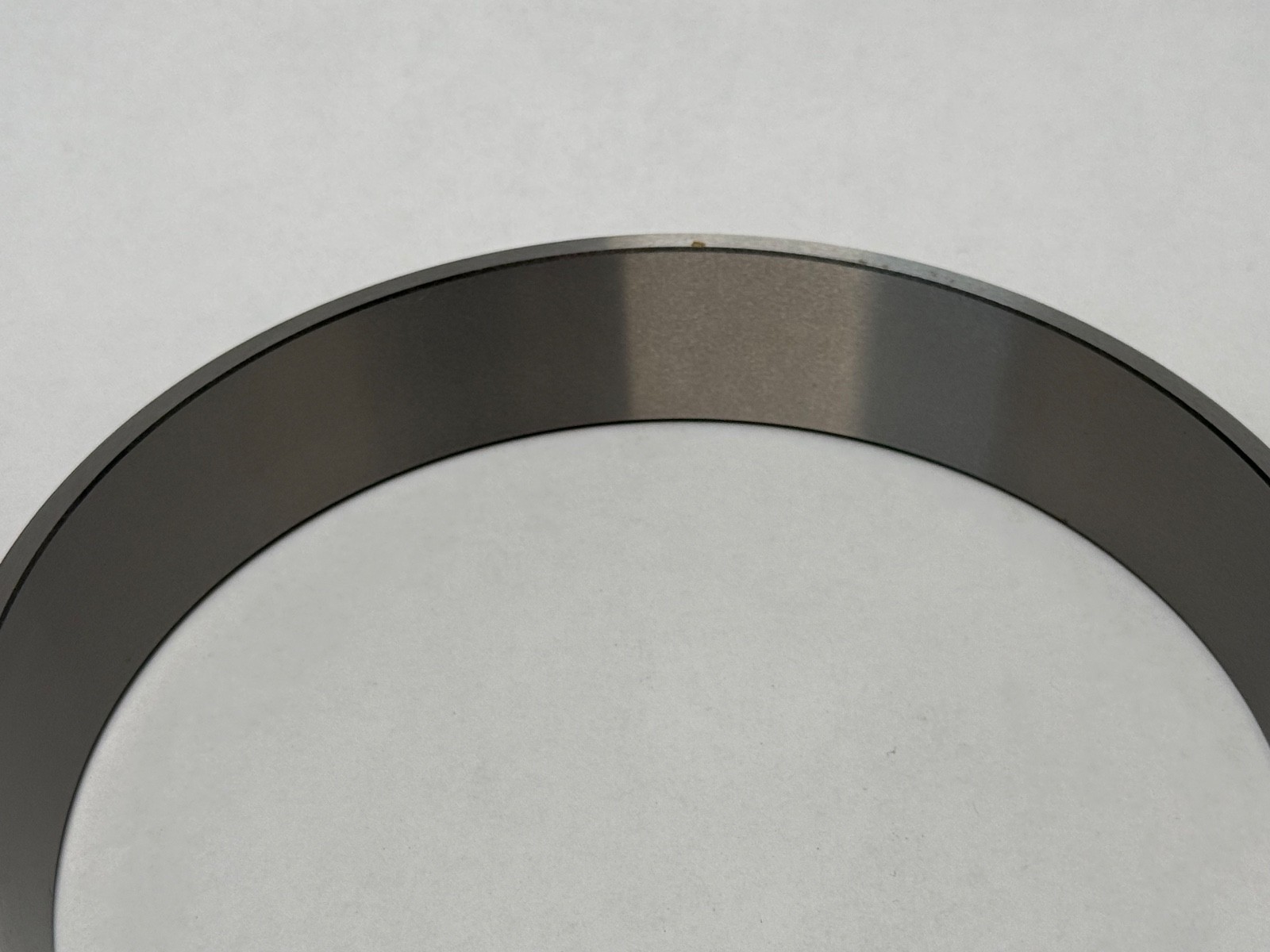

Timken M224710-3 is an inch tapered roller bearing single cup, the outer race of a tapered single (TS) bearing, made to precision Class 3. Cup only. Unit Quantity: 1 Pc.
M224710 — Timken inch tapered roller cup number in the M224700 series.

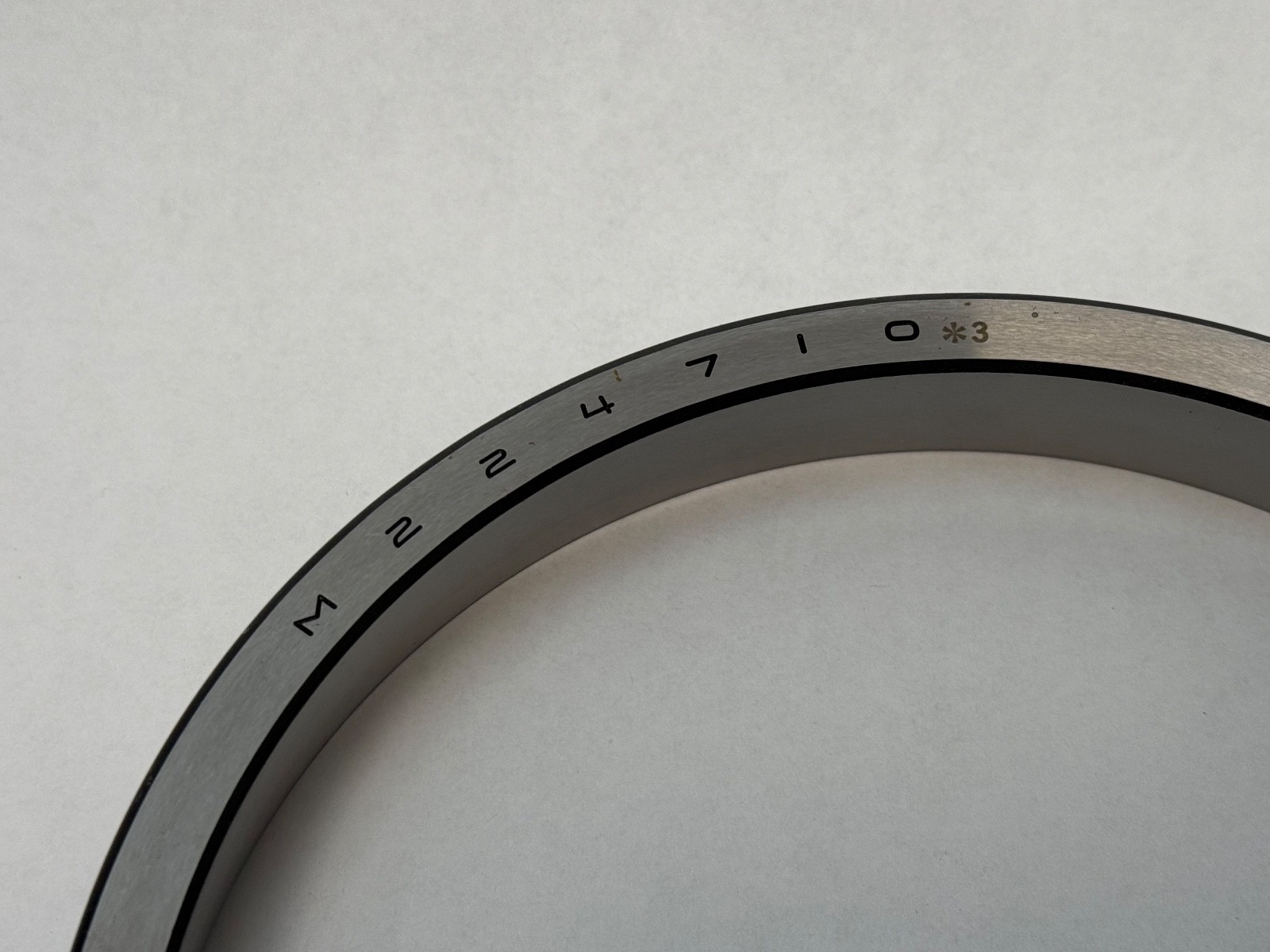

-3 — Precision Class: Class 3, tighter running tolerance than standard. Timken writes the same marking as M224710*3 and M224710#3.
Outside Diameter: 6.875 in (174.625 mm). Cup Width: 1.0938 in (27.783 mm). Series: M224700. Number Of Rows: 1. Item Weight: 5.9 lb (2.7 kg). Precision Class: Class 3. e Factor: 0.33. Y Factor: 1.8. Geometry Factor (Cg): 0.158.
Max Housing Fillet Radius: 0.06 in (1.52 mm). Housing Backing Shoulder Diameter, frontface (Da): 6.65 in (167.90 mm). Housing Backing Shoulder Diameter, backface (Db): 6.38 in (162.05 mm).
Matching cones: Timken M224749 and M224748. Complete tapered single assemblies built on this cup: M224749-M224710 and M224748-M224710. The unsuffixed Timken M224710 has the same geometry at standard tolerance. Also written M224710*3, M224710#3, M-224710 and M 224710.
An inch tapered roller bearing single cup, 6.875 in (174.625 mm) outside diameter and 1.0938 in (27.783 mm) wide, made to Class 3 precision.
Timken M224749 and M224748.
-3 marks Class 3 precision; Timken also writes it M224710*3 or M224710#3.
