Availability:
1 in stock

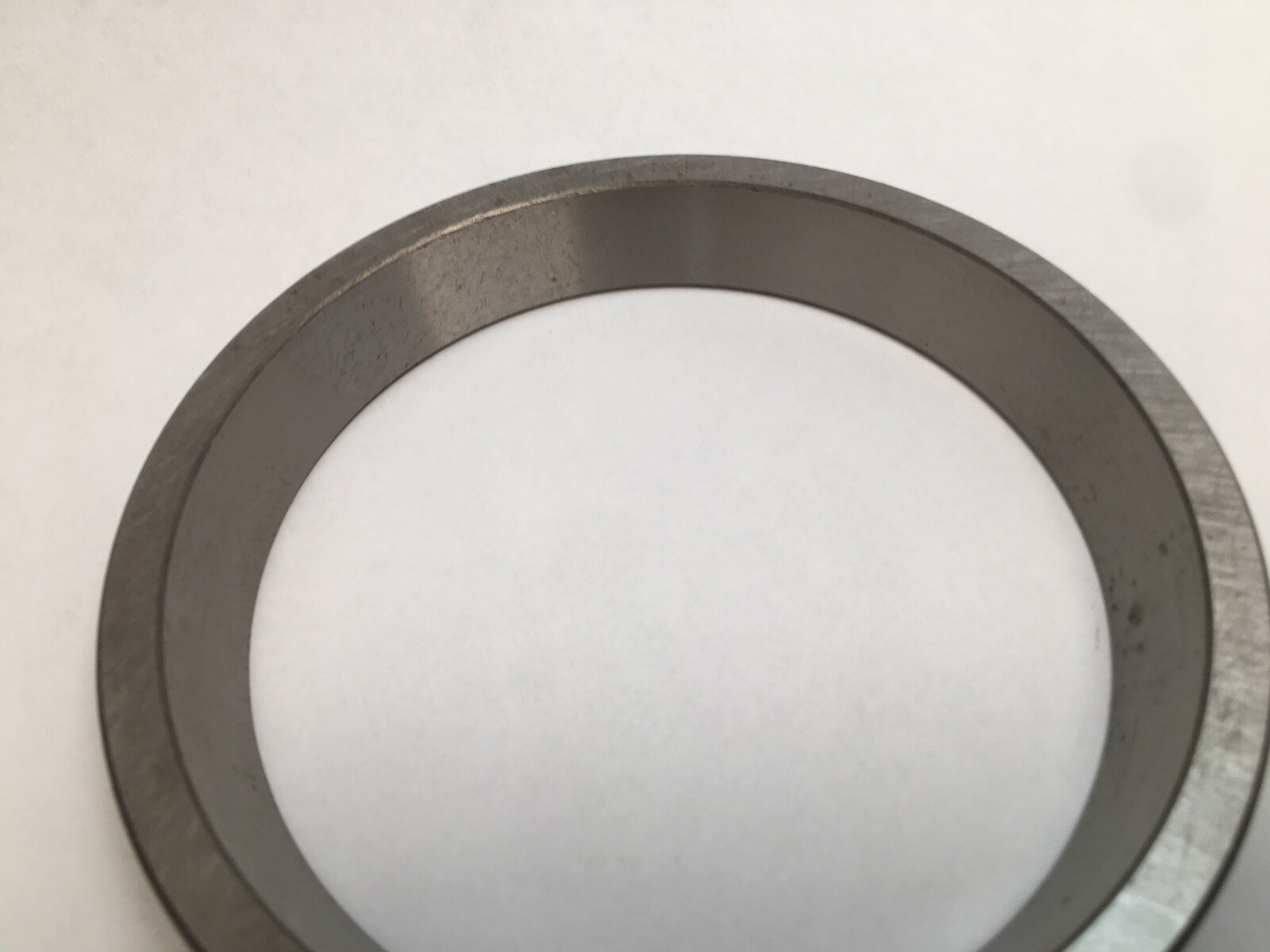

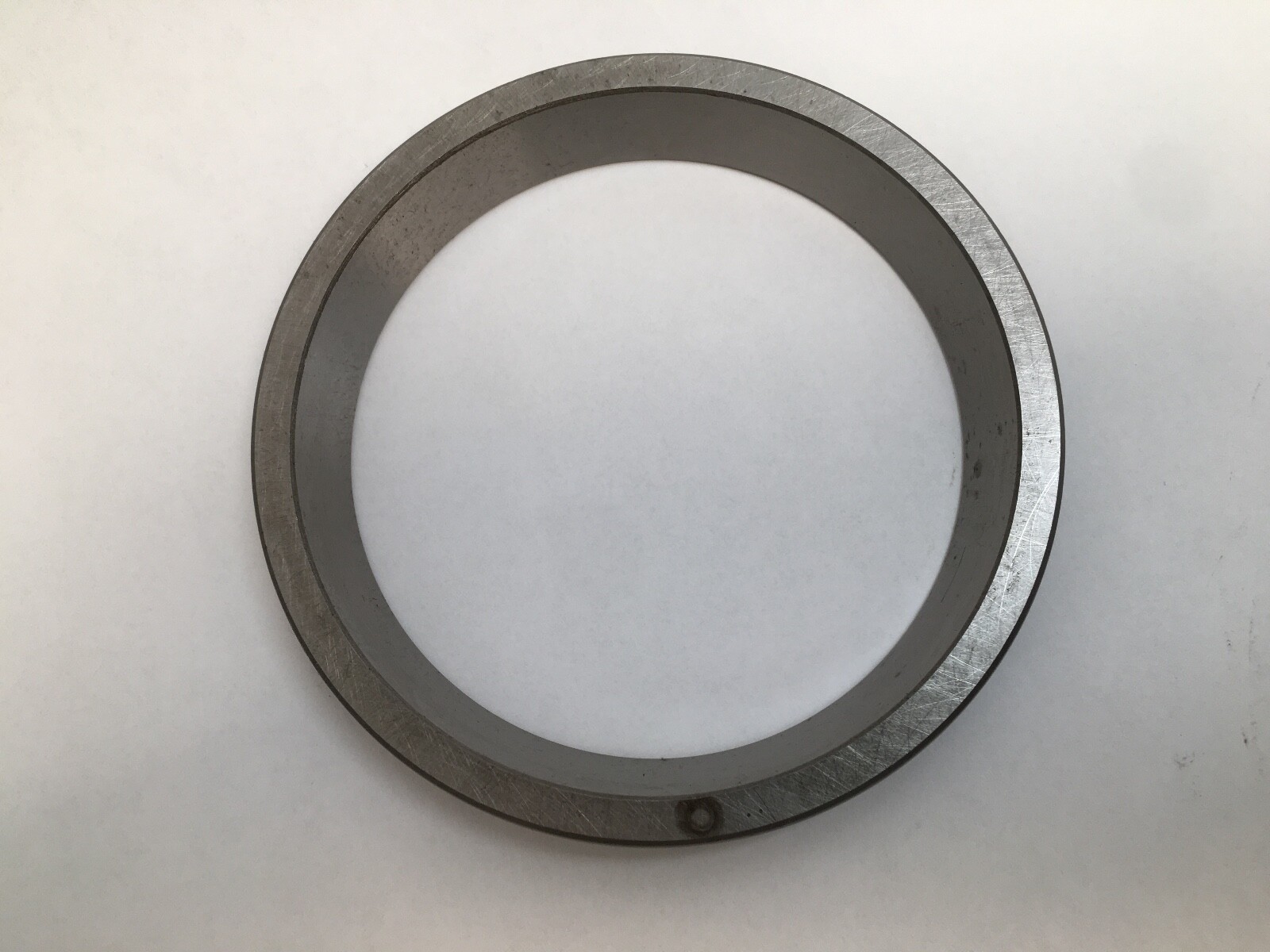

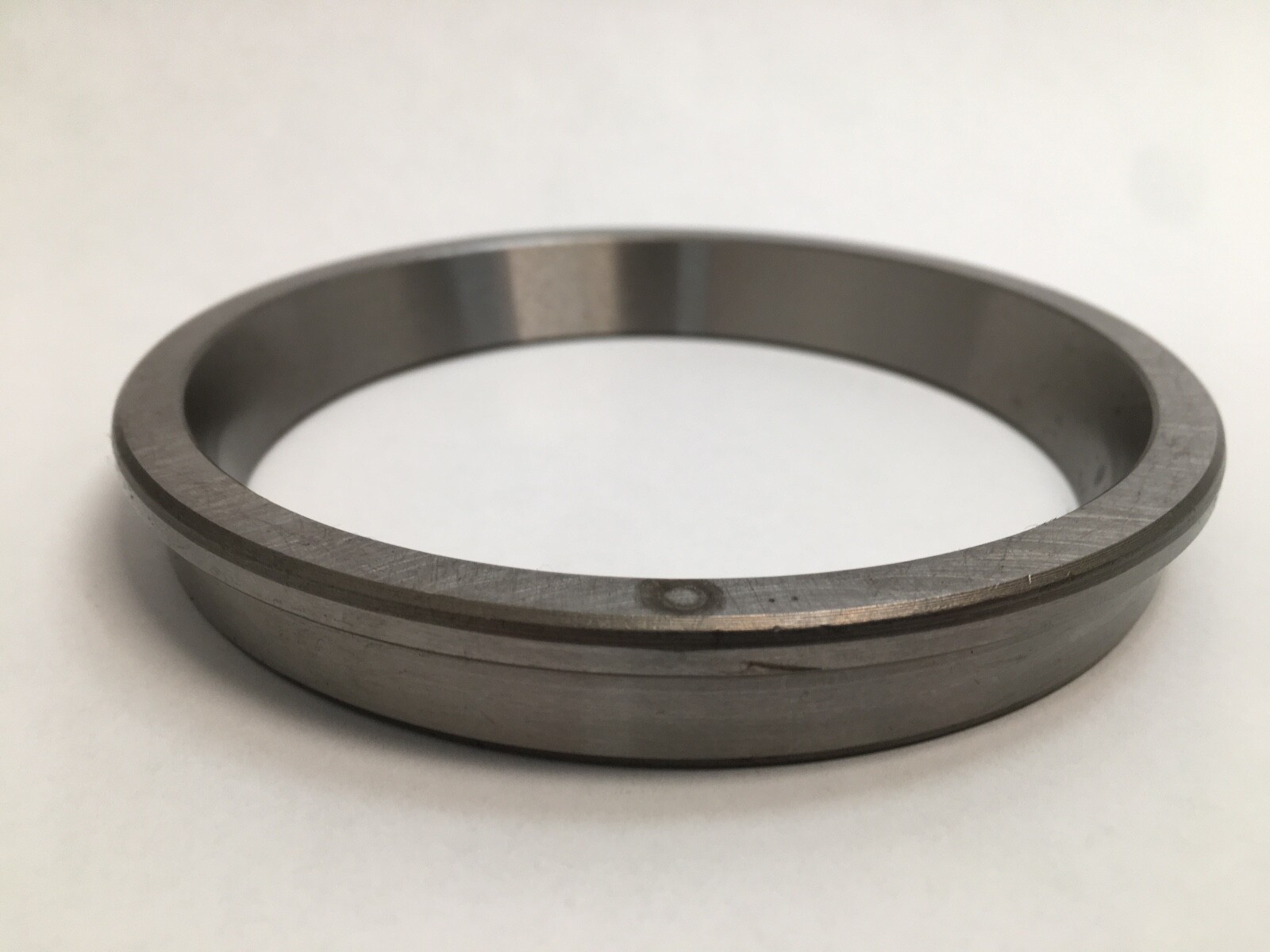

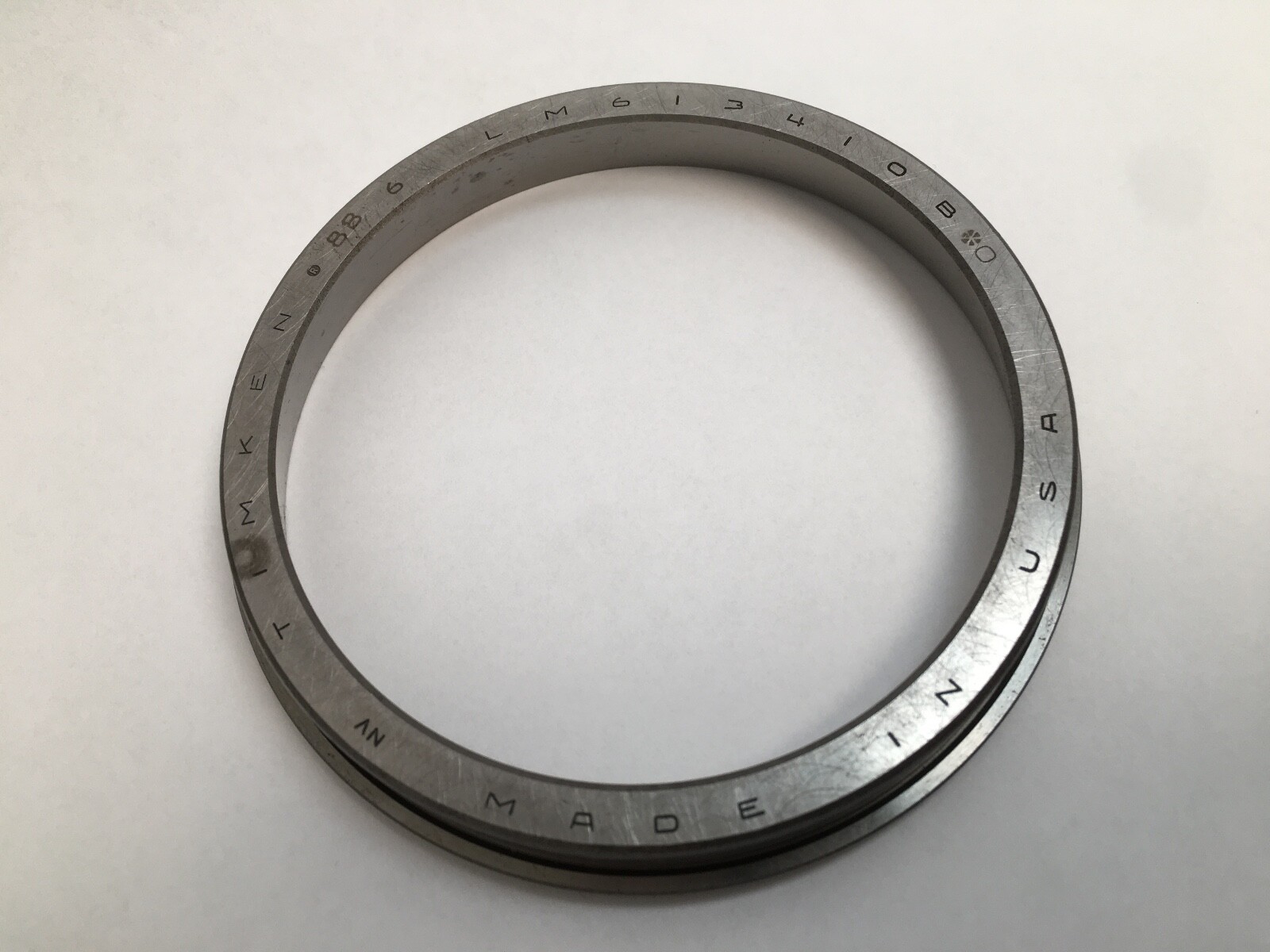

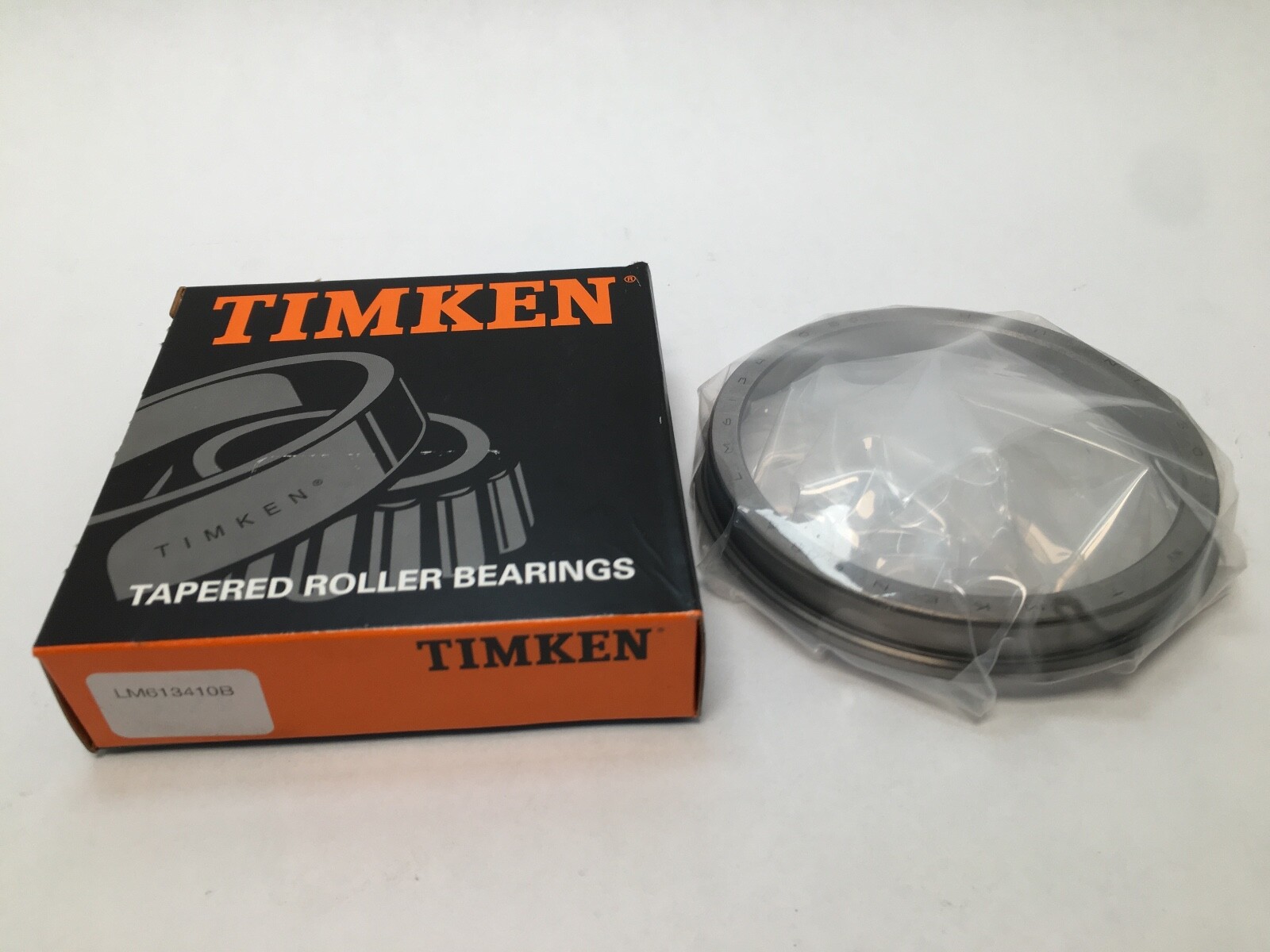

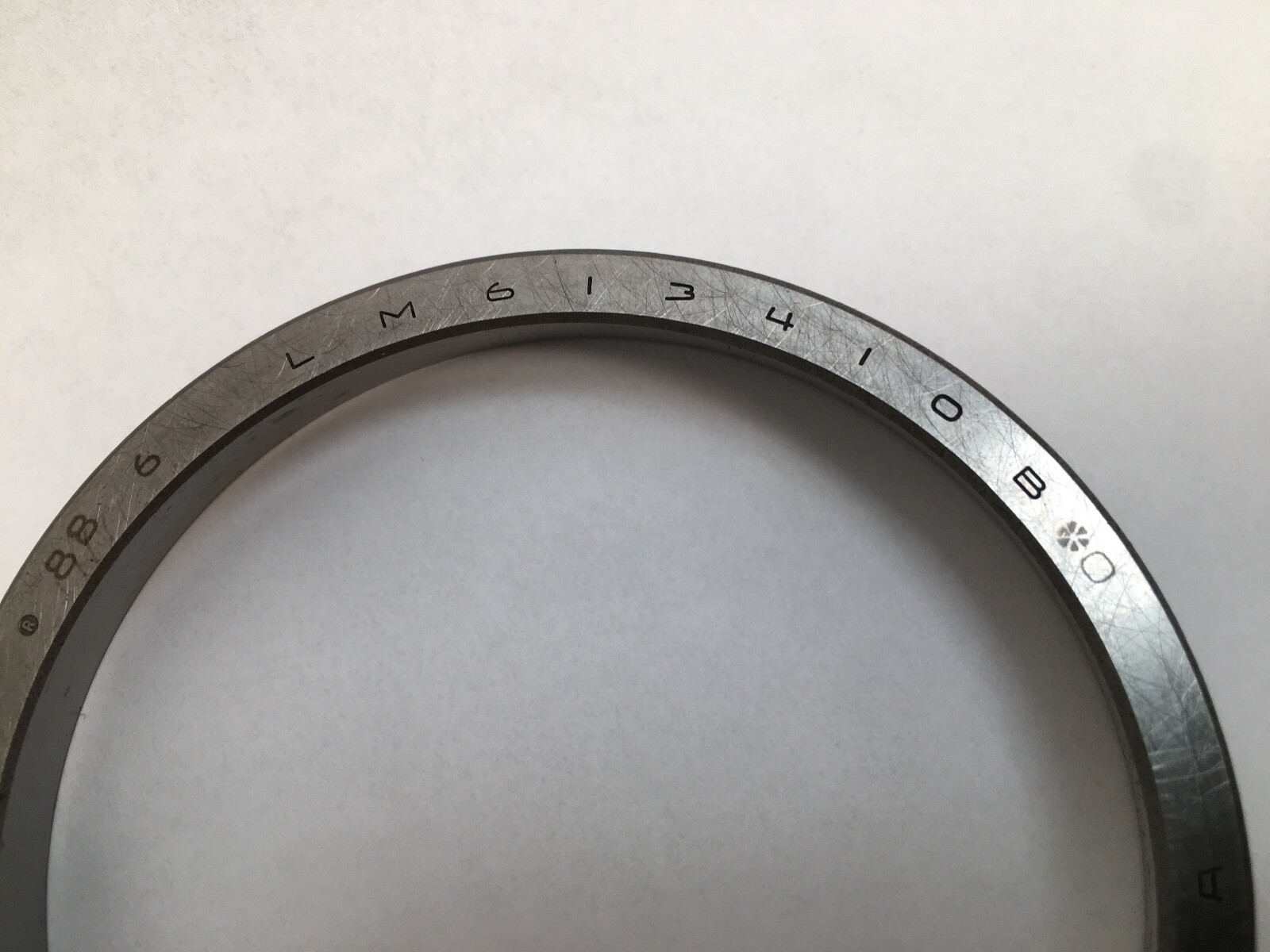

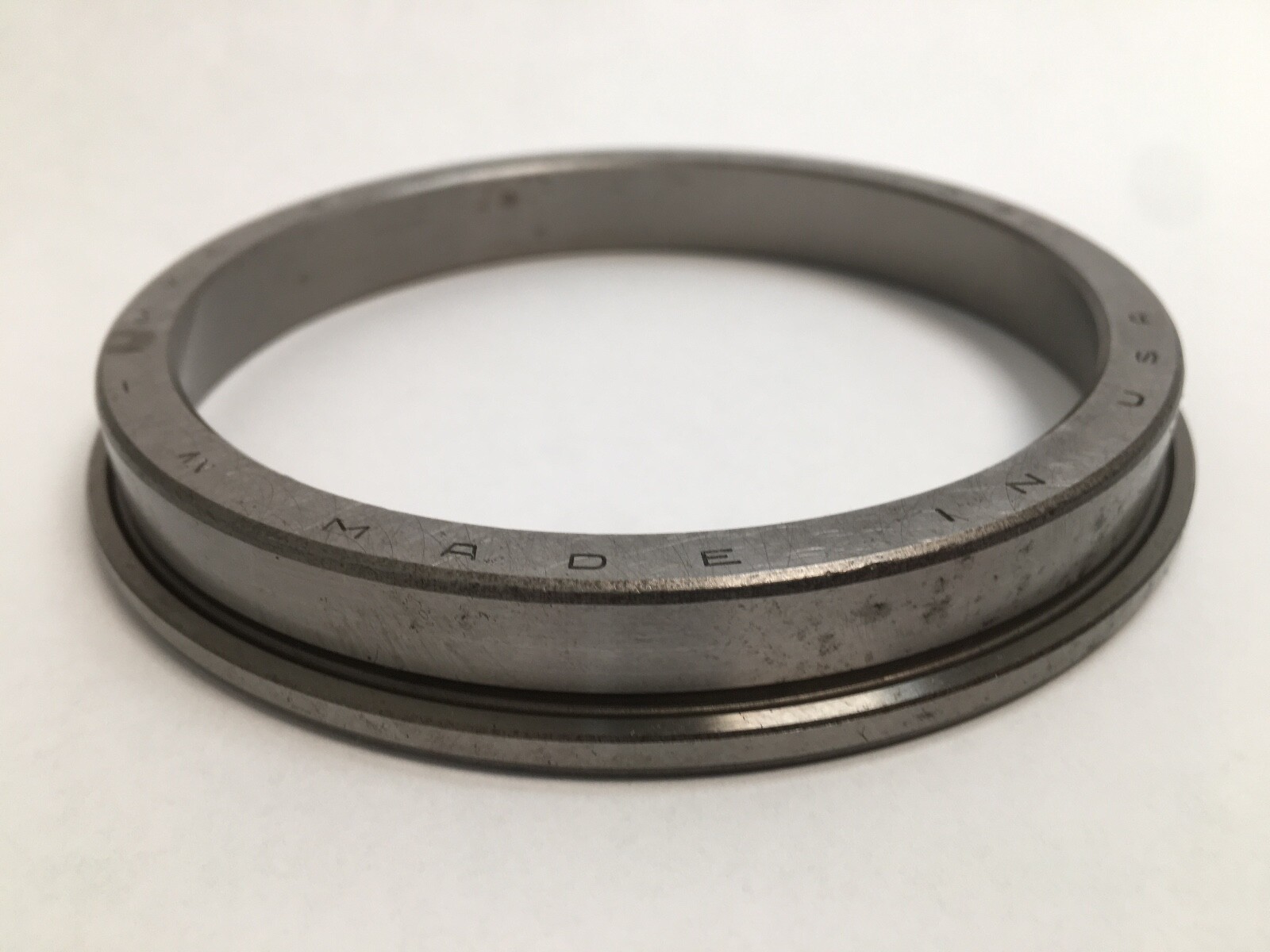

Flanged tapered roller bearing cup, 4.4375 in OD, 0.625 in wide, 4.6875 in flange OD. Timken LM613410B, mates with the LM613449 cone (2-3/4 in bore).
List Price
$223.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | LM613410B |
| Model | LM 613410 B |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.4375 in (112.713 mm) |
| Series | LM613400 |
|---|---|
| Industry Terms | tapered roller bearing cup, flanged cup, TSF, taper bearing race, outer ring |
| Flange Outer Diameter | 4.6875 in (119.063 mm) |
| Cup Flange Width | 0.1875 in (4.763 mm) |
| Mpn Variants | LM613410B, LM-613410-B, LM 613410 B, LM613410-B |
| Compatible With Replaces | Mates with Timken LM613449 cone (assembly LM613449/LM613410B) |
| Precision Class | Not specified |
| Harmonization Code | 8482.2 |
| Cup Part Number | LM613410B |
| Cup Width | 0.6250 in (15.875 mm) |
Timken LM613410B is a flanged cup (outer ring) for a single-row tapered roller bearing. Outside Diameter: 4.4375 in (112.713 mm). Cup Width: 0.625 in (15.875 mm). Flange Outside Diameter: 4.6875 in (119.063 mm). Cup Flange Width: 0.1875 in (4.763 mm). Precision Class: Not specified.
LM613410 — Timken cup number in the LM613400 series (LM = light-medium duty).
B — flanged cup, with a locating flange on the outside diameter.
Housing Backing Shoulder (Da): 4.35 in (110.49 mm). Max Housing Fillet Radius: 0.03 in (0.8 mm). The flange locates the cup axially against the housing face, for through-bored housings.
Unit Quantity: 1 Pc. Cup only: outer ring. Matching cone: Timken LM613449, 2-3/4 in bore, forming assembly LM613449/LM613410B. Made in USA, new old stock, open box.
MPN variants: LM613410B, LM-613410-B, LM 613410 B, LM613410-B. The flanged LM613410B is a different part from the plain LM613410 cup.
