Timken76520DDouble Cup – 14.0000 in Outside Diameter, 4.0000 in Width, Steel

Product Description

What this part is

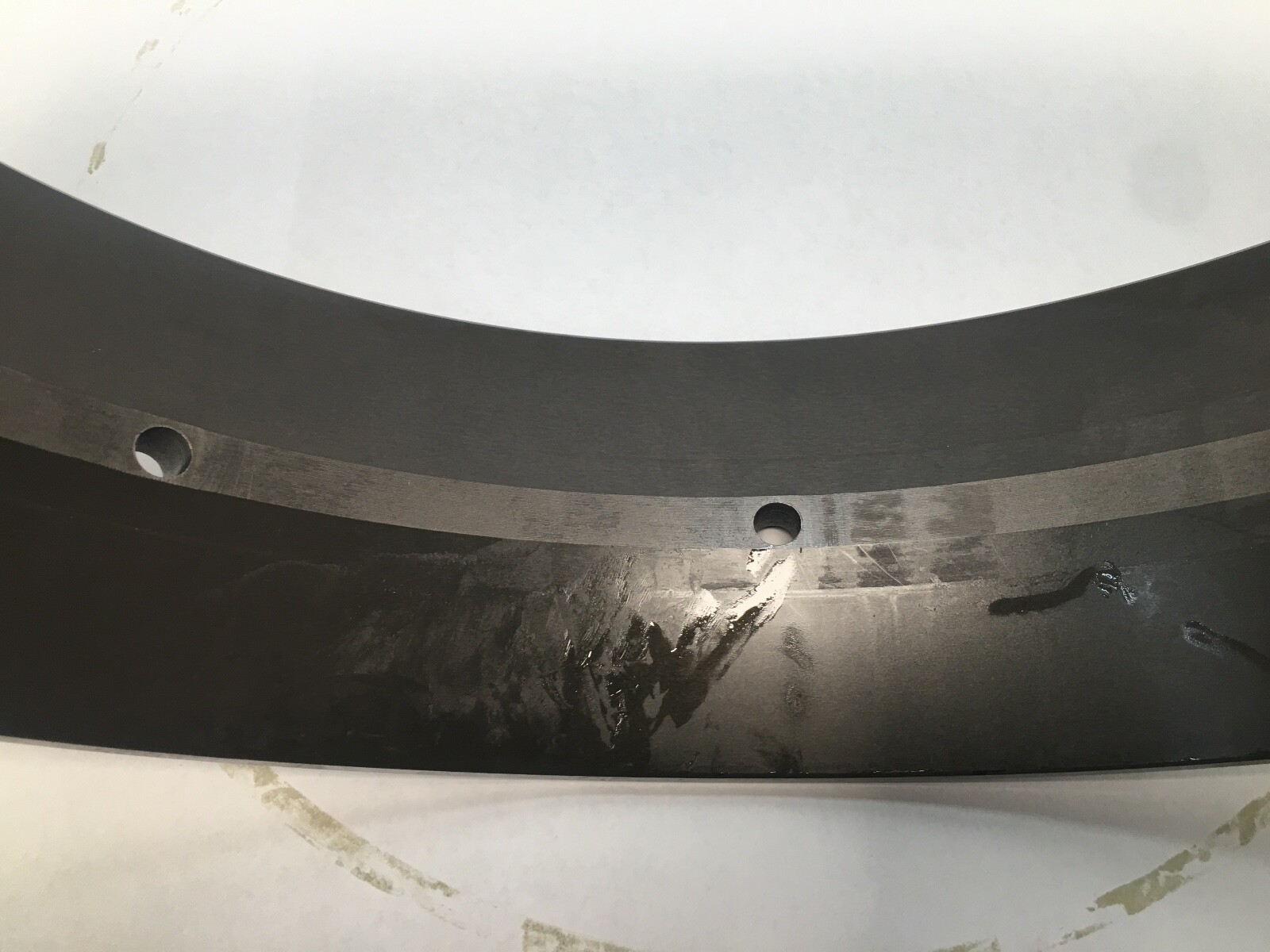

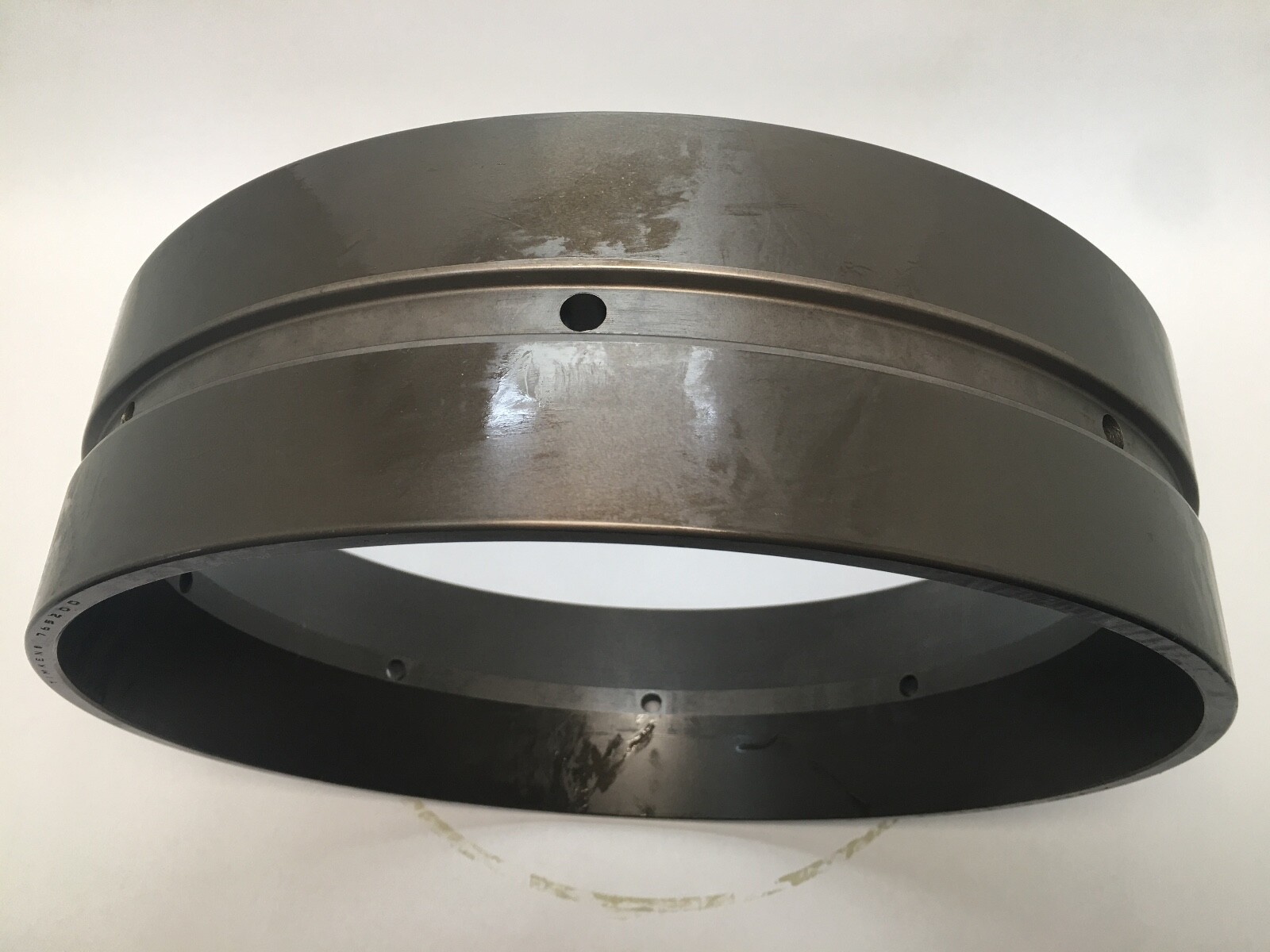

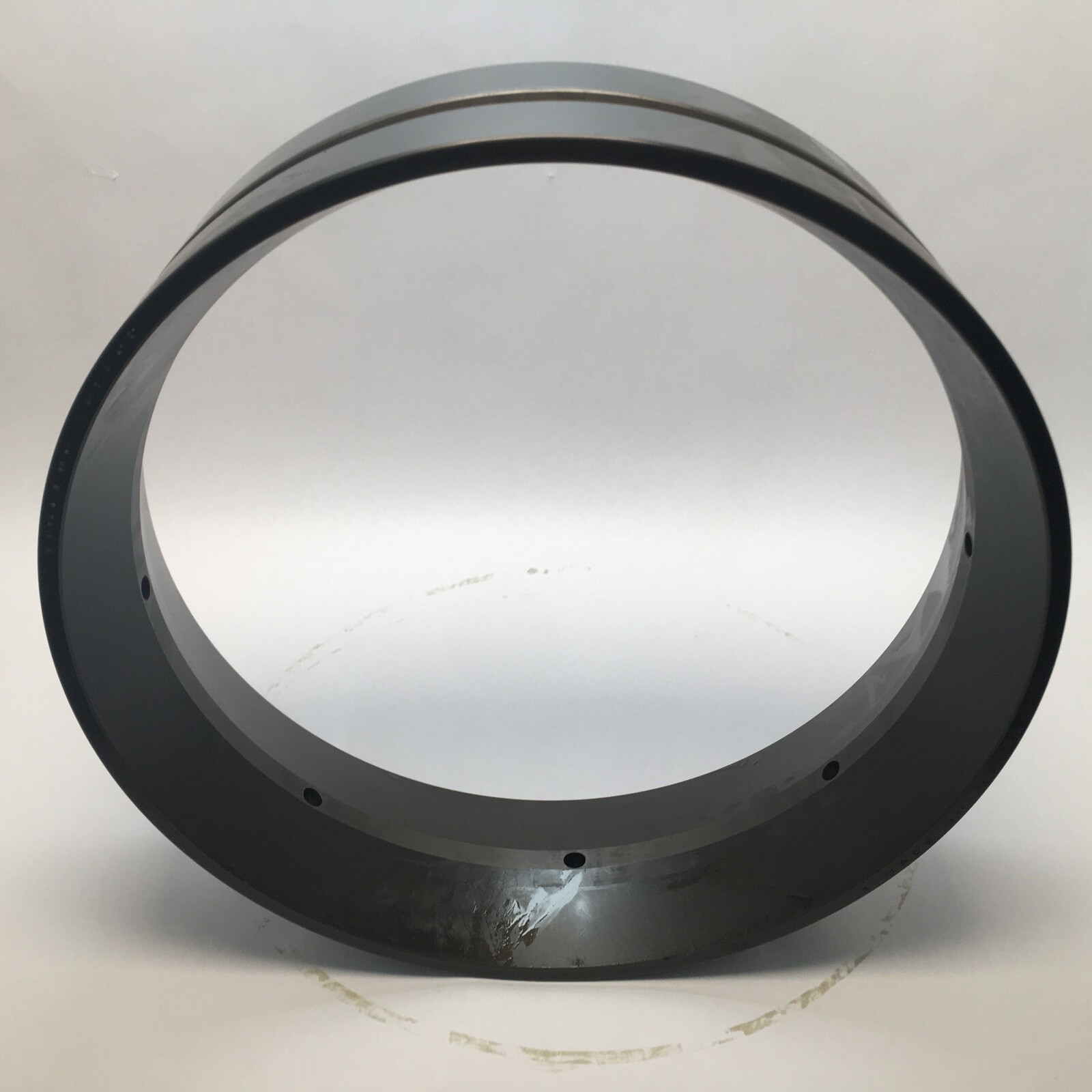

Timken 76520D double tapered cup for inch-series tapered roller bearings, a single outer ring carrying two opposed raceways. Outside Diameter: 14.0000 in. Overall Width: 4.0000 in. Series: 76500. Base Number: 76520. Bearing Material: Steel. Rolling Elements: Tapered Roller. Number Of Rows: 2. Design Units: Imperial.

Decoding the designation

76520 — Timken inch cup number in the 76500 series, fixing the raceway angle and the 14.0000 in outside diameter.

D — double cup. The outer ring carries two raceways in one piece and seats two cones.

What these specs mean in practice

A one-piece double outer ring sets both raceways in a single housing bore, holding the two rows on a common axis. That arrangement gives a wide effective bearing spread, which is what carries overturning moment on a shaft loaded well off centre.

At 14.0000 in outside diameter and 4.0000 in width this is a large-section cup for heavy industrial service, and the two-row geometry takes thrust in both directions.

Mounting data

The cup seats in a housing bore and can run fixed in that bore or be allowed to float axially within it. Precision Class: Not specified.

Quantity and configuration

Unit Quantity: 1 Pc. One double cup, supplied as a single outer ring.

Interchange guidance

Searchable variants of this number: 76520D, 76520-D, 76520 D.
