Availability:
1 in stock
Double cup (single outer race, two raceways) for a TDO tapered roller assembly. 11.1250 in outside diameter, 3.2500 in cup width, oil holes and circumferential groove. Double cup only. 1 Pc.
List Price
$1,772.09
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Timken |
|---|---|
| MPN | 67920CD |
| Model | 67920-CD |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 11-1/8 in |
| Material | Steel |
|---|---|
| Condition | New |
| Series | 67900 |
| Relubrication | Oil holes plus circumferential groove in the outer race |
| Base Number | 67920CD |
| Industry Terms | double cup; TDO double outer race; two-row taper cup; tapered bearing outer race; taper roller double race; 11-1/8 OD taper cup |
| Common Misspellings | 67920CD; 67920C D; 6792CD; 67902CD; 67920-C-D; taper rolller double cup; tappered roller cup |
| Application Types | Mill roll necks; crane and hoist sheaves; large wheel hubs; kiln trunnions; heavy conveyor pulleys |
| Condition Note | Made In USA |
| Mpn Variants | 67920CD; 67920-CD; 67920 CD; NA67920CD; 67920CD-2; 67985-67920CD |
| Distributor Stock Numbers | UPC 053893375441 |
| Compatible With Replaces | Matching cone: Timken 67985 (two required). Assembly: 67985/67920CD, 8.1250 x 11.1250 x 4.0000 in. Timken assembly numbers 67985-90142, 67985-90143. Related size: cone 67982 (67982/67920CD) |
| Arrangement Configuration | Double cup only (one outer ring, two raceways). Takes two cones; cones and spacer supplied separately. |
| Number Of Rows | 2 raceways in one ring |
| Harmonization Code | 8482.20.00 |
| Mounting Arrangement | TDO – Tapered Double Outer, two cone rows back to back |
| Cup Part Number | 67920CD |
| Design Units | Inch (Imperial) |
| Bearing Class | Class 2 |
| Bearing Material | Chrome alloy bearing steel |
| Cup Width | 3.2500 in |
| Part Number | 67920CD |
| Cross Reference 1 | 67985/67920CD |
|---|---|
| Cross Reference 2 | 67985-90142 |
| Cross Reference 3 | 67985-90143 |
| Cross Reference 4 | 67982/67920CD |

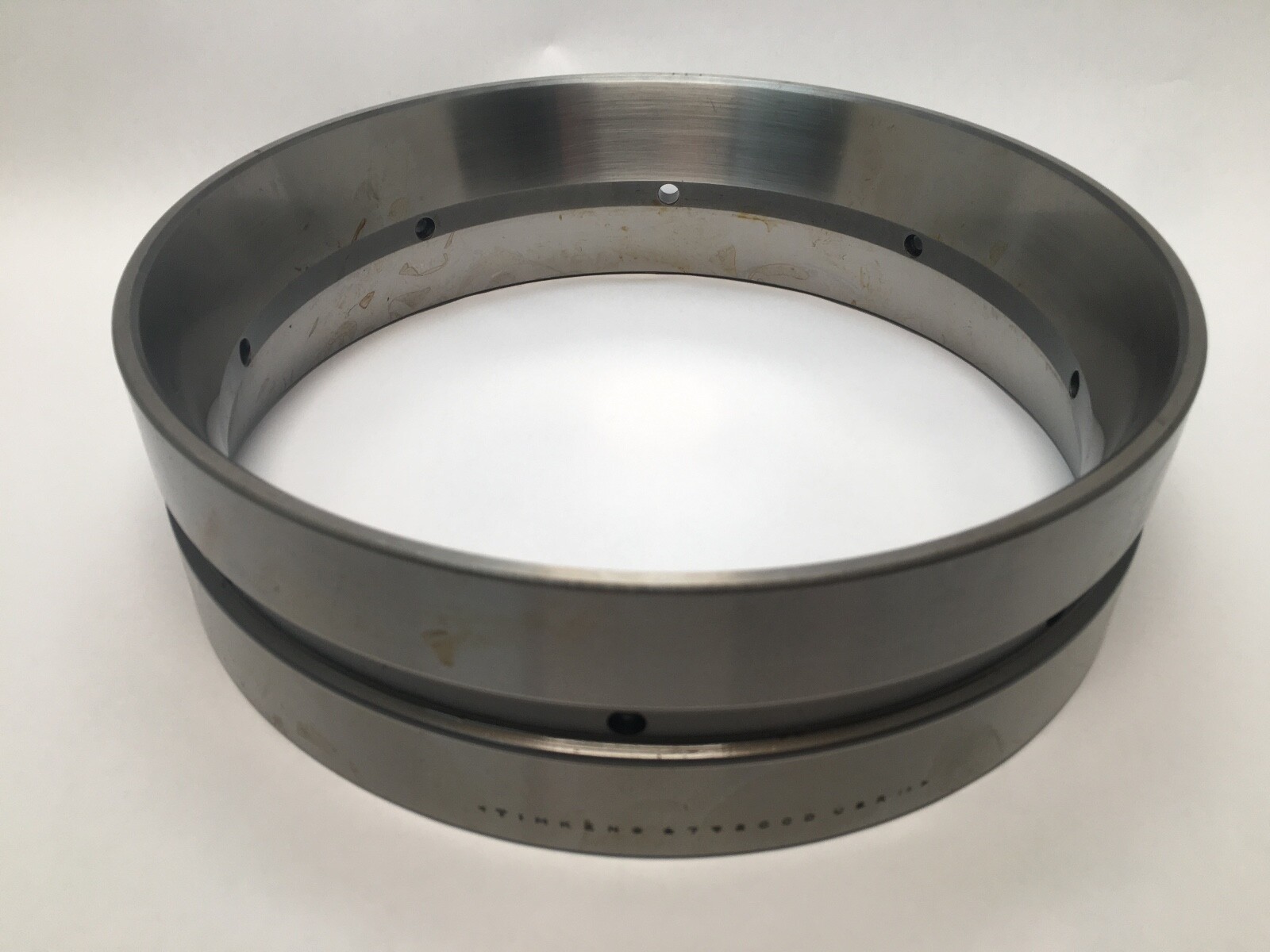

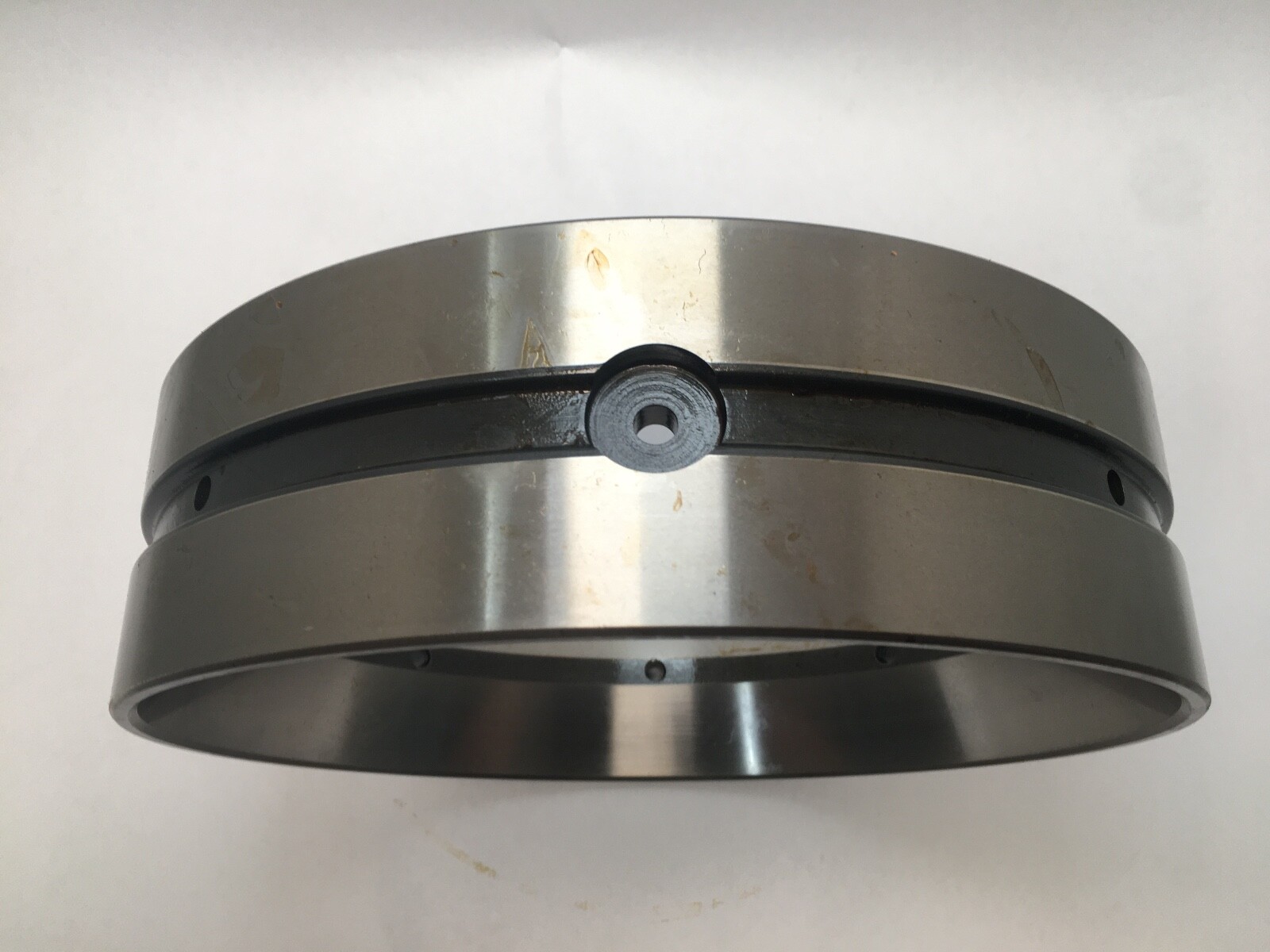

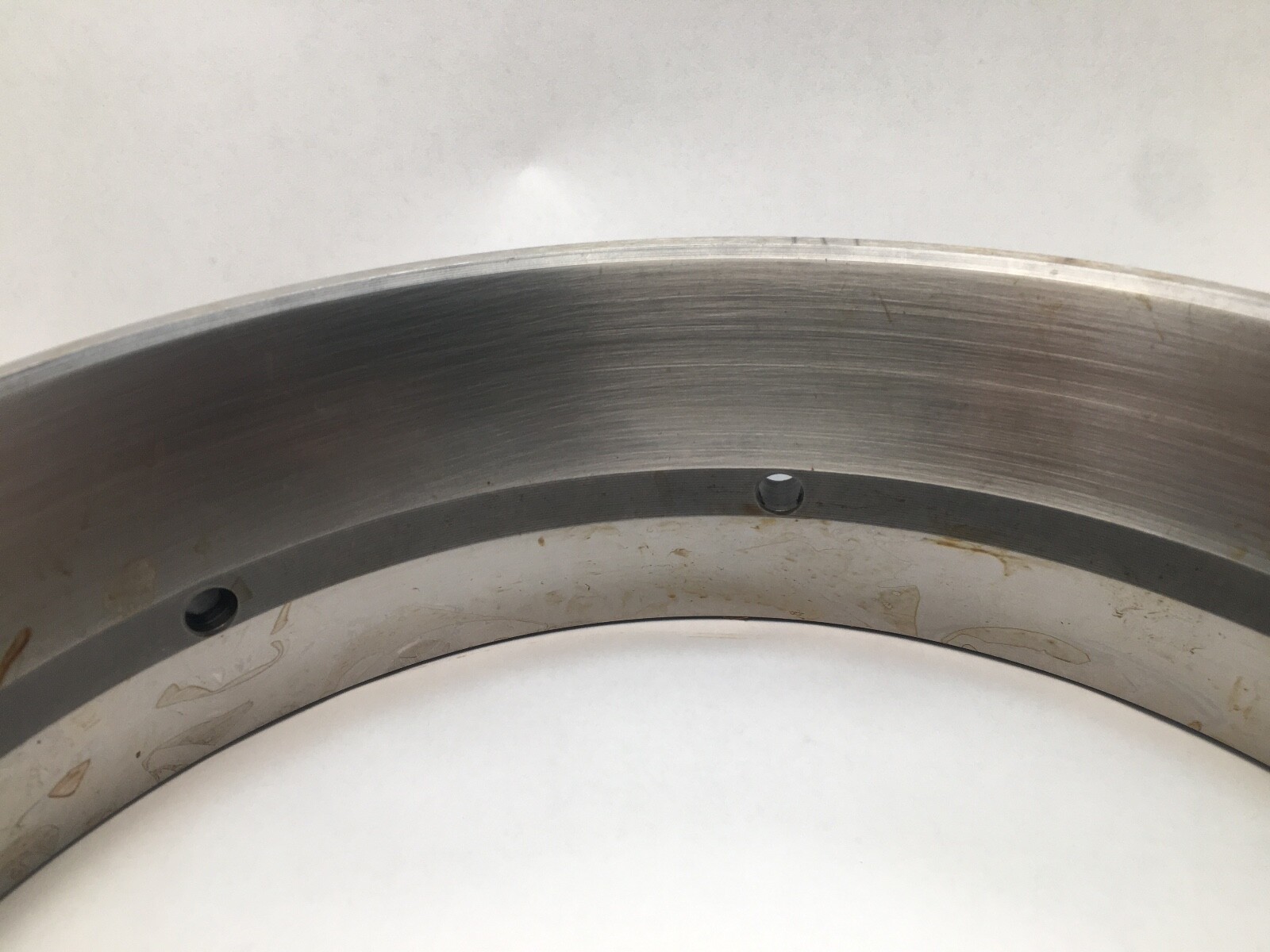

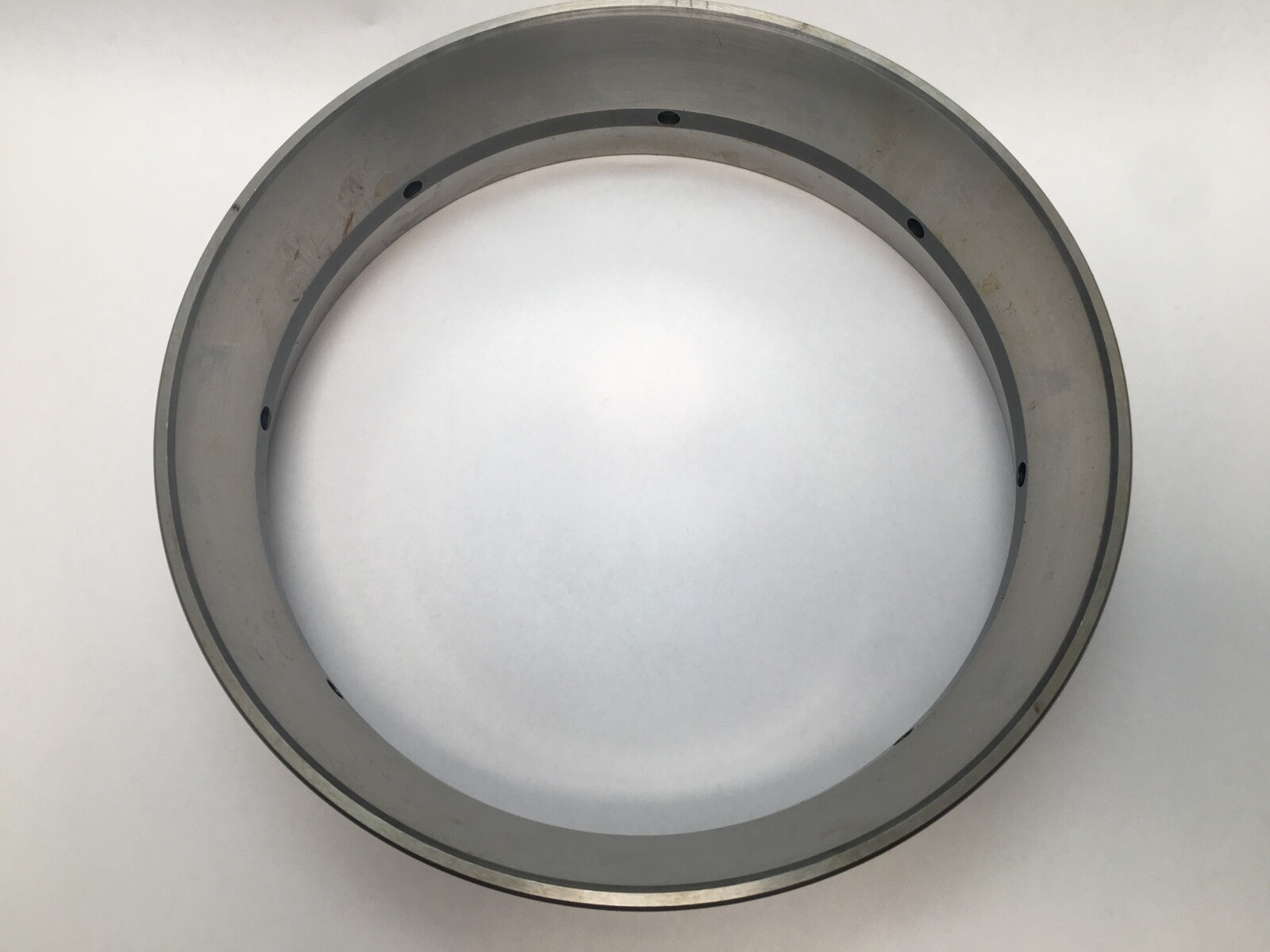

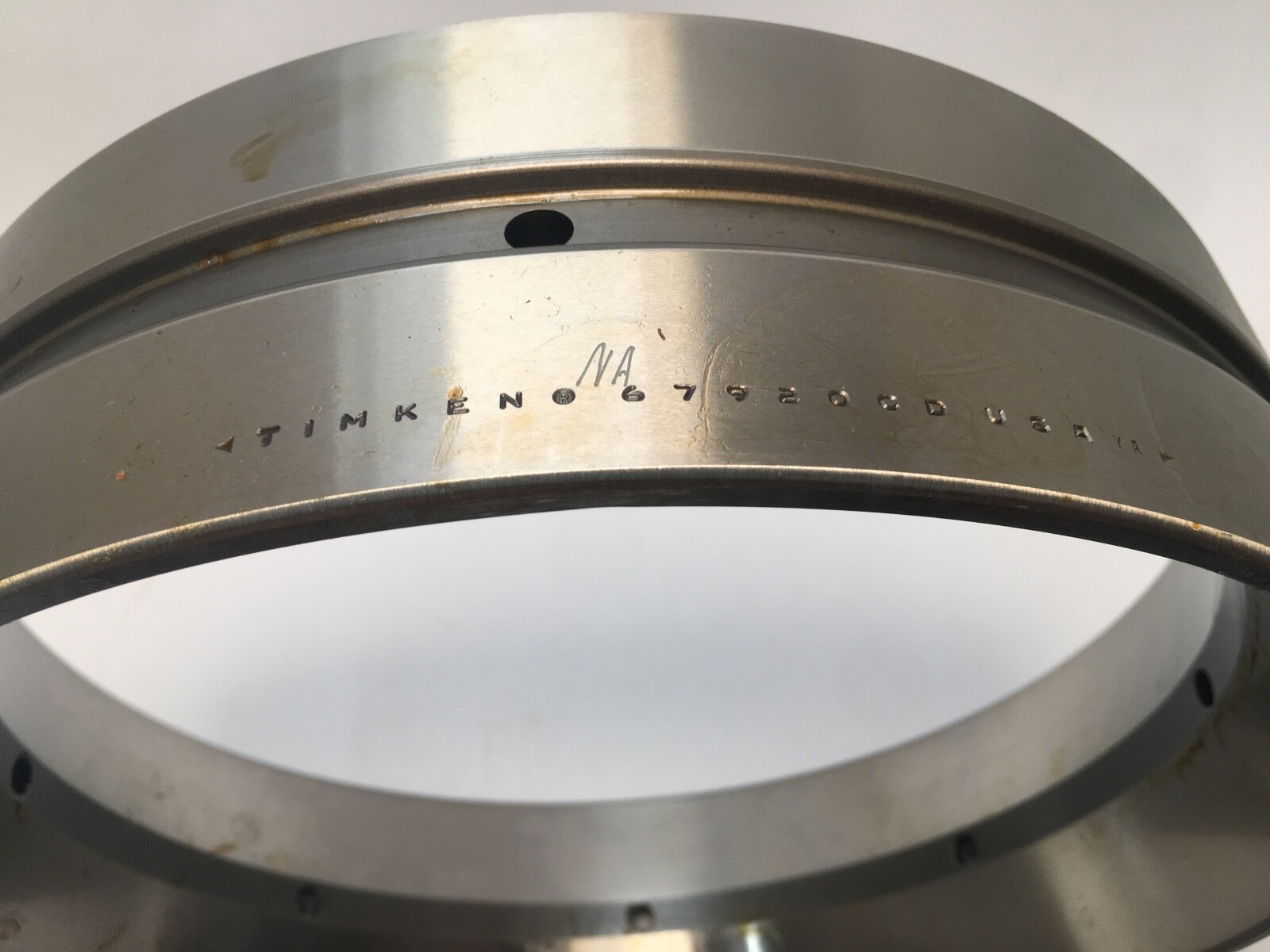

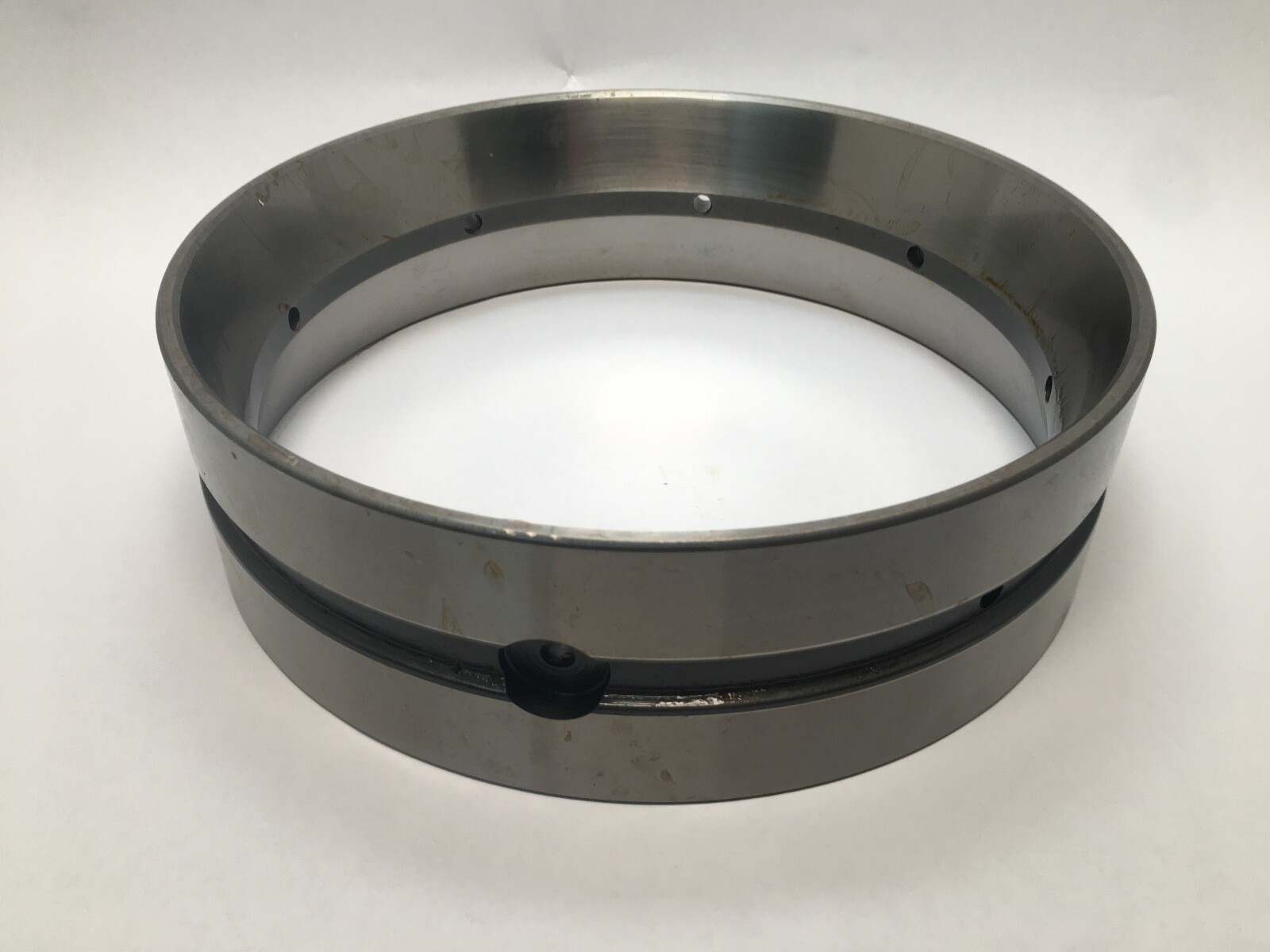

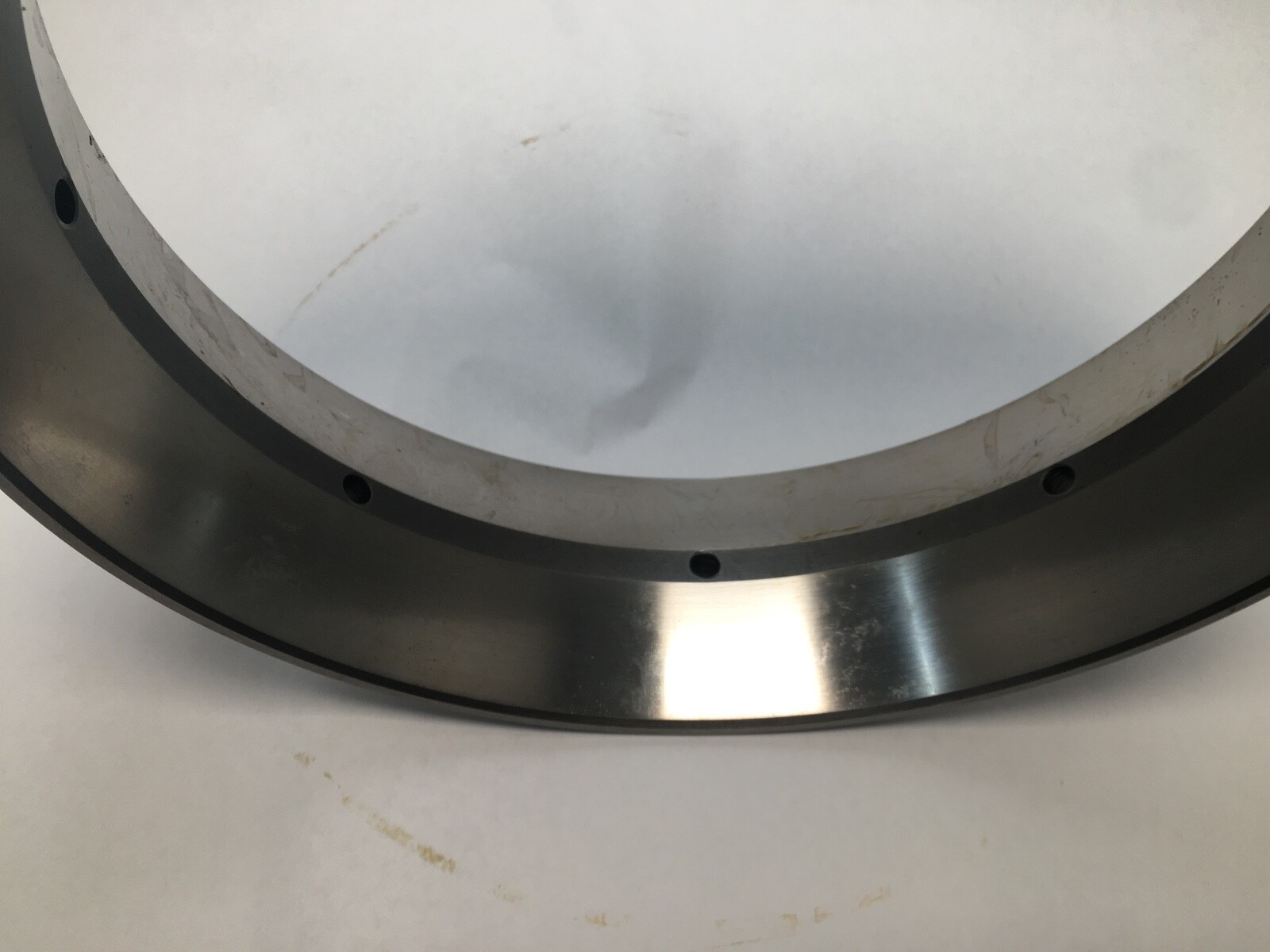

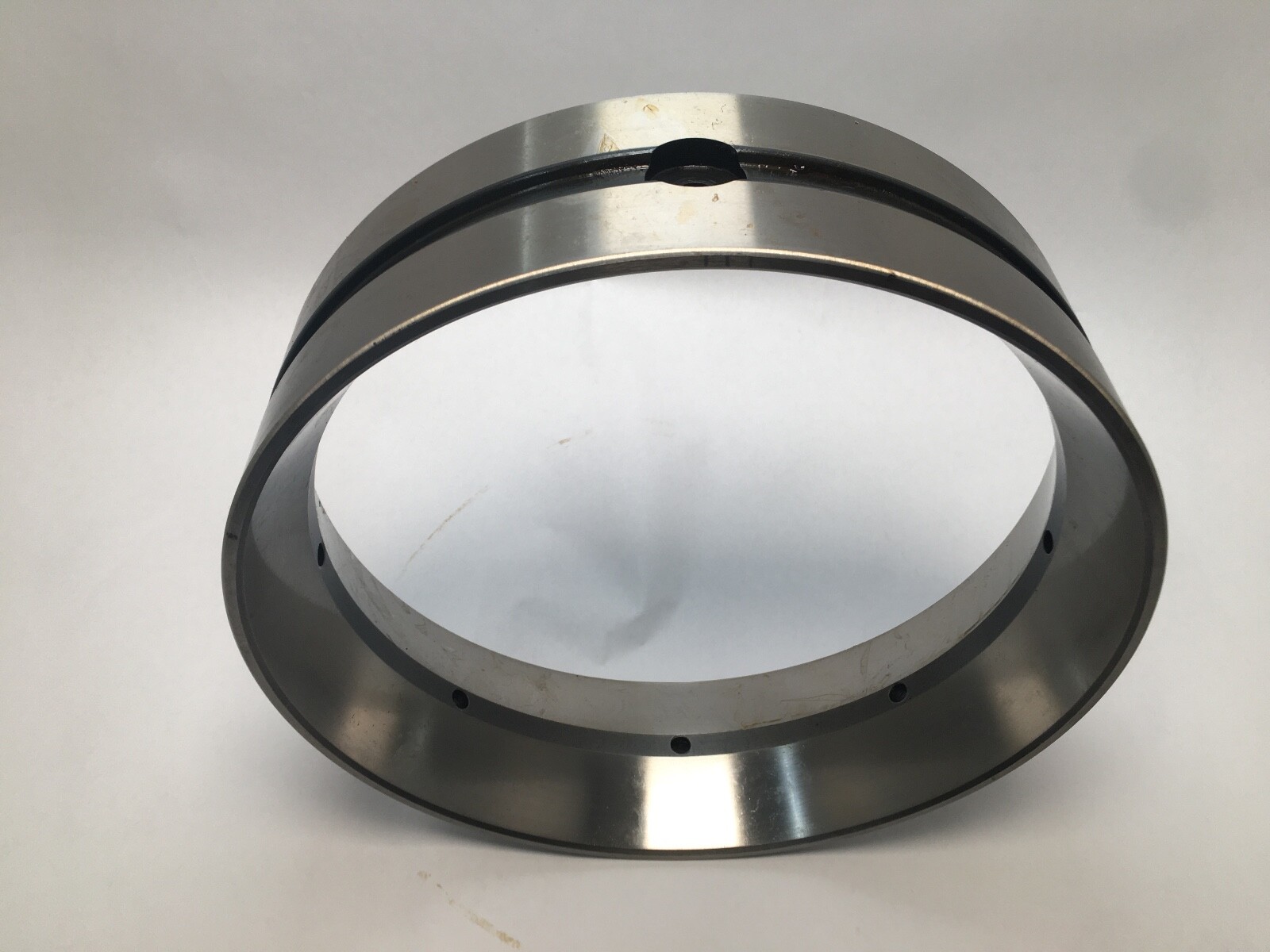

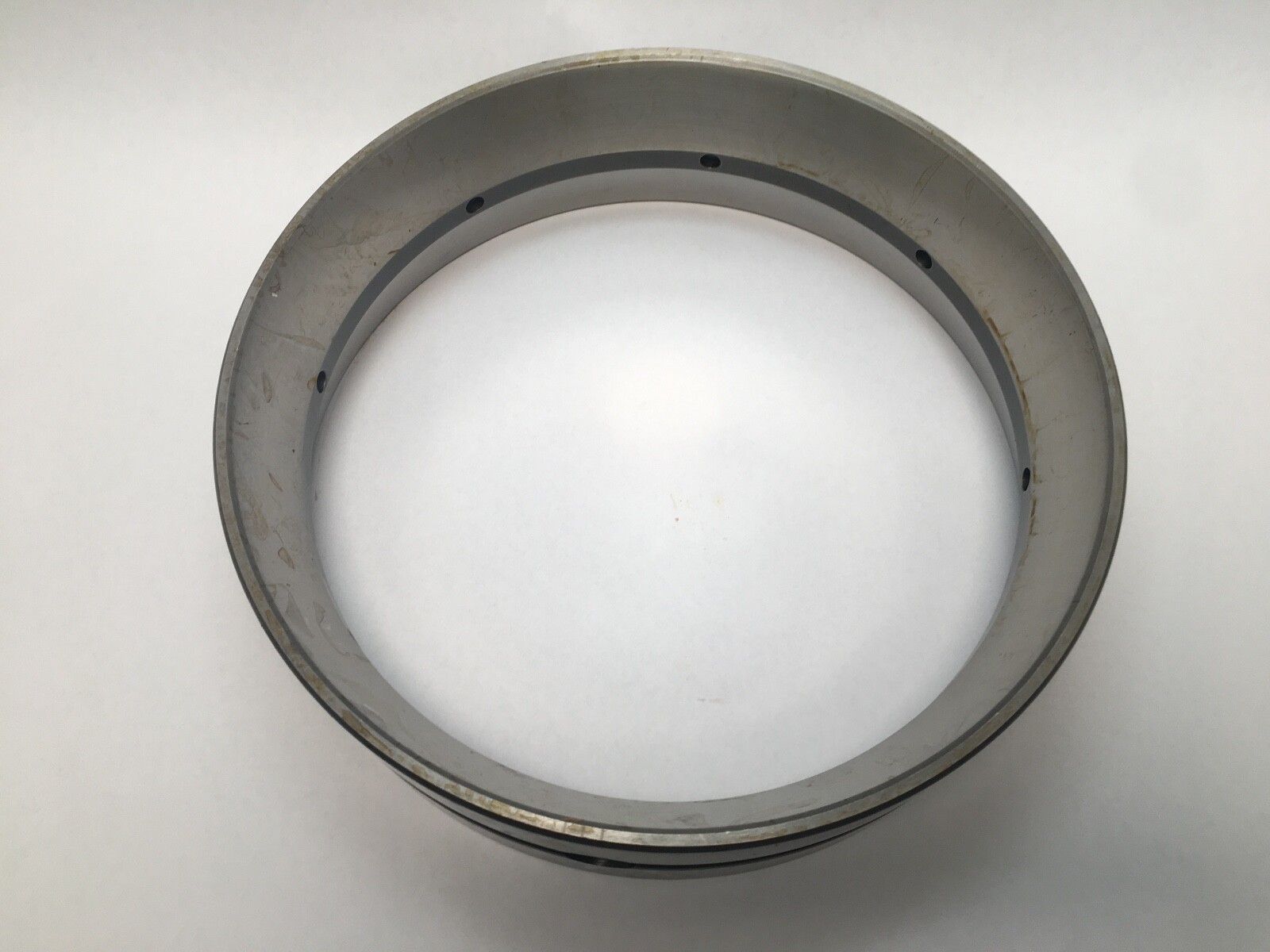

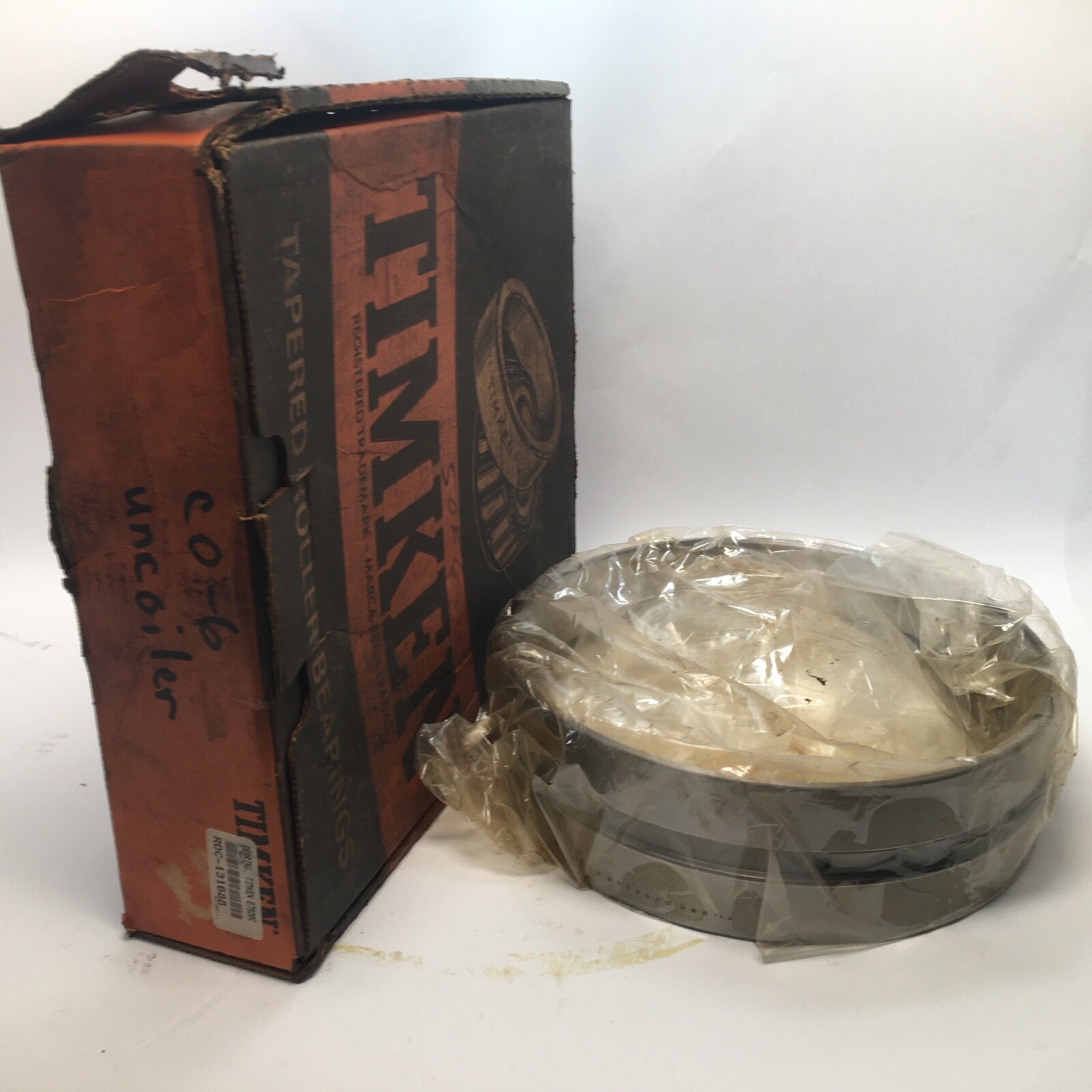

A Timken 67920CD tapered roller bearing double cup — one outer race carrying two tapered raceways, ground with oil holes and a circumferential lubrication groove. Double cup only. It takes two cones; the matching cone is the Timken 67985, used in pairs.
The D suffix on a Timken cup number marks a double cup: a single ring with two raceways instead of one. 67920 is the base cup number and the C denotes the lubrication provision in the outer race. Written as 67985/67920CD, the number describes a TDO assembly — Tapered Double Outer — two single-row cone assemblies seated back to back inside this one cup.
A TDO arrangement in a double cup gives thrust capacity in both directions and a wide effective bearing spread inside one housing bore, which is why it appears in mill roll necks, crane sheaves and large wheel hubs where a single row would need a second housing seat. Because both raceways are ground in one ring, the two rows stay square to each other without shimming the housing. The oil holes and groove let lubricant reach both raceways from a single housing port.
Outside diameter: 11.1250 in / 282.575 mm
Cup width (C): 3.2500 in / 82.550 mm
Raceways in this ring: 2
Series: 67900 inch tapered, TDO double cup
Lubrication provision: oil holes plus circumferential outer groove
Material: chrome alloy bearing steel
Parent assembly 67985/67920CD: 8.1250 × 11.1250 × 4.0000 in overall, 2 cones plus this cup
1 Pc — one double cup. The two cone assemblies and any spacer are separate components.
67920CD is the Timken double-cup number and carries unchanged across the inch tapered interchange. The 67920 without the D is a single cup with one raceway and a different width — a related size, not a substitute. Cone 67982 also runs against this double cup as 67982/67920CD; it differs in bore from the 67985, so the two assemblies are related sizes rather than equivalents.
