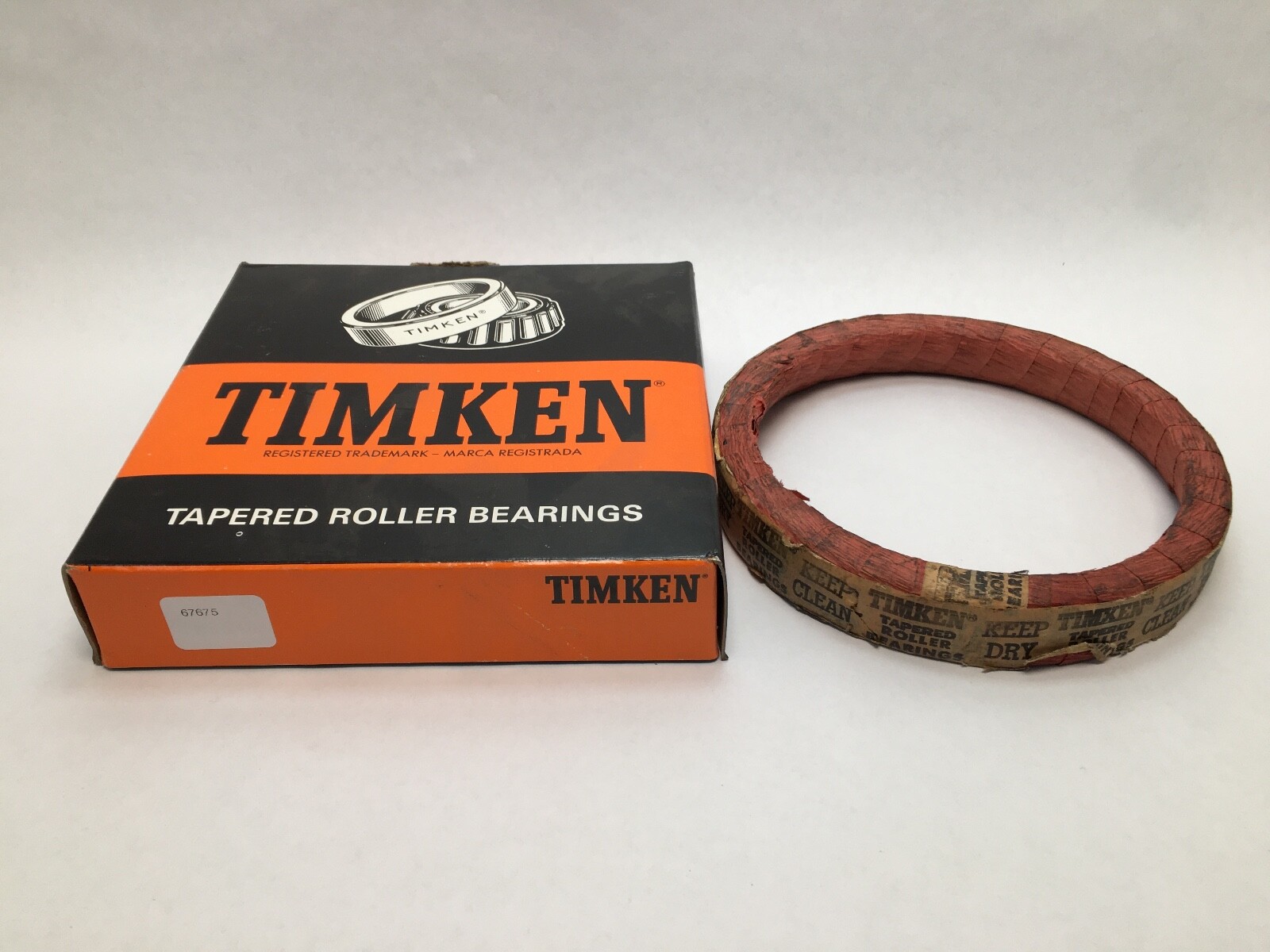

Timken67675Imperial Tapered Roller Bearing Cup / Outer Race, 6.7500 in / 171.450 mm OD x 0.9948 in Wide, Plain Single Cup – 1 Pc

Product Description

What this part is:

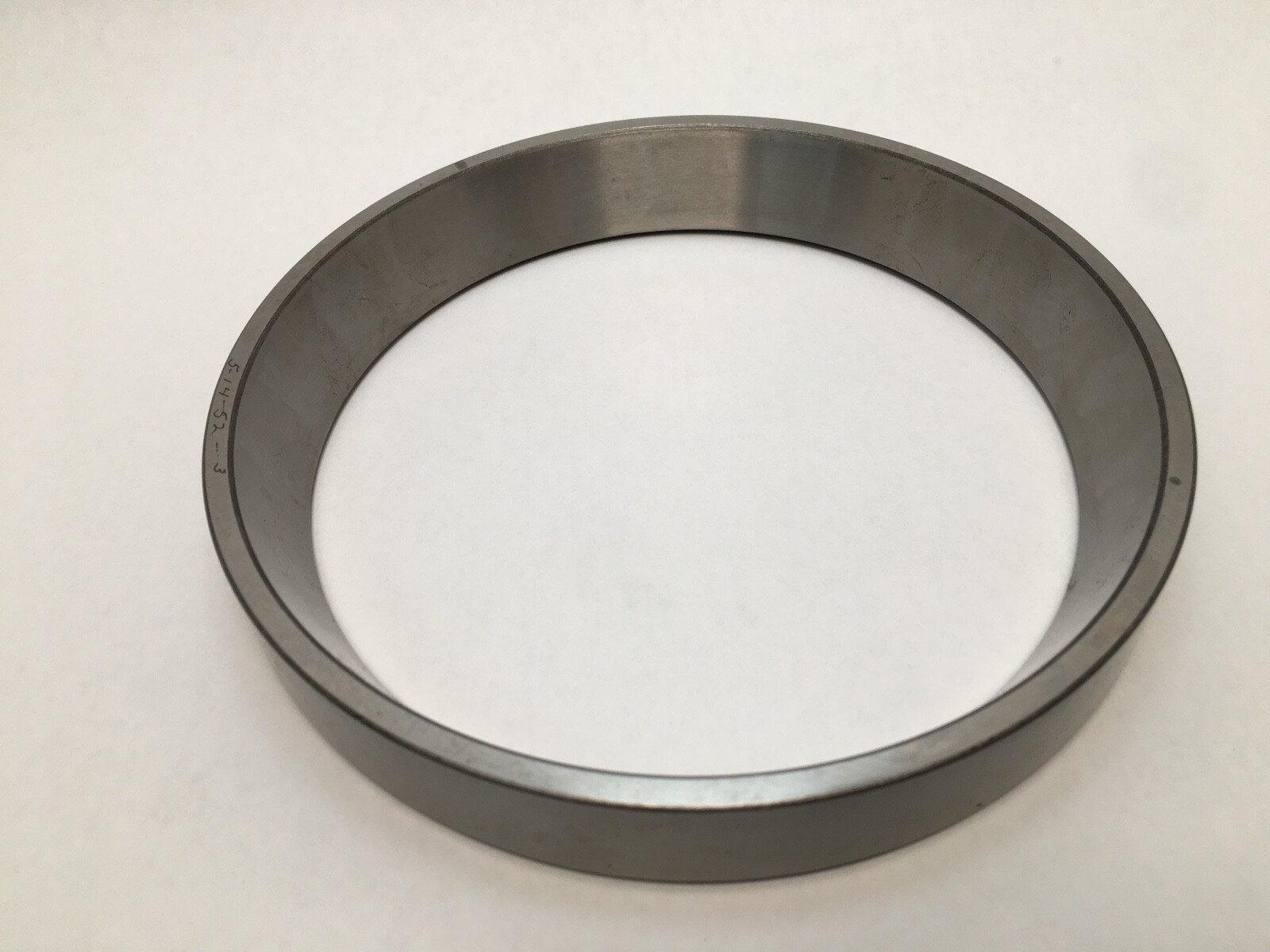

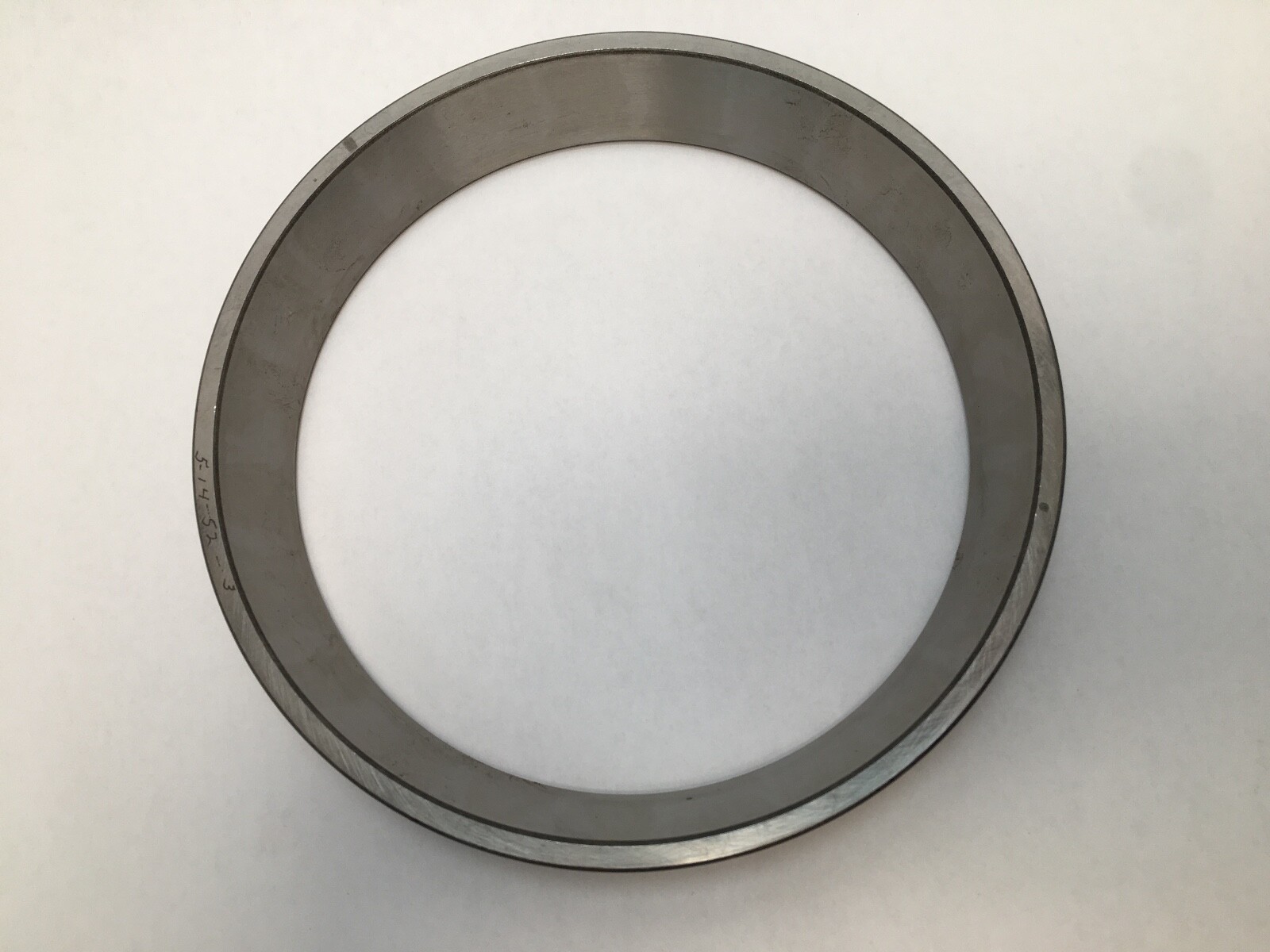

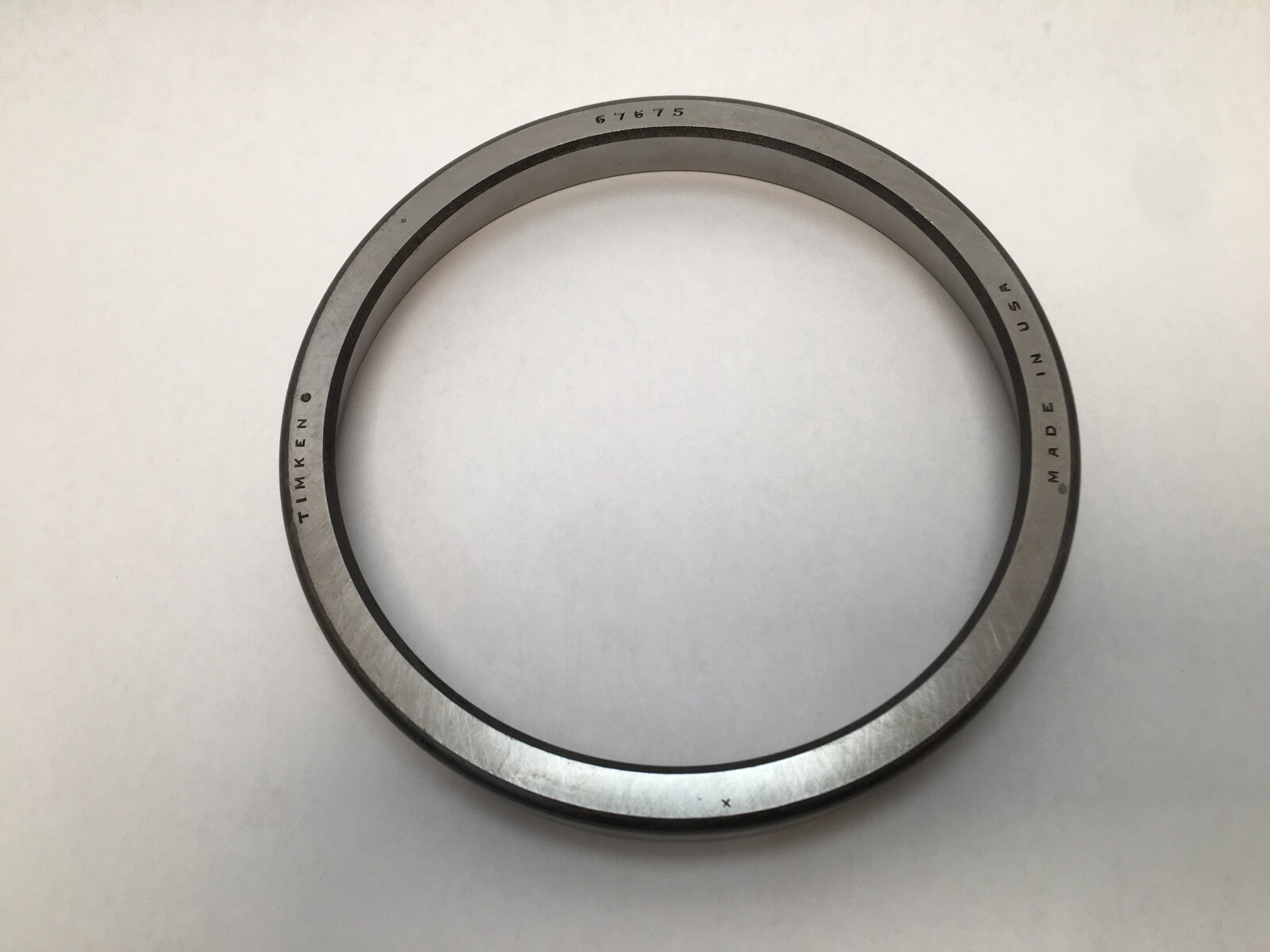

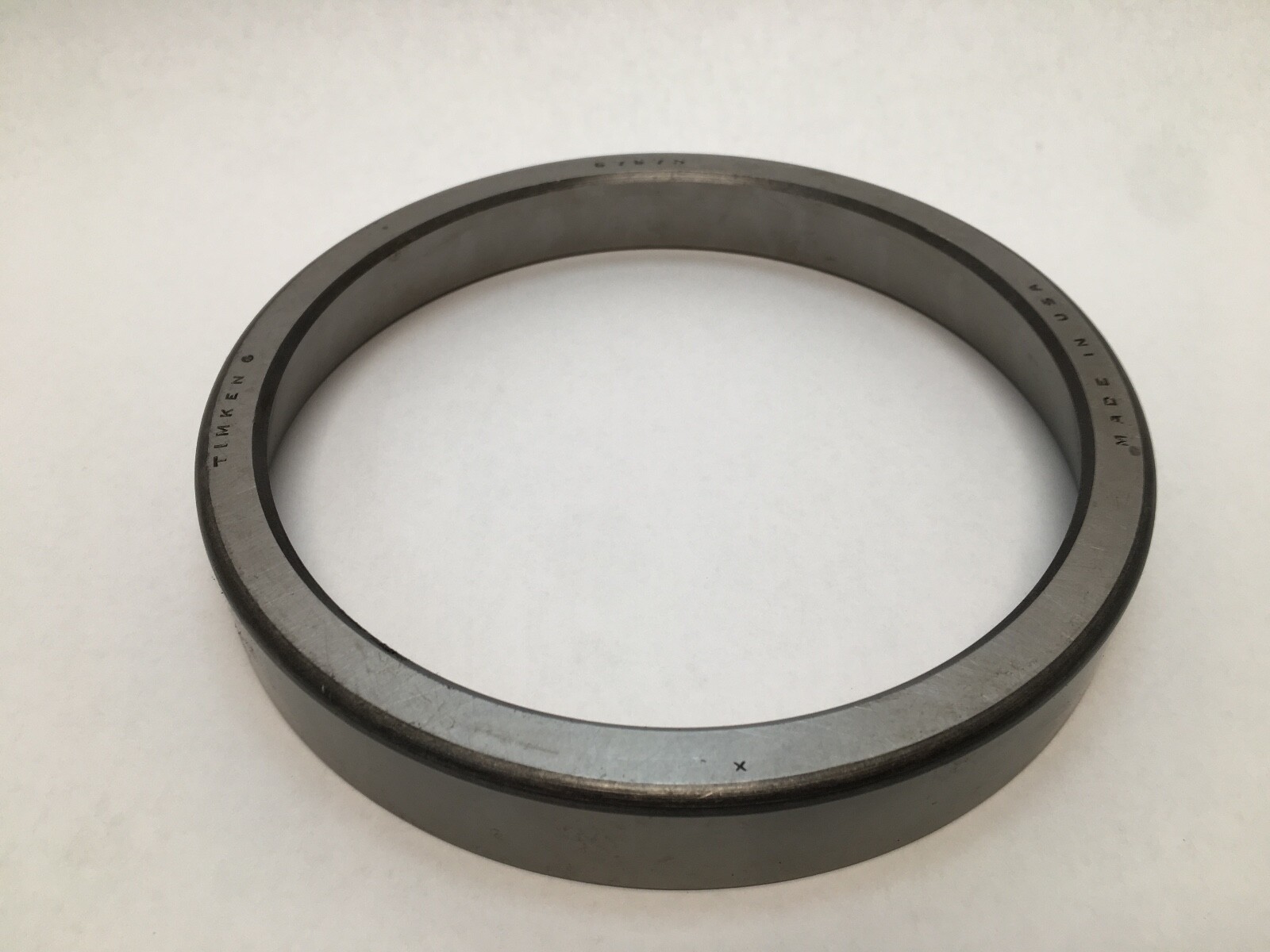

The Timken 67675 is an imperial tapered roller bearing cup, the outer race only, in the plain unflanged single-cup TS design. Outside Diameter: 6.7500 in (171.450 mm). Cup Width: 0.9948 in (25.268 mm).

Decoding the designation:

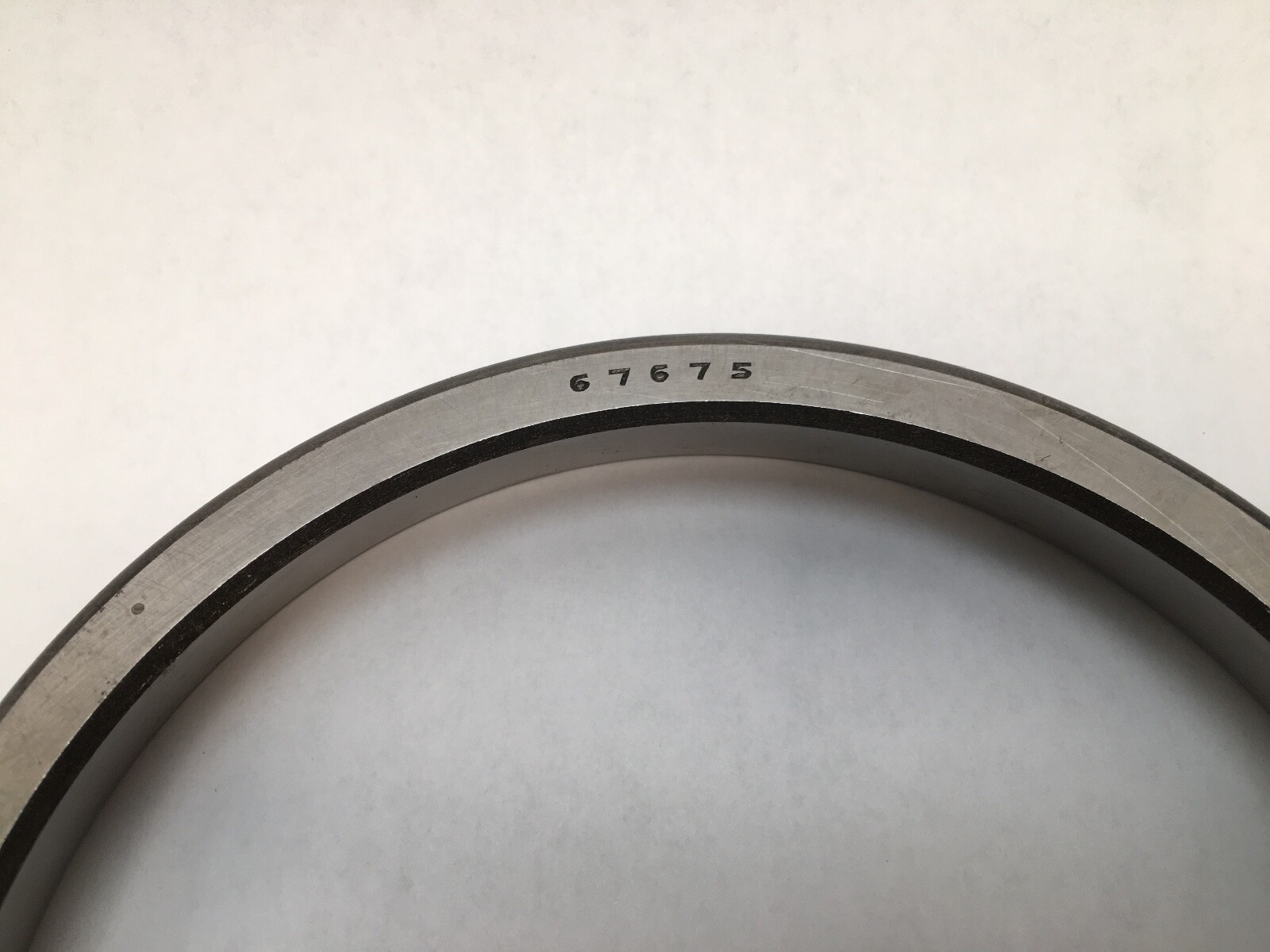

67675 — Timken imperial single-cup number in the 676xx / 674xx family. Its published mating cones are 67425, 67434 and 67437; 67425 gives a 4.2500 in (107.95 mm) shaft bore.

Specifications:

Bearing Type: Tapered roller bearing cup (outer race only). Outside Diameter: 6.7500 in (171.450 mm). Cup Width: 0.9948 in (25.268 mm). Cup Design: Plain single cup, TS. Series: 676xx imperial tapered roller series. Design Units: Imperial. Bearing Material: High Alloy Steel. e Factor: 0.47. Y Factor: 1.27. Geometry Factor (Cg): 0.0987. Weight: 5.3 lb (2.40 kg). Arrangement: Single row, cup only. Unit Quantity: 1 Pc.

Dimensions and mounting:

Housing Backing Shoulder Diameter (Da): 6.48 in (164.10 mm). Housing Backing Shoulder Diameter (Db): 6.14 in (155.96 mm). Maximum housing fillet radius: 0.130 in (3.30 mm).

Compatibility and replacement:

Cup only. Mating cones: Timken 67425, 67434 and 67437. The 67675 cup number is built by Bower/BCA, Koyo, NTN and Federal-Mogul to the same envelope. Other 676xx cups are related sizes with a different outside diameter or width.

Frequently asked questions:

Is the Timken 67675 a cup or a complete bearing?

A cup only, the outer race. The mating cones are separate parts.

What are the dimensions of the Timken 67675?

6.7500 in (171.450 mm) outside diameter and 0.9948 in (25.268 mm) width.

Which cones mate with the 67675?

Timken 67425, 67434 and 67437.
